Rockstar Android Testing (Mobile TechCon Munich 2014)
3 likes2,555 views
The document provides an overview of mobile app testing methodologies and tools, highlighting the expertise of Danny Preussler in Android engineering and testing frameworks. It discusses various testing strategies such as instrumentation tests, UIAutomator, Robotium, and their applications along with performance metrics for mobile apps. The content also emphasizes the importance of speed, reliability, and scalability in testing, while mentioning popular open-source tools used by industry leaders.
Rockstar Android Testing (Mobile TechCon Munich 2014)
- 1. Danny Preussler | Groupon Rockstar Android Testing
- 2. about me • Android Engineer @ Groupon • Lead Engineer Android @ ebay Kleinanzeigen • Team Lead Mobile @ Cortado • C++ Developer @ PSI AG • Started career as developer @ Alcatel • Articles in: android360, mobile Technology, Java Magazin • Speaker: DroidCon.de/nl, CONFESS, Blackberry DevCon Believer in Testing
- 3. Sources: Internal Data; iTunes ranking for US stores available here - https://itunes.apple.com/WebObjects/ MZStore.woa/wa/viewFeature?id=500873243&mt=8&v0=www-itunes25Bcountdown-appstore Nearly 70 million people worldwide have downloaded our mobile app to date; 9 million in Q4 2013. One of the 25 most downloaded free apps of all time Nearly 50% of our global transactions completed on a mobile device in December 2013 a mobile company Our mobile app is available in 43 countries
- 4. Android Testing? Android Firewall by Uncalno, CC BY 2.0 flickr.com/photos/uncalno/8538679708 Robotium Appium Calabash Robolectric Espresso Cloud Crowd Real Device? uiautomator monkeyrunner Emulator Selenium? InstrumentationTest
- 5. Rockstar Testing? • Fast! Faster! • Reliable! • Scalable! Acrassicau 6 by Bruce Martin, CC BY 2.0, https://www.flickr.com/photos/shotbydarko/4692892946/
- 6. InstrumentationTests vs uiautomator • Base for most frameworks • Understand the differences!

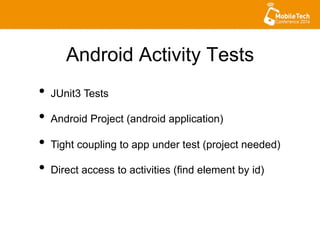

- 7. Android Activity Tests • JUnit3 Tests • Android Project (android application) • Tight coupling to app under test (project needed) • Direct access to activities (find element by id)
- 8. Android Activity Tests public class MyActivityTest extends ActivityInstrumentationTestCase2<MyActivity> { ... public void testButtons() { MyActivity activity = getActivity(); Button view = (Button) activity.findViewById(R.id.button1); assertEquals("My Button", view.getText()); }
- 9. Robotium • Based on Intrumentation Tests • Removes complexity • Very popular (used to be the standard)
- 10. Robotium public class SimpleActivityTest extends ActivityInstrumentationTestCase2<MyActivity> { ... public void setUp() throws Exception { solo = new Solo(getInstrumentation(), getActivity()); } public void testPressButton() throws Exception { solo.clickOnButton("press me"); assertTrue(solo.waitForText("New Window"));
- 11. UIAutomator • JUnit3 Tests • Java Project • Simple API • Can access everything on device a user can • Loose coupling to app under test
- 12. UIAutomator public class LaunchSettings extends UiAutomatorTestCase { public void testPressButton() throws UiObjectNotFoundException { getUiDevice().pressHome(); ... find and start app UiObject button = new UiObject( new UiSelector().text(“clickMe"); button.clickAndWaitForNewWindow();
- 13. UIAutomator • Blackbox Testing • Can only access what is visible • API 16+
- 14. InstrumentationTests vs uiautomator • Understand the differences Device Application Under Test uiatuomator Device Instrumentaion Application Under Test apps apps apps
- 15. Other Basics... • Calabash: BDD Given I am a valid user And I press "Login" Then I see "Welcome to coolest app ever” • Robolectric: unit testing • Monkey Runner
- 16. That‘s not rock star testing! Guitar Hero!!! By JoshBerglund19, CC BY 2.0
- 17. What about Selenium? • Any language • Any test framework • Selenium Client API (Json Wire Protocol) • Scale and parallize via Selenium Grid In Theory:
- 18. • Used by eBay, Facebook source: https://github.com/selendroid/selendroid/blob/master/AUTHORS • Open Source
- 20. Appium • Used by Expedia, LinkedIn, Brands4friends • Rising Star • Open Source • Cross platform • Based on ui automator
- 22. • Used by: Groupon • Open Sourced recently • Remote Control your tests RoboRemote
- 23. RoboRemote Architecture Page 23 Computer/Build Server Device/Emulator Application Under Test RoboRemoteServer Robotium UIAutomatorClient Legend Groupon Test Engineering Application Developer/Tester Open Source RoboRemoteClient UIAutomatorServer UIAutomator Tests
- 24. RoboRemote Sample • RoboRemote: UIAutomator UiObject myLabel = new UiObject( new UiSelector() .call(“className”, ”android.widget.TextView”) .call(“text”, “My Text”)); myLabel.call(“click”); UiObject myLabel = new UiObject( new UiSelector() .className(”android.widget.TextView”) .text(“My Text”)); myLabel.click(); • UIAutomator
- 25. • Man in the Middle HTTP Proxy with REST API • Single war-file • Open Sourcing planned RoboRemote + Odo
- 26. Response Override • Custom (stub) response • Modify response contents • Change HTTP response code • Add Delay Odo-ed (…“soldOut”:“false”,…)(“soldOut”:“true”,…)
- 27. RoboRemote • RoboRemote Github: https://github.com/groupon/robo-remote • Maven: http://search.maven.org/ - search|ga|1| roboremote
- 28. This was QA view. What about developers?
- 29. • Used by: Google, XING, mobile.de, eBay Kleinanzeigen • Open Sourced October 2013 • Based on Instrumentation Simple! Reliable! Fast!
- 32. Use Power of Hamcrest Matcher Simple
- 33. Waiting is the root of all evil! Evil face in Ninnaji Temple, Kyoto by MrHicks46, CC BY 2.0, http://www.flickr.com/photos/teosaurio/10138704345/
- 34. • No „wait()“ in Espresso API! Speed
- 35. • Instead: – Operation on UIThread – Wait until idle – Action on UI Thread – Wait until idle – Check Result Speed
- 36. • What is idle? – UI Thread – AsyncTask – ???? via IdleResource Speed
- 37. • Removed flakyness of sleeping • Improved Testrunner Reliable
- 39. • Used by: Google, Paypal, facebook, Cisco, LinkedIn, eBay, BMW, Intel, Evernote (source http://testdroid.com/products/success-stories) • Real devices in the cloud • Works with: Espresso, uiautomator, Calabash, Appium, Robotium + x
- 40. • Example via Gradle: ... apply plugin: 'testdroid‘ testdroid { ... deviceGroup "10_inch_tablets" deviceLanguageCode "de-DE" fullRunConfig { instrumentationRunner = “... GoogleInstrumentationTestRunner" }
- 42. http://testdroid.com/testautomatisierung Try it and get a free shirt:
- 43. So what is the ultimate rock star test tool now?
- 44. Fazit? Check your needs and your Resources!
- 45. Let’s rock test!
- 46. mobile rockstars • Michael Burton Creator of Roboguice Author of „Android Application Development for Dummies“ • Carlos Sessa Author of „50 Android Hacks“ https://engineering.groupon.com/ https://github.com/groupon
- 47. More Links • http://developer.android.com/tools/testing/testing_ui.html • https://code.google.com/p/robotium/ • https://github.com/calabash/calabash-android • http://selendroid.io/ • https://github.com/appium/appium • https://plus.google.com/+StephanLinzner/posts/HhXutBz7tcV- • https://code.google.com/p/android-test-kit/wiki/Espresso • https://code.google.com/p/hamcrest/ • https://cloud.testdroid.com
