multi-core Processor.ppt for IGCSE ICT and Computer Science Students
- 2. 2 3/12/2024 Multi-Core Computer A multi-core microprocessor is one that combines two or more independent processors into a single package, often a single integrated circuit (IC). A dual-core device contains two independent microprocessors. In general, multi-core microprocessors allow a computing device to exhibit some form of thread- level parallelism (TLP) without including multiple microprocessors in separate physical packages.
- 3. 3 3/12/2024 Major Technology Providers The latest versions of many architectures use multi-core, including PA- RISC (PA-8800), IBM POWER (POWER7), SPARC (UltraSPARC IV), and various processors from Intel and AMD. There is some controversy as to whether multiple cores on a chip is the same thing as multiple processors. Major technology providers are divided on this issue. IBM considers its dual-core POWER4 and POWER5 to be two processors, just packaged together. Sun Microsystems, in contrast, considers its UltraSPARC IV to be a multi- threaded rather than multi-processor chip. Intel considers their multi-core designs to be a single processor.
- 5. 5 3/12/2024 Multi-core architectures Replicate multiple processor cores on a single die. Core 1 Core 2 Core 3 Core 4 Multi-core CPU chip
- 6. 6 3/12/2024 Multi-core CPU chip The cores fit on a single processor socket Also called CMP (Chip Multi-Processor) c o r e 1 c o r e 2 c o r e 3 c o r e 4
- 7. 7 3/12/2024 The cores run in parallel c o r e 1 c o r e 2 c o r e 3 c o r e 4 thread 1 thread 2 thread 3 thread 4
- 8. 8 3/12/2024 Within each core, threads are time-sliced (just like on a uniprocessor) c o r e 1 c o r e 2 c o r e 3 c o r e 4 several threads several threads several threads several threads
- 9. 9 3/12/2024 Interaction with OS OS perceives each core as a separate processor OS scheduler maps threads/processes to different cores Most major OS support multi-core today
- 10. 10 3/12/2024 Why multi-core ? Difficult to make single-core clock frequencies even higher Many new applications are multithreaded General trend in computer architecture (shift towards more parallelism)
- 11. 11 3/12/2024 Instruction-level parallelism Parallelism at the machine-instruction level The processor can re-order, pipeline instructions, split them into microinstructions, do aggressive branch prediction, etc. Instruction-level parallelism enabled rapid increases in processor speeds over the last 15 years
- 12. 12 3/12/2024 Thread-level parallelism (TLP) This is parallelism on a more coarser scale Server can serve each client in a separate thread (Web server, database server) A computer game can do AI, graphics, and physics in three separate threads Single-core superscalar processors cannot fully exploit TLP Multi-core architectures are the next step in processor evolution: explicitly exploiting TLP
- 13. 13 3/12/2024 General context: Multiprocessors Multiprocessor is any computer with several processors SIMD Single instruction, multiple data Modern graphics cards MIMD Multiple instructions, multiple data Lemieux cluster, Pittsburgh supercomputing center
- 14. 14 3/12/2024 Multiprocessor memory types Shared memory: In this model, there is one (large) common shared memory for all processors Distributed memory: In this model, each processor has its own (small) local memory, and its content is not replicated anywhere else
- 15. 15 3/12/2024 Multi-core processor is a special kind of a multiprocessor: All processors are on the same chip Multi-core processors are MIMD: Different cores execute different threads (Multiple Instructions), operating on different parts of memory (Multiple Data). Multi-core is a shared memory multiprocessor: All cores share the same memory
- 16. 16 3/12/2024 What applications benefit from multi-core? Database servers Web servers (Web commerce) Telecommuncation markets: 6WINDGate (datapath and control plane) Multimedia applications Scientific applications, CAD/CAM In general, applications with Thread-level parallelism (as opposed to instruction- level parallelism) Each can run on its own core
- 17. 17 3/12/2024 More examples Editing a photo while recording a TV show through a digital video recorder Downloading software while running an anti-virus program “Anything that can be threaded today will map efficiently to multi-core” BUT: some applications difficult to parallelize
- 18. 18 3/12/2024 Simultaneous multithreading (SMT) Permits multiple independent threads to execute SIMULTANEOUSLY on the SAME core Weaving together multiple “threads” on the same core Example: if one thread is waiting for a floating point operation to complete, another thread can use the integer units

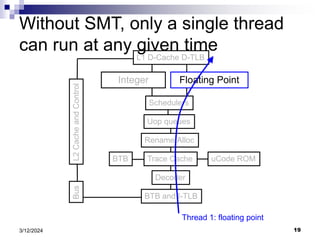

- 19. 19 3/12/2024 BTB and I-TLB Decoder Trace Cache Rename/Alloc Uop queues Schedulers Integer Floating Point L1 D-Cache D-TLB uCode ROM BTB L2 Cache and Control Bus Thread 1: floating point Without SMT, only a single thread can run at any given time
- 20. 20 3/12/2024 Without SMT, only a single thread can run at any given time BTB and I-TLB Decoder Trace Cache Rename/Alloc Uop queues Schedulers Integer Floating Point L1 D-Cache D-TLB uCode ROM BTB L2 Cache and Control Bus Thread 2: integer operation
- 21. 21 3/12/2024 SMT processor: both threads can run concurrently BTB and I-TLB Decoder Trace Cache Rename/Alloc Uop queues Schedulers Integer Floating Point L1 D-Cache D-TLB uCode ROM BTB L2 Cache and Control Bus Thread 1: floating point Thread 2: integer operation
- 22. 22 3/12/2024 But: Can’t simultaneously use the same functional unit BTB and I-TLB Decoder Trace Cache Rename/Alloc Uop queues Schedulers Integer Floating Point L1 D-Cache D-TLB uCode ROM BTB L2 Cache and Control Bus Thread 1 Thread 2 This scenario is impossible with SMT on a single core (assuming a single integer unit) IMPOSSIBLE
- 23. 23 3/12/2024 SMT not a “true” parallel processor Enables better threading (e.g. up to 30%) OS and applications perceive each simultaneous thread as a separate “virtual processor” The chip has only a single copy of each resource Compare to multi-core: each core has its own copy of resources
- 24. 24 3/12/2024 Multi-core: threads can run on separate cores BTB and I-TLB Decoder Trace Cache Rename/Alloc Uop queues Schedulers Integer Floating Point L1 D-Cache D-TLB uCode ROM BTB L2 Cache and Control Bus BTB and I-TLB Decoder Trace Cache Rename/Alloc Uop queues Schedulers Integer Floating Point L1 D-Cache D-TLB uCode ROM BTB L2 Cache and Control Bus Thread 1 Thread 3
- 25. 25 3/12/2024 BTB and I-TLB Decoder Trace Cache Rename/Alloc Uop queues Schedulers Integer Floating Point L1 D-Cache D-TLB uCode ROM BTB L2 Cache and Control Bus BTB and I-TLB Decoder Trace Cache Rename/Alloc Uop queues Schedulers Integer Floating Point L1 D-Cache D-TLB uCode ROM BTB L2 Cache and Control Bus Thread 2 Thread 4 Multi-core: threads can run on separate cores
- 26. 26 3/12/2024 Combining Multi-core and SMT Cores can be SMT-enabled (or not) The different combinations: Single-core, non-SMT: standard uniprocessor Single-core, with SMT Multi-core, non-SMT Multi-core, with SMT: The number of SMT threads: 2, 4, or sometimes 8 simultaneous threads Intel calls them “hyper-threads”
- 27. 27 3/12/2024 SMT Dual-core: all four threads can run concurrently BTB and I-TLB Decoder Trace Cache Rename/Alloc Uop queues Schedulers Integer Floating Point L1 D-Cache D-TLB uCode ROM BTB L2 Cache and Control Bus BTB and I-TLB Decoder Trace Cache Rename/Alloc Uop queues Schedulers Integer Floating Point L1 D-Cache D-TLB uCode ROM BTB L2 Cache and Control Bus Thread 1 Thread 2 Thread 3 Thread 4
- 28. 28 3/12/2024 Comparison: multi-core vs SMT Multi-core: Since there are several cores, each is smaller and not as powerful (but also easier to design and manufacture) However, great with thread-level parallelism SMT Can have one large and fast superscalar core Great performance on a single thread Mostly still only exploits instruction-level parallelism
- 29. 29 3/12/2024 The memory hierarchy If simultaneous multithreading only: all caches shared Multi-core chips: L1 caches private L2 caches private in some architectures and shared in others Memory is always shared
- 30. 30 3/12/2024 Dual-core Intel Xeon processors Each core is hyper-threaded Private L1 caches Shared L2 caches memory L2 cache L1 cache L1 cache C O R E 1 C O R E 0 hyper-threads
- 31. 31 3/12/2024 Designs with private L2 caches memory L2 cache L1 cache L1 cache C O R E 1 C O R E 0 L2 cache memory L2 cache L1 cache L1 cache C O R E 1 C O R E 0 L2 cache Both L1 and L2 are private Examples: AMD Opteron, AMD Athlon, Intel Pentium D L3 cache L3 cache A design with L3 caches Example: Intel Itanium 2
- 32. 32 3/12/2024 Windows Task Manager core 2 core 1
- 34. 34 3/12/2024 Advantages Cache coherency circuitry can operate at a much higher clock rate than is possible if the signals have to travel off-chip Signals between different CPUs travel shorter distances, those signals degrade less These higher quality signals allow more data to be sent in a given time period since individual signals can be shorter and do not need to be repeated as often A dual-core processor uses slightly less power than two coupled single-core processors
- 35. 35 3/12/2024 Disadvantages Ability of multi-core processors to increase application performance depends on the use of multiple threads within applications. Most Current video games will run faster on a 3 GHz single-core processor than on a 2GHz dual-core processor (of the same core architecture Two processing cores sharing the same system bus and memory bandwidth limits the real-world performance advantage. If a single core is close to being memory bandwidth limited, going to dual-core might only give 30% to 70% improvement If memory bandwidth is not a problem, a 90% improvement can be expected
- 36. 36 3/12/2024 Conclusion Multi-core chips an important new trend in computer architecture Several new multi-core chips in design phases Parallel programming techniques likely to gain importance
