MySQL 5.5 &5.6 new feature Summary
In last article MySQL-oslayer-performance-optimization we talked about some important tips for using MySQL on OS layer.

Continue

...

MySQL 5.5 GA was the first GA after Oracle taking over MySQL AB (Oracle bought Sun in 2009 including MySQL). As a very important part of
Oracle software (main for database area) especially in LAMP area MySQL 5.5 has a very huge performance promotion (compare old versions).
Many features have been released to make MySQL better for OLTP database system. In 5.5 GA InnoDB has a huge performance promotion in
SMP system . Later in 5.6 with more and more features (especially replication and management area) MySQL becomes more smart and
controllable.
Totally MySQL 5.5 has below features:








Using CMake as default compile system.
InnoDB was the default engine of MySQL
InnoDB performance has a huge performance promotion
MySQL performance was better and better on all of platforms
Better utilization of SMP system
More performance monitor and management (new DB performance_schema)
More features of Replication

www.vcmd.org



Performance improvement in 5.5

InnoDB becomes default database engine.
In MySQL 5.5 InnoDB becomes the default engine instead of MyISAM. And before 5.5 many DB systems still use MyISAM as their engine
and even can get nice performance for particular SQL operation (like count without “where” conditional) but in today’s OLTP system (more
CPUs more parallel processing and more TPS requirement) ACID transactions seems very important . As InnoDB has already done coding
reconstruction and has better performance for parallel transactions so to be the default engine seems necessary.

(MyISAM read write queue)

www.vcmd.org



File format “Barracuda” support dynamic and compressed row format.

The DYNAMIC row format maintains the efficiency of storing the entire row in the index node if it fits (as do the COMPACT and REDUNDANT formats), but this new
format avoids the problem of filling B-tree nodes with a large number of data bytes of long columns. The DYNAMIC format is based on the idea that if a portion of a
long data value is stored off-page, it is usually most efficient to store all of the value off-page. With DYNAMIC format, shorter columns are likely to remain in the
B-tree node, minimizing the number of overflow pages needed for any given row.
The COMPRESSED row format uses similar internal details for off-page storage as the DYNAMIC row format, with additional storage and performance considerations
from the table and index data being compressed and using smaller page sizes. With the COMPRESSED row format, the option KEY_BLOCK_SIZE controls how much
column data is stored in the clustered index, and how much is placed on overflow pages. For full details about the COMPRESSED row format

Result of diff engine for compression
Size on disk

Engine

Compression Ratio

7.1M

Archive

173.07:1

304M

InnoDB row_format=compressed key_block_size=4

4.04:1

648M

compress()

1.897:1

1.2G

InnoDB

1:01

www.vcmd.org



MDL (meta data locking)

In MySQL 5.5 when you reconstruct table MySQL will gather MDL to lock table metadata (DML operations will be blocked) in some situations
read operation maybe blocked also ( add primary key , show create table will hang as metadata was locked in X mode)

Improve MySQL performance on win32/64 bit

https://blogs.oracle.com/MySQLinnodb/entry/MySQL_5_5_innodb_performance

www.vcmd.org



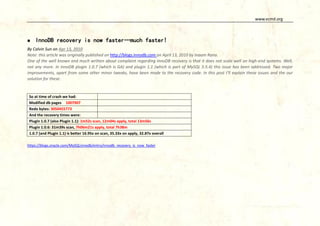

InnoDB recovery is now faster…much faster!

By Calvin Sun on Apr 13, 2010
Note: this article was originally published on http://blogs.innodb.com on April 13, 2010 by Inaam Rana.
One of the well known and much written about complaint regarding InnoDB recovery is that it does not scale well on high-end systems. Well,
not any more. In InnoDB plugin 1.0.7 (which is GA) and plugin 1.1 (which is part of MySQL 5.5.4) this issue has been addressed. Two major
improvements, apart from some other minor tweaks, have been made to the recovery code. In this post I’ll explain these issues and the our
solution for these.

So at time of crash we had:
Modified db pages 1007907
Redo bytes: 3050455773
And the recovery times were:
Plugin 1.0.7 (also Plugin 1.1): 1m52s scan, 12m04s apply, total 13m56s
Plugin 1.0.6: 31m39s scan, 7h06m21s apply, total 7h38m
1.0.7 (and Plugin 1.1) is better 16.95x on scan, 35.33x on apply, 32.87x overall
https://blogs.oracle.com/MySQLinnodb/entry/innodb_recovery_is_now_faster

www.vcmd.org



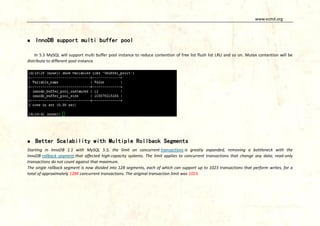

InnoDB support multi buffer pool

In 5.5 MySQL will support multi buffer pool instance to reduce contention of free list flush list LRU and so on. Mutex contention will be
distribute to different pool instance



Better Scalability with Multiple Rollback Segments

Starting in InnoDB 1.1 with MySQL 5.5, the limit on concurrent transactions is greatly expanded, removing a bottleneck with the
InnoDB rollback segment that affected high-capacity systems. The limit applies to concurrent transactions that change any data; read-only
transactions do not count against that maximum.
The single rollback segment is now divided into 128 segments, each of which can support up to 1023 transactions that perform writes, for a
total of approximately 128K concurrent transactions. The original transaction limit was 1023.

www.vcmd.org



InnoDB thread concurrency

limit given by this variable. Once the number of threads reaches this limit, additional threads are placed into a wait state within a FIFO queue
for execution. Threads waiting for locks are not counted in the number of concurrently executing threads.
The correct value for this variable is dependent on environment and workload. Try a range of different values to determine what value works for
your applications. A recommended value is 2 times the number of CPUs plus the number of disks.
The range of this variable is 0 to 1000. A value of 0 (the default) is interpreted as infinite concurrency (no concurrency checking).
When “innodb_thread_concurrency”=0

“innodb_spin_wait_delay” and “innodb_sync_spin_loops” will be disabled

“innodb_thread_concurrency” exact best value based on your system configuration(adjust parameter setting based on your H/W)
Detail test by dimitrik : 5.5 and InnoDB thread concurrency



InnoDB IO capacity

There’re three parameters effect IO capacity :
“innodb_read_io_threads” “innodb_write_io_threads” and “innodb_io_capacity”

www.vcmd.org

innodb_flush_method=O_DIRECT

innodb_max_dirty_pages_pct=60
innodb_write_io_threads=16
innodb_read_io_threads=8
innodb_adaptive_flushing=1
innodb_read_ahead=0
innodb_flush_neighbor_pages=0
innodb_adaptive_checkpoint=ke
ep_average
innodb_log_files_in_group=2

innodb_log_file_size=4G
innodb_io_capacity=10000
innodb_thread_concurrency=0

Use Direct IO and fsync to flush data and log files
Percentage of dirty pages to keep in the pool.
Keep at 60-80% of total system memory.
Always monitor memory usage to make sure the
system does not start to swap out pages.
Number of background write I/O threads
Number of background read I/O threads
Adaptively flush dirty pages
Disable read-ahead for ioMemory
Do not flush neighbor pages on fast seek-less
ioMemory
Use adaptive check-pointing that keeps a steady
I/O rate
Number of log files in the group. The default
and recommended value is 2
Reduce checkpoint activity by increasing log file
size. This also increases recovery time, but fast
storage like ioMemory handles this well.
Number of I/O operations (indicates capability of
underlying hardware)
Set unlimited number of threads

Recommended best practice when using FusionIO on MySQL
Reintroducing Random Readahead in InnoDB

www.vcmd.org



Adaptive hash index can be controlled

Now we can disable adaptive hash index – there’re some problems when using AHI
It appears when you have some scanning by secondary key select queries and write queries at the same time.
InnoDB again uses single global mutex for adaptive_search (single mutex for ALL table and ALL indexes), so write query blocks ALL select
queries.
Usually first action was to disable adaptive_search (it’s possible via global variable), but it rarely helps actually. With disabled adaptive index
InnoDB needs to do much more operations while reading secondary keys.
Solution was provided by Percona:
The InnoDB adaptive hash index can have contention issues on multi-core systems when you run a mix of read and write queries that need to
scan secondary indexes. This feature splits the adaptive hash index across several partitions to avoid such problems.The number of adaptive
hash partitions specified by the variable “innodb_adaptive_hash_index_partitions” are created, and hash indexes are assigned to each one
based on index_id. This should help to solve contention problems in the adaptive hash search process when they occur.
Version Info:

5.5.8-20.0

Command Line:

Yes

Config File:

– Introduced

Yes

Scope:
Dynamic:
Variable Type:
Def :
Range:

Global
No
Numeric
1
1-64, (on 32-bit platform 1-32)

www.vcmd.org



Group Commit

Group commit in InnoDB worked until MySQL 4.x, and works once again with MySQL 5.1 with the InnoDB Plugin, and MySQL 5.5 and higher. The introduction of
support for the distributed transactions and Two Phase Commit (2PC) in MySQL 5.0 interfered with the InnoDB group commit functionality. This issue is now
resolved.
The group commit functionality inside InnoDB works with the Two Phase Commit protocol in MySQL. Re-enabling of the group commit functionality fully ensures
that the ordering of commit in the MySQL binlog and the InnoDB logfile is the same as it was before. It means it is totally safe to use the MySQL Enterprise
Backup product with InnoDB 1.0.4 (that is, the InnoDB Plugin with MySQL 5.1) and above. When the binlog is enabled, you typically also set the configuration
option sync_binlog=0, because group commit for the binary log is only supported if it is set to 0.

www.vcmd.org



New parameters for replication

Add three parameters (similar behavior as sync_binlog and you can set another two parameters "relay_log_info_repository"
"master_info_repository" in 5.6)
And you can set “relay_log_recovery” parameter to control

“Automatic Relay Log Recovery”

In the end, MySQL 5.5 has a huge performance promotion when using InnoDB engine. And Sysbench test also give a detail comparison graph
between 5.1 and 5.5.

www.vcmd.org

And what’s new In MySQL 5.6 ?
As MySQL 5.5 was the first release under Oracle’s ownership and giving a huge performance promotion ( InnoDB is more and more similar with
oracle database) . In 5.6 Oracle focus on new features (seems that mysql was learning from oracle database including memory management
and replication management etc..) In this article we will give some examples of these features.



New In replication

1. GTID was introduced

Global Transaction Identifiers (GTIDs) – a unique identifier that is used accross your replication topology to identify a transaction. Makes

www.vcmd.org

setting up and managing your cluster (including the promotion of a new master) far simpler and more reliable.
[MySQLd]
gtid-mode=on
# GTID
enforce-gtid-consistency=true
# GTID
master-info-repository=TABLE
# Chrash-safe replication
relay-log-info-repository=TABLE
# Chrash-safe replication
slave-parallel-workers=2
# MTS
binlog-checksum=CRC32
# Checksums
master-verify-checksum=1
# Checksums
slave-sql-verify-checksum=1
# Checksums
binlog-rows-query-log_events=1
# Informational logs
slave> CHANGE MASTER TO MASTER_HOST='black', MASTER_USER='repl_user', MASTER_PASSWORD='billy', MASTER_AUTO_POSITION=1;

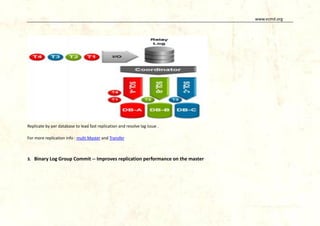

2. Multi-threaded slaves (MTS)

www.vcmd.org

Replicate by per database to lead fast replication and resolve lag issue .
For more replication info : multi Master and Transfer

3. Binary Log Group Commit -- Improves replication performance on the master

www.vcmd.org

Reducing binary logging lock contention on the transaction execution path in 5.6:
–
MySQL 5.1 – all events are serialized and written while holding the log lock;
–
MySQL 5.5 – DDL and transaction boundaries events are serialized and written to the binary log while holding the log lock;
–
MySQL 5.6 – events are serialized and written without holding the log lock (except the incident event).

www.vcmd.org

4. Safe Replication
Transfer to ACID transaction to ensure no data lose (using table to store information instead of system file)
Controlled by “master_info_repository” and “relay_log_info_repository” parameters (default MyISAM tables and switch them to InnoDB for
supporting ACID transactions)

ALTER TABLE MySQL.slave_master_info ENGINE = InnoDB;
ALTER TABLE MySQL.slave_relay_log_info ENGINE = InnoDB;

5. Optimized Row Based Replication
Reduces the amount of data that needs to be replicated; reducing network usage and potentially speeding up replication.

6. Replication Event Checksums
Reference these two articles:
http://www.MySQLperformanceblog.com/2013/02/15/replication-checksums-in-MySQL-5-6/

www.vcmd.org

http://MySQLmusings.blogspot.com/2011/04/replication-event-checksum.html

7. Time-Delayed Replication
You can define a time delay for events to be replicated from a master to each slave, defined in millisecond increments up to a maximum of 68
years!
Time-Delayed Replication affords protection against operational errors made on the master, for example accidently dropping tables, in which
event the slave can be promoted to the new master in order to restore the database to its previous state. Time-Delayed Replication can also be
useful in testing application behavior by emulating any instances of replication lag.
Time-Delayed Replication is implemented at the per-slave level (via holding execution of the SQL_THREAD), so you could configure multiple
slaves to apply replication events immediately, and another slave to apply only after a delay of 5 minutes, therefore providing deployment
flexibility.



InnoDB new features

1. Online DDL support (Ref: http://dev.MySQL.com/doc/refman/5.6/en/innodb-online-ddl.html)
2. Transportable tables
MySQL> SELECT VERSION();
+-----------+
| VERSION() |
+-----------+
| 5.5.27
|

www.vcmd.org

+-----------+
1 row in set (0.00 sec)
MySQL> CREATE TABLE tt_55 (a INT PRIMARY KEY) ENGINE = InnoDB;
Query OK, 0 rows affected (0.06 sec)
MySQL> INSERT INTO tt_55 VALUE (1);
Query OK, 1 row affected (0.01 sec)
MySQL> EXIT
Bye
C:MySQL-5.6.6-m9-winx64>REM shutting down 5.5 to get clean tt_55.ibd file
C:MySQL-5.6.6-m9-winx64>binMySQLadmin -uroot -P3309 shutdown
C:MySQL-5.6.6-m9-winx64>binMySQL -uroot -P3307 test
Welcome to the MySQL monitor. Commands end with ; or g.
Your MySQL connection id is 2
Server version: 5.6.6-m9 MySQL Community Server (GPL)
...
MySQL> CREATE TABLE tt_55 (a INT PRIMARY KEY) ENGINE = InnoDB;
MySQL> FLUSH TABLES tt_55 FOR EXPORT;
MySQL> -- save a copy of tt_55.cfg
MySQL> UNLOCK TABLES;

www.vcmd.org

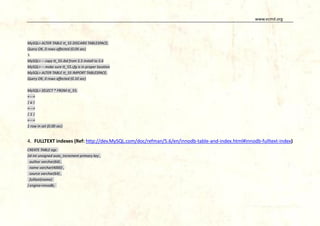

MySQL> ALTER TABLE tt_55 DISCARD TABLESPACE;
3.
MySQL> -- copy tt_55.ibd from 5.5 install to 5.6
MySQL> -- make sure tt_55.cfg is in proper location
MySQL> ALTER TABLE tt_55 IMPORT TABLESPACE;
MySQL> SELECT * FROM tt_55;
+---+
|a|
+---+
|1|
+---+

4. FULLTEXT indexes (Ref: http://dev.MySQL.com/doc/refman/5.6/en/innodb-table-and-index.html#innodb-fulltext-index)
CREATE TABLE egs
(id int unsigned auto_increment primary key ,
author varchar(64) ,
name varchar(4000) ,
source varchar(64) ,
fulltext(name)
) engine=innodb;

www.vcmd.org

SELECT author AS "MySQL" FROM egs
WHERE match(name) against ('MySQL' in natural language mode);

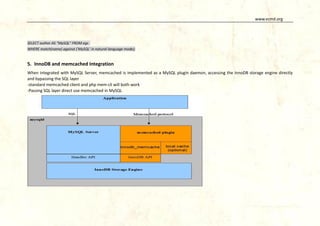

5. InnoDB and memcached Integration
When integrated with MySQL Server, memcached is implemented as a MySQL plugin daemon, accessing the InnoDB storage engine directly
and bypassing the SQL layer
-standard memcached client and php mem-cli will both work
-Passing SQL layer direct use memcached in MySQL

www.vcmd.org

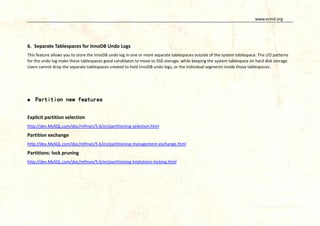

6. Separate Tablespaces for InnoDB Undo Logs
This feature allows you to store the InnoDB undo log in one or more separate tablespaces outside of the system tablespace. The I/O patterns
for the undo log make these tablespaces good candidates to move to SSD storage, while keeping the system tablespace on hard disk storage.
Users cannot drop the separate tablespaces created to hold InnoDB undo logs, or the individual segments inside those tablespaces.



Partition new features

Explicit partition selection
http://dev.MySQL.com/doc/refman/5.6/en/partitioning-selection.html

Partition exchange
http://dev.MySQL.com/doc/refman/5.6/en/partitioning-management-exchange.html

Partitions: lock pruning
http://dev.MySQL.com/doc/refman/5.6/en/partitioning-limitations-locking.html

www.vcmd.org



SQL Optimizer

Subquery has bad performance before MySQL 5.6 and now MySQL becomes more smart to do some similar works.
ICP was introduced to reduce MySQL data transfer and internal data filter
http://dev.MySQL.com/doc/refman/5.6/en/index-condition-pushdown-optimization.html
http://www.MySQLperformanceblog.com/2012/03/12/index-condition-pushdown-in-MySQL-5-6-and-mariadb-5-5-and-its-performance-impac
t/
http://jorgenloland.blogspot.com/2011/08/MySQL-range-access-method-explained.html

Explain now can cover DML (Insert/update/delete not only select)
Explain Json format
18:04:30 (none)> select version();
+------------+
| version() |
+------------+
| 5.6.12-log |
+------------+
18:06:43 cobub_data> EXPLAIN FORMAT=JSON SELECT count(*) from razor_hour24 where hour >1 G;
*************************** 1. row ***************************

www.vcmd.org

EXPLAIN: {
"query_block": {
"select_id": 1,
"table": {
"table_name": "razor_hour24",
"access_type": "range",
"possible_keys": [
"PRIMARY"
],
"key": "PRIMARY",
"used_key_parts": [
"hour"
],
"key_length": "1",
"rows": 22,
"filtered": 100,
"using_index": true,
"attached_condition": "(`cobub_data`.`razor_hour24`.`hour` > 1)"
}
}
}
1 row in set, 1 warning (0.01 sec)
ERROR:
No query specified

www.vcmd.org

To Be Continue . . .

MySQL 5.5&5.6 new features summary

More Related Content

What's hot (20)

Similar to MySQL 5.5&5.6 new features summary (20)

More from Louis liu (20)

Recently uploaded (20)

MySQL 5.5&5.6 new features summary
