network security

8. Network Security
1
Secure Communication
Secure communication refers to a communication whereby only the recipient of the message
understands the message even if there are intruders who may intercept, read and perform
computations on whatever is being transmitted. The receiver is also sure that the message
received was from a particular sender and that it has not been altered in transit.
Below are some of the desirable properties of a secure communication.
1. Confidentiality: Only the sender and the receiver should be able to understand the contents
of the transmitted message. Because of intruders, i.e. hackers, the message maybe encrypted
(its data disguised) so that the interceptor cannot understand the message. This aspect of
confidentiality is probably the most commonly perceived meaning of the phrase "secure
communication".
2. Authentication: Both sender and receiver should be able to confirm the identity of the other
party involved in the communication i.e. to confirm that the other party is indeed who or what
they claim to be.
3. Message integrity and nonrepudiation: Even if the sender and receiver are able to
authenticate each other, they also want to ensure that the content of their communication is
not altered, either maliciously or by accident during transmission. Therefore message
integrity can be ensured by extensions to the checksumming techniques that we encounter in
reliable transport and data link protocols.
4. Availability and access control: The compelling need for network security has been made
unbearable over the past several years by numerous denial-of-access attacks that have
rendered a network host or other pieces of network infrastructure unusable by legitimate
users. The notion of access control ensures that entities seeking to gain access to resources
are allowed to do so only if they have the appropriate access rights and perform their accesses
in a well-defined manner.
Encryption

8. Network Security
2
Encryption Terminology
• Algorithm – mathematical formula for encryption – not secret, well-known
• Key – the secret part used by formula
• Keyspace – available set of keys
• Plaintext – not encrypted message
• Ciphertext – encrypted message
Types of Encryption – Deployment
• End-to-end: such encryption is carried out by end systems and the network treats the
encrypted data in the same way as normal data. Encryption is not aided or facilitated
by the network structure. Most encryption techniques and activities are of this type.
• Network-based: this is implemented at the network layer of the protocol stack. I.e. the
data is encrypted at the lower layers of protocol stack, esp at the IP header level.
Example is IPSec.
Type of Encryption – Algorithm/Key
Encryption
Clear-
Text
Clear-
Text
Text
This is
secret
8vyaleh31&d
ktu.dtrw8743
$Fie*nP093h
This is
secret
Decryption

8. Network Security
3
• Symmetric encryption: same secret key is used for both encryption and decryption. It
is older technique and majority of encryption is based on this class of techniques.
– Strength depends upon the size of the key.
– But difficult to ensure authenticity and non-repudiation.
– Examples are DES, 3DES, AES, RC4 etc.
• Asymmetric encryption: separate keys are used for encryption and decryption. More
secure than symmetric but more resource-hungry for implementation.
– Can be used to ensure authenticity and non-repudiation of the data.
– Examples are RSA, Diffie-Hellman etc.
Symmetric Encryption

8. Network Security
4
DES (Digital Encryption Standard):
– DES is the first major symmetric encryption technique. It is a block cipher
techniques.
– Based on Feistel structure
– 64-bit original message blocks
– 56-bit keys.
– The 56-bit key is used to generate 16 48-bit sub-keys.
– Each sub-key is different from the main key and all other sub-keys.
– They are derived from the main key using special sub-key generation
algorithm. The encryption is done over 16 rounds, each with a separate sub-
key.
– This technique has been proven to be relatively weak and easy to crack.

8. Network Security
5
3DES (Triple DES)
– This is based on DES but involves 3-stages of DES (usually done as sequence
of encrypt-decrypt-encrypt), each with separate key. But it can be simplified to
use only 2 keys by using a sequence of Encrypt-Decrypt-Encrypt with decrypt
done by a separate key and two encrypts done by the same key. Designed to
make the encryption much more secure compared to DES.

8. Network Security
6
AES (Advance Encryption Standard)
– Advanced Encryption Standard (AES) is more advanced than 3DES. Like
3DES, it is also block cipher system but uses a block size of 128-bit compared
to 64-bit block size of 3DES and DES. The key length in AES can range from
128 to 256 bits.
– However, unlike DES, AES is not based on Feistel structure. It does not
involve dividing the message block into two halves.
Asymmetric Encryption
• Use of two separate keys for encryption and decryption.
• Can provide confidentiality as well as integrity and authentication mechanism.
– Whereas symmetric encryption can provide only confidentiality.

8. Network Security
7
RSA
• Named after its creators (Rivest, Shamir and Adleman of MIT)
• Algorithm
– C = Me mod n
– M = Cd mod n = Med mod n
– Where M is plaintext and C is ciphertext block. Both the sender and receiver
have to know the value of e and n. Only the receiver needs to know the value
of d. Hence the private and public key can be represented as Kpvt = {d, n} and
Kpub = {e, n} respectively. Refer to the example given in section 3.5 of Book
(Stallings) for the detailed process of generation and use of public/private
keys.
Digital Certificates
• Certificates are used as a measure of assuring authenticity of the public keys used for
cryptography.
– Each certificate consists of the public key of the user and is signed with the
private key of a trusted certification authority.
– ITU-T recommendation X.500 specifies the different aspects of certification
mechanism.

8. Network Security
8
• Such certificate mechanism is used in different security applications such as secure
MIME (email encoding technique), IP-Sec, SSL/TLS etc.
Component of a Certificate
• Version
• Serial Number
• Signature Algorithm Identifier
• Issuer Name
• Period of Validity
• Subject Name
• Subject’s Public Key Identity
• Subject Unique Identifier
• Extension
• Signature
Digital Signatures
• Digital signatures is a cryptography mechanism to make sure that the message
actually came from the source it seems to come from.
• It is not a mechanism to secure the data by encrypting it but to authenticate the source
of data by embedding a ‘signature’ in the data that is from the sender.
• Using asymmetric cryptography, the sender encrypts the whole or part of the message
using its private key and the receiver tries to decrypt the encrypted part using the
sender’s public key.
• Example: DSS (digital signature standard), SHA (Secure Hash Algorithm), MD5
(Message Digest 5).
Email Security
• Email has been a favored medium of spreading malware, viruses and other types of
content that pose threat to the network and services.

8. Network Security
9
• Probably also because email service is among the oldest services to be realized over
network and Internet.
PGP (Preety Good Privacy)
The different services provided by PGP and the techniques used for those services is
summarize by Table below.
Table: PGP Services and Techniques

8. Network Security
10
<< Radix-64 conversion is a technique to convert the email content into alphanumeric ASCII
character string. The actual binary value of the data is converted into sequence of 6-bit
groups and each such group is converted into ASCII. The characters are 26 capital
alphabets, 26 small alphabets, 10 numerals and two more characters (usually ‘+’ and ‘/’)
>>
The message encryption technique as indicated in table is illustrated in detail in Figure
(Source: Wikipedia). Symmetric key is used to encrypt the message. This symmetric key is
itself encrypted using asymmetric encryption (using receiver’s public key) and added to the
encrypted message. The receiver first extracts the key from the whole message and uses that
key to encrypt the message.

8. Network Security
11
Figure: PGP Encryption Process
PGP is designed to be able to provide message encryption, authentication and integrity
checking mechanism. These different services are achieved as follows:
1. Encryption: the message is encrypted using the symmetric key which is itself is
encrypted using asymmetric key and added to the encrypted message as illustrated in
Figure 6.2.1.1. The symmetric key used to encrypt the message is separate per
message session and is randomly generated. Hence this key is also called the session
key. This key for each message is different.
2. Authentication and integrity checking: to verify the sender and to verify message
integrity, the sender creates a message digest using a hash function and encrypts that
message digest using the sender’s private key. Thus, the sender literally ‘signs’ the
message digest. The receiver can thus verify the sender by checking decryption using
the sender’s public key as well as the message integrity by comparing the message
digest of the received message using the digest sent along with the message.
Figure 6.2.1.2 (Source Figure 7.1 Stallings) illustrates the logic for authentication, encryption
and both functions using PGP:

8. Network Security
12
Figure 6.2.1.2: PGP Process of Authentication and Confidentiality
The symbols used in Figure 6.2.1.2 are as follows:
Ks = Session key used in symmetric encryption scheme
PRa = Private key of user A, used in public-key encryption scheme
PUa = Public key of user A, used in public-key encryption scheme
EP = Public-key encryption
DP = Public-key decryption
EC = Symmetric encryption
DC = Symmetric decryption
M = Original Message
SSL
SSL (Secure Sockets Layer) is a standard security technology for establishing an encrypted
link between a server and a client—typically a web server (website) and a browser; or a mail
server and a mail client (e.g., Outlook).
SSL allows sensitive information such as credit card numbers, social security numbers, and
login credentials to be transmitted securely. Normally, data sent between browsers and web
servers is sent in plain text—leaving you vulnerable to eavesdropping. If an attacker is able to
intercept all data being sent between a browser and a web server they can see and use that
information.

8. Network Security
13
More specifically, SSL is a security protocol. Protocols describe how algorithms should be
used; in this case, the SSL protocol determines variables of the encryption for both the link
and the data being transmitted.
Secure HTTP (HTTPS)
HTTPS or secure HTTP deploys the standard HTTP over SSL. This results in secure and
encrypted communication between the web server and the client (i.e. the browser). For
compatibility and differentiation, HTTPS uses separate well-known TCP port of 443 rather
than the TCP port 80 used for standard HTTP. As a result, same web content can be served
over HTTP and HTTPS at the same time from the same server.
When HTTPS is used, the following data transfer between the server and the client are
encrypted. The encryption is normally asymmetric.
 URL of the requested document
 Contents of the document
 Contents of browser forms (filled in by browser user)
 Cookies sent from browser to server and from server to browser
 Contents of HTTP header
For HTTPS implementation, the key or certificate management of the encryption can be done
by the specific web site alone or can be taken from a third part certificate repository.
The process of establishment of data transfer session for secure HTTP is as follows:
1. The client (browser) sends its SSL version number and cryptographic preference to
the server. This is needed for the browser and the server to negotiate the symmetric
key algorithm they are to use for the data transfers.
2. The server sends its SSL version number, cryptographic preferences and its
certificate. The certificate includes the servers public key (RSA) and is normally
certified by a Certificate Authority (CA) with its private key (digital signature).
3. The browser has a list of public keys for known CAs. It validates the authenticity of
the key sent by server. If it cannot validate, it throws an alert.
4. The browser creates a symmetric session key, encrypts it with the server’s public key
and sends the encrypted key to the server.
5. The browser also tells the server that all future messages from the client shall be
encrypted with the symmetric session key.
6. The server also informs the client that all subsequent messages from server shall also
be encrypted with the same session key.
7. The SSL handshake is now complete and subsequent transfers on both sides shall be
encrypted.

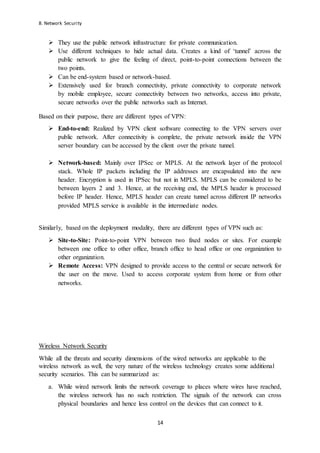

Virtual Private Networks
Virtual Private Network or VPN is a mechanism to realize private communication over a
public, shared network infrastructure. The major characteristic of a VPN connection are:

8. Network Security
14
 They use the public network infrastructure for private communication.
 Use different techniques to hide actual data. Creates a kind of ‘tunnel’ across the
public network to give the feeling of direct, point-to-point connections between the
two points.
 Can be end-system based or network-based.
 Extensively used for branch connectivity, private connectivity to corporate network
by mobile employee, secure connectivity between two networks, access into private,
secure networks over the public networks such as Internet.
Based on their purpose, there are different types of VPN:
 End-to-end: Realized by VPN client software connecting to the VPN servers over
public network. After connectivity is complete, the private network inside the VPN
server boundary can be accessed by the client over the private tunnel.
 Network-based: Mainly over IPSec or MPLS. At the network layer of the protocol
stack. Whole IP packets including the IP addresses are encapsulated into the new
header. Encryption is used in IPSec but not in MPLS. MPLS can be considered to be
between layers 2 and 3. Hence, at the receiving end, the MPLS header is processed
before IP header. Hence, MPLS header can create tunnel across different IP networks
provided MPLS service is available in the intermediate nodes.
Similarly, based on the deployment modality, there are different types of VPN such as:
 Site-to-Site: Point-to-point VPN between two fixed nodes or sites. For example
between one office to other office, branch office to head office or one organization to
other organization.
 Remote Access: VPN designed to provide access to the central or secure network for
the user on the move. Used to access corporate system from home or from other
networks.
Wireless Network Security
While all the threats and security dimensions of the wired networks are applicable to the
wireless network as well, the very nature of the wireless technology creates some additional
security scenarios. This can be summarized as:
a. While wired network limits the network coverage to places where wires have reached,
the wireless network has no such restriction. The signals of the network can cross
physical boundaries and hence less control on the devices that can connect to it.

8. Network Security
15
b. In wired network, the data flowing in the network can only be received by the nodes
physically connected by the wires whereas, anybody in the coverage area in wireless
network can sense the data.
Because of these, the task of securing wireless network needs more robust security
mechanisms.
Wired Equivalent Privacy (WEP)
WEP was the security mechanism in the initial 802.11 standard. IT mainly provided
encryption of the data being transferred through the Wi-Fi network but did not provide good
authentication mechanism. Even the encryption it provided was quickly found to insufficient
and easily breakable. However it is still in wide use, normally in end-user networks.
However, for secure corporate networks, it is not preferred due to its weaknesses.
The simple encryption mechanism used in WEP is illustrated in Figure 6.5.1.1 (here IV =
Initialization Vector).
Figure 6.5.1.1: The WEP Encryption Mechanism
Confidentiality: for data confidentiality, WEP uses RC4 (ref. Chapter 2.4 Stallings for
details on RC4) stream cipher mechanism with key length ranging from 40-bit to 128-bit.
Some vendors also provide 232-bit keys (in each case, a 24-bit initialization vector is used for
the RC4 algorithm).
Authentication: two modes are available – no authentication (open network) or shared key
authentication. Open networks can be joined by any client. Then the encrypted data
transaction happens. As a result, this mode provides only data encryption but not access
control. In shared key authentication mode, same key is used by the client and the access
node. During the client joining the network, the following happens:
i. The client sends an authentication request to the Access Point.
ii. The Access Point replies with a clear-text challenge.
iii. The client encrypts the challenge-text using the configured WEP key, and sends it
back in another authentication request.
iv. The Access Point decrypts the response. If this matches the challenge-text the Access
Point sends back a positive reply.

8. Network Security
16
The same pre-shared WEP key is used after the authentication for encrypted data
transfer using RC4 stream cipher algorithm.

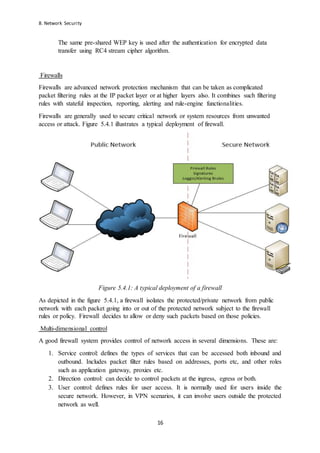

Firewalls
Firewalls are advanced network protection mechanism that can be taken as complicated
packet filtering rules at the IP packet layer or at higher layers also. It combines such filtering
rules with stateful inspection, reporting, alerting and rule-engine functionalities.
Firewalls are generally used to secure critical network or system resources from unwanted
access or attack. Figure 5.4.1 illustrates a typical deployment of firewall.
Figure 5.4.1: A typical deployment of a firewall
As depicted in the figure 5.4.1, a firewall isolates the protected/private network from public
network with each packet going into or out of the protected network subject to the firewall
rules or policy. Firewall decides to allow or deny such packets based on those policies.
Multi-dimensional control
A good firewall system provides control of network access in several dimensions. These are:
1. Service control: defines the types of services that can be accessed both inbound and
outbound. Includes packet filter rules based on addresses, ports etc, and other roles
such as application gateway, proxies etc.
2. Direction control: can decide to control packets at the ingress, egress or both.
3. User control: defines rules for user access. It is normally used for users inside the
secure network. However, in VPN scenarios, it can involve users outside the protected
network as well.

8. Network Security
17
4. Behavior control: defines more complicated activities such as redirection of services,
allowing some services while blocking others, allowing access to only part of a
service or network etc.
Types of Firewall
The major types of firewall are:
1. Packet filtering firewall: define allow/disallow rules for packets based on the
specific content of each packet such as addresses, ports (protocols), interfaces etc. The
rules and functional architecture are similar to that of the packet filter lists or access
lists. Figure 5.4.2.1 shows the schematic of the packet filtering firewall.
Figure 5.4.2.1: Packet filtering firewall
2. Stateful inspection firewall: simple packet filtering firewall decides to allow/block a
packet entirely based on the content of that same packet. It does not look at the
context of that packet. However, a stateful mechanism can keep track of connections,
data sessions and other parameters and uses them to decide on each packet. It can
keep track of individual TCP sessions and even their sequence numbers to be able to
make packet decisions based more on the previous record, overall behavior and
context rather than the content of individual packet only. Figure 5.4.2.2 shows
schematic of stateful inspection firewall.

8. Network Security
18
Figure 5.4.2.2: Stateful inspection firewall

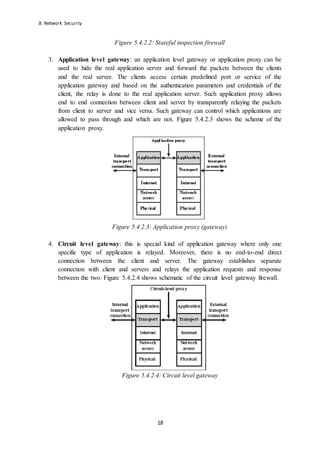

3. Application level gateway: an application level gateway or application proxy can be
used to hide the real application server and forward the packets between the clients
and the real server. The clients access certain predefined port or service of the
application gateway and based on the authentication parameters and credentials of the
client, the relay is done to the real application server. Such application proxy allows
end to end connection between client and server by transparently relaying the packets
from client to server and vice versa. Such gateway can control which applications are
allowed to pass through and which are not. Figure 5.4.2.3 shows the scheme of the
application proxy.
Figure 5.4.2.3: Application proxy (gateway)
4. Circuit level gateway: this is special kind of application gateway where only one
specific type of application is relayed. Moreover, there is no end-to-end direct
connection between the client and server. The gateway establishes separate
connection with client and servers and relays the application requests and response
between the two. Figure 5.4.2.4 shows schematic of the circuit level gateway firewall.
Figure 5.4.2.4: Circuit level gateway

network security

More Related Content

What's hot (20)

Similar to network security (20)

More from BishalWosti1 (7)

Recently uploaded (20)

network security
