Nosql
- 1. NOSQL Eric Marshall April 7th, 2016 For LOPSA NJ
- 2. I’M ERIC I work at Airisdata and we are hiring! http://airisdata.com
- 3. WHAT’S WRONG WITH RELATIONAL DATABASES? Nothing :) Google & Amazon (followed by web tech) Higher Performance Larger Scale Lower Cost New Capabilities
- 4. BUT FIRST A POOR METAPHOR Cars! What leads to better performance? • Bigger engine, remove excess weight/features • Better controls/steering/br aking
- 5. WAIT, I WANT MORE PERFORMANCE! We can go faster!
- 6. BUT YOU CAN’T MOVE IKEA FURNITURE?!? Feature loss? Is it a car?
- 7. WELL, WE CAN SOLVE THAT PROBLEMAlso, it has a very powerful engine
- 8. THE CHALLENGE OF PERFORMANCE <add wisdom> long winded way to nosql is a poor label
- 9. SO WHAT IS NOSQL ‘UM, NON-RELATIONAL’ No good definitions to be found For me: Scales horizontally Foregoes the ‘old school’ SQL relations, concurrency, etc. “exactly like SQL (except where it’s not)” Trades-in or reimagines most SQL features for ‘something else’ Developer friendly/developer driven Schema loose / semi-structured Usually Open Source and usually associated with web infrastructure Ignoring older non-relational databases of the past Scales Horizontally (usually) – did I mention that? Can be ‘glued’ to other data stores Don’t like mine; create your own definition :)
- 10. SIDEBAR OBSERVATION ON SOFTWARE TEAMS Software teams tied to large central relational database (think 1990s/2000s) Large relational database ‘glue’ teams and apps together leads to complex databases and dbadmins Vs. Software teams using no sql Independent except at the edges (input/logs & output/reports)
- 11. FOWLER’S IMPEDANCE MISMATCH Java objects vs. rows in tables What I have called Fowler’s Impedance is mentioned in his and Sadlage’s book NoSQL Distilled Most of nosql beasties can store data in more interesting ways
- 12. CAP Here because management loves to chat endlessly about it. C is for Consistency “This is equivalent to requiring requests of the distributed shared memory to act as if they were executing on a single node, responding to operations one at a time. Most systems are not (exactly) A is for Availability “For a distributed system to be continuously available, every request received by a non-failing node in the system must result in a response. …even when severe network failures occur, every request must terminate.” I think everyone here understands this one ;) P is for Partition Tolerance “In order to model partition tolerance, the network will be allowed to lose arbitrarily many messages sent from one node to another.” Quotes from “Brewer’s Conjecture and the Feasibility of Consistent, Available, Partition-Tolerant Web Services”
- 13. YOU CAN HAVE TWO Consistency The system may shutdown or take a day to answer but you will have the correct answer. Availability The system will always answer; you might get your checking balance from last year instead of today’s balance but you will get an answer. Like asking a research group or asking folks in the pub. Can’t have both :( One can accept the write not knowing if all the servers are up OR you can refuse until you know all the servers are up. Partition Tolerance is mandatory in distributed systems!https://codahale.com/you-cant-sacrifice-partition- tolerance/
- 14. ONLY TWO, THE FINE PRINT Only two at any moment in time :) For some systems you can choose different pairs for each operation (Cassandra, Riak).
- 15. WHY WOULD ANYONE BE INCONSISTENT? Speed while highly concurrent “good now better is than perfect later” i.e. don’t block Handling “partition cases” i.e. part of the system/network is down!
- 16. DB CHEMISTRY – MORE BUZZ Is it ACID or BASE? Atomicity, Consistency, Isolation, Durability Basically Available, Soft-state, Eventually consistent See “The Transaction Concept: Virtures and Limitations” by Jim Gray
- 17. HOW TO DISTRIBUTE THE DATA? Option 1: shard Option 2: replicate Option 3: do both!
- 18. WHAT WOULD LINNAEUS SAY? Key-Value https://en.wikipedia.org/wiki/Linnaean_taxonomy Graph DB Document Columnar (aka BigTab Disclaimer: heavy overlap
- 19. COLUMNAR STORES Inspired by Google’s Bigtable Funky row/column setups
- 21. KEY-VALUE STORES Designed for Speed (even memory-only) High load Global data model of key-values (surprise!) Ring partition and replication
- 23. DOCUMENT STORES Similar to key-value but the value is a document! Document is stored in json (or similar) Flexible schema Some support keys/references/indices { “date”:[ 2016, 04. 01], “booktitle”: ”Hhitchhikers guide to the galaxy”, “author”:”Dogulas Adams” }
- 25. GRAPH DATABASES Remember your data structures class in college? Edges and vertices – both can hold data Reduces tough sql queries to simple graph queries Easier to model – ‘matches the whiteboard’ Relationships between vertices are first class
- 27. HBASE Nosql on top of hadoop
- 28. SITS ON TOP OF HDFS Name nodes Data nodes Replication And the rest of that whole megillah
- 29. Column-oriented Handles ‘wide’ ‘sparse’ tables well Fault tolerant Supports java, REST, Avro and Thrift All operations are atomic at the row level (via write ahead logs)
- 30. KIND OF SQL Key – values Keys are arbitrary strings Values are a entire row of data No joins Apache Phoenix JDBC interface
- 31. COLUMN FAMILIES Column’s fullname = family name & column qualifier Each column family’s performance is configured independently!
- 32. REGIONS Looks like shards – different key ranges per box, no overlap
- 34. CAP WITH QUORUMS KNOB TWEAKING Symmetric / peer to peer Linearly scalable Replication Eventually consistency Partitioning
- 35. CAP WITH QUORUMS KNOB TWEAKINGSome systems choose per event! Three knobs: replication amount, how many successful writes == ‘your writing to the database is done!”, how many successful reads out of a full set == “here is your data” Higher the values, longer the wait...
- 36. GOSSIP AND PEERING Whose up? Passing requests Handling missing nodes

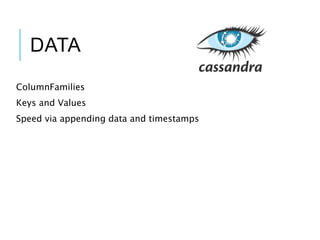

- 37. DATA ColumnFamilies Keys and Values Speed via appending data and timestamps
- 38. KEY VALUE DYNAMO Replication REST/Protocol Buffers for queries Tunable consistency
- 39. RIAK simple interface, high write-availability, linear scaling Rest api via http – put, get, delete, post, etc. Or Protobufs for quicker serialized data ‘hundreds of nodes’
- 40. DISTRIBUTED Consistent hashing, vector clocks, sloppy quorums, virtual nodes (not machines but light weight processess - more like having eggs in many baskets – easier to give the eggs to folks during a failure), hinted hand off (“please pass along”), replication. Request -> riak | <- ask other nodes -> | | virt node -> virt node -> | | data store data store And then return answers back up the stack
- 41. SERVERS? “just add more” servers Ring architecture – all nodes are peers gossip protocols
- 42. KEYS AND BUCKETS Riak can create them automatically (and return to you the key) http://SERVER:PORT/riak/BUCKET/KEY http://SERVER:PORT/riak/BUCKET/KEY?keys=true ^ gets all the keys http://SERVER:PORT/riak/BUCKET/KEY?keys=stream ^better for huge sets of data You can store your code in a bucket!
- 43. LINKS Curl blah –H “link: /riak/BUCKET/KEY; riaktag=”tagname” Link walking ^ can create other structures
- 44. HOMEWORK AND OTHER READINGS GENERAL Brewer’s conjecture https://www.comp.nus.edu.sg/~gilbert/pubs/BrewersConjecture-SigAct.pdf Vogels’ thoughts on eventually Consistent http://www.allthingsdistributed.com/2008/12/eventually_consistent.html Old school techniques for “almost perfect” systems: “The Transaction Concept: Virtures and Limitations” by Jim Gray http://research.microsoft.com/en- us/um/people/gray/papers/theTransactionConcept.pdf ACID defined: Haerder and Reuter "Principles of transaction- oriented database recovery” http://www.minet.uni-jena.de/dbis/lehre/ws2005/dbs1/HaerderReuter83.p All your base: Dan Pritchett “Base: An Acid Alternative” http://queue.acm.org/detail.cfm?id=1394128 NoSQL Distilled by Sadalage and Fowler Seven Databases in Seven Weeks by Redmond and Wilson
- 45. HOMEWORK AND OTHER READINGS CONT’D Google’s big table http://static.googleusercontent.com/media/research.google.com/en //archive/bigtable-osdi06.pdf Hbase: The Definitive Guide by Lars George Hbase in Action by Dimiduk and Kurana Hadoop: The Definitive Guide by Tom White
- 46. HOMEWORK AND OTHER READINGS CONT’D • A Little Riak Book by Eric Redmond – http://www.littleriakbook.com/ • Nice video on system details on safari by Justin Sheehy – https://www.safaribooksonline.com/libra ry/view/riak- core/9781449306144/part00.html?auto Start=True • Riak Handbook – http://www.riakhandbook.com/
- 47. READINGS FOR GRAPHS Graph Databases by Robinson, Webber and Eifrem Mostly about Neo4j, uses Cypher through out
Editor's Notes
- #5: What improves auto performance? Bigger engine; less weight Which leads to better brakes, steering, etc. <- better tools to manage And better safety systems. Which leads to a vehicle that requires a more support Formula 1 car uses 18000 liters of air per minute (you use 25 liters of air per minute to move a bicycle)
