The document discusses various features and specifications of GPU architectures, specifically focusing on the Logan and Denver versions, detailing their cores, cache, and power management techniques. It elaborates on the integration of graphics processing with CPU workloads, enabling efficient resource management for applications in sectors like IoT and medical fields. Additionally, it covers the Pseudo-random Noise Architecture, interrupt controllers, and peripherals, highlighting their impact on performance and power efficiency in mobile devices.
![TIMERS
RTC
Nvidia Generic Timers (10 nos)
WDT- 5 nos: 1 per FCPU and 1 for COP(AVP)[LP
CPU doesn't have WDT?]
GIT- ARM CPU Generic Timers(4 timers per CPU:
Secure & Non Secure Physical Timers; Hypervisor
Timer and Virtual timer)
TSC-Generic Time System Counter- reference for
GIT. Its a part of PMC
Note: any timer can be used as WDT](https://image.slidesharecdn.com/nvidiategrak11-151229103526/85/Nvidia-tegra-K1-Presentation-31-320.jpg)
Nvidia tegra K1 Presentation
- 2. Introduction GPU features Applications
- 3. Two Versions - Logan and Denver Logan - 32 bit quad-core 4-PLUS-1 ARM Cortex A15 CPU; upto 2.3GHz; 28 nm process Logan - Two part nos. available CD575M and CD575MI Denver - 64 bit dual core based on ARMv8 architecture; upto 2.5GHz 64kB L1;32kB of I-cache and 32kB D-cache 2MB L2 cache OUR FOCUS → LOGAN
- 4. Vector Graphics Rasterisation Variable Symmetric Multiprocessing (vSMP) Streaming Multiprocessor (SMX) Dynamic Parallelism Hyper-Q Polymorph Engine Bindless Textures
- 5. Vector graphics is the use of geometrical primitives such as points, lines, curves, and shapes or polygons—all of which are based on mathematical expressions—to represent images in computer graphics
- 6. Rasterisation (or rasterization) is the task of taking an image described in a vector graphics format (shapes) and converting it into a raster image (pixels or dots) for output on a video display or printer, or for storage in a bitmap file format.
- 7. Reason- mobile devices are in standby state for almost 80% time → power saving 4-PLUS-1 CPU → 4 HIGH performance more power intensive cores and 1 LOW power, low performance core S/W b/w cores done on basis of processing reqd.; intelligent s/w hysteresis Total Power = Leakage + Dynamic Dynamic Power α Frequency x (Voltage)2
- 8. Fast Process = Optimized for high frequency operation, but higher leakage Low Power Process = Operates at lower frequency with lower leakage High to low performance crossover at 600MHz Low power core has peak freq. of 1GHz Both cores are OS transparent Not all 4 high performance cores active; dynamic enable/disable Note: all the 5 cores cannot be active simultaneously
- 12. Motive is to free the CPU Handle varied workload and use GPU efficiently Run complex, less structured tasks Any kernel can launch another kernel and can create the necessary streams,events and dependencies needed to process additional work without the need for host CPU interaction.
- 13. GPU core can be used by multiple CPUs Enables multiple CPU cores to launch work on a single GPU simultaneously Increases GPU utilization and slashing CPU idle times 32 simultaneous, hardware managed connections(?)
- 14. Hyper-Q....contd
- 15. Applications Internet of Things (IoT) Medical Traffic Monitoring Video Analytics
- 17. About the SCU The SCU connects one to four Cortex-A9 processors to the memory system through the AXI interfaces. The SCU functions are to: maintain data cache coherency between the Cortex-A9 processors initiate L2 AXI memory accesses arbitrate between Cortex-A9 processors requesting L2 accesses manage ACP accesses. Snoop Control Unit(SCU)Snoop Control Unit(SCU)
- 18. AGENDA AVP MPIO Interrupt Controllers Clock Boot Power States PMC Flow Controller Power Architecture Memory Controller Peripherals
- 19. AVP- Audio Video Processor Functions - Manage initial boot stages - Control and assist hardware audio decoding blocks, BSEA and VCP2 - Control and assist hardware video decoder,VDE 256 kB local RAM(IRAM) 8kB cache
- 20. Muti- purpose I/O : MPIOMuti- purpose I/O : MPIO Each MPIO consists of: Output driver with: -Tri state capability - Drive strength controls -Push pull mode, open drain mode or both Input receiver with Schmitt mode, CMOS mode or both Weak pull up or pull down They stay in their POR state until changed by software(bootloader or OS) Default pad drive impedance is 50 ohms
- 21. 5 types of MPIO pads: ST(Standard) DD(dual driver)- 3.3V tolarant(pull up resistor) regardless of i/p V....must be set to open drain mode...special pwr seq considerations for this OD(open drain)-5V tolerant..no push pull driver CZ(controlled Z)-tigntly controlled Z LV- 1.8V tolerant MPIO....contd.MPIO....contd.
- 22. MPIO....contd.MPIO....contd. Each MPIO can have upto 5 functions- upto 4 SFIO( special funtion wherein they are for peripherals) and 1 as GPIO Pinmux controller handles MPIO functionality and has one register per MPIO
- 24. GPIO Controller GPIO controller is divided into 8 banks Each bank handles upto 32 MPIOs Within each bank, GPIOs are arranged as 4 ports of 8 bits each 162 GPIOs in all Individually config. as Input, output, interrupt source with edge/level triggering Lock bit functionality(optional) ensures GPIO config. is not modified during runtime, system reset can clear this bit
- 25. Unused Pin- PWR Saving Assert tri state and disable input buffer If all pins in a pad control group are unused, set the drive strengths and slew rates to a minimum If all pins on a power rail are unused, assert E_NO_IOPOWER for that rail in the PMC registers
- 26. Two- vGIC(Virtual generic Interrupt controller) and LIC(Legacy Interrupt controller) vGIC- For the ARM15 CPUs and LIC for the ARM7 AVP 160 hardware interrupts grouped into slices of 32 where each slice can be configured independently
- 27. There is one vGIC per CPU cluster and runs at half the clk freq. of that cluster vGIC supports 256 interrupts each with a unique ID Interrupt sources for vGIC Software Generated Interrupts(SGI) Private Peripheral Interrupts(PPI) Shared Peripheral Interrupts(SPI)
- 28. SGIs(also called IPIs ie Inter Processor Interrupts) generated by writing to vGIC registers, max. of 16 in no., ID 0 to 15 PPIs are generated by a peripheral that is specific to a CPU. 7 PPIs per CPU. nFIQ and nIRQ provided as pins.(?) SPIs are external hardware interrupts given via IRQ pins and also by internal SoC units. Level triggered InterruptInterrupt Controllers.....contd.Controllers.....contd.
- 29. Two external Clks- 32.768kHz(for PMC and RTC) and 12MHz 16 PLLs For saving power by clock gating refer page 78 of TRM Each peripheral has its own CLOCK_SOURCE register- 2 bits to select from 4 clk sources and 8 bits for clk divider, 7 for integer and 1 for fraction CL-DVFS(Closed Loop Dynamic Voltage and Frequency Scaling) register help controlling clock and power supply to FCPU(fast CPU) complex
- 30. RTC Maintains sec and ms counters 5 alarm registers Always ON pwr domain Can issue interrupts in LP states Hardware adjusts drifts in clock due to PPM variations of osc All registers(except BUSY) use 32KHz clk domain
- 31. TIMERS RTC Nvidia Generic Timers (10 nos) WDT- 5 nos: 1 per FCPU and 1 for COP(AVP)[LP CPU doesn't have WDT?] GIT- ARM CPU Generic Timers(4 timers per CPU: Secure & Non Secure Physical Timers; Hypervisor Timer and Virtual timer) TSC-Generic Time System Counter- reference for GIT. Its a part of PMC Note: any timer can be used as WDT
- 32. Power On Reset(POR)- deasserted externally (SYS_RESET_N pin) Reset by thermal Sensor Watchdog Timer-Two types: Deadman Timer(legacy) WDT-1st expiry interrupt issued and on 2nd reset but only some subunits WDT2- 1st expiry interrupt issued, on 2nd FIQ, on 3rd CPU reset, on 4th full system reset Software reset- Config bit in PMC; resets whole chip LP0 wakeup reset- PMC logic controlled
- 33. During POR or system reset, reset controller deasserts boot blocks first and then the CPU and COP after 511 osc. clock periods to prevent COP/CPU from talking to these boot devices while itself still being in reset state Non boot devices are brought into operation from reset by software At POR bits of registers RST_DEVICES_L/H/U/V/W/X and CLK_OUT_ENB_L/H/U/V/W/X are set by hardware(pg 90 of TRM) PORPOR
- 34. Blocks necessary for the boot are: AVP with its L1 All systems buses like AHB, APB etc Timer RTC NOR flash controller eFUSE GPIO CoreSight- debug controller; one per cluster
- 35. BOOT SOURCES SPI Flash eMMC USB Recovery
- 36. Power States Active Suspend(LP1) Deep Sleep(LP0) OFF
- 38. Power States..contd. LP2 Cluster switch (a variant of LP2) - Cluster1 to 0 switch -Cluster0 to 1 switch :CPU3 ie last of cluster0 initiates this switch
- 39. Power States..contd. LP3(per CPU) If CPU is idle for a short time its clock is ungated ie CPU is halted( we have not pwr gated this CPU only clk is stopped) Only small wake up logic clk is enabled, others ungated LP3 exited on detection of IRQ or FIQ Flow controller not needed, clk gating/ungating internal to FCPUs and LPCPU
- 40. AVP Low Power States No specific instruction to halt the AVP However, its memory bus can be put into WAIT state by flow controller (HALT State) IRQ/FIQ and other wake events can bring AVP out of halt state During halt, AVP clk is automatically ungated by hardware AVP is NOT power gated
- 42. PMC....contd. Provides interface to external PMIC Controls votage switching/transitions as processor changes power states(eg LP0, LP1) Processes power/clock requests( acts as slave) from various peripherals To speed up operation, the PMC register file operates in local peripheral interface bus domain (APB) rather than in the 32KHz clock domain used for PMC processing
- 43. Flow Controller- IMPORTANT* Provides sequencing of hardware controlled CPU power states Handles switching between CPU clusters 0 & 1 and also switching them OFF Receives CPU pwr state requests from CPUs, sends pwr ON/OFF requests to PMC which power gates/ungates corresponding CPUs Monitors per CPU interrupts and events to determine CPU wake events Initiates CPU wake WFI(wait for interrupt) command used to trigger low power states
- 45. Flow Controller....contd. Note: Flow controller has 3 different state machines- * Main CPU flow controller state machines shown in fig. above * CPU rail power UP state machine * State machine for COP Flow controller uses CPU-ID (in MPID register) to identify the cores
- 46. Power Architecture There are sense pins for various system voltage domains which access then continuously
- 47. Power Gating and Ungating For CCPLEX PG partitions, sequencing ensured by hardware when power gating is done via flow controller For SoC(non CCPLEX) PG partitions, sequencing is done by software Power gating controller- two in number 1. SoC PG controller 2. GPU PG controller
- 48. SoC PG Controller Controls 8 zones and uses a fixed power ON/OFF sequence using a fixed set of delays Power OFF seq. is opposite of power ON Same programming register for all zones
- 49. GPU PG Controller GPU PG controlled by GPMU unit inside Kepler GPU Independent of SoC/CPU PG If CPU and GPU share the same voltage rail (for cost reduction), then software settings should ensure that simultaneous PG of CPU and GPU should not occur to avoid di/dt issues
- 50. Fast CPU PG COntroller Used to power gate fast CPU partitions Funtioning similar to SoC PG controller
- 51. Power Gating Flow controller uses seperate state machine for PG each CPU PG done based on CPU-ID Only one request handled at a time to avoid pwr noise issues Flow controller - PMC inerface has core ID and not Cluster ID As shown in figure, CPU and non CPU components can be PG seperately
- 53. Power Gating....contd. At boot,CPU rail is OFF by default. It can be enabled by AVP using register write to PMC registers CPU rail can also be switched ON by PMIC (I2C write) COP can switch OFF the FCPUs CPU and non CPU blocks cannot be switched simultaneously
- 54. Hardware Accelerators NEON ISP
- 55. Memory Controller- RAM Only DDR3L and LPDDR3 supported and tested by NVIDIA x32 bit or x64 bit configuration 4 chip selects 4 individually controllable clock enables 4 individually controllable ODTs Rank 0 size > or = rank 1 3 BA Column width- 9 to 12 bits Row width - 12 to 16 bits DDR3 upto 966MHz Upto 4 GB supported (as per datasheet) 1T and 2T support

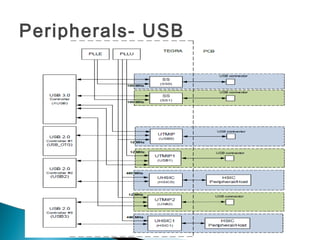

- 56. Peripherals- USB
- 57. Peripherals- USB....contd. USB_OTG supports USB recovery boot USB2 and USB3 support host mode only XUSB supports host mode only
- 58. Peripherals- AUDIO Features: - I2S controllers - 1 S/PDIF controller
- 59. Peripherals- Display Controller 2 independent display controllers which can support 2 independent displays
- 60. Peripherals- MIPI CSI 2.0 2 CSI interfaces, each supports upto 4 lanes 2 image sensors can be used simultaneously (eg stereo apps.) CSI B can support one additional single lane input
- 64. Peripherals- SATA & PCIe SATA spec Rev 3.1and AHCI spec. Rev 1.3.1 5 lane PCIe; Gen 1(2.5 GT/s) and Gen 2(5GT/s) supported
- 65. Peripherals- I2C 6 I2C interfaces I2C 3.0 spec compliant Modes supported: - Standard (upto 100kbps) - Fast Mode (upto 400kbps) - Fast Mode plus (upto 1Mbps) - High speed mode (upto 3.4 Mbps)
- 66. Peripherals- UART, SPI & Misc. 4 UART interfaces (with RTS and CTS); upto 12.5Mbps baud rate SPI master upto 65MHz and slave upto 45MHz, six CS JTAG 4 PWFM interfaces Serial Transport stream(TS) Controller for Digital TV
