Object oriented and analysis

Overview - Object-Oriented
Analysis and Design
 Design review
 Object Modeling Technique
 Object-Oriented Analysis
 Object-Oriented Design
 Three models
 Object model
 Dynamic model
 Functional model
 Four phases
Software Engineering II by: Hashim Ali, Assistant Professor, CS Deptt, UCSS AWKUM

Design - Review
 Design transforms requirements into
 an architecture diagram
 subsystems, modules and their relationships
 a detailed design
 a specification of the abstract interface, data structures, and algorithms of each
module
 Also develops
 a review plan for ensuring the design meets the requirements
 a test plan for ensuring the implementation meets the design

Object-Oriented Software Development
 Object-Oriented Methodology
 development approach used to build complex systems using
the concepts of object, class, polymorphism, and inheritance
with a view towards reusability
 encourages software engineers to think of the problem in terms
of the application domain early and apply a consistent
approach throughout the entire life-cycle
 Object-Oriented Analysis and Design
 analysis models the “real-world” requirements, independent of
the implementation environment
 design applies object-oriented concepts to develop and
communicate the architecture and details of how to meet
requirements

Object Modeling Technique
Process via UML (OMT turned
into UML)
 OMT [Rum Baugh et al.,1991] consists of
 building three complementary models of the system
 adding implementation details to the models
 implementing the models
 OMT includes a set of
 phases [processes]
 diagramming techniques
 OMT has four phases
 object-oriented analysis builds a real-world model
 system design determines overall architecture of system
 object design decides upon data structures and algorithms
 implementation translates design into programming languageSoftware Engineering II by: Hashim Ali, Assistant Professor, CS Deptt, UCSS AWKUM

OMT Stages and
Models
Analysis
- Model of real-world situation
- What ?
System Design
- Overall architecture (sub-systems)
Object Design
- Refinement of Design
- Algorithms/data structures to
implement each class
Implementation
- Translation of object classes and
relationships to a particular
object-oriented language
time
ObjectModel
-Staticstructureofobjectsandtheirrelationships
(objectdiagram)
DynamicModel
-Controlaspectsofthesystem
(statediagrams)
FunctionalModel
-Datavaluetransforamtions
(dataflowdiagrams)
System

Introduction to Object-Oriented Analysis
 Semi-formal technique
 class modeling
 dynamic modeling
 functional modeling
 These steps focus on
 data
 actions
 and their relationships
 Reuses familiar tools
 E-R diagrams
 Finite State Machines
 Data flow diagrams
 Steps and diagrams
 are typically performed in
parallel after initial class
definition
 must be kept in synch
• Object-Oriented Analysis is the “requirements phase” of
Object-Oriented Software Development
–think of it as an alternative semi-formal technique

Object-Oriented Analysis
 Builds a real-world model from requirements
 client interviews
 domain knowledge
 real-world experience
 Model is more precise and concise than the informal problem definition
 The model addresses three aspects of objects
 class structure and relationships
 sequencing of interactions and events
 data transformations and computations

Models of Object-Oriented Analysis
 Class Model
 static structure
 what objects are in the system?
 how are they related?
 Dynamic Model
 behavioral aspects
 what events occur in the system
 when do they occur and in
what order?
 Functional Model
 data transformations
 “what” does the system do
 Data-Oriented
 Action-Oriented
 Both Data and Actions

OO Analysis and Design: Steps
 Class Modeling
 Dynamic Modeling
 Functional Modeling
 Add Operations to the Class Model
 Iterate and refine the models
 After the first iteration, steps may occur in parallel
or out of order
 All models must be kept in synch as changes are made

Class Modeling
 Identify objects and classes
 Prepare a data dictionary
 Identify associations between objects
 Identify class attributes and initial set of operations
 Organize object classes using inheritance

Classes, Attributes and Operations
 Attributes define the properties of the objects
 every instance of the class has the same attributes
 an attribute has a data type
 the values of the attributes may differ among instances
 Operations define the behavior of the objects
 action performed on or by an object
 available for all instances of the class
 need not be unique among classes
Class Attributes Operations
ball radius, weight catch, throw
football air pressure pass, kick, hand-off
baseball liveness hit, pitch, tag
Class Attributes Operations
ball radius, weight catch, throw
football air pressure pass, kick, hand-off
baseball liveness hit, pitch, tag

Object Model Notation, Review
Class Name
(Class Name)
InstanceVariable1
InstanceVariable2: type
InstanceVariable1 = value
InstanceVariable2: type
Method1()
Method2(arguments) return type
Method1()
Method2(arguments) return type
Classes are represented as rectangles;
The class name is at the top, followed by attributes
(instance variables) and methods (operations)
Depending on context some information can be
hidden such as types or method arguments
Objects are represented as rounded rectangles;
The object’s name is its classname surrounded by
parentheses
Instance variables can display the values that they
have been assigned; pointer types will often point
(not shown) to the object being referenced

OMT Instantiation Notation
Class Name
attribute_1: data_type_1 = default_1
attribute_2: data_type_2 = default_2
. . .
attribute_m: data_type_m =
default_m
(Class Name)
attribute_1 = value_1
attribute_2 = value _2
. . .
attribute_m = value _m
Class
Instance

Instantiation - Example
Person
name
age
weight
(Person)
(Person)
Joe Smith
age=39
weight=158
Mary Wilson
age=27
weight=121

Inheritance
 Classes with a set of similar attributes and operations may be organized
into a hierarchical relationship
 Common attributes and operations are factored out and assigned to a
broad superclass (generalization)
 generalization is the “is-a” relationship
 superclasses are ancestors, subclasses are descendants
 A class can be iteratively refined into subclasses that inherit the attributes
and operations of the superclass (specialization)

OMT Inheritance Notation
Generalization
Specialization
Superclass
Subclasses
Class
Attributes
Operations
Ball
Radius, Weight
Throw, Catch
Football
air pressure
pass, kick, hand-off
Baseball
liveness
hit, pitch, tag
Basketball
air pressure , dimples
shoot, dribble, pass

Association and Links
 An association is a relation among two or more classes
describing a group of links, with common structure and
semantics
 A link is a relationship or connection between objects
and is an instance of an association
 A link or association is inherently bi-directional
 the name may imply a direction, but it can usually be inverted
 the diagram is usually drawn to read the link or association
from left to right or top to bottom
 A role is one end of an association
 roles may have names

OMT Association Notation
Person Company
Company Person
Works For
Class, Association, and Roles
Object and Link
Johnson IBM
Employer Employee
Works For
equivalent
(Company)(Person)
Employs

Association and Links
Country
nam
e
(Country)
Canada
City
nam
e
has-capital
(City)
Ottawa
has-capital
(Country)
France
(City)
Paris
has-capital
(Country)
Austria
(City)
Vienna
has-capital
Class diagram
Instance diagram

Multiplicity of Associations
 Multiplicity is the number of instances of one class that may relate to a
single instance of an associated class
 1-to-1
 1-to-many (0 or more)
 1-to-(zero-or-one) ‘optional’
 1-to-(one-or-more) ‘required’
 1-to-n
n
1+

OMT Multiplicity Notation
Instructor Courses
Student
Teaches1+
Takes
6-65
Each course has at least one instructor
and between 6 and 65 students
A student may take many courses
An instructor may teach many courses

Link attributes for
associations
Person
name
address
Company
name
works-for
salary
job title

Aggregation
 Aggregation is a special form of association that indicates a “part-of”
relationship between a whole and its parts
 Useful when the parts do not have independent existence
 A part is subordinate to the whole
 In an aggregation, properties and operations may be propagated from
the whole to its parts

OMT Aggregation Notation
Window
TitleBar ScrollBar Border

Microcomputer
Monitor
Chassis CPU
System box Mouse Keyboard
RAM Fan
1+
1+1+
Multilevel aggregation

An Example
FastData Inc. wants a subsystem to process office supply orders via the Web.
The user will supply via a form their name, password, account number, and a
list of supplies along with an indication of the quantities desired. The
subsystem will validate the input, enter the order into a database, and
generate a receipt with the order number, expected ship date, and the total
cost of the order. If the validation step fails, the subsystem will generate an
error message describing the cause of the failure.

Purpose of Example
 We will demonstrate the UML /OMT using this example
 Class modeling will be done first
 Dynamic and Functional modeling will occur next lecture
 Detailed design will also occur next lecture
 Things to remember
 This example does not demonstrate how the technique is applied to ALL
problems. Be sure to distinguish between the details of the example and the
details of the technique!

Concise Problem Definition
Define the problem concisely
 Use only a single sentence
“FastData, Inc. employees may order office supplies via the Web and
receive a receipt confirming the order”
This is the first step towards identifying the classes of the subsystem

Informal Strategy
Identify the constraints governing the system
 Use only a single paragraph
“FastData, Inc. employees may order office supplies via
the Internal Web and receive a receipt confirming the
order. The order must include the user name, user
password, account number, and the list of supplies. A
receipt must be generated containing an order number,
ship date, and total cost. If the order is valid, it must be
entered into an order database. If the order is invalid, an
error message must be generated.”
We now have more information to be used in identifying classes for the
subsystem

Formalize the Strategy
Identify the nouns of the description, which serve as the basis
for identifying the subsystem’s classes.
 Look for out-of-domain nouns (and throw them out!)
 Look for abstract nouns (use these for attributes)
 The remaining nouns are good candidates!
“FastData, Inc. employees may order office supplies via the
Internal Web and receive a receipt confirming the order. The
order must include the user name, user password, account
number, and the list of supplies. A receipt must be generated
containing an order number, ship date, and total cost. If the
order is valid, it must be entered into an order database. If the
order is invalid, an error message must be generated.”

Nouns
 Out-of-Domain
 Internal Web
 Abstract
 user name
 user password
 account number
 order number
 ship date
 total cost
 list of supplies
 office supplies -> item
 Good Candidates
 employee
 item (was office supplies)
 receipt
 order
 order database
 error message
 Notes
We have decided not to worry
about the Web in this
design. Instead we focus on
the inputs and outputs and
defer the Web details until
later.

Class Model
order DBemployee
name
password
order
number
account
total cost
receipt
order number
ship date
total cost
item
name
quantity
price
error message
explanation

Class Model, continued
response
receipt
order number
ship date
total cost
error message
explanation
Since both receipts and error messages will be generated as output
it might make sense to have them as subclasses of a more general
class. We do not know enough yet to assign it attributes however.

Class Model, relationships
order DBemployee
name
password
order
number
account
total cost
receipt
order number
ship date
total cost
item
name
quantity
price
1+
error message
explanation

Overview - Object-Oriented
Analysis and Design
 Three models
 Object model
 Dynamic model
 Functional model
 Four phases
 object-oriented analysis
 system design
 object design
 Implementation
 Detailed Design
 Integration Testing

OMT Analysis and Design: Steps
 Class Modeling
 Dynamic Modeling
 Functional Modeling
 Add Operations to the Class Model
 Iterate and refine the models
 After the first iteration, steps may occur in parallel
or out of order
 All models must be kept in synch as changes are made

Dynamic Modeling
 Prepare scenarios
 Identify events between objects
 Prepare an event trace for each scenario
 Build a state diagram
 Match events between objects to verify consistency

Dynamic Model Diagrams
 The dynamic model tracks behavior over time
 described in terms of change in objects or event sequences between objects
 Event Trace Diagrams
 show typical dialog or usage scenarios as well as exceptional and/or special
cases
 State Diagrams
 relates events, states, and state transitions
 a scenario is a path through the state diagram

Events and Scenarios
 An event is something that occurs between objects
 events have attributes, which are the information transferred from one object
to another
 A scenario is a specific sequence of events representing a path through a
system’s states
 Legitimate scenarios
 common paths (e.g. frequently used functionality)
 Error conditions and known exceptions
 An event trace extends the scenario to clarify events between objects

Event classes and attributes
 Event Classes
 airplane departs (airline,
flight number, city)
 mouse button pushed
(button, location)
 phone receiver lifted
 digit dialed (digit)
 Events
 United Flight 23 departs
from Rome
 right mouse button pushed
at (29, 30)
 phone receiver lifted
 digit dialed (2)

An example scenario
 Scenario for a phone call
 caller lifts receiver
 dial tone begins
 caller dials digit (2)
 specified phone rings
 etc.

OMT Event Trace Notation
 objects are vertical lines
 events are horizontal lines
 arrows indicate sender and
receiver
 time passes from top to bottom
Customer Pump Credit Corp
“select method of payment”
select “credit”
insert card
slide card through reader
“select grade”
select “premium”
verify account
return “approved”
display unit cost, total cost, gallons dispensed
“pump on”
pump gas
update display with total cost, gallons dispensed
charge total cost to account

Event Trace: example
Caller Phone line Callee
caller lifts receiver
dial tone begins
dials (2)
dial tone ends
dials (7)
dials (7)
ringing tone phone rings
answers phone
phones connectedphones connected
callee hangs up
connection broken connection broken
caller hangs up
dials (6)

States and Transitions
 A state is an interval between events
 it may have an activity that can trigger starting, intermediate and ending
events
 defined in terms of a subset of object attributes and links
 A state transition is a change in an object’s attributes and links
 it is the response of an object to an event
 all transitions leaving a state must correspond to distinct events

OMT State Notation
 states represented as nodes: rounded rectangles with state name
 initial state represented as solid circle
 final state represented as bull’s eye
 transitions represented as edges between nodes and labeled with an
event name
STATE-1
STATE-3 Event-d
Event-a
Event-
c
result
STATE-2
Event-b
Event-e

OMT State Diagram - Example
Start White´s
turn
Black´s
turn
black
moves
white
moves
checkmate
checkmate
stalemate
stalemate
Black wins
Draw
White wins
Chess game

Guards, Activities and Actions
 Guards are Boolean conditions on attribute values
 transition can only happen when guard evaluates to “true”
 automatic transitions occur as soon as an activity is complete (check
guard!)
 Activities take time to complete
 activities take place within a state
 Actions are relatively instantaneous
 actions take place on a transition or within a state (entry, exit, event
actions)
 output can occur with an event

Guards, Activities and Actions - Example
Vending machine model
Idle
Collecting money
coins in (amount) / add to balance
do: test item and compute change
do: dispense item do: make change
coins in (amount) / set balance
cancel / refund coins
select (item)[item empty] [change < 0]
[change = 0] [change > 0]

OMT State Relationships
 States can be nested or concurrent
 Events can be split and merged
Superstate (nesting) Superstate (concurrency)
substate-1 substate-2 substate-1
substate-1
substate-2
substate-2
substate-3
substate-4
substate-4
substate-3
split-event-0
event-1
event-1
event-1
event-2
event-2
event-2
merged-event-3
event-3
merged-event-4
(Synchronization)

State Generalization:
example
Transmission
Neutral Reverse
First Second Third
Forward
stop
push N push F
push R
push N
upshift
downshift
upshift
downshift

Returning to the FastData example
 Lets define a scenario for an office supply order processor: a successful
order
 Alternatively we could describe a scenario for an unsuccessful order
 Assumptions
 We are not going to consider how the order form is transmitted to our system
nor how our receipt is transmitted back
 The employee object is responsible for validating the input to the system

A successful order
 input received (we don’t care how)
 create employee object
 pass input to employee
 validate name and password
 create order object
 validate account number
 for each item
 create item
 add item to order and validate item
 compute total cost
 add order to order DB and retrieve order number and ship date
 generate receipt
 return receipt (we don’t care how)

Event Trace
Employee Order Item Order
DB
Employee
DB
Product
DB
Account
DB
Receipt
validate name/password
validated
create
validate account number
validated
create
add
validate item
validated
repeat

Event Trace, continued
Employee Order Item Order
DB
Employee
DB
Product
DB
Account
DB
Receipt
compute cost
add order
retrieve order number
retrieve cost
retrieve ship date
create

(One Possible) State Transition Diagram
Idle
input
received
Employee
Validated
Employee
Created
validated
Order
Created
create
Initialization
validated
Process Order
Process
Order
Create
Item
validated
Order
Finished?
add
[remaining
items > 0]
Finalize
do: add order
create receipt
[remaining items = 0]
return
receipt

Functional Modeling
 Identify input and output values
 Build data flow diagrams showing transformation and functional
dependencies (expanding non-trivial processes)
 Describe functions (in some language)
 Identify constraints between objects
(add to DM and FM)

OMT DFD Notation
 Processes transform data
 Actors are sources or sinks of data (= Active Objects)
 Data stores are persistent repositories of data, which may be
accessed or updated (= Passive Objects)
 Data flows between processes, actors, and data stores
Process-1 Process-2
data-1
Actor-1 DataStore-1
data-2source-data
Actor-2
sink-data

Data Value Notation
 Data may be a composed, decomposed, or duplicated
data-1
data-2
data-1
data-1
data-1
composite
composite
data-
1
data-
2

Control Flow in the
DFD
Customer
Account
balance
verify
update
amount
cash
password
coded
password
password
OK

Hierarchical DFD
 High-level functionality iteratively refined into smaller
functional units
 each high-level process may be expanded into a separate DFD
 top-level processes correspond to operations on complex objects,
while lower-level processes are operations on basic objects
 Nesting depth is dependent on application
 terminates with simple functions
 each level must be coherent
 Hierarchical DFD corresponds to the following
 context diagram shows boundaries of system
 mid-level DFDs show context decomposition
 primitive DFDs are simple functions that need not be expanded

Data Flow Diagram: Office Supply example
Web
Server
input
stream
employee
Employee
DB
validate
employee
name/
password
verification
response (receipt)
validate
order
order
Account
DB
verification
account
number

Data Flow Diagram: Office Supply example
response (receipt)
order process
order
Product
DB
verification item
finalize
order
validated
order
Order
DB
orderorder
info

Add Operations to the
Object Model
 From the Object Model:
 Reading/writing object attributes (e.g., get_width, get_height of Rectangle)
 From Events, State Actions, and Activities
in the Dynamic Model:
 Each event sent to an object => operation
(e.g., Vending machine: set_balance)
 Actions/activities may be operations
(e.g., Vending machine: do: test item and compute charges)
 From Functions in the Functional Model:
 Each function in the DFD corresponds to an operation (e.g., bank example:
subtract withdrawal from Account)

Relation of the three
models
Things
object model
Interactions
dynamic model
Transformations
functional model

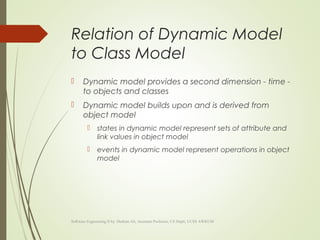

Relation of Dynamic Model
to Class Model
 Dynamic model provides a second dimension - time -
to objects and classes
 Dynamic model builds upon and is derived from
object model
 states in dynamic model represent sets of attribute and
link values in object model
 events in dynamic model represent operations in object
model

Relation of Functional Model
to Class and Dynamic Model
 Functional model describes the actions (what), the
dynamic model describes the timing (when), and the
class model describes what takes action (who)
 Functional model builds upon and is derived from class
model
 processes in the functional model correspond to operations
on objects
 The input streams of processes in the functional model
identify objects that are related by function
 data flows in the functional model correspond to objects or
attribute values in the class model
 Functional model may capture actions not part of any
scenario

OMT: Four phases
 Object-oriented analysis
 builds a real-world model
 System design
 determines overall architecture of system
 Object design
 decides upon data structures and algorithms
 Implementation
 translates design into programming language

System Design
 Devises high-level strategy for solving problem
 Set trade-off priorities
 Construct system architecture by organizing into subsystems (system
structuring)
 Choose an approach for persistent data management
(repository model)
 Allocate components to processors and tasks (distribution
model)
 Choose the implementation of control in software system (control
modeling)
 Identify concurrency inherent in the problem
 Define access to global resources
 Divide problem into implementable components (modular
decomposition)

Object Design
 Full definition of all the classes in the system
 Implementation alternatives evaluated and chosen
 Combine three models to obtain class operations
 Design algorithms to implement operations
 Optimize access paths to data
 Implement control for external interactions
 Adjust class structure to increase inheritance
 Design associations
 Determine object representation
 Package classes and associations into implementable
modules

Detailed Design
 Detailed design is the process of completely
specifying an architectural design such that module
implementation can proceed (independently)
 Interface specifications
 brief description of each module
 attributes
 brief description and specify types
 operations
 brief description
 list of parameters and parameter types
 return type (if applicable)

Detailed Design, continued
 Algorithm and data structure specification
 the designer can give hints as to what algorithms or data
structures might be most useful for a particular module
 also, the client may have specified a particular algorithm
or data structure that must be used
 in addition, constraints in the requirements may require
one approach over another
 for instance, implementing a data structure so that it uses
the minimum amount of memory possible vs. keeping
everything in memory for speed

Mapping design into code
 Most programming languages provide very similar sets
of features
 user-defined types
 control structures
 if...then...else...
 while x do y
 for i = 1 to x
 etc
 etc.
 This means that, in general, operations can be
expressed in many different languages

Mapping design into code,
continued
 Major differences between languages usually fall into
these categories
 compiled vs. interpreted
 procedural vs. object-oriented
 general purpose vs. application/domain specific
 e.g. C++ vs. FileMaker Pro’s scripting language
 If a design takes advantage of, or depends on, one or
more of these features then certain programming
languages have to be excluded from implementation

Modularity Mechanisms
 One import feature of any programming language is
how it can represent modules directly
 C and C++ have separate header and body files
 Java has package names and class files
 Ada has a construct called a package with a
specification and body (implementation)
 etc.
 These features are important since it makes it easier to
map the design into code and to trace a code
module back to its design counterpart

Object oriented and analysis

More Related Content

What's hot (20)

Similar to Object oriented and analysis (20)

Recently uploaded (20)

Object oriented and analysis
