Ontology Engineering for the Semantic Web and Beyond Natalya F. Noy Stanford University [email_address] A large part of this tutorial is based on “ Ontology Development 101: A Guide to Creating Your First Ontology” by Natalya F. Noy and Deborah L. McGuinness http://protege.stanford.edu/publications/ontology_development/ontology101.html

A shared ONTOLOGY of wine and food French wines and wine regions California wines and wine regions Which wine should I serve with seafood today?

Outline What is an ontology? Why develop an ontology? Step-By-Step: Developing an ontology Going deeper: Common problems and solutions Ontologies in the Semantic Web languages Current research issues in ontology engineering

What Is An Ontology An ontology is an explicit description of a domain: concepts properties and attributes of concepts constraints on properties and attributes Individuals (often, but not always) An ontology defines a common vocabulary a shared understanding

Ontology Examples Taxonomies on the Web Yahoo! categories Catalogs for on-line shopping Amazon.com product catalog Domain-specific standard terminology Unified Medical Language System (UMLS) UNSPSC - terminology for products and services

What Is “Ontology Engineering”? Ontology Engineering: Defining terms in the domain and relations among them Defining concepts in the domain (classes) Arranging the concepts in a hierarchy (subclass-superclass hierarchy) Defining which attributes and properties (slots) classes can have and constraints on their values Defining individuals and filling in slot values

Why Develop an Ontology? To share common understanding of the structure of information among people among software agents To enable reuse of domain knowledge to avoid “re-inventing the wheel” to introduce standards to allow interoperability

More Reasons To make domain assumptions explicit easier to change domain assumptions (consider a genetics knowledge base) easier to understand and update legacy data To separate domain knowledge from the operational knowledge re-use domain and operational knowledge separately (e.g., configuration based on constraints)

An Ontology Is Often Just the Beginning Ontologies Software agents Problem-solving methods Domain-independent applications Databases Declare structure Knowledge bases Provide domain description

Ontology-Development Process In this tutorial: In reality - an iterative process: determine scope consider reuse enumerate terms define classes define properties define constraints create instances determine scope consider reuse enumerate terms define classes consider reuse enumerate terms define classes define properties create instances define classes define properties define constraints create instances define classes consider reuse define properties define constraints create instances

Ontology Engineering versus Object-Oriented Modeling An ontology reflects the structure of the world is often about structure of concepts actual physical representation is not an issue An OO class structure reflects the structure of the data and code is usually about behavior (methods) describes the physical representation of data (long int, char, etc.)

Preliminaries - Tools All screenshots in this tutorial are from Protégé-2000 , which: is a graphical ontology-development tool supports a rich knowledge model is open-source and freely available (http://protege.stanford.edu) Some other available tools: Ontolingua and Chimaera OntoEdit OilEd

Determine Domain and Scope What is the domain that the ontology will cover? For what we are going to use the ontology? For what types of questions the information in the ontology should provide answers ( competency questions )? Answers to these questions may change during the lifecycle determine scope consider reuse enumerate terms define classes define properties define constraints create instances

Competency Questions Which wine characteristics should I consider when choosing a wine? Is Bordeaux a red or white wine? Does Cabernet Sauvignon go well with seafood? What is the best choice of wine for grilled meat? Which characteristics of a wine affect its appropriateness for a dish? Does a flavor or body of a specific wine change with vintage year? What were good vintages for Napa Zinfandel?

Consider Reuse Why reuse other ontologies? to save the effort to interact with the tools that use other ontologies to use ontologies that have been validated through use in applications determine scope consider reuse enumerate terms define classes define properties define constraints create instances

What to Reuse? Ontology libraries DAML ontology library (www.daml.org/ontologies) Ontolingua ontology library (www.ksl.stanford.edu/software/ontolingua/) Protégé ontology library (protege.stanford.edu/plugins.html) Upper ontologies IEEE Standard Upper Ontology ( suo.ieee.org) Cyc (www.cyc.com)

What to Reuse? (II) General ontologies DMOZ (www.dmoz.org) WordNet ( www.cogsci.princeton.edu/~wn/) Domain-specific ontologies UMLS Semantic Net GO (Gene Ontology) ( www.geneontology.org)

Enumerate Important Terms What are the terms we need to talk about? What are the properties of these terms? What do we want to say about the terms? consider reuse determine scope enumerate terms define classes define properties define constraints create instances

Enumerating Terms - The Wine Ontology wine, grape, winery, location, wine color, wine body, wine flavor, sugar content white wine, red wine, Bordeaux wine food, seafood, fish, meat, vegetables, cheese

Define Classes and the Class Hierarchy A class is a concept in the domain a class of wines a class of wineries a class of red wines A class is a collection of elements with similar properties Instances of classes a glass of California wine you’ll have for lunch consider reuse determine scope define classes define properties define constraints create instances enumerate terms

Class Inheritance Classes usually constitute a taxonomic hierarchy (a subclass-superclass hierarchy) A class hierarchy is usually an IS-A hierarchy: an instance of a subclass is an instance of a superclass If you think of a class as a set of elements, a subclass is a subset

Class Inheritance - Example Apple is a subclass of Fruit Every apple is a fruit Red wines is a subclass of Wine Every red wine is a wine Chianti wine is a subclass of Red wine Every Chianti wine is a red wine

Levels in the Hierarchy Middle level Top level Bottom level

Modes of Development top-down – define the most general concepts first and then specialize them bottom-up – define the most specific concepts and then organize them in more general classes combination – define the more salient concepts first and then generalize and specialize them

Documentation Classes (and slots) usually have documentation Describing the class in natural language Listing domain assumptions relevant to the class definition Listing synonyms Documenting classes and slots is as important as documenting computer code!

Define Properties of Classes – Slots Slots in a class definition describe attributes of instances of the class and relations to other instances Each wine will have color, sugar content, producer, etc. consider reuse determine scope define constraints create instances enumerate terms define classes define properties

Properties (Slots) Types of properties “ intrinsic” properties: flavor and color of wine “ extrinsic” properties: name and price of wine parts: ingredients in a dish relations to other objects: producer of wine (winery) Simple and complex properties simple properties (attributes): contain primitive values (strings, numbers) complex properties: contain (or point to) other objects (e.g., a winery instance)

Slots for the Class Wine (in Protégé-2000)

Slot and Class Inheritance A subclass inherits all the slots from the superclass If a wine has a name and flavor, a red wine also has a name and flavor If a class has multiple superclasses, it inherits slots from all of them Port is both a dessert wine and a red wine. It inherits “sugar content: high” from the former and “color:red” from the latter

Property Constraints Property constraints ( facets ) describe or limit the set of possible values for a slot The name of a wine is a string The wine producer is an instance of Winery A winery has exactly one location consider reuse determine scope create instances enumerate terms define classes define constraints define properties

Facets for Slots at the Wine Class

Common Facets Slot cardinality – the number of values a slot has Slot value type – the type of values a slot has Minimum and maximum value – a range of values for a numeric slot Default value – the value a slot has unless explicitly specified otherwise

Common Facets: Slot Cardinality Cardinality Cardinality N means that the slot must have N values Minimum cardinality Minimum cardinality 1 means that the slot must have a value ( required ) Minimum cardinality 0 means that the slot value is optional Maximum cardinality Maximum cardinality 1 means that the slot can have at most one value ( single-valued slot ) Maximum cardinality greater than 1 means that the slot can have more than one value ( multiple-valued slot )

Common Facets: Value Type String : a string of characters (“Ch â teau Lafite”) Number : an integer or a float (15, 4.5) Boolean : a true/false flag Enumerated type : a list of allowed values (high, medium, low) Complex type : an instance of another class Specify the class to which the instances belong The Wine class is the value type for the slot “produces” at the Winery class

Domain and Range of Slot Domain of a slot – the class (or classes) that have the slot More precisely: class (or classes) instances of which can have the slot Range of a slot – the class (or classes) to which slot values belong

Facets and Class Inheritance A subclass inherits all the slots from the superclass A subclass can override the facets to “narrow” the list of allowed values Make the cardinality range smaller Replace a class in the range with a subclass Wine French wine Winery French winery is-a is-a producer producer

Create Instances Create an instance of a class The class becomes a direct type of the instance Any superclass of the direct type is a type of the instance Assign slot values for the instance frame Slot values should conform to the facet constraints Knowledge-acquisition tools often check that consider reuse determine scope create instances enumerate terms define classes define properties define constraints

Going Deeper Breadth-first coverage Depth-first coverage determine scope consider reuse enumerate terms define classes define properties define constraints create instances determine scope consider reuse enumerate terms define classes define properties define constraints create instances

Defining Classes and a Class Hierarchy The things to remember: There is no single correct class hierarchy But there are some guidelines The question to ask: “Is each instance of the subclass an instance of its superclass?”

Multiple Inheritance A class can have more than one superclass A subclass inherits slots and facet restrictions from all the parents Different systems resolve conflicts differently

Disjoint Classes Classes are disjoint if they cannot have common instances Disjoint classes cannot have any common subclasses either Red wine, White wine, Rosé wine are disjoint Dessert wine and Red wine are not disjoint Wine Red wine Rosé wine White wine Dessert wine Port

Avoiding Class Cycles Danger of multiple inheritance: cycles in the class hierarchy Classes A, B, and C have equivalent sets of instances By many definitions, A, B, and C are thus equivalent

Siblings in a Class Hierarchy All the siblings in the class hierarchy must be at the same level of generality Compare to section and subsections in a book

The Perfect Family Size If a class has only one child, there may be a modeling problem If the only Red Burgundy we have is C ô tes d’Or, why introduce the subhierarchy? Compare to bullets in a bulleted list

The Perfect Family Size (II) If a class has more than a dozen children, additional subcategories may be necessary However, if no natural classification exists, the long list may be more natural

Single and Plural Class Names A “wine” is not a kind-of “wines” A wine is an instance of the class Wines Class names should be either all singular all plural Class Instance instance-of

Classes and Their Names Classes represent concepts in the domain, not their names The class name can change, but it will still refer to the same concept Synonym names for the same concept are not different classes Many systems allow listing synonyms as part of the class definition

A Completed Hierarchy of Wines

Back to the Slots: Domain and Range When defining a domain or range for a slot, find the most general class or classes Consider the flavor slot Domain: Red wine, White wine, Rosé wine Domain: Wine Consider the produces slot for a Winery : Range: Red wine, White wine, Rosé wine Range: Wine

Back to the Slots: Domain and Range When defining a domain or range for a slot, find the most general class or classes Consider the flavor slot Domain: Red wine, White wine, Rosé wine Domain: Wine Consider the produces slot for a Winery : Range: Red wine, White wine, Rosé wine Range: Wine slot class allowed values DOMAIN RANGE

Defining Domain and Range A class and a superclass – replace with the superclass All subclasses of a class – replace with the superclass Most subclasses of a class – consider replacing with the superclass

Inverse Slots Maker and Producer are inverse slots

Inverse Slots (II) Inverse slots contain redundant information , but Allow acquisition of the information in either direction Enable additional verification Allow presentation of information in both directions The actual implementation differs from system to system Are both values stored? When are the inverse values filled in? What happens if we change the link to an inverse slot?

Default Values Default value – a value the slot gets when an instance is created A default value can be changed The default value is a common value for the slot, but is not a required value For example, the default value for wine body can be FULL

Limiting the Scope An ontology should not contain all the possible information about the domain No need to specialize or generalize more than the application requires No need to include all possible properties of a class Only the most salient properties Only the properties that the applications require

Limiting the Scope (II) Ontology of wine, food, and their pairings probably will not include Bottle size Label color My favorite food and wine An ontology of biological experiments will contain Biological organism Experimenter Is the class Experimenter a subclass of Biological organism?

Ontologies and the SW Languages Most Semantic Web languages are designed explicitly for representing ontologies RDF Schema DAML+OIL SHOE XOL XML Schema

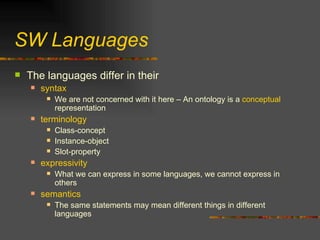

SW Languages The languages differ in their syntax We are not concerned with it here – An ontology is a conceptual representation terminology Class-concept Instance-object Slot-property expressivity What we can express in some languages, we cannot express in others semantics The same statements may mean different things in different languages

RDF and RDF Schema Classes RDF Schema Specification 1.0 (http://www.w3.org/TR/2000/CR-rdf-schema-20000327/)

RDF(S) Terminology and Semantics Classes and a class hierarchy All classes are instances of rdfs:Class A class hierarchy is defined by rdfs:subClassOf Instances of a class Defined by rdf:type Properties Properties are global: A property name in one place is the same as the property name in another (assuming the same namespace) Properties form a hierarchy, too ( rdfs:subPropertyOf )

Property Constraints in RDF(S) Cardinality constraints No explicit cardinality constraints Any property can have multiple values Range of a property a property can have only one range Domain of a property a property can have more than one domain (can be attached to more than one class) No default values

DAML+OIL: Classes And a Class Hierarchy Classes Each class is an instance of daml:Class Class hierarchy Defined by rdfs:subClassOf More ways to specify organization of classes Disjointness ( daml:disjointWith ) Equivalence ( daml:sameClassAs ) The class hierarchy can be computed from the properties of classes

More Ways To Define a Class in DAML+OIL Union of classes A class Person is a union of classes Male and Female Restriction on properties A class Red Thing is a collection of things with color: Red Intersection of classes A class Red Wine is an intersection of Wine and Red Thing Complement of a class Carnivores are all the animals that are not herbivores Enumeration of elements A class Wine Color contains the following instances: red, white, rosé

Property Constraints in DAML+OIL Cardinality Minimum, maximum, exact cardinality Range of a property A property range can include multiple classes: the value of a property must be an instance of each of the classes Can specify explicit union of classes if need different semantics Domain of a property – same as range No default values

Research Issues in Ontology Engineering Content generation Analysis and evaluation Maintenance Ontology languages Tool development

Content: Top-Level Ontologies What does “ top-level ” mean? Objects: tangible, intangible Processes, events, actors, roles Agents, organizations Spaces, boundaries, location Time IEEE Standard Upper Ontology effort Goal: Design a single upper-level ontology Process: Merge upper-level of existing ontologies

Content: Knowledge Acquisition Knowledge acquisition is a bottleneck Sharing and reuse alleviate the problem But we need automated knowledge acquisition techniques Linguistic techniques: ontology acquisition from text Machine-learning: generate ontologies from structured documents (e.g., XML documents) Exploiting the Web structure: generate ontologies by crawling structured Web sites Knowledge-acquisition templates: experts specify only part of the knowledge required

Analysis Analysis: semantic consistency Violation of property constraints Cycles in the class hierarchy Terms which are used but not defined Interval restrictions that produce empty intervals (min > max) Analysis: style Classes with a single subclass Classes and slots with no definitions Slots with no constraints (value type, cardinality) Tools for automated analysis Chimaera (Stanford KSL) DAML validator

Evaluation One of the hardest problems in ontology design Ontology design is subjective What does it mean for an ontology to be correct ( objectively )? The best test is the application for which the ontology was designed

Ontology Maintenance Ontology merging Having two or more overlapping ontology, create a new one Ontology mapping Create a mapping between ontologies Versioning and evolution Compatibility between different versions of the same ontology Compatibility between versions of an ontology and instance data

Ontology Languages What is the “right” level of expressiveness? What is the “right” semantics? When does the language make “too many” assumptions?

Ontology-Development Tools Support for various ontology language (knowledge interchange) Expressivity Usability More and more domain experts are involved in ontology development Multiple parentheses and variables will no longer do

Where to Go From Here? Tutorials Natalya F. Noy and Deborah L. McGuinness (2001) “Ontology Development 101: A Guide to Creating Your First Ontology” http://protege.stanford.edu/publications/ontology_development/ontology101.html Farquhar, A. (1997). Ontolingua tutorial. http://ksl-web.stanford.edu/people/axf/tutorial.pdf We borrowed some ideas from this tutorial Methodology Gómez-Pérez, A. (1998). Knowledge sharing and reuse. Handbook of Applied Expert Systems. Liebowitz, editor, CRC Press. Uschold, M. and Gruninger, M. (1996). Ontologies: Principles, Methods and Applications. Knowledge Engineering Review 11(2)

Transitivity of the Class Hierarchy The is-a relationship is transitive : B is a subclass of A C is a subclass of B C is a subclass of A A direct superclass of a class is its “closest” superclass
