oop Lecture 17

Object Oriented Programming using C++

Pointers overview

Lecture 17

What is a Pointer?

• A P o i n t e r provides a way of accessing a variable without
referring to the variable directly.

• The m e c h a n i s m used for this purpose is the address of
the variable.

• A variable that stores the address of another variable is called
a p o in t e r v a r ia b l e .

Pointer Variables

• Pointer variable (pointer): variable that holds an address

• Can perform some tasks more easily with an address than by
accessing memory via a symbolic name:
– Accessing unnamed memory locations
– Array manipulation
– etc.

Why Use Pointers?
• To operate on data stored in an array

• To enable convenient access within a function to large blocks
data, such as arrays, that are defined outside the function.

• To allocate space for new variables d y n a mic a l l y – that
is during program execution

Using Pointers

• To use a pointer we need to
– Store the address of another variable of the appropriate
type in it.

• How w e o b t a in t h e a d d r e s s o f
a v a r ia b le

Pointer Data Types and Pointer
Variables
• Pointer variable: variable whose content is a memory address
• Syntax to declare pointer variable:
dataType *identifier;
• Address of operator: Ampersand, &
• Dereferencing operator/Indirection operator:
Asterisk, *

T h e Address-Of O p e r a t o r (&)

• The address-of operator, & , is a unary operator that obtains
the address in memory where a variable is stored.
i n t n u m b e r = 12 3 4 ;
i n t * p n u m b e r = & n u m b e r ; / stores address of
/
/ number in pnumber
/
c ha r a = ‘ a ’ ;
c h a r *p a = & a ; / stores address of a in pa.
/

The Indirection Operator

• H o w p o in t e r v a r ia b le is u s e d t o
a c c e s s the c o nte nts o f me mo ry
lo c a t io n ?

• The i n d i r e c t i o n o p e r a t o r , * is used for this
purpose.
----
c o u t << * p n u m b e r ;


int x= 4;

int *px = &x; //stores address of variable x in variable px

Add re Add re
s ses
cout<<“The number is:”<<x;
s ses
x 4 13 1
The output is:
x 4 13 1
0
0
13 1
13 1
2
p 13 10
2
13 1
The number is: 4
13 1
x 4
4
13 1
13 1
6
6

cout<<“The number accessed by pointer variable is: ”<<*px
T he output is:
The number is: 4


int x= 4;

int *px = &x; //stores address of variable x in variable px

Ad dre s s
es

x 43 13 1
0

13 1
2

p 13 10 13 1
x 4

13 1
6

*px = 3 / T his statement means assign 3 to a variable “p o in t e d t o ” by p x .
/

The data is accessed indirectly

pointer

int x = 10;
int *p; p

p = &x; 10 x

p gets the address of x in memory.

What is a pointer?

int x = 10;
int *p; p

p = &x; 20 x

*p = 20;

*p is the value at the address p.

What is a pointer?

Declares a pointer
int x = 10; to an integer
int *p;

p = &x; & is address operator
gets address of x
*p = 20;

* dereference operator
gets value at p

Pointers

• Statements:
int *p;
int num;

Pointers

• Summary of preceding diagrams
– &p, p, and *p all have different meanings
– &p means the address of p
– p means the content of p
– *p means the content pointed to by p, that is pointed to by the
content of memory location

Getting the Address of a Variable
• Each variable in program is stored at a unique address
• Use address operator & to get address of a variable:
int num = -23;
cout << &num;

// prints address
// in hexadecimal

Pointer Variables

• Definition:
int *intptr;
• Read as:
“intptr can hold the address of an int”
• Spacing in definition does not matter:
int *intptr; // same as above
int* intptr; // same as above

Pointer Variables

• Assignment:
int *intptr;
intptr = &num;
• Memory layout:

num intptr
25 0x4a00
• Can access num using intptr and indirection operator *:
address of num: 0x4a00
cout << *intptr << endl;

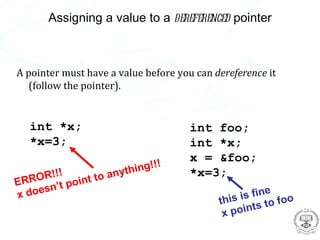

Assigning a value to a dereferenced pointer

A pointer must have a value before you can dereference it
(follow the pointer).

int *x; int foo;
*x=3; int *x;
x = &foo;
ing!!!
R!!! o anyth *x=3;
ERRO n’t point t
s
x doe e
is fin foo
this o
x po ints t

Pointers to anything

x some int
int *x;
int **y;
y some *int some int

double *z;
z some double

The Relationship Between Arrays and Pointers

• Array name is starting address of array
int vals[] = {4, 7, 11};
starting address of vals: 0x4a00 4 7 11

cout << vals; // displays 0x4a00

cout << vals[0];
// displays 4

Pointers and Arrays

• An array name is basically a const pointer.
• You can use the [] operator with a pointer:

int *x;
int a[10];
x = &a[2]; x is “the address of a[2] ”

Pointer Arithmetic

• Operations on pointer variables:
Operation Example
int vals[]={4,7,11};
int *valptr = vals;
++, -- valptr++; // points at 7
valptr--; // now points at 4
+, - (pointer and int) cout << *(valptr + 2); // 11

+=, -= (pointer valptr = vals; // points at 4
and int) valptr += 2; // points at 11
- (pointer from pointer) cout << valptr–val; // difference
//(number of ints) between valptr
// and val

Pointer arithmetic
• Integer math operations can be used with pointers.
• If you increment a pointer, it will be increased by the size
of whatever it points to.

int *ptr = a;
*(ptr+2)
*(ptr+4)
*ptr

a[0] a[1] a[2] a[3] a[4]

int a[5];

Initializing Pointers

• Can initialize at definition time:
int num, *numptr = &num;
int val[3], *valptr = val;

• Cannot mix data types:
float cost;
int *ptr = &cost; // won’t work

Comparing Pointers

• Relational operators (<, >=, etc.) can be used to
compare addresses in pointers
• Comparing addresses in pointers is not the same as
comparing contents pointed at by pointers:
if (ptr1 == ptr2) // compares
// addresses
if (*ptr1 == *ptr2) // compares
// contents

Allocating memory using n e w

Point *p = new Point(5, 5);

• new can be thought of a function with slightly strange syntax
• new allocates space to hold the object.
• new calls the object’s constructor.
• new returns a pointer to that object.

Deallocating memory using d e l e t e

// allocate memory
Point *p = new Point(5, 5);
...
// free the memory
delete p;

For every call to new, there must be
exactly one call to delete.

Dynamic Memory Allocation

• DMA provides a mechanism to allocate memory at run-time by the
programmer
• Memory Free Store
– During execution of program, there is unused memory in the
computer. It is called free store.
• Dynamic Storage duration
– Life-span of dynamic variables is defined by the programmer
• The Operators new and delete are used for DMA

Rules to Observe

• Do not use delete to free the memory not allocated by new
• Do not use delete to free the same block of memory twice
in succession
• Use delete [ ] if you used new to allocate memory for an
array

Void Pointer

• A void* is a generic pointer. Pointer of any type can be assigned to the
void pointer
• Once assigned the type of void* is the same as that of assigned pointer
type
• Dereferencing a void* is a syntax error
void* sPtr; int num;
int z[3]={1,2,3};
sPtr= z;
num= *sPtr; // ERROR
num= *(int*) sPtr; // correct version

Functions
• Pass by value
– A copy of argument it created
– The value of the passed argument is not modified
– The operation is performed on the copy of passed value as
argument
• Pass by reference
– The address of argument is passed
– The value of the passed argument gets modified
– This may occur by Reference variable or through pointer
variables

Pointer Parameters
• Pointers are passed by value (the value of a pointer is
the address it holds).

• If we change what the pointer points to the caller will
see the change.

• If we change the pointer itself, the caller won't see the
change (we get a copy of the pointer)

Pointers as Function Parameters
• A pointer can be parameter
• Works like reference variable to allow change to argument from within
function
• Requires:
– asterisk * on parameter in prototype and heading
void getNum(int*); // function prototype
void getNum(int *ptr) // function header
// ptr is pointer to an int
– asterisk * in body to dereference the pointer
cin >> *ptr;
– address as argument to the function
getNum(&num); // pass address of num to getNum

Pointers as Function Parameters

void swap(int *x, int *y)
{ int temp;
temp = *x;
*x = *y;
*y = temp;
}

int num1 = 2, num2 = -3;
swap(&num1, &num2);

Passing pointers as arguments
When a pointer is passed as an argument, it divulges an address to
the called function, so the function can change the value stored at
that address:
void passPointer(int* iPtr){
*iPtr += 2; // note *iPtr on left!
}
...
int i = 3;
int* iPtr = &i;
passPointer(iPtr);
cout << "i = " << i << endl; // prints i = 5
passPointer(&i); // equivalent to above
End result same as pass-by-reference, syntax different. (Usually
pass by reference is the preferred technique.)
Glen Cowan
RHUL Physics Computing and Statistical Data Analysis

Pointers vs. reference variables

A reference variable behaves like an alias for a regular variable.
To declare, place & after the type:
void passReference(int& i){
i += 2;
}

...
int i = 3;
int& j = i; // j is a reference variable
j = 7;
passReference(j);

Passing a reference variable to a function is the same as
passing a normal variable by reference.
Glen Cowan

What to do with pointers

You can do lots of things with pointers in C++, many of
which result in confusing code and hard-to-find bugs.
One of the main differences between Java and C++: Java doesn’t
have pointer variables (generally seen as a Good Thing).
To learn about “pointer arithmetic” and other dangerous
activities, consult most C++ books; we will not go into it here.
The main usefulness of pointers for us is that they will allow
us to allocate memory (create variables) dynamically, i.e., at
run time, rather than at compile time.

Glen Cowan
