OpenStack Deployment with Chef Workshop
4 likes2,814 views
The document outlines a workshop on deploying OpenStack using Chef, covering setup instructions and an overview of the Chef community's efforts. Key topics include the current status of Chef for OpenStack, deployment examples, and support resources like Stackforge cookbooks. The workshop aims to provide practical examples and promote collaboration among participants from various organizations involved with OpenStack.
![knife openstack
$ knife openstack
Available openstack subcommands: (for details, knife
SUB-COMMAND --help)
** OPENSTACK COMMANDS **
knife openstack flavor list (options)
knife openstack group list (options)
knife openstack image list (options)
knife openstack server create (options)
knife openstack server delete SERVER [SERVER] (options)
knife openstack server list (options)
Friday, November 8, 13](https://image.slidesharecdn.com/20131108chefopenstack-131109121146-phpapp02/85/OpenStack-Deployment-with-Chef-Workshop-21-320.jpg)
![knife openstack server create
$ knife openstack server create -a -f 2 -I 737969f8-6091-4896-ba9c-f3cf63bd25c5 -S rs-demo -i ~/.ssh/rs-demo.pem -x ubuntu -r "role[base]"
Instance Name: os-45539345723309377
Instance ID: 08f2d9f7-eeb0-45e7-8562-63aed8f096cc
Waiting for server.........
Flavor: 2
Image: 737969f8-6091-4896-ba9c-f3cf63bd25c5
SSH Identity File: /Users/mray/.ssh/rs-demo.pem
SSH Keypair: rs-demo
Public IP Address: 10.241.0.12
Floating IP Address: 50.56.12.229
Waiting for sshd.....done
Bootstrapping Chef on 50.56.12.229
Instance Name: os-45539345723309377
Instance ID: 08f2d9f7-eeb0-45e7-8562-63aed8f096cc
Flavor: 2
Image: 737969f8-6091-4896-ba9c-f3cf63bd25c5
SSH Keypair: rs-demo
Public IP Address: 50.56.12.229
Environment: _default
Run List: role[base]
Friday, November 8, 13](https://image.slidesharecdn.com/20131108chefopenstack-131109121146-phpapp02/85/OpenStack-Deployment-with-Chef-Workshop-26-320.jpg)
![Vagrantfile
•Vagrant plugins
•vagrant-berkshelf
•vagrant-chef-zero
•vagrant-omnibus
•chef-client provider
•environment = vagrant
•run_list = [ "recipe[apt]", "role[allinonecompute]" ]
Friday, November 8, 13](https://image.slidesharecdn.com/20131108chefopenstack-131109121146-phpapp02/85/OpenStack-Deployment-with-Chef-Workshop-35-320.jpg)
OpenStack Deployment with Chef Workshop
- 1. Friday, November 8, 13
- 2. OpenStack Deployment with Chef Workshop November 8, 2013 Justin Shepherd Matt Ray Friday, November 8, 13
- 3. Getting Started •Instructions: http://bit.ly/HKchef •Download mirrors at: •http://119.9.70.64 •http://192.168.1.10 •SSID 'opscode-dd-wrt' •Background then deep-dive walkthrough Friday, November 8, 13
- 4. Introductions •Justin Shepherd •Rackspace •Private Cloud Architect •Matt Ray •Opscode •Cloud Integrations Lead •justin.shepherd@rackspace.com •matt@opscode.com •GitHub: galstrom21 •GitHub: mattray •IRC: galstrom •IRC: mattray • •Twitter: mattray Friday, November 8, 13
- 5. Overview & Current Status of Chef for OpenStack Friday, November 8, 13
- 6. Chef for OpenStack: Project •Community around the automated deployment and management of OpenStack •Reduce fragmentation and increase collaboration •Deploying OpenStack is not "Secret Sauce" •Project, not a 'Product' •Apache 2 License Friday, November 8, 13
- 7. Community •#openstack-chef on irc.freenode.net •groups.google.com/group/opscode-chef-openstack •@chefopenstack Friday, November 8, 13
- 8. Who's Involved? •AT&T •Dell •DreamHost •Gap •HP •HubSpot •IBM Friday, November 8, 13 •Korea Telecom •Opscode •Rackspace •SUSE •and many more
- 9. Chef Requirements •Chef 11 •Ruby 1.9.x •Foodcritic, ChefSpec for testing •attribute-driven by Environments •platform logic in attributes •currently packages-only installation Friday, November 8, 13
- 10. StackForge: Cookbooks •"Official" OpenStack StackForge repositories •github.com/stackforge/cookbook-openstack-* •gated by review.openstack.org •OpenStack services for Grizzly cookbooks •block-storage, common, compute, dashboard, identity, image, metering, network, object-storage, orchestration •Operational support cookbooks •ops-database, ops-messaging Friday, November 8, 13
- 11. StackForge: Deployment •Chef repository for deploying Grizzly •example Environments and Roles •example "All-in-One" Vagrant deployment •github.com/stackforge/openstack-chef-repo •Gated by review.openstack.org •More single and multi-node testing coming Friday, November 8, 13
- 12. Reference Implementation •Deployment examples in documentation •All-in-One Compute •Single Controller + N Compute •more coming •Will provide example HA configurations •Operations outside of scope of core repository •logging, monitoring, provisioning Friday, November 8, 13
- 14. Documentation •docs.opscode.com/openstack.html •Architecture •Deployment Prerequisites •Installation •Development •Cookbooks and Repositories •Example Deployments •github.com/opscode/chef-docs •Creative Commons, no CLA required Friday, November 8, 13
- 15. Example Deployments •Vagrant "All-in-One" for development/testing •Developer lab deployment "1+N" •Single controller, N compute boxes •5 boxes, consumer-grade hardware •Opscode production deployment "HA+N" •HA controller, N compute and storage •30 boxes, enterprise-grade hardware Friday, November 8, 13
- 16. StackForge: Grizzly Status •Operating Systems: Ubuntu 12.04, openSUSE 12.3, SLES 11 SP2 •Databases: MySQL, SQLite (testing) •Messaging: RabbitMQ •Compute: KVM, LXC, Qemu •Network: Nova + Quantum (Open vSwitch) •Block Storage: LVM •Object Storage: Swift •Dashboard: Apache or Nginx Friday, November 8, 13
- 17. StackForge: Roadmap •branching for Havana soon •'master' moved to 'grizzly' •metering and orchestration cookbooks already started •More contributors! •Icehouse branch Friday, November 8, 13
- 18. StackForge: Roadmap •Operating Systems: Red Hat 6 •Databases: DB2, Postgres •Compute: Baremetal, Docker, ESX, Hyper-V, Xen •Messaging: Qpid •Network: NSX, OpenDaylight •Block Storage: Ceph, NetApp •Object Storage: Ceph •Source builds via Omnibus Friday, November 8, 13
- 19. Opscode Community Summit •Developer/Community unconference •November 12 & 13 in Seattle, WA •wiki.opscode.com/display/chef/ Community+Summit+3+-+2013 Friday, November 8, 13
- 20. knife openstack Friday, November 8, 13
- 21. knife openstack $ knife openstack Available openstack subcommands: (for details, knife SUB-COMMAND --help) ** OPENSTACK COMMANDS ** knife openstack flavor list (options) knife openstack group list (options) knife openstack image list (options) knife openstack server create (options) knife openstack server delete SERVER [SERVER] (options) knife openstack server list (options) Friday, November 8, 13
- 22. knife openstack flavor list $ knife openstack flavor list ID Name Virtual CPUs RAM 1 m1.tiny 1 512 MB 2 m1.small 1 2048 MB 3 m1.medium 2 4096 MB 4 m1.large 4 8192 MB 5 m1.xlarge 8 16384 MB Friday, November 8, 13 Disk 0 GB 10 GB 10 GB 10 GB 10 GB
- 23. knife openstack group list $ knife openstack group list Name Protocol From To default tcp 22 22 default icmp -1 -1 haproxy tcp 22002 22002 Friday, November 8, 13 CIDR 0.0.0.0/0 0.0.0.0/0 0.0.0.0/0 Description default default 22022
- 24. knife openstack image list $ knife openstack image list ID Name Snapshot 03860dc3-f4b5-4ecf-bb13-804d6618cf15 canonical-ubuntu-10.04-amd64 no 663656ce-2fe4-4164-b842-214f221cff55 canonical-ubuntu-12.04-amd64 no ad8a6e48-ea86-4afc-8aee-f427c02eb3ce canonical-ubuntu-13.04-amd64 no 6efbafc0-fcb1-4623-9f7a-17125bba413a centos-6.2 no e0184596-577f-4eb0-9887-d70117c6b77b debian-6.0.4-amd64 no Friday, November 8, 13
- 25. knife openstack server list $ knife openstack server list Instance ID Name Public IP 08f2d9f7-eeb0-45e7-8562-63aed8f096cc os-45539345723309377 43c6bbf5-b397-4986-8aec-392d955ce5b1 Flavor Image Keypair State 50.56.12.229 2 737969f8-6091-4896-ba9c-f3cf63bd25c5 rs-demo active os-9924426691020416 50.56.12.232 2 737969f8-6091-4896-ba9c-f3cf63bd25c5 rs-demo active c1b9e3df-e566-4378-8a52-ed998b516608 os-553425714287088 50.56.12.230 2 737969f8-6091-4896-ba9c-f3cf63bd25c5 rs-demo active f3edc5da-ef99-4acb-a141-d957e09809e3 os-07459550287500682 50.56.12.231 2 737969f8-6091-4896-ba9c-f3cf63bd25c5 rs-demo active Friday, November 8, 13 Private IP
- 26. knife openstack server create $ knife openstack server create -a -f 2 -I 737969f8-6091-4896-ba9c-f3cf63bd25c5 -S rs-demo -i ~/.ssh/rs-demo.pem -x ubuntu -r "role[base]" Instance Name: os-45539345723309377 Instance ID: 08f2d9f7-eeb0-45e7-8562-63aed8f096cc Waiting for server......... Flavor: 2 Image: 737969f8-6091-4896-ba9c-f3cf63bd25c5 SSH Identity File: /Users/mray/.ssh/rs-demo.pem SSH Keypair: rs-demo Public IP Address: 10.241.0.12 Floating IP Address: 50.56.12.229 Waiting for sshd.....done Bootstrapping Chef on 50.56.12.229 Instance Name: os-45539345723309377 Instance ID: 08f2d9f7-eeb0-45e7-8562-63aed8f096cc Flavor: 2 Image: 737969f8-6091-4896-ba9c-f3cf63bd25c5 SSH Keypair: rs-demo Public IP Address: 50.56.12.229 Environment: _default Run List: role[base] Friday, November 8, 13
- 27. knife openstack server create Friday, November 8, 13
- 28. knife openstack Compatibility •Uses the OpenStack API •Diablo, Essex, Folsom, Grizzly, Havana, trunk •Cloudscaling •Crowbar •DreamHost •MetaCloud •Nebula •Piston •Rackspace Private Cloud Friday, November 8, 13
- 29. knife openstack Resources •knife openstack --help •docs.opscode.com/ plugin_knife_openstack.html •github.com/opscode/knife-openstack •tickets.opscode.com/browse/KNIFE/ component/ Friday, November 8, 13

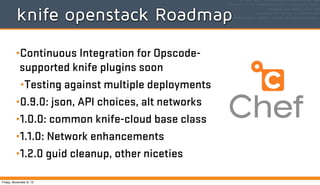

- 30. knife openstack Roadmap •Continuous Integration for Opscodesupported knife plugins soon •Testing against multiple deployments •0.9.0: json, API choices, alt networks •1.0.0: common knife-cloud base class •1.1.0: Network enhancements •1.2.0 guid cleanup, other niceties Friday, November 8, 13
- 31. Vagrant All-in-One Walkthrough Friday, November 8, 13
- 32. "The Plan" •Setup •Tools •Vagrantfile •Environment •Roles •Cookbooks •Dashboard •knife openstack Friday, November 8, 13
- 33. Setup •Instructions: http://bit.ly/HKchef •Vagrant + Virtualbox installed •Workshop.tar.gz/zip downloaded and unpacked •Download Ubuntu 12.04 box Friday, November 8, 13
- 34. Tools used •Bento •JEOS images •github.com/opscode/bento •Packer •image builder •packer.io •Chef Zero •Berkshelf Friday, November 8, 13
- 35. Vagrantfile •Vagrant plugins •vagrant-berkshelf •vagrant-chef-zero •vagrant-omnibus •chef-client provider •environment = vagrant •run_list = [ "recipe[apt]", "role[allinonecompute]" ] Friday, November 8, 13
- 36. Environment •vagrant setup for all-in-one •developer_mode = true •services each have attributes •network setup Friday, November 8, 13
- 37. Roles •allinone-compute • os-compute-single-controller • os-compute-worker Friday, November 8, 13
- 40. os-compute-worker • os-base • openstack-compute::compute Friday, November 8, 13
- 42. knife-openstack •Chef Zero creds •OpenStack creds •knife openstack ... Friday, November 8, 13
