OSB Exception Handling & Logging
Copyright © 2014 Oracle and/or its affiliates. All rights reserved. |
Joey Wong
Solution Architect
Oracle Sydney

Exceptions

Exception Handlers
Four types of error handlers:
• Stage
• Pipeline
• Route
• Service

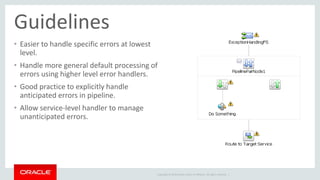

Guidelines
• Easier to handle specific errors at lowest
level.
• Handle more general default processing of
errors using higher level error handlers.
• Good practice to explicitly handle
anticipated errors in pipeline.
• Allow service-level handler to manage
unanticipated errors.

Stage Error Handler
• Use dedicated stage for each specific part
of the message flow.
• Allows very specific types of errors to be
caught.
• Enables greater level of control over error
processing.

Pipeline Error Handler
• Sites above the stage error handlers.
• Exceptions re-thrown in a stage error
handler will be propagated to the pipeline
error handler.
• Request pipeline error handler is typically
the result of malformed incoming request
messages of bug in the request path.

Route Error Handler
• Most errors seen by OSB happen here.
• Error handler is responsible for putting
the fault message back into the SOAP
body and forwarding the fault to the
response message flow.
• Error message should be logged/alerted.

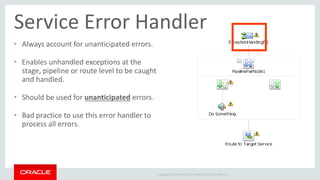

Service Error Handler
• Always account for unanticipated errors.
• Enables unhandled exceptions at the
stage, pipeline or route level to be caught
and handled.
• Should be used for unanticipated errors.
• Bad practice to use this error handler to
process all errors.

Common Error Handler
• Depending on the type of exceptions that can be caught, you may find error handling
code is duplicated.
• May be more efficient to write a common error handling service.

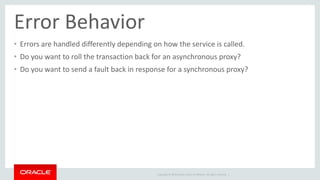

Error Behavior
• Errors are handled differently depending on how the service is called.
• Do you want to roll the transaction back for an asynchronous proxy?
• Do you want to send a fault back in response for a synchronous proxy?

Synchronous Errors
• Synchronous transports like HTTP must
contain “Reply - With Failure” action.
• This send the fault back in the response to
the consumer.
• Message flow terminates, no additional
actions or error handlers will be executed.

Asynchronous Errors
• Asynchronous transports like JMS must
contain “Raise Error” action.
• Similar to a rethrow in Java, causing the
transaction to be rolled back.
• Raise Error action will be caught by a
higher level error handler.

Logging

Logging Types
• Log
• Alerts
• Report
<Sept 24, 2014 2:08:33 PM PDT> <Error> <OSB Logging> <Oracle-000000>
<[PipelinePairNode1, PipelinePairNode1_request, show text info, REQUEST]
Text contents are: This is the file a.txt END>
File name is: ftp_in/a.txt>
Text contents are: This is the file b.txt END>
< [PipelinePairNode1, PipelinePairNode1_request, show text info, REQUEST]
File name is: ftp_in/b.txt>

Guidelines
• Establish logging requirements before starting development.
• Logging usually doesn’t need to include the entire body of the payload.
• Set appropriate logging levels.
• Error handlers should log at level “Error”.
• Dedicated OSB log file.
• Reporting action is heavy on resources. Use sparingly for Audit purposes.
