Perform preventive maintenance
- 1. LEARNING OUTCOME 3 Perform Preventive Maintenance By: ROCHELLE SABDAO-NATO Reference: Grade 7 Learners Module on Agricultural Crop Production
- 2. OBJECTIVES: 1. Know how to clean gardening tools and equipment 2. Discuss some tips on how to take good care of our gardening tools and equipment
- 3. HOW TO CLEAN YOUR TOOLS AND EQUIPMENT Let‘s start with the basics. Your shovel, spade, hoe, or even the blades on a hedge trimmer will be a lot easier to use if you take a few minutes to knock some of the rust off the blade.
- 4. What will happen if we knock some of the rust off the blade.?
- 5. • Not only will this extend the life of the tool, but also it will cut through the soil better
- 6. How do we clean our tools? These are the STEPS in cleaning the tools: 1. It is a good idea to keep a large whetstone in your shop. What is a whetstone?
- 7. A whetstone is - an ideal tool to use to keep all of the cutting edges of your garden tools honed.
- 8. 2. The best way to use the stone is to find a way to stabilize the tool that you want to work on. A bench vise is ideal. 3. Apply a little bit of lubricating oil to the end of the tool and carefully begin to work the stone over the blade
- 9. 4. Maintain a 30- degree angle between the stone and the blade to form the ideal cutting edge for your tool. Not only will the edge become sharper, but you will also be removing any pitting and rust that has formed at the edge of your tool‘s blade.
- 10. Clean accumulated rust and dirt off all metal surfaces with a wirebrush. Remove stubborn rust from small tools with fine steel wool.
- 11. 5. Using an old toothbrush with some lightweight lubricating oil is a great way to work fresh oil into the joints of most garden tools. Not only will this fresh oil helps your tool to work as it was intended, but it will also prevent the formation of rust.
- 12. 6. Use medium-grit sandpaper to remove rust on larger tools such as shovels, spades, and hoes 7. Once your tools are cleaned, they're ready to be sharpened. When sharpening, try tomaintain the original factory bevel or angle.
- 13. 8. When working with a file, stabilize the blades in a vise or against a solid surface such as a work bench to avoid injury and ensure an even stroke 9. Always push the file across the blade in a motion away from your body. Move the file diagonally, so that its cutting teeth are biting into the metal on the tool.
- 14. 10. When sharpening with a file, do not use oil; metal filings will accumulate and clog the file's serrations. 11. Farm implements like ordinary plow and wooden harrow should be checked thoroughly before use. Loosened bolts and nuts should be tightened firmly
- 15. 12. Disc plow and harrow should also be lubricated on their moving parts like bearings. 13 . Tractors should be tuned-up very well by skilled operator. Check on their oil, lubricant, fuel and cooling system.
- 16. SHORT QUIZ TRUE OR FALSE: Read and analyze each statement below. Write True if the statement is correct; False if the statement is incorrect . Write your answer on your 1/4 sheet of paper.
- 17. _____1.The best way to use the stone is to find a way to stabilize the tool that you want to work on. _____2.Tools that are worn out should be separated and be fixed immediately to avoid accident. _____3. When sharpening, try to maintain the original factory bevel or angle

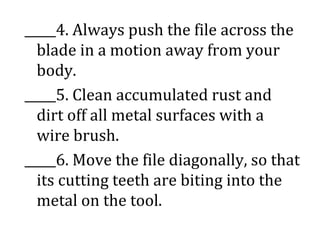

- 18. _____4. Always push the file across the blade in a motion away from your body. _____5. Clean accumulated rust and dirt off all metal surfaces with a wire brush. _____6. Move the file diagonally, so that its cutting teeth are biting into the metal on the tool.
- 19. _____7. Use medium-grit sandpaper to remove rust on larger tools such as shovels, spades,and hoes. _____8. When sharpening with a file, do not use oil; metal filings will accumulate and clog the file's serrations.
- 20. _____9.Oil will help tools to work as intended and will prevent the formation of rust . ____10.For pruners, use a whetstone because it produces a very sharp cutting edge.
- 21. 1. False 6. True 2. True 7. True 3. true 8. False 4. True 9. True 5. True 10. True
- 22. • Define the following 1. Area 2. Fertilizer 3. Germination 4. Graph 5. Farm Inputs ASSIGNMENT
