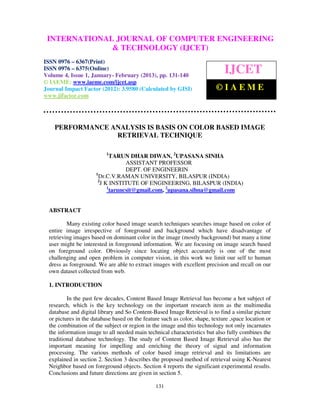

PERFORMANCE ANALYSIS IS BASIS ON COLOR BASED IMAGE
RETRIEVAL TECHNIQUE

1
TARUN DHAR DIWAN, 2UPASANA SINHA
ASSISTANT PROFESSOR
DEPT. OF ENGINEERIN
1
Dr.C.V.RAMAN UNIVERSITY, BILASPUR (INDIA)
2
J K INSTITUTE OF ENGINEERING, BILASPUR (INDIA)
1
taruncsit@gmail.com, 2upasana.sihna@gmail.com

ABSTRACT

Many existing color based image search techniques searches image based on color of
entire image irrespective of foreground and background which have disadvantage of
retrieving images based on dominant color in the image (mostly background) but many a time
user might be interested in foreground information. We are focusing on image search based
on foreground color. Obviously since locating object accurately is one of the most
challenging and open problem in computer vision, in this work we limit our self to human
dress as foreground. We are able to extract images with excellent precision and recall on our
own dataset collected from web.

1. INTRODUCTION

In the past few decades, Content Based Image Retrieval has become a hot subject of
research, which is the key technology on the important research item as the multimedia
database and digital library and So Content-Based Image Retrieval is to find a similar picture
or pictures in the database based on the feature such as color, shape, texture ,space location or
the combination of the subject or region in the image and this technology not only incarnates
the information image to all needed main technical characteristics but also fully combines the
traditional database technology. The study of Content Based Image Retrieval also has the
important meaning for impelling and enriching the theory of signal and information
processing. The various methods of color based image retrieval and its limitations are
explained in section 2. Section 3 describes the proposed method of retrieval using K-Nearest
Neighbor based on foreground objects. Section 4 reports the significant experimental results.
Conclusions and future directions are given in section 5.

131

International Journal of Computer Engineering and Technology (IJCET), ISSN 0976-

2. FRAMEWORK

To search image database color approach is used in this paper as related paper work
here. Color is an important cue for image retrieval. Color not only adds beauty to images but
also gives more information, which is used as a powerful tool in content based image
retrieval. There are number of approaches in color based image retrieval. The simplest
approach is color histogram matching. Color Histograms are way to represent the distribution
of colors in images. A distance between query image histogram and a data image histogram
can be used to define similarity match between the two distributions.

3. CHALLENGES

Regarding color feature to image processing bellow challenges are targeted.

1. Automatic annotation of previous unseen image.
2. Retrieval of database images based on semantic queries
3. Handling larger spectral image database
4. Hidden intermediate image database identification.
5. High level image processing as accessing complex feature of image.
6. Low level image processing to larger image with various similarities.
7. Stability and scalability in image regarding changes in image with larger scope of
size.
8. Identification of color distribution by feature compression of image.

4. SIGNIFICANT

In this paper Content based Image retrieval is a promising approach to search image
database by means of image features such as color, texture, shape, pattern or any
combinations of them.

5. OBJECT

In Color Indexing, for any given Query image the goal is to retrieve all the images
whose color is similar to those of query image.

6. USED METHOD

6.1 Approaches in Color based Image Retrieval on Conventional Histogram-Based
Matching Method
The histogram-based method is very suitable for color image retrieval because they
are invariant to geometrical information in images, such as translation and rotation.
Histogram intersection method (HIM) [1,4] is to measure the intersection area between two
images' histograms. They are usually named as reference image (R) for the query input and
model images (M) from the image database. A histogram of image h(R) is an n-dimensional
vector, in which each element (Rj represents the number of pixels of color c in the n-color
image. With regardless of the image size, each element is normalized before comparison and

132


the resulting normalized histogram is H(R) Similarity measure between R and M is then
performed by calculating the histogram intersection I(R,M) [5] determined.
The larger the value I(R,M) the more similar the images R and M is. Images M could then be
ranked from the image database. The same color distribution histograms between different
brightness conditions of the two digital images result in smaller intersection value and make
the highly visually similar images becomes lower ranked.

6.1.1 Dominant Color Region Based Indexing
Dominant color region in an image can be represented as a connected fragment of
homogeneous color pixels which is perceived by human vision. [6,7]. Image Indexing is
based on this concept of dominant color regions present in the image.

The segmented out dominant regions along with their features are used as an aid in the
retrieval of similar images from the image database. Image path, number of regions found,
region information like color, normalized area and location of each region are stored in file
for further processing.
The main drawback of this technique [8] is it never retrieves the same objects of varying sizes
as the similar image. For the smaller object the background will be the dominant region as
shown in figure1, whereas in bigger object that objects itself is dominant. Even though the
semantics of the objects are same, they are not retrieved as similar images.

Figure 1 Dominant Background Images

The proposed method can answer this problem because of considering only the foreground
information and neglecting background details.

6.2 K- Nearest Neighbor Method Based on Foreground Objects
K- Nearest Neighbor based on foreground objects retrieves more number of similar
images based on foreground color irrespective of size.

The foreground information of the images are enough to identify the images properly. This is
implemented by the proposed algorithm.

6.2.1 Image Segmentation
Image segmentation is the motivation of this research work, and is used to distinguish
this technique from previous works of image retrieval based on dominant color Identification.
The color image is converted into the grayscale image and then using threshold method that
will be converted into the binary image.
In binary image the foreground is represented by maximum intensity value (1) and
background is represented by minimum Intensity value (0). The binary image is converted
into the color image by retaining the color values only in the foreground of the image.

133


6.2.2 Color Space Categorization
The entire RGB color space is described using small set of color categories. This is
summarized into a color look-up table. A smaller set is more useful since it gives a coarser
description of the color of the region thus allowing it to remain same for some variations in
imaging conditions. The color lookup table in Table 1, consists of 25 colors chosen from 256
color palette table. The efficiency of retrieval system can be improved whenever the
dominant color can be identified within the smaller set of colors. Whenever the entire RGB
color space is used for identifying the dominant color of an image then the efficiency of the
retrieval method will be decreased.

Table 1. Color Look-Up Table

6.2.3 Color Matching and K- Nearest Neighbor
The Segmented image is modified into 25 color combination image. It involves
mapping all pixels to their categories in color space. For each pixel in the image, a color is
selected from 25 predefined colors which are very near to image pixel color and it will be
stored as new color pixel in the image. Using p, the image pixel value and C, the
corresponding color table entry, color distance Cd is calculated using Euclidean distance
formula as specified in the equation below.

Cd = Min ( pr −Cir)2 ( pg −Cir)2 ( pb −Cib)2 (1)
where i=1 to 25

The dominant color of the foreground image is determined as the color response of each pixel
in the modified image and stored in frequency table. The frequency table is sorted in
descending order and then the first occurrence color will be the dominant color of the
foreground of the respective image.

134


6.3 K-Nearest Neighbor Classification
1. In pattern recognition, the K-NN is a method for classifying objects based on closest
training examples in feature space.

2. An object is classified by a majority vote of its neighbor, with the object being
assigned to the class most common amongst its k nearest neighbor.

Figure 2 K-Nearest Neighbor Classification

6.3.1 Example of K-NN Classification
1. The test sample (green circle) should be classified either to the first class of blue
squares or to the second class of red triangles. If k = 3 it is classified to the second
class because there are 2 triangles and only 1 square inside the inner circle. If k = 5 it
is classified to
first class (3 squares vs. 2 triangles
inside the outer circle) [9].

2. Usually Euclidean distance is used as the distance metric; however this is only
applicable to continuous variables

3. The classification accuracy of "k"-NN can be improved significantly if the distance
metric is learned with specialized algorithms such as e.g. Large Margin Nearest
Neighbor or Neighborhood Components Analysis.

Figure: 3 System Workflow

135


6.4 Image Segmentation
Image segmentation is the motivation of this research work, and is used to
distinguish this technique from previous works of image retrieval based on dominant
color identification. The color image is converted into the grayscale image and then
using threshold method that will be converted into the binary image[3]. In binary
image the foreground is represented by maximum intensity value (1) and background
is represented by minimum Intensity value (0). The binary image is converted into the
color image by retaining the color values only in the foreground of the image.

6.4.1 Parameter Selection
The best choice of k depends upon the data; generally, larger values of k reduce the
effect of noise on the classification, but make boundaries between classes less
distinct[10]. A good k can be selected by various heuristic techniques, for example,
cross-validation The special case where the class is predicted to be the class of the
closest training sample (i.e. when k = 1) is called the nearest neighbor algorithm. The
accuracy of the k-NN algorithm can be severely degraded by the presence of noisy or
irrelevant features, or if the feature scales are not consistent with their importance.
Much research effort has been put into selecting or scaling features to improve
classification. A particularly popular approach is the use of evolutionary algorithms to
optimize feature scaling. Another popular approach is to scale features by the mutual
information of the training data with the training classes. In binary (two class)
classification problems, it is helpful to choose k to be an odd number as this avoids
tied votes. One popular way of choosing the empirically optimal k in this setting is via
bootstrap method.

6.4.2 Properties
The naive version of the algorithm is easy to implement by computing the distances
from the test sample to all stored vectors, but it is computationally intensive,
especially when the size of the training set grows. Many nearest neighbor search
algorithms have been proposed over the years; these generally seek to reduce the
number of distance evaluations actually performed. Using an appropriate nearest
neighbor search algorithm makes k-NN computationally tractable even for large data
sets. The nearest neighbor algorithm has some strong consistency results. As the
amount of data approaches infinity, the algorithm is guaranteed to yield an error rate
no worse than twice the Bayes error rate(the minimum achievable error rate given the
distribution of the data) k-nearest neighbor is guaranteed to approach the Bayes error
rate, for some value of k (where k increases as a function of the number of data
points). Various improvements to k-nearest neighbor methods are possible by using
proximity graphs.

6.4.3 for Estimating Continuous Variables in Parameter Selection
The k-NN algorithm can also be adapted for use in estimating continuous variables.
One such implementation uses an inverse distance weighted average of the k-nearest
multivariate neighbors[1]. This algorithm functions as follows.

136


1. Compute Euclidean or Mahalanobis distance from target plot to those that were
sampled.
2. Order samples taking for account calculated distances.
3. Choose heuristically optimal k nearest neighbor based on RMSE done by cross
validation technique.
4. Calculate an inverse distance weighted average with the k-nearest multivariate
neighbors.
The optimal k for most datasets is 10 or more that produces much better results than 1-
NN. Using a weighted k-NN, where the weights by which each of the k nearest points'
class (or value in regression problems) is multiplied are proportional to the inverse of
the distance between that point and the point for which the class is to be predicted also
significantly improves the results.

6.4.4 Retrieval Method
For all the color images in the database, the above said technique is applied to
determine the foreground dominant color and then the extracted feature of dominant
color is stored. Whenever the query image is supplied by the user, the dominant color
for foreground information is determined. The retrieval technique detects the database
images whose foreground dominant color is similar to the
Foreground dominant color of query image. Those images are retrieved as the similar
images for the query image.

7. ANALYSIS

Database images (100 numbers) of different sizes consisting of different colors
of dress of celebrity are collected from various web sites. The experimental results
show that the proposed technique has better performance and retrieve more number of
meaningful images compared to existing technique. The Performance of retrieval
result is measured by Precision and Recall as given formula in equation 1 and 2.

Precision=
Total no of images retrieved
No of Relevant images retrieved
---------(1)
Recall=
Total no of relevant images in database

No of Relevant images Retrieved
----------(2)

Here the precision measures the hit-rate that the class of the retrieved images is the
same as that of input reference image from the whole database.
The recall measures the capability of finding the images with the same class from the
whole class of images in the database.

137


Table 2 Performance Analysis
Sample existing proposed
query
image recall precision recall precision

No.1 0.63 0.96 0.99 0.98
No.2 0.6 1 0.895 1
No.4 0.42 0.41 0.82 0.65
No.5 0.41 1 0.89 1
No.6 0.46 0.77 0.84 1

In Table 2, the performance of existing dominant color region based indexing and proposed
content based image retrieval using dominant color identification based on foreground
objects are compared by precision and recall metrics. The Recall and precision value for
some sample query images are computed and compared for existing and proposed techniques.

8. EXPERIMENTAL RESULTS

From the experiment result, it is proved that the performance of proposed K-Nearest
Neighbor classification based retrieval having highest recall and precision rates compared to
the existing dominant color region based indexing as shown in figure 4, figure 5.

Figure:4-Performance between existing dominant color region indexing and proposed
technique to recall values.

138


Figure:5-Performance between existing dominant color region indexing and proposed
technique to precision values.

9. CONCLUSION

The proposed technique of K-Nearest Neighbor Classification based on foreground
objects is a meaningful technique to retrieve the images based on color. The first step of
segmenting foreground from background is a good improvement over a work of existing
dominant region color indexing in which there is a chance of considering the background as
the dominant color region even though that doesn’t provide any semantics to the image.
Identifying background as dominant color region is restricted in the proposed technique.
Modifying the image into 25 color combination image will narrow the process of identifying
the dominant color and improve the efficiency of retrieval system. The Experimental result
shows that the proposed technique is efficient compared to the existing dominant color region
based Indexing.

10. FUTURE WORK

In future, it is recommended to improve the efficiency of segmentation process to
separate foreground from background. Color lookup table having some minimal set of colors
can be used instead of having 25 colors. Shape feature can be incorporated to retrieve more
meaningful images.

REFERENCES

[1]. Tarun Dhar Diwan "Color Based Image Retrieval Using Supervised Learning ", CiiT -
International Journal of Artificial Intelligent Systems and Machine Learning, 2012, ISSN:
0974–9543, DOI: DIP062012005.

139


[2] Dr.N.Krishnan, M.Sheerin Banu, C.Callins Christiyana.” content based image retrieval
using dominant color identification”, international conference on computation intelligence
and multimedia applications 2007.

[3].Ma Zongfang, Cheng Yongmei,”Research on color-based image retrieval and implement
of the system”, international conference on computer and electrical engineering 2008.

[4].H B Kekre, S D thepade, A Athawale, A shah, P Verlekar, S Shirke, image retrieval using
DCT on row mean, column mean and both with image fragmentation, international
conference and workshop on emerging trends in technology(ICWET 2010)- TCET,
Mumbai, India.

[5] CHELLAPPA, R., WILSON, C.L., and SIROHEY, S. (1995). Human and machine
recognition of faces: A survey. In Proceedings of IEEE. Vol. 83, No. 5, Page. 705–740.

[6] WECHSLER, H., PHILLIPS, P., BRUCE, V., SOULIE, F., and HUANG, T. (1996). Face
Recognition: From Theory to Applications. Springer-Verlag.

[7] CHAE, Y.N.,CHUNG, J.N., and YANG, H.S. (2008). Colour Filtering-based Efficient
Face Detection. In Proceedings of the 19 IEEE 19th International Conference on Pattern
Recognition. Page 1-4.

[8]Tarun Dhar Diwan "Local Binary Pattern Occuence Map Method for High Parallel Image
Processing" International Conference on Advances in Computing and Communication Aprl
8-10, 2011, pages 538-540, ISBN:978-81-920874-0-5, IEEE,NIT Hamirpur, Himachal
Pradesh, India

[9] Tarun Dhar Diwan, "An Empirical Study on Frequent Pattern in Data Mining"
International Conference on Computers and Communication, IEEE pages 46-51, ISBN:978-
93-81583-21-0,BHOPAL,INDIA

[10] Tarun Dhar Diwan, "Exploiting Data Mining Techniques For Improving The Efficiency
Of Time Series Data" International Conference On Computers Science And Information
Technology, IRNet, pages 46-51, ISBN:ICCSIT-12-117

[11] R. Manickam, D. Boominath and V. Bhuvaneswari, “An Analysis Of Data Mining: Past,
Present and Future”, International journal of Computer Engineering & Technology (IJCET),
Volume 3, Issue 1, 2012, pp. 1 - 9, Published by IAEME.

[12] R. Lakshman Naik, D. Ramesh and B. Manjula, “Instances Selection Using Advance
Data Mining Techniques”, International journal of Computer Engineering & Technology
(IJCET), Volume 3, Issue 2, 2012, pp. 47 - 53, Published by IAEME.

[13] Mr. M. Karthikeyan, Mr. M. Suriya Kumar and Dr. S. Karthikeyan, “A Literature
Review On The Data Mining And Information Security”, International journal of Computer
Engineering & Technology (IJCET), Volume 3, Issue 1, 2012, pp. 141 - 146, Published by
IAEME.

140

Performance analysis is basis on color based image retrieval technique

More Related Content

What's hot (17)

Viewers also liked (13)

Similar to Performance analysis is basis on color based image retrieval technique (20)

More from IAEME Publication (20)

Performance analysis is basis on color based image retrieval technique
