PMIx: Bridging the Container Boundary
- 1. Ralph H. Castain Intel PMIx: Bridging the Container Boundary
- 2. Origin: Changing Landscape Launch time limiting scale Legion Programming model & runtime proliferation Container technologiesHybrid applications Model-specific tools
- 3. • Resolve launch scaling Pre-load information known to RM/scheduler Pre-assign communication endpoints Eliminate data exchange during init Orchestrate launch procedure Start Someplace!
- 4. PMIx Launch Sequence *RM daemon, mpirun-daemon, etc.
- 5. Three Distinct Entities • PMIx Standard Defined set of APIs, attribute strings Nothing about implementation • PMIx Reference Library A full-featured implementation of the Standard Intended to ease adoption • PMIx Reference RTE Full-featured “shim” to a non-PMIx RM Provides development environment v3.1 just released!
- 6. Where Is It Used? • Libraries OMPI, MPICH, Intel MPI, HPE-MPI, Spectrum MPI, Fujitsu MPI OSHMEM, SOS, OpenSHMEM, … • RMs Slurm, Fujitsu, IBM’s JSM, PBSPro (2019), Kubernetes(?) Slurm enhancement (LANL/ECP) • New use-cases Spark, TensorFlow Debuggers (TotalView, DDT) MPI • Re-ordering for load balance (UTK/ECP) • Fault management (UTK) • On-the-fly session formation/teardown (MPIF) Logging information Containers • Singularity, Docker, Amazon
- 7. • Async event notification • Cross-model notification Announce model type, characteristics Coordinate resource utilization, programming blocks • Generalized tool support Co-launch daemons with job Forward stdio channels Query job, system info, network traffic, process counters, etc. Standardized attachment, launch methods Build Upon It
- 8. • Allocation support Dynamically add/remove/loan nodes Register pre-emption acceptance, handshake • Dynamic process groups Async group construct/destruct Notification of process departure/failure • File system integration Pre-cache files, specify storage strategies Sprinkle Some Magic Dust
- 10. PMIx-SMS Interactions RM PMIx Client FS Fabric RAS APP Orchestration Requests Responses NIC Fabric Mgr PMIx Server MPI OpenMP Job Script System Management Stack Tool SupportContainer!
- 11. • Version tracking across container boundary Different pieces moving at different rates • Container managers vs HPC schedulers Dynamic, service related vs static, application focus • Uneven adoption rates Different environments adopt features at different times, different combinations Container Issues
- 12. • Auto-negotiate messaging protocol • Client starts Envar indicates server capabilities Select highest support in common Convey selection in connection handshake • Server follows client’s lead Per-client messaging protocol Support mix of client versions Version Tracking + +
- 13. • Version tracking across container boundary Different pieces moving at different rates • Uneven adoption rates Different environments adopt features at different times, different combinations • Container managers vs HPC schedulers Dynamic, service related vs static, application focus Mismatched capabilities Container Issues
- 14. • PMIx relay daemon/server • Integrated into container • Sense what SMS supports From nothing to everything • Supported requests Relay requests/responses • Unsupported requests Execute internally Return “not supported” EPYX EPYX
- 15. • PMIx relay daemon/server • Integrated into container • Sense what SMS supports From nothing to everything • Supported requests Relay requests/responses • Unsupported requests Execute internally Return “not supported” EPYX EPYX *RM can perform request, but doesn’t have PMIx backend support for it
- 16. • Call intrinsic APIs to execute PMIx requests from client • Treat the RM as an equal member of SMS • Pros Allows more transparent movement of containers across systems Reduces obstacles • Cons Reduces pressure on SMS vendors to integrate EPYX: Filling the Gaps Who writes these drivers?
- 17. • Allocation request Stabilize allocation for some period of time • Event notification Handshake need to break commitment Notify when restored Use new FT/Sessions methods for flexible members HPC on Container Mgrs EPYX CRI
- 18. • Job control API Register as a service Request auto-restart, multiple replicas Setup parallel duplicate IO streams • IO Forwarding APIs Construct data flows between processes • Storage APIs • Publish/Lookup APIs Service discovery, rendezvous Services on HPC Systems EPYX
- 20. • Avoid having to write entire runtimes just to do something a little different • Portability (HPC Service Mgrs) • Generalized tools • Scalable operations • Async event notification • Full system orchestration Summary
- 21. Come Join Us! https://pmix.org https://github.com/pmixSlack: pmix-workspace.slack.com

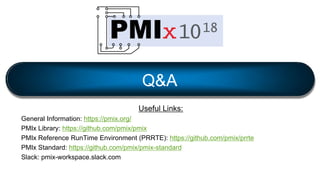

- 22. Useful Links: General Information: https://pmix.org/ PMIx Library: https://github.com/pmix/pmix PMIx Reference RunTime Environment (PRRTE): https://github.com/pmix/prrte PMIx Standard: https://github.com/pmix/pmix-standard Slack: pmix-workspace.slack.com Q&A
- 23. Ralph H. Castain, Aurelien Bouteiller, Joshua Hursey, David Solt, “PMIx: Process management for exascale environments”, Parallel Computing, 2018. https://doi.org/10.1016/j.parco.2018.08.002 Overview Paper
