Proof of concept guide for ibm tivoli storage manager version 5.3 sg246762

Front cover

Proof of Concept Guide for
IBM Tivoli Storage Manager
Version 5.3
Installation and configuration

Including new administrative
user interface

Demonstration scenarios

Sanver Ceylan
Murat Hakan Yesilmen

ibm.com/redbooks

International Technical Support Organization

Proof of Concept Guide for IBM Tivoli
Storage Manager Version 5.3

July 2005

SG24-6762-00

Note: Before using this information and the product it supports, read the information in
“Notices” on page vii.

First Edition (July 2005)

This edition applies to Version 5.3.0 of the IBM Tivoli Storage Manager (5608-ISM), IBM Tivoli
Storage Manager Extended Edition (5608-ISX), and to all subsequent releases and modifications
until otherwise indicated in new editions or technical newsletters.

© Copyright International Business Machines Corporation 2005. All rights reserved.
Note to U.S. Government Users Restricted Rights -- Use, duplication or disclosure restricted by GSA ADP
Schedule Contract with IBM Corp.

Contents

Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii

Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix
The team that wrote this redbook. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix
Become a published author . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi
Comments welcome. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi

Chapter 1. Introduction to IBM Tivoli Storage Manager . . . . . . . . . . . . . . . 1
1.1 IBM Tivoli Storage Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.1.1 IBM Tivoli Storage Manager overview . . . . . . . . . . . . . . . . . . . . . . . . 2
1.1.2 IBM Tivoli Storage Manager architecture . . . . . . . . . . . . . . . . . . . . . . 3
1.1.3 IBM Tivoli Storage Manager server. . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.1.4 IBM Tivoli Storage Manager Backup/Archive client . . . . . . . . . . . . . . 5
1.1.5 IBM Tivoli Storage Manager storage agent. . . . . . . . . . . . . . . . . . . . . 6
1.1.6 IBM Tivoli Storage Manager Extended edition . . . . . . . . . . . . . . . . . . 6
1.2 IBM Tivoli Storage Manager complementary products . . . . . . . . . . . . . . . . 8
1.2.1 IBM Tivoli Storage Manager for Space Management . . . . . . . . . . . . . 8
1.2.2 IBM Tivoli Storage Manager for Storage Area Network . . . . . . . . . . . 9
1.2.3 IBM Tivoli Storage Manager for backup and recovery . . . . . . . . . . . . 9
1.2.4 IBM Tivoli Storage Manager for Data protection . . . . . . . . . . . . . . . . 10
1.3 New features and changes with Version 5.3 . . . . . . . . . . . . . . . . . . . . . . . 11
1.3.1 ACSLS library support enhancements . . . . . . . . . . . . . . . . . . . . . . . 11
1.3.2 Activity log management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1.3.3 Collocation by group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1.3.4 Communications options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
1.3.5 Database reorganization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
1.3.6 Disk-only backup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
1.3.7 Enhancements for server migration . . . . . . . . . . . . . . . . . . . . . . . . . 12
1.3.8 IBM 3592 WORM (Write Once Read Many) support . . . . . . . . . . . . 12
1.3.9 Increased block size for writing to tape . . . . . . . . . . . . . . . . . . . . . . . 13
1.3.10 LAN-free environment configuration . . . . . . . . . . . . . . . . . . . . . . . . 13
1.3.11 NDMP operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
1.3.12 New interface to manage servers: Administration Center . . . . . . . . 13
1.3.13 SCSI library enhancements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
1.3.14 Simultaneous write inheritance improvements . . . . . . . . . . . . . . . . 14
1.3.15 Support for multiple IBM Tivoli Storage Manager client nodes . . . . 14
1.3.16 IBM Tivoli Storage Manager scheduling flexibility . . . . . . . . . . . . . . 14

© Copyright IBM Corp. 2005. All rights reserved. iii

1.4 Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Chapter 2. Planning for installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.1 IBM Tivoli Storage Manager’s system requirements . . . . . . . . . . . . . . . . . 16
2.1.1 Windows environment requirements . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.1.2 AIX environment requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2.2 IBM Integrated Solution Center and Administration Center requirements 17
2.2.1 Software requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2.2.2 Hardware requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2.3 Physical design considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2.4 Database and pools considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
2.5 Preparing for Proof of Concept . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
2.6 Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Chapter 3. Installation and configuration . . . . . . . . . . . . . . . . . . . . . . . . . . 25
3.1 Installing IBM Tivoli Storage Manager for Windows environment . . . . . . . 26
3.1.1 Installing IBM Tivoli Storage Manager Server . . . . . . . . . . . . . . . . . . 27
3.1.2 Installing Tivoli Storage Manager licenses . . . . . . . . . . . . . . . . . . . . 32
3.1.3 Installing the Tivoli Storage Manager language packs . . . . . . . . . . . 33
3.1.4 Installing the Tivoli Storage Manager Device Driver . . . . . . . . . . . . . 34
3.1.5 Configuration of IBM Tivoli Storage Manager Server . . . . . . . . . . . . 35
3.1.6 Configure License Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
3.1.7 Installation of IBM Tivoli Storage Manager Client . . . . . . . . . . . . . . . 44
3.1.8 Configuring Tivoli Storage Manager Client . . . . . . . . . . . . . . . . . . . . 48
3.1.9 Configuring Tivoli Storage Manager scheduler . . . . . . . . . . . . . . . . . 51
3.2 Installing IBM Tivoli Storage Manager for UNIX (AIX) environment . . . . . 53
3.2.1 Installing IBM Tivoli Storage Manager Client for AIX . . . . . . . . . . . . 56
3.2.2 IBM Tivoli Storage Manager Client Configuration . . . . . . . . . . . . . . . 58
3.3 Installing ISC and configuring Administration Center . . . . . . . . . . . . . . . . 59
3.3.1 Configuring the Administration Center . . . . . . . . . . . . . . . . . . . . . . . 67
3.4 Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Chapter 4. Demonstration scenarios. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
4.1 Client demonstration scenarios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
4.1.1 Client configuration for backup and archive functions. . . . . . . . . . . . 74
4.1.2 Incremental (complete) backup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
4.1.3 Selective backup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
4.1.4 Creating an inactive copy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
4.1.5 Manual backup using Backup-Archive Command Line. . . . . . . . . . . 82
4.1.6 Restore using GUI. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
4.1.7 Restore using Backup-Archive Command Line . . . . . . . . . . . . . . . . 90
4.1.8 Archive using GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
4.1.9 Backup using schedule backup feature . . . . . . . . . . . . . . . . . . . . . . 94
4.2 Server scenarios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

iv Proof of Concept Guide for IBM Tivoli Storage Manager (ITSM)

4.2.1 Migration of storage pool. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
4.2.2 Reclamation of storage pool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
4.2.3 Database reorganization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
4.2.4 File Device Class to different directories . . . . . . . . . . . . . . . . . . . . . 102
4.2.5 Activity log management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
4.2.6 Creating copypool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
4.2.7 Creating policy domain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
4.2.8 Tivoli Storage Manager client remote access . . . . . . . . . . . . . . . . . 108
4.2.9 Usage report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
4.2.10 Daily report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
4.2.11 Summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Appendix A. Additional information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
A.1 Browser access to Tivoli Storage Manager V5.3 . . . . . . . . . . . . . . . . . . 118
A.2 Sample worksheets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Appendix B. Additional material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Locating the Web material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Using the Web material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
System requirements for downloading the Web material . . . . . . . . . . . . . 124
How to use the Web material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Related publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
IBM Redbooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Other publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Online resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
How to get IBM Redbooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Help from IBM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Contents v

vi Proof of Concept Guide for IBM Tivoli Storage Manager (ITSM)

Notices

This information was developed for products and services offered in the U.S.A.

IBM may not offer the products, services, or features discussed in this document in other countries. Consult
your local IBM representative for information on the products and services currently available in your area.
Any reference to an IBM product, program, or service is not intended to state or imply that only that IBM
product, program, or service may be used. Any functionally equivalent product, program, or service that
does not infringe any IBM intellectual property right may be used instead. However, it is the user's
responsibility to evaluate and verify the operation of any non-IBM product, program, or service.

IBM may have patents or pending patent applications covering subject matter described in this document.
The furnishing of this document does not give you any license to these patents. You can send license
inquiries, in writing, to:
IBM Director of Licensing, IBM Corporation, North Castle Drive Armonk, NY 10504-1785 U.S.A.

The following paragraph does not apply to the United Kingdom or any other country where such provisions
are inconsistent with local law: INTERNATIONAL BUSINESS MACHINES CORPORATION PROVIDES
THIS PUBLICATION "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT,
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer
of express or implied warranties in certain transactions, therefore, this statement may not apply to you.

This information could include technical inaccuracies or typographical errors. Changes are periodically made
to the information herein; these changes will be incorporated in new editions of the publication. IBM may
make improvements and/or changes in the product(s) and/or the program(s) described in this publication at
any time without notice.

Any references in this information to non-IBM Web sites are provided for convenience only and do not in any
manner serve as an endorsement of those Web sites. The materials at those Web sites are not part of the
materials for this IBM product and use of those Web sites is at your own risk.

IBM may use or distribute any of the information you supply in any way it believes appropriate without
incurring any obligation to you.

Information concerning non-IBM products was obtained from the suppliers of those products, their published
announcements or other publicly available sources. IBM has not tested those products and cannot confirm
the accuracy of performance, compatibility or any other claims related to non-IBM products. Questions on
the capabilities of non-IBM products should be addressed to the suppliers of those products.

This information contains examples of data and reports used in daily business operations. To illustrate them
as completely as possible, the examples include the names of individuals, companies, brands, and products.
All of these names are fictitious and any similarity to the names and addresses used by an actual business
enterprise is entirely coincidental.

COPYRIGHT LICENSE:
This information contains sample application programs in source language, which illustrates programming
techniques on various operating platforms. You may copy, modify, and distribute these sample programs in
any form without payment to IBM, for the purposes of developing, using, marketing or distributing application
programs conforming to the application programming interface for the operating platform for which the
sample programs are written. These examples have not been thoroughly tested under all conditions. IBM,
therefore, cannot guarantee or imply reliability, serviceability, or function of these programs. You may copy,
modify, and distribute these sample programs in any form without payment to IBM for the purposes of
developing, using, marketing, or distributing application programs conforming to IBM's application
programming interfaces.

© Copyright IBM Corp. 2005. All rights reserved. vii

Trademarks
The following terms are trademarks of the International Business Machines Corporation in the United States,
other countries, or both:

AIX® Informix® RISC System/6000®
AIX 5L™ Lotus® RS/6000®
DB2® Magstar® SysBack™
Domino® PartnerWorld® Tivoli®
Eserver® pSeries® TotalStorage®
IBM® Redbooks™ WebSphere®
ibm.com® Redbooks (logo) ™

The following terms are trademarks of other companies:

Java and all Java-based trademarks and logos are trademarks or registered trademarks of Sun
Microsystems, Inc. in the United States, other countries, or both.

Microsoft, Windows, and the Windows logo are trademarks of Microsoft Corporation in the United States,
other countries, or both.

Intel, Intel Inside (logos), and Pentium are trademarks of Intel Corporation in the United States, other
countries, or both.

UNIX is a registered trademark of The Open Group in the United States and other countries.

Linux is a trademark of Linus Torvalds in the United States, other countries, or both.

Other company, product, and service names may be trademarks or service marks of others.

viii Proof of Concept Guide for IBM Tivoli Storage Manager (ITSM)

Preface

The primary objective of this IBM® Redbook is to provide step-by-step
instructions about how to set up a stand-alone IBM Tivoli® Storage Manager
(ITSM) environment to be used for demonstrating the functions and features of
the products, using customer data and mapping customer infrastructure and
workloads.

General knowledge is assumed of communication network architecture and
design, basic sizing of IBM Tivoli Storage Manager database, and basic pool
management of Tivoli Storage Manager servers.

This document is intended to be read and used by pre-sales systems engineers
and services personnel to build customized demonstrations of the IBM Tivoli
Storage Manager. A significant amount of knowledge of IBM Tivoli Storage
Manager is expected, and the reader should ideally have attended the IBM Tivoli
Storage Manager basic and advanced training classes.

The reader should be familiar with the following topics:
Storage management concepts
Network topologies
Distributed systems architectures and configuration

This redbook is a valuable addition to the existing product documentation and
can be read in conjunction with it. See the “Related publications” on page 125 for
the entire list of the documents.

The team that wrote this redbook
This redbook was produced by a team of specialists from around the world
working at the International Technical Support Organization, Austin Center.

© Copyright IBM Corp. 2005. All rights reserved. ix

The team from left Murat, Sanver

Sanver Ceylan is a certified Project Leader at the International Technical
Support Organization, Austin Center. Sanver worked for IBM Turkey for 11 years
and he joined to ITSO in September 2003. His main area of expertise is Tivoli
Storage Management Products. He leads the projects for; Deployment, Proof of
Concept, Certification Study guides, and workshop materials for Storage
Manager products. Before ITSO, Sanver has worked in the Software
Organization of IBM Turkey as an Advisory IT Specialist, where he was involved
in numerous pre-sales projects for major customers of IBM Turkey.

Sanver holds Bachelor of Science degree in Engineering Physics from Ankara
University and Master of Science degree in Computer Science from City
University of New York.

Murat Hakan Yesilmen is an Advisory Software Services Specialist from IBM
Turkey. He has 12 years experience including 6 years working for IBM. He holds
a Master of Science degree in Electrical and Electronics Engineering from the
University of Surrey, Guildford, UK. His areas of expertise include Disk Storage,
Storage Area Network, DB2®, Linux®, Tivoli Storage Manager and
TotalStorage® Productivity Center for Data, MQseries, AIX® and Z/OS, holding
16 certificates in these areas.

x Proof of Concept Guide for IBM Tivoli Storage Manager (ITSM)

Thanks to the following people for their contributions to this project:

Roland Tretau
Yvonne Lyon, ITSO editor
IBM, International Technical Support Organization

Elizabeth Purzer
IBM, Austin TX

Become a published author
Join us for a two- to six-week residency program! Help write an IBM Redbook
dealing with specific products or solutions, while getting hands-on experience
with leading-edge technologies. You'll team with IBM technical professionals,
Business Partners and/or customers.

Your efforts will help increase product acceptance and customer satisfaction. As
a bonus, you'll develop a network of contacts in IBM development labs, and
increase your productivity and marketability.

Find out more about the residency program, browse the residency index, and
apply online at:
ibm.com/redbooks/residencies.html

Comments welcome
Your comments are important to us!

We want our Redbooks™ to be as helpful as possible. Send us your comments
about this or other Redbooks in one of the following ways:
Use the online Contact us review redbook form found at:
ibm.com/redbooks
Send your comments in an E-mail to:
redbook@us.ibm.com
Mail your comments to:
IBM Corporation, International Technical Support Organization
Dept. JN9B; JN9B Building 905
11501 Burnet Road
Austin, Texas 78758-3493

Preface xi

xii Proof of Concept Guide for IBM Tivoli Storage Manager (ITSM)

1

Chapter 1. Introduction to IBM Tivoli
Storage Manager
In this chapter we provide an overview of IBM Tivoli Storage Manager concepts.
This includes a high-level technical introduction to IBM Tivoli Storage Manager,
its architecture, and base concepts. The following topics are discussed:
IBM Tivoli Storage Manager overview
IBM Tivoli Storage Manager architecture
Features of IBM Tivoli Storage Manager, Extended Edition
IBM Tivoli Storage Manager Data protection family
New features that come with Version 5.3

© Copyright IBM Corp. 2005. All rights reserved. 1

1.1 IBM Tivoli Storage Manager
IBM Tivoli Storage Manager, now a part of the IBM TotalStorage Open Software
Family, is a strong management application built for the enterprise. IBM Tivoli
Storage Manager provides a solution for data protection, archiving, disaster
recovery planning, space management, database and application protection
bare machine recovery, and record retention. The product also automates
storage management tasks by eliminating labor-intensive and cost-intensive
manual procedures for backup, archive, and recovery.

1.1.1 IBM Tivoli Storage Manager overview
IBM Tivoli Storage Manager is the core product of the IBM Tivoli Storage
Management product set. It provides a solution for distributed data and storage
management in an enterprise network environment. IBM Tivoli Storage Manager
protects and manages data from more then 13 operating system platforms,
covering mobile, desktop, and server systems over the entire distributed world. It
supports hundreds of storage devices (including disk, tape, and optical) as well
as LAN, WAN, and SAN infrastructures.

The base functions provided by IBM Tivoli Storage Manager and its
complementary products are as follows:
Data protection (periodic backup and restore as well as disaster recovery):
– In operational backup and restore of data, the backup process creates a
copy of the data to protect against the operational loss or destruction of file
or application data. The customer defines how often to back up
(frequency) and how many numbers of copies (versions) to hold.
The restore process places the backup copy of the data back into a
customer-designated system or workstation.
– Disaster recovery means all activities required to organize, manage, and
automate the recovery process from a major loss of IT infrastructure and
data across the enterprise. It includes processes to move data offsite into
a secure vault location, to rebuild IT infrastructure, and to reload data
successfully in an acceptable time frame.
Data resource management (vital record retention, archive, and retrieval):
– The archive process creates a copy of a file or a set of files representing
an end point of a process for long term storage. Files can remain on the
local storage media or can be deleted. The customer controls how long
(via the retention period) an archive copy is to be retained.
– The retrieval process locates the copies within the archival storage and
places them back into a customer-designated system or workstation.

2 Proof of Concept Guide for IBM Tivoli Storage Manager (ITSM)

Space management (or hierarchical storage management):
This process provides the automatic and transparent movement of
operational data from the user system disk space to a central storage
repository. If the user accesses this data, it is dynamically and transparently
restored to the client storage.

The solution is network based, which means that these functions are available to
the whole network environment. Administration costs are minimized by
centralization of all of the management of IBM Tivoli Storage Manager
components.

1.1.2 IBM Tivoli Storage Manager architecture
IBM Tivoli Storage Manager is a client server architecture as seen in Figure 1-1.

IBM Tivoli Storage Manager clients are the workstations, file servers, mobile
computers, and other machines in a customer’s environment that need to have
their data protected. IBM Tivoli Storage Manager client software is installed on
these machines.

Figure 1-1 IBM Tivoli Storage Manager V5.3 architecture

IBM Tivoli Storage Manager server is the “brains” of backup and archive. It has a
unique architecture that empowers it. It is based on a relational database and
transaction log. The database and transaction log track meta data, what is
backed up, where it is stored, what are the policies, schedules, administrators.

Chapter 1. Introduction to IBM Tivoli Storage Manager 3

The transaction log enables a two-phase commit, which not only protects the
integrity of the database, but also allows for interrupted backups and restores to
be restarted. The relational database empowers IBM Tivoli Storage Manager to
perform tasks that are not possible when you use a flat file master catalog to
track meta data. For example, the relational database can:
Move data from one type of storage pool to another
Retroactively update backed-up data when a policy changes
Track files down to the file level
Schedule any type of client or administrative process
Reclaim expired dead space on tapes.

The IBM Tivoli Storage Manager client sends its data to the IBM Tivoli Storage
Manager server either by the LAN or by the SAN. Most backups occur through
schedules, but clients are can perform on-demand backups whenever they want.
Clients are can also perform their own restores. Tivoli Storage Manager has a
new Administration Center that comes with V5.3 and can be installed either on
the same machine with Tivoli Storage Manager server or on a separate machine.

The actual data that the client sends over is stored in the storage pools. IBM
Tivoli Storage Manager is unique in the fact that the storage pools can form a
storage hierarchy made up of any of the over 500 devices that are supported.
This allows for flexibility and longevity. Most importantly, this structure allows for
fast backups and fast restores.

Most businesses will back up their data initially to disk storage. This allows for
hundreds of clients to back up at the same time. Then, based on policies, the
data migrates in a fashion that expedites restores to tape or CD. When the data
migrates, all the data belonging to one client is moved together to the next pool.
By keeping all that data together, restores are faster because not as much tape
positioning is needed. This migration process can also accommodate movement
to collocated tapes, which further expedite restores by just having one user’s
data on them.

The environment can be firewall protected, and you will still want to be able to
use the GUI interfaces of an IBM Tivoli Storage Manager client. IBM Tivoli
Storage Manager allows individual configuration of nearly every TCP port that it
uses for communication:
TCP/IP port:
To enable the Backup/Archive client, command line Administrative Client, and
the scheduler to run outside a firewall, the port specified by the tcpport server
option must be opened by the firewall administrator. This port is set on the
client and the server using the tcpport option. The setting must be the same
on the client and server. The default TCP/IP port is 1500.


TCP/IP ports for the remote workstation:
The two TCP/IP ports for the remote workstation client must be opened. Use
the webports option in the remote workstations option file to specify these
ports. If you do not specify the values for the webports option, the default zero
(0) causes TCP/IP to randomly assign two free port numbers.

1.1.3 IBM Tivoli Storage Manager server
One of the principal architectural components of the IBM Tivoli Storage Manager
server is its built-relational database. The IBM Tivoli Storage Manager database
was especially designed for the task of managing data, and it implements
zero-touch administration.

All policy information, logging, authentication and security, media management,
and object inventory are managed through this database.

Most of the fields are externalized through IBM Tivoli Storage Manager high level
administration commands, SQL SELECT statements, or for reporting purposes, by
using an ODBC driver. Obviously, this database is fully protected with software
mirroring, roll-forward capability, and its own management and online backup and
restore functions.

For storing the managed data, the IBM Tivoli Storage Manager server manages
a storage repository. The storage repository can be implemented in a hierarchy
using any combination of supported media or magnetic or optical disk, tape, and
robotic storage devices, which are locally connected to the server system or
which are accessible through a SAN. To take advantage of SAN technology, the
IBM Tivoli Storage Manager server has features implemented to dynamically
share SAN-connected, automated tape library systems among multiple IBM
Tivoli Storage Manager servers, as well as providing (as an option), LAN-free
and server-free backup.

1.1.4 IBM Tivoli Storage Manager Backup/Archive client
Data is sent to the IBM Tivoli Storage Manager server using the IBM Tivoli
Storage Manager Backup/Archive client and complementary Tivoli and
non-IBM/Tivoli products. These products work together with the IBM Tivoli
Storage Manager server base product to ensure that the data you need to store
is managed as defined.

The IBM Tivoli Storage Manager Backup/Archive client, included with the server,
provides the operational backup and archival function. The client implements the
patented progressive backup methodology, adaptive sub-file backup technology,
and unique record retention methods for backup and archive functions.


The Backup/Archive clients are implemented as multi-session clients, which
means that they are able to take advantage of the multi-threading capabilities of
modern operating systems.

1.1.5 IBM Tivoli Storage Manager storage agent
The IBM Tivoli Storage Manager storage agent supports LAN-free backup
solutions using a SAN infrastructure. The storage agent dynamically shares SAN
connected tape libraries and disks with the IBM Tivoli Storage Manager server,
and it has the ability to write and read large amount of client data directly to and
from server-owned storage media. This gives a great opportunity for lowering the
backup window, reducing the traffic on the LAN and reducing the utilization of the
TSM server.

1.1.6 IBM Tivoli Storage Manager Extended edition
The Extended Edition of IBM Tivoli Storage Manager expands on the features
and possibilities of the Basic Edition described in the previous section.

IBM Tivoli Storage Manager, Extended Edition expands on the data backup and
restore and the managed data archive and retrieve capabilities of the basic IBM
Tivoli Storage Manager by adding disaster planning capability, Network Data
Management Protocol (NDMP) control for network-attached storage (NAS) filers
and support for large tape libraries.

Disaster Recovery Manager
Disaster Recovery Manager (DRM) is a feature of the IBM Tivoli Storage
Manager, Extended Edition. It coordinates and automates the process of
recovering from a disaster. It provides for extended offsite media management,
automated restore of the IBM Tivoli Storage Manager server, and managed client
recovery. It complements the already implemented robust protection features of
IBM Tivoli Storage Manager and automates many already facilitated protection
functions.

DRM automatically captures information required to recover the IBM Tivoli
Storage Manager server after a disaster. It assists in preparing a plan that allows
recovery in the most expedient manner. This disaster recovery plan contains
information, scripts, and procedures needed to automate server restoration and
helps ensure quick recovery of data after a disaster.

DRM also manages and tracks the movement of off-site media to reduce the time
required to recover in the event of a disaster. It is able to track media that are
stored on-site, in-transit, or off-site in a vault, no matter whether it is a manual or
electronic vault, so your data can be easily located if disaster strikes.


Disaster recovery planning
This facilitates even more detailed tracking of the additional copies of your
backed-up, archived, and space managed data that IBM Tivoli Storage Manager
creates for safekeeping at an offsite location. IBM Tivoli Storage Manager
Extended Edition also prepares and keeps up to date a text file with detailed
recovery steps and automated computer-scripts — the “recovery plan”. Should a
disaster strike and destroy your storage and computers, this plan and the offsite
data copies will get your business back up and running quickly.

NDMP support for Network Attached Storage
IBM Tivoli Storage Manager Extended Edition uses Network Data Management
Protocol (NDMP) to perform high-performance, scalable backups and restores.
The backups and restores minimize network traffic and transfer data outboard of
the Tivoli Storage Manager client and server.

IBM Tivoli Storage Manager currently offers the ability to back up and restore
data on NAS devices that support NDMP version 3.0. Full or differential backups
can be performed at a directory or filesystem level, including snapshots that are
stored as either filesystems or subdirectories. Restores can be performed of an
entire file system or selected files/directories within the file system. Multiple
backup and restore operations can be performed in parallel.

Currently, NDMP for full or differential backups can be performed at a directory or
filesystem level, including snapshots that are stored as either filesystems or
subdirectories to a Tivoli Storage Manager server running on AIX, Sun Solaris,
HP-UX, Linux, or Windows®. This uses NDMP to back up a full file system image
and to restore an entire file system image. Once a full backup image has been
created, subsequent backups can be differential images. A differential image
consists of all the files that have changed since the previous full image backup.
The restore of a differential image automatically restores the differential image
after the appropriate full image has been restored. Backup and restore
operations can be scheduled using the administrative command scheduler.

During backup and restore operations, data flows directly between the tape drive
and the Network Attached Storage (NAS) appliance. NDMP operations can be
performed using SCSI or ACSLS tape libraries. Additionally, 349X tape libraries
may be used with some NAS devices. Refer to the Tivoli Storage Manager device
support Web page and your NAS vendor's documentation for complete NDMP
device support. NDMP for NAS backup works with either a SCSI-attached tape
device local to the NAS appliance, or with a SAN-attached SCSI or ACSLS
device that can be shared with the Storage Manager server. Drives must be
supported by both the NAS appliance and the NAS operating system. Drives can
be dedicated to NDMP operations from a single NAS file server or can be
shared. Multiple NAS appliances can share tape resources if they have FC
access to the drive and if backups are performed via the same Storage Manager


server. Depending on the configuration, drives can be shared with LAN-free
backup/restore operations.

Database and application on-line protection
This feature protects a wide range of application data via the protection of the
underlying databases and application management systems holding that data.
This module automates data protection tasks and allows database and
application servers to continue running their primary applications while they
backup and restore data to and from offline storage

Data retention
IBM Tivoli Storage Manager for Data Retention facilitates compliance with the
most stringent regulatory requirements in the most flexible and function-rich
manner. It helps manage and simplify the retrieval of the ever increasing amount
of data that organizations must retain for strict records retention regulations.
Many of the regulations demand the archiving of records, e-mails, design
documents, and other data for many years, in addition to requiring that the data
is not changed or deleted.

Bare Machine Recovery
This feature backs up and automatically restores the operating system structures
necessary to rebuild the operating system, as well as data files. It schedules
regular operating system backups so a recovery brings back the latest
information.

1.2 IBM Tivoli Storage Manager complementary
products
IBM Tivoli Storage Manager can be integrated with several optional applications
that together form a powerful integrated storage management solution. These
include:
IBM Tivoli Storage Manager for Space Management
IBM Tivoli Storage Manager for Storage Area Networks
IBM Tivoli Storage Manager for System Backup and Recovery
IBM Tivoli Storage Manager for Data Protection product family

1.2.1 IBM Tivoli Storage Manager for Space Management
IBM Tivoli Storage Manager for Space Management provides hierarchical
storage management to automatically migrate rarely accessed files to alternate
storage without disrupting the most frequently used files in local storage.


Migrated files are automatically and transparently recalled to primary storage
when needed by applications or users, freeing administrators and users from
manual filing tasks.

Suppose that a certain percentage of your data is inactive and has not been
accessed in weeks or months. If so, IBM Tivoli Storage Manager for Space
Management (formerly known as hierarchical storage management, or HSM)
can automatically move inactive data to less-expensive offline storage or
near-line storage, freeing online disk space for more important active data. It
migrates the files and recalls them automatically when they are needed.

1.2.2 IBM Tivoli Storage Manager for Storage Area Network
IBM Tivoli Storage Manager for Storage Area Network enables your
SAN-connected IBM Tivoli Storage Manager servers and client computers to
make maximum use of their direct network connection to storage. This software
extension enables both servers and client computers to make the bulk of their
backup/restore and archive/retrieve data transfers over the SAN instead of the
LAN, either directly to tape or to the IBM Tivoli Storage Manager disk storage
pool. This ability greatly reduces the impact of data protection on the LAN while
also reducing CPU utilization on both client and server.

The core functions of IBM Tivoli Storage Manager for Storage Area Network are:
LAN-free backup/restore
SAN-connected tape library

1.2.3 IBM Tivoli Storage Manager for backup and recovery
IBM Tivoli Storage Manager for System Backup and Recovery (SysBack™)
provides a flexible backup method for AIX systems to help protect data and
provide bare machine recovery capabilities. It offers a comprehensive system
backup, restore, and reinstallation tool. SysBack is a simple-to-use, yet highly
effective, tool. Any feature may be executed from either the AIX command line or
by using the SMIT menu interface.

For Windows platforms, bare machine recovery can be achieved with the TSM
Backup/Archive client’s Automated System Recovery capability.

In addition, Windows, Sun, and Linux bare machine recovery can be done with
Cristie Bare Machine Recovery. This integrates directly with Tivoli Storage
Manager to provide operating system recovery for these platforms.


1.2.4 IBM Tivoli Storage Manager for Data protection
IBM Tivoli Storage Manager provides data protection for a wide variety of
applications, databases, mail, and hardware, ensuring that data is safe and
secure no matter where it is located or how it is stored. These products interface
directly with the applications using their backup-certified utilities and interfaces,
simplifying online backup and restore procedures. These products are described
in the following sections.

IBM Tivoli Storage Manager for Application Servers
IBM Tivoli Storage Manager for Application Servers (formerly Tivoli Data
Protection for WebSphere® Application Servers) is a software module that works
with IBM Tivoli Storage Manager to better protect the infrastructure and
application data and improve the availability of WebSphere Application Servers.

IBM Tivoli Storage Manager for Databases
IBM Tivoli Storage Manager for Databases is a software module designed to
work with IBM Tivoli Storage Manager to protect a wide range of application data
through the protection of the underlying database management systems holding
that data. IBM Tivoli Storage Manager for Databases exploits the various
backup-certified utilities and interfaces provided for Oracle, Microsoft® SQL
Server, and Informix®.

This same functionality is included in the IBM DB2 Universal Database package
and Informix Dynamic Server, enabling them to work directly with IBM Tivoli
Storage Manager without the need to buy any additional modules.

IBM Tivoli Storage Manager for Hardware
IBM Tivoli Storage Manager for Hardware improves the data protection of
business-critical databases and Enterprise Resource Planning (ERP)
applications that require 24x7 availability.

IBM Tivoli Storage Manager for Mail
IBM Tivoli Storage Manager for Mail is a software module for IBM Tivoli Storage
Manager that automates the data protection of e-mail servers running either
Lotus® Domino® or Microsoft Exchange. This module utilizes the APIs provided
by e-mail application vendors to perform online backups without shutting down
the e-mail server and improve data-restore performance. As a result, it can help
protect the growing amount of new and changing data that should be securely
backed up to help maintain Domino and Exchange application availability
24x7x365.


IBM Tivoli Storage Manager for Enterprise Resource Planning
IBM Tivoli Storage Manager for Enterprise Resource Planning is a software
module that works with IBM Tivoli Storage Manager to better protect
infrastructure and application data and improve the availability of SAP R/3
servers.

1.3 New features and changes with Version 5.3
The following features and functions have been added to IBM Tivoli Storage
Manager Version 5.3.

1.3.1 ACSLS library support enhancements
Library support has been enhanced to allow the sharing of ACSLS libraries. This
implementation will provide the basic support to share ACSLS libraries across
IBM Tivoli Storage Manager servers in the same way that SCSI libraries are
shared. Support for LAN-free data movement using libraries that are controlled
by StorageTek’s ACSLS interface has also been provided.

1.3.2 Activity log management
The activity log can now be managed based either on maximum size for the log
or retention time. The new option for size-based activity log management gives
administrators greater control over the amount of space the activity log occupies.
Additional information about the activity log is now displayed when the server
status is queried.

1.3.3 Collocation by group
Collocation by group is now supported. Groups of nodes can be defined, and the
server can then collocate data based on these groups. Collocation by group can
yield the following benefits:
Reduce unused tape capacity by allowing more collocated data on individual
tapes.
Minimize mounts of target volumes.
Minimize database scanning and reduce tape passes for
sequential-to-sequential transfer.

For newly defined storage pools, the default storage pool collocation setting is
now GROUP.


1.3.4 Communications options
There is now a shared memory communications option between the IBM Tivoli
Storage Manager server for Windows and the Backup/Archive client for
Windows. It can be used to perform backups, archives, restores, and retrieves.
You can also enable the shared memory communication protocol in the Windows
storage agent for communication with the Windows Backup/Archive client.

1.3.5 Database reorganization
Periodically reorganizing the Tivoli Storage Manager server’s database can
improve performance. A new command has been added allowing administrators
to determine the estimated space saved by reorganization of the database. The
process can be queried to monitor the command’s progress and, when finished,
the results can be viewed by querying the database in detailed format.

1.3.6 Disk-only backup
Disk-only backup has been enhanced in order to take advantage of the
inexpensive disk storage currently available in the market. These improvements
to sequential-access FILE device type and random-access DISK device class
storage include:
The ability to create large, sequential-access FILE-type storage pools using a
single FILE device-class definition that specifies two or more directories.
The ability to create and format FILE- or DISK device-type volumes in a single
step.
The ability to use enhanced space trigger functionality to automatically
allocate space for private volumes in sequential-access FILE device type and
random-access DISK device class storage pools. This will reduce the
potential for disk fragmentation and maintenance overhead.

1.3.7 Enhancements for server migration
Administrators can now control and schedule routine server operations by
scheduling the migration or reclamation command to run during convenient
server activity times. The number of processes for migration and reclamation is
also enhanced to allow multiple processes for the operations. These new
features allow for better utilization of available tape drives and FILE volumes.

1.3.8 IBM 3592 WORM (Write Once Read Many) support
IBM Tivoli Storage Manager now supports the 3592 WORM tape device.


1.3.9 Increased block size for writing to tape
The maximum transfer length for all host bus adapters has increased. The block
size used by the IBM Tivoli Storage Manager sever on Windows for writing data
to certain types of tape drives has also increased. Increasing the transfer length
increases the rate at which data is processed for backups, archives, restores,
and retrieves. The maximum supported transfer length is now 256 KB.

1.3.10 LAN-free environment configuration
Enhancements have been made to allow you to quickly determine if your
LAN-free environment has been configured correctly. You can request validation
for one client node and one storage agent. When validation is requested, a
detailed report is generated explaining why the storage pool is or is not LAN-free
capable. As a result, you can determine if there is a setting or configuration issue
on the server preventing LAN-free data movement.

1.3.11 NDMP operations
NDMP operations for backup of NAS file servers have been enhanced to support
the following functions:
Directory-level backup of NAS data, which enables the division of a file
system backup operation among several NDMP backup operations as well as
several tape drives. This enhancement will reduce backup and restore times.
NDMP Directory Level Backup will enable IBM Tivoli Storage Manager to
backup user created snapshots that are stored as sub-directories, specifically
Network Appliance snapshots.

1.3.12 New interface to manage servers: Administration Center
The Administration Center is a Web-based interface that can be used to centrally
configure and manage IBM Tivoli Storage Manager Version 5.3 servers. This
new interface replaces the administrative Web interface. The Administration
Center is installed as an IBM Integrated Solutions Console component. The
Integrated Solutions Console allows you to install components provided by
multiple IBM applications, and access them from a single interface. See the
Installation Guide for installation information.

1.3.13 SCSI library enhancements
You can now define a 3592 drive to an SCSI library.


1.3.14 Simultaneous write inheritance improvements
The simultaneous write function lets you write data simultaneously to primary
storage pools and up to three copy storage pools, increasing your level of data
protection and reducing the time required for storage pool backup. In Version
5.3, when a data storage operation switches from a primary storage pool to the
next primary storage pool in the storage pool hierarchy, the next storage pool
inherits the list of copy storage pools and the value of the COPYCONTINUE
parameter from the primary storage pool. One benefit of this design is that it
reduces the likelihood that mount points have to be released and reacquired
when the server switches from one primary storage pool to another.

1.3.15 Support for multiple IBM Tivoli Storage Manager client nodes
Backup from multiple nodes to be stored as a single target node in the server
database is now allowed. With the consolidation of data under a single target
node on the server, directories and files can be easily found when restore
operations are necessary. It is also no longer necessary for physical machines to
share password files, because password management and IBM Tivoli Storage
Manager server authentication is now handled by clients (independent of
relationships with other nodes).

1.3.16 IBM Tivoli Storage Manager scheduling flexibility
IBM Tivoli Storage Manager schedule capability now allows for more useful
calendar-type administrative and client scheduling. There is now the flexibility to
schedule most repetitive items and even some holidays, such as these:
Run on the last Friday of every month
Run on the first Sunday of every quarter
Run on every day in the last week of the year

1.4 Summary
In conclusion, we have discussed the overview, architecture, complementary
products, and new functions of IBM Tivoli Storage Manager, and now we are
moving on to the planning, sizing, and designing functions.


2

Chapter 2. Planning for installation
This chapter provides planning information about IBM Tivoli Storage Manager
installation. The following topics are discussed:
System requirements
Design considerations
Database and pool considerations
Preparing customers for PoC


2.1 IBM Tivoli Storage Manager’s system requirements
In this section we discuss the necessary hardware and software requirements
needed to install and configure IBM Tivoli Storage Manager Extended Edition
Version 5.3.

2.1.1 Windows environment requirements
Software requirements:
Microsoft Windows 2003 Server:
Standard, Enterprise, or Datacenter Edition
32-bit Microsoft Windows 2003 Server:
Enterprise or Datacenter Edition
64-bit Microsoft Windows 2000 Server:
Advanced Server or Datacenter Server

Web browser requirements:
You need a Web browser to log in and use the console. The Web browser
can be installed on the same or a separate system. The following browsers
are supported:
– Microsoft Internet Explorer 6.x (Windows systems only)
– Mozilla 1.0.2, Mozilla 1.3 and Mozilla 1.4
– Netscape 6.2 and Netscape 7
Your browser must support the server codepage. If not, the panels may be
unreadable. If your browser meets these requirements but does not correctly
display an IBM Tivoli Storage Manager Web-based interface, consider trying
a different browser.

Hardware requirements:
Intel® Pentium® compatible processor or multi-processor based computer
At least 110 MB of free disk storage (for a typical installation)
128 MB (256 MB is recommended) memory
At least one of the following features (installed by default with the current
Windows operating systems):
– Named Pipes
– TCP/IP


2.1.2 AIX environment requirements
Software requirements:
IBM AIX: AIX 5L™ 5.1 or later (32 bit or 64 bit), or AIX 5.2 (32 bit or 64 bit)
and AIX 5.3 (32-bit or 64 bit)

Hardware requirements:
RISC System/6000® or pSeries® computer
At least 200 MB of free disk storage (for a typical installation)
1 GB of memory
TCP/IP connection

2.2 IBM Integrated Solution Center and Administration
Center requirements
The Administration Center is installed as an IBM Integrated Solutions Console
(ISC) component. The Integrated Solutions Console allows you to install
components provided by multiple IBM applications, and access them from a
single interface.

The Tivoli Storage Manager server can require a large amount of memory,
network bandwidth, and processor resources. In most cases, the server performs
best when other applications are not installed on the same system. If the system
meets the combined requirements for the server and the Administration Center
(for example, it has at least 2 GB of physical memory), it can support both
applications.

You may plan to use the Administration Center to manage an environment with a
large number of servers or administrators; then you should consider installing the
Administration Center on a separate system.

2.2.1 Software requirements
Here we list the software requirements for the following platforms:
Windows:
– Windows 2000 Professional, Server with SP4, Windows 2000 Advanced
Server with SP4.
– Windows 2003 Standard, Windows 2003 Enterprise, Windows 2003
Datacenter.

Chapter 2. Planning for installation 17

– CPU speeds: Speeds of late model, mid-range to high-end servers are
recommended. Pentium 800 MHz or equivalent at a minimum. Production
environments should consider the Pentium 4 processor at 1.4GHz or
higher.
– Physical memory: 512 MB or more for runtime installations.
– File system: NTFS file system is recommended.
AIX:
– AIX 5.1 with ML4.
– AIX 5.2 with ML1 + APAR IY44183.
– AIX 5.3.
– RS/6000® at 450MHz at a minimum; production environments should
consider higher speeds.
– Physical memory: 512 MB or more.
Linux:
– CPU speeds of late model, mid-range to high-end servers are
recommended. Pentium 800MHz or equivalent at a minimum. Production
environments should consider the Pentium 4 processor at 1.4GHz or
higher.
– Physical memory: 512 MB or more for runtime installations.
– SUSE Linux Enterprise Server (SLES) 8 Powered by United Linux 1.0 on
Intel.
Solaris:
– Solaris 8.
– Ultra 60 at 450MHz at a minimum; Sun Blade 2000 workstation at 1 GHz
or higher is recommended.
– Physical memory: 512 MB or more.

2.2.2 Hardware requirements
The machine hosting the Administration Center and Integrated Solutions
Console requires the following capabilities:
To install the console on a system for the first time, the user needs 982 MB to
satisfy the installation program disk space check. Also needed are an
additional 679 MB in the /tmp directory (which is also checked during the
installation), as well as 500 MB for the completed installation.
Equal to double the user's physical memory is required. At a minimum, this
should be at least equal to the physical memory.


Network adapter and connection to a physical network that can carry IP
packets; for example, Ethernet, Token Ring, and ATM Static IP address.
Configured fully qualified host name. Integrated Solutions Console must be
able to resolve an IP address from its fully qualified host name. To verify that
the host name is configured correctly, the user can issue the ping command
from a command line.
The IBM Tivoli Storage Manager Administration Center Web interface for the
server and a Web client interface for client machines require a Java™
Swing-capable (at JRE 1.4.1) Web browser:
– MS Internet Explorer 6.0, or later with Java Plug-in 1.4.1
– Mozilla 1.6, or later

2.3 Physical design considerations
In real implementation, it is important to have a proper architectural design to
provide a high performance Tivoli Storage Manager solution to customers. In this
section, we discuss what components are affecting to the IBM Tivoli Storage
Manager’s physical design.

Even though we are going to perform a Proof of Concept (PoC) with a Thinkpad,
we need to consider some physical architecture tunings.

In order to plan a better design, we need the following information:
What type of hardware and operating system will IBM Tivoli Storage Manager
run on?
What will be the network preferences?
Should data be stored on disk or tape?
How much data will be backed up every day?
How much time do we need to complete the backup?

You need to talk with the customer about what is their expectation from this work.
You need to agree with your customer, before planning this PoC, and you should
involve your customer in every step of your work.

First of all, you should determine if the customer has any platform preferences;
if not, choose one that you yourself feel comfortable with. Do not choose a
system for which the customer doesn’t have any machines or operating systems.

The next step is designing your storage pools. If you are planning to use any
tape device, you should create your storage pools accordingly. If you will only
use your disk space and pretend that you have a tape, carefully design your disk
storage pools. You will find some more detailed information in the next section.


Now it is time to discuss network connectivity. Tivoli Storage Manager is a
network application; data should move from clients to Tivoli Storage Manager
server(s). We have several options to do this movement. We may choose to run
our PoC on a standalone machine, or attached to any of the following networks:
LAN, WAN, or SAN connected machines. In order to understand this better, you
should be familiar with the network type and their throughputs. Table 2-1 explains
the various type of networks and how fast they are.

Table 2-1 Network throughputs
Network Topology MB/sec GB/hr

10 Mb/sec Ethernet 1 3.6

100 Mb/sec Ethernet 10 36

Gigabit Ethernet 100 360

16 Mb/sec Token Ring 1.6 5.8

FDDI 10 36

ATM 155 Mb/sec 15.5 55.8

Let us explain this with an example; consider a customer who has:
– Two DB2 database servers, each with 5 GB needs fully backed up
– Two Windows 2003 file servers, each with 60 GB and 5% daily change
rate
– One hour backup window for all servers
– A limited budget

Using the data in this table, calculate the network speed required as follows:
– (5+5) + (2*60*.05)=16GB
– Given that the backup window is 1 hour, then 16/1 = 16GB/hr.
For this environment, Ethernet (100 MB/sec) will be the proper choice.

For our demonstration, we should inform the customers about these network
type choices.

2.4 Database and pools considerations
The Tivoli Storage Manager database contains information about client nodes,
users, policies, schedules, and storage pools. The database also contains
pointers to the locations of all backup versions and client files in the Tivoli
Storage Manager storage pools. The client data itself is stored in storage pools,
not in the database.


Using the Tivoli Storage Manager database, we are able to define storage
management policies around business needs for individual clients or groups of
clients. Client data attributes such as storage destination, number of versions,
and retention period can be assigned at the individual file level and stored in the
database.

The Tivoli Storage Manager database also ensures reliable storage
management processes. To maintain data integrity, the database uses a
recovery log to roll back any changes and updates made if a storage transaction
is interrupted before it completes. This is known as a two-phase commit.

As we know, the Tivoli Storage Manager’s database is extremely important for
our Tivoli Storage Manager environment and there is no tolerance to lose it.
Both the Tivoli Storage Manager database and recovery log can be mirrored for
availability, providing automatic volume switching after a media failure.

For our demonstration environment, you should calculate the size of your Tivoli
Storage Manager database; the first and the easiest is a rule of thumb. Given an
environment consisting of mixed size files, a typical Tivoli Storage Manager
Database will be 3-5% of the total amount of data in the environment. Table 2-2
explains that each file consumes database space.

Table 2-2 TSM database sizes
Description Size

Initial file/object backup 600 bytes

Each addition version 200 bytes

Copy storage pool copy 200 bytes

Tivoli Storage Manager uses a logical construction which is called a Storage Pool
to represent storage resources. Different storage pools are used to route client
data to different kinds of storage resources. Storage pools can be arranged in a
hierarchy, with one pointing to another, to allow for migration of data from one
type of storage to another type.

If your demonstration will not have any tape attachments, then you may use the
default storage hierarchy. When we are configuring the Tivoli Storage Manager
Server, we have chosen the default configuration which is provided by Tivoli
Storage Manager.


A default storage pool named DISKPOOL, which represents random-access
storage space on the hard drive of the Tivoli Storage Manager server machine.
During server initialization, Tivoli Storage Manager created one volume
(representing a discrete amount of allocated space) in this storage pool. By
default, this volume was configured to grow dynamically. You can add more
volumes to expand this storage pool as required.

Tivoli Storage Manager also provides three other default storage pools, which
are all set up to point to DISKPOOL. These three storage pools correspond to
the three ways Tivoli Storage Manager manages client data: backup, archive,
and space-management. The Client Node Configuration Wizard allows you to
work with the backup storage pool, BACKUPPOOL.

By default, data for any client nodes you associate with BACKUPPOOL will be
immediately transferred to DISKPOOL. You can store the data in DISKPOOL
indefinitely, or just use DISKPOOL as a temporary cache and then migrate the
data to any other storage devices represented in the storage pool hierarchy.

This configuration will not be sufficient if you are planning to show some tape and
disk pool combinations. If you are planning to do so, then you should do the
appropriate storage pool hierarchy design.

2.5 Preparing for Proof of Concept
To demonstrate to a customer how IBM Tivoli Storage Manager can be used in
their environments, it is necessary to conduct a number of interviews with various
specialists. Our main aim to do this PoC work is to satisfy customers’ needs with
the IBM Tivoli Storage Manager product(s). For that reason, we have to set the
correct level of expectations with the customer.

Building an IBM Tivoli Storage Manager environment with all the architectural
design can require a detailed level of information including, for example, IBM
Tivoli Storage Manager Server preferences. What is the network type? Will PoC
run in a production network or a private one? What type of data will we back up?
What kind of applications does the customer have? The most important issue is
to determine what the customer is really expecting from this work.

Note: Do not forget that you should shape and direct your PoC, based on your
customer’s needs and expectations.

For the purposes of a demonstration, it is not strictly necessary to gather the
finest detail. However, this may be advisable so that any subsequent PoC project
has a head start.


The initial interviews should determine the customer’s objective with IBM Tivoli
Storage Manager. During this PoC work, we recommend involving the customer
in your demonstration and letting them to do some of the hands on functions by
themselves.

It is always better if you can prepare some charts showing the demonstration
environment, with some information about the process that you will show. For
example, this could be a basic worksheet that shows client names, operating
systems, data size on it, backup preferences, etc.

You will find some sample worksheets in A.2, “Sample worksheets” on page 119.
You may use them directly or edit them for your own situation.

After completing your work, at the end of each day, it is best to summarize what
you have done, and which functions or features of the product have been shown.
Then you should document your work and explain each step of your
demonstration and get approval from your customer.

Sometimes you need to leave the Tivoli Storage Manager environment on the
customer site in order to let the customer get to know the product on their own. In
this case, you should leave your contact information and follow up the process
with your customer.

Here is a basic checklist that you should follow for the proper planning process.
1. Prepare yourself for the initial customer interview.
2. List all your questions that will shape your final demonstration to your
customer.
a. What will be the server’s platform?
b. How many clients will be in the PoC scenario?
c. What will be the OS for these clients?
d. What type of data will the clients have?
e. What will be the size of data and number of files?
f. How many backup versions will be kept?
g. Explain the network options in terms of speed and backup windows.
3. According to the answers to your questions, design your architecture.
4. Install your Tivoli Storage Manager server.
5. Install server license.
6. Install device drivers.


7. Configure your server:
a. Update server option file.
b. Create database and recovery log volumes.
c. Define tape library and tape drives, if you will perform PoC with tape
drives.
d. Define storage pools and volumes.
e. Define policy domains, sets, and management classes.
f. Define copy groups.
g. Make the policy active.
h. Define Administrator ID and password.
8. Install clients.
9. Install clients’ schedules.
10.Create client option file.
11.Register clients to server.
12.Relate clients to schedules and option file.
13.Install ISC and Administration Center.
14.Perform your PoC scenarios:
a. Perform ISC functions.
b. Show the backup and restore functions from B/A Client GUI.
c. Schedule backup and let customer see how backup can be done
automatically.
d. Perform operational reports.
15.Document your work and share with your customer.
16.Ask your customer for the next step.

2.6 Summary
In this chapter we have discussed the IBM Tivoli Storage Manager system
requirements, its physical design, and provided some hints for Proof of Concept.
In the next chapter we will go into more detail regarding installation and
configuration.


3

Chapter 3. Installation and
configuration
Installing IBM Tivoli Storage Manager consists of the following tasks:
1. Installing the IBM Tivoli Storage Manager server and related components on
the server machine.
2. Installing the IBM Tivoli Storage Manager client code on every machine that
will transfer data to IBM Tivoli Storage Manager server-managed storage.

This chapter describes the installation instructions for installing the IBM Tivoli
Storage Manager server and related components for our PoC demonstration
scenario.

The instructions given in this chapter are very detailed and explicit. These
instructions are not the only way to install IBM Tivoli Storage Manager and its
related prerequisites, and are meant to be followed to successfully install and set
up an IBM Tivoli Storage Manager environment for both Windows and AIX
platforms.


3.1 Installing IBM Tivoli Storage Manager for Windows
environment
For successful installation of IBM Tivoli Storage Manager on a Windows system,
Installable IBM Tivoli Storage Manager components include the following items:
IBM Tivoli Storage Manager server
IBM Tivoli Storage Manager licenses
IBM Tivoli Storage Manager language packs
IBM Tivoli Storage Manager device driver, or the IBMTape device driver (for
IBM Magstar® and Ultrium devices)

If needed, you can also install the optional IBM Tivoli Storage Manager ODBC
driver, which allows reporting applications to export data from the IBM Tivoli
Storage Manager database.

Note: You cannot install the IBM Tivoli Storage Manager server and the
storage agent on the same machine on the Windows platform.

Before starting the installation procedure, ensure that you are logged on to
Windows with a user name having administrator authority.

Note: IBM Tivoli Storage Manager provides a minimal configuration option,
which includes a quick-installation procedure.

Installation of IBM Tivoli Storage Manager will be stopped if an active server or
storage agent process is detected, and an error message displayed. All active
sever or storage agent processes must be halted before installation can proceed.

When you install or upgrade the server to IBM Tivoli Storage Manager V5.3, you
must give your servers unique names. If all of your servers have the default
name, SERVER1, you will only be able to add one of them to the Administration
Center. Use the SET SERVERNAME command to specify the new server name. The
maximum length of the name is 64 characters.

Example 3-1 shows the command to name a server WELLS_DESIGN_DEPT.

Example 3-1 set servername command
set servername Wells_design_dept

See the Administrator’s Reference Guide for more details on this command.


3.1.1 Installing IBM Tivoli Storage Manager Server
Let’s begin the install process for the basic IBM Tivoli Storage Manager
installation. Please follow these instructions:
1. Insert the IBM Tivoli Storage Manager Windows Server CD.

First, the language option windows appear; choose the default language or
choose a language from the list as shown in Figure 3-1.

Figure 3-1 Language selection menu

2. The IBM Tivoli Storage Manager Server CD browser panel appears.

From the Main Menu (see Figure 3-2), click the Install Products option.

Figure 3-2 Main Menu

Chapter 3. Installation and configuration 27

3. The Install Products dialog appears. Choose the Tivoli Storage Manager
Server option (Figure 3-3).

Figure 3-3 Product installation menu

4. When the welcome panel comes up, click Next to continue, then accept the
terms in the license agreement and click Next.
5. Enter the user name and organization, then select the option, Anyone who
uses this computer, and click Next to continue.


6. The Setup Type dialog appears (Figure 3-4).

Figure 3-4 Server setup type dialog

Select either a Complete or Custom installation and click Next.

Note: Custom installation allows you to select console and server features.

– If you select Complete: The Ready to Install the Program window
appears.
– If you select Custom: The Custom Setup Dialog window appears.


7. We shall continue by choosing the custom installation (Figure 3-5).

Figure 3-5 Custom setup features

You can choose the features from the list, or if you would like to install Tivoli
Storage Manager using other than its default installation path, as shown in
Figure 3-5.
8. Select Change and define installation path and click Next.
To begin installation, click Install from the Ready to Install the Program
window (Figure 3-6).


Figure 3-6 Installation in progress

Installation will start, and you will get the InstallShield Wizard Completed panel.
9. Click Finish to complete the installation. The system will ask you to reboot
the machine; click Yes (Figure 3-7).

Figure 3-7 Installation completed dialog


Note: After the machine is rebooted, you have to plan to install other Tivoli
Storage Manager components locally, then return to the CD browser Install
Products panel to complete these installations.

3.1.2 Installing Tivoli Storage Manager licenses
To install the Tivoli Storage Manager license package from the CD browser
Install Products dialog, do the following steps:
1. Click Tivoli Storage Manager Server Licenses. Click Next on the welcome
panel (Figure 3-8).

Figure 3-8 Install Products menu

2. Enter User Name and Organization information and choose the option,
Anyone who uses this computer and click Next.
3. Select Complete or Custom and click Next.
– If you select Typical: The Ready to Install the Program window appears.
– If you select Custom: The Custom Setup Dialog window appears.


Choosing the Custom installation will let you change the installation directory.
Click Next to continue (Figure 3-9).

Figure 3-9 License File installation

You will receive the InstallShield Wizard Completed panel.
4. Click Finish to complete the IBM Tivoli Storage Manager Server license
installation.

3.1.3 Installing the Tivoli Storage Manager language packs
You can install nine languages other than English. If you have to do your PoC in
any other languages than English, you should use the instructions below. Each
language pack (one for each language, 9 total) contains language-specific
information for the server and the management console.

To install a Tivoli Storage Manager language pack from the CD browser Install
Products dialog, do the following steps:
1. Click Tivoli Storage Manager Language Packs as shown in Figure 3-10.


Figure 3-10 Installation of Language packs

2. Click the appropriate language to install.
3. When the welcome panel appears, click Next.
4. You will receive the Ready to Install panel; click Install.
5. After the installation is completed, you will get the InstallShield Wizard
Completed panel. Then click Finish to complete the language installation.

3.1.4 Installing the Tivoli Storage Manager Device Driver
The Tivoli Storage Manager device driver extends Tivoli Storage Manager media
management capability. To install the Tivoli Storage Manager device driver from
the CD browser Install Products dialog, do the following steps:
1. Click Tivoli Storage Manager Device Driver.
2. Enter User Name and Organization information and choose the option,
Anyone who uses this computer; then click Next.
3. Select Complete or Custom installation option and click Next.
Choosing the Custom installation will let you change the installation directory.
Click Next to continue (Figure 3-11).


Figure 3-11 Device Driver installation

4. You will receive the InstallShield Wizard Completed panel.
5. Click Finish to complete the IBM Tivoli Storage Manager Server Device
Driver installation.

The system will ask you to reboot the machine; click Yes if you are ready to
reboot.

3.1.5 Configuration of IBM Tivoli Storage Manager Server
After installing IBM Tivoli Storage Manager, you must configure the Tivoli
Storage Manager server. In order to do this, you should follow these instructions:
1. Double-click the Tivoli Storage Manager Management Console icon on the
desktop or Start → All Programs → Tivoli Storage Manager →
Management Console.
If this is the first installation, the Tivoli Storage Manager Console window
opens, with the Initial Configuration Task List displayed. Minimal configuration
is selected by default, you can see this in Figure 3-12.


Figure 3-12 Initial configuration panel for minimal configuration

In order to have more options for initialization of the server, it is better to choose
the standard configuration option.

If you choose to start with Standard Configuration, select the Standard
Configuration icon. Additional tasks will be shown on the panel in Figure 3-13.

The following steps are for the Standard Configuration. Server Initialization,
which is the only step for Minimal Configuration, is also included in Standard
Configuration.


Figure 3-13 Initial configuration panel for standard configuration

2. Click Start.
3. During Standard Configuration, the following Wizards are run in sequence:
a. The Initial Configuration Environment Wizard is shown in Figure 3-14.
Here you must define if you are planning to use standalone (local
machine) or network configuration. Usually Proof of Concept work is done
in a network environment in order to show backups and restores in
network attached computers.

Figure 3-14 Site environment information panel


b. The Performance Configuration Wizard is shown in Figure 3-15.
You must also define the number of clients that will be attached to the IBM
Tivoli Storage Manager server, and the typical size of the files to be
backed up.

Figure 3-15 IBM Tivoli Storage Manager performance options

c. Server Initialization Wizard
d. Device Configuration
e. Client Node Configuration
4. Server Initialization Wizard:
a. Define the path for Server Instance Directory and click Next (Figure 3-16).


Figure 3-16 Defining Server files location

b. Server Volume Location

The Wizard will create and initialize Database Volume, Recovery Log Volume,
and Disk Storage Pool Volume with default settings, which are 13MB, 9 13MB,
and 4 MB respectively, as shown in Figure 3-17.

Figure 3-17 Server Location and Database sizing


We believe these settings are good enough for standard Proof of Concept work,
but according to your PoC plans, you may change the initial settings by editing
the required fields.
5. Click the Next button to proceed through the wizard pages (Figure 3-16).

Figure 3-18 Service logon parameters

Note: You must specify the account that IBM Tivoli Storage Manager service
will use to login to Windows, and it is better to choose to start the server when
Windows boots.


6. You know that your Tivoli Storage Manager Server is now up and running
after you have received the following message (Figure 3-19).

Figure 3-19 Server initialization completes

7. When all wizards have been run, select Done to finish the installation.
8. After this point, the Initial Configuration Wizard will guide you to do device
configuration.
If you have any attached driver or tape library, you may configure at his time.
if you would like to use your disk as a primary storage, then you don’t have to
do anything (Figure 3-20).

Figure 3-20 IBM Tivoli Storage Manager Device Configuration

9. The next step is defining client nodes and policies (Figure 3-21).


Figure 3-21 Client node and policy configuration

IBM Tivoli Storage Manager storage pools are used to route client data to
different kinds of storage resources, such as tape and file volumes. Storage
pools can be arranged in a hierarchy to improve the performance of your
storage management system.
10.To add a client node, click the Add button.

Figure 3-22 Adding a client node


By default this node will be a part of a policy domain which the name is
“Standard”.

Whenever you want, you can run the required wizard to create, add or change
any other components to run IBM Tivoli Storage Manager (Figure 3-23).

Figure 3-23 Server initialization panel

3.1.6 Configure License Options
Licensing in V5.3 has changed from previous versions. After installing the
Version 5.3.0 server, you must register new licenses. The REGISTER LICENSE
command has changed with this version, and its function is currently limited:
You can register licenses for server components. This includes Tivoli Storage
Manager (base), Tivoli Storage Manager Extended Edition, and Tivoli Data
Retention Protection.
You cannot register licenses for components that are licensed on the basis of
processors (for example, Tivoli Storage Manager for Mail, Tivoli Storage
Manager for Databases, Tivoli Storage Manager for ERP, Tivoli Storage
Manager for Hardware, and Tivoli Storage Manager for Space Management).


Your license agreement determines what you are licensed to use, even if you
cannot use the REGISTER LICENSE command to register all components. You are
expected to comply with the license agreement and use only what you have
purchased. Use of the REGISTER LICENSE command implies that you agree to and
accept the license terms specified in your license agreement.
REGister LICense FILE=<license_file>

tsmbasic.lic — To license base IBM Tivoli Storage Manager.

tsmee.lic — To license base IBM Tivoli Storage Manager Extended Edition. This
includes the Disaster Recovery Manager, large libraries, and NDMP.

dataret.lic — To license IBM Tivoli Storage Manager for Data Retention. This is
required to enable Data |Retention Protection as well as Expiration and Deletion
Suspension (Deletion Hold).

To check the license, you can user the query license command (Figure 3-24).

Figure 3-24 Output of query license command

3.1.7 Installation of IBM Tivoli Storage Manager Client
The Tivoli Storage Manager Backup/Archive client helps you protect information
on your workstation. Using Tivoli Storage Manager, you can maintain backup
versions of your workstation files that you can restore if the original files are
damaged or lost. You can also archive workstation or server files that you do not
currently need, preserve them in their current state, and retrieve them when
necessary.

You can access Tivoli Storage Manager backup and archive features:
Locally through the client command line interface
Remotely or locally through the Web client interface


Follow these steps to install the software on your Windows 2000, Windows XP,
or Windows Server 2003 workstations:
1. Insert the CD-ROM that contains the Tivoli Storage Manager Windows client
into your CD-ROM drive. If you have autorun enabled, the installation dialog
should start when the CD loads. If the installation dialog does not start
automatically, you can start it manually. Select Run from the Start menu and
at the prompt, type: x:setup (where x is your CD-ROM drive). Click OK.
2. Follow the instructions displayed on the panel.
3. First of all, you should choose your language for your menu selections, then
you will receive the installation main menu (Figure 3-25).

Figure 3-25 IBM Tivoli Storage Manager Client installation main menu

Choose Install Products to continue.


4. Choose the proper client from the menu; clients are shown in Figure 3-26.

Figure 3-26 Choosing client type

5. You will be prompted for the language selection for your client. Then click
Next on the welcome panel.
6. Choose the destination folder for Tivoli Storage Manager Client code and
click Next to continue.


7. You will reach the Setup Type option menu (Figure 3-27).

Figure 3-27 Client setup options

In regard to the two setup types shown on this menu:
– Choosing Typical installs the minimum necessary to provide normal
backup and archive functions. If you are upgrading from a Version 4.1 or
4.2 client, this updates the components that are currently installed.
Otherwise, this includes the Backup/Archive client, the API Runtime files,
and the Web Client.
At this point, choose Custom and click Next.
– Choosing Custom takes you to the Custom Setup window. From this
window, you can click any program feature icon to modify that feature if it
is not mandatory for installation.

You can select from the following program features:
– Backup/Archive client:
• Backup/Archive client GUI Files (mandatory; cannot be deselected)
• Backup/Archive client Web Files (mandatory; cannot be deselected)
• Client API Runtime Files (mandatory; cannot be deselected)
• Client API SDK Files (optional)
• Administrative Client Command Line Files (optional; not enabled by
default)
• Image Backup (optional; not enabled by default)
• Open File Support (optional; not enabled by default)


– Online information:
• READMEs and Installation and User's Guide
• Installation and User's Guide - PDF (optional)
8. The installer displays the exact amount of disk space that is required for each
program feature. Ensure that there is enough disk space on the destination
drive for the files you choose to install. The installation program will not install
to a destination drive with insufficient disk space.
9. Click Next to start the installation (Figure 3-28).

Figure 3-28 Client custom setup options

You will receive the InstallShield Wizard Completed message; then click Finish
to complete the installation.

3.1.8 Configuring Tivoli Storage Manager Client
Now it is time to configure your client. You can start your configuration wizard
form your desktop, choosing Start → All Programs → Tivoli Storage
Manager → Backup-Achieve GUI.

Configuration can be done either from Tivoli Storage Manager Backup/Archive
GUI or by editing the dsm.opt file directly.

From the Client Configuration Wizard, you can also configure WebClient, Client
Scheduler, Journal Engine, and Online/Open file support features.


Click the first option and click Next to start the configuration (Figure 3-29).

Figure 3-29 IBM Tivoli Storage Manager Client configuration wizard

Here are the steps to follow:
1. If you do not have a dsm.opt file, a setup wizard is launched automatically
when you start the GUI. The setup wizard can help you configure an initial
options file.
2. Choose Create a new options file and click Next to continue.
3. Key in the Tivoli Storage Manager node name and click Next.
4. With Tivoli Storage Manager V5.3, it is possible for the client to connect to
Tivoli Storage Manager server via four communication methods:
– TCP/IP (same as previous releases.)
– Named Pipes (same as previous releases)
– Shared Memory (new for V5.3)
– Use Active Directory to locate Tivoli Storage Manager server (new for
V5.3)
Click TCP/IP and click Next to continue.


5. Enter the Tivoli Storage Manager server’s IP address or DNS name and leave
the port as 1500. Click Next (Figure 3-30).

Figure 3-30 Default include/exclude list

6. With this release, the configuration wizard automatically adds recommended
INCLUDE/EXCLUDE list statements.
7. Leave the list at the default values, or if you would like not to add any one of
the lines, just click it, then select Next to continue.
8. The next panel is for the common file exclude selection menu. You can select
the file extension to be excluded during the backup process. Click Next.


9. You need to choose your backup options from the Domain for Backup panel
shown in Figure 3-31.

Figure 3-31 Backup options

10.Click Next, and you will receive the installation completion panel. Click Finish
to complete the configuration.

You will receive a login window to login to the Client GUI. Enter the password
which you entered while you were registering this node to Tivoli Storage
Manager server.

3.1.9 Configuring Tivoli Storage Manager scheduler
In order to start the scheduler, you must configure the Tivoli Storage Manager
Client Scheduler using the Setup Wizard.
1. Choose from the Utilities and Setup Wizard.


2. Click Tivoli Storage Manager Client Scheduler and click Next
(Figure 3-32).

Figure 3-32 Setting the schedule option

3. Use the default options and enter the password as client.
4. Choose Automatically Start option for the server option.
5. Click Finish to close the dialog box.

You can use and demonstrate how the automatic backup schedule function
works.

Now you are ready to show some IBM Tivoli Storage Manager functions using
this client. Figure 3-33 shows the main panel for the Client GUI.


Figure 3-33 Backup -Archive GUI

You may also update your client node’s preferences from your client GUI.

At this point we have completed the IBM Tivoli Storage Manager Server and
Client installations for the Windows environment.

For more detailed installation and configuration information, please refer to the
IBM Tivoli Storage Manager Windows Server Installation Guide Version 5.3,
GC32-1602-00, and the IBM Tivoli Storage Manager Windows Client Installation
Guide Version 5.3, GC32-0788-05.

3.2 Installing IBM Tivoli Storage Manager for UNIX (AIX)
environment
In this section we discuss the important steps for installation and configuration for
AIX operating systems. We recommend that you read the IBM Tivoli Storage
Manager Quick Start publications for the requirements for other UNIX® flavors in
the following link:
http://publib.boulder.ibm.com/infocenter/tivihelp/index.jsp?toc=/com.ibm.
itstorage.doc/toc.xml

Next we explain the important steps of the IBM Tivoli Storage Manager server
installation for AIX (see Figure 3-34). We will use the System Management
Interface Tool (SMIT) procedure to install the server and device support.


Follow these installation procedures:
1. Log in as the root user.
2. Load the CD into the selected drive.
a. If you downloaded the code from PartnerWorld® or PasswordAdvantage
site, then you should unzip the code by entering the following commands:
Gunzip code.tar.gz
tar -xvf code.tar
b. Change directory to ../usr/sys/inst.images/.
c. You may need to create TOC by entering the INUTOC command.
3. Select smitty → Software Installation and Maintenance → Install and
Update Software → Install and Update from ALL Available Software.
a. Edit the install path for the Input Device/ Directory for software field.
4. Locate the line Software to Install. Press PF4.
5. Select the one of the file sets you want to install for your configuration,
then click OK:
a. 32-bit hardware, 32-bit AIX kernel
b. 64-bit hardware, 64-bit AIX kernel
c. 64-bit hardware, 32-bit AIX kernel

Figure 3-34 IBM Tivoli Storage Manager AIX server installation


6. Click OK.
7. Check the default settings for the options on this window. To continue, click
OK (Figure 3-35).

Figure 3-35 Default settings panel

8. You will receive the question ARE YOU SURE?... from SMIT.
9. To continue, click OK. This installation can take several minutes to complete
(Figure 3-36).

Note: Some file sets are operating system-level-specific and will fail to install.
This is normal behavior, and should not be interpreted as an error.


Figure 3-36 Installation complete

10.After the installation is complete, click Done, remove the CD, and exit from
SMIT.

Note: The Database, Recovery Log, and default storage pools are created (or
should be) by the installation process.

11.To start the server from the /usr/tivoli/tsm/server/bin directory, enter:
nohup ./dsmserv
Or, run in the background with:
nohup ./dsmserv &

For detailed installation and configuration information, you should refer to the
IBM Tivoli Storage Manager Server for AIX Installation Guide Version 5.3,
GC32-1597-00.

3.2.1 Installing IBM Tivoli Storage Manager Client for AIX
To install Tivoli Storage Manager from the CD-ROM:
1. Log in as the root user. Insert the CD-ROM into the CD-ROM drive device.
You will need to manually mount the CD-ROM device for remote or NFS
installations.


2. From the AIX command line, type smitty install and press Enter.
3. Select Install and Update Software and press Enter.
4. Select Install and Update From ALL Available Software and press Enter.
5. At the INPUT device/directory for software prompt, press the F4 key and
select the CD-ROM device containing the installation CD-ROM, or specify the
directory containing the installation images, and press Enter.
6. At the SOFTWARE to install prompt, press the F4 key. Select the Tivoli
Storage Manager filesets you want to install and press Enter (Figure 3-37).

Figure 3-37 IBM Tivoli Storage Manager Client install options

7. Select the options you want and press Enter to begin the installation.
8. After installation completes, you should see a completion panel (Figure 3-38).


Figure 3-38 Installation completes

9. We have now completed the Client code installation. For detailed installation
information, please refer to the Linux Backup/Archive Clients Installation and
User’s Guide for AIX Version 5.3, GC32-0789-05.

3.2.2 IBM Tivoli Storage Manager Client Configuration
After installing the IBM Tivoli Storage Manager AIX client code, you must
complete the client configuration. The client configuration files, which are
dsm.sys and dsm.opt, can be found at the installation directory:
/us/tivoli/tsm/client/ba/bin

To configure the client, you should do the following steps:
1. Copy dsm.sys.smp to dsm.sys and dsm.opt.smp to dsm.opt.
2. Edit the dsm.opt as follows:
a. Remove the comment in front of SERVERNAME.
b. Add servername stanza. (The value can be anything you want. It should
match the value that you will insert in dsm.sys.)
3. Edit dsm.sys:
a. Change Server_a to the one in step 2.b


b. Change TCPSERVERADDRESS to the real IP address of Tivoli Storage
Manager server.
c. You can add other client options.

In addition to this configuration, you may configure the following steps:
– Communication options
– Backup and archive processing options
– Restore and retrieve processing options
– Scheduling options
– Authorization options
– Error processing options
– Transaction processing option
– Web client options

For detailed configuration information, please refer to the Linux Backup/Archive
Clients Installation and User’s Guide for AIX Version 5.3, GC32-0789-05.

3.3 Installing ISC and configuring Administration Center
This section provides instructions for installing the ISC and Administration Center
on Windows machines. Starting with the IBM Tivoli Storage Manager version 5.3,
you can only access IBM Tivoli Storage Manager via the Administration Client or
Administration Center.

Version 5.0.2 of the Integrated Solutions Console is required to use the
Administration Center. This version of the Integrated Solutions Console is to be
installed prior to installing the Administration Center. From the Administration
Center on any platform, all Tivoli Storage Manager Servers on any platform can
be accessed.

Note: The Integrated Solutions Console and the Administration Center can
only manage Tivoli Storage Manager server 5.3 and up.

Access to Tivoli Storage Manager server V5.3 from a browser is no longer
supported. If you try this, you will receive the message shown in Figure 3-39.

Figure 3-39 Web GUI is not supported


Installing and configuring ISC-Admin center consists of the following tasks:
Installing the ISC
Installing Administration Center
Adding Tivoli Storage Manager server to Admin Center
Operating and configuring Tivoli Storage Manager server from Admin Center

Installation the IBM Integrated Solution Center (ISC)
Follow these steps (Figure 3-40):
1. Insert the ISC CD, or download code from Internet.
2. Run setupISC.exe.

Figure 3-40 ISC installation welcome panel

3. Click Next. Accept the License and click Next.
4. Specify the Installation Directory (CD or the directory where you run
SETUPISC.exe).
5. Specify the directory where you want to install ISC (Default C:Program
FilesIBMISC).


6. Specify Console User ID and password (default iscadmin) (Figure 3-41).

Figure 3-41 User ID and password creation

7. Specify HTTP and HTTPS ports (Default 8421, 8422).


8. The installation process can take approximately 1 to 2 hours. You can follow
the installation by continuously checking the properties of the installation
directory (Figure 3-42).

Figure 3-42 ISC properties

9. You will see the installation process panel as shown in Figure 3-43.


Figure 3-43 Installation starts

10.You will get the following message and URL for ISC, when the installation
completes, as shown in Figure 3-44.

Figure 3-44 Installation completes


11.To verify the installation (Figure 3-45), open the browser and reach:
http://localhost:8421/ibm/console

Figure 3-45 Starting the ISC console

12.To run the ISC, enter the user ID and password that you defined in the
installation step 6.

With this step we have successfully installed the ISC, and now we are going to
install the Administration Center.


Installation of Administration Center
1. Insert the Administration center CD, or download code from Internet.
a. Downloaded code is in tar format. Extract it to a temporary directory.
2. Run setupAC.exe.
3. Click Next. Accept the license and click Next.

Figure 3-46 Administration Center welcome panel

4. The nstallation will ask whether ISC has been installed on the default paths.
If the information is not correct, then select I would like to update the
information and click Next.
5. Specify the directory where you installed ISC (Default C:Program
FilesIBMISC).
6. Specify Web administration port (default 8421).
7. Specify Console User ID (default iscadmin) and password.
8. Specify installation path where you run setupAc.exe.
9. Installation may take 30 minutes.


10.You will get the following message and the URL for ISC (Figure 3-47).

Figure 3-47 AC installation completes

11.Click Next, and you will be transferred to the ISC login page.
To get started, log in using the Integrated Solutions Console user ID and
password you created during the installation. When you successfully log in,
the Integrated Solutions Console welcome page is displayed as shown in
Figure 3-48.


Figure 3-48 ISC login automatically start

12.Expand the Tivoli Storage Manager folder in the Work Items list and click
Getting Started to display the Tivoli Storage Manager welcome page. This
page provides instructions for using the Administration Center.

We have completed the installation of IBM Integrated Solution Center and
Administrator Center. If you need more detail on this installation, you should read
Chapter 23, “Administration Center”, in the IBM Redbook, IBM Tivoli Storage
Manager Version 5.3 Technical Guide, SG24-6638-00.

You may also refer to Chapter 4, “Installing the Administration Center”, in
IBM Tivoli Storage Manager Installation Guide for Windows Version 5.3,
GC32-1602-00.

3.3.1 Configuring the Administration Center
After installing ISC and Administration Center, Tivoli Storage Manager servers
should be added to the portal. Only Tivoli Storage Manager 5.3 and later
releases can be added.

In the following sections we explain the configuration steps for the Administration
Center.


Adding server to Administration Center
Follow these steps (Figure 3-49).
1. Open a browser and reach http://host:8421/ibm/console.
2. Enter Console user ID and password and click login.
3. Click Tivoli Storage Manager.
4. Click Storage Devices.
5. From the Servers window, select Action → Add Server Connection → Go.
6. Enter the necessary information, such as Admin Name, password, server
address and server port:
a. If this is the first installation, Admin name and password is ADMIN.
b. In order help the monitor to check your Tivoli Storage Manager server,
during installation, the ADMIN_CENTER admin name has been created.
You have to unlock the Admin.
7. The health monitor default password is ADMIN_CENTER. Change the
ADMIN_CENTER password. You can also change the refresh time for the
health monitor. The default is 10 minutes.

Figure 3-49 Adding TSM server to Admin Center

8. Your Tivoli Storage Manager server is now ready for the configuration.


Checking the Health of Tivoli Storage Manager server
1. Click Health Monitor.
2. Just under the Health column, you may see the following messages:
a. Normal (green): The server is running and the health monitor identified no
problems.
b. Unknown (blue): The server could not be contacted. Possible causes
include these:
• The server is not currently running.
• Network problems prevent communications with the server.
• The administrator name that the health monitor uses,
ADMIN_CENTER, is locked or does not exist on the server.
• There were internal errors in the health monitor.
Click the server name to get more information about possible causes.
c. Warning or Needs Attention (yellow): The health monitor detected
conditions that might develop into significant problems. You need to take
preventive actions for the server's database, storage devices, or both.
Click the server name for details.

Figure 3-50 Health monitor panel


d. Critical or Error (red): The health monitor detected significant problems in
the server's database, storage devices, or both. The problems prevent the
server from operating normally, as shown in Figure 3-51.
The database or recovery log is out of space, or a library is not functioning.
Click the server name for details.

Figure 3-51 Detailed health information

3. Click the server name to get more information.
4. This window will give you the overall status of your Tivoli Storage Manager
server (Figure 3-52). Identify the problem area and select the appropriate
Detailed Report:
a. In this page, in the Database Information column, there is a “Need
Attention” flag. Choose Database and Recovery Log Information.
b. Detailed Health report for Database and Recovery log, takes our attention
to following points.
i. Cache Hit Ratio is less than its ideal value. Change the bufferpoolsize
and wait for the next refresh. When the Health Monitor refreshes its
information, you will see that the status of Tivoli Storage Manager
server is now good.


Figure 3-52 Health monitor shows the server health

Adding database/recovery volumes
These are the steps to follow (Figure 3-52):
1. Select Storage Devices.
2. Click the server name to get the Server Properties windows.
3. Select Database and Log.
4. Select the Add Volume task from Select Action on top of the Database
Section and click Go.
5. Fill in the Database Volume name, capacity, and click OK.


Figure 3-53 Adding database volume

6. With this release, it is possible to extend the database while creating it.

Note: To create the volume using other than the system default path, fill in the
Volume Name field with the fully qualified directory path name.

3.4 Summary
In summary, this chapter provided detailed steps for the basic installation and
configuration of the IBM Tivoli Storage Manager and its components.


4

Chapter 4. Demonstration scenarios
This chapter provides some IBM Tivoli Storage Manager demonstration
scenarios you may use in your Proof of Concept work. These scenarios have
been tested, and we believe that they cover most of the IBM Tivoli Storage
Manager functions that will satisfy the customer’s ideas about the product. You
may add some more scenarios to your Proof of Concept work.

We describe the following topics:
Client demonstration scenarios
Server demonstration scenarios
ISC and Administration Center scenarios


4.1 Client demonstration scenarios
In this chapter, we work on the PoC scenarios. We cover the basic backup and
restore, the archive and retrieve functions, and some ISC functions as well.

4.1.1 Client configuration for backup and archive functions
Operating system object backup can be taken by using the Backup/Archive
Client GUI interface. In order to take backup of any client, it should first be
registered to Tivoli Storage Manager server. After that, you can follow this
procedure:
1. Open the GUI by entering the DSM command or selecting Start → All
Programs → Tivoli Storage Manager → Backup-Archive GUI.
2. If this is the first time you are logging in, the Tivoli Storage Manager Client
Configuration Wizard is started (Figure 4-1). Otherwise, you should skip to
step 3.

Figure 4-1 IBM Tivoli Storage Manager client configuration wizard

c. Click Next, and be sure this option is selected: Help me configure the
Tivoli Storage Manager Backup Archive Client.
d. Select Create a new option file and click Next.


e. Enter the node name which you have defined in Tivoli Storage Manager
server. The default name is your machine name.
f. Select the communication method that you intend to use (TCP/IP, Named
Pipes, Shared Memory, Use Active Directory to locate the Tivoli Storage
Manager Server).
• If the client and Tivoli Storage Manager server are on the same
machine, select Shared Memory or Named Pipes. Otherwise, select
TCP/IP.
g. Assume that TCP/IP has been selected in the previous step. In the next
panel, you are asked to enter the TCP/IP address of Tivoli Storage
Manager server (Figure 4-2).

Figure 4-2 TCP/IP parameters for clients

h. For the time being, do not change any INCLUDE/EXCLUDE, Common
File Exclusion Selection, Domain for Backup settings, and just click Next
until you reach the last panel.
i. Click Finish.
j. You are asked to enter the password, after which you will end up with the
configuration (Figure 4-3).

Chapter 4. Demonstration scenarios 75

Figure 4-3 Backup Archive GUI

4.1.2 Incremental (complete) backup
Follow these steps:
1. Open the Backup-archive GUI from Start → Programs → Tivoli Storage
Manager → Backup/Archive GUI. Login with a valid password.
2. Select Backup from the initialization panel.
3. Use the drop-down menu to select Incremental (Complete) as the type of
backup.
4. Expand the directory until you find the critical directory.
5. Click the square box to the far left of the critical directory (Figure 4-4).


Figure 4-4 Selecting files for backup

6. Click Backup.
7. IBM Tivoli Storage Manager will start to back up the files in the directory, and
the following panel will show the data transfer rate and network utilization
values, as seen in Figure 4-5.
8. You can check your backup process by clicking the report icon or the Tivoli
Storage Manager server, by entering the Q SESS command.


.

Figure 4-5 Detailed status report

9. When the backup finishes, the concluding panel will pop up.

4.1.3 Selective backup
In this exercise, you will perform a selective backup of the files in the critical
directory that starts with the letter A using the find function.
1. In the backup window, select Always backup as the type of backup.
2. Expand the directory tree until you find the critical directory.
3. Click the box to the far left of the critical directory to select all files.
4. Click the folder icon to the right of the plus sign next to Critical to display the
files illustrated in Figure 4-6.


Figure 4-6 Selective backup panel

5. Select Edit → Find.
6. The Find Files (Backup) dialog box displays. Click the Name: shown in a
drop-down list.
7. Select Starts With.
8. Tab to the next text box and type: A (Figure 4-7).

Figure 4-7 Find a file window


9. Click the Filter button. You should get the following message:
Items currently selected will not be processed if they do not match
the filter specification. Continue anyway?
10.Click the Yes button to close the Tivoli Storage Manager Dialog box.
11.The file view in Figure 4-8 shows that the right side should contain a list of
files in the critical directory that begin with the letter A.

Figure 4-8 Result after selected the files

12.Run an estimate on the file you selected above for the backup process.
Record the time here. Click the Estimate button.
13.Click OK to close the Estimated Time for Backup window seen in Figure 4-9.

Figure 4-9 Estimates backup time


14.Back up these files now and compare the actual time to the estimated time.
15.Click the Backup button.
16.View the Backup Report, then close the Backup Report window (Figure 4-10).

Figure 4-10 Backup report panel

4.1.4 Creating an inactive copy
Follow these steps:
1. Edit one of the files that you have just backed up and perform another
backup.
2. Now you have created an inactive backup copy of this file.
3. You will demonstrate how to restore the active and the inactive copies of any
files that you have backed up.


4.1.5 Manual backup using Backup-Archive Command Line
Follow these steps:
1. Open the command line interface either by entering the DSMC command or
selecting Start → All Programs → Tivoli Storage Manager →
Backup-Archive Command Line.
2. You can get the command syntax by entering help.
3. You can run incremental, selective backups.
4. To do selective backups, run the following command:
Selective c:$userbackup.txt
5. To do incremental backups, run the following command examples.
a. Incremental (backs up all files not excluded by you).
b. Incremental C: (backs up all files in directory C that are not excluded).
c. Incremental C: D: E: (backs up files in C:, D: and E:).
d. Incremental C:$user (backs up files in C:$user directory).
e. Incremental -sub=yes C:$user (backs up all files under all
subdirectories).

Figure 4-11 shows the results of the command line backup process.

Figure 4-11 Manual backup results


4.1.6 Restore using GUI
This section describes several methods of restoring using the GUI.

Restoring to the original location
Follow these steps:
1. To start restore files that have been backed up, click the Restore button from
the GUI panel.
2. Click the file level and see all the directories you have already backed up to
your system.
3. Expand the box of the critical directory to view the files.
4. In the File View of the Restore Window (the right side of the panel), click the
check box to the left of the Tivoli Storage Manager Demoguide.com file to
select it (Figure 4-12).

Figure 4-12 Restore files

5. Click the Restore button.
6. Select Original location. By selecting this, you will restore the file to where it
has backed up. Figure 4-13 shows the restore options.


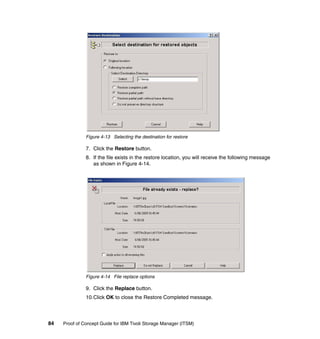

Figure 4-13 Selecting the destination for restore

8. If the file exists in the restore location, you will receive the following message
as shown in Figure 4-14.

Figure 4-14 File replace options

9. Click the Replace button.
10.Click OK to close the Restore Completed message.


11.Close the Restore Report dialog box.

Restoring to another location
Follow these steps:
1. To start to restore files that have been backed up, click the Restore button
from the GUI panel.
2. Click File Level and see all the directories you have already backed up to
your system.
4. Click the box of the critical directory to view the files.
5. In Figure 4-15, showing a File View of the Restore Window (the right side of
the panel), click the check box to the left of the Tivoli Storage Manager
Demoguide.com file to select it.

Figure 4-15 Selecting files for restore


7. Assume that we will restore to a different location.
8. Select Following Location and select the directory to which you want to
restore, as seen in Figure 4-16.
9. There are four possible ways to restore the destination directory.
a. Restore Complete Path: Restores the entire path (starting from the root)
of single backup versions or fully-selected directories and puts them in the
specified directory.
• Example: If you backed up c:$usertsmbackup.txt and you have
selected D:Destination, then after restore, the file will be in
D:Destination$usertsmbackup.txt.
b. Restore Partial Path: Restores single backup versions and puts them in
the specified directory, and fully-selected directories to the specified
directory.
D:Destinationbackup.txt.
c. Restore Partial Path without base directory: Restores a fully-selected
directory and puts it in the specified directory without the base directory.
The base directory is the directory next to the selection box that you
checked in the Restore window. If you selected individual files in addition
to fully-selected directories, the restore behavior is the same as that
described for the Restore Partial Path radio button.
D:Destinationbackup.txt.
d. Do not Preserver Directory Structure: Restores any backup version and
puts it in the specified directory and does not preserve the directory
structure for the backup version.


Figure 4-16 Destination selection for restore

10.Click the Restore button.
11.Click OK to close the Tivoli Storage Manager dialog.
13.Check the new directory and find the file has restored.

Restoring inactive versions
Follow these steps:
1. Select the Restore button on the backup archive GUI.
2. By default, only active backed up files are displayed. You will need to indicate
that you want both active and inactive files by selecting View → Display
Active/Inactive files.
3. You will be prompted with a message saying the current selections will be lost
(Figure 4-17). Click Yes.

Figure 4-17 Selection message


5. Click the + sign of the critical directory.
6. Click the check box to the left of the critical folder icon.
7. Select the files with the green diamond next to them (Figure 4-18).

Figure 4-18 Restoring the inactive version

8. Click the Restore button for the original location.
9. Click the Restore button, again.
10.Select the box Apply action to all Remaining files.
11.Click Replace, if you will replace with the existing file; otherwise choose the
option, Following Location.

Restoring using point in time option
1. Select the Restore button on the backup archive GUI.
2. Click the Point in Time button and set the date and time you wish to restore
files as of that date and time (Figure 4-19).


Figure 4-19 Point in time restore options

3. In Figure 4-20 you will see the settings next to the Point in Time button and
you will only choose from the snapshot of the system on that day and time.

Figure 4-20 Point in Time



4.1.7 Restore using Backup-Archive Command Line
Follow these steps:
1. Open command line interface either by entering DSMC command or selecting
Start → All Programs → Tivoli Storage Manager → Backup-Archive
Command Line.
2. You can get command syntax by entering help.
3. As in the GUI version, you can select destination:
a. To restore to the original location, restore c:$usertsmbackup.txt
b. To restore to a different location, restore c:$usertsmbackup.txt
d:Destinationbackup.txt
c. To restore and rename the file, restore c:$usertsmbackup.txt
d:destinationrestore.txt
4. To restore an inactive version, you can either specify the date and time or you
can pick from the list.
To pick the correct version of the file, issue following command:
Restore c:$usertsmbackup.txt -pi -ina
- pi means, the pick function will be used.
- ina means, the inactive version.

See Figure 4-21 for an example of this.

Figure 4-21 Manual restore file selection


5. Select the object by entering its line number.
6. Select O to start restoring.

You can show the archive and retrieve function; it will be the same as backup
and restore. There will be only one difference: You do not have to specify version
numbers, but you have to specify how long you want to keep the data.

4.1.8 Archive using GUI
This sections describes some archive methods using the GUI.

Archive files
Follow these steps:
1. Start the backup-archive GUI.
2. Reply Yes if asked about a one-time conversion of archived files.
3. Select a few files in the critical directory to be archived (Figure 4-22).

Figure 4-22 Archiving files

4. Click Archive and click OK for the dialog box.


Adding more files to an existing archive
Follow these steps:
1. Add these archived files to an existing archive package by clicking the select
box to the right of the description field.
2. Pick an archive file from the list of archive files displayed (Figure 4-23).

Figure 4-23 Adding more files to existing archive

3. Reply Yes if asked about a one-time conversion of archived files.
4. Click Archive and click OK for the dialog box.

Retrieve using GUI
Follow these steps:
1. Start the backup-archive GUI and select Retrieve files (Figure 4-24).
2. Select the archive to retrieve.
3. Click the + sign to the left of the Server1 node icon for listing the archive
packages.


4. Click the + sign to the left of an archive package to list the files that make up
the package. You may need to continue expanding the directory tree to get
the entire package expanded.
5. Clicking the folder icon next to a directory name will display any archived files
that are in that directory in the File View portion of the panel (the right side of
the window).

Figure 4-24 Retrieve the archive files

6. Select some of the files or the entire package to retrieve.
7. Retrieve the files.
8. Click Retrieve for Original Location.
9. Click Retrieve, if you will replace with the existing file; otherwise, choose the
Following Location option.
10.Select the box labeled Apply action to all remaining files.
11.Click Replace
12.When the retrieval is complete, click OK.


4.1.9 Backup using schedule backup feature
Schedule for Tivoli Storage Manager V5.3 is more flexible than ever before. Let
us create a schedule such that backup will occur every first Sunday of each
month.

Setting a schedule
Follow these steps:
1. First select Policy Domain and Client Nodes.
2. Click the domain (Figure 4-25).

Figure 4-25 Client nodes and policy domain selection

3. Select Client Node Schedules to expand the schedules.
4. Create a schedule by selecting Select Action → Create a Schedule and Go.
5. The Create Schedule wizard will start.
6. Fill in the schedule name, description, and schedule type, such as backup,
and then click Next (Figure 4-26).


Figure 4-26 Creating schedule

7. Select Incremental Backup for the sake of example.
8. The Select Repetition Options panel is displayed. And you can select several
different schedules from the list. We will select Repeat on one or more days
of week (Figure 4-27).

Figure 4-27 Select repetition options


9. Select only Sunday and also click Select weeks in which the schedule runs
(Figure 4-28).

Figure 4-28 Repeating the schedule - day of week

10.Refine the Schedule Repetition-Weeks is displayed. Now select The First
week of the month and click Next.
11.Define schedule priority, schedule expiration, and start duration and click
Next.
12.Now select the client nodes for this schedule and click Next.
13.A summary panel will be displayed. Select Finish to end the Create Schedule
task (Figure 4-29).


Figure 4-29 Summary panel

Schedule scenario
Let us create a schedule such that backup will occur only on 1st, 7th, 21st, and
26th of January, April, and August of the year:
1. First select Policy Domain and Client Nodes.
2. Click the domain.
3. Select Client Node Schedules to expand the schedules.
4. Create a schedule by selecting Select Action → Create a Schedule and Go.
5. The Create Schedule wizard will start.
6. Fill in the schedule name, description and schedule type such as backup and
then click Next.
7. Select Incremental Backup for the sake of example.
8. The Select Repetition Options panel is displayed, where you can select
several different schedules from the list. We will select Repeat on one or
more days of month.
9. On the Repeat the schedule - Day of the month panel, select the 1st day and
while pressing the Control Key, select 7th, 21st, and 26th day and click the
option, Select months in which the schedule runs (Figure 4-30).


Figure 4-30 Repeating the schedule

10.Click only January, April, and August, and then click Next (Figure 4-31).

Figure 4-31 Selecting schedule by month

11.Define schedule priority, schedule expiration, and start duration and click
Next.
12.Now select the client nodes for this schedule and click Next (Figure 4-32).


Figure 4-32 Schedule summary panel

13.A summary panel will be displayed. Select Finish to end the Create Schedule
task.

4.2 Server scenarios
In this section we show scenarios done by the Tivoli Storage Manager Server.

4.2.1 Migration of storage pool
In previous releases, even with migration of the storage pool available, setting
the correct time was a bit tedious. There were two ways to start migration. The
first one was to set the high and low migration thresholds, and migration would
start automatically when the high threshold was reached. When the environment
was lacking available drives, starting migration automatically may cause
problems for other backups, which would use a tape drive at the same time.

So we were using the second method, which was to set a high threshold to 100%
in order not to start migration automatically. And when a drive is empty, threshold
is set to a low value to start migration, and set back to 100% to prevent migration,
and at the same time, cancel the migration process.

With V5.3, there is now a new migration command to do the same thing. With
this command, there is no need to adjust high and low thresholds continuously.
You can immediately start migration for any stgpool (storage pool) at any time,


and also you can define duration for the migration to end. For the sequential
storage pools, it is also possible to start reclamation before migration. (We will
see this in the next demonstration.)

The command syntax for the new command is:
MIGRATE STGPOOL poolname DURATION=minutes RECLAIM=(no,yes)
LOWMIG=number WAIT=(no,yes)

From ISC:
2. Select Tivoli Storage Manager server and click Use Command Line and Go.
3. Enter MIGRATE STGPOOL BACKUPPOOL DURATION=40.

You can monitor the status by using Q PROC.

4.2.2 Reclamation of storage pool
With the previous releases, as in migration, it was also difficult to set the correct
time for reclamation. Reclamation needs at least two drives when using tape and
one drive and one sequential disk pool when using RECLAIM STGPOOL. Automatic
reclamation may cause problems if there are not enough drives in the
environment.

So we were setting the reclamation threshold high and low continuously to start
or stop reclamation.

With V5.3, there is a new reclamation command. You can now start reclamation
whenever you want, and you can stop after certain duration. Also you can specify
a reclamation threshold other than a storage pool reclaim threshold.

Note: Reclamation works on the storage pool base. So if you have a lot of
tapes that need to be reclaimed, you had better use MOVE instead of RECLAIM.
The MOVE command does the same operation on a volume base.

RECLAIM STGPOOL poolname DURATION=minutes THRESHOLD=number
WAIT=(no,yes)

Example: Let us reclaim storage pool WINDOWSTAPEPOOL for 1 hour with
threshold 80.
RECLAIM STGPOOL WINDOWSTAPEPOOL DURATION=60 THRESHOLD=80


4.2.3 Database reorganization
During daily backup, restore, and admin work, all actions have updates, inserts,
or deletes of records in the Tivoli Storage Manager database. After a certain
time, the database may become fragmented, and you should reorganize the
database to recover the unused portion of the database.

Before V5.3, you can check whether DB needs to be reorganized by checking
DB size, max reduction.

Example: Q DB F=D will create such an output.
Available space (MB):12
Assigned Capacity(MB):12
Maximum Extension(MB):0
Maximum Reduction(MB):8
Pct Util: 5.8

The above example shows that maximum reduction is 8 MB and the remaining
will be 4 MB. So this database does not need to be reorganized.
Pct Util: 10

The above example shows that maximum reduction is 70 MB, while actually 10
MB is used. In this case, 20 MB of space is fragmented. This database needs to
be reorganized.

With V5.3, there is no need to do such calculations. There is a new command
which calculates and shows whether reorganization is needed and the amount of
space that will be recovered. Also, the Q DB command has been changed such
that its output reports the last estimated time and estimated recoverable space.
The new command to use is ESTIMATE DBREORGSTATS.

ESTIMATE DBREORGSTATS Wait=(No,Yes)

The command output is as follows:
ANR1784I A database reorganization would reduce the database utilization by
an estimated 70 MB.
Q DB F=D


The output is now as follows:
Pct Util : 10
Estimate of Recoverable Space (MB): 70Mb
Last Estimate of Recoverable Space (MB): 03/31/2005 13:30:22

Hint: This command may degrade the performance of Tivoli Storage Manager
and run for several hours. So you should plan to run the commands at an
appropriate time.

4.2.4 File Device Class to different directories
Before Tivoli Storage Manager V5.3, you can define file device class which
emulates the tape features on a specified operating system directory. If the
environment has different disk storages that are mounted on different directories,
then you have to define several file classes to access different directories.

With Tivoli Storage Manager V5.3, you can now define several directories within
the same file device class:

DEFINE DEVCLASS deviceclassname DEVTYPE=FILE MOUNTLIMIT=number
MAXCAPACITY=number DIRECTORY=directory1,directory2,directory3

From ISC:
1. Select Storage Device.
2. Select Tivoli Storage Manager server, click View Device Classes and Go.
3. Select Action, Create Device Class and Go.
4. Select File Device Class and click Next (Figure 4-33).


Figure 4-33 Selecting the device class

5. Define device class name and directories separated by a comma
(Figure 4-34).

Figure 4-34 Creating a new device class


4.2.5 Activity log management
With the previous releases, the size of the activity log can only be controlled by
activity log retention period, which is in days.

With Tivoli Storage Manager V5.3, now it is possible to control the size by the
size of the activity log. To set the size, the command has been changed as
follows.
SET ACTLOGRETENTION nn MGMTSTYLE=(Date,Size)

The default is Date as before. When the management style is Date, nn is number
of days. When the management style is Size, then nn is number of MB.

Example: To set the activitylog retention to 300 MB:
SET ACTLOGRET 300 MGMTSTYLE=SIZE

4.2.6 Creating copypool
Copy of the cartridge or disk can be created by using two methods. The first
method is to update the Copy Storage Pool parameter of the storage pool. The
second method is to run the backup stgpool command for the storage pool.

If the first method is used, then during backup to storage pool, data is written to
primary and copy pool at the same time. And depending on the parameter,
Continue Copy on Error, backup may fail or continue without copy. The
disadvantage of the method is that you need two drives at the same time, and
since data is written to two pools at the same time, performance is a bit affected.
As an advantage, the copy of data is immediately available after backup.

If the second method is used, then you can make a copy of the storage pool
whenever you want. The copy is created when the command is entered. As a
disadvantage, your data is in a critical situation (without copy) between backup
time and the time that you enter the copy command.

For the first method, you have to change the storage pool parameter as follows:
UPDATE STGPOOL poolname COPYSTGPOOLS=copypool1,copypool2,copypool3
COPYCONTINUE=(Yes,No)

If you want the entire transaction to fail, then select copycontinue=no.

From ISC:
2. Select Tivoli Storage Manager server, click View Storage Pools and Go.


3. Select the storage pool you want to copy and click Modify Storage Pool and
Go.
4. Click Advanced Options.
5. Fill in the Copy Storage Pool parameter and click Apply (Figure 4-35).

Figure 4-35 BACKUPPOOL properties advanced options

For the second method, you enter the backup command with syntax as follows:
BACKUP STGPOOL primarypoolname copypoolname
PREVIEW=(Yes,No,Volumesonly)

Note: It is a good practice to run the preview=yes option first in order to see
how many bytes will be copied.

From ISC:
2. Select Tivoli Storage Manager server, click View Storage Pools and Go.
3. Select the storage pool you want to copy and click Backup Storage Pool and
Go.
4. Select copypool and click OK.
a. Optionally, you can click Preview Backup (Figure 4-36).


Figure 4-36 Creating copypool

4.2.7 Creating policy domain
In order for the client to back up its data, it should be defined in a Policy Domain.
How Tivoli Storage Manager will react to the data of the client is defined by using
Policy Domain attributes such as:
Which storage pool to which that data will be first saved
How long will it be retained
How many versions Tivoli Storage Manager will keep
What will be the HSM settings

Before starting to create the policy domain, you have to know which servers will
back up and what policies are currently being used for different types of data.

To create the Policy Domain:
1. Select Policy Domains and Client Nodes.
2. Select the Tivoli Storage Manager server, click View Policy Domains and
Go.
3. Click Create the Policy Domain and Go.
4. First enter the name of the policy domain and click Next.


5. Select storage pool for backup and archive data.
6. If you already defined clients, you can select Yes and click Next.
7. Since there are no clients defined, select No and click Next.
8. You will see the summary data for the Policy Domain; click Finish.
9. The domain is now being created. It is now time to add management class.
10.Select the policy you have just created and click Modify Policy Domain and
Go.
11.You can change:
– Domain Properties
– Client Nodes
– Option Sets
– Client Node Schedules
– Management Classes
12.Let us start to add the management class; select Management Class.
13.A standard management class is automatically created when you create a
Policy Domain. The standard management class attributes are as follows:
– Backup data are stored to the storage pool that you defined in step 5.
– Modified is selected.
– SHAREDSTATIC is selected.
– Each time, backup can be taken.
– Two versions are kept and stored for 30 days.
– One version of each deleted file is kept and stored for 60 days.
– Archive data is stored to the storage pool that you defined in step 5.
– Archive data is kept for 365 days.
14.You can change or add new management classes.
15.Click Cancel on Standard Management class and click Create Management
Class and Go.
16.Enter the Management Class name and definition and click Next.
17.Enter Backup settings and archive settings and click Finish.
18.You don’t have to enter all the settings.
19.If you want to make your management class be the default, then select the
management class and click Make Management Class Default and Go.
20.To add the client Node, click Client Nodes
21.Click Create a client node and Go.
22.Enter the client name, Web address, and optionally Option Set or Schedule
and click Next.


23.Enter password and password expiration policy and click Next.
24.Click Finish.
25.You will see (?) at the platform column. Ignore this at the moment, because it
will be filled in when the client first connects to Tivoli Storage Manager server.

You can make changes on the active policy in order not to jeopardize the status
of client data immediately.

4.2.8 Tivoli Storage Manager client remote access
Sometimes you may need to access the client from remote location in order to do
backup/restore without involving local server personnel. The server may be at a
remote location where you cannot access the system easily, or local IT
personnel may not be well skilled to do backup/restore.

Tivoli Storage Manager offers remote access to Client code via LAN and the
Backup/Archive Web client can be used. In order to use this facility, you do not
need to install any extra code. All you need to do is to configure the Client side.
The following demonstration shows how to configure all of the necessary things
to do.
1. For Tivoli Storage Manager BA Client running on Windows, you need two
services on the Windows operating system: Tivoli Storage Manager Client
Acceptor and Tivoli Storage Manager Remote Client Agent.
2. First check whether these services were defined:
a. If yes, be sure that the Tivoli Storage Manager Client Acceptor service has
been started. (The Remote Client Agent will be started automatically by
the Tivoli Storage Manager Client Acceptor service when you initiate the
Web client.)
b. If no, or if you are not sure of the name of the service, follow the next step.
3. You can install, modify, or remove the necessary services by using the Tivoli
Storage Manager Backup-Archive GUI.
4. Start the Backup-Archive GUI:
a. From the command line, run c:program filestivolitsmbaclientdsm.exe.
b. Start the GUI from Start → All Programs → Tivoli Storage Manager →
Backup-Archive GUI.
5. When the GUI is up, select Utilities → Setup Wizard → Help me Configure
the Web Client (Figure 4-37).


Figure 4-37 Client configuration options

6. Click Next. You will see three options:
a. Install a new Web Client agent — skip to step 9.
b. Update a previously installed Web Client Agent — continue.
c. Remove a previously installed Web Client Agent — skip to step 8.
7. If the service has already been installed, but you don’t know the name of the
services:
You can remove the service or select Update to get the name of the services.
Simply click Next and on the next panel, you can find the name of the service.
Then you can continue from step 2.
8. To remove the service:
a. Select Remove and click Next.
b. Select previously installed service and click Next.
c. Click Finish to remove both Client Acceptor and remote client agent
services.


9. To install the service, select Install and click Next.
10.Type the name of the client acceptor service (the default is Tivoli Storage
Manager Client Acceptor).
11.Type the Tivoli Storage Manager BA Client option file path name. Or click
Browse and find the dsm.opt file that you would like to use. (The default is
c:program filestivolitsmbaclientdsm.opt).
12.Type the port number for communication. It should not be used by any other
service. (The default is 1581).
13.Type your node name and password.
14.Select the way you want your service to start. For demonstration, select
Automatically when Windows boots.
15.Type the name for the remote client agent. (The default is Tivoli Storage
Manager Remote Client Agent).
16.Select No.
17.Select Yes.
18.Click Finish.
19.You should see the following message: Web Client successfully installed.
20.If you checked the services, My computer → right-click → Manage →
Services and Applications → Services, you should see two services with
one of them running, as shown in Figure 4-38.

Figure 4-38 Services shows Tivoli Storage Manager components

21.Up to now, we have installed the services and our client is ready to be
accessed remotely. We can now access it in two ways:
a. Directly from the browser — skip 29.
b. By using ISC — continue.
c. Logon to ISC:
http://isc-ip-address:8421/ibm/defaultconsole/!ut/p/.scr/Login
d. Select Tivoli Storage Manager.
e. Select Policy Domains and Client Nodes.
f. Click the Server name
g. Click the Domain (the default is Standard) to expand the tree.


22.Figure 4-39 illustrates how to select a client you want to access remotely.
23.Then select Launch Backup-Archive Client... from the Select Action bar
and click Go.

Figure 4-39 Client nodes

24.Then you will be able to access the client remotely using the Web as seen in
Figure 4-40.

Figure 4-40 Client remote access


4.2.9 Usage report
From ISC, you can run a report to show the number of stored files and amount of
storage space occupied by the client nodes.

To get such a report, follow these steps:
1. Logon to ISC console.
2. Select Reporting.
3. Click Usage Report.
4. Select the Tivoli Storage Manager server from which you would like to run
your report. Click Run report (Figure 4-41).

Figure 4-41 Usage report for TSM Server

5. As shown above in Figure 4-41, on the client basis, you can see the number
of files, backup/archive, and amount of space occupied in Tivoli Storage
Manager server. You can sort, filter on any column.


6. The same kind of report can also be taken by using the Q OCCUPANCY
command (Figure 4-42).

Figure 4-42 Detailed usage report for TSM Server


4.2.10 Daily report
From the Management Console, you can run several different reports to see the
activity of Tivoli Storage Manager server on an hourly or daily basis.

To get a daily report (Figure 4-43), follow these steps:
1. Start management console: Start → All Programs → Tivoli Storage
Manager → Management console.
2. Click the plus sign to the left of Tivoli Storage Manager.
3. Click the plus sign to the left of your Tivoli Storage Manager server.
4. Click the plus sign to the left of Server1.
5. Click the plus sign to the left of Reports.
6. Click the plus sign to the left of Operational Reports.

Figure 4-43 Daily report

7. Right-mouse click Operational Reports and select New.
8. Fill in the name of the report and click OK.
9. You will see all of the possible reports you may need (Figure 4-44).


Figure 4-44 Properties panel

10.Check the lines which you would like to see on the report.
11.Click OK.
12.You can run the report created by selecting it and choosing Refresh using
current time.
13.This may take a few minutes.

4.2.11 Summary
In this chapter we have showed Client, Server, and some Administration Center
demonstration scenarios. You may enhance these demonstration steps
according to your customer’s areas of interest.


A

Appendix A. Additional information
This appendix provides some useful additional information about products,
usage, and functions.


A.1 Browser access to Tivoli Storage Manager V5.3
In response to customer transition needs, Tivoli Storage Manager Version 5.2
administrative Web interface can be used for a limited time to support customer
migration activities to Tivoli Storage Manager Version 5.3.

Rules of use:
1. Customers may run concurrent instances of the Version 5.2 administrative
Web interface and the Version 5.3 interfaces.
2. During the transition period, use of the Version 5.2 administrative Web
interface for migration activities will be considered a supported environment;
however, no functional enhancements will be made to the Version 5.2
interface, and any reported problems that require a code change to the
Version 5.2 interface will not be corrected. Defects found in the base Tivoli
Storage Manager server will be corrected.
3. The Version 5.2 interface does not support the new functions in the Version
5.3 interface. To take advantage of the new functions in the interface,
customers must use the Version 5.3 interface.
4. The Version 5.2 interface will be available for migration purposes through
March, 2006.

Installation instructions
Here are the installation instructions to follow:
1. Download the necessary files. See the proper platform below. There are two
sets of files: one set of gzipped tar files for UNIX or Linux systems, and a set
of zip files for Windows. The contents of the two sets of files are identical. Use
the one that is most convenient.
2. Extract the contents of each archive into the appropriate directory, as
specified below. The IDL and class files can be extracted into the server bin
directory (the directory containing the dsmserv or dsmserv.exe executable).
The image and help files should be extracted into the following directories,
based on platform (in the following, SRVBIN = server bin directory):
Platform: AIX
Images: /usr/tivoli/tsm/server/webimages/
Help: /usr/lib/nls/msg/en_US/
Platform: HP-UX
Images: SRVBIN/webimages/
Help: SRVBIN/webhelp/AMENG/


Platform: Linux
Images: SRVBIN/../webimages/
Help: SRVBIN/../webhelp/en_US
Platform: Windows
Images: SRVBINwebimage
Help: SRVBINwebhelp
Platform: Sun
Images: SRVBIN/../webimages/
Help: SRVBIN/../webhelp/en_US
3. Load the IDL for your platform into the server by executing the following
command:
dsmserv runfile platform.idl
Where platform is one of 'aix', 'hp', 'linux', 'sun', or 'windows'.

To load the IDL on an AIX operating system, issue the following command:
dsmserv runfile aix.idl

Note: Do not attempt to load the IDL file without first extracting the image and
help files. Doing so will result in errors, and the load will fail without
accomplishing anything.

A.2 Sample worksheets
In this section we provide the sample worksheets you might need before you
start the negotiations with your customer for PoC.

Appendix A. Additional information 119

Table 4-1 Client requirements worksheet

Category Client 1 Client 2 Client 3

Client name

Contact information

Operating system

Total storage available (GB)

Total storage used (GB)

GB changed per backed up

Number of files backed up

Data compression

Backup window times

Backup number of hours

Required recovery times

Required recovery time

ITSM recovery time

GB copied per archive

Number of files archived

Number of archives kept

Archive frequency

Archive windows times

Archive number of hours

Number of image backup

Image backup frequency

Number of backup sets

Backup set frequency

Policy domain

Client option set


Table 4-2 Storage policy requirements worksheet

Category Example 1 Example 2 Example 3

Group name

Number of backup versions

Backup file retention period

Number of deleted versions

Last deleted file version retention
period

Archive retention period

Offsite copies

Onsite collocation

Offsite collocation

Image backup retention

Backupset retention

Appendix A. Additional information 121

B

Appendix B. Additional material
This redbook refers to additional material that can be downloaded from the
Internet as described below.

Locating the Web material
The Web material associated with this redbook is available in softcopy on the
Internet from the IBM Redbooks Web server. Point your Web browser to:
ftp://www.redbooks.ibm.com/redbooks/SG246762

Alternatively, you can go to the IBM Redbooks Web site at:
ibm.com/redbooks

Select the Additional materials and open the directory that corresponds with
the redbook form number, SG246762.

Using the Web material
The additional Web material that accompanies this redbook includes the
following files:
File name Description
Addmat6762.zip Zipped worksheet samples


System requirements for downloading the Web material
The following system configuration is recommended:
Hard disk space: 50 KB minimum
Operating System: Windows OS
Processor: No prerequisites
Memory: No prerequisites

How to use the Web material
Create a subdirectory (folder) on your workstation, and unzip the contents of the
Web material zip file into this folder.


Related publications

The publications listed in this section are considered particularly suitable for a
more detailed discussion of the topics covered in this redbook.

IBM Redbooks
For information on ordering these publications, see “How to get IBM Redbooks”
on page 126. Note that some of the documents referenced here may be available
in softcopy only.
IBM Tivoli Storage Management Concepts, SG24-4877-03
IBM Tivoli Storage Manager Implementation Guide, SG24-5416-02
IBM Tivoli Storage Manager 5.3 Technical Guide, SG24-6638-00

Other publications
These publications are also relevant as further information sources:
IBM Tivoli Storage Manager for AIX Installation Guide Version 5.3,
GC32-1597-00
IBM Tivoli Storage Manager for AIX Administrator's Guide Version 5.3,
GC32-0768-03
IBM Tivoli Storage Manager for Windows Installation Guide Version 5.3,
GC32-1602-00
IBM Tivoli Storage Manager for Windows Administrator's Guide Version 5.3,
GC32-0782-03
IBM Tivoli Storage Manager for UNIX Backup-Archive Clients Installation and
User’s Guide V5.2, GC32-0789
IBM Tivoli Storage Manager for UNIX and Linux
Backup-Archive Clients Installation and User's Guide Version 5.3,
GC32-0789-05
IBM Tivoli Storage Manager for Windows Backup-Archive Clients Installation
and User's Guide Version 5.3, GC32-0788-05


Online resources
These Web sites and URLs are also relevant as further information sources:
IBM Tivoli Storage Manager:
http://www-3.ibm.com/software/tivoli/products/storage-mgr/
IBM Tivoli Storage Manager Extended Edition:
http://www-306.ibm.com/software/tivoli/products/storage-mgr-extended/
IBM Tivoli Storage Manager information center
http://publib.boulder.ibm.com/infocenter/tivihelp/index.jsp?topic=/com.ibm.
itspmgr.doc/ansh0000.htm

How to get IBM Redbooks
You can search for, view, or download Redbooks, Redpapers, Hints and Tips,
draft publications and additional materials, as well as order hardcopy Redbooks
or CD-ROMs, at this Web site:
ibm.com/redbooks

Help from IBM
IBM Support and downloads
ibm.com/support

IBM Global Services
ibm.com/services

These publications are also relevant as further information sources:


Index
calculation 21
A considerations 20
activity log 104
relational 4–5
adding
reorganization 101
database volume 71
TSM database sizes 21
TSM Server 67
volume 39, 71
administration center 4, 59, 65, 67
demonstration scenarios 73
archive 2, 91
design considerations 19
adding files 92
device class 102
disaster recovery 2
B disaster recovery manager 6
backup 2 disk storage pool volume 39
incremental backup 76 dsm.opt file 49
manual backup 82
schedule backup 94
selective backup 78
F
firewall 4
backup/archive client 5
browser access
web access 118 H
health monitor 69
hierarchical storage management 3, 8
C HTTP port 5
checklist 23
client demo scenarios 74
client schedule 51 I
command IBM Tivoli Storage Manager
REGISTER LICENSE 44 application servers 10
communications option 12 components 26
configuration Databases 10
administration center 67 ERP 11
IBM Tivoli Storage Manager client 48 Extended Edition 6
IBM Tivoli Storage Manager client for AIX 58 Hardware 10
IBM Tivoli Storage Manager server 35 Mail 10
IBMTivoli Storage Manager client schedule 51 space management 3
initial configuration 35, 37 System Backup and Recovery 9
standard configuration 36 inactive copy 81
wizards 37 incremental backup 76
copy storage pool 104 initial configuration 35, 37
custom installation 30, 47 installation
administration center 65
custom 47
D custom installation 30
daily report 114
IBM Tivoli Storage Manager 25
data protection 10
IBM Tivoli Storage Manager client for AIX 56
database 3, 101


IBM Tivoli Storage Manager server 27 remote access 108
IBM Tivoli Storage Manager server for AIX 53 report 112, 114
Tivoli Storage Manager client for Windows 44 restore 2, 83, 85, 87–88
Tivoli Storage Manager device driver 34 another location 85
Tivoli Storage Manager language packs 33 inactive version 87
typical 47 original location 83
web access 118 point in time 88
installing using command line 90
IBM Tivoli Storage Manager license package retrieve 92
32 roll-forward 5
ISC 59
ITSM architecture 3
S
scenarios 73
L client demo scenarios 74
LAN-free backup 6 server scenarios 99
language option 27 schedule backup 94
licensing 43 selective backup 78
server scenarios 99
shared memory 12
M SQL
manual backup 82
SELECT 5
migration of storage pool 99
standard configuration 36
starting ISC console 64
N storage agent 6
NAS 7 storage pool 22
NDMP 7 copy storage pool 104
Network Attached Storage 7 migration of storage pool 99
Network Data Management Protocol 7 reclamation of storage pool 100
storage pools 4
storage repository 5
O
ODBC 5 sysback 9
online resources 126
T
TCP/IP
P
planning 23 port 4
point in time restore 88 tcpport 4
policies 21 transaction log 4
policy domain 106 two-phase commit 4
typical installation 47

R
reclamation of storage pool 100 U
recovery log volume 39 usage report 112
Redbooks Web site
Contact us xi W
redbooks Web site 126 Web interface access 118
REGISTER LICENSE 43 webports 5
relational database 5 wizards 37


Proof of Concept Guide for IBM Tivoli Storage Manager Version 5.3
(0.2”spine)
0.17”<->0.473”
90<->249 pages
