Rest Ruby On Rails

REST & R uby o n R ails 伍少坤 [email_address]

关于 Kude Labs 博客 http://kudelabs.com 专注于 Web Applications Schedule.ph PRDGuide.com FriendsMap.net Web Wednesday 活动 http://kudelabs.com/category/web-wednesday-guangzhou

我将要分享的…… REST—— 标准、架构或者理念？ Resource CRUD HTTP Verb Ruby on Rails RESTful Login & Search? Twitter & Facebook API Tips Q & A

REST Re presentational S tate T ransfer Client-server Stateless 无状态 Cacheable 可缓存 Layered system 负载均衡、共享内存 Code on Demand* 临时扩展客户端功能 Uniform interface 简化、去耦

一种抽象的概念、架构蓝图 Just an Architecture, Not a Standard or Protocol 描述基于互联网的分布式系统 Describe Internet Based Remote System

R emote P rocedure C alls 一种分布式函数调用接口 SOAP <?xml version=“1.0” encoding=“UTF-8”?> <soap:Envelope xmlns:soap=“http://schemas.xmlsoap.org/soap/envelope/”> <soap:Body> <gs:doGoogleSearch xmlns:gs=“urn:GoogleSearch”> <q>REST</q> </gs:doGoogleSearch> </soap:Body> </soap:Envelope> Facebook API 、 Flickr API 、淘宝 API http://api.flickr.com/services/rest/?method= flickr.photos.search http://gw.api.tbsandbox.com/router/rest?method= taobao.taobaoke.items.get

REST vs RPC RPC 允许定义任意的程序接口 getUsers() getNewUsersSince(date) savePurchaseOrder() … 大多数通过 POST 进行通讯忽略 HTTP 现有功能 Authentication Caching Content type SOAP 一种基于 HTTP 的通讯协议 REST 接口局限于现有的、标准的 HTTP 操作 GET POST PUT DELETE 一种架构，而非协议充分利用 HTTP 协议交互的核心是 Stateful Resources ，而非 Messages 或者 Operations

Resource Resouce 并不是数据而是数据 + 特定的表现形式 (representation) 所有事物都可以被抽象为 Resource 每个 Resource 对应一个唯一的 URL 通过 generic connector interface (HTTP) 进行操作对 Resource 的操作不会改变 URL 所有的操作都是 Stateless

CRUD & HTTP Verb 对于 Resource 的操作 C reate 、 R ead 、 U pdate 和 D elete HTTP Verb curl -X GET http://example.com/projects curl -X DELETE http://example.com/projects/1 SQL CRUD HTTP DELETE DELETE DELETE UPDATE UPDATE PUT SELECT READ GET INSERT CREATE POST

Ruby on Rails 基于动态编程语言 Ruby MVC 架构 M odel- V iew- C ontroller 专注于 Web Application 的开发框架从 v1.2.x 起支持 REST 架构 v3 beta 可能在 1 月底发布！

REST Ruby on Rails 7 个 Controller 的 Action ： Index Show New Edit Create Update Destroy 4 个 HTTP Verb ： GET POST PUT DELETE

POST /projects/create create /projects POST POST /projects/update/1 update /projects/1 PUT GET /projects/destroy/1 destroy /projects/1 DELETE GET /projects/show/1 show /projects/1 GET URL without REST Action URL with REST HTTP Verb

class UsersController < ApplicationController # GET /users/1 def show() end # POST /users def create() end # PUT /users/1 def update() end # DELETE /users/1 def destroy() end end

class UsersController < ApplicationController # GET /users/new def new ; end # GET /users/1/edit def edit ; end # GET /users def index ; end # GET /users/1 def show ; end # POST /users def create ; end # PUT /users/1 def update ; end # DELETE /users/1 def destroy ; end end

数据表结构 User 拥有很多 Groups Group 拥有很多 Users Users UsersGroups Groups 1 N N 1

class Group < ActiveRecord::Base has_many :users_groups has_many :users , :through => :users_groups end class User < ActiveRecord::Base has_many :users_groups has_many :groups , :through => :users_groups end class UsersGroups < ActiveRecord::Base belongs_to :groups belongs_to :users end

用例 Use Case User join Group User leave Group

UsersController join_group() # POST /users/1/join_group?group_id=2 leave_group() # POST /users/1/leave_group?group_id=2 GroupsController add_user() # POST /groups/1/add_user?user_id=2 remove_user() # POST /groups/1/remove_user?user_id=2 

User + Group = UserGroup Membership

class Group < ActiveRecord::Base has_many :memberships has_many :users, :through => :memberships end class User < ActiveRecord::Base has_many :memberships has_many :groups, :through => :memberships end class Membership < ActiveRecord::Base belongs_to :groups belongs_to :users end

MembershipsController create() # INSERT INTO "memberships" ("group_id", "user_id") VALUES(2, 1) # POST /memberships?user_id=1&group_id=2 destroy() # DELETE FROM "memberships" WHERE "id" = 1 # DELETE /memberships/3 

mine types class UsersController < ApplicationController # GET /users # GET /users.xml def index @users = User.all respond_to do |format| format.html # index.html.erb format.js { render :json => @users } format.xml { render :xml => @users } fomrat.atom do render :action => “atom”, :content_type => Mine::ATOM end end end end

GET /users => HTML GET /users.xml => XML Accept: text/javascript GET /users => json Accept: text/html GET /users.xml => XML

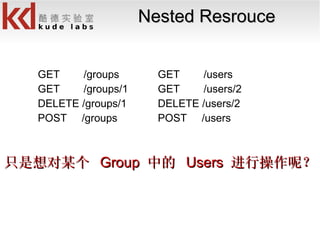

Nested Resrouce GET /groups GET /groups/1 DELETE /groups/1 POST /groups GET /users GET /users/2 DELETE /users/2 POST /users 只是想对某个 Group 中的 Users 进行操作呢？

map.resources :groups do |groups| groups.resources :users end GET /groups/1/users GET /groups/1/users/2 DELETE /groups/1/users/2 POST /groups/1/users

REST 世界中的 Ajax 客户端

通过 HTTP 来获取网络资源传输异步数据简单性可伸缩的架构遵循 REST 架构“无状态服务器”的约束：服务器不关心客户端的状态客户端管理自己状态

你如何实现 Login ？ POST /login?user=shaokun&password=*** POST /signin?user=shaokun&password=*** https://reg.163.com/logins.jsp http://ptlogin2.qq.com/login

Login 的 Resource 是什么？ Login 的 HTTP Verb 是什么？ Login 的 Controller Action 是什么？

class SessionsController < ApplicationController # GET /sessions def new end # POST /sessions def create end # DELETE /sessions # logout  def destroy end end

RESTful Search? http://www.google.com/search?q=rest http://www.baidu.com/s?wd=rest

class SearchController < ApplicationController # GET /search def new end # POST /search def create end end

“ 天才”般简单地颠覆了 Google 和 Baidu ？但是…… 构造了一个更复杂的操作无法简单的返回缓存结果无法复制搜索结果的 URL REST 错了吗？我们错了吗？

http://www.google.com/search?q=REST HTTP Verb 是 GET scope 是 “ /search?q=REST” http://www.google.com/search?q=ruby scope 是 “ /search?q=ruby” http://www.google.com/ scope 是 “ /”

Twitter API 基于 Ruby on Rails 比较遵循 REST 架构支持多用响应格式，例如 xml ， json ， rss ， atom 等简单学、简单用

浏览器中 http://twitter.com/statuses/user_timeline/kudelabs.xml 命令行中 curl -X GET http://twitter.com/statuses/public_timeline curl –X GET http://twitter.com/statuses/user_timeline/kudelabs.xml curl 更新 Kude Labs 的 Twitter

<statuses type="array"> <status> <created_at>Wed Feb 25 07:45:57 +0000 2009</created_at> <id>1248444034</id> <text>What to eat tonight?</text> <source>web</source> <truncated>false</truncated> <in_reply_to_status_id/> <in_reply_to_user_id/> <favorited>false</favorited> <in_reply_to_screen_name/> </status> </statuses>

http://twitter.com/statuses/destroy/statusid.format DELETE/ POST 删除一个 Status http://twitter.com/statuses/update.format POST 创建一个新的 Status http://twitter.com/statues/show/statusid.format GET 获取特定用户的某一个 Status http://twitter.com/statues/user_timeline/userid.format GET 获取特定用户的 Statuses http://twitter.com/statuses/public_timeline GET 获取所有用户的 Statuses URL HTTP Verb 操作

GET /users/kudelabs/statuses.xml GET /statuses/user_timeline/kudelabs.xml

完全的 RESTful Twitter API /users/{user_id}/statuses/{status_id}.format PUT 更新一个 Status /users/{user_id}/statuses/{status_id}.format DELETE 删除一个 Status /users/{user_id}/statuses.format POST 创建一个新的 Status /users/{user_id}/statues/{status_id}.format GET 获取特定用户的某一个 Status /users/{user_id}/statuses.format GET 获取特定用户的 Statuses /statuses.format GET 获取所有用户的 Statuses URL HTTP Verb 操作

Facebook API Facebook 是怎么描述它的 API 的： The API uses a REST-like interface. This means that our Facebook method calls are made over the internet by sending HTTP GET or POST requests to the Facebook API REST server (http://api.facebook.com/restserver.php). Nearly any computer language can be used to communicate over HTTP with the REST server.

RESTful API? Users.getInfo Parameters: Required api_key, call_id, sig, v, uids, fields Optional session_key, format, callback Error Codes: 1, 2, 5, 100, 101, 102, 103, 104, 601

只是一种 RPC API 唯一的入口 http://api.facebook.com/restserver.php 严重依赖于 POST 调用方法隐藏于参数中，例如 Users.getInfo 自定义的、非 HTTP 的响应码支持多种响应

对新技术趋之若鹜我创建的、愚蠢的 Resource: Ownership Membership Nomination Authorization

User A 创建 Bookmark A # POST /bookmarks User X 评论 Bookmark A # POST /bookmarks/1/comments User A 将某一个评论标为 Spam # PUT /bookmarks/1/comments/2/mark_spam

mark_spam 并不是一个标准的 Action 并不遵循 REST 架构

I am creating a SPAM resource! POST /bookmarks/1/comments/2/spam 

Your genius API for your team GET /users/1/bookmarks/2/comments GET /users/1/bookmarks/2/comments/3 POST /users/1/bookmarks/2/comments POST /users/1/bookmarks/2/comments/3/spams   

POST /users/1/bookmarks/2/comments/3/spams POST /comments/3/mark_spam   

是否容易被团队成员接受？ Accept by your team 是否存在于团队常用用例中的词汇？ Common vocabulary 是否有助于将其开放为 API ？ Help expose as a API 是否为开发人员建立更简单的、可遵循的规则？ Simple rules, could be followed by your team 与现存的、有用的插件是否兼容？ Work with the existing great plugin

POST /restserver.php?method=Users.getInfo& format=xml& id=398382 GET /users/398382.xml

http://media.rubyonrails.org/presentations/worldofresources.pdf

O’REILLY 出版的 RESTful Web Services

git clone http://github.com/shaokun/rest
