The document provides an overview of SAP's recommended architecture design when using SAP Landscape Management (LAMA) in Microsoft Azure, emphasizing the advantages of SAP adaptive design such as reduced downtime and operational costs. It discusses the need for best practices regarding hostname requirements, service relocation, and the limitations of using certain DNS configurations. Additionally, it highlights the importance of automation and flexibility in the architecture for future-proofing against disasters and facilitating service migrations.
SAP Adaptive Computing Design
- 1. SAP Adaptive Computing Design in Microsoft Azure
- 2. • Following on from our previous SAP LaMa Cloud Management presentations, this slide deck provides a quick overview of the SAP recommended approach to SAP architecture design when operating your SAP landscape with SAP LaMa (Landscape Management), previously SAP LVM Landscape Virtualization Management). • We discuss the idea of SAP Adaptive Design in Microsoft Azure. • We highlight the potential problems this could cause with your architecturedesign and possible mitigation. Introduction
- 3. Overview -‐ SAP Adaptive Design • A logical layer of separation between the SAP application and the server (host) on which the SAPapplication is deployed. • Allows redeployment of SAP applications (services) onto different servers with reduced downtime and cost. • Inherently more complex in design, but offers reduced operational costs. • Can be used on-‐premises and in the cloud and is beneficial when using SAP LaMa. • Automation is at the core of SAP LaMa and a cohesive architecturethat is flexible will deepenthe level of automation.
- 4. Potential Drivers • Length of hostname must be <=13 characters (SAP note 611361). • Reverse lookup must resolve back to same hostname (SAP note 129997). • Reverse lookup response must contain required hostname on first entry of response (if using multiple PTR records – not recommended) (SAP note 129997). • Domain of server hostname should satisfy cookie domain separation across SAP Portals and across environments(DEV, TST, PRD). • Re-‐provisioning of SAP services onto different servers should be pain-‐ free (a.k.a use SAP Adaptive Computing) (SAP note 962955). • You have a desire to use SAP LaMa (see our other presentations).
- 5. Best Practice for LaMa • SAP Adaptive Design is highly recommended by SAP for use with SAP LaMa. https://blogs.sap.com/2016/10/21/sap-‐landscape-‐ management-‐faq-‐lvmlama/ https://archive.sap.com/documents/docs/DOC-‐63513
- 6. Example – Service Relocation • With SAP Adaptive Design in place and using SAP LaMa (plus SAP LaMa Cloud Connector for Azure) to orchestrate your SAP systems in Microsoft Azure, it’s possible to relocate a SAP service from one host to another. • Service hostname (vhostname)does not change. • Minimal impact to users. • Fluid landscape. • Possible benefitduringDR. • Possible benefitduringmaintenance. Server “srv3.example” Server “srv1.example” vhostname: sapascs1.example SAP Central Services (active) vhostname: sapapas.example SAP Primary App Server
- 7. Example – SAP Portal Cookies • Known limitations with MYSAPSSO cookies mean it’s difficult to adequatelysegregateSAPPortals in an SSO enabled landscape. • SAP Adaptive Design enables different vhostname domains, separate from the host (server) domain, which minimises cookie overwrite or other such issues with MYSAPSSO. Server “srv1.ad.example” vhostname: sapascs1.dev.example SAP Central Services (active)
- 8. Other Options • Apart from SAP Adaptive Design, you could implement other methods that might give the same level of flexibility as SAP Adaptive Design but be careful, they may not be recommended by SAP.
- 9. DNS Aliases • Not recommended by SAP, using CNAME records in DNS with 1 IP address for server & service. NOTE: Internally SAP uses lookups, even on same server. Server “srv4.example” vhostname: sapaas1.example SAP Additional App Server DNS Name Type Value srv1 A 10.0.0.1 srv3 A 10.0.0.3 srv4 A 10.0.0.4 10.0.0.1 PTR srv1 10.0.0.3 PTR 10.0.0.4 PTR sapaas1 srv3 10.0.0.4 PTR srv4 sapascs1 sapapas sapaas1 CNAME CNAME CNAME srv1 srv3 srv4Request Forward Lookup Reverse Lookup Hostname to IP. IP to hostname.
- 10. DNS Aliases – PTR Records • Not recommended by SAP, multiple PTR records for reverse lookup. • SAP service name must be 1st in response (cannot guarantee). Forward Lookup Reverse Lookup Hostname to IP. IP to hostname. Server “srv4.example” vhostname: sapaas1.example SAP Additional App Server DNS Name Type Value srv1 A 10.0.0.1 srv3 A 10.0.0.3 srv4 A 10.0.0.4 10.0.0.1 PTR srv1 10.0.0.3 PTR 10.0.0.4 PTR sapaas1 srv3 10.0.0.4 PTR srv4 sapascs1 sapapas sapaas1 CNAME CNAME CNAME srv1 srv3 srv4
- 11. Multiple IP Addresses • Recommended by SAP, each service name (vhostname) has a unique IP address. • Better lookupperformance. Forward Lookup Reverse Lookup Hostname to IP. IP to hostname. Server “srv4.example” vhostname: sapaas1.example SAP Additional App Server DNS Name Type Value srv1 A 10.0.0.1 srv3 A 10.0.0.3 srv4 A 10.0.0.4 10.0.0.1 PTR srv1 10.0.0.3 PTR srv3 10.0.0.4 PTR srv4 sapascs1 A 10.0.0.10 sapapas A 10.0.0.11 sapaas1 A 10.0.0.12 10.0.0.10 PTR sapascs1 10.0.0.11 PTR sapapas 10.0.0.12 PTR sapaas1
- 12. Multiple IP Addresses in Azure • Azure only recently supports multiple IP addresses on one NIC.
- 13. Potential Pitfall • During a Disaster Recovery scenario, if you’re using Azure Site Recovery (ASR) to replicate your servers, ASR currently only “recovers” primary IP address on each NIC. Server “srv4.example” Primary IP: 10.0.0.4 Secondary IP: 10.0.0.12 Server “srv4.example” Primary IP: 10.0.1.4ASR replication Primary Azure Region DR Azure Region
- 14. Mitigation • To work around the ASR limitation, and as per Microsoft Best Practice, you can use a Recovery Plan script to re-‐add the additional IP addresses. https://docs.microsoft.com/en-‐us/azure/site-‐recovery/site-‐recovery-‐runbook-‐ automation https://docs.microsoft.com/en-‐us/azure/site-‐recovery/recovery-‐plan-‐overview Server “srv4.example” Primary IP: 10.0.0.4 Secondary IP: 10.0.0.12 Server “srv4.example” Primary IP: 10.0.1.4ASR replication Primary Azure Region DR Azure Region Script add IP x.x.x.x add IP x.x.x.x add IP x.x.x.x Secondary IP: 10.0.1.12

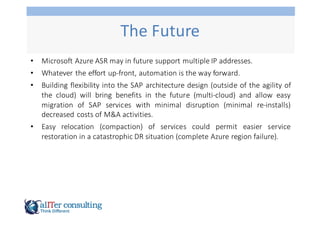

- 15. The Future • Microsoft Azure ASR may in future support multiple IP addresses. • Whatever the effort up-‐front, automation is the way forward. • Building flexibility into the SAP architecture design (outside of the agility of the cloud) will bring benefits in the future (multi-‐cloud) and allow easy migration of SAP services with minimal disruption (minimal re-‐installs) decreased costs of M&A activities. • Easy relocation (compaction) of services could permit easier service restoration in a catastrophic DR situation (complete Azure region failure).
- 16. Reference Material • SAP Notes: 611361, 962955, 129997, 1928533 • SAP-‐Press: https://s3-‐eu-‐west-‐1.amazonaws.com/gxmedia.galileo-‐ press.de/leseproben/3841/Reading_Sample_SAPPRESS_1221_Operating_SAP_in_the_Cloud_updated.pdf • SAP Blogs: https://blogs.sap.com/2016/10/21/sap-‐landscape-‐management-‐faq-‐lvmlama/ • Microsoft Docs: Reference architecture: https://docs.microsoft.com/en-‐us/azure/architecture/reference-‐architectures/sap/sap-‐netweaver Multiple IP support: https://azure.microsoft.com/en-‐gb/updates/ga-‐multiple-‐ips-‐per-‐nic/ How to add multiple IPs to a NIC: https://docs.microsoft.com/en-‐us/azure/virtual-‐network/virtual-‐network-‐multiple-‐ip-‐ addresses-‐portal https://docs.microsoft.com/en-‐us/azure/virtual-‐network/virtual-‐network-‐network-‐interface-‐addresses Recovery Automation: https://docs.microsoft.com/en-‐us/azure/site-‐recovery/site-‐recovery-‐runbook-‐automation Recovery tasks with SAP: https://docs.microsoft.com/en-‐us/azure/site-‐recovery/site-‐recovery-‐sap ASR Support matrix: https://docs.microsoft.com/en-‐us/azure/site-‐recovery/azure-‐to-‐azure-‐support-‐matrix SAP with ASR: https://docs.microsoft.com/en-‐us/azure/site-‐recovery/site-‐recovery-‐sap • Wikipedia: DNS record types: https://en.wikipedia.org/wiki/List_of_DNS_record_types • Further details are available on request from our SAP LaMa Certified Consultants – mailto:info@aliterconsulting.co.uk
- 17. Thank-‐you
