Segment Routing

1 © Nokia 2017
Segment Routing
Public
A tutorial
• Paresh Khatri
• 27-02-2017

2 © Nokia 2017
1. Introduction
2. Use cases and applicability
3. Deployment options

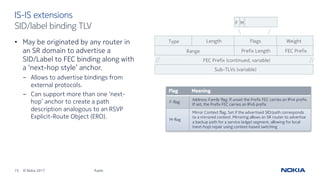

4. Reference: IGP extensions for segment routing
Public
Agenda

3 © Nokia 2017
introduction
Public

4 © Nokia 2017
• Two main protocols: LDP or RSVP-TE
- LDP for scale and simplicity
• extensions for fast re-route (loop-free
alternates [LFAs])
- RSVP-TE for TE and FRR for some time
• To scale MPLS we enabled:
- LDPoRSVP
- Seamless MPLS: Labeled-BGP with LDP
• Traffic engineering: RSVP-TE based
• Services through:
- BGP/IGP shortcuts, PW (T-LDP/BGP), VPLS
(LDP/BGP), IP-VPN (BGP), MVPN
(BGP/mLDP/P2MP RSVP)
Public
MPLS: a historical perspective (1)
• Issues:
- Traffic-engineering solutions don’t
scale when we want more
granularity/dynamicity
- Remote LFA for LDP is considered
too complex: requires dynamic T-
LDP signaling

5 © Nokia 2017 Public
MPLS: a historical perspective (2)
LDP RSVP-TE
Overview Multipoint to point Point to point
Operation Simple LSP per destination/TE-
path
Dependencies Relies on IGP Relies on IGP TE
Label allocation Locally significant per
node (interface)
Locally significant per
node (interface)
Traffic Engineering No Yes
Scaling 1 label per node
(interface)
Nx(N-1)
Fast Reroute LFA, LFA Policies, RLFA
- <100% coverage
Link/Node protection
(detour/facility) – 100%
coverage
Multicast mLDP P2MP RSVP
IPv6 Extensions required Extensions required

6 © Nokia 2017
• Increasing network growth with granular
traffic engineering (TE) requirement
• RSVP-TE is the only widely-spread
solution to provide TE
• No LDP-TE available
• LDP Fast ReRoute (FRR) can be used in
some parts of the network but is
topology dependent
• Pros:
- Source Routed protocol ; ingress Label Edge
Router (iLER) has full control to setup LSP to
destination
- Presence of strong FRR and TE capabilities
• Cons:
- Soft-state ; refresh mechanism required : refresh
reduction (RFC2961) aggregates messages but
not # soft-states
- Mid-point state presence in network (with FRR)
consumes CPU cycles and memory
Public
What problem are we trying to solve ?
SCALE RSVP-TE

7 © Nokia 2017
The primary objective for Segment Routing (SR) is
source routing: the ability for a node to specify a unicast
forwarding path, other than the normal shortest path,
that a particular packet will traverse …
…without requiring mid-point state .
Public
Objective of Segment Routing

8 © Nokia 2017
• SPRING (Source Packet Routing In NetworkinG) Working Group addresses the following:
- IGP-based MPLS tunnels without the addition of any other signaling protocol
• The ability to tunnel services (VPN, VPLS, VPWS) from ingress PE to egress PE with or without an
explicit path, and without requiring forwarding plane or control plane state in intermediate
nodes.
- Fast Reroute
• Any topology, pre-computation and setup of backup path without any additional signaling.
• Support of shared-risk constraints, support of link/node protection, support of micro-loop
avoidance.
Public
IETF SPRING working group

9 © Nokia 2017
• SPRING (Source Packet Routing In NetworkinG) Working Group addresses the following:
- Traffic Engineering
• The soft-state nature of RSVP-TE exposes it to scaling issues; particularly in the context of SDN
where traffic differentiation may be done at a finer granularity.
• Should include loose/strict options, distributed and centralised models, disjointness, ECMP-
awareness, limited (preferably zero) per-service state on midpoint and tail-end routers.
- All of this should allow incremental and selective deployment with minimal disruption
Public

10 © Nokia 2017
• Data plane support required:
- Leverage the existing MPLS dataplane without any modification
• MPLS label stack imposition
• MPLS label operations: pop, swap, push, PHP
- Leverage the IPv6 dataplane with a new IPv6 Routing Header Type (Routing Extension Header)
Public

11 © Nokia 2017
• Segment Routing provides a tunneling mechanism that enables source routing.
• Paths are encoded as sequences of topological sub-paths called segments, which are
advertised by link-state routing protocols (IS-IS and OSPF).
Public
Introduction to Segment Routing
Public
R1 R2 R3
R5 R6
R4
SegmentSegment
Segment SegmentSegment
Segment
Segment
Segment Segment
Segment
Segment Segment

12 © Nokia 2017
• A Segment Routing (SR) tunnel, containing a single segment or a segment list, is encoded
as:
- A single MPLS label or an ordered list of hops represented by a stack of MPLS labels (no change to
the MPLS data-plane).
- A single IPv6 address, or an ordered list of hops represented by a number of IPv6 addresses in the
IPv6 Extension header (Segment Routing Header).
• The segment list can represent either a topological path (node, link) or a service.
Encoding Segment Routing tunnels
1001
1003
1007
1001
Packet
The segments can be thought as a set of instructions from
the ingress PE such as “go to node D using the shortest
path”, “go to node D using link/node/explicit-route L”

13 © Nokia 2017
• Three distinct operations:
- PUSH: the insertion of a segment at the head of the Segment list.
- NEXT: the active segment is completed; the next segment becomes active.
- CONTINUE: the active segment is not completed and hence remains active.
Public
Operations on segments

14 © Nokia 2017
• MPLS instantiation of Segment Routing aligns with the MPLS architecture defined in RFC
3031
• For each segment, the IGP advertises an identifier referred to as a Segment ID (SID). A SID
is a 32-bit entity; with the MPLS label being encoded as the 20 right-most bits of the
segment ID.
Segment routing with MPLS data plane (1)
Public

15 © Nokia 2017
• When Segment Routing is instantiated over the MPLS data-plane, the following actions
apply :
- A list of segments is represented as a stack of labels
- The active segment is the top label
- The CONTINUE operation is implemented as a SWAP operation
- The NEXT operation is implemented as a POP operation
- The PUSH operation is implemented as a PUSH operation
Public

16 © Nokia 2017
• Segment Routing Global Block (SRGB)
- SRGB is the set of local labels reserved for global
segments
- Local property of an SR node
- Using the same SRGB on all nodes within the SR
domain ease operations and troubleshooting and
is expected to be a deployment guideline.
Segment Routing Global Block (SRGB)
Public
MPLS Label Space
0
1048575
SRGB
200000
299999

17 © Nokia 2017
Types of segments
Taxonomy
IGP SEGMENTS BGP SEGMENTS
Prefix Segments Adjacency Segments
Node
Segments
Anycast
Segments
Prefix Segments Egress Peer Engineering (EPE)
Segments
PeerNode
Segments
PeerSet
Segments
PeerAdj
Segments

18 © Nokia 2017
• EPE ; Egress Peering
Engineering
• Influence how to control
traffic to adjacent AS
• Signaled by BGP-LS (w/
EPE controller)
• Example: Prefix Segment
in DC environment
• DC GW representation
• Signaled by BGP (in DC)
• Locally unique – each
SR router in the
domain can use the
same space
• Typically single-hop
• Signaled by IGP
Public
Types of segments
Prefix Segment
• Globally unique –
allocated from SRGB
• Typically multi-hop
• ECMP-aware shortest-
path IGP route to a
related prefix
• Indexing or absolute
SID
• Signaled by IGP
Adjacency Segment BGP Prefix Segment BGP Peer Segment
DC
CORE/WAN
AS1
CORE/WAN
AS2
CORE/WAN
AS3

19 © Nokia 2017
• Prefix Segment (Prefix-SID)
- Globally unique within the IGP/SR domain – allocated from the SR
Global Block (SRGB)*
- Represents the ECMP-aware shortest-path IGP route to the related
prefix
- Typically a multi-hop path
- Includes “P” flag to allow neighbours to perform the “NEXT” (pop)
operation whilst processing the segment (analogous to Penultimate
Hop Popping in MPLS).
- Two options exist; Indexing or Absolute-SID (described in later slides)
Public
Segment identifiers – prefix segments IGP SEGMENTS
Node
Segments
Anycast
Segments

20 © Nokia 2017
• Node Segment ID (Node-SID)
- A special prefix segment used to identify a specific router
(loopback/system address).
- Identified by “N” flag being set in advertised segment (Prefix-
SID Sub-TLV).
- Represents the ECMP-aware shortest-path IGP route to the
specified node.
Public
Segment identifiers – node segments IGP SEGMENTS
Node
Segments
Anycast
Segments

21 © Nokia 2017
• Anycast Segment ID (Anycast-SID)
- A prefix segment specifying a set of routers
- Represents the ECMP-aware shortest-path IGP route to the closest
node of the “anycast set”.
- Potentially useful for coarse traffic engineering (i.e. route via plane
A of dual-plane network, route via Region B of multi-region
network) or node redundancy (i.e. traffic re-routes to shortest
path towards any other router that is part of the “anycast set”).
Public
Segment identifiers – anycast segments IGP SEGMENTS
Node
Segments
Anycast
Segments

22 © Nokia 2017
• PE2 advertises Node Segment into IGP (Prefix-SID Sub-TLV Extension to IS-IS/OSPF)
• All routers in SR domain install the node segment to PE2 in the MPLS data-plane.
- No RSVP and/or LDP control plane required.
- When applied to MPLS, a Segment is essentially an LSP.
Public
Example: SR tunnel with prefix-SID (node-SID) [1]
PE1 P3P1 P2
Node-SID 300Node-SID 200Node-SID 100 Node-SID 400
PE2
Node-SID
800
advertised
by IGP
PHP based on p-bit setting of
Prefix-SID advertised by PE2
In
Label
Out
Label
Interface
800 800 To-P2
In
Label
Out
Label
Interface
800 800 To-P3
In
Label
Out
Label
Interface
800 POP To-PE2
LFIB
LFIB
LFIB
FEV Out
Label
Interface
PE2 800 To-P1
FEC to NHLFE

23 © Nokia 2017
• For traffic from PE1 to PE2, PE1 pushes on node segment {800} and uses shortest IGP
path to reach PE2.
• Active segment is the top of the stack for MPLS:
Public
- P1 and P2 implement CONTINUE (swap) action in MPLS data-plane
- P3 implements NEXT (pop) action (based on P-bit in Prefix-SID not
being set).
PE1 P3P1 P2
PE2
Node-SID
800
advertised
by IGP
FEC PE2
PUSH 800
SWAP
800 to 800
SWAP
800 to 800 POP 800
PHP based on
p-bit setting
of Prefix-SID
advertised by
PE2
In
Label
Out
Label
Interface
800 800 To-P2
In
Label
Out
Label
Interface
800 POP To-PE2
LFIB
LFIB
LFIB
FEV Out
Label
Interface
PE2 800 To-P1
FEC to NHLFE
In
Label
Out
Label
Interface
800 800 To-P3

• No per-path state held in network with
the exception of segment list for tunnel
held at PE1.
PE1 P3P1 P2
PE2
Node-SID
800
advertised
by IGP
FEC PE2
PUSH 800
SWAP
800 to 800
SWAP
800 to 800 POP 800
PHP based on
p-bit setting
of Prefix-SID
advertised by
PE2
In
Label
Out
Label
Interface
800 800 To-P2
In
Label
Out
Label
Interface
800 POP To-PE2
LFIB
LFIB
LFIB
FEV Out
Label
Interface
PE2 800 To-P1
FEC to NHLFE
In
Label
Out
Label
Interface
800 800 To-P3

25 © Nokia 2017
• The use of absolute SID values requires a single consistent SRGB on all SR routers
throughout the IGP domain.
Prefix segment identifiers – absolute SIDs
• Example:
- PE2 advertises MP-BGP label
910 for VPN prefix Z.
- To forward traffic to VPN
prefix Z, and assuming
preferred (non-ECMP) path
from PE1 to PE2 is PE1-P3-
P4-PE2, PE1 pushes label
910 onto bottom of stack,
and label 600 (Node-SID for
PE2) on top of stack.
- Label (SID) does not change
hop by hop.
PE1 PE2
P1 P2
P3 P4
Node-SID
600 advertised
by IGP
CE1A CE2 Z
MP-BGP
Label 910
Packet
Packet
910
600
Packet
910
600
Packet
910
600
Public
VPN Prefix Z
PUSH 910
FEC PE2
PUSH 600
SWAP
600 to 600
SWAP
600 to 600
POP 600
POP 910

26 © Nokia 2017
• Why ?
- SR domain can be multi-vendor with the possibility that each vendor uses a different MPLS label
range
- Prefix SID must be globally unique within SR domain
• How ?
- Indexing mechanism is required for prefix SIDs. All routers within the SR domain are expected to
configure and advertise the same prefix SID index range for a given IGP instance.
- The label value used by each router to represent a prefix ‘Z’ (= label programmed in ILM) can be
local to that router by the use of an offset label, referred to as a start label :
Local Label (for Prefix SID) = (local) start-label + {Prefix SID index}
Public
Prefix SID indexing

27 © Nokia 2017
• For example, assume the SID Index Range is {1,100}.
Public
Example: Prefix SID indexing
• Each SR router in the domain defines a start point in the SRGB (start-label), and an offset
label called an SID index.
- SR routers sum {start-label + SID
index} to obtain a local label for a
Prefix SID.
- Assuming PE2 advertises loopback
192.0.2.2/32 with a prefix index of
2:
- PE2’s SID for itself is {1010+2}=
1012
- P4’s SID for PE2 is {1020+2}= 1022
PE1 PE2
P1 P2
P3 P4
CE1A CE2 Z
MP-BGP
Label 910
Packet
Packet
910
1032
Packet
910
1022
Packet
910
1012
VPN Prefix Z
PUSH 910
FEC PE2
PUSH 1032
SWAP
1032 to 1022
SWAP
1022 to 1012
POP 1012
POP 910
- P3’s SID for PE2 is {1030+2}=1032
- PE2 advertises MP-BGP label 910 for
VPN prefix Z.
Start-Label
1060
Start-Label
1040
Start-Label
1010
Start-Label
1050
Start-Label
1030
Start-Label
1020
Node-SID
index 2
advertised
by IGP

28 © Nokia 2017
• Adjacency Segment ID (Adj-SID)
- A segment identifying an adjacency or set of adjacencies that must
be in the IGP.
- Segment Identifier (SID) is local to the router that advertises it
(every SR router in the domain can use the same segment space).
- If:
• AB is the Node-SID of node N, and...
• ABC is an Adj-SID at node N to an adjacency over link L, then....
• A packet with segment list {AB, ABC} will be forwarded along the shortest-
path to node N, then switched by N towards link L without any
consideration of shortest-path routing.
- If the Adj-SID identifies a set of adjacencies, node N can load-
balance the traffic over the members of that set.
Public
Segment identifiers – adjacency segments IGP SEGMENTS
Node
Segments
Anycast
Segments

29 © Nokia 2017
• All SR routers advertise Adjacency segment(s) into IGP (Adjacency-SID Sub-TLV
Extension to IS-IS/OSPF).
• Adjacency segments may be of local or global significance, but only the
advertising SR router installs the adjacency segment into the MPLS data-
plane
- From a data-path perspective, it is analogous to a label-swap to implicit-null.
• Provides for end-to-end source-routing capability where the Adjacency
segments may determine the explicit hop-by-hop path through the network.
• Beware however, that label stack depth has implications on hardware.
Public
Segment identifiers – adjacency segments

Example: SR tunnel with adjacency segments
PE1
P3P1 P2
P4 P5
Node-SID 300Node-SID 200
Node-SID
100
Node-SID 500 Node-SID 600
Node-SID 400
P6
Node-SID 700
PE2
Node-SID 800
1001
POP 1001
1007
POP 1007
1003
POP 1003
1001
Packet
POP 1001
Adj-SID 1001
Adj-SID
1007
Adj-SID 1003
Adj-SID 1001
1001
1003
1007
1001
Packet
1001
1003
1007
Packet
1001
1003
Packet
1001
Packet

31 © Nokia 2017
• A combination of node and adjacency segments is also possible.
• This provides the ability to exercise ECMP paths to the next specified node segment, but
enforce the use of a particular link (or links) from that node.
Public
Example: SR tunnel with node and adjacency segments

32 © Nokia 2017
• In this example, PE1
wants to traverse the link
P2-P5 on the way to PE2,
as it is under-utilised.
• PE1 therefore imposes
the segment list {300,
1003, 800} representing
the Node-SID for P2, the
Adj-SID for link P2-P5,
and finally the Node-SID
for PE2.
Public
Example: SR tunnel with node and adjacency segments
PE1
P3P1 P2
P4 P5
Node-SID
100
Node-SID 400
P6
Node-SID 700
PE2
Node-
SID 800
POP {300, 1003}
800
SWAP 800
800
Packet
300
300 Adj-SID 1003
POP 800
800
1003
300
Packet
800
1003
300
Packet
800
Packet
800
Packet
SWAP {300, 300}

Comparison with LDP and RSVP-TE
LDP RSVP-TE SR
Overview Multipoint to point Point to point Multipoint to point
Operation Simple LSP per destination/TE-
path
Simple
Dependencies Relies on IGP Relies on IGP TE Relies on IGP + offline TE
LBL allocation Local significant per
node (interface)
Local significant per
node (interface)
Global
Traffic Engineering No Yes yes
Scaling 1 LBL per node
(interface)
Nx(N-1) 1 LBL per node/ local
interface
Fast Reroute LFA, LFA Policies, RLFA
- <100% coverage
Link/Node protection
(detour/facility) – 100%
coverage
LFA, LFA Policies, RLFA/DLFA -
can get to 100% coverage
(better than LDP with RLFA)
Multicast mLDP P2MP RSVP TBD
IPv6 Extensions required Extensions required Native

34 © Nokia 2017
use cases and
applicability
Public

35 © Nokia 2017
• For traffic from PE1 to PE2,
PE1 pushes on segment list
{800} and uses shortest IGP
path to reach PE2 (PE1-P1-
P2-P3-PE2)
- P1 and P2 install ILM
CONTINUE entry {label=800,
NHLFE=label 800, Next-
Hop=shortest path to PE2}
- P3 installs ILM CONTINUE or
NEXT entry {label=800, POP,
Next-Hop=shortest path to
PE2}
Public
Use case 1: Shortest path routing (1)
PE1
P3P1 P2
P4 P5
Node-SID
100
Node-SID 400
P6
Node-SID 700
PE2
Node-SID
800
800
800 800
SWAP 800 SWAP 800 POP 800
800
Packet
• All nodes advertise a unique node segment into the IGP.
800
Packet
800
Packet
Packet

36 © Nokia 2017
• If PE1 has ECMP>=2, and
equal-cost paths to the SR
tunnel tail-end exist, all
equal-cost paths can be
exercised:
- Based on hash output, flows
m routed PE1-P1-P2-P3-PE2
with segment list {800}
- Based on hash output, flows
n routed PE1-P4-P5-P6-PE2
with segment list {800}
Public
Use case 1: Shortest path routing (2)
PE1
P3P1 P2
P4 P5
Node-SID
100
Node-SID 400
P6
Node-SID 700
PE2
Node-SID
800
800
800 800
800
800 800
ECMP
SWAP 800 SWAP 800 POP 800
800
Packet

37 © Nokia 2017
• Adj-SID provides the capability to
explicit-route on a hop-by-hop
basis, but has the potential to
create a deep label stack-depth if
all hops are explicitly listed.
• Assume we have a requirement
to engineer traffic away from the
P2-P3 link (due to high utilisation
or link degradation) to some
other under-utilised link(s).
Public
Use case 2: Source-routing with node-SID
PE1
P3P1 P2
P4 P5
Node-SID 300
Node-SID
100
Node-SID 400
P6
Node-SID 700
PE2
Node-SID
800
300
300
POP 300
600
SWAP 300-300
POP 600
POP
Packet
800
800
600
300
Packet
800
600
300
Packet
800
600
Packet
800
Packet
• Traffic from PE2 to PE1 can be re-routed away from this link using
segment list {300, 600, 800} constructed purely from Node-SIDs.
• Alternative option if link utilisation permits is simply {600, 800}.

38 © Nokia 2017
• Disjointness describes two (or more) services that must be completely disjoint of each
other. They should not share common network infrastructure – i.e. if one fails, the other
must always be active.
• Many networks employ the ‘dual-plane’ design, where inter-plane links are configured
such that the route to a destination stays on that plane during a single failure scenario.
• Disjointness can broadly be achieved using Anycast segments.
Public
Use case 3: Disjointness (1)

39 © Nokia 2017
- Service 1 at PE1 has segment
list {902, 300} including
Anycast SID 902 and
traverses the red plane
before reaching PE3.
- Service 2 at PE2 has segment
list {901, 400} including
Anycast SID 901 and
traverses the blue plane
before reaching PE4.
Public
Use case 3: Disjointness (2)
• Assume service 1 between PE1 and PE3 must be disjoint from service 2 between PE2
and PE4:
PE1
P1
P3
P2
P4
P5 P6
P8
PE2
PE3
PE4
Service 1
Service 2
Node-SID
100
Node-SID
200
Node-SID
300
Node-SID
400
Blue Plane
Anycast SID 901
Red Plane Anycast
SID 902
P7

40 © Nokia 2017
• Egress Peer Engineering defines
three BGP Peering SIDs, that allow
for programming of source-routed
inter-domain paths; PeerNodeSID,
PeerAdjSID, and PeerSetSID.
• R1 is an EPE-enabled egress router
and allocates the following:
- PeerNode segment for each of its
defined peers (R7, R8, and R9)
- PeerAdj segment for each recursive
interface to a multi-hop peer (R9)
- PeerSet segment to a set of peers (R7
and R8) (AS200)
Use case 4: Egress peer engineering (EPE) (1)
AS 200
R7
AS 300R9
R2 R1AS 100
R8
EPE Controller
Node-SID
100
BGP-LS
FlowSpec
Public

41 © Nokia 2017
• BGP-LS (BGP Link State) session
established between EPE-enabled
border router (R1) and the EPE
controller:
- R1 advertises PeerNode, PeerAdj, and
PeerSet SIDs using SR extensions to
BGP-LS, and programmes FIB
accordingly.
• EPE Controller programmes source-
routes from ingress routers to EBGP
peers using FlowSpec/OpenFlow; i.e.
Use case 4: Egress peer engineering (EPE) (2)
AS 200
R7
AS 300R9
R2 R1AS 100
R8
EPE Controller
Node-
SID 100
BGP-LS
FlowSpec
- 80% traffic to AS 300 with segment list {100, 1005}
- 20% traffic to AS 200 with segment list {100, 1006}
- Prefix <NLRI/Length> segment list {100, 1003}
- Prefix <NLRI/Length> segment list {100, 1004}
Incoming Label Operation Outgoing Interface
1001 POP Link to R7
1002 POP Link to R8
1003 POP Upper link to R9
1004 POP Lower link to R9
1005 POP Load-balance on any link to R9
1006 POP Load-balance on any link to R7 or R8
Public

42 © Nokia 2017
• In this example, two adjacencies exist between P1-P2.
• Assuming capacity-based metrics are in use, the 10G link between P1 and P2 is
unused for shortest path forwarding.
Use case 5: Adjacency segment load-balancing (1)
PE1 P1 P2
Node-SID
300
Node-SID
200
Node-SID
100
10G PE2
Node-SID
800
40G
800
800
Packet
POP 800
SWAP 800-800 No load-balancing
on P1-P2 links800
Packet
800
Packet
Public

43 © Nokia 2017
• Adj-SID TLV provides the capability to load-balance across multiple adjacencies.
Use case 5: Adjacency segment load-balancing (2)
PE1 P1 P210G PE2
40G
Packet
POP 800
Link Adj-SID Adj-Set Weight
10G 1001 1003 1
40G 1002 1003 4
Both 1003 - -
Node-SID 200 Node-SID 300 Node-SID 800
POP 200, 1003
Weighted load-balancing on P1-P2 links
800
1003
200
Packet
800
Packet
- P1 advertises individual
Adj-SIDs for the 10G link
(1001) with weight 1, and
40G link (1002) with weight
4.
- P1 also advertises an Adj-
SID for the adjacency set
(1003)
- PE1 pushes segment list
{200, 1003, 800}. Node-SID
200 gets the traffic to P1,
while Adj-SID 1003 load-
balances the traffic to P2
on a weighted 4:1 basis.
Public

44 © Nokia 2017
• Traffic Engineering information made available to CSPF for RSVP-TE based LSPs can
also be made available to SR tunnels
- Includes available link bandwidth, admin-groups, shared-risk link groups (SRLGs) etc.
Use case 6: Distributed cspf-based traffic engineering (1)
• In the example topology,
assume that link P1-P2 is in
SRLG 1.
- The SRLG information is
flooded into IS-IS (RFC 4874)
or OSPF (RFC 4203).
PE1 P1 P2
P3 P4
Node-SID 300Node-SID 200Node-SID 100
PE2
Node-SID 800
SRLG 1
Public

45 © Nokia 2017
Use case 6: Distributed cspf-based traffic engineering (2)
• If PE1 computes a CSPF to PE2
for a path that should avoid SRLG
1, it first prunes the links
signalled as belonging to that
SRLG (i.e. link P1-P2) from the
topology.
• From the remaining topology, it
computes a path – in this simple
case, the path PE1-P1-P3-P4-P2-
PE2.
• PE1 therefore imposes the
segment list {200, 500, 600, 300,
800}, or even {500, 600, 800}.
PE1 P1 P2
P3 P4
Node-SID 300Node-SID 200Node-SID 100
PE2
Node-SID 800
SRLG 1
Public

46 © Nokia 2017
• SR can be seen as alternative for LDP and RSVP-TE. This means that the same scaling
requirements will remain in case of an E2E MPLS coverage in a multi-area/instance
domain.
• Seamless MPLS could be used to cross area or AS boundary, similar to what is available
today with LDP and/or RSVP-TE. This approach has some clear advantages:
- Smooth migration with existing MPLS domains
- BGP is a field-proven scalable protocol
- Non-SR nodes can still connect to a SR MPLS domain
Public
Use case 7: Seamless MPLS and segment routing (1)
End-to-end scaling integrating SR/LDP/RSVP-TE

47 © Nokia 2017
Use case 7: Seamless MPLS and segment routing (2)
End-to-end scaling integrating SR/LDP/RSVP-TE
Aggregation-1
RSVP/LDP
Aggregation-2
RSVP/LDP
Core
Segment
Routing
BGP in the Core,
advertising BGP LBL
routes (RFC3107)
with RR
BGP BGP
BGP BGP
Regions/area can still
run LDP/RSVP, which
allows for smooth
migration… SR in the
future
Access-1
RSVP/LDP
BGP
BGP
Access-2
RSVP/LDP
BGP
BGP
BGP peering,
advertising BGP
LBL routes
(RFC3107)
PE1
PE2
ABR1 PE3
PE4ABR1
ABR3
ABR4
RR
Public

48 © Nokia 2017
Use case 8: Service creation with a path computation element (PCE)
Co-routed service node provisioning
OSS/BSSPCE
PE1
P1 P2
P4
P5
P7
P6
P8
PE2
PE3
PE4
P3
1
OSS provisions diverse services on PE’s
a. Type of service: VPWS
b. Local attachment circuits (SAPs)
c. Tunnel endpoints: Remote and
Local
d. Tunnel type: Segment Routing,
RSVP
e. Path constraints: Bandwidth, Co-
routed, service diversity, bi-
directionality
Step 1
2
a. PE makes path computation
request (PCReq), or path
computation status report (PCRpt)
to the PCE server
b. Note: Requires further extension to
PCEP to signal path diversity with
other services.
Step 2
Public

49 © Nokia 2017
Use case 8: Service creation with a path computation element (PCE) (cont.)
Co-routed service node provisioning
OSS/BSSPCE
PE1
P1 P2
P4
P5
P7
P6
P8
PE2
PE3
PE4
P3
a. PCE monitors LSP stats and re-
optimises tunnels as required,
downloading new paths to PE
routers (same PLSP-ID)
b. PE performs make-before-break
and moves to the new path.
Step 4
1
2
a. PCE computes and downloads the
paths for the tunnel set.
b. PEs bind service to paths
Step 3
3
Public

50 © Nokia 2017
Global bandwidth optimisation
OSS/BSSPCE
PE1
P1 P2
P4
P5
P7
P6
P8
PE2
PE3
PE4
P3
1
OSS provisions parallel infrastructure
tunnels between a pair of PE nodes
a. Type of service: VPRN, VPLS VPWS
b. Local attachment circuits (SAPs)
c. Tunnel endpoints: Remote and
Local
d. Tunnel type: Segment Routing,
RSVP
e. Path constraints: min/max
bandwidth, diversity, admin-group
Step 1
2
a. PE makes path computation
request (PCReq), or path
computation status report (PCRpt)
to the PCE server with path
diversity constraints among the
parallel set of tunnels.
b. This may use the SVEC object of
PCEP (per RFC 5440) to perform a
set of dependent path computation
requests.
Step 2
Flow Mapper
Public

51 © Nokia 2017
Global bandwidth optimisation
OSS/BSSPCE
PE1
P1 P2
P4
P5
P7
P6
P8
PE2
PE3
PE4
P3
1
2
a. PCE computes and downloads the
path.
b. PE node informs the external flow
mapper of the set of LSP-ID values
created between endpoints.
Step 3
3
Flow Mapper
a. External flow mapper pushes down
the mapping of
flow/prefix/destination to the set
of parallel tunnels using OpenFlow
or XMPP.
b. PE instantiates the ACLs to map
each flow to the designated LSP-ID.
Step 4
4
Public

52 © Nokia 2017
deployment options
Public

53 © Nokia 2017
• Greenfields:
- Relatively straightforward
- Requires “new” software with segment
routing capabilities
- Opportunity to bypass LDP or RSVP-TE
altogether
- Care needs to be taken to ensure that all
service types, resiliency mechanisms and
traffic-engineering capabilities can be
supported over segment-routed tunnels
• Existing networks:
- Similar to greenfields with added
considerations:
• Ability to introduce without disruption to
existing services
• Co-existence with LDP and/or RSVP-TE where
deployed; “ships in the night” operation required
• Option to only build new services with segment
routed tunnels, leaving existing services on
existing tunnels
• Migration to an SR-only network
Public
Deployment options
Two broad categories

54 © Nokia 2017
• If an MPLS control plane client (i.e. LDP, RSVP, BGP, SR) installs forwarding entries into the
MPLS data-plane, those entries need to be unique in order to function as “Ships in the
Night”.
• It’s also likely that these control planes can and will co-exist. For example, LDP and SR
could co-exist, where:
Public
Segment routing and LDP inter-operability
- LDP and SR are present on all routers in the network.
Preference for LDP or SR for service tunnels is a local
matter at the head-end. SR can also be used to
enhance FRR coverage.
- SR is only present in parts of the network. LDP and SR
can be interworked to provide an end-to-end tunnel
and/or an FRR tunnel due to the presence of an SR
Mapping Server (SRMS).

55 © Nokia 2017
• Co-existence of LDP-based and SR-based services in the same network
Public
Scenario 1: Ships-in-the-night co-existence
PE1
P2P1 P3
PE2
PE3
PE4
LDP-only
router
SR-
only
router
Service
RR
LDP+SR
routerR
R
Service 1
Service 2
• Requirements:
- Service 1 to be tunneled
via LDP
- Service 2 to be tunneled
via SR
- Penultimate Hop
Popping (PHP) to be used
for both services
Node-SID
101
Node-SID
102
Node-SID
103
MP-BGP
Label 910
MP-BGP
Label 860

Scenario 1: Ships-in-the-night co-existence (cont.)
• Outcome:
- Service 1 is tunneled
from PE1 to PE3 through
a continuous LDP LSP
traversing P1, P2 and P3.
- Service 2 is tunneled
from PE2 to PE4 through
a continuous SR node
segment traversing P1,
P2 and P3.
PE1
P2P1 P3
PE2
PE3
PE4
LDP-only
router
SR-
only
router
Service
RR
LDP+SR
routerR
R
Service 1
Service 2
Node-SID
101
Node-SID
102
Node-SID
103
MP-BGP
Label 910
MP-BGP
Label 860
910
423
Packet
860
204
Packet
910
700
Packet
910
819
Packet
910
Packet
860
204
Packet
860
204
Packet
860
Packet

57 © Nokia 2017
• Possible to have multiple entries in
the MPLS data plane for the same
prefix.
Public
Scenario 1: Ships-in-the-night co-existence (cont.)
FEC Incoming
Label
Outgoing
Label
Next-
Hop
192.0.2.203/32
(LDP)
423 700 P2
192.0.2.203/32 (SR) 204 204 P2
Public
PE1
P2P1 P3
PE2
PE3
PE4
LDP-only
router
SR-
only
router
Service
RR
LDP+SR
routerR
R
Service 1
Service 2
Node-SID
101
Node-SID
102
Node-SID
103
MP-BGP
Label 910
MP-BGP
Label 860
910
423
Packet
860
204
Packet
910
700
Packet
910
819
Packet
910
Packet
860
204
Packet
860
204
Packet
860
Packet
Node P1’s MPLS forwarding table
Loopback:
192.0.2.203/32

58 © Nokia 2017
• Stage 1:
- All routers initially run only LDP. All
services are tunneled from the ingress
PE to the egress PEs over a continuous
LDP LSP.
Public
Scenario 2: Migration from LDP to SR
PE1
P6P5 P7
PE2
PE3
PE4LDP-only
router
SR-
only
router
Service
RR
LDP+SR
router
R
R

59 © Nokia 2017
• Stage 2:
- All the routers are upgraded to SR. They
are configured with the SRGB range [100,
300]. PE1, PE2, PE3, PE4, P5, P6 and P7
are configured with the node segments
101, 102, 103, 104, 105, 106 and 107,
respectively .
- Service traffic is still tunneled over LDP
LSPs. For example, PE1 has an SR node
segment to PE3 and an LDP LSP to PE3
but the LDP IP2MPLS encapsulation is
preferred, by default or via configuration.
Public
Scenario 2: Migration from LDP to SR (cont.)
PE1
P6P5 P7
PE2
PE3
PE4LDP-only
router
SR-
only
router
Service
RR
LDP+SR
router
R
R
Node-SID
105
Node-SID
106
Node-SID
107

60 © Nokia 2017
• Stage 3:
- Local policy at PE1 is configured to prefer
SR encapsulation over LDP.
- The service from PE1 to any other PE is
now riding over SR. All other service
traffic is still transported over LDP LSPs.
Public
PE1
P6P5 P7
PE2
PE3
PE4LDP-only
router
SR-
only
router
Service
RR
LDP+SR
router
R
R
Node-SID
105
Node-SID
106
Node-SID
107

61 © Nokia 2017
• Stage 4:
- Gradually, all edge routers are configured
to prefer SR over LDP encapsulation.
- All the service traffic is now transported
over SR.
- LDP is still operational and services could
be reverted to LDP should there be any
issues.
Public
PE1
P6P5 P7
PE2
PE3
PE4LDP-only
router
SR-
only
router
Service
RR
LDP+SR
router
R
R
Node-SID
105
Node-SID
106
Node-SID
107

62 © Nokia 2017
• Stage 5:
- After a period of smooth operation, LDP
can be de-configured from all routers.
- All routers now solely run SR
Public
PE1
P6P5 P7
PE2
PE3
PE4LDP-only
router
SR-
only
router
Service
RR
LDP+SR
router
R
R
Node-SID
105
Node-SID
106
Node-SID
107

63 © Nokia 2017
• One or more Segment Routing Mapping Servers (SRMS) are used to advertise Node-
SIDs on behalf of non-SR routers. For example, R4 advertises Node-SIDs 201, and
202, respectively for the LDP-only routers A, and B.
Public
Scenario 3: Mix of SR-only and LDP-only routers (SR and LDP inter-working)
- A forwards to R1 using
conventional LDP. R1 does not
have a LDP label binding for its
next-hop R2, but does have an SR
Node-SID, so it swaps its local LDP-
label for FEC B to Node-SID 202
and forwards to R2.
- R3 knows that B is not SR-capable
(as B did not advertise SR
capability in ISIS/OSPF), so R3
swaps Node-SID 202 for LDP FEC
B.
BA
Node-SID 103
Node-SID 104
Mapping Server
(SRMS)
Swap LDP FEC B to
Node-SID 202
R1 R2 R3
R4 R5
Swap Node-SID
202 to LDP FEC
B
LDP binding to
B Next-Hop=R1
Node-SID 105
Node Node Segment
A 201
B 202
LDP-only
router
SR-
only
router
Service
RR
LDP+SR
router
R
R

64 © Nokia 2017
• A similar methodology to
LDP-SR interworking can be
used to provide FRR
coverage:
- Potential for increased
coverage where SR is present
only in parts of the network.
- Full coverage if SR is present
on all routers in the network
(in which case no Mapping
Server is required).
Public
Segment routing and LDP inter-working
Scenario 4: Using SR to provide LDP fast reroute
Node-SID 101
A
301010
10
10 10
10
R2 CB R1
R4 R5 R6 R7
R3
Node-SID 103
Node-SID 104 Node-SID 105 Node-SID 106 Node-SID 107
Mapping Server (SRMS)
Node-SID 102
1
0
LDP
FEC
Incoming
Label
Outgoing
Label
Outgoing
Next-Hop
B
Advertised
by R2
Advertised
by R1
R1
C
Advertised
by R2
Advertised
by R3
R3
Node Node Segment
A 201
B 202
C 203
LDP-only
router
SR-
only
router
Service 1
(A-B)
RR
LDP+SR
router
R
R
Service 2
(A-C)

65 © Nokia 2017
• In the example shown, LDP is used
throughout the network, and SR has only
partial coverage (routers R1-R7).
Public
Scenario 4: Using SR to provide LDP fast reroute (cont.)
Node-SID 101
A
301010
10
10 10
10
R2 CB R1
R4 R5 R6 R7
R3
Node-SID 103
Mapping Server (SRMS)
Node-SID 102
1
0
LDP
FEC
Incoming
Label
Outgoing
Label
Outgoing
Next-Hop
B
Advertised
by R2
Advertised
by R1
R1
C
Advertised
by R2
Advertised
by R3
R3
Node Node Segment
A 201
B 202
C 203
LDP-only
router
SR-
only
router
Service 1
(A-B)
RR
LDP+SR
router
R
R
Service 2
(A-C)
- R4 is SRMS and advertises
Node-SID 201, 202, 203
respectively for the LDP-only
routers A, B, and C.
- Router A has services to B
and C. LDP is the preferred
transport protocol and is
used by the head-end, router
A (local decision).
- Objective is to protect link
R2-R1 for service 1, and link
R2-R3 for service 2.

66 © Nokia 2017
• Protecting service 1
R2-R1 with a Loop-Free
Alternate (LFA) for B (Service
1).
- Routers R1-R7 advertise
Node-SID and Adjacency-SIDs
for its IGP adjacencies. R4 is
acting as Mapping Server for
A, B, and C.
- In steady-state, LDP is used
as the preferred transport
tunnel for Service 1 (A-R2-
R1-B).
Public
Node-SID 101
A
301010
10
10 10
10
R2 CB R1
R4 R5 R6 R7
R3
Node-SID 103
Node-SID 102
10
Node Node Segment
A 201
B 202
C 203
LDP-only
router
SR-
only
router
Service 1
(A-B)
RR
LDP+SR
router
R
R
Service 2
(A-C)
Dest.
Incoming
Label
Outgoing Label
Outgoing
Next-Hop
Backup
Outgoing
Label
Backup Outgoing
Next-Hop
B
Advertised by
R2
Advertised by
R1
R1
202
(B N-SID)
Repair tunnel:
Node-SID R4
Next-Hop R5

67 © Nokia 2017
• Protecting service 1 (cont.)
- Upon failure of link R2-R1, R2
swaps the incoming top (LDP)
label with the Node-SID for B
(202). R2 then sends the
packet into a repair tunnel to
R4.
• R2 forwards the label stack
{104, 202} to R5.
• R5 pops Node-SID 104 (PHP)
and forwards the packet to R4.
Public
Node-SID 101
A
301010
10
10 10
10
R2 CB R1
R4 R5 R6 R7
R3
Node-SID 103
Node-SID 102
10
Node Node Segment
A 201
B 202
C 203
LDP-only
router
SR-
only
router
Service 1
(A-B)
RR
LDP+SR
router
R
R
Service 2
(A-C)
Dest.
Incoming
Label
Outgoing Label
Outgoing
Next-Hop
Backup
Outgoing
Label
Backup Outgoing
Next-Hop
B
Advertised by
R2
Advertised by
R1
R1
202
(B N-SID)
Repair tunnel:
Node-SID R4
Next-Hop R5
Packet
202
104
Packet
202
Packet
202
Packet
• R4 swaps label 202 for 202
and forwards to R1. R1’s Next-
Hop to B is not SR-capable, so
R1 swaps 202 for the LDP label
announced by it’s Next-Hop (in
this case, implicit-null).

68 © Nokia 2017
• Protecting service 2
R2-R3 with an LFA for C
(Service 2).
- In steady-state, LDP is used
as the preferred transport
tunnel for Service 2 (A-R2-
R3-C).
Public
Node-SID 101
A
301010
10
10 10
10
R2 CB R1
R4 R5 R6 R7
R3
Node-SID 103
Node-SID 102
10
Node Node Segment
A 201
B 202
C 203
LDP-only
router
SR-
only
router
Service 1
(A-B)
RR
LDP+SR
router
R
R
Service 2
(A-C)
Dest.
Incoming
Label
Outgoing
Label
Outgoing
Next-Hop
Backup
Outgoing
Label
Backup Outgoing
Next-Hop
C
Advertised
by R2
Advertised
by R3
R3
203
(C N-SID)
Repair tunnel to
R6: {106, 1009}
Next-Hop R5
Node-SID
104
ADJ-SID
1009

69 © Nokia 2017
• Protecting service 2 (cont.)
- Upon failure of link R2-R3, R2 swaps the
incoming top (LDP) label with the Node-SID
for C (203). R2 then sends the packet into a
repair tunnel to R6 with Node-SID 106
followed by Adj-SID 1009.
Public
Node-SID 101
A
301010
10
10 10
10
R2 CB R1
R4 R5 R6 R7
R3
Node-SID 103
Node-SID 102
10
Node Node Segment
A 201
B 202
C 203
LDP-only
router
SR-
only
router
Service 1
(A-B)
RR
LDP+SR
router
R
R
Service 2
(A-C)
Dest.
Incoming
Label
Outgoing
Label
Outgoing
Next-Hop
Backup
Outgoing
Label
Backup Outgoing
Next-Hop
C
Advertised
by R2
Advertised
by R3
R3
203
(C N-SID)
Repair tunnel to
R6: {106, 1009}
Next-Hop R5
Packet203
1009
106
Packet
203
1009
Packet
203
Packet
203
Packet
• R2 forwards the label stack
{106, 1009, 203} to R5.
• R5 pops 106 (PHP) and
forwards the packet to R6.
• R6 pops Adj-SID 1009 and
forwards the packet to R7.
• R7 swaps 203 for 203 and
forwards to R3.
• R3’s Next-Hop to C is not SR-capable, so R3 swaps
203 for the LDP label announced by it’s Next-Hop
(in this case, implicit-null).
Node-SID
104
ADJ-SID
1009

71 © Nokia 2017
• IS-IS and OSPF both have “Router Information” extensions to advertise optional
capabilities:
- Opaque “Router Information” LSA in OSPF (RFC 4970) carrying Router Informational Capability TLV.
- Capability TLV (TLV-242) in IS-IS (RFC 4971) with optional Sub-TLVs.
• Intended to indicate capabilities such as Graceful Restart, TE, OSPF stub, IS-IS mesh
group, etc.
• Flooding scope:
- IS-IS: across domain, and may be leaked between levels (indicated by “S” flag).
- OSPF: link-scoped (type 9), area-scoped (type 10), or AS-scoped (type 11).
Public
Router information
Segment routing capability

72 © Nokia 2017
• Extended to indicate support for
Segment Routing:
- SR-Capabilities Sub-TLV (IS-IS) or
SID/Label Range TLV (OSPF)
• Used to indicate label range and start
number.
- SR-Algorithm Sub-TLV used to
advertise algorithms used for path
calculation (SPF, CSPF etc).
• Two values currently defined:
- SPF (value 0)
- Strict SFP (value 1)
Public
Router information
Segment routing capability
Type Length Flags Range
Range (cont.)
I V
SID/Label Sub-TLV (variable)
Range Size
Type
Reserved
Length
Sub-TLVs (variable)
OSPF SID/Label Range TLV
(Carries a SID/Label Sub-TLV to represent first
SID/Label from the advertised range).
IS-IS SR-Capabilities Sub-TLV
I flag: IPv4 capable
V flag: IPv6 capable

73 © Nokia 2017
• Introduction of Prefix-SID SUB-
TLV, which may be present in
either:
- TLV-135 (IPv4), TLV-235 (MT-IPv4)
- TLV-236 (IPv6), TLV-237 (MT-IPv6)
• SID/Index/Label contains either:
- A 32-bit index defining the offset
in the SID/Label space advertised
by this router
- A 24-bit label, where the 20
rightmost bits are used for
encoding the label value
- A variable length SID (i.e. An IPv6
address SID)
Public
IS-IS extensions
Prefix-SID sub-TLV
Type Length Flags Algorithm
SID/Index/Label (variable)
R N P E V L
Flag Meaning
R-flag
Re-advertisement flag. If set, the prefix to which this Prefix-SID
is attached has been propagated by the router either from
another level (L2 to L1 or vice-versa) or from redistribution.
N-flag
Node-SID flag. If set, the Prefix-SID refers to the router
identified by the prefix (router loopback/system address). The
prefix to which the SID is attached must have a prefix length of
/32 (IPv4) or /128 (IPv6)
P-flag
No-PHP flag. If set, the penultimate hop must not pop the
Prefix-SID before delivering the packet to the advertising router.
E-flag
Explicit-Null flag. If set, any upstream neighbour of the Prefix-
SID originator must replace the Prefix-SID with a Prefix-SID
having an Explicit-Null value before forwarding the packet.
V-flag
Value flag. If set, the Prefix-SID carries an absolute value (instead
of an index)
L-flag
Local flag. If set, the value/index carried by the Prefix-SID has
local significance.

74 © Nokia 2017
• May be present in one of the IS-Neighbour
TLVs.
• Weight field is used for the purpose of load-
balancing across a number of adjacencies.
• Multiple Adj-SIDs can be allocated to a
single Adjacency, or the same Adj-SID can
be allocated to multiple adjacencies.
- Used for load-balancing
- A 32-bit index defining the offset in the
SID/Label space advertised by this router
- A 24-bit label, where the 20 rightmost bits are
used for encoding the label value
- A variable length SID (i.e. An IPv6 address SID)
Public
IS-IS extensions
Adjacency-SID sub-TLV
Flag Meaning
F-flag
Address-Family flag. If unset the Adj-SID refers to an adjacency
with IPv4 encapsulation. If set, the Adj-SID refers to an adjacency
with IPv6 encapsulation.
B-flag
Backup flag. If set, the Adj-SID refers to an adjacency that is
being protected (using Fast Reroute techniques). This allows a
head-end SR router to select only links that are protected
throughout the domain if the SLA for the SR tunnel dictates this.
V-flag Value flag. If set, the Adj=SID carries a value (default is set).
L-flag
local significance.
S-flag
Set Flag. When set, indicates that the Adj-SID refers to a set of
adjacencies (and therefore may be assigned to other adjacencies
as well).
Type Length Flags Weight
F B V L S

75 © Nokia 2017
• May be originated by any router in
an SR domain to advertise a
SID/Label to FEC binding along with
a ‘next-hop style’ anchor.
- Allows to advertise bindings from
external protocols.
- Can support more than one ‘next-
hop’ anchor to create a path
description analogous to an RSVP
Explicit-Route Object (ERO).
Public
IS-IS extensions
SID/label binding TLV
Flag Meaning
F-flag
Address-Family flag. If unset the Prefix FEC carries an IPv4 prefix.
If set, the Prefix FEC carries an IPv6 prefix.
M-flag
Mirror Context flag. Set if the advertised SID/path corresponds
to a mirrored context. Mirroring allows an SR router to advertise
a backup path for a service (edge) segment, allowing for local
(next-hop) repair using context-based switching
F M
Range Prefix Length FEC Prefix
FEC Prefix (continued, variable)
Sub-TLVs (variable)

76 © Nokia 2017
• Sub-TLVs field may contain:
- SID/Label sub-TLV containing a
SID/MPLS label.
- ERO Metric sub-TLV used to compare
the cost of a given source/destination
path.
- IPv4 or IPv6 ERO sub-TLV and backup
ERO sub-TLV, containing a list of strict
or loose hops from source to
destination for primary and backup
paths.
- Unnumbered Interface ID ERO sub-
TLV, containing interface index +
router-Id to disambiguate from other
unnumbered interfaces.
Public
IS-IS extensions
SID/label binding TLV (cont.)
Flag Meaning
Weight
Represents the weight of the path for the purpose of load-
balancing.
Range
Provides a compression scheme allowing a router to advertise a
contiguous set of prefixes and their corresponding contiguous
SID/label block.
Prefix
Length
Contains the length of the prefix in bits.
FEC
Prefix
The FEC at the tail-end of the advertised path. The FEC Prefix
does not need to correspond to a routable prefix of the
originating node.
F M
Range Prefix Length FEC Prefix
FEC Prefix (continued, variable)
Sub-TLVs (variable)

77 © Nokia 2017
• Introduction of new Extended Prefix
Opaque LSA defined to advertise
additional prefix attributes.
- Format of TLVs within the body of the LSA is
the same format as used by TE-Extensions
to OSPF.
- Extended Prefix TLV used to advertise
additional attributes associated with the
prefix.
Public
OSPF extensions
Extended prefix opaque LSA
Field Description
Route Type 0=unspecified, 1=intra-area, 2=inter-area, 5=external,
7=NSSA external
Prefix Length
Length of the prefix
AF 0=IPv4 unicast
Address Prefix Prefix encoded as an even multiple of 32-bit words
LS Age
Opaque Type (7)
Advertising Router
LS Checksum
Instance
LS Sequence Number
Length
Options
TLVs (variable)
Type
Route Type Reserved
Address Prefix (variable)
Sub-TLVs (variable)
Length
Prefix Length AF
OSPF Extended Prefix TLV
OSPF Extended Prefix Opaque LSA

78 © Nokia 2017
• The Prefix SID Sub-TLV is a Sub-TLV of the
OSPF Extended Prefix TLV.
• Support for Multi-Topology with MT-ID field.
• Algorithm specifies algorithm the Prefix-SID
is associated with:
• May also be carried in SR-Algorithm TLV of
Router Information Opaque LSA.
• Two values currently defined:
- SPF (value 0)
- Strict SFP (value 1)
Public
OSPF extensions
Prefix-SID sub-TLV
Flag Meaning
NP-flag
M-flag
Mapping Server Flag. If set, the SID is advertised from the
Segment Routing Mapping Server.
E-flag
V-flag
of an index)
L-flag
local significance.
Reserved
Type
Reserved
Range Size
Length
MT-ID
Flags Algorithm
MN
P
E V L

79 © Nokia 2017
• Range allows for distribution of a contiguous
prefix block and corresponding contiguous
SID/label block. Range size >1 represents
the number of addresses mapped into a
Prefix-SID
• SID/Index/Label value contains either:
– A 32-bit index defining the offset in the
SID/Label space advertised by this router
– A 24-bit label, where the 20 rightmost bits
are used for encoding the label value
Public
OSPF extensions
Prefix-SID sub-TLV (cont.)
Flag Meaning
NP-flag
M-flag
Mapping Server Flag. If set, the SID is advertised from the
Segment Routing Mapping Server.
E-flag
V-flag
of an index)
L-flag
local significance.
Reserved
Type
Reserved
Range Size
Length
MT-ID
Flags Algorithm
MN
P
E V L

80 © Nokia 2017
• The SID/Label binding Sub-TLV is a
Sub-TLV of the OSPF Extended
Prefix LSA.
• It may be originated by any router
in an SR domain to advertise a
SID/Label to FEC binding along with
at least one ‘next-hop style’ anchor.
- Allows to advertise bindings from
external protocols
- Can support more than one ‘next-
hop’ anchor to create a path
description analogous to an RSVP
ERO.
Public
OSPF extensions
SID/label binding sub-TLV
Flag Meaning
M-flag
Mirror Context flag. Set if the advertised SID/path corresponds
to a mirrored context.
Reserved
Reserved
Range Size
Length
MT-IDFlags Weight
M
Type
Sub-TLVs (variable)

81 © Nokia 2017
• Sub-TLVs field may contain:
- SID/Label sub-TLV containing a
SID/MPLS label.
- ERO Metric sub-TLV used to compare
the cost of a given source/destination
path.
- IPv4 or IPv6 ERO sub-TLV and backup
ERO sub-TLV, containing a list of strict
or loose hops from source to
destination for primary and backup
paths.
- Unnumbered Interface ID ERO sub-
TLV, containing interface index +
router-Id to disambiguate from other
unnumbered interfaces.
Public
OSPF extensions
SID/label binding sub-TLV (cont.)
Flag Meaning
MT-ID Support of Multi-Topology OSPF
Weight
Represents the weight of the path for the purpose of load-
balancing.
Range
Size
Provides a compression scheme allowing a router to advertise a
contiguous set of prefixes and their corresponding contiguous
SID/label block. Value >1 represents the number of addresses
mapped to the Prefix-SID
Reserved
Reserved
Range Size
Length
MT-IDFlags Weight
M
Type
Sub-TLVs (variable)

82 © Nokia 2017
• New Opaque LSA defined to advertise
additional link attributes.
• Format of TLVs within the body of the LSA is
the same format as used by TE-Extensions
to OSPF.
- Extended Link TLV used to advertise additional
attributes associated with the prefix (one for
each Extended Link Opaque LSA).
Public
OSPF extensions
Extended link opaque LSA
Field Description
Link Type
1=Point-to-Point connection to another router,
2=Connection to a transit network, 3=Connection to a sub
network, 4=Virtual link
Link ID
1=Point-to-Point connection to another router,
2=Connection to a transit network, 3=Connection to a sub
network, 4=Virtual link
Link Data
Value depends on link’s type field. See RFC 2328 Section
A.4.2
LS Age
Opaque Type (8)
Advertising Router
LS Checksum
Instance
LS Sequence Number
Length
Options
TLVs (variable)
Type
Link Type Reserved
Link ID
Sub-TLVs (variable)
Length
OSPF Extended Link TLV
Link Data
OSPF Extended Link Opaque LSA

83 © Nokia 2017
• Adj-SID is an optional Sub-TLV of the Extended Link TLV
and may appear multiple times in the Extended Link TLV.
• Support for Multi-Topology with MT-ID field.
• Weight field is used for the purpose of load-balancing
across a number of adjacencies.
• Multiple Adj-SIDs can be allocated to a single Adjacency,
or the same Adj-SID can be allocated to multiple
adjacencies.
- Used for load-balancing
- A 32-bit index defining the offset in the SID/Label space
advertised by this router
- A 24-bit label, where the 20 rightmost bits are used for
encoding the label value
Public
OSPF extensions
Adjacency-SID sub-TLV
Flag Meaning
B-flag
Backup flag. If set, the Adj-SID refers to an adjacency
that is being protected (using Fast Reroute
techniques). This allows a head-end SR router to
select only links that are protected throughout the
domain if the SLA for the SR tunnel dictates this.
V-flag
Value flag. If set, the Adj=SID carries an absolute
value (default is set).
L-flag
Local flag. If set, the value/index carried by the
Prefix-SID has local significance. If not set, the
value/index carried by this sub-TLV has global
significance
S-flag
Set Flag. When set, indicates that the Adj-SID refers
to a set of adjacencies (and therefore may be
assigned to other adjacencies as well).
Type
Reserved
Length
MT-ID
Flags Weight
LB V S

Segment Routing

More Related Content

What's hot (20)

Similar to Segment Routing (20)

More from APNIC (20)

Recently uploaded (20)

Segment Routing
