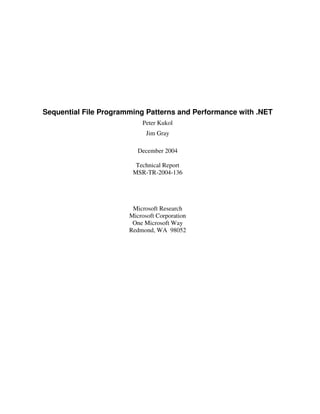

Sequential File Programming Patterns and Performance with .NET
Peter Kukol
Jim Gray
December 2004
Technical Report
MSR-TR-2004-136
Microsoft Research
Microsoft Corporation
One Microsoft Way
Redmond, WA 98052

ii
Table of Contents
1. Introduction............................................................................................................................................ 1
2. Buffered File I/O.................................................................................................................................... 1
3. Sequentially Reading a Binary File ....................................................................................................... 2
4. Creating and sequentially writing a binary file...................................................................................... 3
5. Reading and writing typed binary data.................................................................................................. 3
6. Reading and writing text data ................................................................................................................ 4
7. Summary of Simple Sequential File Access Programs.......................................................................... 4
8. Performance measurements ................................................................................................................... 5
9. Un-buffered file performance measurements ........................................................................................ 6
10. The cost of file fragmentation................................................................................................................ 7
11. Summary................................................................................................................................................ 8
References...................................................................................................................................................... 8
Appendix........................................................................................................................................................ 9
Abstract: Programming patterns for sequential file access in the .NET Framework are described and the
performance is measured. The default behavior provides excellent performance on a single disk – 50
MBps both reading and writing. Using large request sizes and doing file pre-allocation when possible
have quantifiable benefits. When one considers disk arrays, .NET unbuffered IO delivers 800 MBps on a
16-disk array, but buffered IO delivers about 12% of that performance. Consequently, high-performance
file and database utilities are still forced to use unbuffered IO for maximum sequential performance. The
report is accompanied by downloadable source code that demonstrates the concepts and code that was
used to obtain these measurements.

1
Sequential File Programming Patterns and Performance with .NET
Peter Kukol, Jim Gray
Microsoft Research
{PeterKu, Gray} @Microsoft.com
December 2004
1. Introduction
Sequential file access is very common. Sequential file performance is critical for gigabyte-scale and terabyte-scale files; it can
mean the difference between a task running in minutes or in days. This is the third in a series of articles that explores high-
performance sequential file access on Windows™ file systems. The original paper, written in 1997 [Riedell97], studied
Windows NT4 on a 200 MHz Pentium™ processor accessing “high-performance” 4 GB SCSI disks that delivered 7 MBps and
cost more than $1,000 each. The Year 2000 study [Chung00] looked at Windows2000™ operating on dual 750 MHz
processors accessing 27GB ATA disks that delivered 19 MBps and cost $400. This article examines WindowsXP™ and
Windows Server 2003™ on dual 2.8 GHz processors accessing 250 GB SATA disks delivering 50 MBps and costing $130
each. Previous articles explained how to use low-level programming to trick the operating system into giving you good
performance. The theme of this article is that the default behavior gives great performance, in large part because the hardware
and software have evolved considerably over the years. So the article is really about how to write simple sequential file access
programs on Windows™ systems using the .NET framework. It covers sequential text and binary access as well more
advanced topics such as un-buffered access. It measures the speed and overhead impacts of block size, fragmentation, and other
parameters. The concepts and techniques are illustrated using simplified C# code snippets available for download as a
companion to this article [download].
2. Buffered File I/O
Sequential file access is very predictable, one can pre-fetch the next read and one can
stream the sequence of writes. Randomly reading a disk, 8KB at a time, retrieves about
one megabyte of data per second. Sequential access delivers 50 times more data per
second. This sequential:random performance ratio is growing as technology improves
disk densities and as disks spin faster. Applications are increasingly learning to buffer
the “hot” data in main memory and sequentially pre-fetch data from and post-write data
to disk.
Like most runtimes, the .NET framework and Windows does this buffering for you when
it detects a sequential file access pattern. As Figure 1 shows, the lower layers of the IO
stack perform additional buffering. You might look at Figure 1 and say: “All those layers
mean bad performance.” Certainly, that is what our intuition tells us. But surprisingly
most of the layers “get out of the way” in the common path, so the actual cost-per-byte is
very low for sequential IO; yet, the layers provide excellent default behavior.
The main effect of buffering is to combine small logical read and write requests into
fewer-larger physical disk I/O requests. This avoids reading the disk when the data is
already in memory, thus improving performance. As an extreme example, consider a file
being written one-byte-at-a-time. Without buffering, every write request would read a
block from the disk, modify a byte, and then write the block back to the disk. Buffering
combines thousands of such reads and writes into a single write that just replaces the
block-values on disk (without ever having to read the old values of the blocks). The
.NET runtime stream classes and Windows file system provide this buffering by default.
Buffering uses extra memory space, extra memory bandwidth, and extra CPU cycles.
Seven years ago, this overhead was an important issue for most applications [Riedel97]. But, as explained in the first
paragraph, processor speeds have improved 28-fold while disk speeds have improved a “mere” seven-fold. Measured in
relative terms, disks have become four times slower than processors over the last decade – so sacrificing some processor and
memory performance in exchange for better disk performance is a good bargain [Patterson]. It is RARE that a modern system
is cpu-bound.
Our measurements and experience suggest that the cost of buffering is relatively minor and that the benefits almost always
outweigh the costs. Thus, the default buffering should used unless measurements conclusively prove that its performance is
significantly worse – a rare event. If your program is waiting, it is likely waiting for network or disk activity rather than waiting
for a cpu. There are scenarios, notably in server-oriented transaction processing systems, where disabling buffering is
appropriate. Sections 7and 8 quantify buffering costs so that you can evaluate this tradeoff for your application.
Application Code
Memory buffer
Stream API’s
Windows API
Disk Media
Cache Manager
Disk Controller
Windows
.NET
ATA / SCSI commands
Cache
Host Bus Adapter
(raid controller)
Cache
Disk
Figure 1: Hardware and software
layers and caching in the disk IO path.

2
3. Sequentially Reading a Binary File
Opening a binary file and creating a stream to read its contents can be done in one step by creating a new instance of the
FileStream class. The FileStream() constructor has many flavors (overloaded versions); let’s use the simplest one at first:
The only required arguments are the file name and the open ‘mode’. The file name is a string for the full path to the file or it is
interpreted relative to the current directory search path. The string constant used above is preceded by “@” to avoid needing
double back-slashes in the file name like this: “C:temptest.dat” (the “@” notation is unique to C#). The file name is
usually a path on a local disk, but it may be on a network share (e.g. @“serversharetest.dat”). In Windows, file
names are not case sensitive.
The second parameter is a ‘FileMode’ enumeration value. The most common file modes are:
The file must already exist. Used to access existing files.
If the file already exists truncate it, otherwise create it. (It is like CreateNew or Truncate.)
A new file will be created. An exception is thrown if the file already exists. Avoids over-writing existing files.
Open an existing file; if it does not exist create an empty file. (It is like CreateNew or Append.)
If the file exists, it is opened and data will be appended at its end.
If the file doesn’t already exist, a new one is created. (It is like OpenOrCreate, but writes at the end.)
The file must already exist. Open and truncate the current file contents.
Opening a file may fail for several reasons. The file may not exist or the path may not be valid or you may not be authorized,
or... Thus, the code should be wrapped in an exception handler. Ideally the handler would deal with each specific exception, but
a simple handler that catches all exceptions (and displays the exception string before exiting) is the minimum requirement:
Once the FileStream is open, the basic choices are to read byte-at-a-time, line-at-a-time (if it is text), or byte-array–at-a-time.
The easiest approach is to read one byte at a time:
There is substantial overhead associated with reading each byte individually (see Figure 3 in section 8). If this overhead is an
issue, an alternative is to read line-at-a-time or an entire byte array each time (and process each byte with an inner loop). The
following two snippets demonstrate those metaphors:
try { FileStream fs = new FileStream(fileName, FileMode.Open); }
catch (Exception e) {
Console.WriteLine("Error opening file ‘{0}’. n {1}", fileName, e);
throw new FileNotFoundException("Error opening file: " + fileName, e );
}
int nextByte = 0; // holds next byte in the stream (or -1)
while (0 <= (nextByte = fs.ReadByte())) { // ReadByte()returns -1 at end of file
/* ... process 'nextByte' ... */
}
using (StreamReader sr = new StreamReader(fileName)){
string line;
while ((line = sr.ReadLine()) != null) {
/* ... process bytes line[0]… line[line.Length-1] */
} }
string fileName = @"C:TEMPTEST.DAT";
...
FileStream fs = new FileStream(fileName, // name of file
FileMode.Open); // mode (open/create/etc)

3
and:
The FileStream() constructor has several overloaded versions that let you control how the file is accessed. For example, to
sequentially read a large file we can create the stream as follows:
This explicitly sets the IO transfers to be 256 KB. A rule of thumb is that larger transfer sizes are better (within reason), and
powers of 2 work best. The measurements in Section 8 are a guide to selecting a good transfer size. The SequentialScan flag
hints that access to the file will be sequential (recommending to the file system that it pre-fetch and post-write the data in large
transfers).
4. Creating and sequentially writing a binary file
Sequential file writing is very similar to reading, except that proper buffering is extremely important. Without buffering, when a
program changes just one byte, the file system must fetch the disk block that contains the byte, modify the block and then
rewrite it. Buffering avoids this read-modify-write IO behavior. Windows and .NET provide write buffering by default, so that
whole blocks are written and so that there are no extra reads if the block is being replaced. Assuming the FileStream fs has
been opened, the byte-at-a-time write code is:
It is often better to accumulate an entire buffer of data, and write the entire buffer out at once:
New FileStream data isn’t immediately reflected on the physical disk media. The new data is buffered in main memory. The
.NET framework will flush the buffer under various conditions. Modified data are written out to the physical media by lazy
background threads in the framework and the file system – a two-stage buffering process. It may be many seconds before
modified data is written to disk; indeed, a temporary file may never be written if it is immediately deleted. The Flush() stream
method returns when all that stream’s .NET buffers have been written to the file system. To force the file system write to disk
controller, you must call the FlushFileBuffers() Windows API (see the IOspeed.fileExtend() program for an example of
this [download]). It is likely that Flush() will be overloaded to have a full-flush option in the future. Forcing the disk
controller to write to disk is problematic – some disks and controllers observe the “force unit access” option in SCSI and
SATA, but some do not. The NTFS flush() generates this command but it is often ignored by the hardware.
5. Reading and writing typed binary data
When integers, floats, or other values are written to or read from files, one option is to convert the values to text strings and use
FileStreams. The problem with doing that is that you have to serialize the data yourself, converting between the value and its
representation as a series of bytes in the byte[] buffer. This can be tedious and error-prone. Fortunately the framework
int fileIOblockSize = 64 * 1024; // read up to 64KB each time
byte [] IObuff = new byte[fileIOblockSize]; // buffer to hold bytes
while (true) {
int readCount = fs.Read(IObuff, 0, IObuff.Length);
if (readCount < 0)
break;
/* ... process ' IObuff[i]' for i = 0...readCount-1*/
}
FileStream fs = new FileStream(fileName, // name of file
FileMode.Open, // open existing file
FileAccess.Read, // read-only access
FileShare.None, // no sharing
2 << 18, // block transfer size = 256 KB
FileOptions.SequentialScan); // sequential access
byte[] IObuff = new byte[fileIOblockSize]; // buffer holds many bytes
for (int writeCount= 0; writeCount < fileIOblockSize*10; // write 10 buffers
writeCount += fileIOblockSize) {
for (int k = 0; k < IObuff.Length; k++) // fill the “write” buffer
IObuff[k] = (byte)(random.Next() % 256); // with random bytes
fs.Write(IObuff, 0, IObuff.Length); // write out entire buffer
}
Random rand = new Random(); // seed a random number generator
for (int j = 0; j < 100; j++) { // write 100 random bytes
byte nextByte = (byte)(random.Next() % 256); // generate a random byte
fs.WriteByte(nextByte); // write it
}

4
provides a convenient pair of classes, BinaryReader() and BinaryWriter(), that read and write binary data. You simply
“wrap” an instance of the binary class around our FileStream and then you can directly read and write any built-in type,
including integers, floats, decimals, datetime, and strings.
The FileStream.Write() method can be called with an argument of any base type. The method’s properly overloaded version
will output the binary value. Reading binary values from a stream is the mirror image of this; calling the appropriate reader
function such as ReadInt16() or ReadString()on a BinaryReader as shown in the following examples.
Writing typed data to a file. Reading the data from the file.
// Open a file for writing
FileStream fs = new FileStream("...",
FileMode.CreateNew,
FileAccess.Write);
// Create a binary writer on the file stream
BinaryWriter bw = new BinaryWriter(fs);
// Write an integer value to the stream
uint integer_val = <whatever>;
bw.Write(integer_val);
// Write a string value to the stream
string string_val = <whatever>;
bw.Write(string_val);
… etc …
bw.Close(); // Close the stream
// Open a file for reading
FileStream fs = new FileStream("...",
FileMode.Open,
FileAccess.Read);
// Create a binary writer on the file stream
BinaryReader br = new BinaryReader(fs);
// Read an integer value to the stream
uint integer_val = br.ReadUInt32();
// Read a string value to the stream
string string_val = br.ReadString();
… etc …
// Close the binary reader
br.Close();
6. Reading and writing text data
Text files are sequences of lines, strings terminated by a <new-line, carriage-return> character pair (UNIX lines are terminated
by just a new-line character.) Text files can be read as a FileStream as described above; but, the StreamReader and
StreamWriter classes also implement simple text-oriented file I/O and handle things such as file encoding (ASCII vs. Unicode
and so on). Once you’ve opened a file for input or output and have a FileStream instance for it, you can wrap it in a
StreamReader or StreamWriter instance and then easily read or write text lines. Here is an example that counts the lines in a
file:
7. Summary of Simple Sequential File Access Programs
The previous sections showed the rudiments of creating, writing, and reading files in .NET. The next section presents
measurements showing that this simple approach delivers impressive performance. It is rare that an application needs more
than this direct approach. But, section 9 presents advanced topics that may be useful to very data intensive applications.
To summarize, the following simple program shows how to sequentially create and read a file. The error handling has been
removed to simplify the presentation.
using System;
using System.IO;
class Examples {
static void Main(string[] args) {
string filename = @"C:TEMPTEST.DAT"; // a file name
FileStream fs = new FileStream(filename,// name of file
FileMode.Create);// mode (create a new file)
for (int i = 0; i < 100; i++) // write 100 bytes in the file
fs.WriteByte((byte)'a'); // each byte is an "a"
fs.Position = 0; // reposition at start of file.
while(fs.Position<fs.Length) // read to end of file
{int nextByte = fs.ReadByte();} // one byte at a time
fs.Close(); // close the file
File.Delete(filename); // delete the file we just created
}
}
FileStream fs = new FileStream(fileName, FileMode.Open);
StreamReader sr = new StreamReader(fs);
ulong lc = 0;
while (sr.ReadLine() != null)
lc++;
Console.WriteLine("The file '" + fileName + "' contains " + lc + " lines of text");

5
8. Performance measurements
The performance of the simple file access programs was measured using Beta 1 of the .NET Framework Version 2.0 under
Windows XP SP2 on the following hardware:
Tyan S2882 motherboard
Dual AMD Opteron 246 CPU’s
2 GB PC3200 DDR RAM
SuperMicro MV-SATA disk controller
Maxtor 250 GB 7200 RPM SATA disk
The write benchmarks were run on a freshly formatted 250GB volume. The 30GB test file was recreated every time unless
otherwise noted. The file sizes are large enough to overflow any caches Section 10 discusses the effects of disk fragmentation.
The performance results used the programs at the download site and the detailed spreadsheet of measurements is also on that
site [download].
Figure 2 shows the sequential FileStream speed in MB/sec vs. buffer size; the buffer
size varied from 1 byte through 4 MB. Note that the first buffer size entry (labeled
‘1B’) corresponds to the readByte() or writeByte() case. All the other entries
correspond to reading or writing a byte[] buffer of the indicated size. The graph
shows that, except for very small and very large buffers, the speed is nearly constant
at about 50 MB/sec.
The slightly higher write speed is due to Windows and disk controller caching.
When a write is posted control usually returns immediately to the program which
can then continue; whereas, when a synchronous read is issued the program has to
wait until all of the data has arrived.
Figure 3 shows the average cost, in CPU cycles per byte of FileStream sequential
reads and writes. It shows that using larger buffers reduces the per-byte overhead
significantly. Specifically, the overhead stabilizes at around 5 cycles per byte for
writes and 10 cycles per byte for reads at request sizes of 64 KB. This suggests that
a dual 2 GHz cpu like the one benchmarked here could sustain over 1GBps of file
activity. Other measurements have shown this to be the case. [Kukol04]. Most
applications run at 1% or 10% of that speed, so it seems FileStream access is
adequate for almost any application. As shown in Figures 6 and 7, a file striped
across 16 disk drives delivers 800 MBps and uses about 30% of a processor – when
those experiments are done with buffered IO the speed is dramatically less – about
100 MBps vs 800 MBps – so for now, the .NET runtime is OK for single disks, but
un-buffered IO is needed to drive disk arrays at speed..
To summarize: for simple sequential file access it’s a good idea to use the
FileStream class with a request size of 1 KB or larger. Request sizes of 64KB or
larger have minimal cpu overhead.
Sequential I/O -
bandwidth (MB/sec) vs. request size
0
10
20
30
40
50
60
1B
4
8
16
32
64
256
1K
4K
8K
64K
1M
4M
Request size
MBps
Read
Write
Figure 2: Buffered FileStream
bandwidth vs. request size. Beyond 8-
byte requests, the system runs at disk
speed of around 50 MBps.
Sequential I/O -
CPU cycles/byte vs. block size
1
10
100
1B
4
8
16
32
64
256
1K
4K
8K
64K
1M
4M
Request size
CyclesPerByte
Read
Write
Figure 3: CPU consumption per byte of
IO vs. request size. At 4KB and larger
buffers the overhead stabilizes at about 5
or 10 clocks per byte.

6
9. Un-buffered file performance measurements
FileStream buffering can be disabled for that stream when it is opened. This bypasses the file cache and avoids the consequent
overhead of moving data between the NTFS cache, the .NET cache and the application data space. In un-buffered IO, the disk
data moves directly between the application’s address space and the device (the device adapter in Figure 1) without any
intermediate copying. To repeat the conclusion of the last section, the FileStream class does a fine job. Most applications do
not need or want un-buffered IO. But, some applications like database systems and file copy utilities want the performance
and control un-buffered IO offers.
There is no simple way to disable FileStream buffering in the V2 .NET framework. One must invoke the Windows file system
directly to obtain an un-buffered file handle and then ‘wrap’ the result in a FileStream as follows:
Calling CreateFile() with the FILE_FLAG_NO_BUFFERING flag tells the file
system to bypass all software memory caching for the file. The ‘true’ value
passed as the third argument to the FileStream constructor indicates that the
stream should take ownership of the file handle, meaning that the file handle will
automatically be closed when the stream is closed. After this hocus-pocus, the
un-buffered file stream is read and written in the same way as any other.
Un-buffered I/O goes almost directly to the hardware, so the request buffers must
be aligned to a sector boundary (both in memory and within the file), and the
request size must be a multiple of the volume’s sector size. VirutalAlloc()
returns storage aligned to a page boundary – so unmanaged request buffers can be allocated from such page aligned storage.
Today sectors on most disks are 512 bytes, but in the future they may well be much larger so a 64KB alignment is
recommended. IOspeed.DriveSectSize()determines the device sector size of a file [download].
Figure 4 shows the per-byte overhead of reading/writing files with buffering disabled. The overhead of un-buffered IO using
large requests is approximately 0.2 – 0.3 cycles per byte.
Not surprisingly, Figure 5 shows that a 64KB transfer size is necessary to achieve the highest speed with un-buffered I/O. A
rule of thumb is that the minimum recommended transfer size is 64 KB and that bigger transfers are generally better.
Unbuffered sequential I/O
cycles/byte vs. Request size
64.1
8.3
4.4
1.2
0.5
0.3
0.3
55.2
18.3
6.8
1.6
0.7
0.5 0.5
34.5
.1
1.
10.
100.
512 1K 4K 8K 64K 256K 1M 4M
Request Size
cyclesperbyte
Read
Write
Figure 4: Un-buffered IO CPU cost is 10x
less than buffered IO for large requests.
Unbuffered Sequential I/O
bandwidth (MB/sec) vs. Request size
0
10
20
30
40
50
60
512
1K
4K
8K
64K
256K
1M
4M
Request size
MBps
Read
Write
Figure 5: Un-buffered IO has good
throughput at 64KB request sizes.
[DllImport("kernel32", SetLastError=true)]
static extern unsafe SafeFileHandle CreateFile(
string FileName, // file name
uint DesiredAccess, // access mode
uint ShareMode, // share mode
IntPtr SecurityAttributes, // Security Attr
uint CreationDisposition, // how to create
uint FlagsAndAttributes, // file attributes
SafeFileHandle hTemplate // template file
);
SafeFileHandle handle = CreateFile(FileName,
FileAccess.Read,
FileShare.None,
IntPtr.Zero,
FileMode.Open,
FILE_FLAG_NO_BUFFERING,
null);
FileStream stream = new FileStream(handle,
FileAccess.Read,
true,
4096);

7
Un-buffered file streams can drive very fast disk configurations. Using Windows disk manager, we created a striped NTFS
volume (often called “software RAID 0”) that spanned 16 physical drives spread across two 8-port SuperMicro SATA
controllers in two PCI-X busses and measured file stream read and write
speeds. Figures 6 and 7 show that the file can be read at about 800 MB/sec
and written at about 400 MB/sec using un-buffered I/O – the limited write
speed is an artifact of the disk drives we used (8 of them were Hitachi
400GB drives that write at 25MBps and so slow the entire array to that
write speed.) When large requests are used, the CPU overhead (clocks per
byte) is quite low – about 0.7 clocks per byte. Striped NTFS volumes
require the operating system do more work to distribute the I/O requests
across the physical media and this is reflected in a slightly higher overhead
when Figure 7 is compared to Figure 4.
These experiments indicate that a simple C# file stream program is capable
of reading a large disk array at speeds on the order of 800 MB/sec with low
processor overhead. They also show that the controller and bus bottlenecks
observed 5 years ago by Chung [Chung00] have been addressed. Most
controllers can support 8 drives and most 64-bit PCI-X can support
750MBps transfers. Figure 6 requires two such busses, but with PCI-
Express will easily support the bandwidth of 8 future disks.
10. The cost of file fragmentation
When a large file is created by incrementally appending data – new file
extents are allocated as the file grows. These extents are not necessarily
contiguous – they are allocated using a best-fit algorithm. If a file has
many non-contiguous extents, we say the file is fragmented. A sequential
scan of a fragmented file can be a random scan of the disk as the scan reads
each fragment in turn. Fragmentation can cause a significant performance
loss both when the file is initially created and when it is later accessed.
Simple techniques can reduce fragmentation when creating or extending large files, and utilities can reduce fragmentation of
existing files by reorganizing the disk. When the approximate file size of a file is known in advance it is best to tell the file
system the estimated size as soon as possible (ideally, immediately after the file is opened.) This lets the file system efficiently
pre-allocate the largest possible chunks (the fewest fragments) of physical media to hold all of the file contents and thereby
reduce fragmentation. The simplest way to do this is to extend the file to the known final size. With a FileStream, this is done
by invoking the SetLength() method. The following code creates and allocates a 128 megabyte file:
FileStream fs = new FileStream(fileName, FileMode.OpenOrCreate);
fs.SetLength(128 * 1024 * 1024);
Figure 8 shows how file creation speed improves when the final file
size is set at creation time. The tests were run on a freshly formatted
volume (“clean disk”) as well as a volume that was fragmented with
a tool we built [download]. Since fragmentation in the real world is
a stochastic process, the tool repeatedly creates and deletes files
randomly. We then ran the tests (taking the median of all the
measurements.) As can be seen from the graphs, one should make
at least 1 KB write requests to get decent performance. Beyond that,
if the disk is fragmented, it pays to tell the file system about the final
file. Declaring the file size at creation time reduces the disk
fragmentation slow-down from about 25% to about 15% -- (46MBps
and 39MBps respectively). The 15% pre-allocated file slowdown is
caused by disk zoning – the innermost zone runs at 34 MBps while
the outermost zone runs at 57MBps – the average speed of 46MBps
is almost exactly the “red line” speed measured for preallocated files
in Figure 8. On a “clean disk,” files are allocated in the outer band
of the disk. On a fragmented disk, files are typically allocated in
the middle and inner disk zones that have lower byte transfer rates.
We conclude from this that fragmentation reduces sequential performance by about 13%.
Sequential Write Speed vs. Block Size vs.
Fragmentation and Allocation
0
10
20
30
40
50
60
70
1 byte 1KB 64KB 256KB
write request size
MB/s
Clean Disk: PreAllocate
Clean Disk: Allocate on Demand
Fragmented Disk: PreAllocate
Fragmented Disk: Alloc on Demand
Series5
dotted lines show variance
one standard deviation
Figure 8: File creation speed vs. write-request
size, disk fragmentation and pre-allocation of file
length. The dotted lines show the standard
deviation of each measurement.
Striped Un-buffered Sequential I/O
bandwidth vs. request size
0.0
100.0
200.0
300.0
400.0
500.0
600.0
700.0
800.0
900.0
4K 64K 128K 256K 512K 1M 4M
Request size
SpeedMB/sec
read
w rite
Figure 6: Striped volume throughput. The
400 MBps write plateau reflects the speed
disk speed limit of eight of the 16 drives.
Striped Un-buffered Sequential I/O
CPU cycles/byte vs. request size
0.0
1.0
2.0
3.0
4.0
5.0
6.0
7.0
8.0
9.0
10.0
4K 64K 128K 256K 512K 1M 4M
Request size
CPUcycles/byte
read
w rite
Figure 7: Striped volume cycles per byte.

8
11. Summary
Seven years ago, one had to be a guru to read or write disks at 7MBps [Riedel97]. That programming style is still possible (see
the Appendix for an example.) Now, the out-of-the-box default performance is 7x that and disk arrays deliver over 1 GBps. In
part this is because processors, disks, and controllers have improved enormously; but, in large part it reflects the fact that the
software stack described in Figure 1 has been streamlined and redesigned so that it usually does the right thing. This evolution
is not complete (e.g. the flush option does not flush the NTFS cache), but those details are being repaired as we write this
article.
In 1997 and 2000, 4 disks could saturate a disk controller and one controller could saturate a bus. Modern controllers can
handle the bandwidth of 8 disks and modern busses can handle the bandwidth of two controllers.
To summarize our findings:
(1) For single disks, use the defaults of the .NET framework – they deliver excellent performance for sequential file
access.
(2) Pre-allocate large sequential files (using the SetLength() method) when the file is created. This typically
improves speed by about 13% when compared to a fragmented file.
(3) At least for now, disk arrays require un-buffered IO to achieve the highest performance. Buffered IO can be 8x
slower than un-buffered IO. We expect this problem will be addressed in later releases of the .NET framework.
(4) If you do your own buffering, use large request sizes (64KB is a good place to start).
(5) Using the .NET framework, a single processor can read and write a disk array at over 800 MBps using un-
buffered IO.
One can characterize the three articles in this series as:
Riedel 1997: Windows can drive SCSI disks and disk arrays as fast as they can go, if you are a guru. Controllers and
busses are bottlenecks.
Chung 2000: IDE disks are slower than SCSI but they have great price-performance. Controllers and busses are
bottlenecks.
Kukol 2004: .NET runtime delivers excellent performance by default and it is easy to configure balanced IO systems with
commodity SATA disks and controllers.
Certainly, there will be an opportunity to redo these experiments in 2010, but we are unclear what the future holds. We expect
the .NET framework to fix the buffered disk array performance issues and to make it easier to disable all buffering. Since disk
capacities will likely be in the 3 terabyte range by then, we assume issues of file placement, archiving, and snapshoting will be
the dominant concerns.
References
[Chung00] L. Chung, J. Gray, B. Worthington, R. Horst, Windows 2000 Disk IO Performance, MSR-TR-2000-55,
September2000
[Download] http://research.microsoft.com/research/downloads/ and
http://research.microsoft.com/research/downloads/download.aspx?FUID={A6F86A1E-0278-4C72-9300-F747251C3BF0}
[Kukol04] P. Kukol, J. Gray, “Sequential Disk IO Tests for GBps Land Speed Record,” March 2004, MSR-TR-2004-62
http://research.microsoft.com/research/pubs/view.aspx?type=Technical%20Report&id=766
[Patterson] D. Patterson, “Latency Lags Bandwidth,” ROC retreat, January 2004,
http://roc.cs.berkeley.edu/retreats/winter_04/posters/pattrsn_BWv1b.doc
[Riedel97] E. Reidel, C. VanIngen, J. Gray, A Performance Study of Sequential IO on WindowsNT™ 4.0, MSR-TR-97-34,
September 1997
Acknowledgments
Leonard Chung, Catharine vanIngen, and Bruce Worthington were very helpful in designing these experiments and made
several consturcive suggestions for improving the presentation.

9
Appendix
The following code shows what is needed to do asynchronous and un-buffered IO. It gives the example of a program that
copies one file to another. The reader launches N reads and then, as they complete, it writes the buffer to the target file. The
asynchronous write completion callback issues the next read on that buffer. This code has no error handling; it is literally the
shortest program we could write (error handling is included in the download version of this program [download].) It is
included here to persuade you that you do not want to do this unless you really are in pain. Buffering allows you to
overlap reads and writes and get most of the benefits of this asynchronous code.
using System;
using System.IO;
using System.Threading;
namespace AsyncIO {
class FileCopy {
// globals
const int BUFFERS = 4; // number of outstanding requests
const int BUFFER_SIZE = 1<<20; // request size, one megabyte
public static FileStream source; // source file stream
public static FileStream target; // target file stream
public static long totalBytes = 0; // total bytes to process
public static long bytesRead = 0; // bytes read so far
public static long bytesWritten = 0; // bytes written so far
public static Object WriteCountMutex = new Object[0]; // mutex to protect count
// Array of buffers and async results.
public static AsyncRequestState [] request = new AsyncRequestState [BUFFERS];
// structure to hold IO request buffer and result.
public class AsyncRequestState { // data that tracks each async request
public byte[] Buffer; // IO buffer to hold read/write data
public AutoResetEvent ReadLaunched; // Event signals start of read
public long bufferOffset; // buffer strides thru file BUFFERS*BUFFER_SIZE
public IAsyncResult ReadAsyncResult;// handle for read requests to EndRead() on.
public AsyncRequestState(int i){ // constructor
bufferOffset = i * BUFFER_SIZE; // offset in file where buffer reads/writes
ReadLaunched = new AutoResetEvent(false); // semaphore says reading (not writing)
Buffer = new byte[BUFFER_SIZE]; // allocates the buffer
} } // end AsyncRequestState declaration
// Asynchronous Callback completes writes and issues next read
public static void WriteCompleteCallback(IAsyncResult ar) {
lock (WriteCountMutex) { // protect the shared variables
int i = Convert.ToInt32(ar.AsyncState); // get request index
target.EndWrite(ar); // mark the write complete
bytesWritten += BUFFER_SIZE; // advance bytes written
request[i].bufferOffset += BUFFERS * BUFFER_SIZE; // stride to next slot
if (request[i].bufferOffset < totalBytes) { // if not all read, issue next read
source.Position=request[i].bufferOffset; // issue read at that offset
request[i].ReadAsyncResult = source.BeginRead(request[i].Buffer,0, BUFFER_SIZE,null,i);
request[i].ReadLaunched.Set();
} } }
// main routine implements asynchronous File.Copy(@"C:tempsource.dat", @"C:temptarget.dat");
static void Main(string[] args) {
source = new FileStream(@"C:source.dat", // open source file
FileMode.Open, // for read
FileAccess.Read, //
FileShare.Read, // allow other readers
BUFFER_SIZE, // buffer size
true); // use async
target = new FileStream(@"C:target.dat", // create target file
FileMode.CreateNew, // fault if it exists
FileAccess.Write, // will write the file
FileShare.None, // exclusive access
BUFFER_SIZE, // buffer size
true); // use async
totalBytes = source.Length; // Size of source file
AsyncCallback writeCompleteCallback = new AsyncCallback(WriteCompleteCallback);
for (int i = 0; i < BUFFERS ; i++) request[i] = new AsyncRequestState(i);
// launch initial async reads
for (int i = 0; i < BUFFERS; i++) { // no callback on reads.
request[i].ReadAsyncResult = source.BeginRead(request[i].Buffer, 0, BUFFER_SIZE, null, i);
request[i].ReadLaunched.Set(); // say that read is launched
}
// wait for the reads to complete in order, process buffer and then write it.
for (int i = 0; (bytesRead < totalBytes ); i = (i+1) % BUFFERS) {
request[i].ReadLaunched.WaitOne(); // wait for flag that says buffer is reading
int bytes = source.EndRead(request[i].ReadAsyncResult); // wait for read complete
bytesRead += bytes; // process the buffer <your code goes here>
target.BeginWrite(request[i].Buffer, 0, bytes, writeCompleteCallback, i); // write it
} // end of reader loop
while (pending > 0) Thread.Sleep(10); // wait for all the writes to complete
source.Close(); target.Close(); // close the files
} // end of async copy.
}
}

10
IOspeed.exe tests read and write bandwidth to a file
Usage:
IOspeed [options] filePath
Options:
-r[fileSize] read optionally with file size to be created if needed (default=1G)
-w[fileSize] write (default is read) optionally with file size to be written (default=1G)
-t<seconds> test duration (default=30 seconds)
-b<size> I/O block size (default=64K)
-a[count] use asynch (overlapped) I/O, (Default is sync, default async depth is 4).
-d disable .NET and NTFS disk caching (memory buffering)
-s[seekDistancePercentage] random I/O (default is sequential)
optionally average seek distance percentage of filesize, default=100.
-x< fileSize> create/extend/fill a file to given size
-p< fileSize> like –x but preallocate file before writing (reduces fragmentation).
-c touch every byte in the source file (more memory and cpu load)
-q quiet mode (as opposed to verbose), write data as comma separated list.
sizes suffixed with K, M, or G are are interpreted as Kilo, Mega, or Giga bytes.
Examples:
Iospeed –t30 –b64K –r1G –s0 a.dat // the default settings, same as next line
Iospeed a.dat // sequential read a.dat, 64KB requests, buffering for 30 seconds
Iospeed –t60 -p100M a.dat // preallocates 100MB file a.dat, then reads it for 60 seconds
Iospeed -t30 -w100M -p a.dat // preallocates 100MB file a.dat, then writes it for 30 seconds
Iospeed –a2 -b256K a.dat // 2-deep async read of a.dat in 256KB requests
Description
IOspeed tests read and write bandwidth to a file.
The –r and –w options measure read and write speed respectively. They can be modified by the –t<seconds> option to request
a test duration different from the 30 second default, or with a –a<count> option to request asynchronous IO with the specified
count of outstanding IOs, or with the –d option to disable .NET and NTFS file caching, or with the –b option to specify an IO
request size other than the 64KB default, and with a –s<percentage> option to request random seeks between IOs (-s0) is the
sequential default and –s100 causes the seek to go to a random place on the disk. The percentage is a distance control, not a
fraction of sequential-random. The –c option asks the cpu to “touch” every byte rather than just discarding the bytes from main
memory, making the cpu and memory bandwidth load more realistic.
The default file size is 1GB. The fileSize option can override this value. If the file does not exist it is created with this size. If
the file already exists, and it is smaller than the requested size, it is extended to have this size. These file extension and the
write tests overwrite the file.
The –x and –p options test the speed of file extension with and without pre-allocation. If there is a preexisting file with that
name, it is deleted and a new empty file is created. –x incrementally grows the file by appending to the end (using synchronous
writes of the given block size). The –p option first sets the file length, thereby allocating fewer fragments and then acts just like
the –x option.

11
FragDisk.exe fragments a disk by creating a large number nearly filling the disk and then deleting
some of the files at random to create “holes”.
Usage
FragDisk [options] directoryPath
Options:
-m<count> set max. number of files to create (default=100000)
-Fm<size> set min. file size (in MB) (default=1)
-FM<size> set max. file size (in MB) (default=256)
-c<count> set number of files per cycle (default=1000)
-d<count> set max. number of files per directory (default=100)
-s<count> set max. number of sub-directories per directory (default=10)
-n<count> set max. create/delete cycles, 0 = no limit (default=0)
-k<pctg> set percentage (1-99) of files to keep (default=5)
-f<pctg> set desired percentage (1-99) to fill the volume (default=70)
-r<value> set random seed (default=137)
Example:
FragDisk –f95 –k10 c:temp
Description:
This code creates many directories and files (of various sizes) and then deletes a random subset of them thereby creating a
fragmented disk. The file sizes are randomly chosen between 1MB and 256MB. FragDisk recursivly buids a directory tree
with enough sub-directories in it so that the leaves can accommodate enough files to fill the disk to the desired fullness. It then
crates enough files of sizes chosen randomly between 1MB and 256MB (or sizes specified via the –F command-line options)
to fill the disk to –f percentage. It then deletes a random subset of these files so that the disk shrinks ot –k percent full. It
repeats this process for –n cycles.

12
IOexamples.exe source code examples from the paper.
Usage
IOexamples.exe [fileName [ recordCount] ]
Options:
default file name is: C:IO_Examples_temp.txt
default record count is 1,000,000
Example:
IOexamples C:temptest.dat 10000000 -- creates and tests a file of 100m 100-byte records
Description:
This code demonstrates different styles of and performance of sequential file IO on Windows NTFS file systems using .NET IO
classes. They are the examples for the MSR Technical Report by Kukol and Gray titled: “Sequential File Programming
Patterns and Performance with .NET”. These are typicaly IO programming patterns.
This times the following cases:
Read | Write
byte-at-a-time | line-at-a-time | 64KB block-at-a-time.
The file-write-speed test builds the sort benchmark file specified at http://research.microsoft.com/barc/SortBenchmark/

13
AsyncCopy.exe source code for async copy shown on page 9.
Usage
AsyncCopy
Options:
none
Example:
AsyncCopy -- creates and copies a 1GB file
Description:
This code is the full project (with error handling) of the async copy program in the appendix of the Micrsoft Technical Report
by Kukol and Gray titled: Sequential File Programming Patterns and Performance with .NET. The code is downloadable from:
http://research.microsoft.com/research/downloads/. The program creates the 1GB file C:tempsource.dat and copies it
to C:temptarget.dat using double buffering (four outstanding IOs.) In the end it deletes the source and target files.

Sequential file programming patterns and performance with .net

More Related Content

What's hot (19)

Viewers also liked (10)

Similar to Sequential file programming patterns and performance with .net (20)

Recently uploaded (20)

Sequential file programming patterns and performance with .net
