Serverless Architecture Patterns
And Best Practices
Arun Gupta
Principal Technologist
argu@amazon.com
@arungupta
arun-gupta
Adrian Hornsby
Cloud Architecture Evangelist
adhorn@amazon.com
@adhorn
adhorn

Agenda
1. Serverless Key Concepts
2. Lambda Basics
3. Lambda Best Practices
4. Serverless Application Model
5. CI/CD using CodeStar
6. Monitoring
7. Event Processing
8. Real-time Streaming

© 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.© 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Serverless Key Concepts

No servers to provision
or manage
Scales with usage
Never pay for idle Availability and fault tolerance
built in
Serverless means…

Spectrum of AWS offerings
AWS
Lambda
Amazon
Kinesis
Amazon
S3
Amazon API
Gateway
Amazon
SQS
Amazon
DynamoDB
AWS IoT
Amazon
EMR
Amazon
ElastiCache
Amazon
RDS
Amazon
Redshift
Amazon ES
Managed Serverless
Amazon EC2
Microsoft SQL
Server
“On EC2”
Amazon
Cognito
Amazon
CloudWatch

Lambda Basics

Using AWS Lambda
Bring your own code
• Node.js, Java, Python, C#,
Go
• Bring your own libraries
(even native ones)
Simple resource model
• Select power rating from
128 MB to 3 GB
• CPU and network
allocated proportionately
Flexible use
• Synchronous or
asynchronous
• Integrated with other
AWS services
Flexible authorization
• Securely grant access to
resources and VPCs
• Fine-grained control for
invoking your functions

Lambda execution model
Synchronous (push) Asynchronous (event) Stream-based
Amazon
API Gateway
AWS Lambda
function
Amazon
DynamoDB
Amazon
SNS
/api/hello
AWS Lambda
function
Amazon
S3
reqs
Amazon
Kinesis
changes
AWS Lambda
service
function

Anatomy of a Lambda function
Handler() function
Function to be executed
upon invocation
Event object
Data sent during Lambda
Function Invocation
Context object
Methods available to
interact with runtime
information (request ID,
log group, etc.)
public String handleRequest(Book book, Context context) {
saveBook(book);
return book.getName() + " saved!";
}

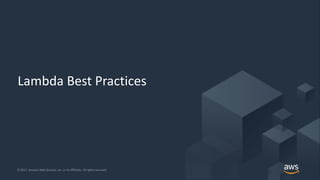

Lambda Best Practices

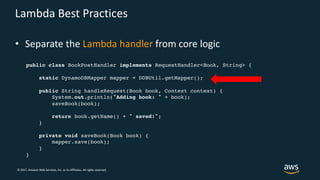

• Separate the Lambda handler from core logic
public class BookPostHandler implements RequestHandler<Book, String> {
static DynamoDBMapper mapper = DDBUtil.getMapper();
public String handleRequest(Book book, Context context) {
System.out.println("Adding book: " + book);
saveBook(book);
return book.getName() + " saved!";
}
private void saveBook(Book book) {
mapper.save(book);
}
}

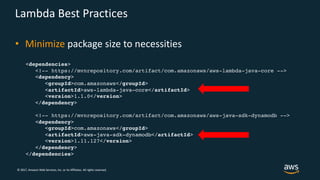

• Minimize package size to necessities
<dependencies>

<dependency>
<groupId>com.amazonaws</groupId>
<artifactId>aws-lambda-java-core</artifactId>
<version>1.1.0</version>
</dependency>

<dependency>
<groupId>com.amazonaws</groupId>
<artifactId>aws-java-sdk-dynamodb</artifactId>
</dependency>
</dependencies>

• Use Environment Variables to modify operational behavior
String region = System.getenv("AWS_REGION");
. . .
String bucket = System.getenv(“S3_BUCKET”);

• Self-contain dependencies in your function package
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-shade-plugin</artifactId>
<executions>
<execution>
<phase>package</phase>
<goals>
<goal>shade</goal>
</goals>
</execution>
</executions>
</plugin>

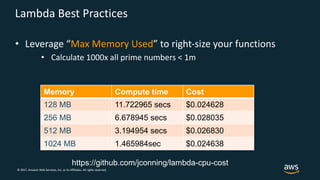

• Leverage “Max Memory Used” to right-size your functions
• Calculate 1000x all prime numbers < 1m
Memory Compute time Cost
128 MB 11.722965 secs $0.024628
256 MB 6.678945 secs $0.028035
512 MB 3.194954 secs $0.026830
1024 MB 1.465984sec $0.024638
https://github.com/jconning/lambda-cpu-cost

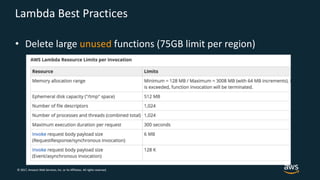

• Delete large unused functions (75GB limit per region)

Meet
SAM!

Serverless Application Model
CloudFormation extension optimized for serverless
New serverless resource types: functions, APIs, and tables
Supports anything CloudFormation supports
Open specification (Apache 2.0)
https://github.com/awslabs/serverless-application-model

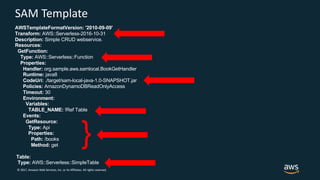

SAM Template
AWSTemplateFormatVersion: '2010-09-09'
Transform: AWS::Serverless-2016-10-31
Description: Simple CRUD webservice.
Resources:
GetFunction:
Type: AWS::Serverless::Function
Properties:
Handler: org.sample.aws.samlocal.BookGetHandler
Runtime: java8
CodeUri: ./target/sam-local-java-1.0-SNAPSHOT.jar
Policies: AmazonDynamoDBReadOnlyAccess
Timeout: 30
Environment:
Variables:
TABLE_NAME: !Ref Table
Events:
GetResource:
Type: Api
Properties:
Path: /books
Method: get
Table:
Type: AWS::Serverless::SimpleTable
}

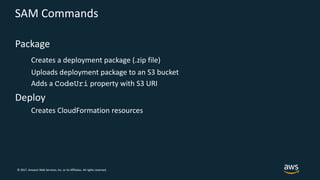

SAM Commands
Package
Creates a deployment package (.zip file)
Uploads deployment package to an S3 bucket
Adds a CodeUri property with S3 URI
Deploy
Creates CloudFormation resources

SAM Local
• CLI for local testing of Serverless apps
• Works with Lambda functions and
“proxy style” APIs
• Response object and function logs
available on your local machine
• Currently supports Java, Node.js and
Python
• Accepting PRs
https://github.com/awslabs/aws-sam-local

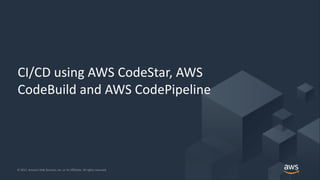

CI/CD using AWS CodeStar, AWS
CodeBuild and AWS CodePipeline

Monitoring

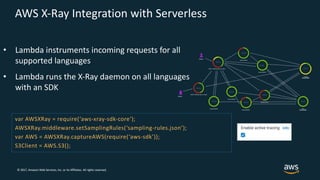

AWS X-Ray Integration with Serverless
• Lambda instruments incoming requests for all
supported languages
• Lambda runs the X-Ray daemon on all languages
with an SDK
var AWSXRay = require(‘aws-xray-sdk-core‘);
AWSXRay.middleware.setSamplingRules(‘sampling-rules.json’);
var AWS = AWSXRay.captureAWS(require(‘aws-sdk’));
S3Client = AWS.S3();

X-Ray Trace Example

Event Processing

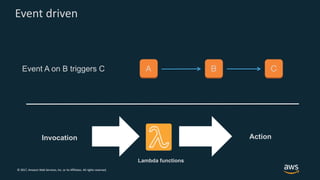

Event driven
A B CEvent A on B triggers C
Invocation
Lambda functions
Action

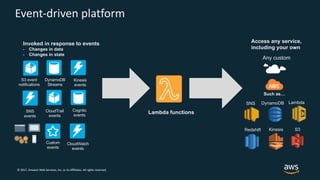

Event-driven platform
S3 event
notifications
DynamoDB
Streams
Kinesis
events
Cognito
events
SNS
events
Custom
events
CloudTrail
events
LambdaDynamoDB
Kinesis S3
Any custom
Invoked in response to events
- Changes in data
- Changes in state
Redshift
SNS
Access any service,
including your own
Such as…
Lambda functions
CloudWatch
events

Event-driven actions
Lambda:
Resize Images
Users upload photos
S3:
Source Bucket
S3:
Destination Bucket
Triggered on
PUTs

AWS Step Functions:
Orchestrate a Serverless processing
workflow using AWS Lambda

Real-time Streaming

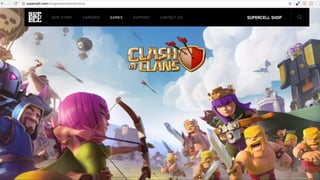

https://aws.amazon.com/solutions/case-studies/supercell/

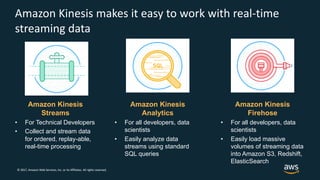

Amazon Kinesis makes it easy to work with real-time
streaming data
Amazon Kinesis
Streams
• For Technical Developers
• Collect and stream data
for ordered, replay-able,
real-time processing
Amazon Kinesis
Firehose
• For all developers, data
scientists
• Easily load massive
volumes of streaming data
into Amazon S3, Redshift,
ElasticSearch
Amazon Kinesis
Analytics
• For all developers, data
scientists
• Easily analyze data
streams using standard
SQL queries

Producers Consumers
Shard 1
Shard 2
Shard n
Shard 3
…
…
Write: 1MB Read: 2MB
** A shard is a group of data records in a stream
Amazon Kinesis

Processing a Kinesis Streams with AWS Lambda
Shard 1 Shard 2 Shard 3 Shard 4 Shard n
Kinesis Stream
. . .
. . .
• Single instance of Lambda function per shard
• Polls shard once per second
• Lambda function instances created and removed automatically as stream is scaled
Gets Records
1x per sec
10k records

Kinesis Analytics
Use SQL to build real-time applications
Easily write SQL code to process streaming data
Connect to streaming source
Continuously deliver SQL results

Real-time Analytics Demo
http://quad.adhorn.me

Real-time analytics
Amazon
Kinesis
Stream
Amazon
Kinesis
Analytics
Amazon
Cognito
Amazon
Kinesis
Stream
Amazon
DynamoDB
Amazon
Lambda
AmazonS3
JavaScriptSDK

Further Reading
Serverless Architectures with AWS Lambda
https://d1.awsstatic.com/whitepapers/serverless-architectures-with-aws-lambda.pdf
Optimizing Enterprise Economics with Serverless Architectures
https://d0.awsstatic.com/whitepapers/optimizing-enterprise-economics-serverless-architectures.pdf
Serverless Applications Lens - AWS Well-Architected Framework
https://d1.awsstatic.com/whitepapers/architecture/AWS-Serverless-Applications-Lens.pdf
Streaming Data Solutions on AWS with Amazon Kinesis
https://d1.awsstatic.com/whitepapers/whitepaper-streaming-data-solutions-on-aws-with-amazon-kinesis.pdf
AWS Serverless Multi-Tier Architectures
https://d1.awsstatic.com/whitepapers/AWS_Serverless_Multi-Tier_Archiectures.pdf

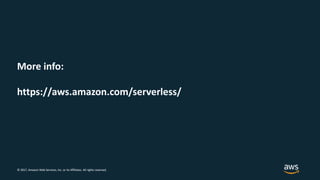

More info:
https://aws.amazon.com/serverless/

Thank you!
