![Page 28Classification: Restricted
Using cookies
• javax.servlet.http.Cookie class
• Creating a cookie:
Cookie ck=new Cookie("user",“pawan");//creating cookie object
response.addCookie(ck);//adding cookie in the response
• Deleting a cookie
Cookie ck=new Cookie("user","");//deleting value of cookie
ck.setMaxAge(0);//changing the maximum age to 0 seconds
response.addCookie(ck);//adding cookie in the response
• Get all cookies from request:
Cookie ck[]=request.getCookies();
for(int i=0;i<ck.length;i++){
out.print("<br>"+ck[i].getName()+" "+ck[i].getValue());//printing cookies info
}](https://image.slidesharecdn.com/session31-sessionmanagementbestpracticesdesignpatternsinwebapps-slides-180607182503/85/Session-31-Session-Management-Best-Practices-Design-Patterns-in-Web-Apps-29-320.jpg)
Session 31 - Session Management, Best Practices, Design Patterns in Web Apps
- 1. Java & JEE Training Session 31 – Session Management using Servlets +Design Patterns
- 2. Page 1Classification: Restricted Agenda • Session Management and Tracking • Best Practices • Design Patterns • Cookies

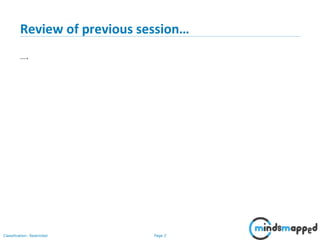

- 3. Page 2Classification: Restricted Review of previous session… ….
- 4. Page 3Classification: Restricted Web Server and Application Server Presentation Tier: JSP, Servlets Run on Web Server or container JDBC on web server or app server Database Client: HTML JS CSS (Run on client machine on the browser)
- 5. Java & JEE Training Understanding scope: parameters, attributes
- 6. Page 5Classification: Restricted Web.xml file: Servlet mapping to URL
- 7. Page 6Classification: Restricted Requests, Sessions, Application • Request: The client sending an HTTP request to the server. • Session: Is a set of requests coming in from the client from the point that the client logs in to the point that the client logs out. • Application: The time that the application (or server) is up and running. • An application may have multiple sessions. • A session may have multiple requests.
- 8. Page 7Classification: Restricted HTTP IS STATELESS CLIENT SERVER LOGIN ID AND PASSWORD LOGIN SUCCESSFUL ENQUIRE ACCOUNT DETAILS I DON’T KNOW YOU. PLEASE LOGIN… SESSION - COOKIES… HOW DO I MAINTAIN SESSIONS?
- 9. Page 8Classification: Restricted HTTP IS STATELESS CLIENT SERVER LOGIN ID AND PASSWORD LOGIN SUCCESSFUL; SESSIONID=1234; ENQUIRE ACCOUNT DETAILS;SESSIONID=1234; I DON’T KNOW YOU. PLEASE LOGIN… SESSION - COOKIES HOW DO I MAINTAIN SESSIONS?
- 10. Page 9Classification: Restricted Parameters vs Attributes • Parameters may come into our application from the client request, or may be configured through deployment descriptor (web.xml) elements or their corresponding annotations. When you submit a form, form values are sent as request parameters to a web application. In case of a GET request, these parameters are exposed in the URL as name value pairs and in case of POST, parameters are sent within the body of the request. • Servlet init parameters and context init parameters are set through the deployment descriptor (web.xml) or their corresponding annotations. All parameters are read- only from the application code. We have methods in the Servlet API to retrieve various parameters. • Attributes are objects that are attached to various scopes and can be modified, retrieved or removed. Attributes can be read, created, updated and deleted by the web container as well as our application code. We have methods in the Servlet API to add, modify, retrieve and remove attributes. When an object is added to an attribute in any scope, it is called binding as the object is bound into a scoped attribute with a given name.
- 11. Page 10Classification: Restricted Parameters vs Attributes • Parameters are read only Strings, attributes are read/write objects. • Parameters are String objects, attributes can be objects of any type.
- 12. Page 11Classification: Restricted Methods to manipulate parameters • Request: (Request time constant) ServletRequest.getParameter(paramname); ServletRequest.getParameterNames(); • ServletConfig init parameters: (Deployment time constant) ServletConfig.getInitParameterNames() ServletConfig.getInitParameter(String paramName) • ServletContext init parameters: (Deployment time constant) ServletContext.getInitParameterNames() ServletContext.getInitParameter(String paramName) AVAILABLE FOR THE REQUEST AVAILABLE FOR THE SERVLET AVAILABLE FOR THE WHOLE APPLICATION
- 13. Page 12Classification: Restricted Web.xml : init parameters (Servlet Scope)
- 14. Page 13Classification: Restricted Web.xml: Init parameters (Application scope)
- 15. Page 14Classification: Restricted ServletConfig vs ServletContext • ServletConfig // Available for a specific servlet • ServletConfig available in javax.servlet.*; package • ServletConfig object is one per servlet class • Object of ServletConfig will be created during initialization process of the servlet • This Config object is public to a particular servlet only • Scope: As long as a servlet is executing, ServletConfig object will be available, it will be destroyed once the servlet execution is completed. • We should give request explicitly, in order to create ServletConfig object for the first time • In web.xml – <init-param> tag will be appear under <servlet-class> tag • ServletContext // Available for whole application • ServletContext available in javax.servlet.*; package • ServletContext object is global to entire web application • Object of ServletContext will be created at the time of web application deployment • Scope: As long as web application is executing, ServletContext object will be available, and it will be destroyed once the application is removed from the server. • ServletContext object will be available even before giving the first request • In web.xml – <context-param> tag will be appear under <web-app> tag
- 16. Page 15Classification: Restricted How to get servletContext? getServletConfig( ).getServletContext( ); request.getSession( ).getServletContext( ); getServletContext( ); request.getServletContext();
- 17. Page 16Classification: Restricted Understanding scope of attributes • Similar to scope and lifetime of variables in Java as you have seen in blocks and methods in java, parameters and attributes in a Java EE web application also have scope and lifetime in the context of the web application. • The scope of a parameter/attribute denotes the availability of that parameter/attribute for use. A web application serves multiple requests from clients when it is up and running. These requests can be from same client or different clients. We have seen from the servlet life cycle that a servlet’s service() method is called every time a request comes.
- 18. Page 17Classification: Restricted Scoping in Servlets and JSP • Request scope • Session scope • Application or context scope • Page scope (only for JSP)
- 19. Page 18Classification: Restricted Request Scope • Request scope start from the moment an HTTP request hits a servlet in our web container and end when the servlet is done with delivering the HTTP response. • With respect to the servlet life cycle, the request scope begins on entry to a servlet’s service() method and ends on the exit from that method. • A ‘request’ scope parameter/attribute can be accessed from any of servlets or jsps that are part of serving one request. For example, you call one servlet/jsp, it then calls another servlet/jsp and so on, and finally the response is sent back to the client. • Request scope is denoted by javax.servlet.http.HttpServletRequest interface. • Container passes the request object as an argument of type HttpServletRequest to Servlet's service method. • Request object is available in a JSP page as an implicit object called request. You can set value for an attribute in request object from a servlet and get it from a JSP within the same request using the implicit request object.
- 20. Page 19Classification: Restricted Session scope • A session scope starts when a client (e.g. browser window) establishes connection with our web application till the point where the browser window is closed. • Session scope spans across multiple requests from the same client. • A notable feature of tabbed browsing is that session is shared between the tabs and hence you can requests from other tabs too during a session without logging in again. For instance, you can load your Gmail inbox in another tab without logging in again. This also means browsing an unknown site and a secure site from different tabs from the same browser can expose your secure session ID to malicious applications. So always open a new browser window when you want to do secure transactions, especially financial transactions. • Session scope is denoted by javax.servlet.http.HttpSession interface. • Session object is available in a JSP page as an implicit object called session. • In a servlet, you can get Session object by calling request.getSession().
- 21. Page 20Classification: Restricted Application or context scope • Context scope or application scope starts from the point where a web application is put into service (started) till it is removed from service (shutdown) or the web application is reloaded. Parameters/attributes within the application scope will be available to all requests and sessions. • Application scope is denoted by javax.servlet.ServletContext interface. • Application object is available in a JSP page as an implicit object called application. • In a servlet, you can get application object by calling getServletContext() from within the servlets code directly (the servlet itself implements the ServletConfig interface that contains this method) or by explicitly calling getServletConfig().getServletContext(). • The web container provides one ServletContext object per web application per JVM.
- 22. Page 21Classification: Restricted Page scope (Only for JSP, not for Servlets) • The page scope restricts the scpoe and lifetime of attributes to the same page where it was created. • Page scope is denoted by javax.servlet.jsp.PageContext abstract class. • It is available in a JSP page as an implicit object called pageScope
- 23. Page 22Classification: Restricted Servlets – Scope at a glance • Application scope request.getServletContext(); request.getServletContext().setAttribute("attribute_name","value") • Session scope request.getSession(); //going to create the session if session is not exist. request.getSession(false); // Not going to create the session. session.getAttribute("attribute_name"); • Request scope request.setAttribute("attribute_name","value"); request.getAttribute("attribute_name"); // return the Object you have to cast it
- 24. Java & JEE Training Session tracking with servlets
- 25. Page 24Classification: Restricted HTTP IS STATELESS CLIENT SERVER LOGIN ID AND PASSWORD LOGIN SUCCESSFUL ENQUIRE ACCOUNT DETAILS I DON’T KNOW YOU. PLEASE LOGIN… SESSION - COOKIES… HOW DO I MAINTAIN SESSIONS?
- 26. Page 25Classification: Restricted HTTP IS A STATELESS PROTOCOL CLIENT SERVER LOGIN ID AND PASSWORD LOGIN SUCCESSFUL; SESSIONID=1234; ENQUIRE ACCOUNT DETAILS;SESSIONID=1234; I DON’T KNOW YOU. PLEASE LOGIN… SESSION - COOKIES HOW DO I MAINTAIN SESSIONS?
- 27. Page 26Classification: Restricted Why track sessions? • HTTP is stateless protocol • So we need to maintain state across multiple requests of a session using session tracking techniques. • Session tracking techniques: • Cookies • Hidden Form Field • URL Rewriting • HttpSession
- 28. Page 27Classification: Restricted How cookies work?
- 29. Page 28Classification: Restricted Using cookies • javax.servlet.http.Cookie class • Creating a cookie: Cookie ck=new Cookie("user",“pawan");//creating cookie object response.addCookie(ck);//adding cookie in the response • Deleting a cookie Cookie ck=new Cookie("user","");//deleting value of cookie ck.setMaxAge(0);//changing the maximum age to 0 seconds response.addCookie(ck);//adding cookie in the response • Get all cookies from request: Cookie ck[]=request.getCookies(); for(int i=0;i<ck.length;i++){ out.print("<br>"+ck[i].getName()+" "+ck[i].getValue());//printing cookies info }
- 30. Page 29Classification: Restricted Example • Demo of using cookies
- 31. Page 30Classification: Restricted Hidden form fields… • A web server can send a hidden HTML form field along with a unique session ID as follows: <input type="hidden" name="sessionid" value="12345"> • This entry means that, when the form is submitted, the specified name and value are automatically included in the GET or POST data. Each time when web browser sends request back, then session_id value can be used to keep the track of different web browsers. • Advantage of Hidden Form Field • It will always work whether cookie is disabled or not. • Disadvantage of Hidden Form Field: • It is maintained at server side. • Extra form submission is required on each pages. • Only textual information can be used.
- 32. Page 31Classification: Restricted URL Rewriting • You can append some extra data on the end of each URL that identifies the session, and the server can associate that session identifier with data it has stored about that session. • For example, with http://mycompany.com/file.htm;sessionid=12345, the session identifier is attached as sessionid=12345 which can be accessed at the web server to identify the client. • URL rewriting is a better way to maintain sessions and works for the browsers when they don't support cookies but here drawback is that you would have generate every URL dynamically to assign a session ID though page is simple static HTML page. • Advantage of URL Rewriting • It will always work whether cookie is disabled or not (browser independent). • Extra form submission is not required on each pages. • Disadvantage of URL Rewriting • It will work only with links. • It can send Only textual information.
- 33. Page 32Classification: Restricted Using HttpSession • HttpSession object is used to store entire session with a specific client. We can store, retrieve and remove attribute from HttpSession object. Any servlet can have access to HttpSession object throughout the getSession() method of the HttpServletRequest object.
- 34. Page 33Classification: Restricted Important HttpSession Methods Methods Description long getCreationTime() returns the time when the session was created, measured in milliseconds since midnight January 1, 1970 GMT. String getId() returns a string containing the unique identifier assigned to the session. long getLastAccessedTime() returns the last time the client sent a request associated with the session int getMaxInactiveInterval() returns the maximum time interval, in seconds. void invalidate() destroy the session boolean isNew() returns true if the session is new else false void setMaxInactiveInterval(int interval) Specifies the time, in seconds,after servlet container will invalidate the session.
- 36. Page 35Classification: Restricted HttpSession Demo • Demo • Write a login / logout application using HttpSession
- 37. Page 36Classification: Restricted Topics to be covered in next session • Session tracking with servlets
