Software Implementation of Iris
Recognition System using MATLAB
Mo Mo Myint Wai1, Nyan Phyo Aung2, Lwin Lwin Htay3
1Lecturer, 2Associate Professor, 3Professor
1, 2, 3Department of Electronic Engineering, Technological University (Mandalay), Mandalay, Myanmar
How to cite this paper: Mo Mo Myint Wai
| Nyan Phyo Aung | Lwin Lwin Htay
"Software Implementation of Iris
Recognition System using MATLAB"
Published in
International
Journal of Trend in
Scientific Research
and Development
(ijtsrd), ISSN: 2456-
6470, Volume-3 |
Issue-5, August
2019, pp.290-295,
https://doi.org/10.31142/ijtsrd25258
Copyright © 2019 by author(s) and
International Journalof Trendin Scientific
Research and Development Journal. This
is an Open Access article distributed
under the terms of
the Creative
CommonsAttribution
License (CC BY 4.0)
(http://creativecommons.org/licenses/by
/4.0)
ABSTRACT
The software implementation of iris recognition system introduces in this
paper. This system intends to apply for high security required areas. The
demand on security is increasing greatly in these years and biometric
recognition gradually becomes a hot field of research. Iris recognition is a
branch of biometric recognition method. In thesis, Iris recognition system
consists of localization of the iris region and generation of data set of iris
images followed by iris pattern recognition. In thesis, a fast algorithm is
proposed for the localization of the inner and outer boundaries of the iris
region. Located iris is extracted from an eye image, and, after normalization
and enhancement, it is represented by a data set. Using this data set a Neural
Network (NN) is used for the classification of iris patterns. The adaptive
learning strategy is applied for training of the NN. The implementation of the
system is developed with MATLAB. The results of simulations illustrate the
effectiveness of the neural system in personal identification. Finally, the
accuracy of iris recognition system is tested and evaluated with different iris
images.
KEYWORDS: Iris, Biometric, Neural Network, MATLAB
I. INTRODUCTION
Biometrics technology plays important role in public security and information
security domains. Using various physiological characteristicsof human,such as
face, facial thermo grams, fingerprint, iris image, retinal scans and hand
geometry etc.,
biometrics accurately identify each individual and
distinguishes one from another . Iris recognition is one of
important biometric recognition approach in a human
identification is becoming very active topic in research and
practical application. Iris region is the partbetweenthepupil
and the white sclera. This field is sometimes called iris
texture. The iris texture provides many minute
characteristics such as freckles, coronas, stripes, furrows,
crypts, etc. These visible characteristics are unique for each
subject. The human iris is notchangeable and is stable. From
one year of age until death, the patterns of the iris are
relatively constant over a person’s lifetime [1-4]. Because of
this uniqueness and stability, iris recognition is a reliable
human identification technique.
Iris recognition consists of the iris capturing, pre-processing
and recognition of the iris region in a digital eye image. Iris
imagepreprocessing includesirislocalization,normalization,
and enhancement. In iris localization step, thedetermination
of theinner and outer circlesoftheirisandthedetermination
of theupper and lower bound of theeyelidsareperformed.In
this research, the iris recognition system is developed using
neutral network with MATLAB.
II. THE BACKGROUND THEORY OF BIOMETRIC
TECHNOLOGY
It includes iris history and iris recognition system. Theword
biometric can be defined as "life - measure." It is used in
security and access control applicationstomean measurable
physical characteristics of a person that can be checked on
an automated basis. Security personnel look for biometric
data that does not change over the course of the life; that is,
they look for physical characteristics that stay constant and
that are difficult to fake or change on purpose.
A. Biometric Technology
A biometric system provides automatic recognition of an
individual based on some sort of unique feature or
characteristic possessed by the individual. Biometric
systems have been developed based on fingerprints, facial
features, voice, hand geometry, handwriting, the retina [],
and the one presented in this thesis, the iris. Biometric
systems work by first capturing a sample of thefeature,such
as recording a digital sound signal for voice recognition, or
taking a digital color image for face recognition. The sample
is then transformed using some sort of mathematical
function into a biometric template. The biometric template
will provide a normalized, efficientandhighlydiscriminating
representation of the feature, which can then be objectively
compared with other templates in order to determine
identity. Most biometric systems allow two modes of
operation. An enrolment mode for adding templates to a
database, and an identification mode, where a template is
created for an individual and then a match is searched for in
the database of pre-enrolled templates.
IJTSRD25258

International Journal of Trend in Scientific Research and Development (IJTSRD) @ www.ijtsrd.com eISSN: 2456-6470

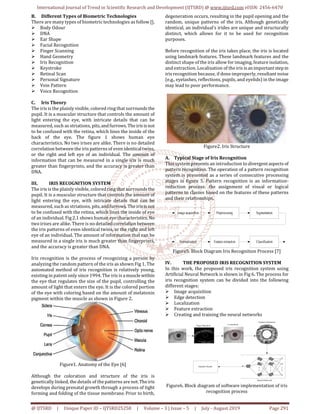

B. Different Types of Biometric Technologies
There are many types of biometric technologies as follow [].
Body Odour
DNA
Ear Shape
Facial Recognition
Finger Scanning
Hand Geometry
Iris Recognition
Keystroke
Retinal Scan
Personal Signature
Vein Pattern
Voice Recognition
C. Iris Theory
The iris is the plainly visible, colored ring that surroundsthe
pupil. It is a muscular structure that controls the amount of
light entering the eye, with intricate details that can be
measured, such as striations, pits,andfurrows.Theirisis not
to be confused with the retina, which lines the inside of the
back of the eye. The figure 1 shows human eye
characteristics. No two irises are alike. There is no detailed
correlation between the iris patterns of even identicaltwins,
or the right and left eye of an individual. The amount of
information that can be measured in a single iris is much
greater than fingerprints, and the accuracy is greater than
DNA.
III. IRIS RECOGNITION SYSTEM
The iris is the plainly visible, colored ring that surroundsthe
pupil. It is a muscular structure that controls the amount of
light entering the eye, with intricate details that can be
measured, such as striations, pits,andfurrows.Theirisis not
to be confused with the retina, which lines the inside of eye
of an individual. Fig 2.1 shows human eye characteristics. No
two irises are alike. There is no detailed correlation between
the iris patterns of even identical twins, or the right and left
eye of an individual. The amount of information that can be
measured in a single iris is much greater than fingerprints,
and the accuracy is greater than DNA.
Iris recognition is the process of recognizing a person by
analyzing the random pattern of the iris as shown Fig 1. The
automated method of iris recognition is relatively young,
existing in patent only since 1994. The iris is amusclewithin
the eye that regulates the size of the pupil, controlling the
amount of light that enters the eye. It is the colored portion
of the eye with coloring based on the amount of melatonin
pigment within the muscle as shown in Figure 2.
Figure1. Anatomy of the Eye [6]
Although the coloration and structure of the iris is
genetically linked, the details of the patterns arenot.Theiris
develops during prenatal growth through a process of tight
forming and folding of the tissue membrane. Prior to birth,
degeneration occurs, resulting in the pupil opening and the
random, unique patterns of the iris. Although genetically
identical, an individual’s irides are unique and structurally
distinct, which allows for it to be used for recognition
purposes.
Before recognition of the iris takes place, the iris is located
using landmark features. These landmark features and the
distinct shape of the iris allow for imaging, feature isolation,
and extraction. Localization of the iris isanimportantstepin
iris recognition because, if done improperly, resultant noise
(e.g., eyelashes, reflections, pupils, and eyelids) in the image
may lead to poor performance.
Figure2. Iris Structure
A. Typical Stage of Iris Recognition
This system presents an introduction to divergentaspects of
pattern recognition. The operation of a pattern recognition
system is presented as a series of consecutive processing
stages in figure 5. Pattern recognition is an information-
reduction process: the assignment of visual or logical
patterns to classes based on the features of these patterns
and their relationships.
Figure5. Block Diagram Iris Recognition Process [7]
IV. THE PROPOSED IRIS RECOGNITION SYSTEM
In this work, the proposed iris recognition system using
Artificial Neural Network is shown in Fig 6. The process for
iris recognition system can be divided into the following
different stages:
Image acquisition
Edge detection
Localization
Feature extraction
Creating and training the neural networks
Figure6. Block diagram of software implementation of iris
recognition process

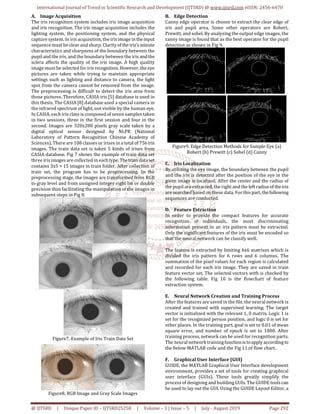

A. Image Acquisition
The iris recognition system includes iris image acquisition
and iris recognition. The iris image acquisition includes the
lighting system, the positioning system, and the physical
capture system. In iris acquisition, the iris image intheinput
sequence must be clear and sharp. Clarityof theiris’s minute
characteristics and sharpness of the boundary between the
pupil and the iris, and the boundary between the iris andthe
sclera affects the quality of the iris image. A high quality
image must be selected for irisrecognition.However,the eye
pictures are taken while trying to maintain appropriate
settings such as lighting and distance to camera, the light
spot from the camera cannot be removed from the image.
The preprocessing is difficult to detect the iris area from
those pictures. Therefore, CASIA iris [5] database is used in
this thesis. The CASIA [8] database used a special camera in
the infrared spectrum of light, not visible by the human eye.
In CASIA, each iris class is composed of seven samples taken
in two sessions, three in the first session and four in the
second. Images are 320x280 pixels gray scale taken by a
digital optical sensor designed by NLPR (National
Laboratory of Pattern Recognition Chinese Academy of
Sciences). There are 108 classes or irises in a total of756iris
images. The train data set is taken 5 kinds of irises from
CASIA database. Fig 7 shows the example of train data set
three iris images are collected in eachtype.Thetrain dataset
contains 3x5 = 15 images in train folder. After collection of
train set, the program has to be preprocessing. In the
preprocessing stage, the images are transformed from RGB
to gray level and from unsigned integer eight bit or double
precision thus facilitating the manipulation of the images in
subsequent steps in Fig 8.
Figure7. Example of Iris Train Data Set
Figure8. RGB Image and Gray Scale Images
B. Edge Detection
Canny edge operator is chosen to extract the clear edge of
iris and pupil area. Some other operators are Robert,
Prewitt, and sobel. By analyzing the output edge images, the
canny image is found that as the best operator for the pupil
detection as shown in Fig 9.
Figure9. Edge Detection Methods for Sample Eye (a)
Robert (b) Prewitt (c) Sobel (d) Canny
C. Iris Localization
By utilizing the eye image, the boundary between the pupil
and the iris is detected after the position of the eye in the
given image is localized. After the center and the radius of
the pupil are extracted, the right and the leftradius of theiris
are searched based on these data. For thispart,thefollowing
sequences are conducted.
D. Feature Extraction
In order to provide the compact features for accurate
recognition of individuals, the most discriminating
information present in an iris pattern must be extracted.
Only the significant features of the iris must be encoded so
that the neural network can be classify well.
The feature is extracted by limiting 6x6 matrixes which is
divided the iris pattern for 6 rows and 6 columns. The
summation of the pixel values for each region is calculated
and recorded for each iris image. They are saved in train
feature vector set. The selected vectors with is checked by
the following table. Fig 10 is the flowchart of feature
extraction system.
E. Neural Network Creation and Training Process
After the features are saved in the file, the neural network is
created and trained with supervised learning. The target
vector is initialized with the relevant 1, 0 matrix. Logic 1 is
set for the recognized person position, and logic 0 is set for
other places. In the training part, goal is set to 0.01 of mean
square error, and number of epoch is set to 1000. After
training process, network can be used for recognition parts.
The neural network trainingfunctionistoapply accordingto
the below MATLAB code and the Fig 11.of flow chart.
F. Graphical User Interface (GUI)
GUIDE, the MATLAB Graphical User Interface development
environment, provides a set of tools for creating graphical
user interface (GUIs). These tools greatly simplify the
process of designing and building GUIs. The GUIDE tools can
be used to lay out the GUI. Using the GUIDE Layout Editor, a

GUI can be laid easily by clicking and dragging GUI
components, such as panels, buttons, text fields, sliders,
menus, and so on into the layout area.
V. SIMULATION RESULTS
MATLAB programming is used for the development and
simulation of iiris recognitionwhich hasmanystages suchas
iris recognition, localization is an important step to isolate
the iris region. Edge detection method has beendescribed to
remove the pupil region from eye images. After localization,
feature extraction method and adaptive histogram
equalization method have been described. Then, the
selective feature vectors is used for classification of neural
network and the GUI software implementation is provided
for an identify person.
After the development of iris recongin system, the
performance of the proposal system and some tests are
carried out. The results for the system are explained in
detail. The proposed system for the identification includes
two operations modes: training process and identification
process. These processes are called recognitionsystemusing
GUI software implementation.

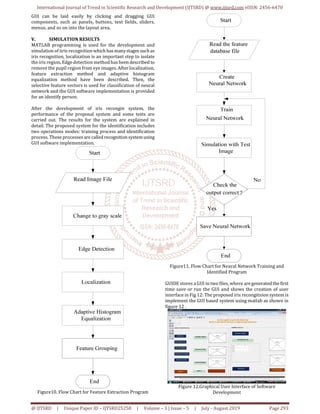

Figure10. Flow Chart for Feature Extraction Program
Figure11. Flow Chart for Neural Network Training and
Identified Program
GUIDE stores a GUI in two files, where aregeneratedthefirst
time save or run the GUI and shows the creation of user
interface in Fig 12: The proposed iris recongitnion system is
implement the GUI based system using matlab as shown in
figure 12 .
Figure 12.Graphical User Interface of Software
Development

In the first mode, training process is applied for the feature
vectors, histogram analysis and trainingneuralnetwork. The
isolating of iris is collected by feature vectors. Each of
feature vectors displays a histogram for the iris imagewith a
gray scale colorbar. The histogram of a grayscaleimageuses
a default value of 256 bins.
If a grays scale image is a binary image, histogram uses two
bins. Then these vectors become the training data set for the
neural network. The training of recognitionsystemis carried
out using grayscale value of iris images. Neural network is
trained with the selected iris images. The selected iris input
layers obtain good classification results. The output layer
will be continued as much neuron as there are class to
recognize. In this process, the user has to extract the
features. When the feature extraction part is finished, the
output can be seen as in Fig 13. The mean square error is
decreasing with the epoch. When the goal is met or the
predefined epoch is arrived, the training process will be
stopped.
Figure13. Feature Database Display
The open file contains the trained eye image from CASIA
database. The gray scale eye images were acquired from
database. It is choose one iris image for the identify person.
The edge detection is described differentiation form the
foundation for many applications in computer vision. It
detects each edge point of selected eye image by canny
operator.
The localization is the detection of the iris area between
pupils and sclera because of the eye image contains not only
the iris region but also some unuseful parts; such as the
pupil, eyelids, and sclera and so on. So the subparts of the
input data image is evaluated by separated process using
localization.
Feature extraction achieves the texture of the iris after
pupils were extracted from the image.
The adaptive histogram equalization is a useful method iris
image processing for contrast adjustment using the image’s
histogram.
In order to evaluate the iris recognition algorithms the
CASIA iris image database is used. Currently this is largest
iris database available in the public domain. This image
database contains 756 eye images from 108 different
persons. In this thesis the performanceoftheirisrecognition
system as a whole is examined. Tests were carriedouttofind
the best separations that the false match and false accept
rate is minimized, and to confirm that iris recognition can
perform accurately as a biometric for recognition of
individuals. As well as, confirming that the system provides
accurate recognition, experiments were also conducted in
order to confirm the uniqueness of human iris patterns by
deducing the number of degree of freedompresentin theiris
template representation.
The iris recognition can be test with GUI interface as shown
in figure 14.
Figure14. Graphical User Interface of Iris Recognition
Table 5.1 demonstrates the comparative results of different
iris images used for identification. In this process, only five
train databases are applied for using Neural Network. The
iris pattern classification using NN is performed. For each
type of iris database, the test data set consists of three from
the trained data and four from the untrained data. Five
person’s irises are selected from iris database for
classification. The average time for the recognitionof theiris
images was 0.02 s for NN classification. So, the accuracies of
correct classification are 100 % and 50 % for database 001,
002, 004 and 003, 005. The identification result obtained
using the neural network approach thesuccessof itsefficient
use iris recognition.
Table 5.1 Performance Comparison of Accrual and Test Result
Iris
database
No: of
train file
Correct for
train file
Accuracy
time for (NN)
No: of
test file
Correct for
test file
% Correct
for test file
001 3 3 0.02 s 2 2 100 %
002 3 3 0.02 s 2 2 100 %
003 3 3 0.02 s 2 1 50 %
004 3 3 0.02 s 2 2 100 %
005 3 3 0.02 s 2 1 50 %

VI. CONCLUSION
Analysis of the developed iris recognition system has
revealed a number of interesting conclusions. It can be
stated that localization is the critical stageof iris recognition,
since areas that are wrongly identified as iris regions will
corrupt biometric templates resulting in very poor
recognition. The results have also shown that localization
can be the most difficult stage of iris recognition because its
success is dependent on the imaging quality of eye images.
So, these input images have been used the off line data using
database from CASIA according to image acquisition steps.
The iris database provides images that are pixels.
Another interesting finding was that the texture extraction
for the iris area. The localized iris images have been isolated
after cropping the pupil in the original image with threshold
value. The result of feature extraction from resized localized
image is captured the function of feature_vector. Every
Test_feature were segmented into matrix. The feature
vectors btained from feature extraction have been used as
inputs to neural networks for classification,trained with 107
epochs. The well trained neural network can enhance the
performance of the system. The classification of trained
network is identified the iris patterns. The recognition
method can be used in security purposes because Iris
pattern is different from one person to another so that this
can be highly reliable more than security system.
REFERENCES
[1] J. Daugman, Biometric Personal Identification System
Based on Iris Analysis, United States Patent, no.
5291560, 1994.
[2] J. Daugman, “Statistical Richness of Visual Phase
Information: Update on Recognizing Persons by Iris
Patterns,” Int’l J. Computer Vision, vol. 45, no.1, pp. 25-
38 , 2001
[3] J. Daugman, “Demodulation by Complex-Valued
Wavelets for Stochastic Pattern Recognition,” Int J.
Wavelets, Multi resolutionand Information Processing,
vol.1, no.1, pp.1-17, 2003.
[4] J. Daugman, “How Iris Recognition Works”, University
of Cambridge, 2001.
[5] https://www.medicalnewstoday.com/articles/320608
.php

Software Implementation of Iris Recognition System using MATLAB

More Related Content

What's hot (20)

Similar to Software Implementation of Iris Recognition System using MATLAB (20)

More from ijtsrd (20)

Recently uploaded (20)

Software Implementation of Iris Recognition System using MATLAB
