Software Testing

Software Testing
Inam Ul Haq
OOA/D, BSIT
Inam.bth@gmail.com
Guest Lecture
OOA/D, BSIT-5th, Univesity of
Education Okara
1

Observations about Testing
 “Testing is the process of executing a
program with the intention of finding
errors.” – Myers
 “Testing can show the presence of bugs
but never their absence.” - Dijkstra
Education Okara
2

Good Testing Practices
 A good test case is one that has a high
probability of detecting an undiscovered
defect, not one that shows that the
program works correctly
 It is impossible to test your own program
 A necessary part of every test case is a
description of the expected result
Education Okara
3

Good Testing Practices (cont’d)
 Avoid nonreproducible or on-the-fly testing
 Write test cases for valid as well as invalid input
conditions.
 Thoroughly inspect the results of each test case
 As the number of detected defects in a piece of
software increases, the probability of the
existence of more undetected defects also
increases
Education Okara
4

Good Testing Practices (cont’d)
 Assign your best people to testing
 Ensure that testability is a key objective
in your software design
 Never alter the program to make testing
easier
 Testing, like almost every other activity,
must start with objectives
Education Okara
5

Levels of Testing
 Unit Testing
 Integration Testing
 Validation Testing
 Regression Testing
 Alpha Testing
 Beta Testing
 Acceptance Testing
Education Okara
6

Unit Testing
 Algorithms and logic
 Data structures (global and local)
 Interfaces
 Independent paths
 Boundary conditions
 Error handling
Education Okara
7

Why Integration Testing Is Necessary
 One module can have an adverse effect
on another
 Subfunctions, when combined, may not
produce the desired major function
 Individually acceptable imprecision in
calculations may be magnified to
unacceptable levels
Education Okara
8

Why Integration Testing Is Necessary (cont’d)
 Interfacing errors not detected in unit
testing may appear
 Timing problems (in real-time systems)
are not detectable by unit testing
 Resource contention problems are not
detectable by unit testing
Education Okara
9

Validation Testing
 Determine if the software meets all of the
requirements defined in the SRS
 Having written requirements is essential
 Regression testing is performed to determine if
the software still meets all of its requirements in
light of changes and modifications to the
software
 Regression testing involves selectively
repeating existing validation tests, not
developing new tests
Education Okara
10

Alpha and Beta Testing
 It’s best to provide customers with an
outline of the things that you would like
them to focus on and specific test
scenarios for them to execute.
 Provide with customers who are actively
involved with a commitment to fix defects
that they discover.
Education Okara
11

Acceptance Testing
 Similar to validation testing except that
customers are present or directly
involved.
 Usually the tests are developed by the
customer
Education Okara
12

Test Methods
 White box or glass box testing
 Black box testing
 Top-down and bottom-up for performing
incremental integration
 ALAC (Act-like-a-customer)
Education Okara
13

Test Types
 Functional tests
 Algorithmic tests
 Positive tests
 Negative tests
 Usability tests
 Boundary tests
 Startup/shutdown tests
 Platform tests
 Load/stress tests
Education Okara
14

Test Planning
 The Test Plan – defines the scope of the
work to be performed
 The Test Procedure – a container
document that holds all of the individual
tests (test scripts) that are to be
executed
 The Test Report – documents what
occurred when the test scripts were run
Education Okara
15

Test Plan
 Questions to be answered:
 How many tests are needed?
 How long will it take to develop those tests?
 How long will it take to execute those tests?
 Topics to be addressed:
 Test estimation
 Test development and informal validation
 Validation readiness review and formal validation
 Test completion criteria
Education Okara
16

Entrance Criteria for Formal
Validation Testing
 Software development is completed (a
precise definition of “completed” is required.
 The test plan has been reviewed, approved
and is under document control.
 A requirements inspection has been
performed on the SRS.
 Design inspections have been performed on
the SDDs (Software Design Descriptions).
Education Okara
17

Validation Testing (cont’d)
 Code inspections have been performed on all
“critical modules”.
 All test scripts are completed and the
software validation test procedure document
has been reviewed, approved, and placed
under document control.
 Selected test scripts have been reviewed,
approved and placed under document
control.
Education Okara
18

Validation Testing (cont’d)
 All test scripts have been executed at least
once.
 CM tools are in place and all source code is
under configuration control.
 Software problem reporting procedures are in
place.
 Validation testing completion criteria have
been developed, reviewed, and approved.
Education Okara
19

Exit Criteria for Validation
Testing
 All test scripts have been executed.
 All SPRs have been satisfactorily resolved.
(Resolution could include bugs being fixed,
deferred to a later release, determined not to
be bugs, etc.) All parties must agree to the
resolution. This criterion could be further
defined to state that all high-priority bugs
must be fixed while lower-priority bugs can be
handled on a case-by-case basis.
Education Okara
20

Exit Criteria for Validation
Testing (cont’d)
 All changes made as a result of SPRs have
been tested.
 All documentation associated with the
software (such as SRS, SDD, test
documents) have been updated to reflect
changes made during validation testing.
 The test report has been reviewed and
approved.
Education Okara
21

Test Estimation
 Number of test cases required is based on:
 Testing all functions and features in the SRS
 Including an appropriate number of ALAC (Act
Like A Customer) tests including:
 Do it wrong
 Use wrong or illegal combination of inputs
 Don’t do enough
 Do nothing
 Do too much
 Achieving some test coverage goal
 Achieving a software reliability goal
Education Okara
22

Considerations in
Test Estimation
 Test Complexity – It is better to have many
small tests than few large tests.
 Different Platforms – Does testing need to be
modified for different platforms, operating
systems, etc.
 Automated or Manual Tests – Will automated
tests be developed? Automated tests take more
time to create but do not require human
intervention to run.
Education Okara
23

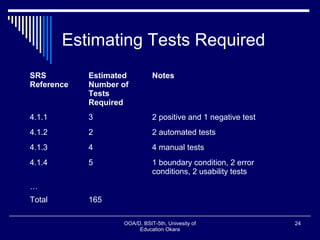

Estimating Tests Required
SRS
Reference
Estimated
Number of
Tests
Required
Notes
4.1.1 3 2 positive and 1 negative test
4.1.2 2 2 automated tests
4.1.3 4 4 manual tests
4.1.4 5 1 boundary condition, 2 error
conditions, 2 usability tests
…
Total 165
Education Okara
24

Estimated Test Development
Time
Estimated Number of Tests: 165
Average Test Development Time: 3.5
(person-hours/test)
Estimated Test Development Time:
577.5
(person-hours)
Education Okara
25

Estimated Test Execution
Time
Estimated Number of Tests: 165
Average Test Execution Time: 1.5
(person-hours/test)
Estimated Test Execution Time: 247.5
(person-hours)
Estimated Regression Testing (50%): 123.75
(person-hours)
Total Estimated Test Execution Time: 371.25
(person-hours)
Education Okara
26

Test Procedure
 Collection of test scripts
 An integral part of each test script is the
expected results
 The Test Procedure document should
contain an unexecuted, clean copy of
every test so that the tests may be more
easily reused
Education Okara
27

Test Report
 Completed copy of each test script with evidence
that it was executed (i.e., dated with the
signature of the person who ran the test)
 Copy of each SPR showing resolution
 List of open or unresolved SPRs
 Identification of SPRs found in each baseline
along with total number of SPRs in each baseline
 Regression tests executed for each software
baseline
Education Okara
28

Validation Test Plan
IEEE – Standard 1012-1998
1. Overview
a. Organization
b. Tasks and Schedules
c. Responsibilities
d. Tools, Techniques, Methods
2. Processes
a. Management
b. Acquisition
c. Supply
d. Development
e. Operation
f. Maintenance
Education Okara
29

Validation Test Plan
IEEE – Standard 1012-1998 (cont’d)
3. Reporting Requirements
4. Administrative Requirements
5. Documentation Requirements
6. Resource Requirements
7. Completion Criteria
Education Okara
30

Practical Web Testing
 Capture whole page including web address
 Write briefly and clearly
 Point only main issues (bugs)
 Point one screen shot per issue
 Make final reporting document for bugs
 http://jmp.sh/meF4kMP check test case demo
and make your own, choose a topic and go.
 Non-graded assignment, make, save and share on
official Facebook page and ComputingForum
Education Okara
31
