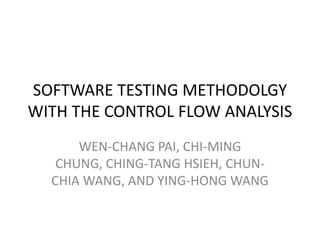

SOFTWARE TESTING METHODOLGY
WITH THE CONTROL FLOW ANALYSIS
WEN-CHANG PAI, CHI-MING
CHUNG, CHING-TANG HSIEH, CHUN-
CHIA WANG, AND YING-HONG WANG

PRESENTED BY:
REEMA QAISER KHAN
MS(SE)-2

• This paper provides a method for analyzing the control-flow
of a program.
• The authors define a number of command types and test
data generating rules based on the control-flow of the
program.
• An algorithm to scan program and analysis testing paths is
provided.
• This will allow testers to recover the program’s
design, understand the software structure, and assist
software maintenance.

AN OVERVIEW OF PROGRAM TESTING
• In a program P, we say a statement block B = (s1, s2, …, sn)
is a maximal subset of contiguous statements of P such that
statement si is the unique successor of si-1 and si-1 is the
unique predecessor of si, for all
i = 1, 2, …, n.
• A program graph G = {nodes, edges} contains a set of nodes
and edges

• A node without a predecessor is a start node.
• A node without a successor is an exit node.
• A complete path is a path whose initial node is the start
node of G and whose final node is an exit node of G.
• A well known logic coverage criterion is decision coverage
or branch coverage. Examples of branch or decision
statements are IF statements, WHILE statements, and
SWITCH statement.
• This criterion states that each branch direction must be
traversed at least once.

• In software testing technologies, boundary testing (or
boundary value analysis; BVA) is a good test case design. It
selects test data at the boundary of the input domain.
• Experience shows that test data selected with BVA have a
higher payoff than other data.
• More errors tend to occur at the boundaries of the input
domain.

AUTOMATICALLY GENERATING TEST
DATA
• The steps involved in the method are described in the
following:
1) Choosing Adequacy Testing Criteria:
The branch coverage criterion is adopted in this paper to
generate test data for testing a program.
2) Defining Command Types:
We define three typical statement types in a program:
(1) sequential commands, (2)conditional commands, and
(3) loop commands.
Each command type essentially corresponding to a block or
some blocks in a program. In this paper, we will generate
test data for each of the command types to enter every
branch of a program.

3) Scanning the Program and Generating Test Data:
The test data are generated from the input domain, which is
derived through boundary value analysis with the Branch
coverage criterion.
4) Analyzing Test Paths and Testing :
Finally, testers analyze the testing paths and test the
program with the results obtained in step 3.

TEST DATA GENERATING RULES
• Type 1. Sequential Command Set :

• The Sequential commands, such as
OPEN, READ, WRITE, and CLOSE statements, are usually
written in the form
• ‘C1; C2’,

Rule 4.1 :
The set S1, S2, …, Sn is a contiguous sequence of
statements of a program P, such that a corresponding block
B exists in P. A node N also exists in the program graph G.

• Type 2. Conditional Command Set :

• A conditional command, such as an If-Then-End
statement, If-Then-Else-End statement, Switch-Case-With-
Default statement, or Switch-Case-Without-Default
statement, has a number of subcommands, from which
exactly one is chosen to be executed. Conditional
commands typically have the form

• If CON1 then B1
Else if CON2 then B2
…
else if CONn then Bn
end if

Rule 4.2 :
Set S′ is a set of Switch statements of a program P, such
that a number of corresponding blocks B1, B2, …, Bk
exist in S′. A number of nodes S, N1, N2, …, Nk, and E
also exist in the program graph G.

• Type 3. Loop Command Set :
• Loop commands, such as For-loop statements, While-loop
statements, and Repeat- loop statements, have a number
of subcommands that are executed repeatedly until some
conditions are true. Loop commands typically have the
form

While CON do
B
End while
OR

Repeat
B
Until CON

Rule 4.3 :
Set S′ is a Loop statement s of a program P, such that a
corresponding block B exists in P. A number of nodes, S, N,
and E, also exist in the program graph G.

TEST PATH ANALYSIS ALGORITHM
• The algorithm analyzes the path to search for the command
types and the apply rules 4.1 to 4.3 accordingly.
• We can transform each statement of a program to its
corresponding flow. The paths are analyzed and test data
are generated after the program has been completely
scanned.

• Algorithm PATH_ANALYSIS
• begin
• get PROGRAM
• set START_NODE
• set NEW_NODE
• move POINTER to NEW_NODE
• while not END_OF_PROGRAM
• read next INSTRUCTION
• search INSTRUCTION_TABLE
• switch (INSTRUCTION)
• case “Switch Statement Set”
• set NEW_NODE (or NODES) /* according to the rule 4.2 */
• move POINTER to NEW_NODE /* according to the rule 4.2 */
• case “Loop Statement Set”
• set NEW_NODE (or NODES) /* according to the rule 4.3 */
• move POINTER to NEW_NODE /* according to the rule 4.3 */
• case “Sequence Statement Set” /* according to the rule 4.1 */
• skip
• end {switch}
• end {while}
• set END_NODE
• end {PATH_ANALYSIS}

TEST CASES USING BOUNDARY VALUE
ANALYSIS
• We have three loop commands, and one conditional
command.
• Test Cases for the first Loop Command
(WHILE LOP=“F”) using boundary value analysis:
1- Test Case with test data of character F, to check input
domain LOP=“F”.
2- Test Case with test data can be any character except F, to
check input domain LOP<>“F” e.g. LOP=“A”,LOP=“B”, etc.

• Test Cases for the Second Loop Command
(WHILE ANS<> “Y” and ANS<> “y”) using boundary value
analysis:
1- Test Case with test data can be any character except “Y” or
“y”, to check input domain ANS<> “Y” and ANS<> “y”, e.g.
ANS=“A” or ANS=“a”, ANS=“B”or ANS=“b”, etc.
2- Test Case with test data “Y” and “y” , to check input domain
ANS=“Y” or ANS=“y”.

• Test Cases for the Third Loop Command
(WHILE ANS<> “Y” and ANS<> “y”) using boundary value
analysis:

• Test Cases for the First Conditional Command
(IF ANS<> “Y” and ANS<> “y”) using boundary value
analysis:

Software testing methodolgy with the control flow analysis

• From Table 1, we have the following testing paths:
• <S, 1, 2, 13, E>
• <S, 1, 2, 3, 4, 5, 4, 6, 7, 8, 7, 9, 10, 11, 12, 2, 13, E>
• <S, 1, 2, 3, 4, 5, 4, 6, 7, 8, 7, 9, 10, 12, 2, 13, E>
• <S, 1, 2, 3, 4, 6, 7, 8, 7, 9, 10, 11, 12, 2, 13, E>
• <S, 1, 2, 3, 4, 6, 7, 8, 7, 9, 10, 12, 2, 13, E>
• <S, 1, 2, 3, 4, 5, 4, 6, 7, 9, 10, 11, 12, 2, 13, E>
• <S, 1, 2, 3, 4, 5, 4, 6, 7, 9, 10, 12, 2, 13, E>
• <S, 1, 2, 3, 4, 6, 7, 9, 10, 11, 12, 2, 13, E>
• <S, 1, 2, 3, 4, 6, 7, 9, 10, 12, 2, 13, E>

CONCLUSION
• The researchers have defined a number of command
types flows and given some test data generation rules.
These have been derived based on a branch coverage
testing path selection criterion and boundary value
analysis. We have also provided an algorithm and used
an example to illustrate the methodology and show
that it is practicable.
• The proposed methodology allows maintainers to
recover a program’s structure and conduct software
maintenance. The method proposed in this paper can
help testers recognize and test programs more
efficiently.

REFERENCE
• http://www.iis.sinica.edu.tw/page/jise/2005/
200511_07.pdf
