- 1. ©The McGraw-Hill Companies, 2005 1 An Introduction Chapter 1 Software Project Management 4th Edition Robert Hughes and Mike Cotterell
- 2. ©The McGraw-Hill Companies, 2005 2 Outline of talk In this introduction the main questions to be addressed will be: – What is software project management? Is it really different from ‘ordinary’ project management? – How do you know when a project has been successful? For example, do the expectations of the customer/client match those of the developers?
- 3. ©The McGraw-Hill Companies, 2005 3 What is a project? Some dictionary definitions: “A specific plan or design” “A planned undertaking” “A large undertaking e.g. a public works scheme” Longmans dictionary Key points above are planning and size of task
- 4. ©The McGraw-Hill Companies, 2005 4 Jobs versus projects ‘Jobs’ – repetition of very well-defined and well understood tasks with very little uncertainty ‘Exploration’ – e.g. finding a cure for cancer: the outcome is very uncertain ‘Projects’ – in the middle!
- 5. ©The McGraw-Hill Companies, 2005 5 Characteristics of projects A task is more ‘project-like’ if it is: • Non-routine • Planned • Aiming at a specific target • Work carried out for a customer • Involving several specialisms • Made up of several different phases • Constrained by time and resources • Large and/or complex
- 6. ©The McGraw-Hill Companies, 2005 6 Are software projects really different from other projects? Not really! …but… • Invisibility • Complexity • Conformity • Flexibility make software more problematic to build than other engineered artefacts.
- 7. ©The McGraw-Hill Companies, 2005 7 Activities covered by project management Feasibility study Is project technically feasible and worthwhile from a business point of view? Planning Only done if project is feasible Execution Implement plan, but plan may be changed as we go along
- 8. ©The McGraw-Hill Companies, 2005 8 The software development life- cycle (ISO 12207)
- 9. ©The McGraw-Hill Companies, 2005 9 ISO 12207 life-cycle Requirements analysis – Requirements elicitation: what does the client need? – Analysis: converting ‘customer-facing’ requirements into equivalents that developers can understand – Requirements will cover • Functions • Quality • Resource constraints i.e. costs
- 10. ©The McGraw-Hill Companies, 2005 10 ISO 12207 life-cycle • Architecture design – Based on system requirements – Defines components of system: hardware, software, organizational – Software requirements will come out of this • Code and test – Of individual components • Integration – Putting the components together
- 11. ©The McGraw-Hill Companies, 2005 11 ISO12207 continued • Qualification testing – Testing the system (not just the software) • Installation – The process of making the system operational – Includes setting up standing data, setting system parameters, installing on operational hardware platforms, user training etc • Acceptance support – Including maintenance and enhancement
- 12. ©The McGraw-Hill Companies, 2005 12 Some ways of categorizing projects Distinguishing different types of project is important as different types of task need different project approaches e.g. • Information systems versus embedded systems • Objective-based versus product-based
- 13. ©The McGraw-Hill Companies, 2005 13 What is management? This involves the following activities: • Planning – deciding what is to be done • Organizing – making arrangements • Staffing – selecting the right people for the job • Directing – giving instructions continued…
- 14. ©The McGraw-Hill Companies, 2005 14 What is management? (continued) • Monitoring – checking on progress • Controlling – taking action to remedy hold- ups • Innovating – coming up with solutions when problems emerge • Representing – liaising with clients, users, developers and other stakeholders
- 15. ©The McGraw-Hill Companies, 2005 15 Setting objectives • Answering the question ‘What do we have to do to have a success?’ • Need for a project authority – Sets the project scope – Allocates/approves costs • Could be one person - or a group – Project Board – Project Management Board – Steering committee
- 16. ©The McGraw-Hill Companies, 2005 16 Objectives Informally, the objective of a project can be defined by completing the statement: The project will be regarded as a success if……………………………….. Rather like post-conditions for the project Focus on what will be put in place, rather than how activities will be carried out

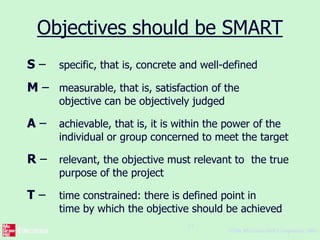

- 17. ©The McGraw-Hill Companies, 2005 17 Objectives should be SMART S – specific, that is, concrete and well-defined M – measurable, that is, satisfaction of the objective can be objectively judged A – achievable, that is, it is within the power of the individual or group concerned to meet the target R – relevant, the objective must relevant to the true purpose of the project T – time constrained: there is defined point in time by which the objective should be achieved
- 18. ©The McGraw-Hill Companies, 2005 18 Goals/sub-objectives These are steps along the way to achieving the objective. Informally, these can be defined by completing the sentence… Objective X will be achieved IF the following goals are all achieved A…………… B…………… C…………… etc
- 19. ©The McGraw-Hill Companies, 2005 19 Goals/sub-objectives continued Often a goal can be allocated to an individual. Individual may have the capability of achieving goal, but not the objective on their own e.g. Objective – user satisfaction with software product Analyst goal – accurate requirements Developer goal – software that is reliable
- 20. ©The McGraw-Hill Companies, 2005 20 Measures of effectiveness How do we know that the goal or objective has been achieved? By a practical test, that can be objectively assessed. e.g. for user satisfaction with software product: • Repeat business – they buy further products from us • Number of complaints – if low etc etc
- 21. ©The McGraw-Hill Companies, 2005 21 Stakeholders These are people who have a stake or interest in the project In general, they could be users/clients or developers/implementers They could be: • Within the project team • Outside the project team, but within the same organization • Outside both the project team and the organization
- 22. ©The McGraw-Hill Companies, 2005 22 The business case Benefits of delivered project must outweigh costs Costs include: - Development - Operation Benefits - Quantifiable - Non-quantifiable £ £ Benefits Costs
- 23. ©The McGraw-Hill Companies, 2005 23 Management control
- 24. ©The McGraw-Hill Companies, 2005 24 Management control Data – the raw details e.g. ‘6,000 documents processed at location X’ Information – the data is processed to produce something that is meaningful and useful e.g. ‘productivity is 100 documents a day’ Comparison with objectives/goals e.g. we will not meet target of processing all documents by 31st March continued…..
- 25. ©The McGraw-Hill Companies, 2005 25 Management control - continued Modelling – working out the probable outcomes of various decisions e.g. if we employ two more staff at location X how quickly can we get the documents processed? Implementation – carrying out the remedial actions that have been decided upon
- 26. ©The McGraw-Hill Companies, 2005 26 Key points in lecture • Projects are non-routine - thus uncertain • The particular problems of projects e.g. lack of visibility • Clear objectives are essential which can be objectively assessed • Stuff happens. Not usually possible to keep precisely plan – need for control • Communicate, communicate, communicate!
