«Spring Integration as Integration Patterns Provider»

Spring Integration
as Integration Patterns
provider
Blynov Viacheslav
Dnepropetrovsk
24 June 2014

3
Spring Integration Goals
 Provide a simple model for implementing complex enterprise integration
solutions.
 Facilitate asynchronous, message-driven behavior within a Spring-based
application.
 Promote intuitive, incremental adoption for existing Spring users.
Spring Integration Introduction
24 June 2014

4
Spring Integration Features
 Implementation of most of the Enterprise Integration Patterns
– Endpoint
– Channel
– Aggregator
– Filter
– …
 Integration with External Systems
– REST/HTTP
– FTP
– Twitter
– JMS
– …
 The framework has extensive JMX support
– exposing framework components as MBeans
– adapters to obtain attributes from MBeans, invoke operations, send/receive notifications
24 June 2014

5

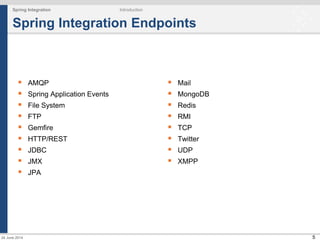

Spring Integration Endpoints
 AMQP
 Spring Application Events
 File System
 FTP
 Gemfire
 HTTP/REST
 JDBC
 JMX
 JPA
 Mail
 MongoDB
 Redis
 RMI
 TCP
 Twitter
 UDP
 XMPP
24 June 2014

7
Main Components
 Message
 Message Channel
 Message Endpoint
– Transformer
– Filter
– Router
– Splitter
– Aggregator
– Service Activator
– Channel Adapter
– Gateway
Spring Integration Main Components
24 June 2014

8
24 June 2014
Message
 Message is a generic wrapper
for any Java object combined
with metadata used by the
framework while handling that
object

9
24 June 2014
Message Channel
 Point-To-Point Channel
 Publish/Subscribe Channel
 Pollable Channels
 Message-Driven Channels

10
24 June 2014

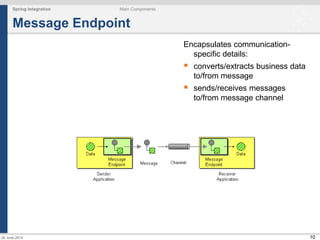

Message Endpoint
Encapsulates communication-
specific details:
 converts/extracts business data
to/from message
 sends/receives messages
to/from message channel

11
24 June 2014
Transformer
 Message Transformer is
responsible for converting a
Message's content or structure
and returning the modified
Message

12
24 June 2014
Filter
 Message Filter determines
whether a Message should be
passed to an output channel at
all

13
24 June 2014
Splitter
 Splitter is another type of
Message Endpoint whose
responsibility is to accept a
Message from its input channel,
split that Message into multiple
Messages, and then send each
of those to its output channel.

14
24 June 2014
Service Activator
Service Activator is a generic endpoint for connecting a service
instance to the messaging system.
The input Message Channel must be configured, and if the service
method to be invoked is capable of returning a value, an output
Message Channel may also be provided.

15
24 June 2014
Gateway
The Gateway encapsulates messaging-specific code (e.g.,
the code required to send or receive a message) and separates it
from the rest of the application code. The Messaging
Gateway exposes a business function to the rest of the application
so that instead of requiring the application to set properties like
Message.

17
Task
 We receive JMS messages with some CompoundObject in JSON format
 CompoundObject is-a list of some Objects
 We need to extract all Objects from CompoundObject and save them to database
(possibly performing some other business logic)
 Those Objects which are considered “good” (verified against some rule) should
be sent via JMS to another queue in JSON format
Spring Integration Example
24 June 2014

18
24 June 2014
 We need to add the following dependencies in pom.xml

19
24 June 2014

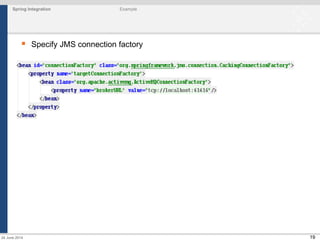

 Specify JMS connection factory

20
24 June 2014

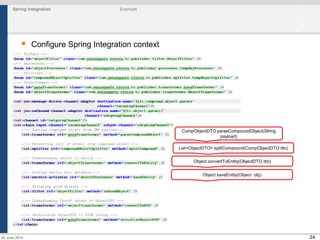

 Configure Spring Integration context

21
24 June 2014
CompObjectDTO parseCompoundObject(String
payload)

22
24 June 2014
payload)
List<ObjectDTO> splitCompound(CompObjectDTO dto)

23
24 June 2014
payload)
Object convertToEntity(ObjectDTO dto)

24
24 June 2014
payload)
Object saveEntity(Object obj)

25
24 June 2014
payload)
boolean isGoodObject(Object obj)

26
24 June 2014
payload)
ObjectDTO convertToDTO(Object obj)

27
24 June 2014
payload)
ObjectDTO convertToDTO(Object obj)
String serializeObjectDTO(ObjectDTO obj)

28
24 June 2014
Receiving messages via HTTP REST

29
Another option: JMS backed message channels
Channel adapter are intended for applications that are integrating with
other external systems. There are cases where both the producer and consumer
for a given JMS Destination are intended to be part of the same application,
running within the same process.
<int-jms:channel id="jmsChannel" queue="exampleQueue"/>
<int-jms:publish-subscribe-channel id="jmsChannel" topic="exampleTopic"/>
 Support of transactions (“transaction-manager” atrribute)
 Support for connection (session, consumer) cache
 Concurrency (number of concurrent sessions/consumers to start for each listener)
24 June 2014

30
Task 2
 An exteranl system feeds us with stream of JSON objects putting them to JMS
queue
 We need to make some calculations (business logic) using these objects in the
order as they come
 Depending on calculationd results we could change the persistent state of our
domain objects
 Incoming objects should be saved to our DB
 Finally, the results of calculation should be sent in JSON format to another JMS
queue
24 June 2014

31
Basic Flow
24 June 2014
Receive objects
Validation
convertion to entity
Calculation
Analyze and save
results
Send to outbound
JMS
Save entities to DB

32
Router
24 June 2014
• Payload Type Router
• Header Value Router
• Recipient List Router
• XPath Router (Part of the XML Module)
• Error Message Exception Type Router
• (Generic) Router

33
Problem
24 June 2014
The incoming messages could arrive very
frequently

34
Aggregator
24 June 2014
• Message Store
• Correlation Strategy (delaults to grouping be MessageHeader.CORRELATION_ID)
• Release Strategy
• Expiration policy

35
Back to task 2: receive and aggregate
24 June 2014

36
Back to task 2: receive and aggregate
24 June 2014
boolean canReleaseMessages(List<IncObject>)
List<IncObject> aggregate(List<IncObject>)
Object getCorrelationKey(IncObject)

37
Back to task 2: routing
24 June 2014

38
Back to task 2: via publish-subscribe channel
24 June 2014

39
Task summary
 Built on the top of other Spring modules (e. g. Spring JMS)
 Every element of the chain – just a simple POJO
 High cohesion
 Easy to cover with unit-tests
 “Convention over configuration” – bean with name “connectionFactory” will be
found automatically
 Change the whole business flow only by configuration
24 June 2014

4024 June 2014
Spring
Integration VS
Apache Camel

41
 Both projects aim to fill similar need: light-weight integration library with full
implementations of EIP
 Apache Camel introduces DSL (Java, Scala, Groovy). Spring Integration - only
XML
 Apache Camel supports longer list of technologies
 Apache Camel offers rich support for both integration and unit-testing. Spring
Integration supports just generic Spring Test
 Apache Camel Community is larger, documentation is better
Spring Integration Spring Integration VS Apache Camel
24 June 2014

42
Apache Camel Java DSL Example
final JaxbDataFormat jaxbDataFormat = new JaxbDataFormat();
jaxbDataFormat.setContextPath(“test.ns.oxm");
jaxbDataFormat.setPartClass(“test.ns.oxm.ABSPartnerChangesEventType");
from("activemq:incoming.partner")
.log("log:test.log")
.choice() .when(header("EVENTTYPE").isEqualTo(“TESTVALUE")).to("direct:createPartner“)
.when(header("EVENTTYPE").isEqualTo(“TESTVALUE2")).to("direct:updatePartner");
from("direct:createPartner")
.errorHandler(noErrorHandler())
.unmarshal(jaxbDataFormat)
.beanRef(“partnerChangeHandler", "createPartner");
from("direct:updatePartner")
.errorHandler(noErrorHandler())
.unmarshal(jaxbDataFormat)
.beanRef(“partnerChangeHandler", "updatePartner");
Spring Integration Spring Integration VS Apache Camel
24 June 2014

43
Recent changes
 Spring EL support (3.0.2)
 HTTP request mapping (based on Spring MVC infrastructure) (3.0.2)
 Enhanced support for MongoDB, Redis and JPA (3.0.2)
 @EnableIntegration, @IntegrationComponentScan (4.0.2)
 Requires Spring 4.0 (4.0.2)
