Spring REST Request Validation
Download as PPTX, PDF1 like709 views
This document discusses request validation for Spring REST controllers. It explains that request validation is important to ensure client requests are well-formed. It demonstrates how to enable validation on request beans using the @Valid annotation and implement both simple and complex validation rules. Simple validations use annotations like @NotNull while complex validations require a custom validator class. The validator is registered globally so it can validate requests for all controllers. Exceptions are handled by a global exception handler to return standardized error responses.
Spring REST Request Validation
- 2. Background Spring REST is not a standardized JAX-RS implementation and there doesn’t seem an attempt to move to that direction either RESTeasy, Restlet, Jersey and ApacheCXF implement JAX-RS to different extents but not Spring REST because of its background in Spring MVC Spring REST is a tweaked version of Spring MVC This presentation is about request bean validation at a @RestController
- 3. Why we need it? For a REST End Point – Its not guaranteed that client will always send a well formed request Request Bean could be malformed in various ways like being empty string, null value or not passable value to a particular type REST Entry Point need not to proceed if request is invalid and data sent is improper If request is invalid, REST Entry Point need to return an error response automatically and service developers need not be tweaking service logic for data invalidity Validation needs to be segregated system component for maintainable flow and readable code
- 4. What is Bean Validation? Bean validation is about validating a POJO’s fields for particular values Details about bean validation can be found at - http://beanvalidation.org/ Its basically about specifying constraints on POJO fields At home page, its written – “Constrain once, validate everywhere” This validation might be needed in JavaSE or JavaEE Above link is simply a specification, its implementation needs to be provided and specification is JSR-303, later improved to JSR-349 One such implementation is provided by Apache, another by Hibernate and so on so forth http://bval.apache.org/ & http://hibernate.org/validator/
- 5. Getting Started : Coding…Dependency First you need to include validation API implementations in your REST application. I have not specified versions so it will get latest versions. <dependency> <groupId>javax.validation</groupId> <artifactId>validation-api</artifactId> </dependency> <dependency> <groupId>org.hibernate</groupId> <artifactId>hibernate-validator</artifactId> </dependency>
- 6. Coding…Enable Validation at Entry Point After including dependencies in application, you need to enable validation for your request bean at your entry point This can be achieved either by @Valid or @Validated annotation as shown below, @RestController @RequestMapping("/baseURL") public class MyController { @Autowired private Service service; @RequestMapping(method = RequestMethod.POST, value = "/entryURL" , consumes=MediaType.APPLICATION_JSON_VALUE, produces =MediaType.APPLICATION_JSON_VALUE ) public ResponseBean<...> getResponse( @Valid @RequestBody RequestBean request) { /* Control comes here only if request satisfies all of your validations since @Valid is palced there */ /* service is a service instance that you would use to build a successful response */ } } @Valid is - import javax.validation.Valid;
- 7. Coding…Simple Validations After previous step, bean validation is enabled for POJO – RequestBean if a hit is made to that entry point Now, you can go to RequestBean class and apply simple validations from either of the two dependencies included in the project Most commonly used annotations are - @NotEmpty, @NotNull, @Email In these annotations ,you can specify custom messages for validator failures You can find many such annotations in - org.hibernate.validator.constraints package ( for hibernate jar ) & javax.validation.constraints package ( for javax jar ) Since you have applied , @Valid to @RequestBody at entry point, now your bean will automatically be validated against these rules/annotations Control will go inside of entry point method if validation passes If validation fails, an exception be thrown– org.springframework.web.bind.MethodArgumentNotValidException or
- 8. Coding…Exception Handler Since, you have enabled validation so exception – MethodArgumentNotValidException might be thrown for invalid requests System might have multiple services / End Points and developer shouldn’t be required to construct a response for each of these failure in every service so you can have a Spring’s global application handler like below – Its just a sample , you can send a response as per your need @ControllerAdvice(value=“*.controller") -> this is basically controller package location @Component public class ApplicationExceptionHandler { @ExceptionHandler @ResponseBody @ResponseStatus(HttpStatus.BAD_REQUEST) public ResponseBean handle(MethodArgumentNotValidException exception){ StringBuilder messages = new StringBuilder(); ResponseBean response = new ResponseBean(); int count = 1; for(ObjectError error:exception.getBindingResult().getAllErrors()){ messages.append(" "+count+"."+error.getDefaultMessage()); ++count; } response.setResponse(“FAILURE”); response.setErrorcode(400); response.setMessage(messages.toString());

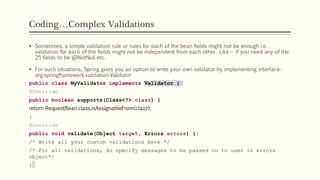

- 9. Coding…Complex Validations Sometimes, a simple validation rule or rules for each of the bean fields might not be enough i.e. validation for each of the fields might not be independent from each other. Like – if you need any of the 25 fields to be @NotNull etc. For such situations, Spring gives you an option to write your own validator by implementing interface- org.springframework.validation.Validator public class MyValidator implements Validator { @Override public boolean supports(Class<?> clazz) { return RequestBean.class.isAssignableFrom(clazz); } @Override public void validate(Object target, Errors errors) {} /* Write all your custom validations here */ /* For all validations, do specify messages to be passed on to user in errors object*/ }
- 10. Coding…Complex Validations…Contd Abstract class - org.springframework.validation.ValidationUtils can be used to write validations like , ValidationUtils.rejectIfEmptyOrWhitespace(errors, “FIELD-1", "field.required"," FIELD-1 field is missing in request body"); etc You can write complex validations using Java Reflection or By Using getters on RequestBean Java Reflection is flexible and you will not be required to change validator for bean field addition and removal In validator, you might choose to log error messages on server side if errors.hasErrors() is true
- 11. Coding…Complex Validations…Contd Plugin Your validator to System : You have defined a custom validator but Spring doesn’t know about it You can write a global application initializer like below to tell framework about it i.e. register it , @ControllerAdvice(value=“*.controller") -> This is controller package @Component public class GlobalApplicationInitializer { @InitBinder public void globalInitBinder(WebDataBinder binder) { binder.addValidators(new MyValidator()); } } Alternatively, you can define a validator @Bean in @Configuration and can use @Autowired instance in addValidators method Now your simple as well as custom validation both can be used on same bean.
- 12. @Valid Vs @Validated There is another annotation @Validated provided by Spring - org.springframework.validation.annotation.Validated that can be used other than - javax.validation.Valid @Validated supports validation groups and that is useful in multi step validations usually not useful for a REST End Point but for a Web Form So @Valid is standardized JEE annotation while @Validated is not.
- 13. Thank You !! Thank You !!
