Learn Software Testing
For Beginners

Introduction & Fundamentals
What is Quality?
What is Software Testing?
Why testing is necessary?
Who does the testing?
What has to be tested?
When is testing done?
How often to test?
What is cost of Quality?
What are Testing Standards?

What is Quality?
 Quality is “fitness for use” - (Joseph
Juran)
 Quality is “conformance to
requirements” - (Philip B. Crosby)
 Quality of a product or service is its
ability to satisfy the needs and
expectations of the customer

Deming’s Learning Cycle of Quality

Deming’s Learning Cycle of Quality
“Inspection with the aim of finding the bad
ones and throwing them out is too late,
ineffective and costly.
Quality comes not from inspection but
improvement of the process.”
Dr. W. Edwards Deming Founder of the
Quality Evolution

Juran’s Perception of Quality

Most Common Software problems
 Incorrect calculation
 Incorrect data edits & ineffective data
edits
 Incorrect matching and merging of data
 Data searches that yields incorrect
results
 Incorrect processing of data
relationship
 Incorrect coding / implementation of
business rules
 Inadequate software performance

 Confusing or misleading data
 Software usability by end users &
 Obsolete Software
 Inconsistent processing
 Unreliable results or performance
 Inadequate support of business needs
 Incorrect or inadequate interfaces
 with other systems
 Inadequate performance and security
controls
 Incorrect file handling

Objectives of testing
 Executing a program with the intent of
finding an error.
 To check if the system meets the
requirements and be executed
successfully in the Intended environment.
 To check if the system is “ Fit for purpose”.
 To check if the system does what it is
expected to do.

Objectives of testing
 A good test case is one that has a
probability of finding an as yet
undiscovered error.
 A successful test is one that uncovers a
yet undiscovered error.
 A good test is not redundant.
 A good test should be “best of breed”.
 A good test should neither be too simple
nor too complex.

Objective of a Software Tester
 Find bugs as early as possible and make sure
they get fixed.
 To understand the application well.
 Study the functionality in detail to find where the
bugs are likely to occur.
 Study the code to ensure that each and every
line of code is tested.
 Create test cases in such a way that testing is
done to uncover the hidden bugs and also
ensure that the software is usable and reliable

VERIFICATION & VALIDATION
Verification - typically involves reviews and meeting
to evaluate documents, plans, code, requirements,
and specifications. This can be done with checklists,
issues lists, walkthroughs, and inspection meeting.
Validation - typically involves actual testing and
takes place after verifications are completed.
Validation and Verification process continue in
a cycle till the software becomes defects free.

TESTABILITY
Operability
Observe-ability
Controllability
Decomposability
Stability
Understandability

Plan
Do
Check
Action
Software Development Process Cycle

 PLAN (P): Device a plan. Define your objective and
determine the strategy and supporting methods
required to achieve that objective.
 DO (D): Execute the plan. Create the conditions
and perform the necessary training to execute the
plan.
 CHECK (C): Check the results. Check to determine
whether work is progressing according to the plan
and whether the results are obtained.
 ACTION (A): Take the necessary and appropriate
action if checkup reveals that the work is not being
performed according to plan or not as anticipated.

QUALITY PRINCIPLES
Quality - the most important factor affecting an
organization’s long-term performance.
Quality - the way to achieve improved
productivity and competitiveness in any
organization.
Quality - saves. It does not cost.
Quality - is the solution to the problem, not a
problem.

Cost of Quality
Prevention Cost
Amount spent before the product is actually
built. Cost incurred on establishing methods
and procedures, training workers, acquiring
tools and planning for quality.
Appraisal cost
Amount spent after the product is built but
before it is shipped to the user. Cost of
inspection, testing, and reviews.

Failure Cost
Amount spent to repair failures.
Cost associated with defective products
that have been delivered to the user or
moved into production, costs involve
repairing products to make them fit as per
requirement.

Quality Assurance Quality Control
A planned and systematic
set of activities necessary to
provide adequate confidence
that requirements are
properly established and
products or services conform
to specified requirements.
The process by which
product quality is compared
with applicable standards;
and the action taken when
non-conformance is
detected.
An activity that establishes
and evaluates the processes
to produce the products.
An activity which verifies if
the product meets pre-
defined standards.

Quality Assurance Quality Control
Helps establish processes. Implements the process.
Sets up measurements
programs to evaluate
processes.
Verifies if specific
attributes are in a specific
product or Service
Identifies weaknesses in
processes and improves
them.
Identifies defects for the
primary purpose of
correcting defects.

QA is the responsibility of
the entire team.
QC is the responsibility of the
tester.
Prevents the introduction of
issues or defects
Detects, reports and corrects
defects
QA evaluates whether or not
quality control is working for
the primary purpose of
determining whether or not
there is a weakness in the
process.
QC evaluates if the application
is working for the primary
purpose of determining if there
is a flaw / defect in the
functionalities.
Responsibilities of QA and QC

QA improves the process
that is applied to multiple
products that will ever be
produced by a process.
QC improves the
development of a specific
product or service.
QA personnel should not
perform quality control
unless doing it to validate
quality control is working.
QC personnel may perform
quality assurance tasks if
and when required.
Responsibilities of QA and QC

SEI – CMM
Software Engineering Institute (SEI) developed Capability
Maturity Model (CMM)
CMM describes the prime elements - planning, engineering,
managing software development and maintenance
CMM can be used for
• Software process improvement
• Software process assessment
• Software capability evaluations

The CMM is organized into five maturity level
Initial
Level 1
Repeatable
Level 2
Defined
Level 3
Managed
Level 4
Optimizing
Level 5
Disciplined Process
Standard Consistence
Process
Predictable Process
Continuous
Improvement Process

Phases of SDLC
• Requirement Specification and
Analysis
• Design
• Coding
• Testing
• Implementation
• Maintenance
SOFTWARE DEVELOPMENT LIFE
CYCLE (SDLC)

Requirement Specification
and Analysis
User Requirement
Specification (USR)
Software Requirement
Specification (SRS)

The output of SRS is the input of design phase.
Two types of design -
High Level Design (HLD)
Low Level Design (LLD)
Design

 List of modules and a brief description of each
module.
 Brief functionality of each module.
 Interface relationship among modules.
 Dependencies between modules (if A exists, B
exists etc).
 Database tables identified along with key
elements.
 Overall architecture diagrams along with
technology details.
High Level Design (HLD)

 Detailed functional logic of the module, in
pseudo code.
 Database tables, with all elements,
including their type and size.
 All interface details.
 All dependency issues
 Error message listings
 Complete input and outputs for a module.
Low Level Design (LLD)

Breaking down the product into independent
modules to arrive at micro levels.
2 different approaches followed in designing –
Top Down Approach
Bottom Up Approach
The Design process

Coding
Developers use the LLD document and
write the code in the programming language
specified.
Testing
The testing process involves development of
a test plan, executing the plan and
documenting the test results.
Implementation
Installation of the product in its operational
environment.

Maintenance
After the software is released and the client starts
using the software, maintenance phase is started.
3 things happen - Bug fixing, Upgrade, Enhancement
Bug fixing – bugs arrived due to some untested
scenarios.
Upgrade – Upgrading the application to the newer
versions of the software.
Enhancement - Adding some new features into the
existing software.

SOFTWARE LIFE CYCLE MODELS
WATERFALL MODEL
V-PROCESS MODEL
SPIRAL MODEL
PROTOTYPE MODEL
INCREMENTAL MODEL
EVOLUTIONARY DEVELOPMENT
MODEL

Project Management
 Project Staffing
 Project Planning
 Project Scheduling

Project Staffing
 Project budget may not allow to utilize
highly – paid staff.
 Staff with the appropriate experience may not
be available.

Project Planning
Plan Description
Quality plan Describes the quality procedures and
standards used in a project.
Validation plan Describes the approach, resources and
schedule used for system validation.
Configuration
management plan
Describes the configuration management
procedures and structures to be used.
Maintenance
plan
Predicts the maintenance requirements of the
system/ maintenance costs and efforts
required.
Staff
development plan
Describes how the skills and experience of
the project team members will be developed.

Project Scheduling
 Bar charts and Activity Networks
 Scheduling problems

RISK MANAGEMENT
 Risk identification
 Risk Analysis
 Risk Planning
 Risk Monitoring

Risk Risk
type
Description
Staff
turnover
Project Experienced staff will leave the
project before it is finished.
Management
change
Project There will be a change of
organizational management with
different priorities.
Hardware
unavailability
Project Hardware which is essential for the
project will not be delivered on
schedule.
Requirements
change
Project &
Product
There will be a larger number of
changes to the requirements than
anticipated.

Risk Risk
type
Description
Specification
delays
Project &
Product
Specifications of essential
interfaces are not available on
schedule.
Size under
estimate
Project &
Product
The size of the system has been
under estimated.
CASE tool under
performance
Product CASE tools which support the
project do not perform as
anticipated.
Technology
change
Business The underlying technology on
which the system is built is
superseded by new technology.
Product
competition
Business A competitive product is marketed
before the system is completed.

PC version
Initial system DEC
version
VMS
version
Unix
version
Mainframe
version
Workstation
version
Configuration Management
Sun
version

Configuration Management (CM)
Standards
 CM should be based on a set of standards,
which are applied within an organization.

CM Planning
Documents, required for future system
maintenance, should be identified and included
as managed documents.
It defines the types of documents to be
managed and a document naming scheme.

Change Management
Keeping and managing the changes and
ensuring that they are implemented in the most
cost-effective way.

Change Request form
A part of the CM planning process
 Records change required
 Change suggested by
 Reason why change was suggested
 Urgency of change
 Records change evaluation
 Impact analysis
 Change cost
 Recommendations(system maintenance staff)

VERSION AND RELEASE MANAGEMENT
 Invent identification scheme for system
versions and plan when new system version is
to be produced.
 Ensure that version management procedures
and tools are properly applied and to plan and
distribute new system releases.

Versions/Variants/Releases
Variant An instance of a system which is
functionally identical but non – functionally
distinct from other instances of a system.
Versions An instance of a system, which is
functionally distinct in some way from other
system instances.
Release An instance of a system, which is
distributed to users outside of the development
team.

SOFTWARE TESTING LIFECYCLE -
PHASES
 Requirements study
 Test Case Design and
Development
 Test Execution
 Test Closure
 Test Process Analysis

Requirements study
 Testing Cycle starts with the study of client’s
requirements.
 Understanding of the requirements is very
essential for testing the product.

Analysis & Planning
• Test objective and coverage
• Overall schedule
• Standards and Methodologies
• Resources required, including necessary
training
• Roles and responsibilities of the team
members
• Tools used

Test Case Design and Development
• Component Identification
• Test Specification Design
• Test Specification Review
Test Execution
• Code Review
• Test execution and evaluation
• Performance and simulation

Test Closure
• Test summary report
• Project De-brief
• Project Documentation
Test Process Analysis
Analysis done on the reports and improving the
application’s performance by implementing new
technology and additional features.

Testing Levels
• Unit testing
• Integration testing
• System testing
• Acceptance testing

Unit testing
 The most ‘micro’ scale of testing.
 Tests done on particular functions or code
modules.
 Requires knowledge of the internal program
design and code.
 Done by Programmers (not by testers).

Unit testing
Objectives  To test the function of a program or unit of
code such as a program or module
 To test internal logic
 To verify internal design
 To test path & conditions coverage
 To test exception conditions & error
handling
When  After modules are coded
Input  Internal Application Design
 Master Test Plan
 Unit Test Plan
Output  Unit Test Report

Who Developer
Methods White Box testing techniques
Test Coverage techniques
Tools Debug
Re-structure
Code Analyzers
Path/statement coverage tools
Education Testing Methodology
Effective use of tools

 Incremental integration testing
Continuous testing of an application as and
when a new functionality is added.
Application’s functionality aspects are required
to be independent enough to work separately
before completion of development.
Done by programmers or testers.

Integration Testing
 Testing of combined parts of an application to
determine their functional correctness.
 ‘Parts’ can be
• code modules
• individual applications
• client/server applications on a network.

Types of Integration Testing
• Big Bang testing
• Top Down Integration testing
• Bottom Up Integration testing

Integration testing
Objectives  To technically verify proper
interfacing between modules, and
within sub-systems
When  After modules are unit tested
Input  Internal & External Application
Design
 Integration Test Plan
Output  Integration Test report

Who Developers
Methods White and Black Box
techniques
Problem /
Configuration
Management
Tools Debug
Re-structure
Code Analyzers

System Testing
Objectives  To verify that the system components perform
control functions
 To perform inter-system test
 To demonstrate that the system performs both
functionally and operationally as specified
 To perform appropriate types of tests relating
to Transaction Flow, Installation, Reliability,
Regression etc.
When  After Integration Testing
Input  Detailed Requirements & External Application
Design
 System Test Plan
Output  System Test Report

Who Development Team and Users
Methods Problem / Configuration
Management
Tools Recommended set of tools

Systems Integration Testing
Objectives  To test the co-existence of products and
applications that are required to perform
together in the production-like operational
environment (hardware, software, network)
 To ensure that the system functions together
with all the components of its environment as a
total system
 To ensure that the system releases can be
deployed in the current environment
When  After system testing
 Often performed outside of project life-cycle
Input  Test Strategy
 Systems Integration Test Plan
Output  Systems Integration Test report

Who System Testers
Methods White and Black Box techniques
Problem / Configuration
Management
Tools Recommended set of tools

Acceptance Testing
Objectives  To verify that the system meets
the user requirements
When  After System Testing
Input  Business Needs & Detailed
Requirements
 User Acceptance Test Plan
Output  User Acceptance Test report

Who Users / End Users
Methods Black Box techniques
Problem / Configuration
Management
Tools Compare, keystroke capture & playback,
regression testing
Product knowledge
Business Release Strategy

TESTING METHODOLOGIES
AND TYPES

Testing methodologies
Black box testing
White box testing
Incremental testing
Thread testing

 Black box testing
• No knowledge of internal design or code
required.
• Tests are based on requirements and
functionality
 White box testing
• Knowledge of the internal program design
and code required.
• Tests are based on coverage of code
statements,branches,paths,conditions.

 Incorrect or missing functions
 Interface errors
 Errors in data structures or external database
access
 Performance errors
 Initialization and termination errors
BLACK BOX - TESTING TECHNIQUE

Black box / Functional testing
 Based on requirements and functionality
 Not based on any knowledge of internal
design or code
 Covers all combined parts of a system
 Tests are data driven

White box testing / Structural testing
 Based on knowledge of internal logic of an
application's code
 Based on coverage of code statements,
branches, paths, conditions
 Tests are logic driven

Functional testing
 Black box type testing geared to functional
requirements of an application.
 Done by testers.
System testing
 Black box type testing that is based on overall
requirements specifications; covering all combined
parts of the system.
End-to-end testing
 Similar to system testing; involves testing of a
complete application environment in a situation that
mimics real-world use.

Sanity testing
 Initial effort to determine if a new software
version is performing well enough to accept
it for a major testing effort.
Regression testing
 Re-testing after fixes or modifications of the
software or its environment.

Acceptance testing
 Final testing based on specifications of the
end-user or customer
Load testing
 Testing an application under heavy loads.
 Eg. Testing of a web site under a range of
loads to determine, when the system
response time degraded or fails.

Stress Testing
 Testing under unusually heavy loads, heavy
repetition of certain actions or inputs, input of
large numerical values, large complex queries
to a database etc.
 Term often used interchangeably with ‘load’
and ‘performance’ testing.
Performance testing
 Testing how well an application complies to
performance requirements.

Install/uninstall testing
 Testing of full,partial or upgrade
install/uninstall process.
Recovery testing
 Testing how well a system recovers from
crashes, HW failures or other problems.
Compatibility testing
 Testing how well software performs in a
particular HW/SW/OS/NW environment.

Exploratory testing / ad-hoc testing
 Informal SW test that is not based on formal test
plans or test cases; testers will be learning the
SW in totality as they test it.
Comparison testing
 Comparing SW strengths and weakness to
competing products.

Alpha testing
•Testing done when development is nearing
completion; minor design changes may still
be made as a result of such testing.
Beta-testing
•Testing when development and testing are
essentially completed and final bugs and
problems need to be found before release.

Mutation testing
 To determining if a set of test data or test cases is
useful, by deliberately introducing various bugs.
 Re-testing with the original test data/cases to
determine if the bugs are detected.

White Box - testing technique
 All independent paths within a module have been
exercised at least once
 Exercise all logical decisions on their true and false
sides
 Execute all loops at their boundaries and within their
operational bounds
 Exercise internal data structures to ensure their
validity

This white box technique focuses on the validity
of loop constructs.
4 different classes of loops can be defined
• simple loops
• nested loops
• concatenated loops
• Unstructured loops
Loop Testing

Other White Box Techniques
Statement Coverage – execute all statements at least once
Decision Coverage – execute each decision direction at least
once
Condition Coverage – execute each decision with all possible
outcomes at least once
Decision / Condition coverage – execute all possible
combinations of condition outcomes in
each decision.
Multiple condition Coverage – Invokes each point of entry at
least once.
Examples ……

Statement Coverage – Examples
Eg. A + B
If (A = 3) Then
B = X + Y
End-If
While (A > 0) Do
Read (X)
A = A - 1
End-While-Do

Decision Coverage - Example
If A < 10 or A > 20 Then
B = X + Y
Condition Coverage – Example
A = X
If (A > 3) or (A < B) Then
B = X + Y
End-If-Then
While (A > 0) and (Not EOF) Do
Read (X)
A = A - 1
End-While-Do

Incremental Testing
 A disciplined method of testing the interfaces
between unit-tested programs as well as
between system components.
 Involves adding unit-testing program module
or component one by one, and testing each
result and combination.

Two types of Incremental Testing
 Top-down – testing form the top of the
module hierarchy and work down to the bottom.
Modules are added in descending hierarchical
order.
 Bottom-up – testing from the bottom of the
hierarchy and works up to the top. Modules are
added in ascending hierarchical order.

Testing Levels/
Techniques
White
Box
Black
Box
Incre-
mental
Thread
Unit Testing X
Integration
Testing
X X
X
System Testing X
Acceptance
Testing
X

Major Testing Types
 Stress / Load Testing
 Performance Testing
 Recovery Testing
 Conversion Testing
 Usability Testing
 Configuration Testing

Stress / Load Test
 Evaluates a system or component at or beyond
the limits of its specified requirements.
 Determines the load under which it fails and
how.

Performance Test
 Evaluate the compliance of a system or
component with specified performance
requirements.
 Often performed using an automated test tool
to simulate large number of users.

Recovery Test
Confirms that the system recovers from
expected or unexpected events without loss
of data or functionality.
Eg.
 Shortage of disk space
 Unexpected loss of communication
 Power out conditions

Conversion Test
 Testing of code that is used to convert data
from existing systems for use in the newly
replaced systems

Usability Test
 Testing the system for the users
to learn and use the product.

Configuration Test
 Examines an application's requirements for pre-
existing software, initial states and
configuration in order to maintain proper
functionality.

SOFTWARE TESTING LIFECYCLE -
PHASES
• Requirements study
• Test Case Design and
Development
• Test Execution
• Test Closure
• Test Process Analysis

Test Closure
• Test summary report
• Project Documentation
Test Process Analysis
Analysis done on the reports and improving the
application’s performance by implementing new
technology and additional features.

TEST PLAN
Objectives
 To create a set of testing tasks.
 Assign resources to each testing task.
 Estimate completion time for each testing task.
 Document testing standards.

A document that describes the
 scope
 approach
 resources
 schedule
…of intended test activities.
Identifies the
 test items
 features to be tested
 testing tasks
 task allotment
 risks requiring contingency planning.

Purpose of preparing a Test Plan
 Validate the acceptability of a software product.
 Help the people outside the test group to understand
‘why’ and ‘how’ of product validation.
 A Test Plan should be
 thorough enough (Overall coverage of test to be
conducted)
 useful and understandable by the people inside and
outside the test group.

Scope
The areas to be tested by the QA team.
Specify the areas which are out of scope (screens,
database, mainframe processes etc).
Test Approach
Details on how the testing is to be performed.
Any specific strategy is to be followed for
testing (including configuration management).

Entry Criteria
Various steps to be performed before the start of a
test i.e. Pre-requisites.
E.g.
 Timely environment set up
 Starting the web server/app server
 Successful implementation of the latest build etc.
Resources
List of the people involved in the project and their
designation etc.

Tasks/Responsibilities
Tasks to be performed and responsibilities
assigned to the various team members.
Exit Criteria
Contains tasks like
•Bringing down the system / server
•Restoring system to pre-test environment
•Database refresh etc.
Schedule / Milestones
Deals with the final delivery date and the
various milestones dates.

Hardware / Software Requirements
Details of PC’s / servers required to install the
application or perform the testing
Specific software to get the application
running or to connect to the database etc.
Risks & Mitigation Plans
List out the possible risks during testing
Mitigation plans to implement incase the risk
actually turns into a reality.

Tools to be used
List the testing tools or utilities
Eg.WinRunner, LoadRunner, Test Director,
Rational Robot, QTP.
Deliverables
Various deliverables due to the client at various
points of time i.e. Daily / weekly / start of the
project end of the project etc.
These include test plans, test procedures, test
metric, status reports, test scripts etc.

References
 Procedures
 Templates (Client specific or otherwise)
 Standards / Guidelines e.g. Qview
 Project related documents (RSD, ADD,
FSD etc).

Annexure
 Links to documents which have been / will be
used in the course of testing
Eg. Templates used for reports, test cases etc.
 Referenced documents can also be attached here.
Sign-off
 Mutual agreement between the client and the QA
Team.
 Both leads/managers signing their agreement on
the Test Plan.

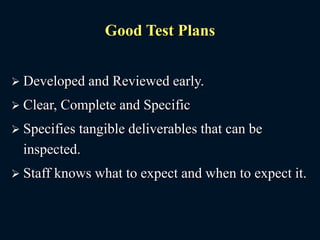

Good Test Plans
 Developed and Reviewed early.
 Clear, Complete and Specific
 Specifies tangible deliverables that can be
inspected.
 Staff knows what to expect and when to expect it.

Good Test Plans
 Realistic quality levels for goals
 Includes time for planning
 Can be monitored and updated
 Includes user responsibilities
 Based on past experience
 Recognizes learning curves

TEST CASES
Test case is defined as
 A set of test inputs, execution conditions and
expected results, developed for a particular
objective.
 Documentation specifying inputs, predicted
results and a set of execution conditions for a test
item.

 Specific inputs that will be tried and the
procedures that will be followed when the
software tested.
 Sequence of one or more subtests executed as
a sequence as the outcome and/or final state of
one subtests is the input and/or initial state of
the next.
 Specifies the pretest state of the AUT and its
environment, the test inputs or conditions.
 The expected result specifies what the AUT
should produce from the test inputs.

Test Cases
Contents
 Test plan reference id
 Test case
 Test condition
 Expected behavior

Good Test Cases
Find Defects
 Have high probability of finding a new defect.
 Unambiguous tangible result that can be
inspected.
 Repeatable and predictable.

Good Test Cases
 Traceable to requirements or design documents
 Push systems to its limits
 Execution and tracking can be automated
 Do not mislead
 Feasible

Defect Life Cycle
What is Defect?
A defect is a variance from a desired
product attribute.
Two categories of defects are
• Variance from product specifications
• Variance from Customer/User
expectations

Variance from product specification
 Product built varies from the product specified.
Variance from Customer/User specification
 A specification by the user not in the built
product, but something not specified has been
included.

Defect categories
Wrong
The specifications have been implemented
incorrectly.
Missing
A specified requirement is not in the built
product.
Extra
A requirement incorporated into the product
that was not specified.

Defect Log
• Defect ID number
• Descriptive defect name and type
• Source of defect – test case or other source
• Defect severity
• Defect Priority
• Defect status (e.g. New, open, fixed, closed,
reopen, reject)

7. Date and time tracking for either the most
recent status change, or for each change in the
status.
8. Detailed description, including the steps
necessary to reproduce the defect.
9. Component or program where defect was found
10. Screen prints, logs, etc. that will aid the
developer in resolution process.
11. Stage of origination.
12. Person assigned to research and/or corrects the
defect.

Severity Vs Priority
Severity
Factor that shows how bad the defect is and
the impact it has on the product
Priority
Based upon input from users regarding
which defects are most important to them,
and be fixed first.

Severity Levels
 Critical
 Major / High
 Average / Medium
 Minor / low
 Cosmetic defects

Severity Level – Critical
 An installation process which does not load a
component.
 A missing menu option.
 Security permission required to access a function
under test.
 Functionality does not permit for further testing.

 Runtime Errors like JavaScript errors etc.
 Functionality Missed out / Incorrect
Implementation (Major Deviation from
Requirements).
 Performance Issues (If specified by Client).
 Browser incompatibility and Operating systems
incompatibility issues depending on the impact
of error.
 Dead Links.

Severity Level – Major / High
 Reboot the system.
 The wrong field being updated.
 An updated operation that fails to complete.
 Performance Issues (If not specified by Client).
 Mandatory Validations for Mandatory Fields.

 Functionality incorrectly implemented (Minor
Deviation from Requirements).
 Images, Graphics missing which hinders
functionality.
 Front End / Home Page Alignment issues.
 Severity Level – Average / Medium
Incorrect/missing hot key operation.

Severity Level – Minor / Low
 Misspelled or ungrammatical text
 Inappropriate or incorrect formatting (such as
text font, size, alignment, color, etc.)
 Screen Layout Issues
 Spelling Mistakes / Grammatical Mistakes
 Documentation Errors

 Page Titles Missing
 Alt Text for Images
 Background Color for the Pages other than
Home page
 Default Value missing for the fields required
 Cursor Set Focus and Tab Flow on the Page
 Images, Graphics missing, which does not,
hinders functionality

Test Reports
8 INTERIM REPORTS
 Functional Testing Status
 Functions Working Timeline
 Expected Vs Actual Defects Detected Timeline
 Defects Detected Vs Corrected Gap Timeline
 Average Age of Detected Defects by type
 Defect Distribution
 Relative Defect Distribution
 Testing Action

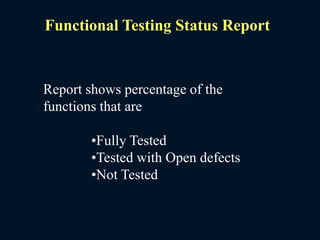

Functional Testing Status Report
Report shows percentage of the
functions that are
•Fully Tested
•Tested with Open defects
•Not Tested

Functions Working Timeline
Report shows the actual plan to have all
functions verses the current status of the
functions working.
Line graph is an ideal format.

Expected Vs. Actual Defects Detected
Analysis between the number of defects being
generated against the expected number of
defects expected from the planning stage.

Defects Detected Vs. Corrected Gap
A line graph format that shows the
Number of defects uncovered verses the
number of defects being corrected and
accepted by the testing group.

Average Age Detected Defects by Type
Average days of outstanding defects by its
severity type or level.
The planning stage provides the acceptable
open days by defect type.

Defect Distribution
Shows defect distribution by function or module
and the number of tests completed.
Relative Defect Distribution
Normalize the level of defects with the
previous reports generated.
Normalizing over the number of functions or
lines of code shows a more accurate level of
defects.

Testing Action
Report shows
 Possible shortfalls in testing
 Number of severity-1 defects
 Priority of defects
 Recurring defects
 Tests behind schedule
….and other information that present an accurate
testing picture

METRICS
2 Types
Product metrics
Process metrics

Process Metrics
 Measures the characteristic of the
• methods
• techniques
• tools

Product Metrics
 Measures the characteristic of the
documentation and code.

Test Metrics
User Participation = User Participation test time
Vs. Total test time.
Path Tested = Number of path tested Vs. Total
number of paths.
Acceptance criteria tested = Acceptance criteria
verified Vs. Total acceptance criteria.

Test cost = Test cost Vs. Total system cost.
Cost to locate defect = Test cost / No. of defects
located in the testing.
Detected production defect = No. of defects
detected in production / Application system size.
Test Automation = Cost of manual test effort /
Total test cost.

CMM – Level 1 – Initial Level
The organization
Does not have an environment for developing
and maintaining software.
At the time of crises, projects usually stop
using all planned procedures and revert to coding
and testing.

CMM – Level 2 – Repeatable level
Effective management process having
established which can be
 Practiced
 Documented
 Enforced
 Trained
 Measured
 Improvised

CMM – Level 3 – Defined level
Standard defined software engineering and
management process for developing and
maintaining software.
These processes are put together to make a
coherent whole.

CMM – Level 4 – Managed level
Quantitative goals set for both software products
and processes.
The organizational measurement plan involves
determining the productivity and quality for all
important software process activities across all
projects.

CMM – Level 5 – Optimizing level
Emphasis laid on
Process improvement
Tools to identify weaknesses existing in their
processes
Make timely corrections

Cost of Poor Quality
Total Quality Costs represent the difference
between the actual (current) cost of a product
or service and what the reduced cost would be
if there were no possibility of substandard
service, failure to meet specifications, failure
of products, or defects in their manufacture.
Campanella, Principles of Quality Costs

COQ Process
1. Commitment
2. COQ Team
3. Gather data (COQ assessment)
4. Pareto analysis
5. Determine cost drivers
6. Process Improvement Teams
7. Monitor and measure
8. Go back to step 3
Generally
Missing

“Wished I had understood that Cost of Quality stuff better”

TESTING STANDARDS
External Standards
Familiarity with and adoption of industry test
standards from organizations.
Internal Standards
Development and enforcement of the test
standards that testers must meet.

IEEE STANDARDS
Institute of Electrical and Electronics
Engineers designed an entire set of standards
for software and to be followed by the
testers.

IEEE – Standard Glossary of Software Engineering
Terminology
IEEE – Standard for Software Quality Assurance Plan
IEEE – Standard for Software Configuration
Management Plan
IEEE – Standard for Software for Software Test
Documentation
IEEE – Recommended Practice for Software
Requirement Specification

IEEE – Standard for Software Unit Testing
IEEE – Standard for Software Verification and
Validation
IEEE – Standard for Software Reviews
IEEE – Recommended practice for Software
Design descriptions
IEEE – Standard Classification for Software
Anomalies

IEEE – Standard for Software Productivity
metrics
IEEE – Standard for Software Project
Management plans
IEEE – Standard for Software Management
IEEE – Standard for Software Quality Metrics
Methodology

Other standards…..
ISO – International Organization for Standards
Six Sigma – Zero Defect Orientation
SPICE – Software Process Improvement and
Capability Determination
NIST – National Institute of Standards and
Technology

www.softwaretestinggenius.com
A Storehouse of Vast
Knowledge on
Multiple Answer Interview Questions / Quiz as used by
Several MNC’s to Evaluate New Testers
and
Hundreds of Interview Preparation Questions on
QuickTest Professional (QTP) , LoadRunner , Software
Testing & Quality Assurance
>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<

Thank You
>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<

stfbegn.ppt

More Related Content

Similar to stfbegn.ppt (20)

Recently uploaded (20)

stfbegn.ppt
