Michael Kalika presents on Intuit's system scalability, covering its history, customer service approach, and technical strategies for scaling databases, APIs, and incident management. The document highlights various methods like functional decomposition, sharding, query optimization, and the importance of customer experience and performance in cloud operations. It concludes with insights on security in the cloud, incident management, and the necessity of a strategic response plan.
![Intuit Confidential and Proprietary 23
The Scale Cube
Data partitioning
Scale by splitting similar things [sharding]
Example: Cell Architecture and/or Sharding. A cell
is a self-contained installation that can satisfy all the
operations for a shard. A shard is a subset of a
much larger dataset, typically a range of users, for
example.
Horizontal duplication
Scale by cloning
Example: 18 Web servers under Load Balancer
Functional decomposition
Scale by splitting different things
Example: Orders, Inventory, Customers](https://image.slidesharecdn.com/systemscalability3-200618084745/85/System-Scalability-23-320.jpg)
System Scalability
- 1. Michael Kalika Chief Architect, Intuit Israel System Scalability April 22, 2020
- 2. Intuit Confidential and Proprietary 2 Agenda Intro Use Case Fundamentals Scaling Databases Scaling API Async Operations Security in Cloud Incident Management Q&A
- 3. Intro
- 4. 4 Hi, I’m Michael Software Dev Leadership HP 2004 - 2011 BI/Data Group Manager HP 2011 - 2015 R&D Architect Payoneer 2015 - 2017 Architect, DevOps and PD Lead Intuit 2017 - 2020 Chief Architect Intuit 2020 - Today
- 5. 5
- 6. Intuit Confidential and Proprietary 6 Where we startWhere we started Intuit’s journey began over 35 years ago when our founder Scott Cook sat at his kitchen table and watched his wife as she balanced their checkbook and thought there must be a better way.
- 8. Intuit Confidential and Proprietary 8 Who we are Founded 9,000 Employees 50M Customers 1993 IPO ~$6.8B FY19 Revenue 20 Locations 1983
- 9. Intuit Confidential and Proprietary 9 Intuit global locations 20 locations in 9 countries Brazil São Paulo Europe London, UK Paris, France Australia Melbourne Sydney India Bangalore Israel Tel Aviv United States California: Los Angeles Mountain View San Diego San Francisco Boise, ID Fredericksburg, VA Plano/Dallas, TX Reno, NV Tucson, AZ Washington, D.C. Canada Edmonton Mississauga/Toronto Updated November 2019 Mexico Mexico City
- 10. Intuit Confidential and Proprietary 10 Recognized as one of the world’s leading companies 2004 - 2019 Most Admired: Computer Software 2002 - 2019 100 Best Companies to Work For 2019 Most Innovative Companies 2019 Companies Best Positioned For Breakout Growth
- 11. Intuit Confidential and Proprietary 11 Recognized as one of the top companies to work for #15 IN THE BAY AREA #10 IN TECHNOLOGY #1 in Canada #24 in the US #4 in the UK #2 in India #3 in Australia #15 COMPANIES THAT CARE #14 in Israel
- 12. Intuit Confidential and Proprietary 12 Be Bold Be Passionate Learn Fast Be Decisive Win Together Deliver Awesome Our values Integrity Without Compromise We Care and Give Back
- 13. Intuit Confidential and Proprietary 13 Core capabilities: Our recipe to execute with excellence WHAT TO SOLVE HOW TO SOLVE CUSTOMER-DRIVEN INNOVATION (CDI) DESIGN FOR DELIGHT (D4D) An important, unsolved customer problem …that we, and those we enable, can solve well …and build durable competitive advantage SUCCESS IS HERE Deep customer empathy Go broad to go narrow Rapid experiments with customers DELIGHT
- 14. Use Case
- 15. Intuit Confidential and Proprietary 15 Hermes Deliveries - Assume we have a small startup company that offers low cost and fast deliveries by connecting people and delivery needs. - Initially when we start, our target is Rishon Le-Tzion and we have tens of daily customers and 2-3 couriers.
- 16. Intuit Confidential and Proprietary 16 Hermes Deliveries - We save all customers, couriers, orders, places, and history in the same database, in a single DB instance. - Everything is new and small, so we have no caching, no automation, no auto scaling, no monitoring. - This is perfect as we hardly have 1 delivery order in 15 minutes.
- 17. Intuit Confidential and Proprietary 17 COVID-19 time - But, with COVID-19 more and more people started using our service since we are the cheapest and fastest service. - Now, we have 20 orders in 30 minutes and the number increases… - We see how successful the service is and decided to offer our services in Tel Aviv.
- 18. Intuit Confidential and Proprietary 18 Turtle Deliveries - At this point we realize that our system performs poorly. - The App works very slow and API latency increased. - We have database transaction deadlocks and whole system failures.
- 19. Fundamentals
- 20. Intuit Confidential and Proprietary 20 Scalability Concepts vs. Vertical Horizontal
- 21. Intuit Confidential and Proprietary 21 Scalability Concepts
- 22. Intuit Confidential and Proprietary 22 System Decomposition Distributed System
- 23. Intuit Confidential and Proprietary 23 The Scale Cube Data partitioning Scale by splitting similar things [sharding] Example: Cell Architecture and/or Sharding. A cell is a self-contained installation that can satisfy all the operations for a shard. A shard is a subset of a much larger dataset, typically a range of users, for example. Horizontal duplication Scale by cloning Example: 18 Web servers under Load Balancer Functional decomposition Scale by splitting different things Example: Orders, Inventory, Customers
- 25. Intuit Confidential and Proprietary 25 Query Optimization, Indexing and Connection Pool - We use RDBMS which is heavily normalized - Therefore, it was decided to 1. Introduce some redundant columns which frequently appear in WHERE and JOIN ON clauses (denormalization) - This will reduce join queries and break few big queries into smaller. 2. Introduce index to columns that frequently appear in WHERE clauses. 3. Use connection pool for optimization of the number of costly network connections.
- 26. Intuit Confidential and Proprietary 26 Vertical Scaling or Scaling Up - All that helped improve application API latency by 30% which was good enough at this time. - We entered new areas. - It was also decided to upgrade RDS and add more storage for reducing future risks.
- 27. Intuit Confidential and Proprietary 27 New Challenges - Everything is running great, we have more orders and delivery couriers, but facing new issues… again… 1. Database index grows and requires maintenance 2. Table scanning with index is slow. - Upgrade to a bigger RDS instance is costly and we are not yet profitable. - What is your next step?
- 28. Intuit Confidential and Proprietary 28 Read Replicas - Bigger RDS is not able to handle all READ and WRITE requests. - In most cases we need consistency in WRITEs, but small delays on READs are fine. - Therefore, it was decided to create two READ replicas of a given source RDS instance, thereby increasing read throughput.
- 29. Intuit Confidential and Proprietary 29 Read Replicas - That was good and we decided to go for new areas. - Now we see that the Primary instance is not able to handle all writes and there is latency. - We also have unacceptable lags between Primary and READ replicas. - What’s next?
- 30. Intuit Confidential and Proprietary 30 Functional Decomposition - Our Locations table in database is getting high WRITE traffic - the R:W ratio is 3:8. - That table is used for location tracking and it has nothing to do with the rest of the functionality. - Why not decompose functionality? 1. Separate Locations table to a new dedicated database 2. Decouple location tracking functionality as a stand-alone Microservice?
- 31. Intuit Confidential and Proprietary 31 Functional Decomposition - Done deal! It works! - Now we want to add the rest of the country and we must plan for a scale - What can we do?
- 32. Intuit Confidential and Proprietary 32 Data Partitioning or Sharding Share Nothing Model - It was decided to Shard the database. - Sharding is a technique that splits data into smaller subsets and distributes them across a number of physically separated database servers. - Shards have no knowledge of each other. If one database shard has a hardware issue or goes through failover, no other shards are impacted The query to read or join data from multiple database shards must be specially engineered North Center South
- 33. Intuit Confidential and Proprietary 33 Wrap Up and Questions - Scalability Cube and Concepts - Scaling Databases 1. Query Optimization, Indexing, Connection Pool 2. Vertical Scaling / Scaling Up 3. Read Replicas 4. Data Partitioning or Sharding - Functional Decomposition
- 34. Scaling API
- 35. Intuit Confidential and Proprietary 35 Horizontal Scaling - We noticed that our Location API server is extremely loaded and sometimes crashes. - We decided to create three Location API servers in three AWS availability zones and put them behind load balancer.
- 36. Intuit Confidential and Proprietary 36 Auto Scaling - But we still face occasional issues during certain hours and we want to be smart with costs. - Therefore, it was decided to use auto scaling. Minimum Size Scale out as needed Desired Capacity Maximum Size Application to be live Application to perform normal During peak season During peak load, scale out by - Minimum 3 servers - Desired 9 servers - Maximum 27 servers - 3 servers, every 10 minutes Example: We can also consider reserved instances for cost saving Very important to autoscale not only using HW utilization (CPU, memory, etc.), but also use system metrics like lag in your messaging broker for example.
- 37. Intuit Confidential and Proprietary 37 Customer Attrition - So far everything was good, but we noticed some customer attrition. - We know that our pricing is personal, dynamic and cheapest in the market. - Customers come as usual, fill-in details, ask for price quote and then go away... - What could that be?
- 38. Intuit Confidential and Proprietary 38 Customer Attrition Reason - Turns out that our unique and sophisticated pricing and matching algorithm has some expensive “personality coefficient” calculation per each delivery courier. - We want the fastest and nicest couriers to be rewarded a bit more and we look at the history for calculating “personality coefficient” used in pricing.
- 39. Intuit Confidential and Proprietary 39 Customer Attrition Reason Therefore, we decided to decompose “personality coefficient” as a separate offline job and create Pricing service - The calculation will happen once in 24 hours per each courier - For fast performance we decided to use Redis as a key/value caching data store for saving of the results
- 40. Async Operations
- 41. Intuit Confidential and Proprietary 41 Three Important Response Time Limits - Up to 0.1 seconds: The user doesn’t recognize any perceptible delay. - Up to 1 second: The delay is slightly perceptible. The user feels a pause, the site may feel sluggish. - Up to 10 seconds: With an operation that takes 10 seconds or more to complete, you’ll lose the user’s attention (unless you give them feedback).
- 42. Intuit Confidential and Proprietary 42 Long Courier Matching - One of the reasons that people love Hermes Deliveries is our great user experience. ○ For example, we don’t require customer registration and collect only minimum information at the time of the order - progressive data collection. - Sometimes it takes more than 10 seconds to find the best matching courier. ○ As a result, some of our customers leave although we do show progress bar. - How can we solve this?
- 43. Intuit Confidential and Proprietary 43 Perceived Performance Our Mission - Requirement 1: Best courier matching - Requirement 2: Do matching in less than 1 sec - Rule: No trade-offs
- 44. Intuit Confidential and Proprietary 44 Perceived Performance Separation in Time Principle - If a system or process must satisfy contradictory requirements try to schedule the system operation in such a way that requirements in conflict take effect at different times. - Perceived Performance refers to how quickly a software feature appears to perform its task.

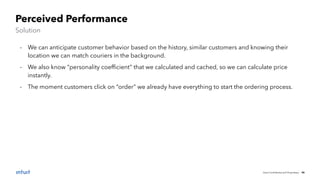

- 45. Intuit Confidential and Proprietary 45 Perceived Performance Solution - We can anticipate customer behavior based on the history, similar customers and knowing their location we can match couriers in the background. - We also know “personality coefficient” that we calculated and cached, so we can calculate price instantly. - The moment customers click on “order” we already have everything to start the ordering process.
- 46. Intuit Confidential and Proprietary 46 Perceived Performance Architecture This is how we started
- 47. Intuit Confidential and Proprietary 47 Money Movement - So far we were working with a 3rd party payment processor Plutos who are responsible for charging customers and paying couriers: 1. During ordering process we are calling Plutos API and providing Customer credit card to charge from and Payee ID of courier to pay to 2. All couriers are registered customers of Plutos and they can withdraw money to one of their preferred payment channels 3. All that happens online
- 48. Intuit Confidential and Proprietary 48 Money Movement Challenge - Issues with customer credit card - ○ wrong number, insufficient funds etc. - Plutos are not reliable service and we are losing money and customers because of that. - What can we do?
- 49. Intuit Confidential and Proprietary 49 Online vs. Offline or Sync vs. Async - Online / Sync 1. Collect customer credit card, verify and authorize funds by calling Pluto API 2. If Pluto fails have another (maybe more expensive) provider for resiliency 3. Store details for offline processing 4. Release customer - Offline / Async 5. Do Money Movement using Pluto or another provider
- 50. Intuit Confidential and Proprietary 50 Architecture This is how we started
- 51. Intuit Confidential and Proprietary 51 Wrap Up and Questions - Horizontal Scaling - Auto Scaling - Functional Decomposition - Offline Jobs - Three Important Response Time Limits - Perceived Performance - Async vs. Sync
- 53. Intuit Confidential and Proprietary 53 Shared Responsibility Principle While AWS (or any Cloud vendor) manages security of the Cloud, security in the Cloud is the responsibility of the customer
- 54. Intuit Confidential and Proprietary 54 Blast Radius How widespread the threat or failure is? Goal: minimize blast radius
- 55. Intuit Confidential and Proprietary 55 Tactics - Multiple Cloud account security strategy ○ Accounts per organization, department, product, etc. - Segmentation of network, data, storage etc. - Access Control policies and least privilege principle
- 56. Intuit Confidential and Proprietary 56 Tactics - Data Classification and Handling strategy and standard ○ Data can be public, restricted, sensitive, secret etc. ○ For each type of data have a proper standard how to handle at rest, in flight, on screen etc. - “Dance Like Nobody’s Watching. Encrypt Like Everyone Is.” - Keys and Secret Management ○ Multiple Keys – preferably key per customer, user, record, column etc. ○ Creation, Rotation etc. ○ Secret Vault
- 57. Intuit Confidential and Proprietary 57 Tactics - Security Reviews and mindset in teams - Automations ○ Find secrets or sensitive data in Github, Logs, Data Stores, Customer free text entries such as “comments” or “descriptions” ○ S3 open for public ○ Policy violations ○ Application scans as a part of CICD such as OWASP Top 10 Risks, 3rd Party and Open Source dependency scans ○ Docker Image vulnerabilities
- 58. Intuit Confidential and Proprietary 58 Tactics - Have Security Incident response plan - Don’t put all eggs in one basket - Don’t trust anything and anyone
- 60. Intuit Confidential and Proprietary 60 Incidents are Unavoidable So you better have a proper response plan and data
- 61. Intuit Confidential and Proprietary 61 Incident Response Practices - Have on-call procedure and discipline - Have monitoring and prioritized alerting system - Escalate and declare incidents early and often - During incident identify potential root cause and bring required experts if/when required - Assess customer impact and communicate - “Stop the bleeding” first - Preserve everything you might need for post-mortem root cause analysis and track times - Define next steps and conduct post-mortem root cause analysis
