T type Three Valve Manifold (3VQ)

Model : 3VM
With threaded vertical port inlets & outlets. The isolating bonnets are positioned on
the left & right hand side & the equalizing bonnet is positioned on the front. This
manifold is specially designed as miniature value to be remote mounted.
Standard Connection
Product Process Side Instruments Side
3VM ½” NPT FEMALE ½” NPT FEMALE
NK Instruments Pvt. Ltd.Process Control Instruments for Indication and Control of:
PRESSURE VACCUM DP FLOW VELOCITY LEVEL TEMPERATURE CONDUCTIVITY pH VIBRATION
B-501/504, 5th ﬂoor, Raunak Arcade, Near THC Hospital, Gokhale Road, Naupada, Thane(w) 400602. Maharashtra INDIA
Telefax Nos.: 91-22-25301330 / 31 / 32
CONTACT DETAILS
Skype: nitinkelkarskype Gtalk: nkinstruments2006
E-Mail: sales@nkinstruments.com Web: www.nkinstruments.com

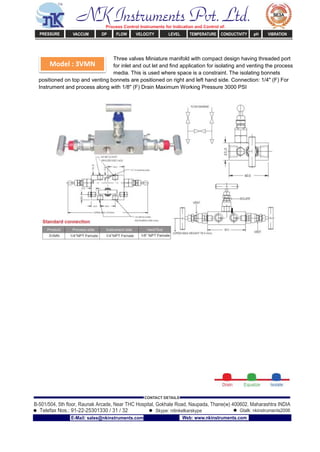

Model : 3VMN
Three valves Miniature manifold with compact design having threaded port
for inlet and out let and ﬁnd application for isolating and venting the process
media. This is used where space is a constraint. The isolating bonnets
positioned on top and venting bonnets are positioned on right and left hand side. Connection: 1/4" (F) For
Instrument and process along with 1/8" (F) Drain Maximum Working Pressure 3000 PSI
Telefax Nos.: 91-22-25301330 / 31 / 32
CONTACT DETAILS

Three Valve Manifolds : Model – 3VS
With two threaded vertical port inlets & outlets, both test connections are positioned on the left & right hand
side. The two isolating bonnets are positioned on the left & right hand side & the equalizing bonnet is
positioned on the front..
StandardConnection
Product Process Side Instruments Side Vent / Test
3VS ½” NPT FEMALE ½” NPT FEMALE ¼” NPT FEMALE
Telefax Nos.: 91-22-25301330 / 31 / 32
CONTACT DETAILS

Model : 3VQ
With threaded horizontal port inlet on the front side and Flange outlet on the back
side without test/vent connection. The isolating bonnets are positioned on the left
and right hand side and Equalizing bonnet is positioned on the top.
STANDARD CONNECTION
Product Process side Instrument side
3Q 1/2" NPT female Flange
Telefax Nos.: 91-22-25301330 / 31 / 32
CONTACT DETAILS

Model : 3VH
With threaded horizontal port inlets on the front side and Flange outlets on the back
side. Two test connections positioned on the left and right hand side of the body. The
isolating bonnets are positioned on the left and right hand side and the equalizing
bonnet is positioned on the top
Product Process side Instrument side Vent/Test
3VH 1/2" NPT female Flange 1/4" NPT female
STANDARD CONNECTION
Telefax Nos.: 91-22-25301330 / 31 / 32
CONTACT DETAILS

Standard version specifications of model 3VT, 3VH, 3VQ
Body : SS 316
Stem : SS 316
Valve assembly : SS 316
'T' bar handle : SS 304
Maximum working pressure : 6000 psi
Maximum working temperature : 240°C
Packing : PTFE (Grafoil to be used for temperature above 240 C till 550C)
Type of stem : Type CT; Stem with conical metal tip
How to order : Valve Type - 3VT, 3VH,3VQ
Body Material Stem Type Stem Packing Size = Inlet x Outlet Connections Threads
C = Carbon Steel CT(std) P = PTFE(std) 4F= 1/2” x Flange FD = Female x Flange(54mm) N = NPT to ANSI B1.20.1
S = SS 316(std) DS G = Grafoil 2F = 1/4” x Flange SW = Socket Weld P = BSPP to BS2779
SL = SS 316L DD = Flange x Flange (54mm) B = BSPT to BS21
M = Monel 400
H = Hastelloy C
Options
GH : Material test certificate
GO : Hydro test certificate
MBC : Mounting bolts [7/16” UNF] in carbon steel
MBS : Mounting bolts [7/16” UNF] in SS
IE : Circular plastic.
TF : Sour gas service to NACE standard MR-01-75.
SG : Oxygen service. (manifolds are supplied cleaned and degreased)
DS : Valves with stem having soft conical and delrin tip rolled into the needle for gas service.
MB : Mounting bracket
Example
To place an order simply refer to the codes in the table.
Valve Type:
Body
Material+
Stem Type+
Stem
Packing+
Size+
Connections
+
Threads+ Options+
3VT : S+ CT+ P+ 4F+ FD+ N Final Order
NOTE
· The weld prepared types are available with female plain end - suitable for socket weld.
· Anti-tamper bonnet - special design on request with locking arrangement if desired.
Telefax Nos.: 91-22-25301330 / 31 / 32
CONTACT DETAILS

Model : 3VD Three valve manifold or diﬀerential pressure gauges. Two horizontal inlets
NPT female at bottom side. Two outlets with rotating for nuts on top side and
vent/test connection on top. Equalizing bonnet at front, isolating bonnets at
left and right hand side. Also available in 54mm tap spacing model - 3VD54.
Standard version speciﬁcations of model 3VS, 3VM, 3VMN
Body : SS 316
Stem : SS 316
Maximum working pressure : 6000 psi [not available in model 3VMN]
Maximum working temperature : 240°C
Packing : PTFE(Grafoil to be used for temperature above 240Ctill 550C)
Drain port : 1/4” NPT [F]; provided with SS 316 plug [not available in model 3VMN]
Chrome plating : Provided on stem tip
How to order : Valve Type - 3VS, 3VM, 3VMN, 3VD
C = Carbon Steel CT(std) P = PTFE(std) 24 = 1/4” x 1/4” FF = Female x Female(Std) N = NPT to ANSI B1.20.1
S = SS 316(std) DS G = Grafoil 44 = 1/2” x 1/2” (std) SW = Socket Weld P = BSPPto BS2779
SL = SS 316L B = BSPT to BS21
M = Monel 400
H = Hastelloy C
Telefax Nos.: 91-22-25301330 / 31 / 32
CONTACT DETAILS

Options
GO : Hydrotest test certiﬁcate
MBC : Mounting bolts [ 7/16” UNF] in carbon steel
MBS : Mounting bolts [ 7/16” UNF] in SS
Example
Valve Type:
Body
Material+
Stem Type+
Stem
Packing+
Size+
Connections
+
Threads+ Options+
3VS: C+ CT+ P+ 44+ FF+ N Final Order
NOTE

Model : 3VA
Model : 3VF
With two threaded horizontal port inlets on the front side and two Flange outlets on
the back side. The two isolating bonnets are positioned on the left and right hand
side, the equalizing bonnet is of angular design positioned on the top for easy
operation
With two threaded horizontal port inlets positioned on the left and right hand side and
two Flange outlets on the back side. The two isolating bonnets and the equalizing
bonnet are positioned on the front. Standard with three downstream test connections
Telefax Nos.: 91-22-25301330 / 31 / 32
CONTACT DETAILS

Model : 3VP With threaded horizontal port inlets positioned on the front and Flange outlets on the
back side. The test connections are positioned on the left and right hand side. The
isolating bonnets and the equalizing bonnet are positioned angular on the top of the
body.
STANDARD CONNECTION :
Product Process Side Instrument Side Vent / Test
3VP ½” NPT FEMALE FLANGE ¼” NPT FEMALE
Telefax Nos.: 91-22-25301330 / 31 / 32
CONTACT DETAILS

Model : 3VO With threaded horizontal port inlets on the left and right hand side and Flange outlets
on the back side. The isolating bonnets and the equalizing bonnets are positioned
angular on the top of the bod. y
STANDARD CONNECTION :
Product Process Side Instrument Side
3VO ½” NPT FEMALE FLANGE
Telefax Nos.: 91-22-25301330 / 31 / 32
CONTACT DETAILS

C = Carbon Steel CT(std) P = PTFE(std) 4F = 1/2”x Flange FD = Female x Flange(54mm) N = NPT to ANSI B1.20.1
S = SS 316(std) DS G = Grafoil 2F = 1/4”x Flange FR = Female X Female P = BSPPto BS2779
SL = SS 316L B = BSPT to BS21
M = Monel 400 SW = Socket Weld
H = Hastelloy C
Standard version speciﬁcations of model 3VA,3VF,3VD, 3VP , 3VO
Body : SS 316
Stem : SS 316
Maximum working pressure : 6000 psi
Maximum working temperature: 240°C
Packing : PTFE(Grafoil to be used for temperature above 240C till 550C)
Drain port : 1/4” NPT [F]; provided with SS 316 plug [not available in model 3VA]
Chrome plating : Provided on stem tip.
How to order : Valve Type - 3VA, 3VF, 3VP, 3VO
Options
GO : Hydro test certiﬁcate
MBC : Mounting bolts [ 7/16” UNF] in carbon steel
MBS : Mounting bolts [ 7/16” UNF] in SS
Example
Valve Type:
Body
Material+
Stem Type+
Stem
Packing+
Size+
Connections
+
Threads+ Options+
3VA : S+ CT+ P+ 4F+ FD+ N Final Order
NOTE
Telefax Nos.: 91-22-25301330 / 31 / 32
CONTACT DETAILS

Model : 3VT
With threaded horizontal port inlets on the front side and Flange outlets on the back
side. Two test connections positioned on the left and right hand side of the body. The
isolating bonnets are positioned on the left and right hand side and the equalizing
bonnet is positioned on the top
STANDARD CONNECTION
Product Process side Instrument side Vent/Test
3VT 1/2" NPT female Flange 1/4" NPT female
Telefax Nos.: 91-22-25301330 / 31 / 32
CONTACT DETAILS

Model : 3VCN
Model : 3VB
.Special Three valve manifold with body made of casting. The standard model of
SS 316 material withstands a pressure of 6000 psi and is used for isolation and
equalizing. Connection : Special [oval Flange] Accessory provided : Kidney Flange
for mounting.
Special design three valve manifold similar to our model 3VA except provided with two
horizontal port process inlets Flange to ﬁt DIN 19213 and two instrument Flange
outlets on the back side. Isolating bonnets at the left and right side, equalizing bonnet
angular on top. No vent/test connection and no venting bonnet.
Telefax Nos.: 91-22-25301330 / 31 / 32
CONTACT DETAILS

MOUNTING BRACKETS
Telefax Nos.: 91-22-25301330 / 31 / 32
CONTACT DETAILS
