This document provides information about a tank bottom valve with a rising disc. It lists the valve's competitive advantages like being dead space free and having interchangeable seats. It then describes the valve's features such as having a cast stainless steel body, a swivel disc, and a bolted stuffing box. The document also lists optional configurations and standards the valve can be made to comply with. It concludes by providing a parts list and dimensions for different valve sizes.
Tank bottom valve rising disc-engineered valve-602 m-guichon valves
- 1. G TankBottomValve RisingDisc/Cast/type602M Tank Bottom Valve Rising Disc / Cast / type 602M application: liquids VALVES Competitive advantages • Dead space free ➟ no contamination • Interchangeable seat for easy adaptation to the pad flange ➟ Easier replacement and maintenance • Live loaded stuffing box packing ➟ Low maintenance • Profiled internal body for increased flow ➟ Better productivity Features • Rising disc (crust-breaking) • Cast Stainless Steel (A351 CF8M) body • Swivel disc, metal/metal or PTFE/metal seating • Replacable seat • Bolted stuffing box, self adjusted with spring washers, repackable in service • Turning non rising handwheel • Position indicator • Outlet angle: 60° • Flanged connection ISO PN10➟50 • PED 97/23/EC compliant Nuclear and Navy Cryogenic Service Other Applications Plastics and Polymers Petro- chemicals General Chemicals Fine Chemicals SlidevalveControlMultiwayAccessoriesCheckvalveActuator Ball&plug valve Butterfly valve Safety Relief Rinsing Injection Sampling valvePistonvalveGatevalve Globevalve Tankbottom valve

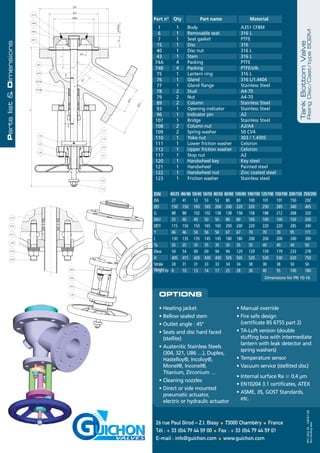

- 2. STROKE VALVES OPTIONS • Heating jacket • Bellow sealed stem • Outlet angle : 45° • Seats and disc hard faced (stellite) • Austenitic Stainless Steels (304, 321, UB6 …), Duplex, Hastelloy®, Incoloy®, Monel®, Inconel®, Titanium, Zirconium … • Cleaning nozzles • Direct or side mounted pneumatic actuator, electric or hydraulic actuator • Manual override • Fire safe design (certificate BS 6755 part 2) • TA-Luft version (double stuffing box with intermediate lantern with leak detector and spring washers) • Temperature sensor • Vacuum service (stellited disc) • Internal surface Ra Ն 0,4 µm • EN10204 3.1 certificates, ATEX • ASME, JIS, GOST Standards, etc. 26 rue Paul Girod – Z.I. Bissy • 73000 Chambéry • France Tél : + 33 (0)4 79 44 59 00 • Fax : + 33 (0)4 79 44 59 01 E-mail : info@guichon.com • www.guichon.com Partslist&Dimensions 1 6 7 15 40 43 74A 74B 75 76 77 78 79 89 93 96 107 108 109 110 111 112 117 120 121 122 123 Body Removable seat Seat gasket Disc Disc nut Stem Packing Packing Lantern ring Gland Gland flange Stud Nut Column Opening indicator Indicator pin Bridge Column nut Spring washer Yoke nut Lower friction washer Upper friction washer Stop nut Handwheel key Handwheel Handwheel nut Friction washer A351 CF8M 316 L PTFE 316 316 L 316 L PTFE PTFE/silk 316 L 316 L/1.4404 Stainless Steel A4-70 A4-70 Stainless Steel Stainless Steel A2 Stainless Steel A2/A4 50 CV4 303 / 1.4305 Celoron Celoron A2 Key steel Painted steel Zinc coated steel Stainless steel 1 1 1 1 1 1 4 4 1 1 1 2 2 2 1 1 1 2 2 1 1 1 1 1 1 1 1 Part n° MaterialQty Part name TankBottomValve RisingDisc/Cast/type602M 40/25 27 150 88 25 115 46 130 35 54 405 28 8 40/40 41 150 88 40 150 46 135 35 54 415 31 10 50/40 53 165 102 40 150 50 135 35 69 420 31 13 50/50 53 165 102 50 165 56 145 35 69 430 33 14 80/50 53 200 138 50 165 56 145 35 94 430 33 17 80/80 80 200 138 80 200 67 180 35 94 505 34 25 100/80 80 220 158 80 200 67 180 35 129 505 34 28 100/100 100 220 158 100 220 70 200 35 129 520 38 30 125/100 101 250 188 100 220 70 200 40 159 530 38 40 150/100 101 285 212 100 220 70 200 40 179 530 38 55 200/150 150 340 268 150 285 95 240 40 233 620 50 100 250/200 202 405 320 200 340 171 300 50 278 750 50 180 RFC-602M-GB/07.08 Nonbindingdata Dimensions for PN 10-16 DN ØA ØD G ØA1 ØD1 Y L Ta Øwa H Stroke Weight(Kg)
