The CMS Online Cluster:  
Setup, Operation and Maintenance  
of an Evolving Cluster"
J.A. Coarasa "
CERN, Geneva, Switzerland"
for the CMS TriDAS group."
"
ISGC 2012, 26 February - 2 March 2012,
Academia Sinica, Taipei, Taiwan

ISGC 2012, 26/2-2/3 2012, Academia Sinica, Taipei, TaiwanThe CMS Online Cluster
Outline"
•  Introduction"
•  On/Off-line Computing Model"
•  The Compact Muon Solenoid (CMS) Data Acquisition
system (DAQ)"
•  The CMS Online Cluster"
– IT Infrastructure"
•  Computing"
•  Networking"
•  Services"
– Operation"
J.A. Coarasa 2

Introduction"
– The CMS Data Acquisition system (DAQ)"
J.A. Coarasa 3

Rate on tape 100 Hz!
On/Off-line computing"
~3µs"
~ s "
Level-1. Massive parallel processing !
Particle identiﬁcation (High pT, e, µ, jets, missing ET)"
Hardwired custom systems (ASIC, FPGA). Synchronous clock driven!
!
High Level Triggers !
Physics process identiﬁcation !
Clusters of PCs. Asynchronous event driven!
First Level 100 kHz!
Readout: Data to Surface and Event Builder!
2 Tb/s optical data links and 2 Tb/s switch networks!
!
Distributed computing GRID (Tiers 0-4)!
Analysis, production and archive!
Collisions rate ~1 GHz!
High Level Triggers!

The CMS Data Acquisition system (DAQ).  
The challenge"
Large Data Volumes (~100 Gbytes/s data flow, 20TB/day)!
–  After Level 1 Trigger ~100 Gbytes/s (rate ~O(100) kHz) reach the
event building (2 stages, ~1600 computers).!
–  HLT filter cluster select 1 out 1000. Max. rate to tape: ~O(100) Hz "
⇒  The storage manager (stores and forwards) can sustain a
2GB/s traffic.!
⇒  Up to ~300 Mbytes/s sustained forwarded to the CERN T0.
(>20TB/day).!
Detector Front-end
Computing Services

Readout

Systems

Builder and Filter

Systems

Event

Manager

Builder Networks

Level 1

Trigger
Run

Control

40 MHz
100 kHz
100 Hz
J.A. Coarasa 5

The CMS Online Cluster"
– IT Infrastructure"
J.A. Coarasa 6

IT Infrastructure. The purpose and qualities"
"The IT infrastructure (computing, networking and services) of
the CMS Online Cluster takes care of the CMS data acquisition
and experiment control. "
•  Autonomous (i.e. independent from all other networks) and
provides uninterrupted operation 24/7 on two far apart (~200 m)
physical locations, with two control rooms;"
•  Redundant services design!
–  Losing 1 min of data is wasting accelerator time (worth ~O(1000)CHF/min)."
–  Our system serves online data taking! If not taken, data is gone!"
•  Scalable services design to accommodate expansions;"
•  Fast conﬁguration turnaround copes with the evolving nature
of DAQ applications and large scale of cluster;"
•  Serving the needs of a community of more than 900 Users."
J.A. Coarasa 7

More than 2700 computers mostly under Scientiﬁc Linux CERN 5:"
–  640 (2-core) as a 1st stage building, equipped with 2 Myrinet and 3
independent 1 Gbit Ethernet lines for data networking. (1280 cores);"
–  1008 (720 (8-core) + 288 (12-core allowing HT)) as high level trigger
computers with 2 Gbit Ethernet lines for data networking. (9216 cores);"
–  16 (2-core) with access to 300 TBytes of FC storage, 4 Gbit Ethernet
lines for data networking and 2 additional ones for networking to Tier 0;"
Computing. Variety of roles"
J.A. Coarasa 8

Highbandwidth
networking

More than 2700 computers mostly under Scientiﬁc Linux CERN 5:"
–  640 (2-core) as a 1st stage building, equipped with 2 Myrinet and 3
independent 1 Gbit Ethernet lines for data networking. (1280 cores);"
–  1008 (720 (8-core) + 288 (12-core allowing HT)) as high level trigger
computers with 2 Gbit Ethernet lines for data networking. (9216 cores);"
–  16 (2-core) with access to 300 TBytes of FC storage, 4 Gbit Ethernet
lines for data networking and 2 additional ones for networking to Tier 0;"
–  More than 400 used by the subdetectors;"
–  90 running Windows for Detector Control Systems;"
–  12 computers as an ORACLE RAC;"
–  12 computers as CMS control computers;"
–  50 computers as desktop computers in the control rooms;"
–  200 computers for commissioning, integration and testing;"
–  15 computers as infrastructure and access servers;"
–  250 active spare computers;"
!⇒ Many different Roles!
Computing. Variety of roles"
J.A. Coarasa 9

Highbandwidth
networking

Networking. 
Overall Picture"
CMS Networks:"
–  Private Networks:"
•  Service Network "
"(~3000 1 Gbit ports);"
•  Data Network "
"(~4000 1Gbit ports)"
–  Source routing on computers"
–  VLANs on switches "
•  Central Data Recording "
"(CDR). Network to Tier 0."
•  Private networks for Oracle
RAC"
•  Private networks for
subdetectors"
–  Public CERN Network"
"J.A. Coarasa 10

CMS Networks
CMSSites
Computer gateways
Readout, HLTControl…
Firewall
Internet
Service Network"
Data Networks
CDR Network
CERN Network
Storage Manager

The Network Attached Storage"
•  Our important data is hosted in a
Clustered Network Attached Storage:"
–  User home directories;"
–  CMS data: calibration, data quality
monitoring…;"
–  Admin data."
•  2 NetApp ﬁler heads in failover
conﬁguration (in two racks);"
•  With 6 storage drawers (2 of them in
mirror) with internal Dual Parity RAID;"
•  Snapshot feature active (saves us from
going to Backup)."
•  Deduplication active (saves ~25-55%)"
•  Tested throughput > 380 MBytes/s."
J.A. Coarasa 11

4Gbit
2x10Gbit

redundant

routers
shelves
heads
NAS

IT Structural Services. Redundancy and Load
balancing. The Concept"
•  Pattern followed:"
–  1 master + N slave/replicas "
"(now N=3 for most of the services) "
"hosted in different racks;"
"⇒Easy scalability."
"⇒Needs replication for all services."
–  Services working under DNS alias "
"where possible."
"⇒Allows to move the service."
"⇒No service outage."
–  Load balancing of primary server "
"for client:"
•  DNS Round Robin;"
•  explicit client conﬁguration "
"segregating in groups of computers."
J.A. Coarasa 12

1 master
N slave/replicas
Explicit client configuration
segregating in groups of computers

IT Structural Services. Replication and Load
balancing. Basic Services."
•  Critical data local to the servers (hosted in RAID 1 protected
servers);"
•  Manual load balancing through in groups segregation."
J.A. Coarasa 13

Service! replication through! Load Balancing through!
DNS! named" Round Robin"
DHCP! in-house scripts" No. First who answers"
Kerberos! in-house scripts" explicit segregation"
LDAP! slurpd" explicit segregation"
NTP! -" explicit segregation"
syslog! -" No. Single server, used for
stress test purposes"
Nagios monitoring! -" explicit segregation"

CMS Management and Configuration
Infrastructure: The tools"
•  IPMI (Intelligent Platform Management Interface) is used
to manage the computers remotely:"
–  reboot, console access,…;"
•  PXE and anaconda kickstart through http are
used as bootstrap installation method;"
•  Quattor (QUattor is an Administration ToolkiT for Optimizing
Resources) is used as the configuration
management system;"
"⇒All Linux computers configured through it or rpms
distributed with it (even the Quattor servers
themselves): BIOS, all Networking parameters…"
J.A. Coarasa 14

CMS Management and Conﬁguration
Infrastructure: Quattor implementation"
•  Based on Quattor 1.3 (cdb 2.0.4, swrep 2.1.38, PANC 6.0.8)"
•  Manages ~2500 installed computers in ~90 types!
⇒One fully reinstalled computer in 9-30 min"
⇒Big (~Gbyte) change cluster-wise in less than 25 min;"
"Small change only few minutes."
•  Uses in-house:!
–  restricted format in templates: hierarchical +other conventions;"
–  areas to deﬁne subdetector software and versioning in them;"
⇒Allowed in-house easy developments:"
•  Template summarizer/ inventory maker "
•  Dropbox for rpms"
•  Template updater"
"
"J.A. Coarasa 15

Monitoring infrastructure"
•  We monitor 2500 hosts, 25000 services"
–  The usual things (ping, ssh, disk usage…)"
–  In house:"
•  Electronics modules working?"
•  Myrinet links working?"
•  Quattor spma ﬁnished properly?"
•  …"
•  Based on Nagios. 1+3 servers with manually split conf."
•  Performance:"
–  Every 1 minute latency for the ping test;"
–  Every more than 5 minutes for the rest of the services."
⇒Needed improving. About to move to production the new version
of monitoring."
J.A. Coarasa 16

New Monitoring infrastructure"
•  Addresses issues:"
–  Easy configuration"
–  Scalability"
•  Based on icinga (1 server + N workers)"
–  mod_gearman: allows to split functionality (Master/Worker)."
–  check_multi: groups checks, can cascade."
–  PNP4nagios: provides performance data."
–  rrdcached: caches files and improves performance."
•  We monitor more services grouped in less checks
and get historical performance data"
•  Performance:"
–  Every 1 minute latency including performance data."
•  Adding system to notify on a fine grain self-enroll
basis"
J.A. Coarasa 17

Databases"
•  Save all bookkeeping data:"
–  conﬁguration of the detectors;"
–  conditions for the experimental data
taken…"
•  Oracle 11.2.0.3 (just migrated, still on compatibility
mode to 10.2.0.5) "
–  hosting two databases @ CMS
totalling ~30 Tbytes (more, including
replicated/synced ones @ CERN);"
–  hardware:"
•  6 blades + standby nodes;"
•  netApp ﬁler as a backend for storage;"
•  Completely redundant at hardware level."
J.A. Coarasa 18

Hardware Tracking system"
Our Hardware Tracking system (HTS) allows us
to know everything about the systems (soft/
hardware)"
It is based on:"
•  OCS (www.ocsinventory-ng.org)"
–  Inventory system"
–  Counts everything related to a machine"
•  GLPI (www.glpi-project.org)"
–  Tracking system"
–  Works in relation with OCS"
–  Set of tools to maintain machines history"
J.A. Coarasa 19

The CMS Online Cluster"
– Operation"
"
J.A. Coarasa 20

Constraints and implications"
•  Man power (~6 FTE):"
"⇒Needs effort on implementing scripts and automation:"
•  Computers will monitor the temperature and shutdown when too high;"
•  Scripts to Check and fix serviceʼs problems."
⇒Allows faster recovery after unexpected power cut"
"⇒Act only as a second level support in 24/7 operation."
"⇒Try to interact with users through a ticketing system (savannah)"
•  Cluster 5 years old and still growing, adding resources as needed"
–  Some hardware out of warranty"
–  Some hardware with extended warranty"
•  Computers connected to the electronics need swift replacement (1h)
if broken. "
"⇒Need for standby spares in location."
"⇒Fast turnaround in reinstallation or reconfiguration. "
•  Other computers, dealt with fault tolerant software and
reconfiguration. Enough to change it the next day."
""J.A. Coarasa 21

Operation 
Emphasis on continue running"
•  Learning from previous failures"
•  Preventing service failures before they happen"
–  Redundancy where possible"
•  Added full redundancy to the new database"
•  Added redundancy to the control system (DCS)"
•  Virtualization explored to add redundancy to other services"
–  Preventive campaigns carried out"
•  Battery replacement on old computers"
•  aging SAS controller (still under warranty) replacement (THS priceless)"
•  Clean up/reinstallation of the whole cluster beginning of 2011"
•  Clean up/selective beginning of 2012"
•  Identify the failures before they affect the running:"
–  Carried out tests on the redundancy of the services"
–  Improved the monitoring system"
–  Scripts reporting problems before they affect (SAS controller)"
•  Testing before deployment"
–  2 Testing and integration areas and 2 more being built"
"J.A. Coarasa 22

Operation 
Large Scale Effect on Failures"
Failure Happens! For the last year of operation (2011):"
•  Unscheduled power cuts: ~1 every 2 months"
–  By far the worst to recover from. Affects also the detectors
electronics."
•  Unscheduled cooling cuts: ~1 every few months"
•  Network switch failures: ~ 1 every 3 months"
–  Database Failure"
–  Failure of redundancy of kerberos and ldap (in the way of
being solved)"
–  Affected the storage manager (still running under reduced
bandwidth"
•  Computer failures: ~3 every week"
–  SAS aging problem responsible for most of them till exchange"
"J.A. Coarasa 23

Summary"
•  A scalable cluster, 2700 computers
growing to 3000 in the next months"
•  autonomous,"
•  with service redundancy, "
•  capable of more than 100GB/s data
throughputs, "
•  has been working successfully since
2007.!
J.A. Coarasa 24

"
"
"
"
"
"
"
"
Thank you. Questions?"
J.A. Coarasa 25

Backup slides"
J.A. Coarasa 26

CMS Networks Configuration"
•  Service Network (.cms)"
–  Service IPs "
•  DHCP (fixed for central servers)"
–  IPMI IPs"
•  Fixed at boot time from the DNS name"
(in house development that fixes IPMI and BIOS
parameters)"
•  Data and Central Data Recording Networks"
–  IPs and routing rules"
•  Fixed at boot time from DNS (A and TXT records)"
(in house development: auto_ifconfig)"
J.A. Coarasa 27

x
CMS networks"
J.A. Coarasa 28

x 80
x 8
Readout
Unit
Myrinet
Switches
Frontend
Detector
Readout
x 8
Force 10
2x1Gbit
3x1Gbit
x (90+36)
x 8
Builder
Filter
Unit
x 16
Storage
Manager
4x1Gbit4x3Gbit
HP switch
2x10Gbit
Tier 0
Force 10
redundant
HP switch

Installation/Conﬁguration Services.  
Replication and Load balancing"
•  Data being read from the NAS once and kept in
memory cache from computers."
"⇒The NAS is not loaded even at peak installation time
when the installation servers network is saturated."
J.A. Coarasa 29

Service! replication through! Load Balancing through!
PXE boot/TFTP !
No replication. NFS
mount from the NAS."
Through DHCP"
Kickstart Installation
server!
DNS Round Robin"
yum repository
Installation server!
DNS Round Robin"
Quattor repository
Installation server!
DNS Round Robin"
Quattor cdb
conﬁguration server!
No. "

CMS IT Security"
•  We are behind the CERN firewall, and services are not
reachable from the internet, unless explicitly allowed."
•  The CMS Networks are private networks: not even
reachable from the CERN network."
•  There is a Reverse Proxy, that requires authentication,
to access some internal information (selected http
traffic)."
•  All users have to log in into gateway computers
submitted to tighter security (ssh traffic to some
computers). "
•  Traffic from internals computers to the outside world
goes through proxying servers."
J.A. Coarasa 30

The Compact Muon Solenoid experiment
(CMS). Design Parameters."
J.A. Coarasa 31

Detector Channels Ev. Data
Pixel 60000000 50 (kB)
Tracker 10000000 650
Preshower 145000 50
ECAL 85000 100
HCAL 14000 50
Muon DT 200000 10
Muon RPC 200000 5
Muon CSC 400000 90
⇒  >50 000 000 Channels,
~630 data origins
⇒  Average of 1 Mbyte/event
(bigger for HI ~20 Mbytes/event)
Detectors

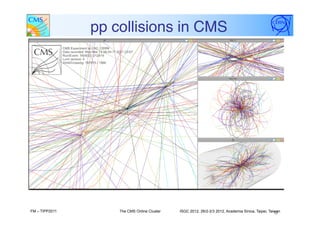

pp collisions in CMS"
FM – TIPP2011 32

Pb-Pb collisions in CMS"
FM – TIPP2011 33

Networking.  
Service Network Redundancy"
•  Consists of networking in two
physical locations:"
–  Each switch in each rack is
connected to 2 routers;"
–  The 2 routers are connected in
a redundant failover
conﬁguration with 10 Gbit lines
to the routers in the other
location."
J.A. Coarasa 34

2x10Gbit
redundant
1Gbit 1Gbit
1Gbit 1Gbit
SCX5
USC
NAS

The CMS Online Cluster:   Setup, Operation and Maintenance   of an Evolving Cluster

More Related Content

What's hot (20)

Similar to The CMS Online Cluster:   Setup, Operation and Maintenance   of an Evolving Cluster (20)

Recently uploaded (20)
