The document details the Puppet Debugging Kit, a set of tools and configurations for exploring and solving issues in Puppet environments, specifically utilizing the OSCar logic-less Vagrant configuration. It outlines various configurations for virtual machines, including the setup for Puppet Enterprise installations and the use of provisioning roles such as master and agent. The kit is organized as a simple toolkit designed for quick deployment and offers resources for further exploration.
The Puppet Debugging Kit: Building Blocks for Exploration and Problem Solving - PuppetConf 2014
- 1. The Puppet Debugging Kit Building Blocks for Exploration and Problem Solving Charlie Sharpsteen Open Source Support Engineer, Puppet Labs
- 2. Puppet Debugging Kit Oscar Vagrant

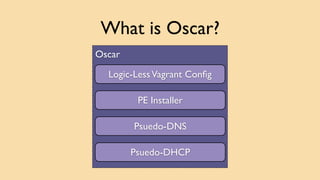

- 3. What is Oscar? Oscar Logic-Less Vagrant Config PE Installer Psuedo-DNS Psuedo-DHCP
- 4. What is Oscar? Oscar vagrant-config_builder vagrant-pe_build vagrant-hosts vagrant-auto_network
- 5. What is Oscar? Oscar vagrant-config_builder vagrant-pe_build vagrant-hosts vagrant-auto_network
- 6. Vagrant.configure('2') do |config|! config.vm.define 'pe-332-master' do |node|! node.vm.box = 'puppetlabs/centos-6.5-64-puppet'! node.vm.hostname =! 'pe-332-master.puppetdebug.vlan'! ! node.vm.network 'hostonly', auto_network: true! ! node.vm.provision 'hosts'! node.vm.provision 'pe_bootstrap' do |p|! p.role = 'master'! p.version = '3.3.2'! end! end! end ---! vms:! - name: pe-332-master! box: puppetlabs/centos-6.5-64-puppet! hostname:! pe-332-master.puppetdebug.vlan! private_networks:! - {auto_network: true}! provisioners:! - type: hosts! - type: pe_bootstrap! role: master! version: 3.3.2
- 7. ---! vms:! - name: pe-332-master! box: puppetlabs/centos-6.5-64-puppet! hostname:! pe-332-master.puppetdebug.vlan! provisioners:! - type: pe_bootstrap! role: master! version: 3.3.2! roles:! - base ! ! - name: pe-332-agent! box: puppetlabs/centos-6.5-64-puppet! hostname:! pe-332-master.puppetdebug.vlan! provisioners:! - type: pe_bootstrap! role: agent! version: 3.3.2! master:! pe-332-master.puppetdebug.vlan! roles:! - base ---! vms:! - name: pe-332-master! box: puppetlabs/centos-6.5-64-puppet! hostname:! pe-332-master.puppetdebug.vlan! private_networks:! - {auto_network: true}! provisioners:! - type: hosts! - type: pe_bootstrap! role: master! version: 3.3.2 ---! roles:! base:! private_networks:! - {auto_network: true}! provisioners:! - type: hosts
- 8. ---! vms:! - name: pe-332-master! box: puppetlabs/centos-6.5-64-puppet! hostname:! pe-332-master.puppetdebug.vlan! provisioners:! - type: pe_bootstrap! role: master! version: 3.3.2! roles:! - three! - two! - one! - base! Quirk: The roles array is applied in reverse order! Visually: From bottom to top.
- 9. What is the Debugging Kit? • A set of roles for configuring Oscar environments to run Puppet • A custom filter for quickly configuring Puppet Enterprise Installations • Wrapped in a nice workspace designed to be a “git clone and go” toolkit
- 10. Version: 3.3.2 pe-332-master-ignored_stuff Type: Puppet Enterprise Role: Master
- 11. ---! vms:! - name: pe-332-master! box: puppetlabs/centos-6.5-64-puppet! hostname:! pe-332-master.puppetdebug.vlan! provisioners:! - type: pe_bootstrap! role: master! version: 3.3.2! roles:! - base! ! - name: pe-332-agent! box: puppetlabs/centos-6.5-64-puppet! hostname:! pe-332-master.puppetdebug.vlan! provisioners:! - type: pe_bootstrap! role: agent! version: 3.3.2! master:! pe-332-master.puppetdebug.vlan! roles:! - base ---! vms:! - name: pe-332-master! box: puppetlabs/centos-6.5-64-puppet! debug-kit: true! roles:! - base! ! - name: pe-332-agent! box: puppetlabs/centos-6.5-64-puppet! debug-kit: true! roles:! - base
- 12. Demo

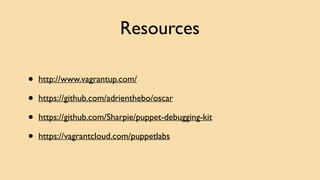

- 13. Resources • http://www.vagrantup.com/ • https://github.com/adrienthebo/oscar • https://github.com/Sharpie/puppet-debugging-kit • https://vagrantcloud.com/puppetlabs
