This document discusses the need for macrobenchmarks to evaluate the performance and scalability of large model querying systems. It presents the Train Benchmark, which measures the performance of validation queries on randomly generated railway network models of increasing sizes. The benchmark includes loading models, running validation queries to detect errors, transforming models by injecting faults, and revalidating. It aims to provide a realistic and scalable way to assess model querying tools for domains like software engineering, where models can contain billions of elements.
Towards a Macrobenchmark Framework for Performance Analysis of Java Applications
- 1. Budapest University of Technology and Economics Department of Measurement and Information Systems Budapest University of Technology and Economics Fault Tolerant Systems Research Group Towards a Macrobenchmark Framework for Performance Analysis of Java Applications Gábor Szárnyas, Dániel Varró
- 3. Model Sizes Models = graphs with 100M–1B elements o Car industry o Avionics o Software analysis o Cyber-physical systems Source: Markus Scheidgen, Automated andTransparent Model Fragmentation for Persisting Large Models, 2012 application model size software models 108 sensor data 109 geo-spatial models 1012 Validation may take hours
- 4. Research Goal Scalable query engine for evaluating complex queries on large models. Latest results are presented in tomorrow’s session: o János Maginecz, Gábor Szárnyas: Sharded Joins for Scalable Incremental Graph Queries Today: benchmarking
- 5. Motivation Jennifer Widom: Tips for Writing Technical Papers On performance experiments: It’s easy to do “hokey” or meaningless experiments, and many papers do. Many conferences expect experiments.
- 6. Benchmarks in Software Engineering Performance experiments = benchmarks Common goals o Compare various tools o Derive performance metrics o Assess the scalability of the system Microbenchmarks o Method-level o Very difficult and not recommended Macrobenchmarks o Application-level
- 7. INCQUERY-D Architecture Server 1 Database shard 1 Server 2 Database shard 2 Server 3 Database shard 3 Transaction Database shard 0 Server 0 Distributed query evaluation network Distributed indexer Model access adapter
- 8. INCQUERY-D Architecture Server 1 Database shard 1 Server 2 Database shard 2 Server 3 Database shard 3 Transaction Database shard 0 Server 0 Distributed query evaluation network Distributed indexer Model access adapter Distributed storage
- 9. INCQUERY-D Architecture Server 1 Database shard 1 Server 2 Database shard 2 Server 3 Database shard 3 Transaction Database shard 0 Server 0 Distributed query evaluation network Distributed indexer Model access adapter Distributed indexing Distributed storage
- 10. INCQUERY-D Architecture Server 1 Database shard 1 Server 2 Database shard 2 Server 3 Database shard 3 Transaction Database shard 0 Server 0 Distributed query evaluation network Distributed indexer Model access adapter Distributed indexing Distributed storage Distributed query network
- 11. INCQUERY-D Architecture Server 1 Database shard 1 Server 2 Database shard 2 Server 3 Database shard 3 Transaction Database shard 0 Server 0 Distributed query evaluation network Distributed indexer Model access adapter
- 12. INCQUERY-D Architecture Server 1 Database shard 1 Server 2 Database shard 2 Server 3 Database shard 3 Transaction Database shard 0 Server 0 Distributed query evaluation network Indexer Indexer Indexer Indexer Join Join Antijoin
- 13. INCQUERY-D Architecture Server 1 Database shard 1 Server 2 Database shard 2 Server 3 Database shard 3 Transaction Database shard 0 Server 0 Distributed query evaluation network Indexer Indexer Indexer Indexer Join Join Antijoin Separate processes
- 14. Operating System Server 1 Database shard 1 Server 2 Database shard 2 Server 3 Database shard 3 Transaction Database shard 0 OS OS OS OS Server 0 Indexer Indexer Indexer Indexer Join Join Antijoin • File system caching • Scheduled jobs • Swapping
- 15. Cloud Noise Server 1 Database shard 1 Server 2 Database shard 2 Server 3 Database shard 3 Transaction Database shard 0 OS OS OS OS Server 0 Indexer Indexer Indexer Indexer Join Join Antijoin Other VMs running on the same server
- 16. Parallel Execution Server 1 Database shard 1 Server 2 Database shard 2 Server 3 Database shard 3 Transaction Database shard 0 OS OS OS OS Server 0 Indexer Indexer Indexer Indexer Join Join Antijoin Multiple processes in the same OS Multithreaded processes
- 17. Threats to Validity Operating system: caching, scheduled jobs Parallel processes Multithreaded execution Environmental noise in the cloud The hardest: Managed Runtime Environments o Java Virtual Machine o .NET CLR
- 19. The Effect of Warmup First execution time Median execution time of 5 executions Two Java-based query engines Perform multiple executions
- 20. CASE STUDY: THE TRAIN BENCHMARK Gábor Szárnyas, Benedek Izsó, István Ráth, Dániel Varró 2016
- 21. Database Benchmarks Criteria for domain-specific benchmarks (Jim Gray, Benchmark Handbook, 1993): Relevant Scaleable Portable Simple Two-phase commit, data cubes, ACID transactions
- 22. The Train Benchmark Domain: railway network validation Goal: measure the scalability of query evaluation Supports various representations Randomly generated instance models o Increasing sizes o Close to real-world instances o Faults are inserted during generation
- 23. Railway Model Synthetic model Customizable model generator Semaphore Route Segment Switch Entry Exit Switch position of the Route Current position of the Switch

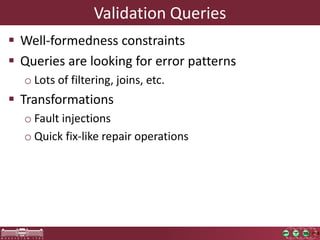

- 24. Validation Queries Well-formedness constraints Queries are looking for error patterns o Lots of filtering, joins, etc. Transformations o Fault injections o Quick fix-like repair operations
- 25. Benchmark Phases 1. Load 3. Transform 4. Revalidate2. Validate Iteration: × 10Run: × 5 Change set size Model increasing size Query Measure- ments Framework features o Automated build and unit testing o Automated visualization Warmup Warmup
- 27. Some Conclusions Very hard to tell the actual memory consumption o Manual calls to the garbage collector – not enough o Profiler – still not enough o Setting a hard limit is the best approach Benchmarking is difficult o Lots of factors can add noise to the results o Nothing works on the first try Visualization helps a lot o Worth investing time to learn R o Not a nice language, but very productive
- 28. Related Publications Benchmark framework Szárnyas, G., Izsó, B., Ráth, I., and Varró, D., The Train Benchmark for Evaluating the Performance of Continuous Model Validation, SOSYM journal (work-in-progress) Izsó, B., Szárnyas, G., Ráth, I., and Varró, D., MONDO-SAM: A Framework to Systematically Assess MDE Scalability, 2nd Workshop on Scalable Model Driven Engineering, 2014 Benchmark applications Szárnyas, G., Semeráth, O., Ráth, I., and Varró, D., The TTC 2015 Train Benchmark Case for Incremental Model Validation, Transformation Tool Contest, 2015 Szárnyas, G., Izsó, B., Ráth, I., Harmath, D., Bergmann, G., and Varró, D., IncQuery-D: A Distributed Incremental Model Query Framework in the Cloud, ACM/IEEE 17th International Conference on Model Driven Engineering Languages and Systems, 2014 Izsó, B., Szárnyas, G., Ráth, I., and Varró, D., IncQuery-D: Incremental Graph Search in the Cloud, Proceedings of the Workshop on Scalability in Model Driven Engineering, 2013
