Motors convert electrical energy to mechanical energy while engines convert chemical energy. The document discusses various motor types including their parts, operating principles, advantages, disadvantages and applications. It covers synchronous and induction motors, single phase motors like split phase, capacitor run and start motors. NEMA motor design types A-E are described for different starting and operational needs.
Tutorial motor-basics-lecture

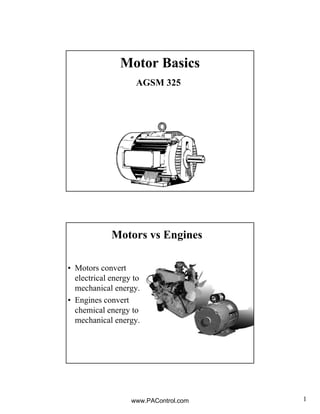

- 1. 1 Motor Basics AGSM 325 Motors vs Engines • Motors convert electrical energy to mechanical energy. • Engines convert chemical energy to mechanical energy. www.PAControl.com
- 2. 2 Motors • Advantages – Low Initial Cost - $/Hp – Simple & Efficient Operation – Compact Size – cubic inches/Hp – Long Life – 30,000 to 50,000 hours – Low Noise – No Exhaust Emissions – Withstand high temporary overloads – Automatic/Remote Start & Control • Disadvantages – Portability – Speed Control – No Demand Charge Magnetic Induction • Simple Electromagnet • Like Poles Repel • Opposite Poles Attract www.PAControl.com
- 3. 3 Operating Principle Motor Parts • Enclosure • Stator • Rotor • Bearings • Conduit Box • Eye Bolt www.PAControl.com
- 4. 4 Enclosure • Holds parts together • Helps with heat dissipation • In some cases, protects internal components from the environment. Stator (Windings) • “Stationary” part of the motor sometimes referred to as “the windings”. • Slotted cores made of thin sections of soft iron are wound with insulated copper wire to form one or more pairs of magnetic poles. www.PAControl.com
- 5. 5 Rotor • “Rotating” part of the motor. • Magnetic field from the stator induces an opposing magnetic field onto the rotor causing the rotor to “push” away from the stator field. Wound Rotor Motors • Older motor designed to operate at “variable speed” • Advantages – Speed Control, High Starting Torque, Low Starting Current • Disadvantages – Expensive, High Maintenance, Low Efficiency www.PAControl.com
- 6. 6 Bearings • Sleeve Bearings – Standard on most motors – Quiet – Horizontal shafts only – Oil lubricated • Ball (Roller) Bearings – Support shaft in any position – Grease lubricated – Many come sealed requiring no maintenance Other Parts • Conduit Box – Point of connection of electrical power to the motor’s stator windings. • Eye Bolt – Used to lift heavy motors with a hoist or crane to prevent motor damage. www.PAControl.com
- 7. 7 Motor Speed • Synchronous Speed – Speed the motor’s magnetic field rotates. – Theoretical speed with not torque or friction. • Rated Speed – Speed the motor operates when fully loaded. – Actual speed at full load when supplied rated voltage. Synchronous Speed • Theoretical Speed • A well built motor may approach synchronous speed when it has no load. • Factors – Electrical Frequency (cycles/second) – # of poles in motor www.PAControl.com
- 8. 8 Rated Speed • Speed the motor runs at when fully loaded and supplied rated nameplate voltage. Motor Slip • Percent difference between a motor’s synchronous speed and rated speed. • The rotor in an induction motor lags slightly behind the synchronous speed of the changing polarity of the magnetic field. – Low Slip Motors • “Stiff”….High Efficiency motors – High Slip Motors • Used for applications where load varies significantly…oil pump jacks. www.PAControl.com
- 9. 9 Torque • Measure of force producing a rotation – Turning Effort – Measured in pound-feet (foot-pounds) Torque-Speed Curve • Amount of Torque produced by motors varies with Speed. • Torque Speed Curves – Starting Torque – Pull Up Torque – Breakdown Torque www.PAControl.com
- 10. 10 Motor Power • Output Power – Horsepower – Amount of power motor can produce at shaft and not reduce life of motor. • Input Power – Kilowatts – Amount of power the motor consumes to produce the output power. Calculating Horsepower • Need Speed and Torque • Speed is easy – Tachometer • Torque is difficult – Dynamometer – Prony Brake www.PAControl.com
- 11. 11 Watt’s Law • Input Power • Single Phase – Watts = Volts X Amps X p.f. • Three Phase – Watts = Avg Volts X Avg Amps X p.f. X 1.74 Example • Is a 1 Hp 1-phase motor driving a fan overloaded? – Voltage = 123 volts – Current = 9 amps – p.f. = 78% • Watts = Volts X Amps X p.f. Watts = 123 volts X 9 amps X 0.78 = 863.5 Watts 864 Watts / 746 Watts/Hp = 1.16 Hp • Is the motor overloaded? www.PAControl.com
- 12. 12 Electrical = Input • We measured Input • Motors are rated as Output • Difference? – Efficiency • If the motor is 75% efficient, is it overloaded? • Eff = Output / Input • Output = Eff X Input 0.75 X 1.16 Hp = 0.87 Hp • The motor is NOT overloaded 1.16 Hp Input HP Output? Example #2 • Is this 10 Hp, 3-phase motor overloaded? – Voltages = 455, 458, and 461 volts – Currents = 14.1, 14.0 and 13.9 amps – P.f. = 82% • Watts = Voltsavg X Ampsavg X p.f. X 1.74 Watts = 458v X 14a X 0.82 X 1.74 = 9148.6 Watts 9148.6 Watts / 746 Watts/Hp = 12.26 Hp • Is the motor overloaded? www.PAControl.com
- 13. 13 Example #2 • We measured Input • Motor is rated as Output • Difference? – Efficiency • If the motor is 90% efficient, is it overloaded? • Eff = Output / Input • Output = Eff X Input 0.90 X 12.26 Hp = 11.0 Hp • The motor IS overloaded! • How bad is the overload? 12.26 Hp Input Hp Output ? Motor Types CLASSIFICATION OF MOTORS Synchronous Induction Hysteresis Reluctance Permanent Magnet Wound Rotor Synchronous Squirrel Cage Wound Rotor Design A Design B Design C Design D Synchronous Induction Hysteresis Reluctance Wound Rotor Repulsion Repulsion Start Squirrel Cage Split Phase Capacitor Run Capacitor Start Capacitor Start/Run Polyphase Universal Single-Phase AC MOTORS www.PAControl.com
- 14. 14 Synchronous vs Induction Motors • Synchronous Motors – Turn at exactly the same speed as the rotating magnetic field. – 3600 rpm, 1800 rpm, etc. • Induction Motors – Turn at less than synchronous speed under load. – 3450 rpm, 1740 rpm, etc. NEMA 3 Phase Motors • 3 Phase Induction Motors • NEMA Torque- Speed Design Types – A,B,C,D,E www.PAControl.com
- 15. 15 Design Type B • Today’s “Standard” 3- Phase Motor • Good Starting Torque – In-rush amps 4-6 times full load amps – Good breakdown- torque – Medium Slip Design Type A • The “old” Standard • Higher starting torque than “B”. • Higher in-rush current (5-8 times full load amps) • Good breakdown torque www.PAControl.com
- 16. 16 Design Type C • Common OEM equipment on reciprocating pumps, compressors and other “hard starting” loads. • High starting torque • Moderate starting current (5-8 times FLA) • Moderate breakdown torque Design Type D • Common on applications with significant loading changes as a machine operates. • Impact Loads – Punch Presses, Metal Shears, etc. – Pump Jacks www.PAControl.com
- 17. 17 Design Type E • Newest NEMA Category • Newer ultra-high efficiency motors – Higher Starting Torque – Higher Starting Current (8-12 times Running) – Ultra Low Slip (Higher Rated Speed) Single Phase Induction Motors • Are not “self starting” – Require a starting mechanism. • The name generally describes its “starting mechanism”. – Split Phase – Capacitor Run – Capacitor Start – Capacitor Start-Capacitor Run – Shaded Pole – Synchronous – Universal www.PAControl.com
- 18. 18 Split Phase Motor • Common small single phase motor – Good Starting Torque – Moderate Efficiency – Moderate Cost • Small conveyors, augers, pumps, and some compressors • 1/20th to ¾ Hp, available to 1.5 Hp Split Phase Motor • Starting winding in parallel with Running winding • Switch operates at 70-80% of full speed. • Centrifugal Switch – Sticks Open – Sticks Shut www.PAControl.com
- 19. 19 Capacitor Run Motor (Permanent Split Capacitor or PSC) • Primarily a fan and blower motor. • Poor starting torque • Very low cost motor. Permanent Split Capacitor (PSC) • Capacitor in “Capacitor Winding” – Provides a “phase shift” for starting. – Optimizes running characteristics. • No centrifugal switch www.PAControl.com
- 20. 20 Capacitor Start Motor • Larger single phase motors up to about 10 Hp. • A split phase motor with the addition of a capacitor in the starting winding. • Capacitor sized for high starting torque. Capacitor Start Motor • Very high starting torque. • Very high starting current. • Common on compressors and other hard starting equipment. www.PAControl.com
- 21. 21 Capacitor Start-Capacitor Run • Both starting and running characteristics are optimized. – High starting torque – Low starting current – Highest cost • For hard starting loads like compressors and pumps. • Up to 10 Hp or higher is some situations. Capacitor Start-Run Motor • Larger single phase motors up to 10 Hp. • Good starting torque (less than cap start) with lower starting current. • Higher cost than cap start. www.PAControl.com
- 22. 22 Synchronous Motor • Special design for “constant speed” at rated horsepower and below. • Used where maintaining speed is critical when the load changes. Universal Motor • Runs on AC or DC • Commutator and brushes • Generally found in portable power tools. • Lower Hp sizes www.PAControl.com
- 23. 23 Universal Motor • Very high starting torque. • Higher torque on DC than AC (battery operated tools) • The higher the rpm, the lower the torque. www.PAControl.com
