Visualizing Postgres

Michael Glaesemann

myYearbook.com

michael.glaesemann@myyearbook.com

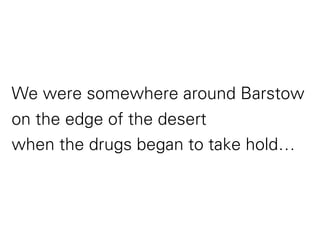

We were somewhere around Barstow
on the edge of the desert
when the drugs began to take hold…

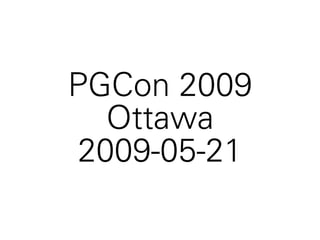

PGCon 2009
Ottawa
2009-05-21

snmp
rrd
Staplr
http://area51.myyearbook.com

pg_database_size
pg_relation_size
pg_total_relation_size
pg_column_size
pg_size_pretty

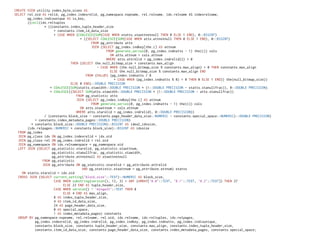

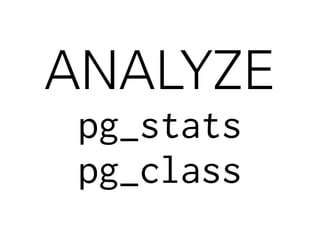

CREATE VIEW utility.index_byte_sizes AS
SELECT rel.oid AS relid, pg_index.indexrelid, pg_namespace.nspname, rel.relname, idx.relname AS indexrelname,
pg_index.indisunique AS is_key,
((ceil(idx.reltuples
* ((constants.index_tuple_header_size
+ constants.item_id_data_size
+ CASE WHEN (COALESCE(SUM(CASE WHEN statts.staattnotnull THEN 0 ELSE 1 END), 0::BIGINT)
+ ((SELECT COALESCE(SUM(CASE WHEN atts.attnotnull THEN 0 ELSE 1 END), 0::BIGINT)
FROM pg_attribute atts
JOIN (SELECT pg_index.indkey[the.i] AS attnum
FROM generate_series(0, pg_index.indnatts - 1) the(i)) cols
ON atts.attnum = cols.attnum
WHERE atts.attrelid = pg_index.indrelid))) > 0
THEN (SELECT the.null_bitmap_size + constants.max_align
- CASE WHEN (the.null_bitmap_size % constants.max_align) = 0 THEN constants.max_align
ELSE the.null_bitmap_size % constants.max_align END
FROM (VALUES (pg_index.indnatts / 8
+ CASE WHEN (pg_index.indnatts % 8) = 0 THEN 0 ELSE 1 END)) the(null_bitmap_size))
ELSE 0 END)::DOUBLE PRECISION
+ COALESCE(SUM(statts.stawidth::DOUBLE PRECISION * (1::DOUBLE PRECISION - statts.stanullfrac)), 0::DOUBLE PRECISION)
+ COALESCE((SELECT SUM(atts.stawidth::DOUBLE PRECISION * (1::DOUBLE PRECISION - atts.stanullfrac))
FROM pg_statistic atts
JOIN (SELECT pg_index.indkey[the.i] AS attnum
FROM generate_series(0, pg_index.indnatts - 1) the(i)) cols
ON atts.staattnum = cols.attnum
WHERE atts.starelid = pg_index.indrelid), 0::DOUBLE PRECISION))
/ (constants.block_size - constants.page_header_data_size::NUMERIC - constants.special_space::NUMERIC)::DOUBLE PRECISION)
+ constants.index_metadata_pages::DOUBLE PRECISION)
* constants.block_size::DOUBLE PRECISION)::BIGINT AS ideal_idxsize,
(idx.relpages::NUMERIC * constants.block_size)::BIGINT AS idxsize
FROM pg_index
JOIN pg_class idx ON pg_index.indexrelid = idx.oid
JOIN pg_class rel ON pg_index.indrelid = rel.oid
JOIN pg_namespace ON idx.relnamespace = pg_namespace.oid
LEFT JOIN (SELECT pg_statistic.starelid, pg_statistic.staattnum,
pg_statistic.stanullfrac, pg_statistic.stawidth,
pg_attribute.attnotnull AS staattnotnull
FROM pg_statistic
JOIN pg_attribute ON pg_statistic.starelid = pg_attribute.attrelid
AND pg_statistic.staattnum = pg_attribute.attnum) statts
ON statts.starelid = idx.oid
CROSS JOIN (SELECT current_setting('block_size'::TEXT)::NUMERIC AS block_size,
CASE WHEN substring(version(), 12, 3) = ANY (ARRAY['8.0'::TEXT, '8.1'::TEXT, '8.2'::TEXT]) THEN 27
ELSE 23 END AS tuple_header_size,
CASE WHEN version() ~ 'mingw32'::TEXT THEN 8
ELSE 4 END AS max_align,
8 AS index_tuple_header_size,
4 AS item_id_data_size,
24 AS page_header_data_size,
0 AS special_space,
1 AS index_metadata_pages) constants
GROUP BY pg_namespace.nspname, rel.relname, rel.oid, idx.relname, idx.reltuples, idx.relpages,
pg_index.indexrelid, pg_index.indrelid, pg_index.indkey, pg_index.indnatts, pg_index.indisunique,
constants.block_size, constants.tuple_header_size, constants.max_align, constants.index_tuple_header_size,
constants.item_id_data_size, constants.page_header_data_size, constants.index_metadata_pages, constants.special_space;

SELECT total_relsize_bytes, replace(pg_size_pretty(total_relsize_bytes), 'bytes', 'B') AS total_relsize,
relsize_bytes, replace(pg_size_pretty(relsize_bytes), 'bytes', 'B') AS relsize,
free_space_bytes, replace(pg_size_pretty(free_space_bytes), 'bytes', 'B') AS free_space,
(table_byte_sizes.free_space_bytes::numeric / table_byte_sizes.relsize_bytes::numeric)::numeric(4,3) AS bloat_rate,
idxsize_bytes, replace(pg_size_pretty(idxsize_bytes), 'bytes', 'B') AS idxsize,
(idxsize_bytes::numeric / total_relsize_bytes)::numeric(4,3) AS index_rate,
toast_relsize_bytes, replace(pg_size_pretty(toast_relsize_bytes), 'bytes', 'B') AS toast_relsize,
toast_idxsize_bytes, replace(pg_size_pretty(toast_idxsize_bytes), 'bytes', 'B') AS toast_idxsize,

key_idxsize_bytes, replace(pg_size_pretty(key_idxsize_bytes), 'bytes', 'B') AS key_idxsize,
CASE WHEN key_idxsize_bytes - ideal_key_idxsize_bytes < 0 THEN 0
ELSE key_idxsize_bytes - ideal_key_idxsize_bytes END AS free_key_idxsize_bytes,
replace(pg_size_pretty(CASE WHEN key_idxsize_bytes - ideal_key_idxsize_bytes < 0 THEN 0
ELSE key_idxsize_bytes - ideal_key_idxsize_bytes END), 'bytes', 'B') AS free_key_idxsize,
(CASE WHEN key_idxsize_bytes = 0
OR key_idxsize_bytes - ideal_key_idxsize_bytes < 0 THEN 0
ELSE (key_idxsize_bytes - ideal_key_idxsize_bytes)::numeric / key_idxsize_bytes END)::numeric(4,3) AS key_idx_bloat_rate,

nonkey_idxsize_bytes, replace(pg_size_pretty(nonkey_idxsize_bytes), 'bytes', 'B') AS nonkey_idxsize,
CASE WHEN nonkey_idxsize_bytes - ideal_nonkey_idxsize_bytes < 0 THEN 0
ELSE nonkey_idxsize_bytes - ideal_nonkey_idxsize_bytes END AS free_nonkey_idxsize_bytes,
replace(pg_size_pretty(CASE WHEN nonkey_idxsize_bytes - ideal_nonkey_idxsize_bytes < 0 THEN 0
ELSE nonkey_idxsize_bytes - ideal_nonkey_idxsize_bytes END), 'bytes', 'B') AS free_nonkey_idxsize,
(CASE WHEN nonkey_idxsize_bytes = 0
OR nonkey_idxsize_bytes - ideal_nonkey_idxsize_bytes < 0 THEN 0
ELSE (nonkey_idxsize_bytes - ideal_nonkey_idxsize_bytes)::numeric / nonkey_idxsize_bytes END)::numeric(4,3) AS nonkey_idx_bloat_rate,
nspname, relname
FROM utility.table_byte_sizes
LEFT JOIN (SELECT nspname, relname,
CAST(SUM(CASE WHEN is_key THEN ideal_idxsize ELSE 0 END) AS BIGINT) AS ideal_key_idxsize_bytes,
CAST(SUM(CASE WHEN NOT is_key THEN ideal_idxsize ELSE 0 END) AS BIGINT) AS ideal_nonkey_idxsize_bytes,
CAST(SUM(CASE WHEN is_key THEN idxsize ELSE 0 END) AS BIGINT) AS key_idxsize_bytes,
CAST(SUM(CASE WHEN NOT is_key THEN idxsize ELSE 0 END) AS BIGINT) AS nonkey_idxsize_bytes
FROM utility.index_byte_sizes
GROUP BY nspname, relname) idx_sizes USING (nspname,relname)
WHERE table_byte_sizes.nspname <> ALL (ARRAY['pg_catalog'::name, 'information_schema'::name])
ORDER BY total_relsize_bytes DESC,
free_space_bytes IS NULL,
free_space_bytes DESC,
relsize_bytes DESC,
bloat_rate DESC,
idxsize_bytes DESC;

log_min_duration_statement
log_duration
log_lock_waits
deadlock_timeout
log_temp_files

log_connections
log_disconnections

track_activities
track_activity_query_size*
track_counts
track_functions*
stats_temp_directory*

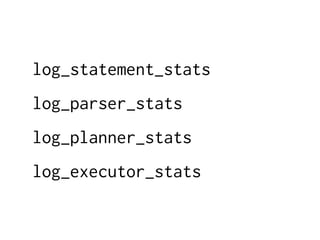

log_statement_stats
log_parser_stats
log_planner_stats
log_executor_stats

LOG: EXECUTOR STATISTICS
DETAIL: ! system usage stats:
! 0.017621 elapsed 0.004762 user 0.000816 system sec
! [6.012501 user 0.336354 sys total]
! 0/0 [0/0] filesystem blocks in/out
! 0/0 [0/0] page faults/reclaims, 0 [0] swaps
! 0 [1] signals rcvd, 0/10 [4/14944] messages rcvd/sent
! 2/0 [210/0] voluntary/involuntary context switches
! buffer usage stats:
! Shared blocks: 9 read, 0 written, buffer hit rate = 0.00%
! Local blocks: 0 read, 0 written, buffer hit rate = 0.00%
! Direct blocks: 0 read, 0 written
STATEMENT: select * from posuta.index_statistics limit 1000;
LOG: duration: 42.422 ms

2009-05-19 10:25:35.470 EDT,"grzm","posuta_production",99595,"[local]",
4a12c078.1850b,28,"SELECT",2009-05-19 10:21:44 EDT,2/30525,0,LOG,00000,"EXECUTOR
STATISTICS","! system usage stats:
! 1.786288 elapsed 0.065964 user 0.074493 system sec
! [6.079580 user 0.412469 sys total]
! 2/0 [2/0] filesystem blocks in/out
! 0/0 [0/0] page faults/reclaims, 0 [0] swaps
! 0 [1] signals rcvd, 0/13 [5/14960] messages rcvd/sent
! 1008/0 [1230/0] voluntary/involuntary context switches
! buffer usage stats:
! Shared blocks: 1073 read, 0 written, buffer hit rate = 0.00%
! Local blocks: 0 read, 0 written, buffer hit rate = 0.00%
! Direct blocks: 0 read, 0 written",,,,,"select * from
posuta.index_statistics where index_id = 265 limit 1000;",,

pg_freespacemap
pg_buffercache
pgrowlocks
pgstattuple

pg_stat_get_numscans

pg_stat_get_tuples_returned

pg_stat_get_tuples_fetched

pg_stat_get_tuples_inserted

pg_stat_get_tuples_updated

pg_stat_get_tuples_hot_updated

pg_stat_get_tuples_deleted

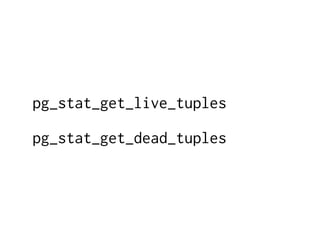

pg_stat_get_live_tuples

pg_stat_get_dead_tuples

pg_stat_get_blocks_fetched

pg_stat_get_blocks_hit

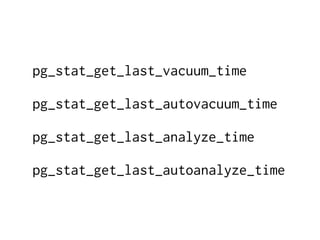

pg_stat_get_last_vacuum_time

pg_stat_get_last_autovacuum_time

pg_stat_get_last_analyze_time

pg_stat_get_last_autoanalyze_time

pg_stat_get_function_calls*

pg_stat_get_function_time*

pg_stat_get_function_self_time*

pg_stat_get_db_xact_commit

pg_stat_get_db_xact_rollback

pg_stat_get_bgwriter_timed_checkpoints

pg_stat_get_bgwriter_requested_checkpoints

pg_stat_get_bgwriter_buf_written_checkpoints

pg_stat_get_bgwriter_buf_written_clean

pg_stat_get_bgwriter_maxwritten_clean

topHeapHitters
topIndexHitters

Those who cannot
remember the past are
condemned to repeat it.

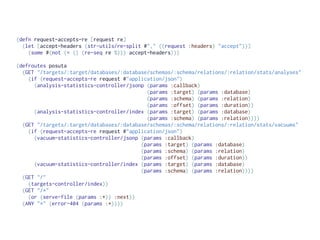

(defn request-accepts-re [request re]
(let [accept-headers (str-utils/re-split #"," ((request :headers) "accept"))]
(some #(not (= () (re-seq re %))) accept-headers)))

(defroutes posuta
(GET "/targets/:target/databases/:database/schemas/:schema/relations/:relation/stats/analyses"
(if (request-accepts-re request #"application/json")
(analysis-statistics-controller/jsonp (params :callback)
(params :target) (params :database)
(params :schema) (params :relation)
(params :offset) (params :duration))
(analysis-statistics-controller/index (params :target) (params :database)
(params :schema) (params :relation))))
(GET "/targets/:target/databases/:database/schemas/:schema/relations/:relation/stats/vacuums"
(if (request-accepts-re request #"application/json")
(vacuum-statistics-controller/jsonp (params :callback)
(params :target) (params :database)
(params :schema) (params :relation)
(params :offset) (params :duration))
(vacuum-statistics-controller/index (params :target) (params :database)
(params :schema) (params :relation))))
(GET "/"
(targets-controller/index))
(GET "/*"
(or (serve-file (params :*)) :next))
(ANY "*" (error-404 (params :*))))

(defn index [target-label database-name schema-name relation-name]
(let [title (str relation-name " vacuums")
relation (relation/relation target-label database-name schema-name relation-name)]
(page (h (str relation-name " vacuums"))
(html (javascript-tag (str "$(document).ready(function(){initVacuumStatistics("
(json-str {"target" target-label
"database" database-name
"schema" schema-name
"relation" relation-name}) ");});")))
(html
(link-to (relation-statistics-uri relation) relation-name)
[:dl#charts {:class "chart"}]
[:pre#debug]))))

(defn jsonp [callback target-label database-name schema-name relation-name offset period-str]
(let [day-offset (Integer/parseInt offset)
duration (as-sql-interval (parse-iso-period period-str))
stats (vacuum-statistics/vacuum-statistics
target-label database-name schema-name relation-name
day-offset duration)
chart-data (if (empty? stats) []
(let [bounds (let [row (first stats)]
(vector (row :lower_bound_js_epoch)
(row :upper_bound_js_epoch)))
get-series (fn [row col-name]
(vector (row :occurred_at_js_epoch) (row col-name)))
map-stats (fn [col-name stats] (map #(get-series % col-name) stats))]
(hash-map "vacuum" (map-stats :vacuum stats)
"auto-vacuum" (map-stats :autovacuum stats)
"bounds" bounds
"label" day-offset)))]
(jsonp-response callback chart-data)))

(defn banner []
(html [:div#banner (link-to application-base-path
[:img {:alt "posuta" :src "/images/logotype.png"}])]))

(defn page
([title body]
(page title nil body))
([title head-elts body]
(html (doctype :xhtml-strict)
[:head [:title title]
(include-css "/css/reset.css" "/css/layout.css")
(include-js "/js/debug.js" "/js/jquery.js"
"/js/jquery.flot.js" "/js/posuta.js"
"/js/jquery-ui-1.7.1.custom.min.js")
head-elts]
(banner)
[:body
[:h1#title (h title)]
[:div#content body
[:pre#debug]]])))

(defn jsonp-response [callback content]
(let [response (str callback "(" (json-str content) ")")]
[200 {:headers {"Content-Type" "application/json"
"Content-Length" (str (.length response))
"X-Server" "Posuta"}} response]))

(defn vacuum-statistics
[target-label database-name schema-name relation-name day-offset duration]
(db/sql-query-join
["SELECT posuta.js_epoch(lower_bound + bounds.shift) AS lower_bound_js_epoch,"
"posuta.js_epoch(upper_bound + bounds.shift) AS upper_bound_js_epoch,"
"posuta.js_epoch(vacuumed_at + bounds.shift) AS occurred_at_js_epoch,"
"target, database_name, schema_name, relation_name,"
"CASE WHEN is_autovacuum THEN 0 ELSE 1 END AS vacuum,"
"CASE WHEN is_autovacuum THEN 1 ELSE 0 END AS autovacuum"
"FROM posuta.vacuums_view"
"NATURAL JOIN (SELECT target, database_name, schema_name, relation_name,"
"(latest_occurred_at - latest.shift - CAST(? AS INTERVAL))”
“AS lower_bound,"
"(latest_occurred_at - latest.shift) AS upper_bound,"
"latest.shift"
"FROM (SELECT target, database_name,"
"schema_name, relation_name,"
"MAX(vacuumed_at) AS latest_occurred_at,"
"p.shift"
"FROM posuta.vacuums_view"
"NATURAL JOIN (SELECT (? * INTERVAL '24 hours') AS shift) AS p"
"GROUP BY target, database_name,"
"schema_name, relation_name,"
"p.shift) AS latest) AS bounds"
"WHERE (target, database_name, schema_name, relation_name) = (?, ?, ?, ?)"
"AND vacuumed_at BETWEEN lower_bound AND upper_bound"
"ORDER BY vacuumed_at"])
duration day-offset
target-label database-name schema-name relation-name))

Postgres
http://postgresql.org
Ruby
http://www.ruby-lang.org
Clojure
http://clojure.org
Compojure
http://github.com/weavejester/compojure
jQuery
http://jquery.com
flot
http://code.google.com/p/flot

Visualizing
Postgres
posuta
michael.glaesemann@myyearbook.com

Inspirational art by Ralph Steadman and xkcd.com.

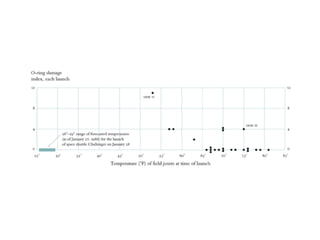

Challenger chart by Edward Tufte.
Everything used without permission.

Visualizing Postgres

More Related Content

What's hot (20)

Viewers also liked (7)

Similar to Visualizing Postgres (20)

More from elliando dias (20)

Visualizing Postgres
