VMworld 2013: Operational Best Practices for NSX in VMware Environments

Operational Best Practices for NSX in VMware
Environments
Ray Budavari, VMware
Thomas Kraus, VMware
NET5790
#NET5790

22
Agenda
 Introduction - Network Virtualization
 Operational Impacts
 NSX for vSphere Components
 Operational Tools
 Demonstrations
 Conclusion

33
Introduction - Network Virtualization
1. Decouple
Physical
Virtual
2. Reproduce 3. Automate
Network
Operations
Cloud
Operations
Hardware
independence
Operational benefits
of virtualization
No change to network
from end host perspective
Virtual
Physical

44
Agenda
 Demonstrations
 Conclusion

55
Operational Impacts - Questions
 If a Virtual Machine has a network outage where do I start?
 How does network virtualization map to our operating model?
 What tools exist to correlate logical and physical networks to
assist in troubleshooting?
 What opportunities does network virtualization provide to improve
how we operate our environment?
 Are we adding complexity
by adopting network
virtualization?
 Does network virtualization
create a ‘black box’?

66
Operational Impacts - Answers
Capability Physical Virtual Capability Physical Virtual
Packet Capture
✔ ✔
VM level
visibility
✗ ✔
NetFlow
✔ ✔
Network
Snapshot
✗ ✔
RSPAN/ERSPA
N ✔ ✔ CLI
✔ ✔
Performance
Statistics ? ✔ UI
? ✔
Syslog
✔ ✔ API
? ✔

77
Operational Impacts - Opportunities
 All NSX components such as the NSX Controller, NSX vSwitch and
NSX Edge provide detailed network visibility and data
 Simplify the underlying physical network
• One consistent physical transport network to manage for virtual machine traffic
• Greatly reduces the number of MAC/ARP table entries to manage
• Enables you to build the network you want, while still meeting application and
workload connectivity requirements
DC Networks
 Centralized reporting and
monitoring, distributed
performance and scale
 Designed for automation
• NSX is built on a REST API
provided by NSX Manager
• All operations can be performed
programmatically via scripting or
higher-level languages

88
Operational Impacts - Examples
 If a Virtual Machine has a network outage where do I start
to troubleshoot?
 Before Network Virtualization:
• Validate VLAN trunk configuration across multiple devices and ports
• Verify VM visibility on each path of the network
• Troubleshooting requires accessing different devices and interfaces
• vSphere Web Client
• Hypervisor CLI
• Access Switch CLI
• Distribution Switch CLI
• Firewall
• Load Balancer
• These devices are typically managed by different teams
• Virtualization Administrators
• Network Administrators
• Security Administrators
• Service Providers

99
Operational Impacts - Examples
 After Network Virtualization:
• VXLAN network tests determine if the issue is related to the transport network
• If VTEPs are reporting issues, engage the network team to troubleshoot physical
transport network
• Provide VTEP IP/MAC information
• Otherwise virtualization team validates VM logical networking
• Verify NSX Components and Controller state information
• Verify Source and Destination Hypervisors
• Enhanced toolset is available for troubleshooting
• Reduced number of components and resources required
• NSX components can be queried or configured via REST API

1010
Agenda
 Demonstrations
 Conclusion

1111
NSX for vSphere Components
Consumption
• Self Service Portal
• Cloud Management
• vCloud Automation Center
Data
Plane
NSX Edge
Services
Gateway
ESXi
VDS
Hypervisor Kernel Modules
FirewallDistributed
Logical Router
VXLAN
NSX vSwitch
• NSX Edge
• VM form factor
• Data Plane for North South
traffic
• Routing and Advanced
services
• NSX vSwitch
• Distributed network edge
• Line Rate performance
Management
Plane
NSX Manager
• Single point of configuration
• REST API and UI interface
vCenter Server
Control
Plane
NSX Controller • Manages Logical networks
• Run-time state
• Does not sit in the Data Path
• Control-Plane Protocol
NSX Edge
Logical Router User World Agent

1212
Components – NSX Manager
• NSX for vSphere centralized management plane
• 1:1 mapping between an NSX Manager and vCenter Server
• Provides the management UI and API for NSX
• vSphere Web Client Plugin
• Deploys NSX Controller and NSX Edge Virtual Appliances (OVF)
• Installs VXLAN, Distributed Routing and Firewall kernel modules and UW
Agent on ESXi hosts
• Configures Controller
Cluster via a REST API
and hosts via a
message bus
• Generates certificates to
secure control plane
communications

1313
Components – NSX Controller
 A reliable and secure control plane to distribute VXLAN and Logical
Routing network information to ESXi hosts
 NSX Controllers are clustered for scale out and high availability
 Network information is sliced across nodes in a Controller Cluster
 Enables dependency on multicast routing/PIM in the physical network to
be removed
 Provides suppression of ARP broadcast traffic in VXLAN networks
VXLAN
Logical Router
VXLAN
Logical Router
VXLAN
Logical Router
Controller
VXLAN Directory
Service
MAC table
ARP table
VTEP table

1414
Components – UW agent
 UW agent is a TCP (SSL) client that communicates with the Controller using
the control plane protocol
 May connect to multiple controllers
 Mediator between the ESXi Hypervisor Kernel Modules and NSX Controllers
 Also communicates with message bus agent to retrieve information from|
NSX Manager
 Runs as a service daemon on ESXi: netcpa
• Logs to: /var/log/netcpa.log
Controller
Cluster
Controller Controller Controller
ESXi Host
Kernel
Modules
Client ClientUser World
Agent
LR
NSX
MGR
Client
VXLAN

1515
Components – NSX vSwitch and NSX Edge
 NSX vSwitch (VDS)
 VMkernel Modules
 VXLAN
 Distributed Routing
 Distributed Firewall
 Switch Security
 Message Bus
 L3-L7 Services:
 NAT, DHCP, LB, VPN, Interface based
FW
 Dynamic Routing
 VM form factor
 High Availability
vSphere NSX Edge Services GW
 Control Functions only
 Dynamic Routing &
updates to Controller
 Determines active ESXi
host for L2 Bridging
NSX Edge Logical Router
ESXi
VDS
Hypervisor Kernel Modules
(vSphere VIBs)
FirewallLogical RouterVXLAN
NSX vSwitch
NSX Edge
Services
Gateway
NSX Edge
Logical
Router

1616
Agenda
 Demonstrations
 Conclusion

1717
Operational Tools – ESXi
 pktcap-uw
 New with vSphere 5.5
 Enhanced tool that provides a framework for packet capture and tracing at the
Uplink, vSwitch, vmknic, vnic and port level at any stage in a packet’s lifecycle

1818
Operational Tools – ESXi
 pktcap-uw
 Extensive range of filters
such as source/destination
mac, IP, Protocol, VLAN,
VXLAN, ports etc.
 Supports pcap format
output for use with protocol
analyzers such as
Wireshark

1919
Operational Tools – NSX vSwitch Backup & Restore
 vSwitch Backup & Restore

2020
Operational Tools – NSX vSwitch Netflow
 NetFlow / IPFIX
NetFlow collector
address and port

2121
Operational Tools – NSX vSwitch RSPAN/ERSPAN
 RSPAN/ERSPAN, Port Mirroring

2222
Operational Tools – NSX vSwitch Alarms
 vSwitch Alarms allow for alerting on VDS related events. Some of the
available preconfigured Triggers include Health Status, Reconfiguration,
Port blocked, Port Deleted, Link Down and Host removal
 SNMP Network MIBs provide standards based visibility of NSX vSwitch
objects

2323
Operational Tools – NSX vSwitch Health Check
 Network Health Check feature helps to detect common
configuration errors
 Mismatched VLAN trunks between virtual switch and physical switch
 Mismatched MTU setting between vNIC, virtual switch, physical adapter, and
physical switch ports.
 Mismatched Teaming Configurations
 vSphere admins can provide failure data to the Network admins to
facilitate problem resolution  Health Check uses
L2 Echo protocol to
send Ethernet
broadcast frames to
the physical switch
 If reply packets are
not received,
warnings are
highlighted in the
vSphere Web Client

2424
vSphere Cluster B
UWA VTEP
UWA VTEP
UWA VTEP
Operational Tools – NSX Controller
 Control Plane basics
 ESXi hosts and NSX Edge Logical
Router VMs collect network
information, which is then reported
to the Controller via User World
Agent (UWA)
 The NSX Controller CLI provides a
consistent, centralized interface to
verify VXLAN and Logical Routing
network state information
 NSX Manager also provides APIs to
programmatically retrieve data from
the controller nodes
NSX Manager
NSX
Controller
Cluster
vSphere Cluster A
UWA VTEP
UWA VTEP
UWA VTEP

2525
Operational Tools – NSX Controller VTEP Report
vSphere Host
VM
vSphere Distributed Switch
MAC1
Management
Network
10.20.10.10
vSphere Host
VM
MAC2
vSphere Host
Send VNI,VTEP
Mapping to
Controller
1
2
5
10
VXLAN 5001
3
VNI VTEP IP
5001 10.20.10.10
9
IP1 IP
2
Controller
VNI VTEP IP
5001 10.20.10.10
VNI VTEP IP
5001 10.20.10.11
10.20.10.11 10.20.10.12
11
6
7
VNI VTEP IP
5001
10.20.10.10
10.20.10.11
VNI VTEP IP
5001
10.20.10.10
10.20.10.11
48
10
VNI VTEP IP
5001
10.20.10.10
10.20.10.11
11
Report the new
VNI,VTEP
Mapping to the
Hosts

2626
 General NSX Controller troubleshooting
steps:
• Verify Controller cluster status and roles
• Verify Controller node network connectivity
• Check Controller API service
• Validate VXLAN and Logical Router mapping
table entries to ensure they are consistent
• Review source and destination netcpa logs and
CLI to determine control plane connectivity issues
between ESXi hosts & NSX Controller
 The first set of commands relates to NSX
Controller CLI cluster status and health:
• nsx-controller # show control-cluster status
• nsx-controller # show control-cluster startup-
nodes
• nsx-controller # show control-cluster roles
• nsx-controller # show control-cluster connections
• nsx-controller # show control-cluster vnet core
stats
• nsx-controller # show network <arg>
• nsx-controller # show log cloudnet/cloudnet_java-
vnet-controller.<start-time-stamp>.log

2727
 General NSX Controller VXLAN operations:
• List VNIs
• VXLAN connection table
• Verify VXLAN VTEP, MAC and ARP mapping tables
• View VXLAN statistics
 NSX Controller CLI VXLAN commands:
• # show control-cluster vnet vxlan vni <vni>
• # show control-cluster vnet vxlan connection-table <vni>
• # show control-cluster vnet vxlan vtep-table <vni>
• # show control-cluster vnet vxlan mac-table <vni>
• # show control-cluster vnet vxlan arp-table <vni>
• # show control-cluster vnet vxlan vni-stats <vni>
 Note: VXLAN Logical Switches and Logical
Router instances are distributed across
Controller Nodes (slicing), so you will need to
run the CLI commands on the node which is
active for a given object

2828
 General NSX Controller Logical Routing operations:
• List Logical Router instances
• Verify Logical Router interface and route mapping tables
• Verify active controller connections
• View Logical Router statistics
 NSX Controller CLI Logical Routing commands:
• # show control-cluster vnet logical-router instance-table <lr-id>
• # show control-cluster vnet logical-router lif-table <lr-id>
• # show control-cluster vnet logical-router route-table <lr-id>
• # show control-cluster vnet logical-router lr-stats <lr-id>
 Note that the NSX Controller CLI is still not final

2929
Operational Tools – VXLAN
 Common VXLAN issues:
• Connectivity between VXLAN VTEPs on Transport Network
• MTU on Transport Network not set to 1600 bytes or greater
• Teaming mismatch between dvUplinks and upstream switch
• Preparation - either with the installation of VXLAN kernel modules or creation of VTEP VMkernel
interfaces
• ESXi host communication with Controller
 NSX for vSphere provides a new workflow for preparation and configuration
 Supports multiple VTEPs per host
 NSX leverages the vSphere 5.5 multi-instance TCP/IP stack

3030
 At Logical Switch level on the Monitoring Tab you can use the
unicast or broadcast test to verify the connectivity between VTEPs
VXLAN standard tests
with a 1600 byte MTU

3131

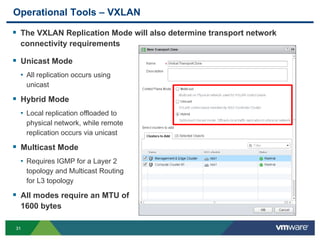

 The VXLAN Replication Mode will also determine transport network
connectivity requirements
 Unicast Mode
• All replication occurs using
unicast
 Hybrid Mode
• Local replication offloaded to
physical network, while remote
replication occurs via unicast
 Multicast Mode
• Requires IGMP for a Layer 2
topology and Multicast Routing
for L3 topology
 All modes require an MTU of
1600 bytes

3232
 VXLAN namespace for esxcli provides detailed network
information and statistics.
• # esxcli network vswitch dvs vmware vxlan list
• # esxcli network vswitch dvs vmware vxlan network list --vds-name=Compute_VDS
• # esxcli network vswitch dvs vmware vxlan network mac list –vds-name=Compute_VDS --
vxlan-id=5001
• # esxcli network vswitch dvs vmware vxlan network arp list --vds-name Compute_VDS --vxlan-id=5001
• # esxcli network vswitch dvs vmware vxlan network port list --vds-name Compute_VDS --vxlan-id=5001
• # esxcli network vswitch dvs vmware vxlan network stats list --vds-name Compute_VDS --vxlan-id=5001

3333
Operational Tools – Logical Routing
 Use the net-vdr command on
ESXi hosts to view Logical
Routing configuration and
statistics
• Display Logical Router instances
~ # net-vdr -I –l
• List Logical Interface and Routing
Tables
~ # net-vdr -l –lif <instance-name>
~ # net-vdr -l --route <instance-name>
LIFs and routes are pushed by the NSX
controller to the ESXi hosts and should
be consistent across the environment
• View L2 Bridging information
~ # net-vdr -b –mac <instance-name>
~ # net-vdr -l –stats <instance-name>

3434
Operational Tools – NSX Edge Services
 NSX Edge VM CLIs
• NSX Edge provides a familiar CLI command
set for troubleshooting network services
• Documented in a dedicated CLI guide
 Sample Configuration Commands
• show configuration {ospf|bgp|isis|static-routing}
• show configuration {firewall|nat|dhcp|dns}
• show configuration {loadbalancer|ipec|sslvpn-plus}
 Sample Status Commands
• show interface [IFNAME]
• show firewall
• show ip {route|ospf|bgp|forwarding}
• show arp
• show system {cpu|memory|network-stats|storage|uptime}
• show service {dhcp|dns|highavailability|ipsec|loadbalancer|sslvpn-plus}

3535
 API provides based statistics (for interfaces and services)
 UI also provides interface statistics and graphs

3636
 Logging commands
• show log {follow|reverse}
• show flowtable
 Debug/troubleshooting commands
• traceroute <ip_address or dns_name>
• ping <ip address> or ping interface addr <alternate_src_ip> <ip_address>
• debug packet display interface <vNic_0-9> <EXPRESSION>
• debug packet display interface vNic_0 host_192.168.1.2
• debug packet display interface vNic_2 host_192.168.1.3_and_port_80
• debug packet display interface vNic_1 src_192.168.1.2_and_dst_192.168.1.3
• debug packet capture interface <vNic_0-9> <EXPRESSION>
• debug show files
• debug copy {scp|ftp} <URL>
 debug messagebus {forwarder|messages}

3737
Operational Tools – Flow Monitoring
 Flow monitoring provides vNIC level visibility of VM traffic flows
 Reporting on Top Flows, Destinations and Sources
 Detailed Flow Data for both Allowed and Blocked Flows

3838
Operational Tools – Flow Monitoring
 Flow data easily available through UI or via API for orchestration
 Per flow granularity for Allowed and Blocked with ability to add or
edit firewall rules related to the flow.

3939
Operational Tools – NSX Manager
 Perform Backup & Restore
operations (both scheduled
and on-demand)
 NSX Manager Appliance
Upgrades
 Verify status of NSX
Manager Services
 Generate Tech support logs
 View appliance CPU,
Memory and Disk usage

4040
Operational Practices – vCenter Operations Manager
 Dashboard based view of environment
 Monitor overall health of NSX vSphere Management and Control
Layer components and diagnose issues quickly
 Networking and Security metrics

4141
Operational Tools – Syslog
 Syslog is supported across all NSX components
• 1) NSX Manager
• 2) NSX Controllers
• 3) NSX Edges
• 4) ESXi Hosts
1
2
3
4

4242
Operational Practices – Log Insight
 Consolidation, visualization, and correlation of syslog data from
multiple related components in a Software Defined Datacenter
 Build Custom Dashboards for real time monitoring and trending
 Customize Log interpretation Logic to parse using regex, int, str

4343
Operational Tools – REST API
 NSX Manager exposes web service API over HTTPS (TCP 443)
 API request and response data is formatted in XML
 Simple “single-user” authentication using password
 REST principles:
• Leverages HTTP to send data between Clients and Servers (Requests and Responses)
• Resources, Global Permanent Identifiers, Constraints

4444
Agenda
 NSX Platform / Network Virtualization
 Demonstrations
 Conclusion

4545
NSX for vSphere Demonstrations
1. Packet capture of encapsulated VXLAN frames
2. Flow Monitoring

4646
Key Takeaways & Best Practices
 VMware NSX provides a unified platform for administering,
monitoring, and supporting your virtual networks and services
 NSX enables a similar operational model for virtual networks as
vSphere does for virtual machines
 Moving network features to logical space simplifies physical
networks and troubleshooting
 Start with the basics when troubleshooting (transport network and
control plane)
 Understanding the component interactions and toolset is key to
NSX operations
 Enable logging on all components ‘before’ you have issues and
familiarize yourself with how to collect support logs
 Automate repeatable steps via the REST API to reduce error
 Take the NSX for vSphere Hands on Lab: HOL-SDC-1303 to
reinforce concepts from this session

4949
Network Virtualization - Operations
• Overall Logical network
health/stats
• VM to VM connectivity
• Per VM flow visibility
• Traffic Analysis – Packet
Capture
• Transport/Tunnel health
• Inventory/Fault Mgmt
• Multi-level Logging, Event
tracking and Auditing
• Physical network
troubleshooting/visibility
• Upgrade Management
Cloud Ops or Network Ops
vSwitch
NSX EdgeESXi ESXi ESXi ESXi
vSwitch vSwitch vSwitch vSwitch
L2
Logical Topology
L2
WAN/Inter
net
What are the key capabilities required for
operating a Logical world?
Controller Cluster
NSX Manager

5050
NSX Operations – Capabilities
NSX Optimized for vSphere
Logical Network Health
UI: NSX Manager
CLI: Central NSX Controller, NSX Edge
VM to VM connectivity (Logical) NSX Controller Central CLI, Host level CLI
Traffic Flow visibility
IPFIX (VDS)
NSX Edge – Flow Monitoring
Traffic Analysis per VM
RSPAN/ERSPAN (VM Traffic)
Host Packet Capture (Overlay)
Network Inventory, Fault Management NSX Manager, SNMP (MIBS for ports, Switch etc)
Multi-level logging, Event tracking &
Auditing
Syslog Export (NSX controller, NSX Manager, NSX
Edge etc.)
Transport (Overlay) Health
NSX Manager Connectivity Check
NSX Controller Central CLI, Per host CLI
Upgrade Management
NSX Manager (Automated VIB and Controller
upgrades)
API visibility NSX Manager API
External Tools Custom, VCOPs, Log Insight

5151
NSX System Architecture
Cloud Management System
vCenter Server NSX Manager
Management Plane
Control Plane
NSX Edge
Logical
RouterNSX Controller
Data Plane
NSX Edge
Services
Gateway
VXLAN DR DFWSecurity VXLAN DR DFWSecurityVXLAN DR DFWSecurity
vSphere API
MessageBus
vSphereAPI
REST API
NSX vSwitch
Control Plane Protocol
Control Plane
Protocol
REST APIvSphere API
UWA
CP Protocol

5252
Control Plane Protocol
 Control plane protocol
• All messages are TLVs
• Categorized into primitives:
• Connection management, negotiation, etc:
• Hello, bye, keepalive
• App specific:
• Open, close, notification, update, query
• Extensible.
• App ID in message common header.
 VXLAN sub protocol
• Update and query messages contains one
or more TLVs for different data types:
 VM IP, VM MAC, VTEP

5353
VXLAN Control Plane Security
UW
Agent
VTEP
UW
Agent
VTEP
UW
Agent
VTEP
vSphere Cluster B
UW
Agent
VTEP
UW
Agent
VTEP
UW
Agent
VTEP
vSphere Cluster A
Controller Cluster
NSX Manager DB
1
Certificate
Generation
2
OVF
Deployment3 Message Bus
4 REST API
NSX Manager
5 SSL 5 SSL
5 SSL

5454
Operational Practices – NSX Controller MAC Report
vSphere Host
VM
MAC1
Management
Network
10.20.10.10
vSphere Host
VM
MAC2
vSphere Host
Send VNI,VM
MAC Mapping
and VTEP IP to
Controller
1
2
5 VXLAN 5001
3
IP1 IP
2
Controller
VNI VM MAC
5001 MAC1
VNI VM MAC
5001 MAC2
10.20.10.11 10.20.10.12
6
7
48
VNI VM MAC VTEP
5001 MAC1 10.20.10.10
VNI VM MAC VTEP
5001 MAC1
10.20.10.1
0
5001 MAC2
10.20.10.1
1

5555
Operational Tools – NSX Controller IP Report
vSphere Host
VM
MAC1
Management
Network
10.20.10.10
vSphere Host
VM
MAC2
vSphere Host
Send VM MAC,
IP Mapping and
VNI to Controller
1
2
5 VXLAN 5001
3
IP1 IP
2
Controller
VNI
VM
IP
VM
MAC
5001 IP1 MAC1
VNI
VM
IP
VM
MAC
5001 IP2 MAC2
10.20.10.11 10.20.10.12
6
7
48
VNI VM IP VM MAC
5001 IP1 MAC1
VNI VM IP VM MAC
5001 IP1 MAC1
5001 IP2 MAC2

5656
Controller Based VXLAN – ARP Request
vSphere Host
VM
MAC1
Management
Network
10.20.10.10
vSphere Host
VNI
VM
IP
VM
MAC
VTEP
5001 IP1
MAC
1
10.20.10.1
0
VM
MAC2
vSphere Host
1
2
VXLAN 5001
3
IP1 IP2
Controller
10.20.10.11 10.20.10.12
6 5
VNI
VM
IP
VM
MAC
VTEP
5001 IP1 MAC1 10.20.10.10
5001 IP2 MAC2 10.20.10.11
4
PayloadL2
DA: Broadcast
SA: MAC1
ARP Request for
VM IP2 sent to
Controller
ARP Report for
VM IP2, MAC2
sent to VTEP
10.20.10.10
VNI
VM
IP
VM
MAC
VTEP
5001 IP1 MAC1 10.20.10.10
5001 IP2 MAC2 10.20.10.11

5757
Controller Based VXLAN – Communication after ARP Resolution
vSphere Host
VM
MAC1
VXLAN Transport
Network
10.20.10.10
vSphere Host
VM
MAC2
vSphere Host
7
8
VXLAN 5001
IP1 IP2
Controller
10.20.10.11 10.20.10.12
9
VNI
V
M
IP
VM
MAC
VTEP
5001 IP1 MAC1 10.20.10.10
5001 IP2 MAC2 10.20.10.11
PayloadL2
DA: MAC2
SA: MAC1
L2 IP UDP VXLAN PayloadL2
DA: 10.20.10.11
SA: 10.20.10.10
5001
10
DA: MAC1
SA: MAC2
VNI
VM
IP
VM
MAC
VTEP
500
1
IP1 MAC1 10.20.10.10
500
1
IP2 MAC2 10.20.10.11
VNI
VM
IP
VM
MAC
VTEP
500
1
IP2 MAC2 10.20.10.11
VNI
VM
IP
VM
MAC
VTEP
500
1
IP2 MAC1 10.20.10.11
500
1
IP1 MAC2 10.20.10.10

5858
 Download Edge Gateway Tech Support Logs using the Web Client
 Or from NSX Edge CLI using the following command
 NSX-Edge1-0# export tech-support scp user@scpserver:file

5959
• VERB = GET
• URI = https://<NSX Manager Hostname>/api/2.0/vdn/scopes
• HEADERS = Authorization
• HTTP Body = N/A
• RESPONSE: Search for the id of scope:
<id>vdnscope-X</id>

6060
• VERB = POST
• URI = https://<NSX Manager
Hostname>/api/2.0/vdn/scopes/vdnscope-1/virtualwires
• HEADERS = Authorization, Content-Type
• HTTP Body =
<virtualWireCreateSpec>
<name>Test-Logical-Switch-01</name>
<description>Created via REST API</description>
<tenantId>virtual wire tenant</tenantId>
<multicastProxy>true</multicastProxy>
<disableMulticast>true</disableMulticast>
</virtualWireCreateSpec>

6161
• Response: 201 Created
• The Response Body provides the virtualwire-id, which can be used for additional
operations (eg, attaching to a Logical Router LIF or for Distributed Firewall rules)

6262
Demo 1 (3 mins) - Script
 Component Installation
• NSX Manager
• NSX Controller Cluster
 Preparation
• Login to ESXi host (destination)
• Add Logical Switch
• Connect VMs to Logical Switch
 Data Collection
• Start data collection on destination host, output to a share (that is also accessible on
analyzer)
• Connect VMs to Logical Switch
• Generate some traffic
• Stop data collection
• Start Wireshark and open pcap file
• Enable VXLAN decoder
• Walk through packet data format (VXLAN headers, unicast mode etc)
• Show anything else ? Controller CLI/esxcli ?

6363
References
 Other VMworld breakouts – VXLAN troubleshooting,
Security operations
 VMware Networking and Security Booth
 Hands on Lab: HOL-SDC-1303 VMware NSX to gain hands
on experience
 Expert Bar/Group Discussions

6464
Other VMware Activities Related to This Session
 HOL:
HOL-SDC-1303
VMware NSX Network Virtualization Platform

VMworld 2013: Operational Best Practices for NSX in VMware Environments

VMworld 2013: Operational Best Practices for NSX in VMware Environments

More Related Content

What's hot (20)

Viewers also liked (19)

Similar to VMworld 2013: Operational Best Practices for NSX in VMware Environments (20)

More from VMworld (20)

Recently uploaded (20)

VMworld 2013: Operational Best Practices for NSX in VMware Environments
