WAVES
A brief by Lance Grindley

Waves
 An understanding and appreciation of wave action
is essential for a competent mariner.

Waves and Weather
 Understanding how waves form and behave at sea,
over shoals and in the surf zone can help one know
what to expect and how to use the conditions to
avoid or minimize dangers.

Definitions

The Parts of a Propagating Wave
 Breaker: A single breaking wave of either the
plunging type or the spilling type.
 Breaker line: The outer limit of the surf.
Breakers may not all present themselves in a
line. Breakers can occur outside of the
breaker line and seem to come from nowhere.

 Comber: A wave on the point of breaking. A
comber has a thin line of white water upon its crest,
referred to as "leathering.”
 Crest: The top of a wave, breaker or swell.
 Fetch: The unobstructed distance covered by the
wind blowing across the surface of the ocean /water.

 Foam crest: Top of the foaming water, after the
wave has broken, popularly known as white water.
 Frequency: The number of crests passing a fixed
point in a given time.

 Interference: Waves that have been refracted or
reflected can interact with each other as well as with
the incoming waves, and may be additive (or
subtractive), resulting in unnaturally high waves.
Interference may even result in standing wave
patterns (waves that consistently appear to peak in
the same spot).

 Interference can be of particular concern because it
may result in a boat being subjected to waves from
unexpected directions and of unexpected size.
Unexpected height may also cause troughs of
unexpected deepness into which a vessel can fall.

 Period: The time it takes for two successive crests to
pass a fixed point.
 Series: A group of waves which seem to travel
together at about the same speed.
 Surf: A number of breakers in a continuous line.
 Surf zone: The area near shore in which breaking
occurs continuously in varying intensities.

 Swell: Swells are the waves that have moved out of
the area in which they were spawned. The crests
have become lower, more rounded and symmetrical.
In this form, they can travel for thousands of miles
across deep water without much loss of energy.
 Trough: The valley between waves.

 Waves: Waves are periodic disturbances of
the sea surface, caused by wind, earthquakes,
and the gravitational pull of the moon and the
sun.
 Wave gradient: The slope or angle of a wave
from its trough to its crest.
 Wave height: The distance from the bottom
of a wave's trough to the top of its crest.

 Wave length:
The distance
from one wave
crest to the next
in the same
wave group or
series.

 Wave reflection: Almost any obstacle can reflect part of a wave,
including underwater barriers such as submerged reefs or bars, even
though the main waves may seem to pass over them without change.
These reflected waves move back towards the incoming waves. When
the obstacles are vertical or nearly so, the waves may be reflected in their
entirety.
 Wave refraction: Refraction means bending. Wave refraction occurs
when the wave moves into shoaling water, interacts with the bottom and
slows down. Naturally, the first waves encountering the shallows slow
down first, causing the crests of the waves to bend forward toward the
shallower water. The bottom terrain determines how much refraction
occurs. Refraction can also occur when a wave flows past a point of
land, a jetty, or an island.

Wave Energy

Wave Energy
 Waves are the visible result of an energy transfer
process whereby energy is imparted to the water by
displacing forces, usually caused by wind and
vessel movement.
 It is eventually expended by dispersion and decay,
as breaking waves, or is transferred to the shore as
surf.

Wave Energy
 When waves are formed, forces immediately begin
to act to bring the water's surface back to a level
state. These forces are:
1. gravity, which acts on the wave by forcing it to flow
back down to a flattened position;
2. surface tension, which resists wave formation; and
3. elasticity, which resists any change in the total
volume of the water.

Wave Energy
 If the force which caused the wave to form were
removed, the water's surface would eventually
return to level because of internal friction, or by
transfer of the energy to floating objects or the
shore.

Wave
Energy

Wave Energy
 As the figure shows:
1. The depth of the water is measured from the still
water level to the bottom;
2. The top of the wave is called the crest. The lowest
level between two successive wave crests is called
the trough;
3. The wave height (h) is the vertical distance between
the highest and lowest points of a wave;

Wave Energy
4. The wavelength (l) is the horizontal distance
between two successive crests. For the average
wave system, this is measured in feet;
5. The amplitude (a) is equal to one-half of the wave
height;
6. The crest angle is the angle formed by the sides of
the wave at the crest;

Wave Energy
7. The steepness of the wave is measured by dividing
the height by the length (h/l);
8. The wave period (t) is the time interval, in seconds,
between one crest and the next from a fixed
observation point.

Wave Energy
 The slope (S) of the bottom is an important factor in
the wave's steepness. The slope is equal to the
vertical change in bottom depth divided by the
horizontal distance in which the depth change
occurs. Both the wave steepness and the slope of the
bottom are important factors in breaking waves and
surf conditions.

Particle Motion

Particle Motion
 As a wave moves through the water, very
little water is actually displaced any distance.
Rather, the motion that occurs within the
wave is circular in shape (orbital motion).
 At the wave's crest, the water moves forward
at a maximum speed in the horizontal
direction of the wave's progress. Halfway
down the face on the front of the wave,
motion is upward.

Particle Motion
 At the bottom of the trough, it is moving at
maximum speed, backward, in the horizontal
direction opposite that of the wave's progress. On
the rear face of the wave, halfway up from the
trough to the crest, it is moving downward, at its
maximum speed in the vertical direction.

Particle Motion
 It is this motion which allows a wave to approach a
floating object, flow under it and move on while
leaving the object in the same place.
 Remember, it is current and/or wind which moves
an object through the water, not the wave.

Factors in Creating Shape

 The strength of the wind and the length of time it
blows,will affect the amount of energy transferred
to the sea surface, and thus the eventual
characteristics of the waves generated.

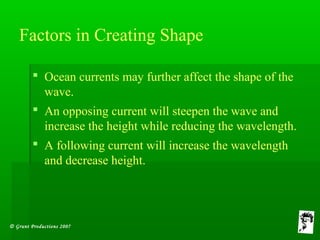

 Ocean currents may further affect the shape of the
wave.
 An opposing current will steepen the wave and
increase the height while reducing the wavelength.
 A following current will increase the wavelength
and decrease height.

 The unimpeded length of the water area over which
the wind blows is called the fetch and at sea may be
a thousand miles or more.

 If a large storm such as a hurricane or typhoon is the
source of the wind, the resulting waves can be
enormous and travel for tremendous distances
before they dissipate their energy on some distant
shore as surf.

 Wind waves can be classified into two distinct types
that are of major interest to the mariner:
1. Deep water wave
2. Shallow water wave

1. When the depth of the water is greater than about
one-third of the wavelength, the bottom has little
effect on the wave, and it is termed a deep water
wave;
2. When the depth of the water is less than one
eleventh of the wavelength, it is termed a shallow
water wave, and the wave is strongly affected by the
bottom.

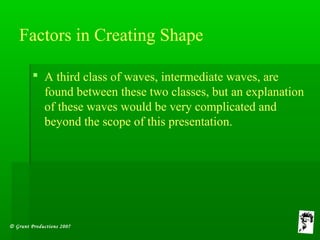

 A third class of waves, intermediate waves, are
found between these two classes, but an explanation
of these waves would be very complicated and
beyond the scope of this presentation.

Deep Water Waves
 As the wind continues to affect a deep-water wave,
the wave will continue to grow until its steepness
and crest angle approach a critical state, at which
point the wave becomes unstable and breaks. These
storm-tossed and breaking waves are termed seas
while they are still being generated.

Deep Water Waves
 Deep-water waves originating far out at sea may
have wavelengths of hundreds or thousands of feet,
periods of many seconds and a speed of advance of
dozens of feet per second.

Deep Water Waves
 After the deep water waves are generated far
out at sea, they move outward, away from
their wind source, in ever-increasing curves,
and become what are called swells.
 The further the swell moves from its source,
the more uniform its characteristics become,
as it travels in a series of relatively
equidistant waves moving at a fairly constant
speed.

Deep Water Waves
 The smoothness and uniformity of the swells
generated from storms far out at sea, distinguish
them from those which are more coarse (peaked and
irregular) and have recently originated nearby.
 The usual period of the swell is from 6 to 10
seconds. The wavelengths are of 56 to 400 m (184
to 1,310 ft.) and have velocities of 18 to 49 knots.

Deep Water Waves
 Interference between different swell systems
traveling in nearly the same direction causes groups
of waves to travel outward in patches. As these
groups of several waves (normally 7 to 12) progress
outward, the waves in the forefront disappear and
new waves, of the same characteristics, appear at
the rear of the patch. This process continues until
the waves dissipate their energy at sea or transfer it
to the shore as surf.

Deep Water Waves

Wave Groups
 Knowledge of the characteristic clustering of waves
into groups is useful during operations in shoaling
waters such as over bars, in inlets, or working in
surf.
 The wave groups can be observed and their group
periods determined. The boat or boats can be best
maneuvered while the wave motion is at a
minimum, during the space between groups.

 As depth decreases:
1. Wave Period remains constant
2. Wave Length decreases
3. Wave Speed decreases
4. Wave Height and Steepness increase
5. Energy lost to friction is negligible
6. Waves cease to be symmetrical and sinusoidal,
and become asymmetrical and solitary

Transition to Shallow Water
 When deep-water waves move into shallow
waters, they become shallow water waves,
due to interaction with the sea floor causing
friction and decreasing the wave speed.
 This decrease causes refraction, and one
effect is to shorten the wavelength. As the
wavelength decreases, the wave steepness
increases and the wave becomes less stable.

Shallow Water Waves
 When the wave moves into water of depth
about twice the wave's height, the crest peaks
up,i.e. the rounded crest of a swell becomes a
higher more pointed mass of water with
steeper sides.
 This change of waveform becomes more
pronounced as the wave moves farther into
shallow water. These changes in wavelength
and steepness occur before breaking.

Shallow Water Waves
 Finally, at a water depth roughly equal to 1.3 times
the wave height, the wave becomes unstable.
 This happens when not enough water is available in
the shallow area ahead to complete the crest and the
wave's symmetrical form.

Shallow Water Waves
 The top of the onrushing crest is left unsupported
and collapses, the wave breaks, resulting in surf.
 The motion of the water that occurs within shallow
water waves is no longer circular, but tends to
become elliptical.

Breaking Waves

Breaking Waves
 As the underwater slopes become steeper, breaking
becomes more intense, and fewer waves break
simultaneously.
 The waves begin to curl as the orbital velocities of
the individual water particles at the crest rise with
increasing height.

Breaking Waves
 When not enough water is available in the
shallow water ahead of the wave, the top of
the onrushing crest is unsupported and
plunges ahead as an incomplete orbit.
 This type of breaker is termed plunging. In
plunging surf, only one wave breaks at a
time, and its intensity is greatly increased by
the backwash of the wave that broke before
it.

Breaking Waves
 Obviously, this is not a good place to operate a
vessel.
 Remember, water weighs about one ton per cubic
yard.
 A breaking wave could dump tons of water,
swamping and/or severely damaging the boat.

Breaking Waves
 On an offshore bar, or in an inlet with a bar, the
changing tide modifies the depth of the water, and
the bottom thus influences incoming waves.
 Breaking waves and surf may form over these
shoaling waters at low tide, whereas no such action
is present at higher tides.

Breaking Waves
 Current can affect speed of wave movement through
the water.
 When the current is against the wave direction, it
acts to reduce the wave's speed, and thus increases
the wave's steepness and height.
 The result is breaking where it was not occurring
before, or more violent surf.

Breaking Waves
 Wave characteristics are modified when deep-water
waves make the transition to shallow-water waves.
 As depth decreases, so do wave length and speed of
advance, (while the wave period remains constant)
and the result is called refraction, in which the wave
front (the line of the crest) bends or curves toward
the shallows.

Refraction

Refraction
 If the wave crests are approaching the shoreline at
an angle, they will be curved toward the slope by
refraction of the wave front by the bottom, and
eventually arrive nearly parallel to the shoreline.

Refraction
 Refraction means bending. Wave refraction occurs
when the wave moves into shoaling water, interacts
with the bottom and slows down.
 Naturally, the first waves encountering the shallows
slow down first, causing the crests of the waves to
bend forward toward the shallower water.

Refraction
 Refraction causes divergence (moving away) and
results in lower waves over offshore troughs and
holes on the bottom.
 It also causes convergence (coming together) and
higher waves over ridges and shoals on the bottom.

Refraction
 Refraction can occur around islands with sloping
shores, too, and cause the wave fronts to "wrap
around" the island, creating a shadow zone,
confused seas, and even focused wave energy at a
distant shoreline point.
 The bottom terrain determines how much refraction
occurs.

Combining Wave Fronts

Combining Waves Fronts
 When two or more wave fronts interact, or
when a fast-moving wave overtakes a slower
one, the resulting effect is called interference.
 When the water in each of these waves is
moving in the same direction at the point of
interaction, the motion accumulates and the
result is an increase in the wave motion at
that point. The wave height also increases,
and constructive interference occurs.

 When the respective water particles are
moving in opposite directions at the point of
interaction, they act destructively, and may
even cancel each other's motion out. This is
called destructive interference. Obviously,
interference can also result in a considerable
increase in wave motion and change
relatively moderate swells into breaking
waves at the points of crossing or collision.

 Interference can also cause the waves to be
suddenly stilled, or reduced, making the location
much calmer.

Reflection

Reflection
 When a wave front bounces off a deep
vertical surface, such as the face of a sea cliff
or the side of a breakwater, the wave energy
may be turned back or diverted in some other
direction.
 This process is termed reflection. If the
reflected waves react with the oncoming
waves, causing constructive interference, the
resulting wave motion can be intensified.

Reflection
 If the conditions are just right, standing waves may
be formed, in which the water particles move up and
down under the wave crests and back and forth at
the mid points of the trough. Both the crests and
troughs remain in the same horizontal location: the
progress of the wave is essentially terminated.

Reflection
Waves can be reflected
from steep vertical
shorelines in a similar way
to sound waves or light
waves.
Parallel line of waves will
be reflected at the same
angle as they came in on.

Reflection
 Where waves enter a bay,
the waves can be
reflected off the shore
and can be focused in an
area, or with a perfect
curve, a point.

Diffraction

Diffraction
 When a wave front travels between two close
islands, or through a gap in a breakwater, the
waves produce very complicated interference
patterns by the process of diffraction,
particularly when they approach the gap at an
angle. When this happens, the wave height
within the area beyond the breakwater gap
may exceed that of the wave outside of the
breakwater.

Rip Currents

Rip Currents
 Off a beach where there is running surf, rip currents
(more popularly and incorrectly called "rip tides" or
"undertows") can occur. Rip currents are produced
as a result of the movement of large volumes of
water by waves or surf upon the beach face.

Rip Currents
 The raised level of water produced by the waves on
the beach flows away in what is called a longshore
current parallel to the beach and in the same general
direction as the waves as they angle in on the
shoreline.

Rip Currents
 If the wave fronts or crests are running
parallel to the beach, a longshore current of
several knots each can be set up.
 As the longshore currents flow along the
beach, they reach points where, for various
reasons, the water returns to the sea.
 Rip currents made up of this out flowing
water are produced at these points.

Rip Currents
 Channels, sometimes with steep sides, are
produced by these rip currents. Although rip
currents may become dangerous to
swimmers, a knowledgeable boater can use
them to advantage.
 At the rip currents, the breakers are usually
smaller because of refraction (decrease in
wavelength and speed where the wave curves
or bends).

Rip Currents
 Both the deep water in the channels and the
decreased breaker height are helpful to a small craft
maneuvering in the surf zone.
 Furthermore, the out flowing current can be
substantial, approaching several knots.

Rip Currents
 Rip currents can be easily recognized from
the beach. The observer can generally see a
place where the waves are breaking less
actively because of the deeper water.
 The rip current has highly agitated water with
small, slapping waves. Sometimes roll-up
water being carried out along the rip current
can be seen in contrast to the cleaner water
on either side.

Rip Currents
 The color of the turbid water extending out along
the course of the rip can be seen from the seaward
side.
 Often there is also a concentration of foam that
develops along the boundary of the outward surging
masses in the rip current.

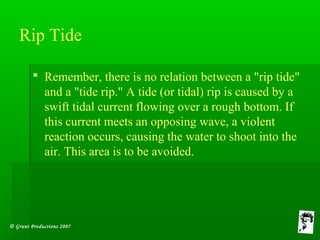

Rip Tide
 Remember, there is no relation between a "rip tide"
and a "tide rip." A tide (or tidal) rip is caused by a
swift tidal current flowing over a rough bottom. If
this current meets an opposing wave, a violent
reaction occurs, causing the water to shoot into the
air. This area is to be avoided.

Waves lrg

More Related Content

What's hot (20)

Viewers also liked (20)

Similar to Waves lrg (20)

More from Lance Grindley (17)

Recently uploaded (20)

Waves lrg
