NVK is a leading wireless solutions provider in Thailand. They have deployed over 300,000 EnGenius access points nationwide for metro WiFi networks, wireless ISPs, and hotspot services. NVK offers a range of WiFi products and professional services, and has experience designing various WiFi network architectures including metro WiFi, MDU/MTU, campus, enterprise, and fixed wireless networks. They provide full WiFi solutions including access points, switches, authentication systems, and network management platforms.
WIFI Solution for Service Provider
- 1. NVK How we become Thailand’s leading wireless solution provider?
- 3. The founder of Thailand largest broadband community in Thailand
- 4. 3G & WIFI Lead Innovator Selected by Nation Newspaper
- 5. NVK’s FACTs EnGenius dominated The WISP market… Mobile operator Implement 400,000 EnGenius AP Deployed for City-wide Wi-Fi Hotspot Service Wi-Fi as a 3G Off-load First version of NetFi, internet Authentication Gateway launched WISP Deploy EnGenius All major, 2007 DTAC WiFi Project AP, Controller, Switch, Authentication And Mobile Integration(EAP-SIM) For Hot-spot service 200 Resellers Authorized As EnGenius Distributor WIFI Project in International Airport Suvanabhumi, Donmueng, Chianmai, Chiangrai, Phuket, Hadyai CISCO WLAN, Core Switch, LBS and Authentication Nation-wide Targeting WISP Market 2008 Become No.1 Market-share In outdoor AP 2009 2010 EnGenius launched Full-Range of Manageable AP, can be integrating with Centralized management solution…. 2011 2012 2013
- 6. NVK WIFI Solution and Service Products WIFI Solutions Metro WIFI MTU/MDU Hotspot Professional Services Networks Design Turn-Key Service CAMPUS RF Prediction Enterprise Site Surveys Cloud-Based AP Commissioning Authentication PTP, PTMP 3G Integration
- 7. WIFI Network Architectures By our experience
- 8. Metro WIFI Wi-Fi AP Repeater AP Wi-Fi AP DSL UTP Repeater AP Remote Node Wi-Fi AP Remote Node Wi-Fi AP UTP DSL Repeater AP 5GHz Wireless Backhaul Fiber Optic Repeater AP C O DSL DSL FTTX FTTX Wi-Fi AP Wi-Fi AP Wi-Fi AP Repeater AP Wi-Fi AP Repeater AP Repeater AP Repeater AP Repeater AP Repeater AP Repeater AP Repeater AP
- 9. xDSL Backbone Copper ADSL Modem Wireless CPE UTP ADSL IP-DSLAM BRAS Copper IP Network PPPo Internet F/O Hotspot Gateway Media Converter UTP Wireless CPE
- 10. Metro Wi-Fi Configuration Outdoor AP Built-In Wi-Fi Access Point Node (Outdoor Cabinet) ADSL Modem (Bridge) DSLAM Node (Outdoor Cabinet) Internet Copper Wire Outdoor AP Media Converter 1U ADSL IP-DSLAM Hotspot Gateway MDF Fiber Optic External USB Wi-Fi Access Point Node (Outdoor Cabinet) ADSL Modem (Bridge) IP Network Outdoor AP Switch Access Point Node (Outdoor Cabinet) ADSL Modem (Bridge) Outdoor Wi-Fi ClientBridge
- 11. EnGenius in 7,000 of 7-elven Store & 50,000 Restaurant Nation-wide

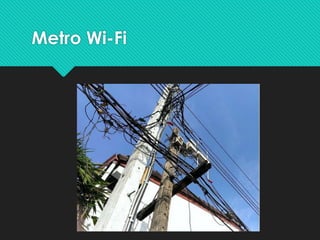

- 13. Metro Wi-Fi
- 14. 300,000 EnGenius AP installed by TrueWiFi, 3BBHotspot, CAT WiFi, TOT WiFi Nation-wide
- 15. Fixed Wireless Service Wireless CPE Standard Built-in Wireless adaptor High Power USB Adaptor With external Antenna
- 16. 5GHz Backhaul->2.4GHz Service Wireless Backhaul Wireless CPE Wireless CPE 5GHz Wireless Backhaul Wireless CPE Wireless AP Internet Wireless CPE Wireless CPE Wireless AP Wireless CPE Wireless Backhaul Hotspot Gateway Wireless CPE Wireless AP UTP Wireless CPE IP Network Wireless CPE Wireless CPE Wireless Backhaul Switch Wireless AP Wireless Backhaul Wireless AP Wireless CPE Wireless CPE Wireless CPE
- 17. 5GHz Backhaul Diagram Access Point Node Tower Main Tower Main Office Access Point Node (Outdoor Cabinet) EOC-5610 EOC-5610 x 4 EOC-2610 x 3 EOC-2610 x 3 Internet AC >DC 24V Adaptor Switch 220 VAC Grounding Hotspot Gateway AC>DC 24V Adaptor Switch Outdoor UTP Arrestor Access Point Node Tower Grounding Access Point Node (Outdoor Cabinet) EOC-5610 EOC-2610 x 3 AC >DC 24V Adaptor Switch Grounding 220 VAC
- 18. Hotel/Apartment Deployment AP Configuration Profile Internet Traffic Log Recorder Network Access Server iBSG3.5 (NAS) Switch Configuration Profile Core Switch Network Management Brand A Single Network Management Single Access Control Billing Server Traffic Log Recorder One Technician is enough! Network Management Brand B STAFF RADIUS Server Billing Server
- 19. NVK Intelligent WiFi Networks for Hotel/Apartment/Campus High Speed Internet Gateway Internet NMC Authentication & Management Server Core Switch Wireless Management Switch POE Access Switch WiFi Access Point
- 20. iBSG The Box New Interface… (iBSG4.0 Ready!)
- 21. Basic WIFI Service Authentication & Billing Solution
- 22. Hotspot Authentication over L2 Network Internet NMS & Gateway L2 Network Metro LAN NMS Ethernet Switch Hotspot Gateway RADIUS Server Billing Server CPE Wireless AP Indoor AP Built-In Wi-Fi FTTH Outdoor AP External USB Wi-Fi ADSL IP-DSLAM Outdoor Wi-Fi ClientBridge
- 23. Hotspot Authentication over L3 Network Internet NMS & Gateway NMS L3 Network / WAN Local Router Ethernet Switch Indoor AP Router IP-Network RADIUS Server Billing Server ADSL Wireless AP Hotspot Gateway Outdoo r AP CPE Built-In W-Fi External USB Wi-Fi Outdoor Wi-Fi ClientBridge
- 24. Hotspot Authentication over L3 with Cloud-Based AP Solution Internet NMS & Gateway NMS L3 Network / WAN Local Router Ethernet Switch Wireless AP Indoor AP CPE Built-In Wi-Fi Router Leased Line RADIUS Server Billing Server Outdoo r AP ADSL Cloud-Based AP Solution External USB Wi-Fi Outdoor Wi-Fi ClientBridge
- 25. Fixed Wireless Authentication Internet NMS & Gateway IP Network CPE Wireless AP PPPoE NMS Ethernet Switch Outdoor AP Built-In Wi-Fi BRAS ADSL IP-DSLAM External USB Wi-Fi PPPoE RADIUS Server Outdoor Wi-Fi ClientBridge PPPoE Billing Server PPPoE Client
- 26. Multi-Portal Solution Location 1 SSID 1 Central Office Remote RADIUS Server SSID 10 Web Server SSID 1 VLAN1 VLAN10 VLAN2 SSID 10 Internet IP Network Hotspot Gateway Location 2 SSID 2 Remote Web Server LOG Server RADIUS Server SSID 10 SSID 2 SSID 1 VLAN1 Portal 3 SSID 2 VLAN2 Portal 2 SSID 10 VLAN 10 Free Surf SSID 10

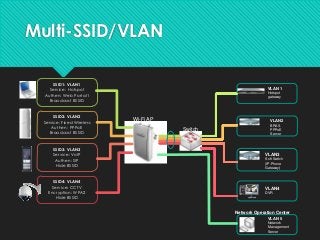

- 27. Multi-SSID/VLAN SSID1: VLAN1 Service: Hotspot Authen: Web Portal1 Broadcast BSSID SSID2: VLAN2 Service: Fixed Wireless Authen: PPPoE Broadcast BSSID SSID3: VLAN3 Service: VoIP Authen: SIP Hide BSSID SSID4: VLAN4 Service: CCTV Encryption: WPA2 Hide BSSID VLAN 1 Hotspot gateway Wi-Fi AP VLAN2 Switch BRAS PPPoE Server VLAN3 Soft Switch (IP-Phone Gateway) VLAN4 DVR Network Operation Center VLAN 5 Network Management Server
- 28. iBSG The Box New Interface… (iBSG4.0 Ready!)
- 29. N.V.K.INTER CO., LTD. www.nvk.co.th Ricky K. NVK.CO.TH Tel : +662-940-2070 Mobile : +6681-626-9137 ricky@nvk.co.th
