Wi If Hw Solutions December 2011

Wif presentation for a WIRELESS INTERNET FLEET High tech Solutions for real time tracking http://www.wif.it of 43

Wif Hw and Sw Solutions 2011 WIF Remote HW systems: WIF X2i family:Mx2 and Cx1 WIF Vehicles, people, assets,Trailers, RFID Iridium, Containers… WIF Sw solutions Turnkey Tracking virtual machines Customized Sw solutions for Gps, Bluetooth, RFID Tracking

Wif presentation index Wif activities, Mission, Difference from competitors Why WIF The company Application areas Turnkey solutions Wif Hw systems, Wif-X2i Wif software solutions High technology:Egnos, up to 66 channels gps, Garmin, Iridium, 5 years of warranty!

Wif activities Wif designs, develops and delivers hi-tech and state of the art tracking and M2M, Rfid solutions to business and consumer users for remotely managing vehicles, assets, people and other machineries around the world. Our suite of applications through Internet to provide real-time information about the location and status of machineries like vehicles or mobile resources also for security reasons

Wif activities Wif designs, develops and delivers Ict solutions Mainly focused on state of the art Real-time tracking and monitoring solutions based on GPS, Sat, GPRS, WI-FI, Rfid,web,Bluetooth

Wif advantages Wif integrates the best in the breed of the M2M, GPS and ICT technologies to give competitive prices and high reliability. WIF is not a hw producer that needs to sell iron Wif choice: the most cost effective, the best technology, best service and easy maintenance. Wif is flexible to meet customers needs Wif resellers could fully use their brand, logo

Wif technology advantages - GPS: Egnos, GPS up to 66 channels , galielo ready - Garmin, quadband modem, wi-fi , bluetooth, canbus! - High reliability : hw devices up 5 years of warranty ! - Turnkey solutions or tailored products! - Our main hw product has more then 45.000 working units all around the world but we are also able to manage devices with many hundreds of thousand working units

Wif: an Ict company Founded in 2002 , Headquarters in Italy, North east - Unicredit Bank AAA rate with No debts, stable incomes, self financed Main activity: System integration focused on tracking technologies Wif partners main markets are in: North Italy, Canada, Hong Kong, North africa and we are ready to start new projects around the world .

Mission Statement ” WIF mission is projecting, developing, implementation and releasing ICT solutions in the M2M-Fleet Management activity field . Wif works to give flexible and state of the art solutions to worldwide market in all possible Machine To Machine (M2M) application areas.

Differences from competitors There are some points that really set Wif apart from the competition. First Our company background and our way to build the company and do business put Wif at the forefront to sell the best products with maximum state of the art technology of the moment, always. We are not talking about the future: we are already up-and-running, wif design started in 1999. of 43

Differences from competitors -2 We don’t produce just one small on board computer: we integrate and develop state of the art software with the best remote control units of the world and provide you with the complete system Hw, Sw and Tlc. Wif is flexible to meet customers needs Wif could integrate in Wif systems our X2i devices but also other hardware or software on customers requests all over the world Wif designed with our partner the X2i family devices

Why Wif Wif integrates the best in the breed of the M2M, GPS, RFID and ICT technologies to give to our customers the best of the market with competitive price and high reliability. WIF is not a hw producer that needs to sell iron but is mainly a total service provider for giving you the right solution tailored on your needs of tracking In the next pages we show you the advantage of Wif choice: the most cost effective, the best technology, best service and easy maintenance.

Application Areas: Telemetry / Telematics Telemetry AMR (utility meters) parking meters • industrial metering M2M Applications • elevator control • vending machine control Telematics / in-vehicle applications driver navigation • driver safety • vehicle diagnostics • mobility services • traffic information Public traffic services • traffic information • electronic tolling • schedule synchronisation • optimising road usage • speed cameras • changing traffic signs • Industrial applications • process automation • Security and surveillance • access and mobility control • surveillance cameras • asset monitoring • Sales & payments • vending machines • POS terminals • gaming • Fleet management • cargo tracking • route planning • order management • Telemedicine • remote patient monitoring • remote diagnostics • equipment status tracking • staff scheduling • Public services • information kiosks • web access points Rfid indoor tracking for healthcare systems • bluetooth tracking Source: M2M White Paper Nokia

Turnkey solutions Fleet tracking on Web or windows Emergency & Total control+Fast reaction: systems for alert centers Virtual machine or web systems Openstreetmaps, Google maps or ms mappoint Dedicated Customizable solutions Easy integration with other software Bluetooth tracking Reseller Brand solutions Gsm, iridium, 66 channels gps, 5ys warranty,RFID, smart bluetooth

Wif on – board systems More than 10 hardware solutions. Wif X2i Systems are based on2 CPU-architecture and hardware cores: cpu Fujitsu MB90F574A 16-bit cpu ST STR710 ARM7 32-bit 66 channels Gps with egnos/waas, quad band gprs CANBUS for Fms systems on lorries, trucks Zero installation cost with Wif ”Boxsolo” Same interface for different hardware 5 years of warranty for Wif-X2i Wide offers range of gps systems from personal tracker Mambo2 to advanced 66 channels gps Wif X2i pro+.

Wif X2i 2, 3,4 or 5 years of Warranty! X32-Generation - ”Next generation” Powerfull ARM processor  Faster execution and more features! More memory capacity Vibration sensor SD-CARD reader FAT32 file system support. Upto 4 GB Flash! Internal Flashdrive with FAT32 support Exploits advanced write wear-levelling technology CAN Bus Connection to vehicle communication bus systems Quad-band GSM support Utilizes state-of the art Texas Instrument GSM chipset solution 66 channel uBlox GPS receiver, Egnos/Waas, galileo ready Very fast startup! High sensivity GPS receiver for indoor tracking (option) GPS Antenna Open / Short circuit detection On-board high-capacity Li-Ion battery 5 to 19 digital inputs, 2 to 6 analog inputs with input extension Modbus

Wif-X2i common basic features 5 Digital input / 4 digital outputs for external sensors and actuators 2 Analog inputs for monitoring fuel levels and similars values Quadband GSM Module with SIM card-reader RTC with 2200 mAh battery backup Power saving modes Advanced datalogger Persistent memory: Flash (limited writes), FRAM (fast, unlimited writes) DIP switch and LED indicators Up to 16 1-wire temperature sensors RS232 programming / general purpose port RS485 support (option) VSMS Text and PDU (binary) Offfers an abstraction of a communication ”package” that can be sent over Cable, SMS, CSD and GPRS/Edge  + future communication methods! CSD support (datacall) Voice/DTMF support  voice response system Availability of Different case from internal to IP65 usage and magnetic supports for fast installation

WIF X2i ”additional” features Extended Flash / RAM capacity Room for TCP/IP stack and very large programs. Extended persistent storage GPS Receiver Trimble Lassen SQ/IQ uBlox 50 channels Egnos/Waas ready for 1 meter percision Dedicated Ignition input Full GPRS Support LCD-Display or garmin as display and navigator Internal temperature sensor 1Wire ID-Button reader for driver identification etc. External temperature sensor (upto 16 or 32) Headset support, RFID for fuel control, tyre... Extra RS232 port, Bluetooth module optional CAN bus, FMS, wi-fi module optional, extension of digital inputs SD-CARD with FAT32 support Internal Flashdrive with FAT support E1/e1 Certifications Rechargeable Internal battery backup package Camera Vga optional Cam-100 for making photos on events or on commands

Wif X2i Compact aluminum enclosure with plastic end-caps All interfaces available externally Automotive connectors Extremely flexible Power Management Sleep and wakeup on: Digital input Vibration sensor Timer GSM communication Low Power consumption Can operate waiting for digital input / vibration etc. for months without external power Can operate for several days without external power while connected to GPRS! Full E1/e1 approval Options: GSM GPRS EDGE Mobile Data Terminal MDT-200/Garmin Nuvi 765T o 5000 Bluetooth, 3D sensor movement, Accelerometer with logs Wi-Fi / Ethernet support VGA Camera module Extended temperature battery 66 channels high-sensivity GPS receiver for indoor tracking

Wif X2i input or output extensions To expand the I/O capability of Wif X2i an MODBUS compatible I/O module can be connected to the product. Wif are offering a range of MODBUS I/O modules that are high-quality, low-cost and extremely easy to set-up and use. The EX9041D module offers 14 isolated Digital Inputs and LED indication of the inputs status. RT-EX-9044D: 4 Digital Inputs and 8 Digital Outputs (isolated) RT-EX-9065D: 4 Digital Inputs and 5 Digital Relay Outputs T-EX-9017: 8 Analog Inputs, 16 Bit

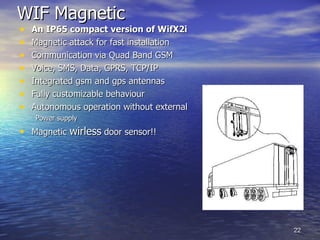

WIF Magnetic An IP65 compact version of WifX2i Magnetic attack for fast installation Communication via Quad Band GSM Voice, SMS, Data, GPRS, TCP/IP Integrated gsm and gps antennas Fully customizable behaviour Autonomous operation without external Power supply Magnetic wirless door sensor!!

WIF X4 M2m markets, wif can monitor not only vehicles! But all the machines, industrial version of X2i New version of the X4 based on the X32-Generation platform (like the X2i Series) CAN Bus, 1-Wire, 2 * RS232, 2*RS485 USB support (slave) MODBUS protocol support 8 DI / 8 DO / 4 AI / 4 AO Inputs are S0-compatible (metering apps) Analog I/O support for 0..10V and 0(4)..20 mA SD-CARD reader and internal flash drive Support for Gemalto M2M chip card Optional on-board battery Graphical LCD-Display with 8 keys Same form-factor as the current D4. Available end of 2008.

WIF Cx1 Sx1 Compact and highly integrated device, fully autonomous and without external connections especially designed for high level security applications with minimum installation time. Its high environmental protection grade and its architecture make it especially suited for applications in those section where robustness and portability are key factors. Approved according to 2004/104/CE. R&TTE Full Type Approved. SMS, Data communication, Gprs. Gps ublox 66 channels with egnos/waas Location via GPS. Time management based on GPS or internal clock. Autonomy with internal batteries (SX1): > 6 years with con 4 GSM wakes up per day and one location per week with configuration pre-loaded ex-factory Flexible management of communication channels. Period between wakes up and location fully programmable Continuous tracking activation upon command from remote

WIF Mambo2 MAMBO2 Personal Tracking Solution High sensivity 20 channel SiRFStarIII GPS receiver Communication via Quad Band GSM Voice, SMS, Data, GPRS, TCP/IP Full colour OLED display Fully approved ( FCC1, PTCRB1, CE ) Remote administration & firmware update Online tracking / History / Geofencing Fully customizable behaviour Autonomous operation Personal security and recovery „ Dead man“ - Motion detection Different User-GUIs Options: Rough environment protection Bluetooth / ANT Micro SD-Card Reader

WIF basic: Wif810 Cheap Wif Tracking Solution High sensivity 20 channel SiRFStarIII GPS receiver Communication via Quad Band GSM Voice, SMS, Data, GPRS, TCP/IP Integrated gps and gsm antennas Fully approved ( FCC1, PTCRB1, CE ) Remote administration & firmware update Online tracking / History / Geofencing Fully customizable behaviour Autonomous operation Personal security and recovery „ Dead man“ - Motion detection Different User-GUIs Options: Rough environment protection

Wif8000 Iridium Wif8000 advanced solution Gps with 20 channels Sirf III Main Communication with Gsm Quad Band modem Where there is no gsm coverage uses iridium burst data Voce, SMS, Data, GPRS, TCP/IP Fully approved ( FCC1, PTCRB1, CE ) Security, locks from remote Online tracking / History / Geofencing (bersagli) Internal Battery 2.6Ah card rfid Tracking with sms or gprs or iridium Waterprooof case Built-in motion sensor

WifBolt Cheap and compact Gps with 50 channels ublox Gsm Quad Band modem Voce, SMS, Data, GPRS, TCP/IP Internal Battery Integrated antennas optional ip65 Certified for Europe and Usa ( FCC1, PTCRB1, CE ) FOTA for remote updating of firmware Online tracking / Historical reports / Geofencing Programmable Rfid card for active security Optional windows ce display Internal motion sensor of 43

2011 Wif enhancements Bluetooth or wi-fi tracking Video and Tracking umts or wi-fi Accelerometer logging for measure harsh braking or strong start: wif box, Wif-X2i and Wif cx1 Support for A-GPS (Assisted GPS) Ultra fast start-up Higher precision RFID solutions Driving style sotware for insurances and leasing operators Iridium options for no gsm coverage zones Rfid for workers protection systems: liftworks Wind or solar powered trackers 66 channels Gps

Bluetooth x X2i smart-antenna An add-on Option to X2i alConnects directly to the X2i. No other connections necessary! Supports Bluetooth headset profile Supports Bluetooth serial-line profile Multiple simultanous sessions supported Headset, printer, scanner – all at the same time! Low power consumption Powerfull programmability

WLAN / Ethernet module X2i Optional add-on Plugs into the RTCU X2i Wi-Fi or Cable Ethernet support GPRS Gateway compatible X2 can choose and select active media GPRS LAN

Wif and Garmin Wif navigator solution with our Wif-X2i device: Nuvi 465T for trucks or Nuvi 13xx, 14xx000!

Wif-X2i VGA Camera An add-on Option to X2i Connections directly to the X2i No other connections necessary! VGA resolution. Colour Saves picture in standard JPEG format Web ready

Wif-X2i VGA Camera – sample pictures

GPRS features Wif was one of the first in the world with GPRS from 2004 Large experience from 40+ networks All network and/or GSM module problems are handled by the firmware Wif solutions could manage also Sms, Wi-fi and private radio systems

Wif Hw devices - More than 13 hardware solutions. - 5 ys of warranty for Wif-X2i : Quadband, 66 chnls Gps - CANBUS, digital inputs, analogue inputs, Rs232, Rs485 - - Same interface for different hardware products - Zero installation cost with Wif ”Boxsolo” Best personal tracker of the market: Mambo2 - 2011: New smallest devices like CX1 or Sx1 with high capacity internal batteries, compact, integrated antennas, accelerometer with logs for driving style, Bluetooth tracking, Fixed modules with 20Digital inputs/outputs, wi-fi, iridium, Garmin navigators, Tetra modules, zigbee, RFID..

Operating systems Windows/Linux Gprs/sms/wi-fi/BT Gateway on windows server Dbms Ms sql 2005-2008 (Mysql 5.1) Php dynamic technology with Apache web server Mapserver or main mapping technologies Asset, vehicle, trailers, trucks, cars, pallets tracking for logistic and security centers Wif Software

Network Infrastructure Enterprise Application Integration Presentation Logic Additional Business. Logic Application/ Transaction Server Wif Web Architecture Company Ict systems 1 st level Web Browser 2 nd level Web Server 3 rd level WIF Logic Data base 4° level

Any questions? For more info contact : Phone +39 0432 730070 e-mail info@wif.it http://www.wif.it Skype: wadriano
