Q 1:– Design All Logical Gates Using VHDL. Solution: - AND Gate:- Source Code: - -------------------------------------------------- -- AND gate -- two descriptions provided -------------------------------------------------- library ieee; use ieee.std_logic_1164.all; -------------------------------------------------- entity AND_ent is port( x: in std_logic; y: in std_logic; F: out std_logic ); end AND_ent; -------------------------------------------------- architecture AND_behav1 of AND_ent is begin process(x, y) begin -- compare to truth table if ((x='1') and (y='1')) then F <= '1'; else F <= '0'; end if; end process;
end behav1; architecture AND_behav2 of AND_ent is begin F <= x and y; end behav2; Sample Waveform Output: - OR Gate:- Source Code: - -------------------------------------- -- OR gate -- -- two descriptions provided -------------------------------------- library ieee; use ieee.std_logic_1164.all; -------------------------------------- entity OR_ent is port( x: in std_logic; y: in std_logic; F: out std_logic
); end OR_ent; --------------------------------------- architecture OR_arch of OR_ent is begin process(x, y) begin -- compare to truth table if ((x='0') and (y='0')) then F <= '0'; else F <= '1'; end if; end process; end OR_arch; architecture OR_beh of OR_ent is begin F <= x or y; end OR_beh; Sample Waveform Output: - NOT Gate:- Source Code: -
-------------------------------------- -- NOT gate -- -- two descriptions provided -------------------------------------- library ieee; use ieee.std_logic_1164.all; -------------------------------------- entity NOT_ent is port( x: in std_logic; F: out std_logic ); end NOT_ent; --------------------------------------- architecture NOT_arch of NOT_ent is begin F <= not x; end NOT_beh; Sample Waveform Output: - NAND Gate:-
Source Code: - ----------------------------------------- -- NAND gate -- -- two descriptions provided ----------------------------------------- library ieee; use ieee.std_logic_1164.all; ------------------------------------------ entity NAND_ent is port( x: in std_logic; y: in std_logic; F: out std_logic ); end NAND_ent; ------------------------------------------ architecture behv1 of NAND_ent is begin process(x, y) begin -- compare to truth table if (x='1' and y='1') then F <= '0'; else F <= '1'; end if; end process; end behv1;
----------------------------------------- architecture behv2 of NAND_ent is begin F <= x nand y; end behv2; Sample Waveform Output: - NOR Gate:- Source Code: - ----------------------------------------- -- NOR gate -- -- two descriptions provided ----------------------------------------- library ieee; use ieee.std_logic_1164.all; ----------------------------------------- entity NOR_ent is port( x: in std_logic; y: in std_logic; F: out std_logic );
end NOR_ent; ------------------------------------------ architecture behv1 of NOR_ent is begin process(x, y) begin -- compare to truth table if (x='0' and y='0') then F <= '1'; else F <= '0'; end if; end process; end behv1; architecture behv2 of NOR_ent is begin F <= x nor y; end behv2; Sample Waveform Output: - XOR Gate:-
Source Code: - -------------------------------------- -- XOR gate -- -- two descriptions provided -------------------------------------- library ieee; use ieee.std_logic_1164.all; -------------------------------------- entity XOR_ent is port( x: in std_logic; y: in std_logic; F: out std_logic ); end XOR_ent; -------------------------------------- architecture behv1 of XOR_ent is begin process(x, y) begin -- compare to truth table if (x/=y) then F <= '1'; else F <= '0'; end if; end process;
end behv1; architecture behv2 of XOR_ent is begin F <= x xor y; end behv2; Sample Waveform Output: - XNOR Gate:- Source Code: - -------------------------------------- -- XOR gate -- -- two descriptions provided -------------------------------------- library ieee; use ieee.std_logic_1164.all; -------------------------------------- entity XNOR_ent is port( x: in std_logic; y: in std_logic; F: out std_logic
); end XNOR_ent; --------------------------------------- architecture behv1 of XNOR_ent is begin process(x, y) begin -- compare to truth table if (x/=y) then F <= '0'; else F <= '1'; end if; end process; end behv1; architecture behv2 of XNOR_ent is begin F <= x xnor y; end behv2; --------------------------------------- Sample Waveform Output: -
Q 2:– Write VHDL Programs for the following and check simulation – 1. Half Adder 2. Full Adder Solution: - Half Adder:- Source Code: - -- ============================================================================= -- file name is : ha (ha=half adder) -- Author : Soumya -- ============================================================================= library ieee; use ieee.std_logic_1164.ALL; use ieee.std_logic_unsigned.ALL; entity ha is port (X : in std_logic; Y : in std_logic; Z : out std_logic; -- sum out of X+Y C : out std_logic -- carry out from X+Y ); end ha; -- ============================================================================= -- ============================================================================= architecture rtl of ha is -- ============================================================================= begin Z <= (X XOR Y); C <= X AND Y; -- the logical operator "AND" and "XOR" is defined in VHDL. end rtl; Sample Waveform Output: - Full Adder:- Source Code: - -- ============================================================================= -- file name is : fa (fa=full adder) -- Author : Soumya -- =============================================================================
library ieee; use ieee.std_logic_1164.ALL; -- can be different dependent on tool used. use ieee.std_logic_unsigned.ALL; -- can be different dependent on tool used. entity fa is port (a : in std_logic; b : in std_logic; c_in : in std_logic; sum : out std_logic; -- sum out of X+Y c_out : out std_logic -- carry out ); end fa; -- ============================================================================= -- ============================================================================= architecture rtl of fa is -- Define internal signals signal sum_low : std_logic; signal c_low : std_logic; signal c_high : std_logic; -- Define the entity of the half adder to instansiate component ha -- "ha" must be same name as used in the entity for the file port (X : in std_logic; Y : in std_logic; Z : out std_logic; -- sum out of X+Y C : out std_logic -- carry out ); end component; --------- end of entity for ha ---------- -- ============================================================================= begin ha_low : ha port map ( -- ha-side fa-side X => a, Y => b, Z => sum_low, C => c_low ); --------- end of port map for "ha_low" ---------- ha_high : ha port map ( -- ha-side fa-side X => sum_low, Y => c_in, Z => sum, C => c_high ); --------- end of port map for "ha_high" ---------- c_out <= (c_low OR c_high); end rtl;
Sample Waveform Output: -
Q 3:– Write VHDL Programs for the following and check simulation – 1. Multiplexer 2. Demultiplexer Solution: - Multiplexer (4 X 1):- Source Code: - ------------------------------------------------- -- VHDL code for 4:1 multiplexor -- Multiplexor is a device to select different -- inputs to outputs. we use 3 bits vector to -- describe its I/O ports ------------------------------------------------- library ieee; use ieee.std_logic_1164.all; ------------------------------------------------- entity Mux is port( I3: in std_logic_vector(2 downto 0); I2: in std_logic_vector(2 downto 0); I1: in std_logic_vector(2 downto 0); I0: in std_logic_vector(2 downto 0); S: in std_logic_vector(1 downto 0); O: out std_logic_vector(2 downto 0) ); end Mux; ------------------------------------------------- architecture behv1 of Mux is begin process(I3,I2,I1,I0,S) begin
-- use case statement case S is when "00" => O <= I0; when "01" => O <= I1; when "10" => O <= I2; when "11" => O <= I3; when others => O <= "ZZZ"; end case; end process; end behv1; architecture behv2 of Mux is begin -- use when.. else statement O <= I0 when S="00" else I1 when S="01" else I2 when S="10" else I3 when S="11" else "ZZZ"; end behv2; Sample Waveform Output: -
Demultiplexer (1 X 4):- Source Code: - library ieee; use ieee.std_logic_1164.all; entity Demux_4_to_1 is port( E : in std_logic; -- the signal source S0, S1 : in std_logic; -- the selector switches D0, D1, D2, D3 : out std_logic);-- the output data lines end Demux_4_to_1; -- architecture Func of Demux_4_to_1 is component andGate is --import AND Gate entity port( A, B, C : in std_logic; F : out std_logic); end component; component notGate is --import NOT Gate entity port( inPort : in std_logic; outPort : out std_logic);
end component; signal invOut0, invOut1 : std_logic; begin --Just like the real circuit, there are --four components: G1 to G4 GI1: notGate port map(S0, invOut0); GI2: notGate port map(S1, invOut1); GA1: andGate port map(E, invOut1, invOut0, D0); -- D0 GA2: andGate port map(E, S0, invOut1, D1); -- D1 GA3: andGate port map(E, invOut0, S1, D2); -- D2 GA4: andGate port map(E, S0, S1, D3); -- D3 end Func; ---------------------------------------------------------END ---------------------------------------------------------END Sample Waveform Output: -
Q 4:– Write VHDL Programs for the following and check simulation – 1. Decoder 2. Encoder Solution: - DECODER (2 to 4 line):- Source Code: - library IEEE; use IEEE.STD_LOGIC_1164.ALL; entity decoder is port( input : in std_logic_vector(2 downto 0); --3 bit input output : out std_logic_vector(7 downto 0) -- 8 bit ouput ); end decoder; architecture arch of decoder is begin output(0) <= (not input(2)) and (not input(1)) and (not input(0)); output(1) <= (not input(2)) and (not input(1)) and input(0); output(2) <= (not input(2)) and input(1) and (not input(0)); output(3) <= (not input(2)) and input(1) and input(0); output(4) <= input(2) and (not input(1)) and (not input(0)); output(5) <= input(2) and (not input(1)) and input(0); output(6) <= input(2) and input(1) and (not input(0)); output(7) <= input(2) and input(1) and input(0); end arch; Sample Waveform Output: -
ENCODER (4 Input Priority Encoder):- Source Code: - library ieee; use ieee.std_logic_1164.all; entity Encoder_8x3 is port(d0,d1,d2,d3,d4,d5,d6,d7:in std_logic; a0,a1,a2:out std_logic); end Encoder_8x3; architecture arch of Encoder_8x3 is begin a2<= d4 or d5 or d6 or d7; a1<= d2 or d3 or d6 or d7; a0<= d1 or d3 or d5 or d7; end arch; Sample Waveform Output: -
Dsd lab Practical File
Q 5:– Write a VHDL Program for a Comparator and check the simulation. Solution: - COMPARATOR:- Source Code: - LIBRARY ieee ; USE ieee.std_logic_1164.all ; USE ieee.std_logic_arith.all ; ENTITY compare IS PORT ( A, B : IN SIGNED(3 DOWNTO 0) ; AeqB, AgtB, AltB : OUT STD_LOGIC ) ; END compare ; ARCHITECTURE Behavior OF compare IS BEGIN AeqB <= '1' WHEN A = B ELSE '0' ; AgtB <= '1' WHEN A > B ELSE '0' ; AltB <= '1' WHEN A < B ELSE '0' ; END Behavior ; Sample Waveform Output: -
Q 6:– Write a VHDL Program for a Code Convertor and check the simulation. Solution: - BCD to BINARY CODE CONVERTOR:- Source Code: - library IEEE; use IEEE.STD_LOGIC_1164.ALL; entity BCD2BIN is Port ( bcd : in STD_LOGIC_VECTOR (4 downto 0); binary : out STD_LOGIC_VECTOR (3 downto 0)); end BCD2BIN; architecture Behavioral of BCD2BIN is begin process (bcd) begin case bcd is when "00000" => binary <= "0000"; when "00001" => binary <= "0001"; when "00010" => binary <= "0010"; when "00011" => binary <= "0011"; when "00100" => binary <= "0100"; when "00101" => binary <= "0101"; when "00110" => binary <= "0110"; when "00111" => binary <= "0111"; when "01000" => binary <= "1000"; when "01001" => binary <= "1001"; when "10000" => binary <= "1010"; when "10001" => binary <= "1011"; when "10010" => binary <= "1100"; when "10011" => binary <= "1101"; when "10100" => binary <= "1110"; when "10101" => binary <= "1111";
when others => binary <= "XXXX"; end case; end process; end Behavioral; Sample Waveform Output: -
Q 7:– Write a VHDL Program for a Flip-Flop and check the simulation. Solution: - JK FLIP FLOP:- Source Code: - library IEEE; use IEEE.STD_LOGIC_1164.ALL; entity jk is Port ( J : in STD_LOGIC; K : in STD_LOGIC; clock : in STD_LOGIC; reset : in STD_LOGIC; Q : out STD_LOGIC; Qbar : out STD_LOGIC); end jk; architecture Behavioral of jk is signal state: std_logic; signal input: std_logic_vector(1 downto 0); begin input <= J & K; p: process(clock, reset) is begin if (reset='1') then state <= '0'; elsif (rising_edge(clock)) then case (input) is when "11" => state <= not state; when "10" => state <= '1'; when "01" => state <= '0';
when others => null; end case; end if; end process; Q <= state; Qbar <= not state; end Behavioral; Sample Waveform Output: -
Q 8:– Write a VHDL Program for a Counter and check the simulation. Solution: - N BIT COUNTER:- Source Code: - ---------------------------------------------------- -- VHDL code for n-bit counter -- -- this is the behavior description of n-bit counter -- another way can be used is FSM model. ---------------------------------------------------- library ieee ; use ieee.std_logic_1164.all; use ieee.std_logic_unsigned.all; ---------------------------------------------------- entity counter is generic(n: natural :=2); port( clock: in std_logic; clear: in std_logic; count: in std_logic; Q: out std_logic_vector(n-1 downto 0) ); end counter; ---------------------------------------------------- architecture behv of counter is signal Pre_Q: std_logic_vector(n-1 downto 0); begin -- behavior describe the counter process(clock, count, clear) begin if clear = '1' then Pre_Q <= Pre_Q - Pre_Q; elsif (clock='1' and clock'event) then if count = '1' then Pre_Q <= Pre_Q + 1; end if; end if; end process; -- concurrent assignment statement Q <= Pre_Q; end behv; Sample Waveform Output: -
Dsd lab Practical File
Q 9:– Write VHDL Programs for the following and check simulation – 1. Register 2. Shift Register Solution: - N-Bit Register:- Source Code: - --------------------------------------------------- -- n-bit Register (ESD book figure 2.6) -- -- KEY WORD: concurrent, generic and range --------------------------------------------------- library ieee ; use ieee.std_logic_1164.all; use ieee.std_logic_unsigned.all; --------------------------------------------------- entity reg is generic(n: natural :=2); port( I: in std_logic_vector(n-1 downto 0); clock: in std_logic; load: in std_logic; clear: in std_logic; Q: out std_logic_vector(n-1 downto 0) ); end reg; ---------------------------------------------------- architecture behv of reg is signal Q_tmp: std_logic_vector(n-1 downto 0); begin process(I, clock, load, clear) begin if clear = '0' then -- use 'range in signal assigment Q_tmp <= (Q_tmp'range => '0'); elsif (clock='1' and clock'event) then if load = '1' then Q_tmp <= I; end if; end if; end process;

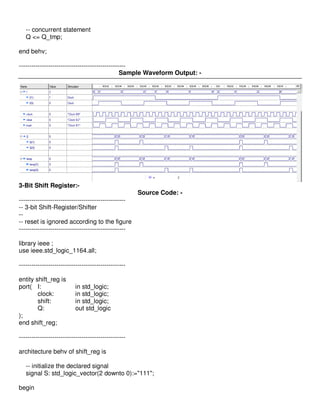

-- concurrent statement Q <= Q_tmp; end behv; --------------------------------------------------- Sample Waveform Output: - 3-Bit Shift Register:- Source Code: - --------------------------------------------------- -- 3-bit Shift-Register/Shifter -- -- reset is ignored according to the figure --------------------------------------------------- library ieee ; use ieee.std_logic_1164.all; --------------------------------------------------- entity shift_reg is port( I: in std_logic; clock: in std_logic; shift: in std_logic; Q: out std_logic ); end shift_reg; --------------------------------------------------- architecture behv of shift_reg is -- initialize the declared signal signal S: std_logic_vector(2 downto 0):="111"; begin
process(I, clock, shift, S) begin -- everything happens upon the clock changing if clock'event and clock='1' then if shift = '1' then S <= I & S(2 downto 1); end if; end if; end process; -- concurrent assignment Q <= S(0); end behv; Sample Waveform Output: -
PRACTICAL FILE DIGITAL SYSTEM DESIGN LAB Softwares Used – 1. Xilinx 13.4 2. ActiveHDL 7.2 SE Submitted To:- Submitted By:- Mr. Manoj Ahlawat Soumya S. Behera Asst. Professor 1826 6th Semester, CSE UIET, Mdu, Rohtak
