TE Automotive Power Distribution

AUTOMOTIVE
POWER
DISTRIBUTION
TE AUTOMOTIVE /// AUTOMOTIVE POWER DISTRIBUTION

TE AUTOMOTIVE /// AUTOMOTIVE POWER DISTRIBUTIONPAGE II
INNOVATIVE
TECHNOLOGIES
TE Connectivity (TE) is a leader in automotive connectivity and sensor technology. Our engineers
are always working to meet complex requirements. We connect every electronic function in the
vehicle – from alternative power systems to infotainment and sensor technologies. Our technologies
withstand harsh environments and tolerate high temperature, vibration, shock, pressure and long-life
in electronic control systems.
Our electrical and electronic interconnection products and solutions are
used to electrically and mechanically connect wires and cables, printed
circuit boards, integrated circuit packages, batteries and more …
INTERCONNECTION SYSTEMS
TE is your partner for vehicle-specific cable assemblies. We oﬀer research
and development capabilities, prototypes and samples, as well as
manufacturing facilities.
CABLE ASSEMBLIES
Our technologies leverage decades of innovation and experience with
high-voltage transmission and distribution. Our hybrid and electric mobility
solutions include a complete line of connectors, terminals, sensors,
cable assemblies, contactors, and battery connection protection to help
safeguard the ﬂow of power in hybrid and electric vehicles. Connection
after connection, you can count on TE for smaller, greener, lighter and
smarter solutions you can trust.
HYBRID & ELECTRIC MOBILITY SOLUTIONS

TE AUTOMOTIVE /// AUTOMOTIVE POWER DISTRIBUTION PAGE III
Data is critical for making vehicles safer, more connected and greener.
Customers rely on our sensor technology to provide data for control,
adaptation and response of vehicle functions and features that increase
safety, comfort, eﬃciency, and more. We collaborate to provide solutions
for demanding and harsh applications such as automated transmissions,
engines, clutch, brake and exhaust. Our products can be found in vehicles
traveling the world’s roads and highways.
SENSOR SOLUTIONS
From passenger comfort and infotainment to higher DC voltages and
power levels to harsh environments, our relays and contactors provide
critical switching functions in multiple vehicle applications. With increased
contact gaps and other key design features, our relays are ideal for harsh
environments such as shock and vibration.
RELAYS
Our wide range of infotainment solutions are ideal for consumer port
connections, high data rate applications, next-generation harness
architecture, board-to-board connections and vehicle-to-vehicle
communication.
INFOTAINMENT

PAGE IV
Catalog 1654390-1
Published 10-2015
IP Code
Elements and Significance acc. to IEC 60529 and DIN 40050

Catalog 1654390-1
Published 10-2015
TE AUTOMOTIVE /// AUTOMOTIVE POWER DISTRIBUTIONTE AUTOMOTIVE /// HP / HPSL SEALED CONNECTORS FOR THE AUTOMOTIVE INDUSTRY PAGE V
IP Code
Elements and Significance acc. to IEC 60529 and DIN 40050

PAGE VI
Catalog 1654390-1
Published 10-2015
Quality Guidelines

PAGE VII
Catalog 1654390-1
Published 10-2015
Quality Guidelines

PAGE VIII
Catalog 1654390-1
Published 10-2015
At TE Connectivity, we support your RoHS requirements. We’ve assessed more than 1.5 million
end items/components for RoHS compliance, and issued new part numbers where any change was
required to eliminate the restricted materials. Part numbers in this catalog are identified as:
RoHS Compliant
Part numbers in this catalog are RoHS
Compliant, unless marked otherwise. These
products comply with European Union
Directive 2002/95/EC as amended 1 January
2006 that restricts the use of lead, mercury,
cadmium, hexavalent chromium, PBB, and
PBDE in certain electrical and electronic
products sold into the EU as of 1 July 2006.
Note: For purposes of this Catalog, included
within the definition of RoHS Compliant are
products that are clearly “Out of Scope” of
the RoHS Directive such as hand tools and
other non-electrical accessories.
Non-RoHS Compliant
These part numbers are identified with a “t”
symbol. These products do not comply with
the material restrictions of the European
Union Directive 2002/95/EC.
5 of 6 Compliant
A “l” symbol identifies these part numbers.
These products do not fully comply with
the European Union Directive 2002/95/
EC because they contain lead in solderable
interfaces (they do not contain any of the
other five restricted substances above allowable limits). However, these
products may be suitable for use in RoHS applications where there is an application-based
exception for lead in solders, such as the server, storage, or networking infrastructure exemption.
Note: Information regarding RoHS compliance is provided based on reasonable inquiry of our
suppliers and represents our current actual knowledge based on the information provided by our
suppliers. This information is subject to change. For latest compliance status, refer to our website
referenced below. So whatever your questions when it comes to RoHS, we’ve got the answers at
http://www.te.com/customersupport/rohssupportcenter/
Getting the information you need
Our comprehensive on-line RoHS Customer
Support Center provides a forum to answer
your questions and support your RoHS needs.
A RoHS FAQ (Frequently Asked Questions)
is available with links to more detailed
information. You can also submit RoHS
questions and receive a response within 24
hours during a normal work week.
The Support Center also provides:
Cross-Reference from Non-compliant to
Compliant Products
Ability to browse RoHS Compliant Products in
our on-line catalog:
www.te.com/commerce/alt/RohsAltHome.do
Downloadable Technical Data Customer
Information Presentation
More detailed information regarding the
definitions used above
RoHS* Ready
* Restriction on the Use of Hazardous Substances (RoHS)

PAGE IX
Catalog 1654390-1
Published 10-2015
Remark: Starting from 0.03 mm2
(AWG 32) a wire can be crimped.
AWG Code Diameter (Inch) Diameter (mm) F (mm2
)
000000 0.5800 14.733 170.0
00000 0.5165 13.130 135.0
0000 0.4600 11.684 103.8
000 0.4096 10.400 079.0
00 0.3648 9.270 067.5
0 0.3249 8.25 053.4
1 0.2893 7.34 042.2
2 0.2576 6.55 33.7
3 0.2294 5.82 26.6
4 0.2043 5.18 21.0
5 0.1819 4.62 16.9
6 0.1620 04.115 13.25
7 0.1443 3.66 10.25
8 0.1285 3.26 8.34
9 0.1144 2.90 6.6
10 0.1019 2.59 5.27
11 0.0907 2.30 4.15
12 0.0808 2.05 3.3
13 0.0720 1.83 2.63
14 0.0641 1.63 2.08
15 0.0571 1.45 1.65
16 0.0508 1.29 1.305
17 0.0453 1.14 1.01
18 0.0403 1.02 0.79
19 0.0359 0.91 0.65
20 0.0320 0.81 0.51
21 0.0285 0.72 0.407
22 0.0253 0.64 0.32
23 0.0226 00.57 0.255
24 0.0201 00.51 0.205
25 0.0179 00.455 0.162
26 0.0159 00.400 0.125
27 0.0142 00.360 0.102
28 0.0126 00.320 0.08
29 0.0113 00.287 0.0646
30 0.0100 00.254 0.0516
31 0.0089 00.226 0.04
32 0.0080 00.203 0.0324
33 0.0071 00.180 0.0255
34 0.0063 00.160 0.02
35 0.0056 00.142 0.0158
36 0.0050 00.127 0.0127
37 0.0045 00.114 0.01
38 0.0040 00.101 0.008
39 0.0035 00.089 0.0062
40 0.0031 00.079 0.0049
41 0.0028 00.071 0.00395
42 0.0025 00.064 0.00321
43 0.0022 00.056 0.00246
44 0.00198 00.050 0.00196
45 0.00176 00.045
46 0.00157 00.040
47 0.00140 00.036
48 0.00124 00.031
49 0.00110 00.028
50 0.00099 00.025
Conversion Tables
AWG Conversion Table (Average Value)

PAGE X
Catalog 1654390-1
Published 10-2015
Table of Contents
Automotive
Power
Distribution
Page
Powertrain
Systems
Safety&
Security
Systems
Convenience
Driver
Information
Body&Chassis
Systems
Automotive Power Distribution
Introduction 1
MFINITY Fuse and Relay Box
Introduction 3
Battery Distribution Unit
Introduction 5
Fuse and Relay Holder 3 / 5 / 7 -
High Current Fuses
6 l l l l
MFINITY – Pre-Fuse SF 30 Module,
8 Positions
7 l l l l
MFINITY – Tye A Fuse Module,
14 Positions – Busbar Version
8 l l l l
MFINITY – Tye A Fuse Module,
14 Positions – Wire-by-wire Version
9 l l l l
Module Components:
Fuse Holder | Relay Holder
Introduction 11
10 Miniature Fuses Holder 12 l l l l
MFINITY – Miniature Fuse Module,
16 Positions
13 l l l l
Fuse Holder for Miniature Fuse
(8 Miniature Fuses)
14 l l l l
High Current Fuses Holder,
2 Positions
15 l l l l
High Current Fuses Holder,
2 Positions
16 l l l l
MFINITY – Medium Fuse Module,
12 Positions
17 l l l l
Medium Fuse Holder,
4 Positions
18 l l l l
MFINITY – Mini Relay Module,
2 Positions
19 l l l l
Relays Holder Gen1 – 1 Mini Relay 35-40 A 20 l l l l
Modular Relays Holder Gen2 – Relay 35-40 A 21 l l l l
MFINITY – Micro Relay Module,
4 Positions
22 l l l l

PAGE XI
Catalog 1654390-1
Published 10-2015
Table of Contents
Automotive
Power
Distribution
Page
Powertrain
Systems
Safety&
Security
Systems
Convenience
Driver
Information
Body&Chassis
Systems
Module Components:
Fuse Holder | Relay Holder
Modular Relays Holder Gen2 – 2 Micro Relays 23 l l l l
Relays Holder Gen1 - 2 Micro Relays 24 l l l l
MFINITY – Maxi Relay Module,
2 Positions
25 l l l l
Modular Relays Holder Gen 2 – Relay 50-70 A 26 l l l l

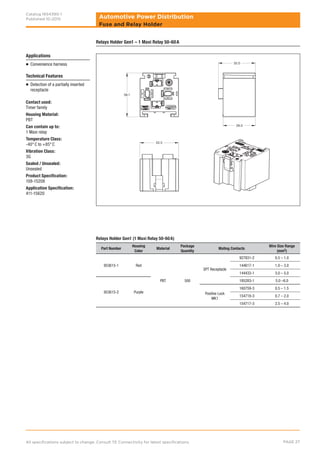

Relays Holder Gen1 – 1 Maxi Relay 50-60 A 27 l l l l
Relays Holder Gen1 – 1 Maxi Relay 70 A 28 l l l l
Fuse and Relay Box
Introduction 29
Fuse and Relay Holder – 6 Miniature Fuses 30 l l l l
Fuse and Relay Holder – 36 Miniature Fuses 31 l l l l
Medium Fuse Holder – 5 Positions 32 l l l l
Medium Fuse Holder – 12 Positions 33 l l l l
Busbars, Terminals and Accessories
Introduction 35
Shorting Busbar Miniature Fuses 36 l l l l
MFINITY – Bracket Module, 180° 37 l l l l
MFINITY – Bracket Module, 90° 38 l l l l
Brackets for Modular Relay or Fuse Holder,
1 Position
39 l l l l
Brackets for Modular Relay or Fuse Holder,
2 Positions
40 l l l l
MFINITY – Spare Fuse Module 41 l l l l

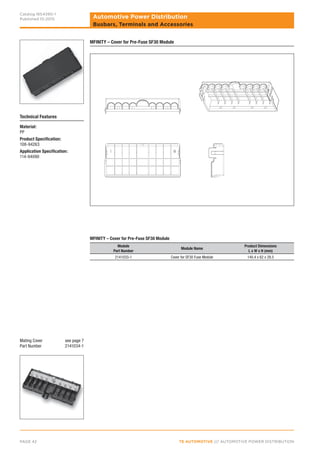

MFINITY –
Cover for Pre-Fuse SF30 Module
42 l l l l
MFINITY –
Cover for Type A Fuse Module
43 l l l l
24 V Plug-in Relays
Introduction 45
Micro Relay A VFMA
Power Relay B
Power Relay F7
46 l l l l

PAGE XII
Catalog 1654390-1
Published 10-2015
Table of Contents
Automotive
Power
Distribution
Page
Powertrain
Systems
Safety&
Security
Systems
Convenience
Driver
Information
Body&Chassis
Systems
Application Tooling and Equipment
Introduction 47
M2000MC Automatic Insertion Machine –
Specification
48
Numerical Index 49
TE Connectivity online 50
Global Contacts 51
Imprint 51

All specifications subject to change. Consult TE Connectivity for latest specifications. PAGE 1
INTRODUCTION
POWERTRAIN SYSTEMS
SAFETY & SECURITY SYSTEMS
CONVENIENCE
DRIVER INFORMATION
BODY & CHASSIS SYSTEMS
✔
✔
✔
✔
TE Connectivity (TE) has developed a wide panel of
switching and protection holder devices suitable for
different terminal families, linked to our terminal and
connector competency.
TE can propose stand-alone module or modular
architecture philosophies which allow us to offer
a solution for each costumer need.
In addition, TE Connectivity can support you for
specific requirements. Thanks to our engineering
competency and expertize, TE can offer you cost
effective solutions for each of your requirements.
Products
■ Fuse Holders
■ Relay Holders
■ Holder Guides
■ Fuse and Relay Boxes
■ Modular Concept – MFINITY Fuse and Relay Box
Applications
■ Convenience Harness
■ Engine Harness
■ Battery Departure Unit
■ Fuse and Relay Box
Product Features
■ Product dedicated to most types of fuse
applications available in the market
■ Product dedicated to plug-in relay: Micro, Iso, Power
■ Direct wire fuse and relay solutions
■ Protection and switching devices
■ Stand-alone solution or coupling solution

TE AUTOMOTIVE /// AUTOMOTIVE POWER DISTRIBUTIONPAGE 2
Catalog 1654390-1
Published 10-2015

MFINITY
Fuse and Relay Box
INTRODUCTION
POWERTRAIN SYSTEMS
CONVENIENCE
DRIVER INFORMATION
✔
✔
✔
✔
TE Connectivity (TE) has developed a
complete modular hard wired box family
called MFINITY.
The MFINITY Fuse and Relay Box offer limit-
less combinations with various modules,
easily assembled into a complete power
distribution panel, without any tooling cost.
All modules and accessories shown in this catalogue
are standard products. Upon request, TE will design
and manufacture custom modules, wire dress, frame
or cover to meet specific customer requirements. With
its proven technology, the MFINITY Fuse and Relay
Box offers flexible, off the shelf products targeting low
volume customers to create their own configurations.
Products
■ Fuse Holders
■ Relay Holders
■ Holder Guides
■ Fuse and Relay Boxes
■ Modular Concept – MFINITY
Applications
■ Body Harness
■ Engine Harness
Product Features
■ Direct wire fuse and relay solutions
■ Pre-fuse modules
■ ISO standard
■ Modular design
■ Temperature class -40° C to +85° C

Catalog 1654390-1
Published 10-2015

INTRODUCTION
POWERTRAIN SYSTEMS
CONVENIENCE
DRIVER INFORMATION
✔
✔
✔
✔
TE Connectivity has developed pre-fuse modules
which protect main wires in the harness and allow
battery life time increase.
Our modules are compliant with most of automotive
OEM requirements and oﬀer a high reliability level.

Catalog 1654390-1
Published 10-2015
Fuse and Relay Holder 3 / 5 / 7 – High Current Fuses
Applications
J Convenience Harness
J Engine Harness
Technical Features
J Busbar technology supplying
up to 7 high current fuses
J Compliant with MAXI, MINI and
ATO fuse technology
Contact used:
Timer and NG family
Housing Material:
PBT GF 10
Can contain up to:
3 to 7 high current fuses
1 Micro relay
1 Medium fuse
3 Miniature fuses
Temperature Class:
-40°C to +100°C
Vibration Class:
3G
Sealed / Unsealed:
Unsealed
Product Specification:
108-15407
Application Specification:
408-15006
Can be used as stand-alone
module or in association with:
PN 1801627-2
Fuse and Relay Holder 3 / 5 / 7 – High Current Fuses
Part Number Housing Color Material Recaptacles Mating Contacts
Wire Size Range
(mm2)
OCEAN Applicator
1801628-4
1801628-5
1801628-6
Black PBT GF 10
JPT Receptacle
964280-2
964284-2
965999-2
1241978-2
0.2 – 0.5
0.5 – 1.0
1.0 – 2.5
2.5 – 4.0
2151065
2151099
2151062
2266277
SPT Receptacle
927831-2
144617-1
144433-1
0.5 – 1.0
1.0 – 3.0
3.0 – 5.0
2151176
2151989
2266635
NG Receptacle
1801431-1
1801432-1
1801433-1
3.0 – 5.0
6.0 – 7.0
7.0 – 10
2266645
2266646
2266647
PN 1801628-6
Represented
PN 1801628-5
Represented
PN 1801628-4
Represented

Catalog 1654390-1
Published 10-2015
MFINITY – Pre-Fuse SF30 Module, 8 Positions
Technical Features
Material:
PBT
108-94263
114-94090
Order Information
Screw M8 for B+ Connection
with wire up to 35mm2
Part Number 2141034-1
Used with 8 x M5 Bolt
PN 2141022-1
PN 2141024-1
PN 2141026-1
PN 2141028-1
PN 2141029-1
PN 2141040-x
PN 2141031-x
Pre-fuse SF30 Module, 8 Positions
Module Part Number Module Name
Product Dimensions
L x W x H (mm)
2141034-1 Pre-fuse SF30 Module 137 x 70 x 24.1
Mating Cover see page 42

Catalog 1654390-1
Published 10-2015
MFINITY – Type A Fuse Module, 14 Positions – Busbar Version
Technical Features
Material:
PA6
108-94263
114-94090
Order Information
Screw M8 for B+ Connection
with wire up to 35mm2
14x Type A Fuse (J-Case)
2x Spare Fuse places
PN 2141022-1
PN 2141024-1
PN 2141026-1
PN 2141028-1
PN 2141029-1
PN 2141034-x
PN 2141031-x
Type A Fuse Module, 14 Positions – Busbar Version
Product Dimensions
L x W x H (mm)
2141040-1 Type A Fuse Module (Busbar Version) 155.55 x 47 x 57.3
Suitable Terminals
Part Number Description Plating
Wire Size Range
(mm2)
1670225-1 6.3 Busbar & Single Tab Tin Hot Dipped 4 – 6
963755-1 6.3 Single Tab Pre-Tinned 2.5 – 4

Catalog 1654390-1
Published 10-2015
MFINITY – Type A Fuse Module, 14 Positions –Wire-by-wire Version
Technical Features
Material:
PA6
108-94263
114-9409
Order Information
B+ Connection via
wire to busbar – Tab
14x Typ A Fuse (J-Case)
2x Spare Fuse places
PN 2141022-1
PN 2141024-1
PN 2141026-1
PN 2141028-1
PN 2141029-1
PN 2141034-x
PN 2141031-x
Type A Fuse Module, 14 Positions –Wire-by-wire Version
Product Dimensions
L x W x H (mm)
2141040-2 Type A Fuse Module 144.55 x 47 x 57.3
Suitable Terminals
Wire Size Range
(mm2)
1670225-1 6.3 Busbar & Single Tab Tin Hot Dipped 4 – 6
963755-1 6.3 Single Tab Pre-Tinned 2.5 – 4

Catalog 1654390-1
Published 10-2015

Module Components:
• Fuse Holder
• Relay Holder
INTRODUCTION
POWERTRAIN SYSTEMS
CONVENIENCE
DRIVER INFORMATION
✔
✔
✔
✔
TE Connectivity proposes module components holder
for basic protection or switching devices. It can
combine diﬀerent protection technologies or diﬀerent
plug-in relay types.
They can be a stand-alone module or mechanically/
electrically assembled with other devices in order to
create a complete power distribution device.

Catalog 1654390-1
Published 10-2015
Fuse and Relay Holder
10 Miniature Fuses Holder
Applications
J Convenience harness
J Engine harness
Technical Features
J Compliant with
MINI fuse technology
Contact used:
Timer family
Housing Material:
PP GFM 25/15
Can contain up to:
10 Miniature fuses
Temperature Class:
-40°C to +100°C
Vibration Class:
3G
Sealed / Unsealed:
Unsealed
108-15406
408-15008
PN 1801617
PN 1801618
PN 1801619
PN 1801620
PN 1801764
PN 1801627
PN 1801773
10 Miniature Fuses Holder
Part Number Housing Color Material
Mating Contacts Wire Size Range
(mm2)JPT Receptacle
1801616-1 Black PP GFM 25/15
964280-2
964284-2
965999-2
1241978-2
0.2 – 0.5
0.5 – 1.0
1.0 – 2.5
2.5 – 4.0

Catalog 1654390-1
Published 10-2015
MFINITY – Miniature Fuse Module, 16 Positions
Technical Features
Material:
PBT
108-94263
114-94090
Order Information
16x Miniature (Mini) Fuse
PN 2141022-1
PN 2141024-1
PN 2141026-1
PN 2141028-1
PN 2141034-1
PN 2141031-x
PN 2141040-x Miniature Fuse Module, 16 Positions
Product Dimensions
L x W x H (mm)
2141029-1 Miniature Fuse Module 69.3 x 47 x 43
Suitable Terminals
Part Number Description Material Plating
Wire Size Range
(mm2)
1-1355844-1 Fuse Contact Busbar
CuNiSi Pre-Tinned
4 – 6
1-1355877-1
Fuse Contact Single
1 – 2.5
1-1355833-1 0.5 – 1.0
1-1355880-1 2.5 – 4

Catalog 1654390-1
Published 10-2015
Fuse Holder for Miniature Fuse (8 Miniature Fuses)
Applications
J Engine harness
Technical Features
J Compliant with
MINI fuse technology
Contact used:
AMP MCP family,
Housing Material:
PA 66
Can contain up to:
8 Miniature fuses
Temperature Class:
-40° C to +85° C
Vibration Class:
3G
Sealed / Unsealed:
Unsealed
108-15399
411-15744
Fuse Holder for Miniature Fuse (8 Miniature Fuses)
Package
Quantity
(mm2)AMP MCP 2.8 Terminals
1801567-1 Natural PA66 550
1-968880-1
1-968880-3
0.2 – 0.5
1-968849-1
1-968849-2
1-968849-3
0.5 – 1.0
1-968851-1
1-968851-2
1-968851-3
1.5 – 2.5
1-968853-1
1-968853-3
See Table Drawing 1355036
2.5 – 4.0
37.6
37.0
28.0
33.6

Catalog 1654390-1
Published 10-2015
High Current Fuses Holder - 2 Positions
Applications
J Engine harness
Technical Features
J Compliant with
MAXI fuse technology
Contact used:
NG family
Housing Material:
PBT GF10
Can contain up to:
2 Medium fuses
Temperature Class:
-40° C to +100° C
Vibration Class:
3G
Sealed / Unsealed:
Unsealed
108-15411
408-15011
PN 1801616
PN 1801617
PN 1801618
PN 1801619
PN 1801620
PN 1801628
PN 1801764
PN 1801773
High Current Fuses Holder – 2 Positions
(mm2)NG Receptacle
1801627-2
Black PBT GF10
1801431-1
1801432-1
1801433-1
3 – 5
6 – 7
7 – 101801627-3
Fastener interface
according to PN 1801775
Fastener interface
according to PN 1801632

Catalog 1654390-1
Published 10-2015
High Current Fuses Holder - 2 Positions
Applications
Technical Features
J Compliant with
MAXI fuse technology
Contact used:
MPT family
Housing Material:
PA 66
Can contain up to:
2 high current fuses
Temperature Class:
-40° C to +85° C
Vibration Class:
3G
Sealed / Unsealed:
Unsealed
108-18047
114-18075
High Current Fuses Holder – 2 Positions
Package
Quantity
(mm2)MPT Receptacles
964595-1 Orange PA66-GF13 300
962928-1
962930-1
962932-1
> 2.5 – 4.0
4.0 – 6.0
6.0 – 10
35.0
37
11.5
30.0
20.0

Catalog 1654390-1
Published 10-2015
MFINITY – Medium Fuse Module – 12 Positions
Technical Features
Material:
PBT
Product Specification
108-94263
Application Specification
114-94090
Order Information
12x (ATO) Medium Fuse
PN 2141022-1
PN 2141024-1
PN 2141026-1
PN 2141029-1
PN 2141034-1
PN 2141031-x
PN 2141040-x Medium Fuse Module – 12 Positions
Product Dimensions
L x W x H (mm)
2141028-1 Medium Fuse Module 69.3 x 47 x 43
Suitable Terminals
Part Number Description Material Plating
Wire Size Range
(mm2)
881572-3 Fuse Contact Busbar
Brass
Pre-Tinned 4 – 6
880397-2
Fuse Contact Single
Pre-Tinned 0.5 – 1.5
880398-1 – >1 – 2.5
880398-2 Pre-Tinned >1 – 2.5

Catalog 1654390-1
Published 10-2015
Medium Fuse Holder – 4 Positions
Applications
J Body harness
Technical Features
J Detection of
partially inserted receptacle
Temperature Class:
-40° C to +85° C
Vibration Class:
3G
Sealed / Unsealed:
Unsealed
108-15160
411-15587
Medium Fuse Holder – 4 Positions
Package
Quantity
(mm2)SPT Receptacles
185847-1
Natural PA66 550
927831-2
144617-1
144433-1
144434-1
0.5 – 1.0
1.0 – 3.0
3.0 – 5.0
5.0 – 7.0185847-2
31.6
38.0
28.0
33.5

Catalog 1654390-1
Published 10-2015
MFINITY – Mini Relay Module – 2 Positions
Technical Features
Material:
PBT
108-94263
114-94090
Order Information
2x ISO Mini Relays
PN 2141022-1
PN 2141026-1
PN 2141028-1
PN 2141029-1
PN 2141034-1
PN 2141031-x
PN 2141040-x
You can find suitable relays on
page 47 of this catalog.
Mini Relay Module – 2 Positions
Product Dimensions
L x W x H (mm)
2141024-1 Mini Relay Module 69.3 x 47 x 42.5
Suitable Terminals
Wire Size Range
(mm2)
2208343-1
LEAR – 6.3mm
361330-YF200
Pre-Tinned
0.5 – 1.5
2208343-3
LEAR – 6.3mm
361030-YF200
3 – 5

Catalog 1654390-1
Published 10-2015
Relays Holder Gen1 – 1 Mini Relay 35-40 A
Applications
Technical Features
J Detection of partially inserted
receptacle
Contact used:
Timer family
Housing Material:
PA 66
Can contain up to:
1 Mini relay
Temperature Class:
-40° C to +85° C
Vibration Class:
3G
Sealed / Unsealed:
Unsealed
108-15131
411-15551
Relays Holder Gen1 (1 Mini Relay 35-40 A)
Part Number
Housing
Color
Material
Package
Quantity
Mating Contacts
Wire Size Range
(mm2)
185403-1 Natural
P66 550
JPT Receptacle
144431-1 0.35 – 1.0
185403-2 Black 144432-1 1.0 – 3.0
185403-3 Gray
SPT Receptacle
927831-2 0.5 – 1.0
144617-1 1.0 – 3.0
185403-4 Brown
144433-1 3.0 – 5.0
144434-1 5.0 – 7.0
37.6
28.0
34.0

Catalog 1654390-1
Published 10-2015
Modular Relays Holder Gen2 – Relay 35-40 A
Applications
J Engine harness
Technical Features
receptacle by counterpart
Contact used:
Timer family
Housing Material:
PP-GFM25/15
Temperature Class:
-40° C to +100° C
Vibration Class:
3G
Sealed / Unsealed:
Unsealed
108-15412
408-15010
PN 1801616
PN 1801617
PN 1801619
PN 1801620
PN 1801627
PN 1801764
PN 1801773
Modular Relays Holder Gen2 (Relay 35-40 A)
Part Number
Housing
Color *)
Material
Package
Quantity
Mating Contacts
Wire Size Range
(mm2)
1801618-1 Black PP-GFM25/15 300
JPT Receptacle
964280-2 0.2 – 0.5
964284-2 0.5 – 1.0
965999-2 1.0 – 2.5
1241978-2 2.5 – 4.0
SPT Receptacle
927831-2 0.5 – 1.0
144617-1 1.0 – 3.0
144433-1 3.0 – 5.0
*) Other colors (Natural) upon request

Catalog 1654390-1
Published 10-2015
MFINITY – Micro Relay Module – 4 Positions
Technical Features
Material:
PBT
108-94263
114-94090
Order Information
4x ISO Micro Relays
PN 2141022-1
PN 2141026-1
PN 2141028-1
PN 2141029-1
PN 2141034-1
PN 2141031-x
PN 2141040-x
Micro Relay Module – 4 Positions
Product Dimensions
L x W x H (mm)
2141022-1 Micro Relay Module 69.3 x 47 x 40.75
Suitable Terminals
Wire Size Range
(mm2)
2208343-2
LEAR – 6.3mm
361430-YF200
Pre-Tinned 1.5 – 2.0
2208342-2
Molex – 4.8mm
33113-0003
N/A N/A
2208342-1
Molex – 4.8mm
33113-0005
N/A N/A

Catalog 1654390-1
Published 10-2015
Modular Relays Holder Gen2 – 2 Micro Relays
Applications
J Engine harness
Technical Features
Contact used:
Timer family
Housing Material:
PP-GFM25/15
Can contain up to:
2 Micro relays
Temperature Class:
-40° C to +100° C
Vibration Class:
3G
Sealed / Unsealed:
Unsealed
108-15412
408-15010
PN 1801616
PN 1801617
PN 1801618
PN 1801619
PN 1801627
PN 1801764
PN 1801773
Modular Relays Holder Gen2 (2 Micro Relays)
Part Number
Housing
Color *)
Material
Package
Quantity
Mating Contacts
Wire Size Range
(mm2)
1801620-1 Black PP-GFM25/15 300
JPT Receptacle
964280-2 0.2 – 0.5
964284-2 0.5 – 1.0
SPT Receptacle
927831-2 0.5 – 1.0
144617-1 1.0 – 3.0
144433-1 3.0 – 5.0
*) Other colors (natural) upon request

Catalog 1654390-1
Published 10-2015
Relays Holder Gen1 – 2 Micro Relays
Applications
Technical Features
J Detection of a partially inserted
Contact used:
Timer family
Housing Material:
PA 66
Can contain up to:
2 Micro relays
Temperature Class:
-40° C to +85° C
Vibration Class:
3G
Sealed / Unsealed:
Unsealed
108-15131
411-15551
411-15591
Relays Holder Gen1 (2 Micro Relays)
Part Number
Housing
Color
Material
Package
Quantity
Mating Contacts
Wire Size Range
(mm2)
185402-1 Natural
PA 66 550
JPT Receptacle
144431-1 0.35 – 1.0
144432-1 1.0 – 3.0
185402-2 Black
SPT Receptacle
927831-2 0.5 – 1.0
144617-1 1.0 – 3.0
185402-3 Gray
144433-1 3.0 – 5.0
144434-1 5.0 – 7.0
37.6
34.0
28.0

Catalog 1654390-1
Published 10-2015
MFINITY – Maxi Relay Module – 2 Positions
Technical Features
Material:
PBT
108-94263
114-94090
Order Information
2x ISO Maxi Relays
PN 2141022-1
PN 2141026-1
PN 2141028-1
PN 2141029-1
PN 2141034-1
PN 2141031-x
PN 2141040-x
Maxi Relay Module – 2 Positions
Product Dimensions
L x W x H (mm)
2141026-1 Maxi Relay Module 69.3 x 47 x 59
Suitable Terminals
Wire Size Range
(mm2)
1-1355849-1 9.5 Single Tab CuNiSi
Pre-Tinned
6 –10
2208343-1
LEAR – 6.3mm
361330-YF200
N/A 0.5 – 1.5

Catalog 1654390-1
Published 10-2015
Modular Relays Holder Gen2 – Relay 50-70 A
Applications
J Engine harness
Technical Features
Contact used:
Timer family
Housing Material:
PP GFM25/15
Temperature Class:
-40° C to +100° C
Vibration Class:
3G
Sealed / Unsealed:
Unsealed
108-15412
408-15010
PN 1801616
PN 1801617
PN 1801618
PN 1801620
PN 1801627
PN 1801773
PN 1801764
Modular Relays Holder Gen2 (Relay 50-70 A)
Part Number
Housing
Color *)
Material
Package
Quantity
Mating Contacts
Wire Size Range
(mm2)
1801619-1 Black PP-GFM25/15 300
MPT Receptacle
962928-1 2.5 – 4.0
962930-1 4.0 – 6.0
962932-1 7.0 – 10
SPT Receptacle
927831-2 0.5 – 1.0
144617-1 1.0 – 3.0
144433-1 3.0 – 5.0
*) Other colors (Natural) upon request

Catalog 1654390-1
Published 10-2015
Relays Holder Gen1 – 1 Maxi Relay 50-60 A
Applications
Technical Features
receptacle
Contact used:
Timer family
Housing Material:
PBT
Can contain up to:
1 Maxi relay
Temperature Class:
-40° C to +85° C
Vibration Class:
3G
Sealed / Unsealed:
Unsealed
108-15208
411-15620
Relays Holder Gen1 (1 Maxi Relay 50-60 A)
Part Number
Housing
Color
Material
Package
Quantity
Mating Contacts
Wire Size Range
(mm2)
953615-1 Red
PBT 500
SPT Receptacle
927831-2 0.5 – 1.0
144617-1 1.0 – 3.0
144433-1 3.0 – 5.0
953615-2 Purple
185283-1 5.0 –6.0
Positive Lock
MK1
160759-3 0.5 – 1.5
154718-3 0.7 – 2.0
154717-3 2.5 – 4.0
32.0
28.0
38.1
33.5

Catalog 1654390-1
Published 10-2015
Relays Holder Gen1 – 1 Maxi Relay 70 A
Applications
Technical Features
receptacle
Contact used:
Timer family
Housing Material:
PBT
Can contain up to:
1 Maxi relay
Temperature Class:
-40° C to +85° C
Vibration Class:
3G
Sealed / Unsealed:
Unsealed
108-15208
411-15620
Relays Holder Gen1 (1 Maxi Relay 70 A)
Part Number
Housing
Color
Material
Package
Quantity
Mating Contacts
Wire Size Range
(mm2)
1-953615-1 Red
PBT 450
Positive Lock
MK1
160759-3 0.5 – 1.5
154718-3 0.7 – 2.0
1-953615-2 Purple 154717-3 2.5 – 4.0
2-953615-1 Natural
MPT Receptacle
962928-1 2.5 – 4.0
962930-1 4.0 – 6.0
2-953615-2 Black 962932-1 6.0 – 10
38.1
44.0
28.0
33.5

Fuse and Relay Box
INTRODUCTION
POWERTRAIN SYSTEMS
CONVENIENCE
DRIVER INFORMATION
✔
✔
✔
✔
TE Connectivity proposes power distribution systems
which combine several protection and/or switching
functions, and include some functions electrically
coupling together.

Catalog 1654390-1
Published 10-2015
Fuse and Relay Box
Fuse and Relay Holder – 6 Miniature Fuses
Applications
J Engine harness
Technical Features
J Compliant with Mini fuse and
ATO fuse technology
Contact used:
Timer family
Housing Material:
PBT GF 10 or
PP GFM 25/15
Can contain up to:
2 Micro relays
1 Mini relay
2 Medium fuses
4 Miniature fuses
2 Diodes or miniature fuses
Temperature Class:
-40° C to +100° C
Vibration Class:
3G
Sealed / Unsealed:
Unsealed
108-15406
408-15009
PN 1801616
PN 1801618
PN 1801619
PN 1801620
PN 1801764
PN 1801627
Part Number
Housing
Color
Material Mating Contacts
Wire Size Range
(mm2)
1801773-1
Black
PBT GF10 JPT Receptacle
964280-2 0.2 – 0.5
964284-2 0.5 – 1.0
965999-2 1.0 – 2.5
1241978-2 2.5 – 4.0
1801617-1 PP GFM 25/15 SPT Receptacle
927831-2 0.5 – 1.0
144617-1 1.0 – 3.0
144433-1 3.0 – 5.0
28.0
42.9
0.9
45.0
54.0

Catalog 1654390-1
Published 10-2015
Fuse and Relay Box
Applications
J Engine harness
J Switching and protection device
Technical Features
J Compliant with Minifuse and
ATO fuse technology
J 4 sets of 4 minitaure fuses with
common power supply
Contact used:
Timer family, shorting busbar
Housing Material:
PBT GF 10
Can contain up to:
36 Miniature fuses
3 Medium fuses
2 Mini relay
4 Shorting busbars
Temperature Class:
-40 °C to +100 °C
Vibration Class:
3G
Sealed / Unsealed:
Unsealed
108-15406
408-15007
PN 1801616
PN 1801617
PN 1801618
PN 1801619
PN 1801620
PN 1801627
PN 1801773
Part Number
Housing
Color
Material Mating Contacts
Wire Size Range
(mm2)
Shorting
Busbar
Wire Size Range
(mm2)
1801764-1 Black PBT GF10
JPT
Receptacle
964280-2
964284-2
965999-2
1241978-2
0.2 – 0.5
0.5 – 1.0
1.0 – 2.5
2.5 - 4.0 1801614-3
1801614-4
2.5 – 4.0
5.0 – 6.0
SPT
Receptacle
927831-2
144617-1
144433-1
0.5 – 1.0
1.0 – 3.0
3.0 – 5.0

Catalog 1654390-1
Published 10-2015
Fuse and Relay Box
Medium Fuse Holder - 5 Positions
Applications
J Engine harness
Technical Features
up to 5 Medium fuses
J Compliant with
ATO fuse technology
receptacle
Contact used:
SPT family
NG family
Housing Material:
PBT GF 10
Can contain up to:
5 Medium fuses
Temperature Class:
-40° C to +100° C
Vibration Class:
3G
Sealed / Unsealed:
Unsealed
108-15332
411-15678
Package
Quantity
Mating Contacts
(6.3mm Terminals)
Part
Number
Crimping
Range (mm2)
1544647-1 Black
PBT,
UL 94-HB rated
305
Clip 8mm
with safety lock
1544128-1 6.0 – 10.0
Rec Housing 8mm
with safety lock
1544129-1 2.0 –10.0
50.5
27.8
65.3
66.3

Catalog 1654390-1
Published 10-2015
Package
Quantity
Mating Contacts
(6.3mm Terminals)
Part
Number
Crimping
Range (mm2)
1544266-1 Black
PBT,
UL 94-HB rated
182
Clip 8mm
with safety lock
1544128-1 6.0 – 10.0
Rec Housing 8mm
with safety lock
1544129-1 2.0 –10.0
Fuse and Relay Box
Medium Fuse Holder - 12 Positions
Applications
J Engine harness
Technical Features
up to 5 Medium fuses
J Compliant with
ATO fuse technology
receptacle
Contact used:
SPT family
NG family
Housing Material:
PBT GF 10
Can contain up to:
12 Medium fuses
Temperature Class:
-40° C to +100° C
Vibration Class:
3G
Sealed / Unsealed:
Unsealed
108-15332
411-15678
50.2
26.5
120.0

Catalog 1654390-1
Published 10-2015

Busbars, Terminals
and Accessories
INTRODUCTION
POWERTRAIN SYSTEMS
CONVENIENCE
DRIVER INFORMATION
✔
✔
✔
✔
TE Connectivity proposes specific busbars or termi-
nals, developed for power distribution devices. We can
also oﬀer accessories, optional devides like covers or
brackets.

Catalog 1654390-1
Published 10-2015
Shorting Busbar Miniature Fuses
Applications
J Engine harness
Technical Features
J Compliant with Mini fuse
technology
J Busbar technology supplying up to
4 Miniature fuses
Temperature Class:
-40° C to +125° C
Vibration Class:
3G
Sealed / Unsealed:
Unsealed
108-15415
114-15124
Can be used with Fuse and Relay
Holder:
PN 1801764
Shorting Busbar Miniature Fuses
Part Number
Housing
Color
Material
Package
Quantity
Mating
Components
Crimp Design
Wire Size Range
(mm2)
Insulation Range
(mm)
1801614-3
Black Tin plated 2000
up to
4 Miniature fuses
2.5 – 6.0 3.0 – 3.7
1801614-4 5.0 – 6.0 4.0 – 4.3
1801614-3 1801614-4
0.64
28.8
21.7 14.3
30.0

Catalog 1654390-1
Published 10-2015
MFINITY – Bracket Module, 180°
Applications
J Engine harness
Technical Features
Material:
PBT
108-94263
114-94090
Order information:
Mounting Bracket for Screw M8
Can be used with:
PN 2141022-1
PN 2141024-1
PN 2141026-1
PN 2141028-1
PN 2141029-1
PN 2141034-1
PN 2141040-x
Product Dimensions
L x W x H (mm)
2141031-1 Bracket Module 180° 42 x 31.5 x 26.5

Catalog 1654390-1
Published 10-2015
Applications
J Engine harness
Technical Features
Material:
PBT
108-94263
114-94090
Order information:
Mounting Bracket for Screw M8
Can be used with:
PN 2141022-1
PN 2141024-1
PN 2141026-1
PN 2141028-1
PN 2141029-1
PN 2141034-1
PN 2141040-x
Product Dimensions
L x W x H (mm)
2141031-2 Bracket Module 90° 42 x 31.5 x 26.55

Catalog 1654390-1
Published 10-2015
Brackets for Modular Relay or Fuse Holder, 1 Position
Applications
Technical Features
Housing Material:
PA 66
Temperature Class:
-40° C to +85° C
Vibration Class:
3G
Sealed / Unsealed:
Unsealed
108-15219
411-15616
Bradckets for Modular Relay or Fuse Holder, 1 Position
Package
Quantity
Mating
Components
953653-2 Black
PA 66
Glass Fiber
1000
Modular Relay Holder
185402-1
185402-2
185402-3
Modular Relay Holder for Relays
(4 positions / 5 positions)
185403-1
185403-2
185403-3
185403-4
Medium Fuse Holder
(4 positions)
185847-1
185847-2
(50 – 60 A)
953615-x
(50 – 60 A and 70 A)
953615-x
Relay Holder Gen2
1801618-x
1801619-x
1801620-x
1801616-x
1801627-x
1801628-x
1801764-x
20.5
32.0
38.0
4.5
5.0

Catalog 1654390-1
Published 10-2015
Brackets for Modular Relay or Fuse Holder, 2 Positions
Applications
Technical Features
Housing Material:
PA 66
Temperature Class:
-40° C to +85° C
Vibration Class:
3G
Sealed / Unsealed:
Unsealed
108-15162
411-15589
Bradckets for Modular Relay or Fuse Holder, 2 Positions
Package
Quantity
Mating
Components
185695-1 (*) Black
PA 66
Glass Fiber
450
185402-1
185402-2
185402-3
Modular Relay Holder for Relays
(4 positions / 5 positions)
185403-1
185403-2
185403-3
185403-4
Medium Fuse Holder
(4 positions)
185847-1
185847-2
(50 – 60 A)
953615-x
(50 – 60 A and 70 A)
953615-x
Relay Holder Gen2
1801618-x
1801619-x
1801620-x
High Current Fuse Holder
1801627-3
1801628-x
32.0
3.0
68.5
(*) On request; please contact your TE Connectivity representative for any query.

Catalog 1654390-1
Published 10-2015
MFINITY – Spare Fuse Module
Applications
J Engine harness
Technical Features
Material:
PBT
108-94263
114-94090
Can contain up to:
– 7x Medium (ATO) Fuses
used in module
– 6x Miniature (Mini) Fuses
used in module
– 1x Fuse Puller
PN 2141022-1
PN 2141024-1
PN 2141026-1
PN 2141029-1
PN 2141034-1
PN 2141031-x
PN 2141040-x
MFINITY – Spare Fuse Module
Product Dimensions
L x W x H (mm)
1-2141095-1 Spare Fuse Module 69.1 x 46.7 x 40

Catalog 1654390-1
Published 10-2015
MFINITY – Cover for Pre-Fuse SF30 Module
Technical Features
Material:
PP
108-94263
114-94090
MFINITY – Cover for Pre-Fuse SF30 Module
Module
Part Number
Module Name
Product Dimensions
L x W x H (mm)
2141033-1 Cover for SF30 Fuse Module 140.4 x 62 x 28.5

Catalog 1654390-1
Published 10-2015
MFINITY – Cover for Type A Fuse Module
Technical Features
Material:
PP
108-94263
114-94090
Order Information
Cover for B+ Protection
MFINITY – Cover for Type A Fuse Module
Product Dimensions
L x W x H (mm)
2141039-1 Cover for Type A Fuse Module 60 x 33.4 x 26
Mating Module see page 8 + 9

Catalog 1654390-1
Published 10-2015

24V Plug-in Relays
INTRODUCTION
POWERTRAIN SYSTEMS
CONVENIENCE
DRIVER INFORMATION
✔
✔
✔
✔
In addition to the holder devices TE provides
high-performing ISO plug-in relays suitable
for 12V, 24V and 48V power supply systems.
Plug-in relays are available in make, change-
over, double make and bridging make con-
tact arrangements.
For the holder devices featured in this
catalog the following micro, mini and maxi
ISO relay product families for 24 V systems
are suited:
Products
■ Micro Relay A / VFMA
■ Power Relay B
■ Power Relay F7
Applications
Cross carline for all electromechanical functions.
Please contact TE Application Engineering
for specific support.
Features
■ High performance ISO plug-in relays for 24V systems
■ Make and changeover contact arrangements
(special arrangements on request)
■ Serial and parallel components
■ Standard covers and covers with brackets
More information online
http://relays.te.com/ >> Automotive, Truck, Bus and
Oﬀ-Road Relays
■ Fast, reliable and up-to-date information
right to the point.
■ Online product catalog with empowered relay
findability by categories: High Current, High Volt-
age, PCB and Plug-In including relay modules and
sockets.
■ Technical documentation for all existing product
families, product ﬂyers, white papers and videos
for new products.

Catalog 1654390-1
Published 10-2015
Relays
Micro ISO, Micro Relay A / VFMA (24V)
Arrangement Cover Coil. Suppr. Part Number
Micro Make (NO) Standard
Diode V23074-A2002-A402 6-1393292-2
Resistor (680Ω)
V23074-A1002-A402 8-1393292-9
VFMA-11H41-S01 6-1415008-2
Micro Changeover (CO) Standard
Diode V23074-A2002-A403 6-1393292-3
Resistor (680Ω) V23074-A1002-A403 3-1393292-8
For detailed information find our data sheets under http://relays.te.com/telectronics.asp
Mini ISO, Power Relay B (24V)
Micro Changeover (CO)
Standard
N/A V23234-A0004-X055 2-1904025-6
Diode (cathode 86) V23234-A0004-X051 2-1904025-3
Resistor (1400 Ω) V23234-A0004-X053 2-1904025-5
Bracket
N/A V23234-A1004-X050 1-1904027-1
Resistor (1400 Ω) V23234-A1004-X054 3-1904027-2
Mini Make (NO – 2x87)
Standard
N/A V23234-C0004-X020 1-1904015-3
Resistor (1400 Ω) V23234-C0004-X018 2-1904015-1
Bracket
N/A V23234-C1004-X17 5-1904014-1
Resistor (1400 Ω) V23234-C1004-X085 0-1904015-5
Maxi ISO Power Relay F7 (24V)
Maxi Make (NO)
Standard
N/A V23134-J0053-D642 9-1393303-7
Resistor (1200 Ω) V23134-J0056-X408 0-1393304-5
Bracket N/A V23134-J1053-D642 1-1393304-1

Catalog 1654390-1
Published 10-2015 Automotive Power Distribution
Application Tooling
APPLICATION TOOLING
AND EQUIPMENT
FOR AUTOMOTIVE
POWER DISTRIBUTION
High Quality. High Reliability. High Volume.
With the CE approved M2000MC automatic insertion
machine for fuses and relays, TE Application Tooling
provides a high-quality solution for high-volume
production within the automotive industry. The
M2000MC automatically inserts mini fuses into a
Junction Box (J/B) according to the programmed
sequence, ensuring that the correct fuses are inserted
in the correct location for consistent quality. The
machine reduces the number of operators required in
the production process, increasing productivity in the
factory, whereas the operator needs to ensure that the
machine is supplied with junction boxes and fuses. The
M2000MC can also be optionally equipped with
insertion force monitoring and insertion depth control.
Outstanding features deliver tangible benefits
■ Dependable high-volume production
■ Insertion depth checking by linear scale
■ Insertion force monitoring – checking maximum
force during insertion
■ OCR of fuse before insertion to prevent
wrong fuse insertion
■ No stopping of production during supply
to the bowl feeder
■ Robot arm with ionizer that cleans
inside the robot arm
■ XY table positioning
■ Up to 6 heads (fuse)
Equipment is segregated into two types and managed
accordingly:
Generic equipment
Where we can supply you with suﬃcient information
referenced by Part Number such that you can identify
and order what you need yourself.
Specialised Equipment
Where you will need help from our specialist product
managers to identify what’s just right for your
Application.
Finding Equipment Online
www.tooling.te.com
■ Powerful searches to find generic equipment
options (Hand Tools / Applicators)
■ Brochures and more detailed ﬂyers for the
specialised equipment.
■ It’s quick, easy and more importantly the latest and
most up to date information is available online.
Regional Assistance
www.te.com/support-center

Catalog 1654390-1
Published 10-2015
Application Tooling
Layout
LxDxH = 1957.6 x 2584 x 1627.1mm
(without tower lamp) – dimensions
may be altered following a technical
meeting.
Machine Weight
2,500 kg (inc. blow feeders) –
Changeable with various J/B design.
Electrical Supply
AC 110 V, single phase, 50/60 Hz, 30
KVA – other specific requirements
may be met.
Power Consumption
2.1 kW
Air Supply
4.5-7.0 kgf /cm2
Air Consumption
600 l/min
Temperature and Humidity
10~35° C, 30~70%
Noise Level
< 75 dB(A)
Operating System
Windows XP Professional (Embedded
POS-READY2009) Service pack3
PC Specification
(incl. Accessories)
Intel Pentium(R) 2.6 GHz, 1GB
RAMSSD hard disk drive by SATA
(capacity: 120 GB) 17” LCD touch
screen & equipped with keyboard,
mouse, DVD ROM drive
Available Languages
English and Korean
XY Table Speed
90 m/min
Device Insertion Speed
(per point)
Various per component size and J/B
design.
- Low profile mini fuse:
0.35 ~ 0.55 sec
- Relay: 0.8 ~ 1.0 sec
- SB fuse: 0.45 ~ 0.7 sec
Max. J/B Size
250 x 250mm – may be altered to
meet specific customer requirements
XY Positioning Accuracy
+/- 0.01mm
Insertion Depth Monitoring
available in 0.01mm steps
Insertion Force Monitoring
available in 0.01 N steps
Cmk Assessment Data
>1.67 (X and Y axis)
Machine Configuration
Stand-alone only.
Inline configuration is available on
request.
Abbreviation Explanation
OCR: Optical character
recognition
(Vision sensor checks
color or characters
on the components)
SATA: Connection type between
PC mother board and
memory unit
(CD ROM or hard disk).
SB Fuse: Slow Blow Fuse
(type of electric fuse)
M2000MC Automatic Insertion Machine –Specification

Catalog 1654390-1
Published 10-2015
PNPage PNPage PNPage
1-1355833-1 13
1-1355844-1 13
1-1355849-1 25
1-1355877-1 13
1-1355880-1 13
1-1393304-1 46
1-1904015-3 46
1-1904027-1 46
1-2141095-1 41
1-953615-1 28
1-953615-2 28
1-968849-1 14
1-968849-2 14
1-968849-3 14
1-968851-1 14
1-968851-2 14
1-968851-3 14
1-968853-1 14
1-968853-3 14
1-968880-1 14
1-968880-3 14
1241978-2 6, 12, 21, 30, 31
1393304-5 46
144431-1 20, 24
144432-1 20, 24
144433-1 6, 18, 20, 21, 23,
24, 27, 30, 31
144434-1 18, 20, 24
144443-1 26
144617-1 6, 18, 20, 21, 23,
24, 26, 27, 30, 31
1544128-1 32, 33
1544129-1 32, 33
1544266-1 33
1544647-1 32
154717-3 27, 28
154718-3 27, 28
160759-3 27, 28
1670225-1 8, 9
1801431-1 6, 15
1801432-1 6, 15
1801433-1 6, 15
1801567-1 14
1801614-3 31, 36
1801614-4 31, 36
1801616-1 12
1801617-1 30
1801618-1 21
1801619-1 26
1801620-1 23
1801627-2 15
1801627-3 15
1801628-4 6
1801628-5 6
1801628-6 6
1801764-1 31
1801773-1 30
185283-1 27
185402-1 24, 39, 40
185402-2 24, 39, 40
185402-3 24, 39, 40
185403-1 20, 39, 40
185403-2 20, 39, 40
185403-3 20, 39, 40
185403-4 20, 39, 40
185695-1 40
185847-1 18, 39, 40
185847-2 18, 39, 40
1904015-5 46
2-1904015-1 46
2-1904025-3 46
2-1904025-5 46
2-1904025-6 46
2-953615-1 28
2-953615-2 28
2141022-1 22
2141024-1 19
2141026-1 25
2141028-1 17
2141029-1 13
2141031-1 37
2141031-2 38
2141033-1 42
2141034-1 7
2141039-1 43
2141040-1 8
2141040-2 9
2208342-1 22
2208342-2 22
2208343-1 19, 25
2208343-2 22
2208343-3 19
3-1393292-8 46
3-1904027-2 46
5-1904014-1 46
6-1393292-2 46
6-1393292-3 46
6-1415008-2 46
8-1393292-9 46
880397-2 17
880398-1 17
880398-2 17
881572-3 17
9-1393303-7 46
927831-2 6, 18, 20, 21, 23,
24, 26, 27
927831-2 30, 31
953615-1 27
953615-2 27
953653-2 39
962928-1 16, 26, 28
962930-1 16, 26, 28
962932-1 16, 26, 28
963755-1 8, 9
964280-2 6, 12, 21, 23, 30, 31
964284-2 6, 12, 21, 23, 30, 31
964595-1 16
965999-2 6, 12, 21, 30, 31
Numerical Index

TE CONNECTIVITY
ONLINE
TE.com offers an enhanced digital experience, with more than 250,000 parts profiled. The site has
deep, rich product data and easier access to tools and services. Other offerings include improved
search and navigation and knowledge and idea sharing.
TE.com offers a variety of product-specific catalogs, brochures,
white papers and other technical information. To download our
literature visit
www.te.com/usa-en/industries/automotive/automotiveliterature.html
LITERATURE
Search for a specific product by category, part number or
document number.
www.TE.com
PRODUCT INFORMATION
You can rely on TE’s PIC Team to answer your general or technical
questions. To contact a PIC representative, visit
www.TE.com/support-center
STAY CONNECTED

Catalog 1654390-1
Published 10-2015
DISCLAIMER
While TE Connectivity (TE) has made every reasonable effort to ensure the accuracy of the information in this catalog,
TE does not guarantee that it is error-free, nor does TE make any other representation, warranty or guarantee that the
information is accurate, correct, reliable or current. TE reserves the right to make any adjustments to the information cont-
ained herein at any time without notice.
TE expressly disclaims all implied warranties regarding the information contained herein, including, but not limited to, any
implied warranties of merchantability or fitness for a particular purpose. The dimensions in this catalog are for reference
purposes only and are subject to change without notice. Specifications are subject to change without notice. Consult TE for
the latest dimensions and design specifications.
TRADEMARKS
AMP MCP, MFINITY, TE, TE Connectivity, TE connectivity (logo), and EVERY CONNECTION COUNTS are trademarks.
Other product names, logos, and company names mentioned herein may be trademarks of their respective owners.
COPYRIGHT
© 2015 TE Connectivity family of companies.
All rights reserved.
TE Connectivity Germany GmbH certified acc. ISO 14001 and ISO/TS 16949:2002
TE Connectivity Germany GmbH
AMPèrestrasse 12–14 | 64625 Bensheim | Germany
Phone: +49 (0)6251 133-0
Fax: +49 (0)6251 133-1600
Germany – Bensheim
Product Information Center:
Phone: +49 6251-133-1999
Fax: +49 6251-133-1988
United States – Harrisburgh
Phone: +1 800-522-6752
Fax: +1 717-986-7575
South America
Phone: +54 11-4733-2015
Fax: +54 11-4733-2083
South Africa –
Port Elizabeth
Phone: +27 41-503-4500
Fax: +27 41-581-0440
EUROPE UNITED STATES SOUTH AMERICA AFRICA
Contact / Imprint
Australia – Sydney
Phone: +61 2-9840-8200
Fax: +61 2-9634-6188
People’s Republic of China
Hong Kong
Phone: +852 2738-8731
Fax: +852 2735-0243
People’s Republic of China
Shanghai
Phone: +86 21-3398-0000
Fax: +86 21-3398-1999
Korea – Seoul
Phone: +82 2-3415-4500
Fax: +82 2-3486-3810
ASIA / PACIFIC

1654390-1|Published10-2015

TE Automotive Power Distribution

More Related Content

What's hot (17)

Similar to TE Automotive Power Distribution (20)

More from Rimsky Cheng (20)

Recently uploaded (20)

TE Automotive Power Distribution
