Q. Can I make it easy to apply DDL or DML job to 4096 databases?
Q. Can I make it easy to check after jobs?
ü Issue: The query is the same, but the database name is different.
[Query] :
use db0001;
alter table `TENNIS’ add column
`js` int after saein;
use db0002;
alter table `TENNIS’ add column
`js` int after saein;
……..
……..
use db4096;
alter table `TENNIS’ add column
`js` int after saein;
db0001, db0002, db0003
db0004, …………………………
…….………………………………..
…….………………………………..
…….………………………………..
db4094, db4095, db4096
shard1 ~ shard16 server
0 4 4 4 6 6
I can’t check
Job log](https://image.slidesharecdn.com/ptansiblefest2018line20181002final-181017054631/85/DATABASE-AUTOMATION-with-Thousands-of-database-monitoring-and-backup-41-320.jpg)
DATABASE AUTOMATION with Thousands of database, monitoring and backup
- 1. , , October 2, 2018 SaeWoong LEE, LINE # ANSIBEFEST 2018 AUSTIN
- 2. ABOUT ME SaeWoong LEE (REX) Database Administrator, Database team, LINE corporation. saewoong.lee@linecorp.com
- 3. Agenda • )( & • ( ( • ( )& & & • E EE • • • A EAC • EH • B • & & • .
- 4. Based in Japan, LINE Corporation (NYSE:LN/TSE:3938) is dedicated to the mission of “Closing the Distance,” bringing together information, services and people. The LINE messaging app launched in June 2011 and since then has grown into a diverse, global ecosystem that includes AI technology, FinTech and more. MISSION: CLOSING THE DISTANCE Bringing people, information and services closer together
- 5. Employees: +6,000 / Number of nationalities: 25 LINE Around the World
- 6. Arabic, Brazilian Portuguese, English, French, German, Indonesian, Italian, Japanese, Korean, Malay, Portuguese, Russian, Spanish for Spain, Spanish for Latin America, Simplified Chinese, Thai, Traditional Chinese, Turkish, Vietnamese Supports 19 languages and dialects As of Q2 2018 Highly Engaged Users Top 4 MAU: 164 million Top 4 DAU/MAU: 77% Japan MAU: 76 million Japan DAU/MAU: 85% Japan ・ Taiwan ・ Thailand ・Indonesia MAU : Monthly Activity User, DAU : Daily Activity User
- 8. Taking LINE into the post-smartphone era, in partnership with NAVER Corporation 2017.3 Clova announced 2017.10 Clova- connected concept car announced 2017.10 Radiko added 2017.10 Clova WAVE released 2017.12 Clova Friends released 2018.3 IFTTT support began 2018.4 Clova Friends Hoodies launched Clova continues growing as an open platform Strategic Business: AI LINE Clova: Cloud AI Platform Taking LINE into the post-smartphone era, in partnership with NAVER Corporation 2017.3 Clova announced 2017.10 Clova- connected concept car announced 2017.10 Radiko added 2017.10 Clova WAVE released 2017.12 Clova Friends released 2018.3 IFTTT support began 2018.4 Clova Friends Hoodies launched Clova continues growing as an open platform Strategic Business: AI LINE Clova: Cloud AI Platform 2018.6 Clova Friends mini
- 10. • We have many kinds of database. • MySQL, Oracle, MS-SQL, Redis, Hbase, Mongodb, Cubrid and Elasticsearch • We are operating all databases of LINE corp. except special case. • We do not use AWS. • There is no cost advantage for LINE. • Compared to same spec machines, performance is not good and management is inconvenient. • We have a private cloud system IaaS developed with openstack. Like AWS. • We call it Verda. • Verda is developing by another dev team. • But we are ready to be serviced at any time when we need to open service in a no internet pod area. • We have own Internet Data Center(IDC). • There is no developer on the database team, but we make and use the necessary tools ourselves. • MonDB+ : database admin web tool for DBA • DBONE : Multiple database monitoring tool combining several open sources • MySS : MySQL slowquery analyze system • And more… (LINE IaaS service)
- 11. How many database servers running in LINE?
- 12. 10,000 +
- 13. Redis 43% MySQL 38% Cubrid 7% HBase 5% MongoDB 5% SQL Server 1% Oracle Database 1% MySQL 82% 3000+ Cubrid 15% SQLServer 2% Oracle Database 1%
- 14. MOTIVATION
- 15. April 2016 I got the mission.
- 16. • ( ,DD , ( E D 3 E 3E G D 3 E E 3DE D G 3 A • . 3E 2 E G3 3E E E 3 A ( IDB E A D (3 A UPGRADE 1 0 ) ( E ( MEB 3.10 MEB 3.12
- 18. - / . : / - : / - - # : - - - - ü The job is very simple. 1. Make a folder 2. Move on a folder 3. Download upgrade script 4. Execute an upgrade script on local machine 0 . 1
- 19. UPGRADE 3000 + 33 1.2 0 31 3 MEB 3.10 MEB 3.12
- 20. DBA DBA DBA DBA DBA DBA DBA DBA 0 . 1 Hey guys, Please deploy using this script on your services. ME - / . : / - : / - - # : - - - -
- 21. DBA DBA DBA DBA DBA DBA DBA DBA 0 . 1 OK, no problem. (hmm… It’s annoying. I’m not sure when.) ME - / . : / - : / - - # : - - - -
- 22. ü We have to do next upgrade manually again? ü How to deploy 3000+ servers easily? ü Is it possible by myself?
- 23. - / # # : # # : . / $## # # : . / / : . / / # # : / # # : / . / $## # # : . / / / : . /
- 24. - / # # : # # : . / $## # # : . / / : . / / # # : / # # : / . / $## # # : . / / / : . / I’m not satisfied. Is it possible more `Easy`, `simple`, `comfortable`, deploy? ?
- 25. I completed the basic test using Ansible. MEB 3.12
- 26. Why we chose Ansible?
- 27. ü Simple, Agentless ü Written in Python ü Easy to develop and manage ü Idempotent (using ansible module) ü Good Configuration management ü Use SSH ü Easy to learn. Ansible in a Nutshell
- 28. ü Simple, Agentless ü Written in Python ü Easy to develop and manage ü Idempotent (using ansible module) ü Good Configuration management ü Use SSH ü Easy to learn. Ansible in a Nutshell
- 29. USE CASE
- 30. Install & Setup DDL & DML DBACL Monito -ring Backup HA ) ) ) ) ( DDL: Data Definition Language DML: Data Manipulation Language DBACL : DB Access Control List HA: High Availability
- 31. Install & Setup DDL & DML DBACL Monito -ring Backup HA MySQL Mongodb Auto DBACL system Add user by all server MEB upgrade MEB fadeout Database 4096 cnt 8set database server : 1set server 256dbs Manage DBONE MEM fadeout MMM re-configuration Create slave server ) ) ) ) ( MMM : Multi-Master Replication Manager
- 33. q MySQL install takes a long time. q We’d like to install in parallel, not sequential. q It is difficult to set dynamic variables depending on the server. q We'd like to make it easy to work with new features or modify sources. q If we change the dbacl or change the default schema, we have to do whole test. We'd like to reduce test time. q We'd like to handle exception when failed MySQL install. Install & Setup
- 34. Install & Setup q MySQL install takes a long time. q We’d like to install in parallel, not sequential. q It is difficult to set dynamic variables depending on the server. q We'd like to make it easy to work with new features or modify sources. q If we change the dbacl or change the default schema, we have to do whole test. We'd like to reduce test time. q We'd like to handle exception when failed MySQL install. o . .
- 35. Install & Setup 0:00:00 0:07:12 0:14:24 0:21:36 0:28:48 0:36:00 0:43:12 0:50:24 0:57:36 1:04:48 1master 0slave 1master 1slave 1master 2slave 1master 3slave 1master 4slave 1master 5slave 1master 6slave 1master 7slave time MySQL install time original 29:06 1:00:06
- 36. Install & Setup 0:00:00 0:07:12 0:14:24 0:21:36 0:28:48 0:36:00 0:43:12 0:50:24 0:57:36 1:04:48 1master 0slave 1master 1slave 1master 2slave 1master 3slave 1master 4slave 1master 5slave 1master 6slave 1master 7slave time MySQL install time original ansible 2:58 29:06 3:22 1:00:06 10x 20x
- 37. Install & Setup

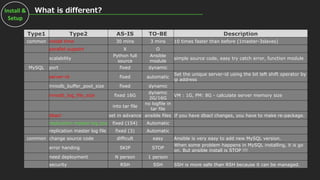

- 38. Install & Setup Type1 Type2 AS-IS TO-BE Description common install time 30 mins 3 mins 10 times faster than before (1master-3slaves) parallel support X O scalability Python full source Ansible module simple source code, easy try catch error, function module MySQL port fixed dynamic server-id fixed automatic Set the unique server-id using the bit left shift operator by ip address innodb_buffer_pool_size fixed dynamic innodb_log_file_size fixed 16G dynamic 2G/16G VM : 1G, PM: 8G - calculate server memory size into tar file no logfile in tar file dbacl set in advance ansible files If you have dbacl changes, you have to make re-package. replication master log pos fixed (154) Automatic replication master log file fixed (3) Automatic common change source code difficult easy Ansible is very easy to add new MySQL version. error handing SKIP STOP When some problem happens in MySQL installing, it is go on. But ansible install is STOP !!! need deployment N person 1 person security RSH SSH SSH is more safe than RSH because it can be managed.
- 39. Install & Setup Check preparation MySQL install set replication set DBACL set mmm set MEM set MEB set MySS remove install file set path execute backup set Root pw set mmm monitor set Yum templates # . -5 5 - 7 . . :.7 5 = # . . :.7 5 = # ü Ansible is easy to manage new features and maintenance. • 5.7 install was taking for 5 months. • It has been in use for 2 years. • Python API for ansible • Changed ‘return value’ of MySQL start • SSH by all servers • 5.6 install was taken 3 days to complete. • 5.5 install was taken 2 days to complete. ü MySQL 5.7, MySQL 5.6, MySQL 5.5
- 40. Install & Setup DDL & DML DBACL Monito ring Backup HA (DDL: Data Definition Language DML: Data Manipulation Language)
- 41. DDL & DML Q. Can I make it easy to apply DDL or DML job to 4096 databases? Q. Can I make it easy to check after jobs? ü Issue: The query is the same, but the database name is different. [Query] : use db0001; alter table `TENNIS’ add column `js` int after saein; use db0002; alter table `TENNIS’ add column `js` int after saein; …….. …….. use db4096; alter table `TENNIS’ add column `js` int after saein; db0001, db0002, db0003 db0004, ………………………… …….……………………………….. …….……………………………….. …….……………………………….. db4094, db4095, db4096 shard1 ~ shard16 server 0 4 4 4 6 6 I can’t check Job log
- 42. DDL & DML ü . . . DB Deploy Server
- 43. Install & Setup DDL & DML DBACL Monito ring Backup HA (DB Access Control List)
- 44. DBACL ü 5 F5A5 4 C 5 1CC5A 54 : 2 1 D1 Work Flow systemdeveloper DBA Database 5 45 5 5A 1 , 2 B BC5 5 B BC5 45 5AB C 1 5B C C C 5 41C121B5 1 C5A A5 5F 3 3 B C 5 B 2DCC B BC5 . C 5 B BC5 B5 4 1 3 5C 5BB1 5 C C 5 45 5 5A C DB B 2 5 F A F
- 45. DBACL ü : . Check preparation MySQL install set replication set DBACL set mmm set MEM set MEB set MySS remove install file set path execute backup set Root pw set mmm monitor set Yum set 2ndBackup
- 46. 3000 + DBACL I , : P U:8 Q N @QN PU N.' ' * ' IU M Q N, D Q N-N P D L S NA- N PLS D Q T @ P- X IU M @ I - @QN PU N L S NA- N TL S NA E P- ' ' * ' LN R- P I P P -LN P LL A LN R -U S PE P I , ,:2 20 U:8 ,2=20 2 IU M R P NU,:2 20 " 6:29 " 1/ 2"12 2 2 L NC NI @ @E I PEN A , 1/ 2 MySQL 5.7 MySQL 5.6 MySQL 5.5 MySQL 5.1 CentOS 5.X CentOS 6.X CentOS 7.X
- 48. Monitor ing ü Multiple database integrated monitoring solution ü Make it easy to change features and source. ü Cheap license cost • Need Conditions for monitoring• Database managed by database team MySQL Enterprise Monitor Enterprise Monitor Remin/Relumin MMS, Cloudera Kibana, nPod • Database monitoring tools • Is there?
- 49. Monitor ing B CA E A DE C B AB A AB A AC B C B B B A CA A ü So we developed using many open source technologies to satisfy our goal and flexibility. ü The name is DBONE.
- 50. Monitor ing ü It is not easy to manage many open sources. ü Workset - Install - Configure - agent, prometheus - Remove agent - Manage alert values - Upgrade opensource - Prometheus - Grafana - Fluentd - Elasticsearch - HAproxy
- 52. HA Active Master Slave1 (Standby Master) Slave2 Slave3 Normal MMM VIP AP RW Health Check • MySQL have very strong function as replication. • MMM means Multi-Master Replication Manager • MMM is online Failover solution for MySQL • AP servers access database via the MMM IP is VIP • MMM monitor checks databases status • OS Ping • MySQL status ü Access, Update query, MySQL replication MMM Monitor - -
- 53. - - SPOF MMM (single point of failure) Active Master Active Master Slave2 Slave3 VIP AP RW Health Check MMM Monitor HA • MySQL have very strong function as replication. • MMM means Multi-Master Replication Manager • MMM is online Failover solution for MySQL • AP servers access database via the MMM IP is VIP • MMM monitor checks databases status • OS Ping • MySQL status ü Access, Update query, MySQL replication • Failover • Change master • Set ‘read_only off’ on new active master • -- Session kill old active master • Add VIP on new active master
- 54. Active Master Active Master Slave2 (Standby Master) Slave3 NO SPOF MMM VIP AP RW Health Check MMM Monitor ü RE-configure step 1. Stop mmm agent server and monitor mmm server 2. Modify mmm configuration file db01 active master --> slave1 db02 slave1 (ST master) --> slave2 db03 slave2 --> slave3 db04 slave3 3. Start mmm agent server and monitor mmm server 4. Check - - Check preparation MySQL install set replication set DBACL set mmm set MEM set MEB set MySS remove install file set path execute backup set Root pw set mmm monitor set Yum set 2ndBackup HA
- 55. Active Master Slave1 (Standby Master) Normal MMM VIP AP RW Health Check MMM Monitor New Slave2 Backup file Check preparation MySQL install set replication set DBACL set mmm set MEM set MEB set MySS remove install file set path execute backup set Root pw set mmm monitor set Yum set 2ndBackup MySQL install using Ansible HA Ansible
- 56. NEXT STEP
- 57. Ansible MySQL modules • mysql_db - Add or remove MySQL databases from a remote host. • mysql_replication - Manage MySQL replication • mysql_user - Adds or removes a user from a MySQL database. • mysql_variables - Manage MySQL global variables • mysql_install – Set MySQL community version • mysql_backup – Set MySQL backup with percona xtrabackup • Mysql_ddl – Set MySQL ddl with schema_online_change • mysql_status – Report MySQL status like OS, QPS, Lock …..
- 58. Backup + HA 1. Install MySQL using Verda (LINE IaaS) 2. Recovery MySQL by remote backup file 3. Replication setting with Active Master server until no delay NO SPOF MMM Active Master Slave1 (Standby Master) AP RW Health Check MMM Monitor 4. Replication setting with Standby Master on Active Master 5. Setting reconfiguration MMM 6. MMM status check DNS SPOF MMM (single point of failure) Active Master Active Master AP RW Health Check MMM Monitor DNS New Server Remote backup 1 2 3 4 5 6
- 59. SUMMARY • . . , • .
- 60. Thanks REX
