Single Camera Calibration Using Partially Visible Calibration Objects Based on Random Dots Marker Tracking Algorithm

Single Camera Calibration
using Partially Visible Calibration Objects
Based on Random Dots Marker Tracking Algorithm
*Yuji Oyamada1,2, Pascal Fallavollita2, and Nassir Navab2
1. Keio University, Japan
2. Chair for Computer Aided Medical Procedure (CAMP),
Technische Universität München, Germany
*contact: oyamada@in.tum.de
http://campar.in.tum.de/Main/YujiOyamada

Overview of this work
• Use a marker tracking algorithm for a single camera calibration.
Input Marker tracking result
ISMAR workshop on Tracking Methods and Applications 05.11.2012 2

Overview of this work
• Use a marker tracking algorithm for a single camera calibration.
Calibration result

Introduction

Camera calibration
• Goal: finds a relation between
– 3D real world and 2D camera image.
– different cameras.
• Necessary step for vision based applications:
– 3d reconstruction,
– augmented reality.
projection

Calibration procedure
• Two main steps:
1. finds correspondence between real world and camera images.
2. computes parameters describing the relation.
1. Intrinsic parameters:
2. Lens distortion parameters:
3. Extrinsic parameters:

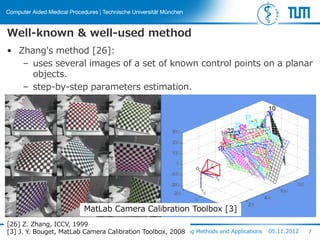

Well-known & well-used method
• Zhang's method [26]:
– uses several images of a set of known control points on a planar
objects.
– step-by-step parameters estimation.
MatLab Camera Calibration Toolbox [3]
[26] Z. Zhang, ICCV, 1999
[3] J. Y. Bouget, MatLab Camera Calibration Toolbox, 2008

For accurate calibration...
• Calibration object should be 3d:
– Fill entire view volume
– Different poses >> same pose
– Different depths >> same pose

Our dilemma
• Strong assumption: entire object must be visible.
• For localization: hesitates to go closer to image border.
• For accuracy: better to go as close to image border as possible.

Literature: points correspondence
Circle/rings grid
[4]
AR Tag [7] Natural image
[19]
Occlusion X O O
Defocus O X O
Perspective
distortion
△ O △
[4] Datta, ICCV workshop, 2009
[7] Fiala, MVA, 2008
[19] Pilet, ISMAR, 2006 ISMAR workshop on Tracking Methods and Applications 05.11.2012 10

Motivation
• Remove the assumption = Handle partial occlusion.
• More accurate estimation by filling view volume.
• Less frustration during image acquisition.

Motivation
• Especially, useful for multiple cameras calibration
(though this work focuses on single camera calibration...)
Hundreds of cameras
The Stanford Multi-
Camera Array
Distributed cameras
Eyevision, CMU
Different types of cameras
HMD based AR, TUM

The proposed method

Our idea
• Idea: Uses state-of-the-art marker tracking algorithm.
– Automatic detection and localization even with partial occlusion.
= Can put calibration object closer to image border.
• so that
– More accurate estimation on lens distortion parameters.
– Flexible calibrations for vision based systems.

The proposed method
• Points correspondence: applies tracking algorithm on the images.
• Parameter estimation: optimizes using the points correspondence.
RANdom DOts Marker

Method 1/2: overview
• Applies RANDOM tracking algorithm [22] on the images.
– Simple circle detection.
– Fast matching using LLAH.
Circle detectionInput Points matching
[22] Uchiyama, IEEE VR, 2011 ISMAR workshop on Tracking Methods and Applications 05.11.2012 16

Method 1/2: tracking algorithm
• Tracking algorithm [22] invariant to scale & rotation.
– Use distribution of control points.
– For a point of interest, set of ratio of two triangles consists of its
neighboring points.
[22] Uchiyama, IEEE VR, 2011 ISMAR workshop on Tracking Methods and Applications 05.11.2012 17

Method 2/2: parameter estimation
• Based on Zhang's method [26].
– Non-linear optimization on reprojection error of control points.
– Consider the visibility of control points.
(11)
[26] Z. Zhang, ICCV, 1999 ISMAR workshop on Tracking Methods and Applications 05.11.2012 18

Experimental results

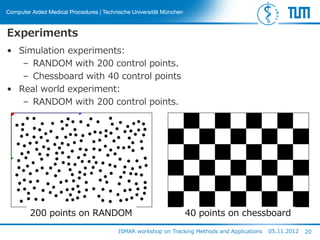

Experiments
• Simulation experiments:
– RANDOM with 200 control points.
– Chessboard with 40 control points
• Real world experiment:
– RANDOM with 200 control points.
200 points on RANDOM 40 points on chessboard

Simulation experiment 1/2
• Q: More accurate result with marker located around image border?
• Comparison:
1. 10 images from (a).
2. 10 images from (a) + 1-10 images from (b).
(a) Entire RANDOM (b) Partial RANDOM

Simulation experiment 1/2: result
• Error: mean value
Error
Error
0 10 0 10

Simulation experiment 1/2: discussion
• Two disadvantages:
– Center of circle is not perspective invariant.
– Inaccurate detection due to poor circle detection algorithm.
: detected points
: reprojected points
2 pixels difference!

Simulation experiment 2/2
• Q: Is the proposed method better than chessboard one?
• Comparison:
1. 10 images from (a).
2. 10 images from (a) + 10 images from (b).
3. 10 images from (c).
4. 20 images from (c).
(a) Entirely visible
RANDOM
(b) Partially visible
RANOM
(c) Entirely sible
chessboard

• Our method results less reprojection error.

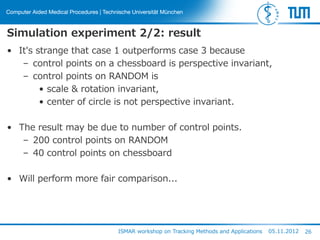

• It's strange that case 1 outperforms case 3 because
– control points on a chessboard is perspective invariant,
– control points on RANDOM is
• scale & rotation invariant,
• center of circle is not perspective invariant.
• The result may be due to number of control points.
– 200 control points on RANDOM
– 40 control points on chessboard
• Will perform more fair comparison...

Real world experiments 1/2
• Single camera calibration: Sony Nex-5.
– Resolution: 1920x1080
– Number of images: 100
– Number of control points on RANDOM: 200

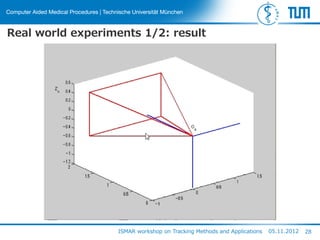

Real world experiments 1/2: result

• Reprojection error: 0.16 ± 0.15 pixel
• Maximum error: 1.30 pixels

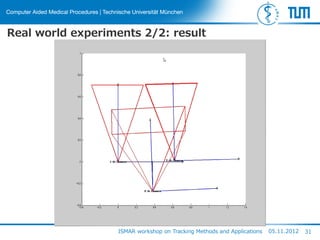

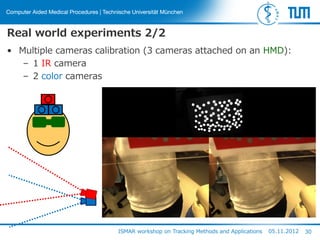

Real world experiments 2/2
• Multiple cameras calibration (3 cameras attached on an HMD):
– 1 IR camera
– 2 color cameras

Conclusion
+
future works

Conclusion
• Used marker tracking algorithm
• To solve points correspondence problem
• For more accurate & friendly camera calibration.
• Advantage:
– More accurate & stable calibration result.
– Many potential extensions.
• Limitation:
– The tracking algorithm is only scale & rotation invariant.
= heavy rotation along x/y axis is not supported.
– Center of circle is not perspective invariant.

Potential extension
• Multiple cameras calibration.
• Multiple markers for calibration [A1].
ISMAR workshop on Tracking Methods and Applications 05.11.2012 34[A1] GML Camera Calibration Toolbox, 2005

Potential applications
• Different types of cameras: combination of color & IR markers
• Projector-camera: one printed and one projected markers.
• Distributed cameras: multiple markers.
Pro-Cam pair
P
C
IR & color cameras
IR
C
Distributed cameras

Future works: tracking for points correspondence
• Use perspective invariant metric for points correspondence.
– line segments tracking [A2].
• Center of circle is not perspective invariant.
– Use perspective invariant mark [A3].
Line segments tracking_
for SLAM [A2]
Perspective invariant mark
[A3]
[A2] Hirose, BMVC, 2012
[A3] Beeler, Tech. rep. ETHZ, 2010 ISMAR workshop on Tracking Methods and Applications 05.11.2012 36

Future works: tracking for calibration constraints
• Uses rigidity of cameras for non-overlapping cameras calibration.
– Tracking for knowing each camera motion,
– Then align the unsynchronized cameras using their rigidity [A4].
• Selects good calibration images from long video sequences.
– Somehow evaluate calibration images
– To reduce unnecessary huge amount of images from video
sequences.
[A4] Irani, IJCV, 2002 ISMAR workshop on Tracking Methods and Applications 05.11.2012 37

Code available
• Entire package containing tracking and calibration by me.
– will publish as an open source
– current version: C++ + MatLab
– future version: C++
– If you want to use it, please contact me!
• Original RANDOM tracking algorithm by Hideaki Uchiyama [22].
– open source
– C++
• User friendly calibration code on github by Alexandru Duliu.
– open source
– C++

Thanks for your attention...
• I'm looking for a job opportunity.
• present-03.2013: postdoc @ Keio Univ. & visiting postdoc @ TUM
• 03.2012-??: not decided yet...
• My research interests
– camera tracking for practical application,
– image restoration
• deblurring
• focus control
– 3d modeling
• 3d reconstruction using depth camera
• photometric stereo
– AR visualization to improve perception

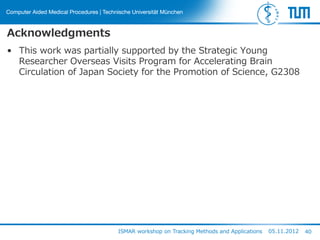

Acknowledgments
• This work was partially supported by the Strategic Young
Researcher Overseas Visits Program for Accelerating Brain
Circulation of Japan Society for the Promotion of Science, G2308
