ENHANCING THE PERFORMANCE OF CLUSTER BASED TEXT
SUMMARIZATION USING SUPPORT VECTOR MACHINE
M. S Patil1
, M. S. Bewoor2
, S. H. Patil3
1
Research Scholar, Department of Computer Engineering, BVUCOEP, Maharashtra, India
2
Associate Professor, Department of Computer Engineering, BVUCOEP, Maharashtra, India
3
Professor, Department of Computer Engineering, BVUCOEP, Maharashtra, India
Abstract
Technology is evolving day by day and this increase in technology is nothing but is the efforts to reduce human work and to have
systems as automatic as possible. Same thing is true in terms of existence of digital information. Due to enormous increase in the
use of internet, there is striking increase in the digital information. This digital information is characterized by different form of
information, same information in different form, unrelated information and also there is lot of redundant information. Another
next important thing to note is that most of the time we require textual information. To search or retrieve small information one
has to go through thousands of documents, read all the retrieved documents irrespective whether they contain useful information
or no. It becomes very difficult to read all the retrieved documents and prepare exact summary out of it within time. Besides this,
many times retrieved information is repeated in almost many documents. This leads to research in the area of text mining. Text
summarization is one of the challenging tasks in the field of text mining.
Keywords: Entropy, FCM, Purity, SVM
--------------------------------------------------------------------***----------------------------------------------------------------------
1. INTRODUCTION
Text summarization is the process of presenting the
information in the document in very precise manner without
losing any information or content in the document. The
approach that truly gives information contained in the
document and in correct form without changing its meaning
is considered to be the best approach. Thereof generated
summary must retain the data as well as the central idea of
document. Based on following characteristics, different text
summarization techniques can be classified:
1. Based on number of documents (Single document
and multi-document summarization.)
2. Based on summary generated (Extractive and
Abstractive.)
a. Extractive: Sentences in summary are same as
those in the document.
b. Abstractive: Sentences in summary are
constructed from the information in the
document. This approach is difficult as
compared to extractive.
3. Based on technique used. (Supervised and
unsupervised.)
4. Based on usage of summary (Query based and query
independent.)
a. Query based: Summary of the document is
constructed with respect to the query given by
the user.
b. Query independent: This type of summary
remains same throughout the process where
sentences are selected from document
irrespective of the query.
Irrespective of the type of summarization technique used,
text summarization is carried out in following three stages:
1. Preprocessing
2. Processing
3. Summary Generation.
In the stage of preprocessing, NLP phases like tokenization,
parsing, stop word removal, stemming, case folding etc are
carried out. This stage eliminates unnecessary words and
retains only important words.
In processing stage summarization algorithms are applied in
order to extract sentences required for generating.
In last phase, final summary is generated from given
document or documents.
This paper presents an extractive text summarization
approach to generate summary. For this two algorithms are
used viz. Fuzzy C Means (FCM), a clustering algorithm and
Support Vector Machine (SVM). Finally summary
generated is compared with the summary generated by the
pure clustering algorithm.

_______________________________________________________________________________________

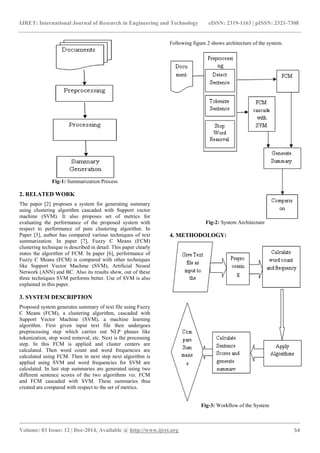

Fig-1: Summarization Process
2. RELATED WORK
The paper [2] proposes a system for generating summary
using clustering algorithm cascaded with Support vector
machine (SVM). It also proposes set of metrics for
evaluating the performance of the proposed system with
respect to performance of pure clustering algorithm. In
Paper [3], author has compared various techniques of text
summarization. In paper [7], Fuzzy C Means (FCM)
clustering technique is described in detail. This paper clearly
states the algorithm of FCM. In paper [6], performance of
Fuzzy C Means (FCM) is compared with other techniques
like Support Vector Machine (SVM), Artificial Neural
Network (ANN) and BC. Also its results show, out of these
three techniques SVM performs better. Use of SVM is also
explained in this paper.
3. SYSTEM DESCRIPTION
Proposed system generates summary of text file using Fuzzy
C Means (FCM), a clustering algorithm, cascaded with
Support Vector Machine (SVM), a machine learning
algorithm. First given input text file then undergoes
preprocessing step which carries out NLP phases like
tokenization, stop word removal, etc. Next is the processing
step. In this FCM is applied and cluster centers are
calculated. Then word count and word frequencies are
calculated using FCM. Then in next step next algorithm is
applied using SVM and word frequencies for SVM are
calculated. In last step summaries are generated using two
different sentence scores of the two algorithms viz. FCM
and FCM cascaded with SVM. These summaries thus
created are compared with respect to the set of metrics.
Following figure 2 shows architecture of the system.
Fig-2: System Architecture
4. METHODOLOGY:
Fig-3: Workflow of the System

_______________________________________________________________________________________
This paper proposes an algorithm for text summarization
using FCM, clustering algorithm and SVM. Traditional
clustering techniques like k-means, nearest neighbor
clustering etc generate clusters in which each item belongs
to exactly one cluster. These are termed as hard clustering
techniques. Unlike these, FCM is a soft clustering technique.
It allows one item to belong to all the generated clusters.
Each item is related to all clusters with a relationship
function. Higher the value of the function, higher is the
relation of item with that cluster.
Work flow of the system is as follows:
1) Preprocessing will perform the NLP phases like
tokenization, stop word removal, etc.
2) Next is to calculate word frequency as follows:
wf=((wordCount/TotalWords) *100)
where wordCount is the total number of times the
word occur in the document.
Total Words is the total number of words in the
document.
This frequency is normalized.
3) Then pure FCM algorithm is applied.
Minimizing function used for FCM is as follows:
Uij=1/ 𝐶
𝑘−𝑖 (𝑑𝑖𝑠𝑡(𝑐𝑒𝑛𝑡𝑒𝑟𝑖, 𝑥)/
(𝑐𝑒𝑛𝑡𝑒𝑟2, 𝑥)) 2/(𝑚−1)
Next to this SVM is applied. In this phase SVM kernel
function is applied to calculate the sentence scores.
4) Sentence scores are calculated as follows:
Score= (X * Y) + C
Where
C is constant; here it is word frequency,
For FCM, X and Y are the cluster centers
For SVM, X and Y are calculated using the cluster
centers and its related cluster values.
5) According to the limit of number of sentences in the
summary, top high score sentences are selected and
summary is generated.
6) Generated summaries are compared using following
metrics:
a. Purity: It is an external clustering evaluation
metric. Higher the value of purity, more accurate
the summary is obtained.
Purity=
1
𝑁
(𝑋 + 𝑌)
b. Clustering Entropy: It is also an external
clustering evaluation metric.
𝐻 𝑋 = − p Xi ∗ log2 p Xi
n−1
i=0
Here the value which is close to 0 is more
accurate.
c. Semantic Gap: This is shown by using sentence
summary that shows semantic gap between two
algorithms.
d. Classification Cost: It is calculated using
following formula:
Cost= Frequency + Overheads (Transaction or
iterations) + number of clusters
5. EXPERIMENTAL AND PERFORMANCE
ANALYSIS
Experiments have been performed by giving various text
files as input to the system and calculating the values of
above metrics using both the algorithms. Graphs have been
generated for each metric showing the comparison between
the values calculated using both the algorithms.

_______________________________________________________________________________________
Fig-4: Comparison Graph of Purity in FCM and proposed algorithm
Fig 5: Comparison Graph of Clustering Entropy in FCM and proposed algorithm

_______________________________________________________________________________________

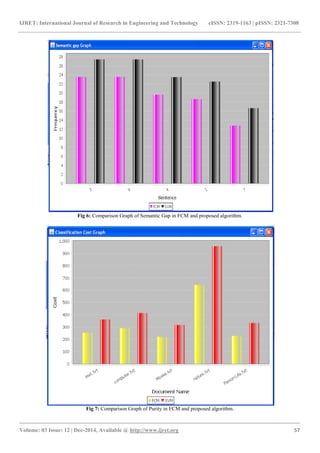

Fig 6: Comparison Graph of Semantic Gap in FCM and proposed algorithm.
Fig 7: Comparison Graph of Purity in FCM and proposed algorithm.

_______________________________________________________________________________________
6. CONCLUSION
In this paper concentration is given on improving the quality
of summary generated by clustering technique. In this
performance of the proposed system is compared with the
performance of clustering technique. This is done by
comparing the summaries generated on the basis of above
given performance evaluating factors. Above results show
that proposed algorithm performs better than pure clustering
algorithm. Further this approach can be applied for multi-
document summarization.
REFERENCES
[1]. A.K. Jain, M.N. Murty, P.J. Flynn, “Data Clustering: A
Review”, 2000 ACM
[2]. M. S. Patil, M. S Bewoor, Dr. S. H. Patil, “A Hybrid
Approach for Extractive Document Summarization Using
Machine Learning and Clustering Technique” IJCSIT 2014.
[3]. Roma V J, M S Bewoor, Dr. S. H. Patil, “the Quantity
of NLP Based Text Summarization and Clustering
Techniques By Quantitative and Qualitative Metrics”
International Journal of Scientific & Engineering Research
2013
[4]. Ronen Feldman, James Sanger, “The Text Mining
Handbook” www.cambridge.org
[5]. Ross, T. J. (2010); “Fuzzy Logic with Engineering
Applications”, Third Edition, John Wiley & Sons, Ltd,
Chichester, UK
[6]. Srinivasa K G, Venugopal K R and L M Patnaik,
“Feature Extraction using Fuzzy C - Means Clustering for
Data Mining Systems” IJCSNS International Journal of
Computer Science and Network Security, VOL.6 No.3A,
March 2006
[7]. Sumit Goswami, Mayank Singh Shishodia, “A Fuzzy
Based Approach To Text Mining And Document
Clustering”
[8]. Tsutomu Hirao, Hideki Isozaki, Eisaku Maeda
“Extracting Important Sentences with Support Vector
Machines” ACM 2002.
[9]. Vishal Gupta, Gurpreet S. Lehal; “A Survey of Text
Mining Techniques and Applications”; Journal of Emerging
Technologies in Web Intelligence, Vol.1, No.1, August
2009.
BIOGRAPHIES
Patil M S is currently completing M.Tech(Computer) from
Bharati Vidyapeeth College Of engineering Pune.
E-mail: madhsp.patil@gmail.com
M S Bewoor (M. E Computer) is currently working as an
Associate Professor in the Department of Computer
Engineering at Bharati Vidyapeeth College Of engineering
Pune.
E-mail: msbewoor@bvucoep.edu.in
Dr. S H Patil is currently working as a Professor in the
Department of Computer Engineering at Bharati Vidyapeeth
College Of engineering Pune. His subject of specialization
are Operating System and Distributed System.
E-mail: shpatil@bvucoep.edu.in
