DEFINITION

 The Micro Channel Architecture consists of
an address bus, a data bus, an arbitration
bus, a set of Interrupt signals, and support
signals. It uses synchronous and
asynchronous procedures for data transfer
between memory, I/O devices, and a
controlling master. The controlling master
can be a DMA controller, the system master
(system processor), or a bus master.

FEATURES

 I/O data transfers of 8-, 16-, 24-, or 32-
bits within a 64 KB address space (16-bit
address width).
 Memory data transfers of 8-, 16-, 24-, or
32-bits within a 16 MB (24-bit address
width) or 4GB (32-bit address width)
address space.
 An arbitration procedure that enables up to
15 devices and the system master to bid for
control of the channel.

FEATURES

 A basic transfer procedure that allows data
transfers between masters and slaves.
 A Direct Memory Address (DMA) procedure
that supports multiple DMA channels.
Additionally, this procedure allows a device
to transfer data in bursts.
 An optional streaming data procedure that
provides a faster data-transfer rate than
the basic transfer procedure and allows 64-
bit data transfers.
 Address- and data- parity enable and detect
procedures.

FEATURES

 Interrupt sharing on all levels.
 A flexible system-configuration procedure
that uses programmable registers.
 An adapter Interface to the channel using:
 A 16-bit connector with a 24-bit address bus and
a 16-bit data bus
 A 32-bit connector with a 32-bit address bus and
a 32-bit data bus
 An optional matched-memory extension
 An optional video extension

FEATURES

 Support for audio signal transfer (audio
voltage-sum node).
 Support for both synchronous and
asynchronous data transfer.
 An exception condition reporting procedure.
 Improved electromagnetic characteristics.

STRUCTURE

The following shows the participants, the
central arbitration control point, and the
Micro Channel buses and signals that they
drive or receive. “Micro Channel Buses and
Signals” describes the buses and signals of
the Micro Channel Architecture.

STRUCTURE

ABS – Arbitration Bus and Associated Signals
ADDR – Address Bus and Associated Signals
DATA – Data Bus and Associated Signals
IRQ – Interrupt Request Signals
OMCS – Other Micro Channel Signals

PARTICIPANTS

All Micro Channel participants are either
masters or slaves. There are three types of
masters and three types of slaves.

PARTICIPANTS

 MASTERS
 A master is a participant that drives the
address bus and data transfer control
signals that cause data transfer to or
from a slave. The channel supports up to
16 masters, the central arbitration
control point and the micro channel
arbitration procedure control ownership
of the channel. The central arbitration
control point grants ownership at the end
of the arbitration procedure to highest-
priority requester.

PARTICIPANTS

 3 TYPES OF MASTERS
 SYSTEM MASTER- controls and
manages the system configuration. It
arbitrates for use of the channel. It can
also be a default master. The default
master is the master that owns the
channel when no other master requires
the channel. The system master supports
data transfer with an I/O slave or a
memory slave.

PARTICIPANTS

 BUS MASTER- arbitrates for use of
the channel. A bus master supports data
transfers with an I/O slave or a memory
slave.
 DMA CONTROLLER- does not initiate
arbitration for the channel; a DMA slave
initiates and completes the arbitration
procedure. The DMA controller monitors
the arbitration bus to detect the DMA
slave’s arbitration level. A DMA
controller supports data transfers with
DMA slaves and memory slaves.

PARTICIPANTS

 SLAVES
A slave is a participant that sends and
receives data under the control of a master.
The slave responds to signals that are
driven by the master. A slave is selected by
the controlling master using Micro Channel
procedures. The channel supports 8-, 16-,
and 32-bit data bus size in a slave. The data
port size describes the maximum width of
the data transfer

PARTICIPANTS

 3 TYPES OF SLAVES:
 I/O SLAVE- is selected by their
address within the I/O address space.
 MEMORY SLAVE- is selected by their
address within the memory address
space.
 DMA SLAVE- is selected by arbitration
or, optionally, by its address within the
I/O address space.

ADDRESSING MODEL

 The Micro Channel addressing model
consists of a memory address space and an
I/O address space. During an I/O cycle, the
64 KB I/O address space is addressed by
the low-order 16 bits of the address bus.
During a memory cycle, the memory address
space is addressed by the address bus.

BUSES AND SIGNALS

 An arbitration bus and associated signals
 An address bus and associated signals
 A data bus and associated signals
 Interrupt signals
 Other Micro Channel signals
 Optional extensions for:
 Matched memory extension signals
 Video extension signals.

ARBITRATION BUS AND
ASSOCIATED SIGNALS
The arbitration bus and associated signals
allow arbitrating participants (the system
master, bus masters, and DMA slaves) to
request and gain ownership of the channel.
The resolution of multiple arbitration
requests results in granting ownership of
the channel to the highest-priority
requester.

ARBITRATION BUS AND
ASSOCIATED SIGNALS
 ARB0 - ARB3:
Arbitration Bus: These signals make up the
arbitration bus. They are driven by the
system master, bus masters, and DMA
slaves to present their arbitration level
when requesting ownership of the channel.

ARBITRATION BUS AND
ASSOCIATED SIGNALS
 ARB/-GNT:
Arbitrate/-Grant: Only the central
arbitration control point drives this signal.
The negative-to-positive transition of ARB/-
GNT initiates an arbitration cycle.

ARBITRATION BUS AND
ASSOCIATED SIGNALS
 -BURST:
-Burst: This signal is optionally driven by the
winning arbitrating participant or the DMA
controller after ARB/-GNT is driven to the
-GNT state. This signal indicates to the
central arbitration control point that the
controlling master will use the channel for
one or more consecutive data transfer
cycles.

ARBITRATION BUS AND
ASSOCIATED SIGNALS
 -PREEMPT:
-Preempt: This signal is used by arbitrating
participants to request use of the channel
through arbitration. Any arbitrating
participant that requires ownership of the
channel drives -PREEMPT active, causing an
arbitration cycle to occur. When a
participant is granted control of the
channel, it stops driving -PREEMPT .

ADDRESS BUS AND
ASSOCIATED SIGNALS
 The address bus and the associated signals
are used by the controlling master to assert
the memory address or the I/O address
(M/-IO), to enable a slave to latch the
address and status signals (-S0, -S1), and to
indicate that the memory address is greater
than 16MB.

ADDRESS BUS AND
ASSOCIATED SIGNALS
 A0 - A23:
Address Bits 0 through 23: These lines,
along with A24 through A31 , make up the
address bus. These lines are driven by the
controlling master to address memory, I/O
slaves, and, optionally, DMA slaves.

ADDRESS BUS AND
ASSOCIATED SIGNALS
 ADL:
Address Decode Latch: This signal, driven
by the controlling master, is provided as a
convenient way for the slave to latch valid
address decodes and status bits.
 APAREN:
-Address Parity Enable: This optional signal
is driven active by the controlling master
when the master places an address on the
bus. This signal indicates to a slave that
address parity is supported.

ADDRESS BUS AND
ASSOCIATED SIGNALS
 APAR0 - APAR3:
Address Parity Bits 0 through 3: These
optional signals are driven by the controlling
master when an address is placed on the
address bus. These signals represent the
odd parity of the address bits on the
address bus during both read and write
operations.

ADDRESS BUS AND
ASSOCIATED SIGNALS
 CD SFDBK (n):
-Card Selected Feedback: This signal is
driven active by the selected slave as a
positive acknowledgement of the slave's
selection. The (n) indicates this signal is
unique to each channel connector (one
independent signal per connector). This
signal is unlatched.

ADDRESS BUS AND
ASSOCIATED SIGNALS
 MADE 24:
Memory Address Enable 24: This signal is
driven by the controlling master and
decoded by all memory slaves, regardless of
the size of their address-space. When this
signal is active, A24 - A31 are undefined.
 A master driving only A0 - A23 drives MADE 24 active.

 A master driving A0 - A31 drives MADE 24 :
 Active when all bits in A24 - A31 are 0
 Inactive when any bit in A24 - A31 is 1.

ADDRESS BUS AND
ASSOCIATED SIGNALS
 M/-IO:
Memory/-Input Output: This signal is driven
by the controlling master and decoded by all
slaves. This signal selects a memory cycle or
an I/O cycle. When this signal is in the M
state, a memory cycle is selected. When this
signal is in the -IO state, an I/O cycle is
selected.

ADDRESS BUS AND
ASSOCIATED SIGNALS
 -SFDBKRTN:
Selected Feedback Return: This optional
signal is generated by the system logic from
the AND of the -CD SFDBK( n ) signals
being driven by slaves. This signal is a
positive acknowledgement to the master
from the slave that the slave is at the
address specified by the master.

DATA BUS AND
ASSOCIATED SIGNALS
The data bus is used to transfer either 8,
16, 24, or 32 bits of data. The associated
signals indicate the amount of data
transferred by the master in a single
transfer cycle, the size of the slave's data
port, and the type (read or write) of the
data transfer.

DATA BUS AND
ASSOCIATED SIGNALS
 D0 - D15:
Data Bits 0 through 15: These lines, along
with D16 - D31 , make up the data bus. The
data bus is driven by any master or slave
that is transferring data.
 D16 - D31:
Data Bits 16 through 31: These lines, along
with D0 - D15 , make up the data bus. The
data bus is driven by any master or slave
that is transferring data.

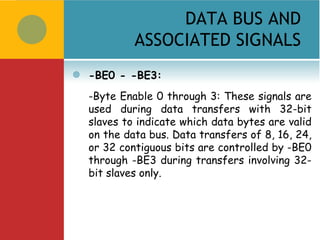

DATA BUS AND
ASSOCIATED SIGNALS
 -BE0 - -BE3:
-Byte Enable 0 through 3: These signals are
used during data transfers with 32-bit
slaves to indicate which data bytes are valid
on the data bus. Data transfers of 8, 16, 24,
or 32 contiguous bits are controlled by -BE0
through -BE3 during transfers involving 32-
bit slaves only.

DATA BUS AND
ASSOCIATED SIGNALS
 -CD DS 16 (n):
-Card Data Size 16: This signal is driven by
16-bit and 32-bit slaves to indicate a 16-bit
or 32-bit data port at the location
addressed. The (n) indicates this signal is
independent signal per connector). This
signal is derived from an unlatched address
decode.

DATA BUS AND
ASSOCIATED SIGNALS
 -CD DS 32 (n):
-Card Data Size 32: This signal, along with -
CD DS 16, is driven by 32-bit slaves to
indicate a 32-bit data port at the location
addressed. The (n) indicates this signal is
unique to a channel connector position (one
independent signal per connector).

DATA BUS AND
ASSOCIATED SIGNALS
 -CD CHRDY (n):
Channel Ready: This signal is normally active
(ready) and is driven inactive (not ready) by
a slave to allow additional time to complete a
channel cycle. The (n) indicates this signal is

DATA BUS AND
ASSOCIATED SIGNALS
 CHRDYRTN:
Channel Ready Return: This signal is the
AND of CD CHRDY ( n ) . It is driven by the
system logic. If all slaves drive CD CHRDY
active, this signal is active. CHRDYRTN
allows the controlling master to monitor the
ready information.
 -CMD:
-Command: This signal is driven by the
controlling master and is used to define
when data on the data bus is valid.

DATA BUS AND
ASSOCIATED SIGNALS
 -DPAREN:
-Data Parity Enable: This optional signal is driven
active by the participant when data is placed on
the data bus. This signal indicates that the data
parity signals are valid.
 DPAR0 - DPAR1:

Data Parity Bits 0 and 1: These optional signals
are driven by the participant when data is placed
on the data bus. These signals represent the odd
parity of the data bits on the data bus during
both read and write operations.

DATA BUS AND
ASSOCIATED SIGNALS
 DPAR2 - DPAR3:
Data Parity Bits 2 and 3: These optional
signals are driven by the participant when
data is placed on the data bus. These signals
represent the odd parity of the data bits on
the data bus during both read and write
operations.

DATA BUS AND
ASSOCIATED SIGNALS
 -DS 16 RTN:
-Data Size 16 Return: This signal is driven
by the system logic. This signal is the AND
of -CD DS 16 (n) from each channel
connector. If any slave drives its -CD DS 16
active, this signal is active. This signal allows
the controlling master to monitor the
information about the selected slave's data
port size.

DATA BUS AND
ASSOCIATED SIGNALS
 --DS 32 RTN:
-Data Size 32 Return: This signal is driven
by the system logic. This signal is the AND
of -CD DS 32 ( n ) from each channel
connector. If any slave drives its -CD DS 32
active, this signal is active. This signal allows
the controlling master to monitor the
information about the selected slave's data
port size.

DATA BUS AND
ASSOCIATED SIGNALS
 -MSDR:
-Multiplexed Streaming Data Request: This
optional signal is driven by a slave to
indicate to the controlling master that the
slave is capable of 64-bit streaming data
transfers.
 -SBHE:
-System Byte High Enable: This signal is
driven by the controlling master to indicate
and enable transfers of data on D8 - D15.

DATA BUS AND
ASSOCIATED SIGNALS
 -SDR(0):

-Streaming Data Request 0: This optional signal
is driven by a slave to indicate to the controlling
master that the slave is capable of streaming
data, and also indicates the maximum clocking
rate the slave supports.
 -SDR(1):

-Streaming Data Request 1: This optional signal
is driven by a slave to indicate to the controlling
master that the slave is capable of streaming
data, and also indicates the maximum clocking
rate the slave supports.

DATA BUS AND
ASSOCIATED SIGNALS
 -S0, -S1:

-Status 0, -Status 1: These status signals are driven
by the controlling master to indicate the start of a
data transfer cycle and also define the type of data
transfer.
 -TC:

-Terminal Count: This signal is driven by the DMA
controller and provides a pulse during a read or write
command to the DMA slave to indicate that the
terminal count of the current DMA channel has been
reached. This indicates to the DMA slave that this is
the last cycle to be performed. -TC is driven active
on the channel during DMA operations only.

INTERRUPT SIGNALS

 -IRQ 3-7, -IRQ 9-12, and -IRQ 14-15:
-Interrupt Request: An interrupt request is
generated when an I/O slave drives one of
the ]interrupt requestä signals low. These
signals make up the set of interrupt signals.

OTHER MICRO CHANNEL
SIGNALS
 AUDIO:
Audio Sum Node: This analog signal is the
sum of all the audio signals being driven. It
is used to drive audio signals from an
adapter to the system audio output and
other adapters.
 AUDIO GND:
Audio Ground: This is the analog ground
return signal for the audio subsystem.

OTHER MICRO CHANNEL
SIGNALS
 -CD SETUP (n):
-Card Setup: This signal is driven by system
logic to individually select channel
connectors. The (n) indicates this signal is
 -CHCK:
-Channel Check: This signal is driven active
by a slave to report an exception condition,
and optionally, it can be driven by a master.

OTHER MICRO CHANNEL
SIGNALS
 CHRESET:
Channel Reset: This signal is generated by
the system logic to reset or initialize all
adapters at power-on or when a low voltage
condition is detected. The system can also
activate this signal under program control.
 OSC:
Oscillator: This signal is a high-speed clock
driven by the system logic, with a frequency
of 14.31818 MHz +/-0.01%.

OTHER MICRO CHANNEL
SIGNALS
 -REFRESH:
-Refresh: This signal is driven by the system
logic and is used to indicate that a memory
refresh operation is in progress. Memory
slaves that do not need to perform refresh
operations do not need to receive this signal.

MICRO CHANNEL
PROCEDURES
 ARBITRATION
The arbitration procedure provides the
functions to resolve multiple requests for
control of the channel. Arbitration consists
of local arbiters, the arbitration bus and
the associated signals, and a central
arbitration control point.

MICRO CHANNEL
PROCEDURES
 DATA TRANSFER
The data transfer procedures are used to
transfer data between a controlling master
and the selected slave. The three types of
data transfer procedures are:
 Basic Transfer
 Streaming Data Transfer
 DMA Transfer

MICRO CHANNEL
PROCEDURES
 BASIC TRANSFER
The three types of basic transfer cycles
are:
 Default Cycle
 Synchronous Extended Cycle
 Asynchronous Extended Cycle.

MICRO CHANNEL
PROCEDURES
 READ AND WRITE OPERATIONS- During a
DMA write operation, the DMA slave provides
the data and the memory slave stores it.
 DMA SLAVE SELECTION- A DMA slave is
selected by either its arbitration level or
optionally by its I/O address, but not by both.
 ADDRESS DURING DMA OPERATION- During
a memory cycle, the DMA controller drives the
memory address on the address bus. During an I/
O cycle, the DMA controller must drive a known
I/O address on the bus. The I/O address must
be that of the DMA slave, or hex FFFC or 0000.

MICRO CHANNEL
PROCEDURES
 TRANSFER DATA LENGTH
Normally, the DMA transfer length is an
integral number of transfers of a width
determined by the DMA slave's data port
width. The data port address for a 16-bit
DMA slave must be on an even address
boundary; the address for a 32-bit DMA
slave must be on a four-byte address
boundary. The burden of supporting odd-
length transfers is the responsibility of the
DMA slave.

MICRO CHANNEL
PROCEDURES
 DMA PROCEDURE
 The two types of DMA procedures are:
 Single Transfer- During a data transfer, the
requesting DMA slave initiates the DMA operation by
having its arbiter drive -PREEMPT active and arbitrate
for the channel. On the low-to-high transition edge of
ARB/-GNT (start of arbitration cycle), the DMA
slave's priority level is placed on the arbitration bus.
The DMA slave competes for use of the channel as
defined in the arbitration procedure.
 Burst Transfer- The method for transferring a block
of data is similar to a single transfer DMA cycle,
except that the local arbiter for the requesting DMA
slave activates -BURST to request continued channel
ownership for a burst operation. The central
arbitration control point will not drive ARB/-GNT to
the ARB state while -BURST is active.

MICRO CHANNEL
PROCEDURES
 INTERRUPT PROCEDURE
The procedure for sharing interrupts uses a
request for interrupt services that is
detected by the level of the interrupt
request signal (level sensitive). These
procedures involve the interaction between
the hardware and an interrupt service
routine.

MICRO CHANNEL
PROCEDURES
 REFRESH
The timing of the refresh operation is
performed by system logic. -REFRESH is
driven active during a memory-read
operation to indicate that a refresh cycle is
in progress. The refresh cycle is a basic
transfer default cycle with -REFRESH
active. The timing for -REFRESH is the
same as that of the address bus.

MICRO CHANNEL
PROCEDURES
 SYSTEM CONFIGURATION
The adapter configuration procedure
consists of:
 Adapter ID and adapter configuration data
 Programmable option select (POS) registers
 Nonvolatile memory (for system configuration
data)
 Signal timing specifications.

ADAPTER SIZES

The following are overall dimensions for
Micro Channel adapters. Additional and more
detailed information (plus tolerances) is
available in Micro Channel Adapter Design.
 Type 3 Adapter
* Card height - 3.475 in.
* Card plus retainer length - 12.3 in.

ADAPTER SIZES

 Type 3 Half-card Adapter

The Type 3 half card adapter does not require a
retainer.


* Card plus retainer length - 6.35 in.
 Type 5 Adapter

The Type 5 adapter does not require a retainer.


* Card length - 13.1 in.

ADAPTER SIZES

 Type 9 Adapter
The Type 9 adapter does not require a
retainer.
* Card length - 13.1 in.

END OF MODULE

Presented by:
Abare, Donna
Amon, Gichelle
Jaravata, Benedict
Martes, Elvin

Micro channel architecture

More Related Content

What's hot (10)

Viewers also liked (12)

Similar to Micro channel architecture (20)

More from Gichelle Amon (20)

Recently uploaded (20)

Micro channel architecture
