The Singleton Pattern Presentation
Download as PPTX, PDF1 like4,578 views
The Singleton pattern ensures that only one instance of a class is created, and provides a global access point to that instance. There are many objects that only need a single instance, such as thread pools, caches, and objects used for logging or managing preferences. The Singleton pattern solves problems that could occur from instantiating multiple instances of these objects, such as inconsistent behavior or wasted resources. It works by having a class define a static method that returns its sole instance, which is created the first time the method is called.
The Singleton Pattern Presentation
- 1. Singleton Design Pattern Presented by: Patel Nilay (112342) Bareja Vishal (112354) Vaghela Sachin(112356) Shyara haresh(1123)
- 2. Intent :- the singleton pattern ensures a class has only one instance , and provides a global point of access to it. (just like a global variable, but without the downsides.) Motivation :- There are many objects we only need one of : thread pools, caches, dialog boxes, objects that handle preferences and registry setting, objects used for logging, and objects that act as devise drivers to devices like printer. In fact, many of these types of object, if we were to instantiate more than one we’d run into all sorts of problem like incorrect program behavior, overuse of resources, or inconsistent results. Singleton pattern is the solution of this problem.
- 3. Applicability :- Use the Singleton pattern when There must be exactly one instance of a class, and it must be accessible to clients from a well-known access point. When the sole instance should be extensible by subclassing, and clients should be able to use an extended instance without modifying their code. Structure :-
- 4. Participants :- • Singleton defines an instance operation that lets clients access its unique instance. May be responsible for creating its own unique instance. Collaborations :- Clients access a singleton instance solely through singleton’s instance operation.
- 5. Consequences :- The singleton pattern has several benefits: Controlled access to sole instance. - it can have strict control over how and when clients access it. Reduces name space. - it avoids polluting the name space with global variables that store sole instances. Permits refinement of operations and representation. - you can configure the application with an instance of the class you need at run time. Permit a variable number of instances. - you can use the same approach to control the number of instance that the application uses.
- 6. Implementation :- OK, so how do we implement the Singleton pattern? We'll use a static method to allow clients to get a reference to the single instance and we’ll use a private constructor!
- 7. public class singleton { private static singleton uniqueInstance; //we have a static variable to hold our one instance of the class singleton. private singleton() { } // our constructor is declared private only singleton can instantiate this class. public static singleton getInstance() { if (uniqueInstance == null) { uniqueInstance = new singleton(); } return uniqueInstance; } /*the getInstance() method gives us a way to instantiate the class and also to return an instance of it. (this is called lazy instantiation)*/ // othere useful methods here }
- 8. Note that the singleton instance is only created when needed. This is called lazy instantiation. What if two threads concurrently invoke the instance() method? Any problems? Our multithreading woes are almost trivially fixed by making getInstance() a synchronized method: public class singleton{ private static singleton uniqueInstance; private singleton() { } public static synchronized singleton getInstance() { if (uniqueInstance == null){ uniqueInstance = new singleton(); } return uniqueInstance; } // othere useful methods here }
- 9. Can we improve multithreading?
- 10. Well , we have few option… 1) Do nothing if the performance of getInstance() isn’t critical to our application 2) Move to an eagerly created instance rather than a lazily created one public class singleton{ private static singleton uniqueInstance = new singleton(); private singleton() { } public static synchronized singleton getInstance() { return uniqueInstance; } } Using this approach, we rely on the JVM to create the instance of the singleton when class is loaded.the JVM guarantees that instance will be created before any thread accesses the static uniqueInstance variable.
- 11. 3) Use “double-checked locking” to reduce the use of synchronization in getInstance() With double-checked locking, we first check to see if an instance is created, and if not, THEN we synchronize. This way, we only synchronize the first time through, just what we want. public class singleton{ private volatile static singleton uniqueInstance; /* the volatile keyword ensure that multiple threads handle the uniqueInstance variable correctly when it is being initialized to the singleton instance */ private singleton() { } public static synchronized singleton getInstance() { if ( uniqueInstance == null ){ synchronized (singleton.class) { if ( uniqueInstance == null ){ uniqueInstance = new singleton(); } } } return uniqueInstance; } }

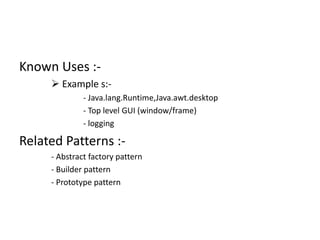

- 12. Known Uses :- Example s:- - Java.lang.Runtime,Java.awt.desktop - Top level GUI (window/frame) - logging Related Patterns :- - Abstract factory pattern - Builder pattern - Prototype pattern
- 13. Any Questions…?
- 14. Thanks
