Automated Cluster Management and Recovery for Large Scale Multi-Tenant Search Infrastructure: Presented by Nitin Sharma & Li Ding, BloomReach
- 1. O C T O B E R 1 3 - 1 6 , 2 0 1 6 • A U S T I N , T X
- 3. 3 01 Large Scale Cluster Management & Recovery for Multi-DC SolrCloud
- 4. 4 02 Abstract Cluster Management & Recovery for an enterprise grade global search Infrastructure is non-trivial. • Serving Hundreds of Millions of Documents & Queries • Multi-Tenant • Geographically distributed Data Centers • Custom SolrCloud Components - Analysis, Ranking and Faceting • Dynamic Ranking Elements – Collection/Cluster Level At BloomReach, we have built an innovative search architecture aimed at reliable Cluster Management and Recovery. • The Infrastructure is data center based. • Discovery service: DC Metadata, roles, tenants. • Real-time Active Monitoring: Robust failure detection. • Recovery Service: One step Recovery, Rollback and Backup. The presentation will describe the infrastructure in great detail and how it achieves the availability and performance while making things simple from a platform management standpoint
- 5. 5 02 About us BloomReach is a Cloud Marketing Platform. We have developed a personalized discovery platform that features applications which analyze big data to makes our customers’ digital content more discoverable, relevant and profitable. Nitin: I work on Scaling the Search Platform for Bloomreach’s big data. My relevant experience and background includes scaling real-time services for latency sensitive applications and building performance and search-quality metrics infrastructure for personalization platforms. Li : I am a member of technical staff at BloomReach's platform team. My background includes working on virtualization management platforms, building search performance infrastructures, scaling distributed services.
- 6. BloomReach’s Applications Organic Search Contentunderstanding What it does Content optimization, management and measurement Benefit Enhanced discoverability and customer acquisition in organic search What it does Personalized onsite search and navigation across devices Benefit Relevant and consistent onsite experiences for new and known users What it does Merchandising tool that understands products and identifies opportunities Benefit Prioritize and optimize online merchandising SNAP Compass
- 7. 7 01 Agenda • History - Elastic Search Infrastructure • Real Time Serving - Scaling & Availability Challenges. • Highly Available Multi DC/Multi-Tenant Architecture. • Cluster Management Suite • Replication & Ranking Config Mgmnt Service • Deployment & Recovery Service • Active Monitor Service • Auto Recovery Service
- 8. 8 01 History - Elastic Solr Cloud Infrastructure
- 9. Zookeeper SC2 Solr Compute Cloud Infrastructure – Large Scale Pipelines Backend Solr Elastic Cluster Elastic Cluster Elastic Cluster Elastic Cluster Indexing Pipeline Analysis PipelineH A F T provision provision replicate replicate Serving Solr H A F T replicate Read/write
- 10. 10 01 SC2 HAFT – Open Source github.com/bloomreach/solrcloud-haft
- 11. 11 01 ZK Replicator – Open Source github.com/bloomreach/zk-replicator
- 12. 12 01 Agenda • History - Elastic Search Infrastructure • Real Time Serving - Scaling & Availability Challenges. • Highly Available Multi DC/Multi-Tenant Architecture. • Cluster Management Suite • Replication & Ranking Config Mgmnt Service • Deployment & Recovery Service • Active Monitor Service • Auto Recovery Service
- 13. 13 01 Real Time Serving - Scaling & Availability Challenges
- 14. Real Time Serving – Dynamic Elements Zookeeper Custom SolrCloud Components & Analyzers Global Ranking Configurations Global Entities Collection Level Entities Ranking Files Ranking configs Serving SolrCloud Load Balancer
- 15. Real Time Serving - Scaling & Availability Challenges Zookeeper Custom SolrCloud Components & Analyzers Global Ranking Configurations Global Entities • Query Parsers, Analyzers • Ranking & Scoring Components • Non Optimal Performance (Latency, Mem usage) • Memory & File Handle Leaks • Stale Searchers Left open• Non Confirming Configurations • Size Limit • Solr Startup Issues Serving SolrCloud
- 16. Real Time Serving - Scaling & Availability Challenges Zookeeper Collection Level Entities • Ranking Elements Loaded once per core • Collection Reloads • Non Optimal Performance (Latency, Mem usage) • Files not versioned to support roll back • External files not sharded. Serving SolrCloud Ranking Files Ranking configs • Loads when core initializes. Misconfiguration crashes cores. • Hot swap of configs requires dynamic loading.
- 17. Real Time Serving – Recovery Challenges Zookeeper Global EntitiesCollection Level Entities Serving SolrCloud Load Balancer • The cluster goes down • Restoring older release takes time. Restarting 1000s of collections is unstable and could take hours. • Serving is affected Bad jar deployed Large ranking file • Large ranking file – Unsharded. Increases per core mem requirement. • Auto Rollback to previous version is non trivial (if new ranking file is produced by pipelines). • Serving is affected. No longer highly Available.
- 18. Real Time Serving – Multi Tenancy Challenges Zookeeper Serving SolrCloud Load Balancer Tenant 1 Tenant 2 Tenant n • Tenant is a unique <app, collection> pair in solrcloud. • Unique collection type per app. [<Zkconfig, Ranking, Query Patterns>] • Index, Config, Cluster Management strategies vary drastically Recovery: Tenant 1: No dynamic config, static large index Tenant 2: External Ranking files, aggressive index refresh & customer generated data. Tenant N: … What is a tenant?
- 19. Real Time Serving – Multi DC Challenges Zookeeper (Common) • Every data center hosts only part of the tenants based on geo. • Adding a new Geo based DC needs to have a shared zk ensemble • Selective Collection Placement is not possible • HA and Latency Guarantees are non trivial Multi Dc EU East West
- 20. 20 01 Agenda • History - Elastic Search Infrastructure • Real Time Serving - Scaling & Availability Challenges. • Highly Available Multi DC/Multi-Tenant Architecture. • Cluster Management Suite • Replication & Ranking Config Mgmnt Service • Deployment & Recovery Service • Active Monitor Service • Auto Recovery Service
- 21. 21 01 Multi DC /Multi-Tenant Architecture
- 22. Multi DC /Multi- Tenant Architecture Terminologies Definition Solr Data Center A logical group of solr nodes with metadata. The metadata contains placement, role, replication factor, apps etc. Solr Cluster Logical Grouping of Solr Data Centers. Replication API Replicates Index from Elastic Clusters onto all Datacenters Ranking File Management API Uploads ranking files to Serving Datacenters
- 23. Cluster Topology/ Data Center Definition • Where does the dc live? • How many nodes ? • Name, Type of DC. • Role of DC • Serve – Behind LB for api requests • Replicate – Gets indexing updates • LB End point • Tenants/apps • …
- 24. Automated Cluster Management Suite Solr Serving 1 LoadBalancer Solr Serving 2 Solr Backup Replication API Cluster Metadata Cluster Management API Deployment/Recovery API R/W Cluster Ops Replication API Ranking Mgmnt API Cluster Management API Deployment/Recovery API HA Mode Setup Ranking Mgmnt API
- 25. 25 01 Agenda • History - Elastic Search Infrastructure • Real Time Serving - Scaling & Availability Challenges. • Highly Available Multi DC/Multi-Tenant Architecture. • Cluster Management Suite • Replication & Ranking Config Mgmnt Service • Deployment & Recovery Service • Active Monitor Service • Auto Recovery Service
- 26. Replication Management API Solr Serving 1 LoadBalancer Solr Serving 2 Solr Backup Replication API Cluster Metadata Cluster Management API Query = operation: Replicate? App : app1 Elastic Indexers Index
- 27. Ranking File Management API Solr Serving 1 LoadBalancer Solr Serving 2 Solr Backup Ranking Mgmnt API Cluster Metadata Cluster Management API Query = operation: Serve? App : app2 Ranking Pipelines Ranking files S3 Version files and Store them

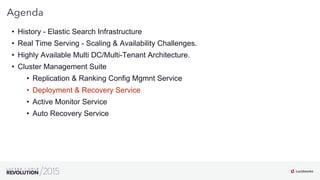

- 28. 28 01 Agenda • History - Elastic Search Infrastructure • Real Time Serving - Scaling & Availability Challenges. • Highly Available Multi DC/Multi-Tenant Architecture. • Cluster Management Suite • Replication & Ranking Config Mgmnt Service • Deployment & Recovery Service • Active Monitor Service • Auto Recovery Service
- 29. Deployment/Recovery Service (Launch New Datacenter) • Adding new DC to the cluster (Geo based) • Adding temporary capacity for increased traffic. • Expanding cluster capacity permanently.
- 30. Deployment/Recovery Service (Launch New Datacenter) Serving3 app1 Datacenter Definition Data (JSON) ZK ZK ZK SOLR SOLR SOLR SOLR Multi-threads installation Smoke Test: 1) Every collection is queryable 2) Every collection has the config it suppose to have SolrCloud Production Cluster Load Balancer Serving1 app1 Backup app1 app2 Serving2 app1 Others… Deployment/Recovery Service Cluster Metadata Index Store the config
- 31. Example of additional DC • Where does the dc live? • How many nodes ? • Name, Type of DC. • Role of DC • Serve – Behind LB for api requests • Replicate – Gets indexing updates • LB End point • Tenants/apps • …
- 32. Deployment/Recovery Service (Hard Recovery) • One or more hosts in a datacenter is down • There are network issues with one datacenter • AWS decides to retire some instances in a datacenter
- 33. Smoke Test New Serving2 Provision hosts using serving2’s config and same as creating a new dc New Serving2 Update config of new serving2 Add back to LB Deployment/Recovery Service (Hard Recovery) Load Balancer Serving1 Dc Serving2 app1 Deployment/Recovery Service Cluster Metadata SolrCloud Production Cluster Retrieve config of serving2
- 34. Deployment/Recovery Service (Soft Recovery) • One or more datacenters are having high memory usage, CPU usage and doesn’t respond to re quests • Several collections are down in a DC due to Zookeeper state or other issues • Deploy code. Our customized component needs a restart of Solr to take effect
- 35. Snapshots • A snapshot service will take snapshot of a serving dc every 24 hours • The snapshot contains global files: customized jar, Zookeeper configs and per tenant level files like ranking files, synonyms etc. This is done through HAFT API • Index is never snapshoted • The snapshot will be timestamped and stored in S3 SolrCloud Production Cluster Load Balancer Serving1 app1 Serving2 app1 Deployment/Recovery Service H A F T S3 Using HAFT to Take snapshots Store snapshot in S3 with timestamp Base: s3://cluster/production/20151008155637 s3://cluster/production/20151008/jar s3://cluster/production/20151008/zkconfig s3://cluster/production/20151008/tenant1/ranking … Global Files: Jar, ZK config Per Tenant Files
- 36. Revert to Snapshots When revert a DC back to a snapshot point, we use HAFT to replicate index from backup datacenter and all external files, global config files and per tenant based files from the snapshot S3 location
- 37. Code Deploy Mode – Soft Recovery Take a global lock of that DC SolrCloud Production Cluster Load Balancer Serving1 Dc Serving2 Dc Deployment/Recovery Service Cluster Metadata Get DC’s config, ZK, Solr hosts etc Release Lock Take out of LB Deploy code Release configs Post Deployment Tests
- 38. Disaster Recovery Mode – Soft Recovery SolrCloud Production Cluster Load Balancer Serving1 app1 Serving2 app1 Get the global lock Take dc out of LB Rolling restarts Solr Check host and collection health Pass? Add to LB Delete all files of Zookeeper and Solr, wipe out everything Install Zookeeper and Solr Setup global files using current files or snapshot files Using HAFT to replicate all collections with current or snapshot per tenant files and indexes from backup Smoke Test
- 39. 39 01 Agenda • History - Elastic Search Infrastructure • Real Time Serving - Scaling & Availability Challenges. • Highly Available Multi DC/Multi-Tenant Architecture. • Cluster Management Suite • Replication & Ranking Config Mgmnt Service • Deployment & Recovery Service • Active Monitor Service • Auto Recovery Service
- 40. Active Monitor Service • We are using SPM to monitor JVM usage, CPU load on each S olr host as well Sematxt • Runs every five minutes • Check if each Zookeeper node is accessible through HAFT api. If more than half of the zookeeper node is down, page • Check if every Solr node is accessible and every collection on that node is able to query. If a node is unhealthy, page • Checks all data centers Node level monitorSolrCloud Production Cluster Load Balancer Serving1 dc Serving2 dc Others… Auto Recovery Service Active Monitor Service
- 41. Active Monitor Service • Runs every five minutes • Check if serving data centers with the same app have same config files • Check if all datacneters have same index • Either one failed will page us Cluster level monitorSolrCloud Production Cluster Active Monitor Service Auto Recovery Service H A F T Serving1 app1 ZooKeeper Serving1 app1 ZooKeeper "test-tenant":{ "shards":{"shard1":{ "range":"80000000-7fffffff", "state":"active", "replicas":{"core_node1":{ "state":"active", "base_url":"http://10.99.99.99:8983/solr ", "core":"test-tenant_shard1_replica1", "node_name":"10.99.99.99:8983_solr", "leader":"true"}}}}, "maxShardsPerNode":"500", "router":{"name":"compositeId"}, "replicationFactor":"1"}, "test-tenant":{ "shards":{"shard1":{ "range":"80000000-7fffffff", "state":"active", "replicas":{"core_node1":{ "state":"active", "base_url":"http://10.99.99.99:8983/solr ", "core":"test-tenant_shard1_replica1", "node_name":"10.99.99.99:8983_solr", "leader":"true"}}}}, "maxShardsPerNode":"500", "router":{"name":"compositeId"}, "replicationFactor":"1"},
- 42. 42 01 Agenda • History - Elastic Search Infrastructure • Real Time Serving - Scaling & Availability Challenges. • Highly Available Multi DC/Multi-Tenant Architecture. • Cluster Management Suite • Replication & Ranking Config Mgmnt Service • Deployment & Recovery Service • Active Monitor Service • Auto Recovery Service
- 43. Auto Recovery Service (In Progress) • One ZK node is down • One Solr node is down • Serving1 and Serving2 has different number of ducments • Serving1 and Serving2 has different versions of config files • Serving1 JVM usage is high • Serving1’s machines are not accessible Active Monitor Service • Restart ZK, check if ZK is accessible • Restart Solr • Replicate from backup datacenter • Using versioned config files and HAFT api to recreate the files • Soft recovery or rollback • Hard recovery Auto Recovery Service Only Page Us Only When Automation Failed
- 44. 44 01 Questions?
