ITEC 1011 Introduction to Information Technologies
1. Number Systems
Chapt. 2
Location in
course textbook

Common Number Systems
System Base Symbols
Used by
humans?
Used in
computers?
Decimal 10 0, 1, … 9 Yes No
Binary 2 0, 1 No Yes
Octal 8 0, 1, … 7 No No
Hexa-
decimal
16 0, 1, … 9,
A, B, … F
No No

Quantities/Counting (1 of 3)
Decimal Binary Octal
Hexa-
decimal
0 0 0 0
1 1 1 1
2 10 2 2
3 11 3 3
4 100 4 4
5 101 5 5
6 110 6 6
7 111 7 7
p. 33

Hexa-
decimal
8 1000 10 8
9 1001 11 9
10 1010 12 A
11 1011 13 B
12 1100 14 C
13 1101 15 D
14 1110 16 E
15 1111 17 F

Hexa-
decimal
16 10000 20 10
17 10001 21 11
18 10010 22 12
19 10011 23 13
20 10100 24 14
21 10101 25 15
22 10110 26 16
23 10111 27 17 Etc.

Conversion Among Bases
• The possibilities:
Hexadecimal
Decimal Octal
Binary
pp. 40-46

Quick Example
2510 = 110012 = 318 = 1916
Base

Decimal to Decimal (just for fun)
Hexadecimal
Decimal Octal
Binary
Next slide…

12510 => 5 x 100
= 5
2 x 101
= 20
1 x 102
= 100
125
Base
Weight

Binary to Decimal
Hexadecimal
Decimal Octal
Binary

Binary to Decimal
• Technique
– Multiply each bit by 2n
, where n is the “weight”
of the bit
– The weight is the position of the bit, starting
from 0 on the right
– Add the results

Example
1010112 => 1 x 20
= 1
1 x 21
= 2
0 x 22
= 0
1 x 23
= 8
0 x 24
= 0
1 x 25
= 32
4310
Bit “0”

Octal to Decimal
Hexadecimal
Decimal Octal
Binary

Octal to Decimal
• Technique
, where n is the “weight”
of the bit
from 0 on the right
– Add the results

Example
7248 => 4 x 80
= 4
2 x 81
= 16
7 x 82
= 448
46810

Hexadecimal to Decimal
Hexadecimal
Decimal Octal
Binary

Hexadecimal to Decimal
• Technique
, where n is the
“weight” of the bit
from 0 on the right
– Add the results

Example
ABC16 => C x 160
= 12 x 1 = 12
B x 161
= 11 x 16 = 176
A x 162
= 10 x 256 = 2560
274810

Decimal to Binary
Hexadecimal
Decimal Octal
Binary

Decimal to Binary
• Technique
– Divide by two, keep track of the remainder
– First remainder is bit 0 (LSB, least-significant
bit)
– Second remainder is bit 1
– Etc.

Example
12510 = ?2
2 125
62 1
2
31 0
2
15 1
2
7 1
2
3 1
2
1 1
2
0 1
12510 = 11111012

Octal to Binary
Hexadecimal
Decimal Octal
Binary

Octal to Binary
• Technique
– Convert each octal digit to a 3-bit equivalent
binary representation

Example
7058 = ?2
7 0 5
111 000 101
7058 = 1110001012

Hexadecimal to Binary
Hexadecimal
Decimal Octal
Binary

Hexadecimal to Binary
• Technique
– Convert each hexadecimal digit to a 4-bit
equivalent binary representation

Example
10AF16 = ?2
1 0 A F
0001 0000 1010 1111
10AF16 = 00010000101011112

Decimal to Octal
Hexadecimal
Decimal Octal
Binary

Decimal to Octal
• Technique
– Divide by 8
– Keep track of the remainder

Example
123410 = ?8
8 1234
154 2
8
19 2
8
2 3
8
0 2
123410 = 23228

Decimal to Hexadecimal
Hexadecimal
Decimal Octal
Binary

Decimal to Hexadecimal
• Technique
– Divide by 16
– Keep track of the remainder

Example
123410 = ?16
123410 = 4D216
16 1234
77 2
16
4 13 = D
16
0 4

Binary to Octal
Hexadecimal
Decimal Octal
Binary

Binary to Octal
• Technique
– Group bits in threes, starting on right
– Convert to octal digits

Example
10110101112 = ?8
1 011 010 111
1 3 2 7
10110101112 = 13278

Binary to Hexadecimal
Hexadecimal
Decimal Octal
Binary

Binary to Hexadecimal
• Technique
– Group bits in fours, starting on right
– Convert to hexadecimal digits

Example
10101110112 = ?16
10 1011 1011
2 B B
10101110112 = 2BB16

Octal to Hexadecimal
Hexadecimal
Decimal Octal
Binary

Octal to Hexadecimal
• Technique
– Use binary as an intermediary

Example
10768 = ?16
1 0 7 6
001 000 111 110
2 3 E
10768 = 23E16

Hexadecimal to Octal
Hexadecimal
Decimal Octal
Binary

Hexadecimal to Octal
• Technique
– Use binary as an intermediary

Example
1F0C16 = ?8
1 F 0 C
0001 1111 0000 1100
1 7 4 1 4
1F0C16 = 174148

Exercise – Convert ...
Don’t use a calculator!
Hexa-
decimal
33
1110101
703
1AF
Skip answer Answer

Exercise – Convert …
Hexa-
decimal
33 100001 41 21
117 1110101 165 75
451 111000011 703 1C3
431 110101111 657 1AF
Answer

Common Powers (1 of 2)
• Base 10
Power Preface Symbol
10-12
pico p
10-9 nano n
10-6 micro 
10-3
milli m
103 kilo k
106
mega M
109 giga G
1012 tera T
Value
.000000000001
.000000001
.000001
.001
1000
1000000
1000000000
1000000000000

Common Powers (2 of 2)
• Base 2
Power Preface Symbol
210 kilo k
220 mega M
230 Giga G
Value
1024
1048576
1073741824
• What is the value of “k”, “M”, and “G”?
• In computing, particularly w.r.t. memory,
the base-2 interpretation generally applies

Example
/ 230
=
In the lab…
1. Double click on My Computer
2. Right click on C:
3. Click on Properties

Exercise – Free Space
• Determine the “free space” on all drives on
a machine in the lab
Drive
Free space
Bytes GB
A:
C:
D:
E:
etc.

Review – multiplying powers
• For common bases, add powers
26
 210
= 216
= 65,536
or…
26
 210
= 64  210
= 64k
ab
 ac
= ab+c

Binary Addition (1 of 2)
• Two 1-bit values
pp. 36-38
A B A + B
0 0 0
0 1 1
1 0 1
1 1 10
“two”

Binary Addition (2 of 2)
• Two n-bit values
– Add individual bits
– Propagate carries
– E.g.,
10101 21
+ 11001 + 25
101110 46
1
1

Multiplication (1 of 3)
• Decimal (just for fun)
pp. 39
35
x 105
175
000
35
3675

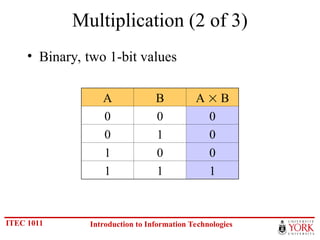

• Binary, two 1-bit values
A B A  B
0 0 0
0 1 0
1 0 0
1 1 1

• Binary, two n-bit values
– As with decimal values
– E.g.,
1110
x 1011
1110
1110
0000
1110
10011010

Fractions
• Decimal to decimal (just for fun)
pp. 46-50
3.14 => 4 x 10-2
= 0.04
1 x 10-1
= 0.1
3 x 100
= 3
3.14

Fractions
• Binary to decimal
pp. 46-50
10.1011 => 1 x 2-4
= 0.0625
1 x 2-3
= 0.125
0 x 2-2
= 0.0
1 x 2-1
= 0.5
0 x 20
= 0.0
1 x 21
= 2.0
2.6875

Fractions
• Decimal to binary
p. 50
3.14579
.14579
x 2
0.29158
x 2
0.58316
x 2
1.16632
x 2
0.33264
x 2
0.66528
x 2
1.33056
etc.
11.001001...

Exercise – Convert ...
Don’t use a calculator!
Hexa-
decimal
29.8
101.1101
3.07
C.82
Skip answer Answer

Exercise – Convert …
Hexa-
decimal
29.8 11101.110011… 35.63… 1D.CC…
5.8125 101.1101 5.64 5.D
3.109375 11.000111 3.07 3.1C
12.5078125 1100.10000010 14.404 C.82
Answer
