ENCLOSURES
Containing Boxes
& Enclosure Box

95
ENCLOSURES
Plastic material and Protection grade of Boxco
Features of plastic material of BOXCO
1. It has few discoloration and decolorization even used for a long time at outside owing to addition of Ultraviolet Stabilizer.
2. It protects electric/electronic instruments by using the material with addition of static electricity protecting material.
3. It is easy to make without breakage in hole and press process and it is very strong against outside impact as it is made
of high impact resistant material.
4. We can supply optimized products which will be made of orderid material you request considering purpose amd area
used besides standard spectification.
Combustion retardant property of BOXCO plastic material
ABS (Grey color) : 94-HB (Standard) or 94-V-0 (Options applied for terminal block)
ABS (Grayish Blue color) : 94-5VB or 94-V-0
PC / ABS : 94-5VA
PC (Transparent) : 94-HB (Standard) or 94-V-0 (Options applied for terminal block)
PC (Grey) : 94-V-0
Materials of BOXCO plastic products
ABS : Acrylonitrile Butadiene Styrene PC/ABS : Polycarbonate + Acrylonitrile Butadiene Styrene
PC (Transparent) : Polycarbonate PC (Grey) : Polycarbonate or Polycarbonate + Glass Fiber
PBT / PC : Polybutylene Terephthalate + Polycarbonate
**Material cn be changed for quality improving.
Plasticmaterials by model
BC-AGP, AGH, AGS. AGM : Cover (ABS), Base (ABS) BC-ATP, ATH, ATS, ATM : Cover (PC), Base (ABS)
BC-PGP, PGH, PGS, PGM : Cover (PC/ABS), Base(PC/ABS) BC-PTP, PTH, PTS, PTM : Cover (PC), Base (PC/ABS)
BC-CGP, CGH, CGS, CGM : Cover (PC), Base (PC) BC-CTP, CTH, CTS, CTM : Cover (PC), Base (PC)

96
ENCLOSURES
P series-draw latch, intergrated hinge
It is very strong, easy to remove cover and
convenient to make hole or print as main parts
of draw latch are made of stainless steel and
hinge is made of plastic in integrated type
P series - roof function
It is protruded at base. It protects
penetration of water at ordinary times
and penetration of udst when opening/
closing the cover.
H Seriew - SUS Latch
It prevents loosening by vibration etc.
It has double lock system.
No : H75, H65, H55
H series - SUS Hinge
T ensure durability SUS hinge has
various application toeach size of
enclousre.
H series - Rubber washer
It is used for water proofing or dust
proofing in installation of hinge, draw
latch or other parts.
S series - Cover bolt connecting part
It is strong as screw thred was made
in injection molding.
S series - Slide marking
It was made to make hold only with
small. drill in installation of hinge or
draw latch.
S series - General marking
It has excellent airtightness due to
accurate puncture on marking part in
installation of hinge or draw latch
M series - Screw type
It is designed to have lower surface of
the cover considering attachment of
membrane keyboard.
Bracket attachment part
It helps to fix the box tightly as brass
insert is inserted in injection molding.
SUS bracket
You can use this bracket to fix the box
at the wall.
No : B60, B50, B40
Back Panel connecting part
Inner panel equipped with heavy parts
can be fixed tightly as brass insert is
inserted in injection molding
Plastic Back Panel
It is easy to make hole and it has
excllent insulation Property.
It is made to be strong with ABS
material.
Key ring
It can hang a lock on enclosure.
No : K40
Lock
Embedded lock
No : SK
Plastic lock
Water proof lock
No : PK
P series - draw latch lock
It is intergrated with draw and key lock
for P type
Gasket
It has excellent water and dust
proofing perfomance as it injects
gasket solution with super predise
CNC robot machine.
Characteristics of BOXCO plastic enclosure

97
ENCLOSURES
Model and size
SizeDivision W1 W2 W3 H1 H2 H3 D1 D2 D3
80x130x35 80 62 40 130 112 90 25 10 21.5
80×130×60 80 62 40 130 112 90 50 10 46.5
80×130×75 80 62 40 130 112 90 65 10 61.5
80×130×85 80 62 40 130 112 90 50 35 71.5
80×130×100 80 62 40 130 112 90 90 10 87.5
80×130×125 80 112 40 130 112 90 90 35 111.5
130x130x35 130 112 90 130 112 90 25 10 21.5
130×130×60 130 112 90 130 112 90 50 10 46.5
130×180×35 130 112 90 180 162 140 25 10 21.5
130×180×60 130 132 90 180 162 140 50 10 46.5
150×180×60 150 162 110.5 180 162 140 50 10 45.5
180×180×60 180 162 140 180 162 140 50 10 45.5
180×180×75 180 162 140 180 162 140 65 10 59.5
180×180×100 180 162 140 180 162 140 90 10 84.5
180×180×125 180 162 140 180 162 140 115 10 109.5
180×255×75 180 162 140 255 237 201.5 50 15 59.5
180×255×100 180 162 140 255 237 201.5 85 15 84.5
180×255×125 180 162 140 255 237 201.5 110 15 109.5
M Series
BASE
COVER
BASE
COVER
+
BASE
MOUNTING
PLATE
Dimension ± 1mm
The dimension of mounting plate is based on th plastic mounting plate
and the dimension of around bracket is steel mounting plate
Model and size (cover included) Product model Plate Model Plate Size
Width
XLength
XHeight
(mm)
Width
XLength
XHeight
(inch)
ABS PC/ABS PC
Steel
mounting
plate 1.6mm
Plastic
mounting
plate
3mm~4.5
M1 M2G : Grey,T : Transperent G : Grey,T : Transperent G : Grey,T : Transperent
80x130x35 3.15×5.12×1.38 BC-A버M-081303 BC-P버M-081303 BC-C버M-081303 0813 S (49) (98)
80×130×60 3.15×5.12×2.36 BC-A버M-081306 BC-P버M-081306 BC-C버M-081306 0813 S (49) (98)
130x130x35 5.12×5.12×1.38 BC-A버M-131303 BC-P버M-131303 BC-C버M-131303 1313 S (98) (98)
130×180×35 5.12×7.09×1.38 BC-A버M-131803 BC-P버M-131803 BC-C버M-131803 1318 S 1318 P 113 161
130×180×60 5.12×7.09×2.36 BC-A버M-131806 BC-P버M-131806 BC-C버M-131806 1318 S 1318 P 113 161

98
ENCLOSURES
SizeDivision W1 W2 W3 W4 H1 H2 H3 D1 D2 D3
90×120×70 90 77.5 50 0 128.4 80 69 50 20 51.5
90×120×85 90 77.5 50 0 128.4 80 69 65 20 66.5
100×150×70 100 87.5 60 0 158.4 110 99 50 20 51.5
100×150×85 100 87.5 60 0 158.4 110 99 65 20 66.5
110x210x75 110 87.7 70 0 218.4 170 158 55 20 56.5
110x210x100 110 87.7 70 0 218.4 170 158 80 20 81.5
110x260x75 110 87.7 70 0 268.4 220 208 55 20 56.5
110x260x100 110 87.7 70 0 268.4 220 208 80 20 81.5
135×155×85 135 115 105 0 150 119.3 110 60 20 67.5
135×185×85 135 108 95 0 193.4 145 140 65 20 67.5
135X185X100 135 108 95 0 193.4 145 140 80 20 82.5
150×150×90 150 130 120 0 150 120 110 70 20 71.5
150x150x120 150 130 120 0 150 120 110 100 20 101.5
160×210×100 160 137 120 0 218.4 170 160 75 25 81.5
160×210×130 160 137 120 0 218.4 170 160 105 25 111.5
160×260×100 160 144.6 120 0 268.4 220 210 75 25 85.5
160×260×130 160 144.6 120 0 268.4 220 210 105 25 111.5
170×220×110 170 149.6 132 0 228.4 182 160 80 30 93
170×270×110 170 149.6 132 0 278.4 232 210 80 30 93
190×280×100 190 173.5 148 120 288.4 238 210 70 30 81.5
190×280×140 190 173.4 148 120 288.4 238 210 110 30 111.5
200X300X130 200 181.8 152 129 308.4 252 226 100 30 108.5
200×300×150 200 181.8 152 129 308.4 252 226 120 30 128.5
200×300×180 200 181.8 152 129 308.4 252 226 150 30 158.5
210×210×100 210 192.3 170 120 218.4 170 150 75 25 82
210×210×130 210 192.3 170 120 218.4 170 150 105 25 112
250×350×150 250 231.8 202 180 358.4 302 271 120 30 130
250×350×180 250 231.8 202 180 358.4 302 271 150 30 160
280×280×130 280 264.1 238 210 288.4 238 210 100 30 108
280×380×130 280 264.1 238 210 388.4 338 310 100 30 108
300×300×150 300 283.3 252 230 308.4 252 219 120 30 131.5
300×300×180 300 283.3 252 230 308.4 252 219 150 30 161.5
300×400×120 300 275.5 252 228 408.4 352 325 90 30 98.5
300×400×150 300 275.5 252 228 408.4 352 325 120 30 128.5
300×400×180 300 275.5 252 228 408.4 352 325 150 30 158.5
350×350×150 350 333.8 302 270 358.4 302 270 120 30 132
350×350×180 350 333.8 302 270 358.4 302 270 150 30 162
350×450×120 350 325.4 300 274 457.4 400 365 90 30 98
350×450×160 350 325.4 300 274 457.4 400 365 130 30 138
350×450×200 350 325.4 300 274 457.4 400 365 170 30 178
400x500x200 400 370.5 352 328 511.4 452 428 170 30 178
400×500×160 400 370.5 352 328 511.4 452 428 130 130 137
400x600x180 401 370.5 352 328 611.4 552 525 150 30 158
400x600x230 410 370.5 352 328 611.4 552 525 200 30 208
530×630×185 530 487.4 462 426 641.4 562 526 150 35 161
530×630×255 530 487.4 462 426 641.4 562 526 220 35 231
530×730×185 530 487.4 462 426 741.4 662 626 150 35 161
530×730×255 530 487.4 462 426 741.4 662 626 220 35 231
630×830×185 630 581.9 562 526 841.4 762 726 150 35 161
630×830×285 630 581.9 562 526 841.4 762 726 250 35 261
P Series
Product characteristics
1. It is designed to prevent the penetration of rain or dust
perfectly double as roof is protruded from top and bottom of
the base.
2. It is easy to separate cover and base so that user can
attach or detach them for processing and printing.
3. Insert hinge into the product
and hinge connecting pin and
important parts of draw latch are
made of stainless steel so that
it is very strong and corrosion
resistant.
BASE
COVER
BASE
COVER
+
BASE
MOUNTING
PLATE
Specification
IP 66/67 IK 07/08
ABS : -40~+85 PC : -40~+120
ABS : 94-HB PC / ABS : 94-V-0~5VA
PC : 94-HB, 94-V-0~5VA
Dimension ± 1mm

99
ENCLOSURES
WidthXLength
XHeight
(mm)
WidthXLength
XHeight
(inch)
ABS PC/ABS PC Steel
mounting
plate
1.6mm
Plastic
mounting
plate
3mm~4.5
M1 M2G:Grey , T:Transperent G:Grey , T:Transperent G:Grey , T:Transperent
90×120×70 3.54×4.72×2.76 BC-A버P-091207 BC-P버P-091207 BC-C버P-091207 0912 S 0912 P 65 95
110x210x75 4.33×8.27×2.95 BC-A버P-112107 BC-P버P-112107 BC-C버P-112107 1121 S 1121 P 88 189
135X185X100 5.12X7.09 X3.94 BC-A버P-131810 BC-P버P-131810 BC-C버P-131810 1318 S 1318 P 113 161
150x150x120 5.91x5.91x4.72 BC-A버P-151512 BC-P버P-151512 BC-C버P-151512 1515 S 1515 P 123 123
200X300X130 7.87×11.81×5.12 BC-A버P-203013 BC-P버P-203013 BC-C버P-203013 2030 S 2030 P 166 266
280×280×130 11.02×11.02×5.12 BC-A버P-282813 BC-P버Pw-282813 BC-C버P-282813 2828 S 2828 P 248 248
400x500x200 15.75×19.69x7.87 BC-A버P-405020 BC-P버P-405020 BC-C버P-405020 4050 S 4050 P 358 458
400×500×160 2087×24.80×7.28 BC-A버P-405016 BC-P버P-405016 BC-C버P-405016 4050 S 4050 P 358 458
630×830×185 24.80×32.68×7.28 BC-A버P-608018 BC-P버P-608018 BC-C버P-608018 6080 S 550 755
630×830×285 24.80×32.68×11.22 BC-A버P-608028 BC-P버P-608028 BC-C버P-608028 6080 S 550 755
Model and Size
Accessories
Steel mounting
plate
(zinc plating)
Plastic
mounting plate
(ABS)
Key ring (K40) Locker (SK) Wall mounting
bracket (B40,
B50, B60)
(PSK)Plastic locker
(PK)
Vent (V60, V80) Plastic Bracket
(PB50)
P Series

100
ENCLOSURES
SizeDivision W1 W2 W3 W4 H1 H2 H3 H4 D1 D2 D3
80×110×70 80 74 62 0 110 104 92 80 50 20 53
110×80×70 110 104 92 80 80 74 62 0 50 20 52.5
80×110×85 80 74 62 0 110 104 92 80 50 35 68
110×80×85 110 104 92 80 80 74 62 0 50 35 67.5
80×130×70 80 74 62 0 130 124 112 100 50 20 52.5
130×80×70 130 124 112 100 80 74 62 0 50 20 53
80×130×85 80 74 62 0 130 124 112 100 50 35 67.5
130×80×85 130 124 112 100 80 74 62 0 50 35 68
80×180×70 80 74 62 0 180 174 162 150 50 20 52.5
180×80x70 180 174 162 150 80 74 62 0 50 20 53
80×180×85 80 74 62 0 180 174 162 150 50 35 67.5
180x80x85 180 174 162 150 80 74 62 0 50 35 68
80×250×70 80 74 62 0 250 244 232 220 50 20 52.5
250x80x70 250 244 232 220 80 74 62 0 50 20 52
80×250×85 80 74 62 0 250 244 232 220 50 35 67.5
250x80x85 250 244 232 220 80 74 62 0 50 35 67
100×100×75 100 94 82 0 100 94 82 60 55 20 57.5
100×100×100 100 94 82 0 100 94 82 60 80 20 82.5
125×125×75 125 119 105 0 125 119 105 70 55 20 58
125×125×100 125 119 105 0 125 119 105 70 80 20 83
125×175×75 127 121 109 0 175 169 157 140 50 25 58
175×125×75 175 169 157 140 127 121 109 0 50 25 57.5
125×175×100 127 121 109 0 175 169 157 140 50 50 83
175×125×100 175 169 157 140 127 121 109 0 50 50 82.5
140×170×95 143 37 122 0 173 167 152 130 75 20 77
170×140×95 173 167 152 130 143 137 122 0 75 20 77.5
140×230×95 140 134 122 0 230 224 212 190 75 20 77
230x140x95 230 224 212 190 140 134 122 0 7 25 77
150×150×75 150 144 110 0 150 144 132 110 55 20 57.5
150×150×100 150 144 110 0 150 144 132 110 80 20 82.5
150×200×75 150 142 132 0 200 192 182 160 55 20 58
200x150x75 200 192 182 160 150 142 132 0 55 20 58
150×200×100 150 142 132 0 200 192 182 160 80 20 83
200x150x100 200 192 182 160 150 142 132 0 80 20 83
150×200×130 150 142 132 0 200 192 182 160 80 50 111
200x150x130 200 192 182 160 150 142 132 0 110 20 111.5
150x200x160 150 142 132 0 200 192 182 160 110 50 149
200x150x160 200 192 182 160 150 142 132 0 110 50 149
150×250×100 150 142 132 0 250 242 232 210 80 20 83.5
250x150x100 250 242 232 210 150 142 132 0 80 20 82.5
150×250x130 150 142 132 0 250 242 232 210 80 50 113.5
250x150x130 250 242 232 210 150 142 132 0 80 50 112.5
200x200x100 200 193 132 0 200 193 182 120 80 20 82
200x200x130 200 193 132 0 200 193 182 120 110 20 11
200x200x160 200 193 132 0 200 193 182 120 110 50 14
H Series
Small size
1. It will not be damaged even using for a long time
because stainless steel hinge and draw latch are equipped.
3. We reinforce the
thickness and structure
to be used longer time.
BASE
COVER
BASE
COVER
+
BASE
MOUNTING
PLATE
Specification
IP 66/67 IK 07/08
ABS : -40~+85 PC : -40~+120
ABS : 94-HB PC / ABS : 94-V-0~5VA
PC : 94-HB, 94-V-0~5VA
Dimension ± 1mm
andthe dimension of around bracket is steel mounting plate

101
ENCLOSURES
Width
XLength
XHeight
(mm)
Width
XLength
XHeight
(inch)
ABS PC/ABS PC Steel
mounting
plate
1.6mm
Plastic
mounting
plate
3mm~4.5
80×110×70 3.15×4.33×2.76 BC-A버H-081107 BC-P버H-081107 BC-C버H-081107 0811 S 0811 P 64 94
180×80x70 7.09×3.15×2.76 BC-A버H-180807 BC-P버H-180807 BC-C버H-180807 0818 S 0818 P 65 165
180x80x85 7.09×3.15×3.35 BC-A버H-180808 BC-P버H-180808 BC-C버H-180808 0818 S 0818 P 65 165
200x150x160 7.87x5.91x6.30 BC-A버H-201516 BC-P버H-201516 BC-C버H-201516 2020 S 2020 P 129 179
150×250x130 5.91×9.84×5.12 BC-A버H-152513 BC-P버H-152513 BC-C버H-152513 1525 S 1525 P 129 224
Model and size
Accessories
Steel mounting
plate
(zinc plating)
Plastic
mounting plate
(ABS)
Key ring
(K40)
Locker (SK) Wall mounting
bracket
(B40, B50, B60)
Draw latch
(M55)
Plastic locker
(PK)
Vent
(V60, V80)
Plastic Bracket
(PB50)
Hinge (H55)
H Series Small size

102
ENCLOSURES
190×190×130 190 170 165 120 190 170 165 120 98 30 112
190×280×130 190 170 165 120 280 266 255 210 98 30 112
280×190×130 280 266 255 210 190 170 165 120 98 30 112
190×280×180 190 170 165 120 280 266 255 210 150 30 159
280×190×180 280 266 255 210 190 170 165 210 150 30 159
190×380×130 190 170 165 120 380 359 355 310 98 30 109
380×190×130 380 359 355 310 190 170 165 120 98 30 109
190×380×180 190 170 165 120 380 360 355 310 150 30 159
380×190×180 380 359 355 310 190 170 165 120 150 30 159
280×280×130 280 265 365 210 280 210 255 210 98 30 112
280×340×130 280 259 254.7 210 340 319 315 270 100 30 111
340×280×130 340 319 315 270 280 259 254.7 210 100 30 111
280×380×130 280 266 255 210 380 359 345 310 98 30 111
380×280×130 380 359 355 310 280 260 255 210 98 30 111
280×380×180 280 266 255 210 380 359 355 310 148 30 161.5
380×280×180 380 359 355 310 280 266 255 210 148 30 161.5
280×560×130 280 266 255 210 560 535 505 490 100 30 120
560×280×130 560 535 505 490 280 266 255 210 100 30 120
330×430×180 330 310 266 250 430 410 386 350 150 30 160
430×330×180 430 410 386 350 330 10 266 250 150 30 160
380×560×180 380 366 355 310 560 535 505 490 150 30 160
560×380×180 560 535 505 490 360 366 355 310 150 30 160
H Series
Medium size
2. It has excellent airtightness as it was designed
considering bolt oper/close type, hinge made of stainless
steel and equipment of draw latch.
3. It can be used in inferior or
dangerous industrial field by using strong
meterial and structure.
BASE
COVER
BASE
COVER
+
BASE
MOUNTING
PLATE
Specification
IP 66/67 IK 07/08
ABS : -40~+85 PC : -40~+120
ABS : 94-HB PC / ABS : 94-V-0~5VA
PC : 94-HB, 94-V-0~5VA
Dimension ± 1mm

103
ENCLOSURES
Model and size (cover included) Product model Plate Model Plate
Size
Width
XLength
XHeight
(mm)
Width
XLength
XHeight
(inch)
ABS PC/ABS PC Steel
mounting
plate
1.6mm
Plastic
mounting
plate
3mm~4.5
280×190×180 11.02×7.48x7.09 BC-A버H-281918 BC-P버H-281918 BC-C버H-281918 2819 S 2819 P 159 248
190×380×130 7.48×14.96×5.12 BC-A버H-193813 BC-P버H-193813 BC-C버H-193813 1938 S 1938P 159 348
380×280×180 14.96×11.02×7.09 BC-A버H-382818 BC-P버H-382818 BC-C버H-382818 2838S 2838 P 348 348
280×560×130 11.02×22.05×5.12 BC-A버H-285613 BC-P버H-285613 BC-C버H-285613 2856 S (232)(535)
330×430×180 12.99x16.93x7.09 BC-A버H-334318 BC-P버H-334318 BC-C버H-334318 3343 S 3343 P (295)(395)
430×330×180 16.93×12.99×7.09 BC-A버H-433318 BC-C버H-433318 BC-C버H-433318 4333 S 3343 P (295)(395)
Accessories
Steel mounting plate
(zinc plating)
Plastic mounting plate
(ABS)
Key ring (K40) Locker (SK) Wall mounting bracket
(B40, B50, B60)
Draw latch (M65, M75)
Plastic locker (PK)
Hinge (H65, H75) Vent (V60, V80) Plastic Bracket (PB50)
Model and size
* 560X280X130, 560X380X180 is for non water proof product.
H Series Medium size

104
ENCLOSURES
H Series
Medium and large size
1. It will not be damaged even using for a long time because stainless steel hinge and draw latch are equipped.
2. It secures perfect airtightness by preventing sink down when opening or closing by increasing the size of
hinge and draw latch by size increasing of the products.
3. It can be used in inferior or dangerous industrial field by using strong meterial and structure.
BASE
COVER
BASE
COVER
+
BASE
MOUNTING
PLATE
Specification
IP 66/67 IK 07/08
ABS : -40~+85 PC : -40~+120
ABS : 94-HB PC / ABS : 94-V-0~5VA
PC : 94-HB, 94-V-0~5VA
Dimension ± 1mm
225×275×120 225 219 204.6 183 276 270 234 210 90 30 98
275×225×120 276 270 234 210 225 219 204 183 90 30 98
200×300×150 200 180 152 129 300 280 252 226 120 30 128.5
300×200×150 300 280 252 226 200 180 152 129 120 30 128.5
200×300×180 200 180 152 129 300 280 252 226 150 30 158.5
300×200×180 300 280 252 226 200 180 152 129 150 30 158.5
250×350×150 250 230 206 180 350 330 306 269 120 30 128.5
350×250×150 350 330 306 269 250 230 206 180 120 30 128.5
300×400×150 300 280 252 230 400 380 352 325 120 30 128
400×300×150 400 380 352 325 300 280 252 230 120 30 128
300×400×180 300 280 252 230 400 380 352 325 150 30 158
400×300×180 400 380 352 325 300 280 252 230 150 30 158
350×450×160 350 323 298 276 450 423 398 376 130 30 138
450×350×160 450 423 398 376 350 323 298 276 130 30 138
350×450×200 350 323 298 276 450 423 398 376 170 30 178
450×350×200 450 423 398 376 350 323 298 276 170 30 178
400×500×200 402 375 352 328 502 475 452 428 170 30 178
500×400×200 502 475 452 428 402 375 352 328 170 30 178
400×600×230 402 375 352 328 602 575 552 525 200 30 208
600×400×230 602 575 552 525 402 375 352 328 200 30 208

105
ENCLOSURES
Model and size (cover included) Product model Plate Model Plate
Size
Width
XLength
XHeight
(mm)
Width
XLength
XHeight
(inch)
ABS PC/ABS PC Steel
mounting
plate
1.6mm
Plastic
mounting
plate
3mm~4.5
Accessories
Steel mounting plate
(zinc plating)
Plastic mounting plate
(ABS)
Key ring (K40) Locker (SK) Wall mounting bracket
(B40, B50, B60)
Draw latch (M65, M75)
Plastic locker (PK)
Hinge (H65, H75) Vent (V60, V80) Plastic Bracket (PB50)
Model and size
* 600X400X230 is for non water proof product.
H Series Medium and large size

106
ENCLOSURES
50×65×45 50 44 37 65 59 52 40 30 15 29.5 53
50×65x55 50 44 37 65 59 52 40 40 15 39.5 68
65×95×55 65 59 47 95 89 77 65 40 15 39.5 52.5
75×105×55 75 69 57 105 99 87 75 40 15 39.5 67.5
80×80×60 80 74 62 80 94 62 50 45 15 43 52.5
80×110×45 80 74 62 110 104 92 80 25 20 28 67.5
80×110×70 80 74 62 110 104 92 80 50 20 53 52.5
80×110×85 80 74 62 110 104 92 80 50 35 68 67.5
80×130×70 80 74 62 130 124 112 100 50 20 53 57.5
80×130×85 80 74 62 130 124 112 100 50 35 68 82.5
80×180×70 80 74 62 180 174 162 150 50 20 53 52.5
80×180×85 80 74 62 180 174 162 150 50 35 68 67.5
80×250×70 80 74 62 250 244 232 220 50 20 52 58
80×250×85 80 74 62 250 244 232 220 50 35 67 83
80×160×55 82 76 68 162 156 148 137 40 15 38 58
80×160×85 82 76 68 162 156 148 137 70 15 68 83
100×100×75 100 94 82 100 94 82 60 55 20 58 53
100×100×100 100 94 82 100 94 82 60 80 20 83 68
100×185×70 100 94 82 185 179 167 139 55 15 53 77
100×200×70 100 94 82 200 194 182 158 55 15 53 77
100×230×70 100 94 82 230 224 212 184 55 15 53 57.5
125×125×75 125 119 105 125 119 105 70 55 20 58 82.5
125×125×100 125 119 105 125 119 105 70 80 20 83 58
125×175×75 125 121 109 175 169 157 140 50 25 58 83
125×175×100 125 121 109 175 169 157 140 50 50 83 111
140×170×95 140 137 122 173 167 152 130 75 20 77 149
140×230×95 140 134 122 230 224 212 190 75 20 77 83.5
150×150×75 150 144 110 150 144 132 110 55 20 58 113.5
150×150×100 150 144 110 150 144 132 110 80 20 83 77.5
150×200×75 150 142 132 200 192 182 160 55 20 58 57.5
150×200×100 150 142 132 200 192 182 160 80 20 83 82.5
150×200×130 150 142 132 200 192 182 160 110 20 111 53
150x200x160 150 142 132 200 192 182 160 110 50 149 68
150×250×100 150 142 132 250 242 232 210 80 20 83 58
150×250×130 150 142 132 250 242 232 210 80 50 113 83
160×160×70 160 154 110 160 154 142 110 55 15 53 111.5
200×200×100 200 193 132 200 193 182 120 80 20 82 149
200×200×130 200 193 132 200 193 182 120 110 20 111 82
200×200×160 200 193 132 200 193 182 120 110 50 140.5 11
S Series
Small size
1. Screw thread for connecting cover bolt fo the base
in inserted into the base in injection molding so that it has
sufficient strength and not broken when tightening bolt.
2. It can be use semi-permanently as we reinforced
thickness
BASE
COVER
BASE
COVER
+
BASE
MOUNTING
PLATE
Specification
IP 66/67 IK 07/08
ABS : -40~+85 PC : -40~+120
ABS : 94-HB
PC / ABS : 94-V-0~5VA
PC : 94-HB, 94-V-0~5VA
Dimension ± 1mm

107
ENCLOSURES
Width
XLength
XHeight
(mm)
Width
XLength
XHeight
(inch)
ABS PC/ABS PC Steel
mounting
plate
1.6mm
Plastic
mounting
plate
3mm~4.5
50×65×45 1.97×2.56×1.77 BC-A버S-050604 BC-P버S-050604 BC-C버S-050604 0506 S (52) (38)
50×65x55 1.97×2.56×2.17 BC-A버S-050605 BC-P버S-050605 BC-C버S-050605 0506 S (52) (38)
80×110×45 3.15×4.33×1.77 BC-A버S-081104 BC-P버S-081104 BC-C버S-081104 0811S 0811 P 65 95
80×110×70 3.15×4.33×2.76 BC-A버S-081107 BC-P버S-081107 BC-C버S-081107 0811 S 0811 P 65 95
100×185×70 3.94×7.28×2.76 BC-A버S-101807 BC-P버S-101807 BC-C버S-101807 1018 S 1018 P (88) (174)
150x200x160 5.91×7.87×6.30 BC-A버S-152016 BC-P버S-152016 BC-C버S-152016 2020 S 2020 P 129 179
160×160×70 6.30×6.30×2.76 BC-A버S-161607 BC-P버S-161607 BC-C버S-161607 1616 S 134 134
Model and size
Accessories
Steel mounting
plate
(zinc plating)
Plastic mounting
plate (ABS)
Wall mounting
bracket
(B40, B50, B60)
Plastic Bracket
(PB50)
Cover bolt
(optional) (CB20-)
Cover bolt
(standard provide)
(CB20)
Cover bolt
(standard provide)
(CB35)
Cover bolt
(standard provide)
(CB50)
S Series Small size

108
ENCLOSURES
190×190×130 190 170 165 120 190 170 165 120 98 30 112
190×280×130 190 170 165 120 280 266 255 210 98 30 112
190×280×180 190 170 165 120 280 266 255 210 150 30 159
190×380×130 190 170 165 120 380 359 355 310 98 30 109
190×380×180 190 170 165 120 380 360 355 310 150 30 159
280×280×130 280 266 255 210 280 266 255 210 98 30 112
280×340×130 280 259 254.7 210 340 319 315 270 100 30 111
280×380×130 280 266 255 210 380 359 355 310 98 30 111
280×380×180 280 266 255 210 380 359 355 310 148 30 161.5
280×560×130 280 296 255 210 560 535 505 490 100 30 120
330×430×180 330 430 150
380×560×180 380 366 355 310 560 535 505 490 150 30 160
S Series
Medium size
1. screw thread for connecting cover bolt of
the base is inserted into the base in injection
molding so that it has sufficient strength and not
broken when tightening bolt.
2. It is designed as 4 side sliding type to be
strong against impact.
BASE
COVER
BASE
COVER
+
BASE
MOUNTING
PLATE
Dimension ± 1mm
Width
XLength
XHeight
(mm)
Width
XLength
XHeight
(inch)
ABS PC/ABS PC Steel
mounting
plate 1.6mm
Plastic
mounting
plate
3mm~4.5
280×340×130 11.02×13.39×5.12 BC-A버S-283413 BC-P버S-283413 BC-C버S-283413 2834S 2834 P 248 308
330×430×180 12.99×16.93×7.09 BC-A버S-334318 BC-P버S-334318 BC-C버S-334318 3343 S 3343 P (295) (395)
Model and size

109
ENCLOSURES
PUSH BUTTON BOX
Push button plastic box
Dimension ±1mm
Ø Hole MODEL
SIZE
WidthXLength
XHeight (Unit : mm)
WidthXLengthX
Height (Unit : inch)
22
1 HOLE
BC-버GS-081107-2201 80x110x70 3.15x4.33x2.76
BC-버GS-081108-2201 80x110x85 3.15x4.33x2.76
2 HOLE
BC-버GS-081308-2202 80x130x85 3.15x5.12x3.35
BC-버GS-081307-2202 80x130x70 3.15x5.12x2.76
3 HOLE
BC-버GS-081807-2203 80x180x70 3.15x7.09x2.76
BC-버GS-081808-2203 80x180x85 3.15x7.09x3.35
4 HOLE
BC-버GS-082507-2204 80x250x70 3.15x9.84x2.76
BC-버GS-082508-2204 80x250x85 3.15x9.84x3.35
25
1 HOLE
BC-버GS-081107-2501 80x110x70 3.15x4.33x2.76
BC-버GS-081108-2501 80x110x85 3.15x4.33x3.35
2 HOLE
BC-버GS-081307-2502 80x130x70 3.15x5.12x2.76
BC-버GS-081308-2502 80x130x85 3.15x5.12x3.35
3 HOLE
BC-버GS-081807-2503 80x180x70 3.15x7.09x2.76
BC-버GS-081808-2503 80x180x85 3.15x7.09x3.35
4 HOLE
BC-버GS-082507-2504 80x250x70 3.15x9.84x2.76
BC-버GS-082508-2504 80x250x85 3.15x9.84x3.35
30
1 HOLE
BC-버GS-081107-3001 80x110x70 3.15x4.33x2.76
BC-버GS-081108-3001 80x110x85 3.15x4.33x3.35
2 HOLE
BC-버GS-081307-3002 80x130x70 3.15x5.12x2.76
BC-버GS-081308-3002 80x130x85 3.15x5.12x3.35
3 HOLE
BC-버GS-081807-3003 80x180x70 3.15x7.09x2.76
BC-버GS-081808-3003 80x180x85 3.15x7.09x3.35
4 HOLE
BC-버GS-082508-3004 80x250x85 3.15x9.84x3.35
BC-버GS-082507-3004 80x250x70 3.15x9.84x2.76
PUSH BUTTON HOLE
PUSH BUTTON HOLE SPACING
Cat. No. Division Hole A B C D E F
BC-버GS-08110 버-버 버01 1-Hole 55 40
BC-버GS-08130 버-버 버02 2-Hole - 40 40 50
BC-버GS-08180 버-버 버03 3-Hole - 40 50 40
BC-버GS-08250 버-버 버04 4-Hole - 40 50 50
Key Features
• IP66/67, IK07/08
• Smooth sidewalls
• Standard or Quick turn screws
• Integrated cover retainer
• UL508 on Ploycarbonate products
• Light gray
• Temperature range
ABS: -40°C to 86°C (-40°F to 185°F)
UL94-HB Non-Flammable
Polycarbonate: -40°C to 120°C (-40°F to 248°F)
UL94-V-0~5VA Non-Flammable

110
ENCLOSURES
TERMINAL BOLCK BOX
WidthXLengthX HeightXHole
(Unit : mm)
WidthXLength XHeightXHole
(Unit : inch)
ABS (Grey) ABS (Grayish Blue)
Opaque(ฝาทึบ) Transparent(ฝาใส) Opaque(ฝาทึบ) Transparent(ฝาใส)
4P 55x91x43x21 2.17x3.58x1.69 BC-AG-4P BC-AG-4P(T) BC-AB-4P BC-AB-4P(T)
4PH, 4P16H,
4P1618H,
4P1821H,
4P21H
50×82×43×21 1.92×3.23×1.69 BC-AG-4PH BC-AG-4PH(T) BC-AB-4PH BC-AB-4PH(T)
50×82×43×16 1.97×3.23×1.69 BC-AG-4P16H BC-AG-4P16H (T) BC-AB-4P16H BC-AB-4P16H (T)
50×82×43×16,18 1.97×3.23×1.69 BC-AG-4P1618H BC-AG-4P1618H (T) BC-AB-4P1618H BC-AB-4P1618H (T)
50×82×43×18,21 1.97×3.23×1.69 BC-AG-4P1821H BC-AG-4P1821H (T) BC-AB-4P1821H BC-AB-4P1821H (T)
4P-T 65x74x43x21 2.56x2.91x1.69 BC-AG-4P-T BC-AG-4P-T(T) BC-AB-4P-T BC-AB-4P-T(T)
4P
4PH, 4P16H, 4P1618H, 4P1821H, 4P21H
Key Features
Level of dustproof and waterproof : IP66/67 Impact test : IK07/08
Critical Temperature : ABS: -40°C to 86°C (-40°F to 185°F) Test voltage : 4KV
Polycarbonate: -40°C to 120°C (-40°F to 248°F) Burn poorly : PC/ABS : V-0 ~5VA ABS : 94-V-0
Cable size : 0.75mm sq. - 1.5mm sq. Rate voltage : 400V
4P-T
6P-T

111
ENCLOSURES
TERMINAL BOLCK BOX
WidthXLengthXHeightXHole
(Unit : mm)
(Unit : inch)
ABS (Grey) ABS
(Grayish Blue)
6PH, 6P18H,
6P1821H,
6P21H
55×91×43×21 2.17×3.58×1.69 BC-AG-6PH BC-AG-6PH(T) BC-AB-6PH BC-AB-6PH(T)
5×91×43×18 2.17×3.58×1.69 BC-AG-6P18H BC-AG-6P18H(T) BC-AB-6P18H BC-AB-6P18H(T)
55×91×43×18,21 2.17×3.58×1.69 BC-AG-6P1821H BC-AG-6P1821H(T) BC-AB-6P1821H BC-AB-6P1821H(T)
55×91×43×21 2.17×3.58×1.69 BC-AG-6P21H BC-AG-6P21H(T) BC-AB-6P21H BC-AB-6P21H (T)
15P-T 100x185x70 3.94x7.28x2.76 BC-AG-15P-T BC-AG-15P-T(T) BC-AB-15P-T BC-AB-15P-T(T)
20P-T 100x230x70 3.94x9.06x2.76 BC-AG-20P-T BC-AG-20P-T(T) BC-AB-20P-T BC-AB-20P-T(T)
6PH, 6P18H, 6P1821H, 6P21H
10P-T
Key Features
15P-T
20P-T

112
ENCLOSURES
TERMINAL BOLCK BOX
WidthXLengthX HeightXHole
(Unit : mm)
(Unit : inch)
ABS (Grey) ABS (Grayish Blue)
20P-A 160x160x70 6.30x6.30x2.76 BC-AG-20P-A BC-AG-20P-A (T) BC-AB-20P-A BC-AB-20P-A (T)
PBT-3P 33x65x24x9.2 1.29x2.55x0.94x0.36 BC-PBT-3P BC-AG-PBT-3P-T BC-AB-PBT-3P BC-AB-PBT-3P-T
20P-A
PBT-3P
PBT - 4P
PBT - 6P
Key Features

113
ENCLOSURES
Dual door enclosure
Assembly of Dual door kits
1. Dual door is easy to open or close as it will be assembled with handle and hinge type.
2. It is very strong as it is fixed with 4 supports and it has good external appearance.
Swing Frame applicable model Product model
Size
WidthXLength
XHeight (mm)
Model
Dual door
(Frame, Support,
Hinge, Handle
included)
Dual door
mounting plate
(Aluminium)
200X300X130 BC-버 버P-203013 BC-F203013 BC-FA203013
200X300X150 BC-버 버P-203015 BC-F203015 BC-FA203015
200X300X180 BC-버 버P-203018 BC-F203018 BC-FA203018
250X350X150 BC-버 버P-253515 BC-F253515 BC-FA253515
250X350X180 BC-버 버P-253518 BC-F253518 BC-FA253518
280X280X130 BC-버 버P-282813 BC-F282813 BC-FA282813
280X380X130 BC-버 버P-283813 BC-F283813 BC-FA283813
300X300X150 BC-버 버P-303015 BC-F303015 BC-FA303015
300X300X180 BC-버 버P-303018 BC-F303018 BC-FA303018
300X400X150 BC-버 버P-304015 BC-F304015 BC-FA304015
Swing Frame applicable model Product model
Size
WidthXLength
XHeight (mm)
Model
Dual door
(Frame, Support,
Hinge, Handle
included)
Dual door
mounting plate
(Aluminium)
300X400X180 BC-버 버P-304018 BC-F304018 BC-FA304018
350X450X160 BC-버 버P-354516 BC-F354516 BC-FA354516
350X450X200 BC-버 버P-354520 BC-F354520 BC-FA354520
400X500X160 BC-버 버P-405016 BC-F405016 BC-FA405016
400X500X200 BC-버 버P-405021 BC-F405021 BC-FA405021
400X500X200 BC-버 버H-405020 BC-F405020 BC-FA405020
400X600X180 BC-버 버P-406018 BC-F406018 BC-FA406018
400X600X230 BC-버 버P-406023 BC-F406023 BC-FA406023
400X600X230 BC-버 버H-406023 BC-F406023 BC-FA406023
530X630X185 BC-버 버P-506018 BC-F506018 BC-FA506018
530X630X255 BC-버 버P-506025 BC-F506025 BC-FA506025

114
ENCLOSURES
Aluminium die casting box
Model and size (Cover included) Plate Model
WidthXLengthX
HeightXHole
(Unit : mm)
WidthXLength
XHeightXHole
(Unit : inch)
Aluminium Box Steel mounting
plate
Plastic
mounting plate
64x98x34 2.52x3.86x1.34 BC-AL-061003 0610A
80x75x57 3.15x2.95x2.24 BC-AL-080806 0808A
80x125x57 3.15x5.00x.2.24 BC-AL-081306 0813A
80x175x57 3.15x6.89x2.24 BC-AL-081806 0818A
80x250x57 3.15x9.84x2.24 BC-AL-082506 0825A
100x100x80 3.94x3.94x3.15 BC-AL-101008 1010A
100x160x80 3.94x7.87x3.15 BC-AL-101608 1016A
120x122x80 4.72x4.80x3.15 BC-AL-121208 1212A
120x220x80 4.72x8.66x3.15 BC-AL-122208 1222A
120x220x90 4.72X8.66X3.54 BC-AL-122209 1222A
150×132×90 5.90×5.19×3.54 BC-AL-151309 1513A
160x160x90 6.30X6.30X3.54 BC-AL-161609 1616A
160×260×90 6.30x10.24x3.54 BC-AL-162609 1626A 1626AP
180×180×100 7.09x7.09x3.94 BC-AL-181810 1818A
230×200×110 9.06x7.87x4.33 BC-AL-232011 2320A 2320AP
313×404×111 12.32×15.90×4.37 BC-AL-314011 3140A
313×404×181 12.32×15.90×7.12 BC-AL-314018 3140A
Size Division W1 W2 W3 H1 H2 H3 D1 D2
64x98x34 68 57.8 36 98 91.8 86 25 9
80x75x57 80 72 52 75 67 63 42 15
80x125x57 80 72 52 125 117 113 42 15
80x175x57 80 72 52 175 167 163 42 15
80x250x57 80 72 52 250 242 238 40 15
100x100x80 100 92 66 100 92 86 61 20
100x160x80 100 92 66 160 152 146 61 20
120x122x80 120 111 82 122 113 106 61 20
120x220x80 120 111 82 122 113 106 61 20
120x220x90 120 111 82 220 211 204 61 30
150×132×90 150 121 92 132 144 138 70 20
160x160x90 160 151 110 160 151 140 71 20
160×260×90 160 151 110 260 251 240 71 20
180×180×100 180 171 130 180 171 160 71 30
230×200×110 230 230 140 200 193 150 91 20
313×404×111 313 303 262 404 394 382 91 20
313×404×181 313 303 262 404 394 382 161 20
Key Features
Protection level : IP66 / 67, IK9 / 10
BASE
COVER
BASE
1. it has excellent resistance against chemicals.
2. It can be used in wide temperature range.
3. It is proper to be used for indoor, outdoor
or coastal area in hamful environment where
expected to be contact with sea water.
Dimension ±1mm

115
ENCLOSURES
Push button aluminium die casting box
Dimension ±1mm
PUSH BUTTON HOLE
PUSH BUTTON HOLE SPACING
Cat. No. Division Hole A B C D E F
BC-AL-080806-버 버01 1-Hole 40 37.5
BC-AL-081306-버 버02 2-Hole - 40 38 50
BC-AL-081806-버 버03 3-Hole - 40 50 38
BC-AL-082506-버 버04 4-Hole - 40 50 50
Ø Hole MODEL
SIZE
WidthXLengthX
Height (Unit : mm)
WidthXLengthX
Height (Unit : inch)
22
1 HOLE BC-AL-080806-2201 80x75x57 3.15x2.95x2.24
2 HOLE BC-AL-081306-2202 80x125x57 3.15x4.92x2.24
3 HOLE BC-AL-081806-2203 80x175x57 3.15x6.89x2.24
4 HOLE BC-AL-082506-2204 80x250x57 3.15x6.89x2.24
25
1 HOLE BC-AL-080806-2501 80x75x57 3.15x2.95x2.24
2 HOLE BC-AL-081306-2502 80x125x57 3.15x4.92x2.24
3 HOLE BC-AL-081806-2503 80x175x57 3.15x6.89x2.24
4 HOLE BC-AL-082506-2504 80x250x57 3.15x6.89x2.24
30
1 HOLE BC-AL-080806-3001 80x75x57 3.15x2.95x2.24
2 HOLE BC-AL-081306-3002 80x125x57 3.15x4.92x2.24
3 HOLE BC-AL-081806-3003 80x175x57 3.15x6.89x2.24
4 HOLE BC-AL-082506-3004 80x250x57 3.15x6.89x2.24
Key Features
• IP66/67, IK09/10
PUSH BUTTON BOX

116
ENCLOSURES
Model WidthXLengthXHeight(Unit : mm) WidthXLengthXHeight(Unit : inch)
BC-AL-5P-T 80X75X57 3.15X2.95X2.24
BC-AL-10P-T 80X125X57 3.15X6.89X2.24
BC-AL-15P-T 100X160X80 3.94X7.87X3.15
BC-AL-20P-T 120X220X80 4.72X8.66X3.15
BC-AL-20P-AS 150X132X90 5.90X5.19X3.54
Key Features
Protection level : IP66/67, IK09/10
Aluminium Terminal block box
5P-T
10P-T
15P-T
20P-T
20P-AS

117
ENCLOSURES
Aluminium Terminal block box
Model WidthXLengthXHeight(Unit : mm) WidthXLengthXHeight(Unit : inch)
BC-AL-20P-A 160X160X90 6.30X6.30X3.54
BC-AL-25P-T 160X260X90 6.30X10.24X3.54
BC-AL-30P-AS 120X220X80 4.72X8.66X3.15
BC-AL-30P-A 180X180X100 7.09X7.09X3.94
BC-AL-40P-A 160X260X90 6.30X10.24X3.54
BC-AL-50P-A 160X260X90 6.30X10.24X3.54
20P-A
25P-T
30P-AS
30P-A
40P-A
50P-A
Key Features
Protection level : IP66/67, IK09/10

118
ENCLOSURES
ILMEhas a long history of manufacturing die-cast aluminium alloy containing boxes to meet industrial environment protection requirements.
AP SERIES AC SERIES
The AC series of containing boxes has now been produced with metric threaded cable entries.
The AP series of containing boxes has now been further expanded and improved. A new system of gaskets ensures an even higher protection
rating (IP66/IP67) whilst the new stainless steel captive cross-headed screws ensure easier installation.
The range consists of 7 formats supplied in the RAL 7040 textured version (APV) in the unpainted version (APS) and in the new APW version
suitable for environments with extreme temperatures or salt environments (black).
To ensure the same protection degree, when assembling the boxes, the cable glands or other accessories used must also have an equivalent or
higher protection degree.
The boxes are manufactured in compliance with the following standard: IEC 60670-1.
Aluminum Enclosures IP 66/67
Both boxes and covers are supplied with provision for a terminal
earthing connection to protect it from indirect contacts.
The cover fixing screws become captive when the special
o-rings are fitted.
Accessory kits are available for fitting inside the boxes DIN rails
or zinc-plated steel mounting plates.
A cover can be fitted to the box by using a special nylon string.

119
ENCLOSURES
AP containing boxes complete with cover
- boxes and covers in die-cast aluminium alloy
- stainless steel cover screws
- pre-applied anti-ageing gaskets
- IP66/IP67 degree of protection (compliant with EN 60529)
- temperature range: from -40 °C to +110 °C
- oven painted with RAL 7040 grey epoxy-polyester powder
- accessories for boxes on page 5
- supplied complete with brass insert, screw, wire terminal and
washer for 6 mm2
earth terminals
- an earth terminal may be added to the cover (APR T kit)
- o-rings to make cover screws captive, included
Part No. Description
APV 9 APS 9 APW 9 External dimensions 100 X 100 X 59
APVpainted containing boxes
APSunpainted containing boxes
APWcontaining boxes for extreme environments
- anti-ageing gaskets not fitted to the box to ease the
application of the desired paint
- temperature range: from -40 °C to +110 °C
- supplied complete with brass insert, screw, wire terminal
earth terminals
- an earth terminal may be added to the cover
(APR T and washer for 6 mm2
kit)
- o-rings to make cover screws captive, included
- pre-applied silicone rubber gaskets
- temperature range: -50 °C ÷ +180 °C
- oven painted with RAL 9005 black epoxy-polyester powder
- surface chromate treatment
- supplied complete with brass insert, screw, wire terminal
and washer for 6 mm2
earth terminals
- an earth terminal may be added to the cover (APR T kit)
- silicone rubber rings to make cover screws captive, included

120
ENCLOSURES
Part No. A B C
APV 9 86 80 6
APV 11 100 120 6
APV 12 125 144 6.5
APV 14 149 168 6.5
APV 19 196 226 9
APV 20 236 275 9
APV 21 283 367 9
Part No. A B C D(*) E(*) F G øH I L M N P Q
APV 9 100 100 59 88 88 66 70.5 10 53 44 - - 48 65
APV 11 115 140 61 128 103 107 66 10 55 46 - - 90 81
APV 12 141 166 64 153 128 121 99 12.5 58 49 - - 104 100
APV 14 168 192 80 176 152 153 113 10 74 65 - - 128 125
APV 19 217 253 93 236 201 188 153 12.5 85 75 38 21 169 162
APV 20 264 314 122 292 243 238 198 12.5 114 104 49 24 203 192
APV 21 315 410 150 386 291 333 248 12.5 141 126 61 31 295 240
fixing centre line in mm
APV, APS, APW 9
fixing centre distance in mm
APV, APS, APW 11/12/14/19/20/21
the dimensions shown are not binding and may
be changed without notice
( * ) internal minimum dimensions measured on the post mounting plate risers plane
dimensions in mm
APV, APS, APW 9
dimensions in mm
APV, APS, APW 11/12/14/19/20/21

121
ENCLOSURES
AP Accessories for containing boxes
part No. description
Mounting plates with two earth terminals, inserts and
fixing screws on the bottom of the box
APF 11 - For APV / APS / APW / APX 11 boxes
DIN rail with fixing screws and inserts
APD 9 - For APV / APS / APW / APX 9 boxes
APR 04
- M4x8 thread brass insert to simplify the
fitting of equipment and PCBs on the bottom
of the box
APR T
- additional earth terminal kit consisting of a
brass insert, M4 screw and washer, 6 mm2
wire terminal for cover earthing connection
APR F
- Cover fastening wire to anchor the cover to
the box (temperature range:
from -40°C ÷ +110°C)
- Unsable with non-sparking parts
We reserve the right to change the technical
information, drawings and products referenced in this
document. Dimensions are indicative only and may
changed without notice.
part No. A B C D E
APF 11 78 119 1.5 107 66
APF 12 111 133 1.5 121 99
APF 14 125 165 1.5 153 113
APF 19 165 200 1.5 188 153
APF 20 210 250 1.5 238 198
APF 21 260 345 1.5 333 248
part No. A
APD 9 74
APD 11 103
APD 12 134
APF 19 165
APF 20 210
APF 21 260
APD 21 393
Zinc-plated steel mounting
plates
Sized DIN rail
M4x8 brass insert
Additional earth terminal
Cover to box fastening wire
Dimensions in mm
APF APD

122
ENCLOSURES
- coated finish with epoxy-polyester powder, colour
grey RAL 7042
- removable cover, fixed with zinc plated steel screws
- NBR special rubber gasket fixed to the cover
- IP65 degree of protection (compliant with EN 60529)
description part No. cable entry part No.
with pierced covers for unit Ø 22 mm
external dimensions 152 x 152 x 86 - No. of holes for cover : 8 A2M 1515.08 M 25 A2P 1515.08
external dimensions 230 x 205 x 102 - No. of holes for cover : 16 A2M 2320.16 * M 32 A2P 2320.16
complete boxes with cable entry
A2M
complete boxes without cable entry
A2P
metric threaded entry

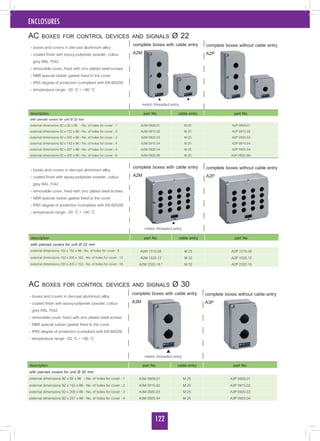

AC boxes for control devices and signals Ø 22
grey RAL 7042
external dimensions 92 x 205 x 86 - No. of holes for cover : 6 A2M 0920.06 M 25 A2P 0920.06v
A2M
A2P
grey RAL 7042
A3M
A3P

123
ENCLOSURES
grey RAL 7042
A3M
A3P
AC complete boxes
grey RAL 7042
covers without holes
external dimensions 92 x 92 x 86 AM 0909 M 25 AP 0909
AM
AP
grey RAL 7042
covers without holes
AM
AP

124
ENCLOSURES
APX series
DISTRIBUTION BOXES
Installation, Operation and maintenance instructions
II 3GD
Figure 1 - Perspective view showing the details of a sample nameplate
TABLE 1
Code A B C Cover fi xing screws Screw driver slot Tightening torque [Nm]
APX 9 100 100 59 2x M5x16 Ph2 2.0
APX 11 115 140 61 4x M5x16 Ph2 2.0
APX 12 141 166 64 4x M5x16 Ph2 2.0
APX 14 168 192 80 4x M5x16 Ph2 2.0
APX 19 217 253 93 4x M6x20 Ph2 2.5
APX 20 264 314 122 4x M6x20 Ph2 2.5
APX 21 315 410 150 4x M6x20 Ph2 2.5

125
ENCLOSURES
Example of marking and description of the symbols used on the nameplate
Symbol Meaning
Manufacturer's logo (I.L.M.E. SpA)
Via M. A. Colonna 9
20149 Milano(ITALY)
Manufacturer's address (mandatory for ATEX Directive 94/9/EC)
CE marking (that indicates conformity with the Low Voltage Directive 2006/95/EC)
APX 14 Reference to type of product (product code)
Ex symbol that indicates the specific marking related to the protection against the risk of explosion referred to in ATEX Directive
94/9/EC
II Group, indicates the type of intended use for which the product is suitable:
Group II = Surface industries (Group I = Mining sites)
3GD
Category that identifies the equipment protection level:
Category 3 = Ordinary risk of explosion (for Zones 2 and 22)
G = Protection from gases
D = Protection from dust
Ex nA Ex protection type for protection from gases: product designed to be used with non-sparking equipment “nA” (that does not
produce electric arcs or sparks)
IIC Group II of electrical equipment designed for explosive atmospheres, for type C gases (typically hydrogen)
T6 Temperature class (85 °C)
Gc Protection level assigned for explosive atmospheres containing gases (G = Gas). EPL Gc Equipment protection level (EPL)
equivalent to c (“increased”)
U Symbol that confirms that the product is classified as an Ex component (gases)
Ex tc Protection type against explosive dust with enclosure “t”, for protection level “tc” (= Equipment protection level EPL = “Dc”, see
below)
IIIC Group III of electrical equipment designed for explosive atmospheres containing dust other than mining sites, for conductive dust
-20°C≤Ta≤85°C Assigned ambient temperature range
Dc Protection level assigned for explosive atmospheres containing dust (D = Dust). EPL Dc Equipment protection level (EPL)
equivalent to c (“increased”)
IP66/IP67
IP protection degree against the penetration of dust (first characteristic digit) and liquids (second characteristic digit) in
accordance with CEI EN 60529:
IP66 = Dust-tight and protected against powerful water jets
IP67 = Dust-tight and protected against temporary immersion in water
U Symbol that confirms that the product is classified as an Ex component (dust)
A-ZYYMMDD Traceability code that identifies the production lot (A = Product revision, Z = Code for internal use, YYMMDD = Production date
(YY = Year, MM = Month, DD = Day)
ILME 11.0001
Name of the subject that has issued the certificate of conformity to the applicable ATEX standards: self-certified ATEX component
(ILME); 11 = Last two digits of the year in which the certificate has been issued; 0001 = Progressive number of the certificate
issued in the specific year

126
ENCLOSURES
- Usable with non-sparking parts
- Boxes and covers in die-cast aluminium alloy
- Stainless steel cover screws
- Pre-applied anti-ageing gaskets
- Temperature range: -20 °C ÷ +85 °C
- Oven painted with RAL 7040 grey epoxy-polyester powder
- For information on the accessories for boxes
- Supplied with 2 brass inserts, 2 screws, 2 lugs and 2
washer for 6 mm2
earth terminals
- Supplied with M4 stainless steel self-forming screw, lug and
washers for 6 mm2
external earth terminals
- The cover must always be grounded
- O-rings to make the cover screws captive, included
APX ATEX containing boxes with cover
part No. A B C description
APX 9 86 80 6 External dimensions 100x100x59
APX 12 125 144 6.5 External dimensions 141x166x64
APX 14 149 168 6.5 External dimensions 168x192x80
APX 20 236 275 9
External dimensions
264x314x122
APX 21 283 367 9
External dimensions
315x410x150
We reserve the right to change the technical information,
drawings and products referenced in this document.
Dimensions are indicative only and may changed without
notice.
Part No. A B C D(*) E(*) F G øH I L M N P Q
APX 9 100 100 59 88 88 66 70.5 10 53 44 - - 48 65
APX 11 115 140 61 128 103 107 66 10 55 46 - - 90 81
APX 12 141 166 64 153 128 121 99 12.5 58 49 - - 104 100
APX 14 168 192 80 176 152 153 113 10 74 65 - - 128 125
APX 19 217 253 93 236 201 188 153 12.5 85 75 38 21 169 162
APX 20 264 314 122 292 243 238 198 12.5 114 104 49 24 203 192
APX 21 315 410 150 386 291 333 248 12.5 141 126 61 31 295 240
( * ) Minimal internal dimensions measured on the plane of the supporting bars for the bottom plate
ATTENTION!
APX containing boxes are sold empty. According to Directive ATEX, they are regarded electric material and therefore classifi ed as Ex
components.
They can be used in combination with other electrical equipment in which case the user must obtain a further ATEX certifi cation in addition to
the one supplied by I.L.M.E. SpA.
dimensions in mm
APX 9
dimensions in mm
APX 11/12/14/19/20/21

127
ENCLOSURES
LongsideShortside
APX
perimeter
Code
HoleØ
mm
MPG
Nํof
holes
Drillingwindow(mm)
HoleØ
mm
MPG
Nํof
holes
Drillingwindow(mm)
Nํof
holes
APX920,220
2
20,220
16
22,81622,816
APX1125,225
2
25,225
28
28,62128,621
APX1225,225
2
25,225
28
28,62128,621
APX1432,232
2
32,232
28
37,42937,429
APX1940,240
2
40,240
28
47,53647,536
APX2063,263
2
63,263
28
59,84859,848
APX2163,263
2
63,263
210
59,84859,848

Areas that can be drilled for ATEX cable entry devices

128
ENCLOSURES
I Division Electrica S.A. (IDE) is a company based in Spain which
operates in the international electrical market. We manufacture
plastic and metal enclosures as well as plugs and sockets for
low
voltage distribution and for the telecommunication sector.
Internationally patent items are used in all IDE products.
IDE was founded in 1987, since then we have been
committed to innovation and investments let us achieve high
our technological quality products widely appreciated in the
international markets.
After over 20 years IDE has become recognized as one of the
leader manufacturers of electrical material. Thanks to its technically
experienced stuff and its quality customer service IDE has reached
one of the strongest positions in the market with a wide loyal
client portfolio.
Pryma
IP67 Enclosures for sockets and Automatic
Switches
TECHNICAL DATA
degree of protection IP67*
resistance to impact IK08
auto-extinguishing degree HB (UL94)
test of resistance to glow wire 650° C
ball pressure test 70° C
According to 2006/95/CE directive and EN 60439-1
and UNE-EN 60439-3 norms on affected parts.
* Protection degree of complete unit complies with
degree of lower rated element
New Ecology
Watertight Distribution Enclosures IP65
TECHNICAL DATA
degree of protection IP65
auto-extinguishing degree HB (UL94)
test of resistance to glow wire 650° C
ball pressure test 70° C
range of temperature
under normal conditions -25ºC / +40ºC
halogen free materials
ABS and Polycarbonate
According to 2006/95/CE directive and EN 60439-1
and UNE-EN 60439-3 norms on affected parts.

129

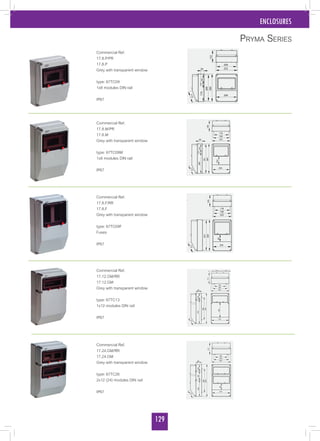

ENCLOSURES
Commercial Ref.
17.8.P/PR
17.8.P
Grey with transparent window
type: 67TC09
1x8 modules DIN rail
IP67
Commercial Ref.
17.8.M/PR
17.8.M
type: 67TC09M
IP67
Commercial Ref.
17.8.F/RR
17.8.F
type: 67TC09F
Fuses
IP67
Commercial Ref.
17.12.GM/RR
17.12.GM
type: 67TC13
IP67
Commercial Ref.
17.24.GM/RR
17.24.GM
type: 67TC26
2x12 (24) modules DIN rail
IP67
Pryma Series

130
ENCLOSURES
ARGENTA
Technical data
degree of protection* (EN60529) IP66 / NEMA 1, 12, 4
impact resistance IK10
range of temperature under normal conditions -25ºC/+40ºC
maximum operation voltage (Ue) 1000 V
According to 2006/95/CE directive; and UL 508A, UNE-EN 62208.
* Double door cabinets: IP55 / NEMA 1,12
ARGENTA ATEX
Technical data
degree of protection (EN60529) IP66 / NEMA 1, 12, 4
ambient temperature range -20ºC/+60ºC
suitable for hazardous zones 1 and 2, zones 21and 22
available in metal and stainless steel materials
According to ATEX94/9/CE directive; and norms EN60079-0,
EN60079-7, EN60079-31
Certified by LOM 12ATEX3060U
ARGENTA INOX
Technical data
degree of protection* (EN60529) IP66 / NEMA 1, 12, 4x
stainless steel AISI 304L
finishing glazed finished
According to 2006/95/CE directive; and UL 508A, UNE-EN 62208.
* Double door cabinets: IP55 / NEMA 1,12
IP66 Stainless / Metal and Polyester
Industrialenclosures

131
ENCLOSURES
METAL PRODUCT RANGE
Dimensions available:
Height: from 250 to 1.400 mm
Width: from 200 to 1.200 mm
Depth: from 150 to 400 mm
For cabinets of width 1.000 and 1.200 mm, a
single or double door is available
INOX PRODUCT RANGE
Dimensions available:
Height: from 300 to 1.200 mm
Width: from 200 to 1.000 mm
Depth: from 150 to 200 mm
All references also available with ATEX certification
for hazardous atmospheres
Technical Features
Double fold to prevent
water from entering the
inside of the cabinet
Bolts placed in the cabinet
case and in the door, allowing
the link by earth and
guaranteeing connectivity
between door and base of
cabinet
Watertightness gasket to ensure
the IP66 protection degree
110º door opening
Easy to assemble bolt
with anti-lost system
Reinforcement profiles for
opaque doors permitting the
assembly of devices to the door.
25 mm separation between the
holes
Centrering device included inside the
cabinets of 1000 mm and 1200 mm.
This piece avoids eventual deviations
caused by the weight of the electrical
elements included inside the cabinets
Case Doors

132
ENCLOSURES
ATEX Atmospheres Classification
APPLICATION Hazardous area category Zones Atmosphere
GROUP I
Mining M1 y M2 Gas and Dust (G and D)
GROUP II
Industrial
(non-mining)
1. Continuous or for long periods
Zone 0: Gas, vapour and mist G
Zone 20: Dusts D
2. Occasional
Zone 21: Dusts D
3. Short periods only
Zone 22: Dusts D
Technical Features
M6 earth connection
bolts on door and body
M8 rivet nuts for attaching the 4
wall hangers included in the unit
Optimised opening
and closing
M8 rivet nut for
earthing
0163: Organisation reference number
ATEX symbol according to directive
II: Equipment for different mining facilities
with hazardous areas.
2: Product category
GD: Gas and dust
Ex: Product is ATEX compliant
e: Protection type: Increased safety
IIC: Gas type: Hydrogen and similar.
Gb/Db: Protection against dust and gas for
non-electrical equipment.
“Control of ignition sources”
tb: Type of protection: “Enclosure”
IIIC: Powder type. “Conducting”
Labelling
Reference number
EC type certification
number
Usage temperature
IDE manufacturing
number

133
ENCLOSURES
IP66 Wall Mounting Metal Cabinets Single Door
(Plain Plate Included)
Commercial Ref. Dimensions
(mm)
(A x B x C)
Cable entries
(D x E)
Locks
number
Hinges
numberOPAQUE door TRANSPARENT door
GN252015 GNT252015 250 x 200 x 150 80 x 150 1 2
GN252515 GNT252515 250 x 250 x 150 80 x 150 1 2
GN302015 GNT302015 300 x 200 x 150 80 x 150 1 2
GN302515 GNT302515 300 x 250 x 150
80 x 150 1 2
GN302520 GNT302520 300 x 250 x 200
GN303015 GNT303015 300 x 300 x 150 80 x 200
1 2
GN303020 GNT303020 300 x 300 x 200 140 x 230
GN304015 GNT304015 300 x 400 x 150 80 x 200
GN304020 GNT304020 300 x 400 x 200 140 x 300
GN403015 GNT403015 400 x 300 x 150 80 x 200
GN403020 GNT403020 400 x 300 x 200 140 x 230
GN404015 GNT404015 400 x 400 x 150 80 x 300
1 2GN404020 GNT404020 400 x 400 x 200
140 x 300
GN404025 GNT404025 400 x 400 x 250
GN406020 GNT406020 400 x 600 x 200
140 x 500 1 2GN406025 GNT406025 400 x 600 x 250
GN406030 GNT406030 400 x 600 x 300
GN503015 GNT503015 500 x 300 x 150 80 x 200
2 2GN503020 GNT503020 500 x 300 x 200
140 x 230
GN503025 GNT503025 500 x 300 x 250
GN504015 GNT504015 500 x 400 x 150 80 x 300
2 2
GN504020 GNT504020 500 x 400 x 200
140 x 300GN504025 GNT504025 500 x 400 x 250
GN504030 GNT504030 500 x 400 x 300
GN505015 GNT505015 500 x 500 x 150 80 x 300
2 2
GN505020 GNT505020 500 x 500 x 200
140 x 400GN505025 GNT505025 500 x 500 x 250
GN505030 GNT505030 500 x 500 x 300
GN507020 GNT507020 500 x 700 x 200 140 x 500 2 2
GN604015 GNT604015 600 x 400 x 150 80 x 300
2 2
GN604020 GNT604020 600 x 400 x 200
140 x 300GN604025 GNT604025 600 x 400 x 250
GN604030 GNT604030 600 x 400 x 300
GN605015 GNT605015 600 x 500 x 150 80 x 300 2 2
GN605020 GNT605020 600 x 500 x 200
140 x 400 2 2GN605025 GNT605025 600 x 500 x 250
GN605030 GNT605030 600 x 500 x 300
GN606020 GNT606020 600 x 600 x 200
140 x 500 2 2
GN606025 GNT606025 600 x 600 x 250
GN606030 GNT606030 600 x 600 x 300
GN606040 GNT606040 600 x 600 x 400
GN608030 GNT608030 600 x 800 x 300 140 x 700 2 2
GN705015 GNT705015 700 x 500 x 150 80 x 300
2 2GN705020 GNT705020 700 x 500 x 200
140 x 400
GN705025 GNT705025 700 x 500 x 250
GN804020 GNT804020 800 x 400 x 200
140 x 300 2 3GN804025 GNT804025 800 x 400 x 250
GN804030 GNT804030 800 x 400 x 300
GN806020 GNT806020 800 x 600 x 200
140 x 500 2 3
GN806025 GNT806025 800 x 600 x 250
GN806030 GNT806030 800 x 600 x 300
GN806040 GNT806040 800 x 600 x 400
IP66 / NEMA 1,12, 4
For transparent doors,
please ask for delivery
terms.

134
ENCLOSURES
Argenta ATEX IP66
(mm) Cable entries Locks
number
Hinges
number
ATX302015 300x200x150 80x150 1 2
ATX302515 300x250x150 80x150 1 2
ATX303015 300x300x150 80x200 1 2
ATX303020 300x300x200 140x230 1 2
ATX403020 400x300x200 140x230 1 2
ATX404020 400x400x200 140x300 1 2
ATX406020 400x600x200 140x500 1 2
ATX504020 500x400x200 140x300 2 2
ATX604020 600x400x200 140x300 2 2
ATX604025 600x400x250 140x300 2 2
ATX605025 600x500x250 140x400 2 2
ATX606025 600x600x250 140x500 2 2
ATX705025 700x500x250 140x400 2 2
ATX806030 800x600x300 140x500 2 3
ATX808030 800x800x300 140x700 2 3
ATX1008030 1.000x800x300 140x700 3P 3
INCLUDES mounting plate + 4 wall
brackets
IP66 / NEMA 1,12, 4.
Mild Steel Cabinets
304L Stainless Steel Cabinets
Commercial Ref. Dimensions (mm) Locks
number
Hinges
number
ATX302015/INX 300x200x150 1 2
ATX302515/INX 300x250x150 1 2
ATX303015/INX 300x300x150 1 2
ATX403020/INX 400x300x200 1 2
ATX404020/INX 400x400x200 1 2
ATX406020/INX 400x600x200 1 2
ATX504020/INX 500x400x200 2 2
ATX604020/INX 600x400x200 2 2
ATX605025/INX 600x500x250 2 2
ATX606025/INX 600x600x250 2 2
ATX705025/INX 700x500x250 2 2
ATX806030/INX 800x600x300 2 3
ATX808030/INX 800x800x300 2 3
ATX1008030/INX 1.000x800x300 3P 3
IP66 Wall Mounting Metal Cabinets Single Door
(mm)
(A x B x C)
Cable entries
(D x E)
Locks
number
Hinges
numberOPAQUE door TRANSPARENT door
GN808020 GNT808020 800 x 800 x 200
140 x 700 2 3
GN808025 GNT808025 800 x 800 x 250
GN808030 GNT808030 800 x 800 x 300
GN808040 GNT808040 800 x 800 x 400
GN8010030 GNT8010030 800 x 1.000 x 300 140 x 900 2 3
GN1006025 GNT1006025 1.000 x 600 x 250
140 x 500 3P 3GN1006030 GNT1006030 1.000 x 600 x 300
GN1006040 GNT1006040 1.000 x 600 x 400
GN1008025 GNT1008025 1.000 x 800 x 250
140 x 700 3P 3GN1008030 GNT1008030 1.000 x 800 x 300
GN1008040 GNT1008040 1.000 x 800 x 400
GN10010030 GNT10010030 1.000 x 1.000 x 300 140 x 900 3P 3
GN1206025 GNT1206025 1.200 x 600 x 250 140 x 500 3P 3
GN1206030 GNT1206030 1.200 x 600 x 300
140 x 500 3P 3
GN1206040 GNT1206040 1.200 x 600 x 400
GN1208030 GNT1208030 1.200 x 800 x 300
140 x 700 3P 3
GN1208040 GNT1208040 1.200 x 800 x 400
GN1209030 GNT1209030 1.200 x 900 x 285 140 x 700 3P 3
GN12010030 GNT12010030 1.200 x 1.000 x 300 140 x 900 3P 3
GN12012025 GNT12012025 1.200 x 1.200 x 250 2 x (140 x 500) 3P 3
IP66 / NEMA 1,12, 4
For transparent doors,
please ask for delivery
terms.
3P: Three-point lock

135
ENCLOSURES
Wall Mounted IP66 Stainless Steel Encolsures
Commercial Ref. Dimensions (mm) Locks
number
Hinges
number
INX302015 300x 200 x 150 1 2
INX302515 300x 200 x 150 1 2
INX303015 300x 300 x 150 1 2
INX403020 400x 300 x 200 1 2
INX404020 400 x 400 x 200 1 2
INX406020 400 x 600 x 200 1 2
INX504020 500 x 400 x 200 2 2
INX604020 600 x 400 x 200 2 2
INX605025 600 x 500 x 250 2 2
INX606025 600 x 600 x 250 2 2
INX705025 700 x 500 x 250 2 2
INX806030 800 x 600 x 300 2 3
INX808030 800 x 800 x 300 2 3
INX1008030 1.000 x 800 x 300 3P 3
IINX10010030/PD 1.000 x 1.000 x 300 3P 3
INX12010030/PD 1.200 x 1.000x 300 3P 3
Single door: IP66 / NEMA 1,12, 4x
Double door: IP55 / NEMA 1,12
AISI 304L
For 316L cabinets please ask for prices and delivery time
/PD: Double-door cabinet
Dimensions
Stainless steel cabinets without cable entry

136
ENCLOSURES
Accessories Argenta
Plain And Grooved Plates
PLAIN
references
GROOVED
references
Dimensions (mm)(A
x B) Cabinet Ref.
PL2520 PLU2520 220 x 150 GN252015
PL2525 PLU2525 220 x 200 GN252515
PL3020 PLU3020 270 x 150 GN302015
PL3025 PLU3025 270 x 200 GN302515 / GN302520
PL3030 PLU3030 270 x 250 GN303015 / GN303020
PL3040 PLU3040 270 x 350 GN304015 / GN304020
PL4030 PLU4030 370 x 250 GN403015 / GN403020
PL4040 PLU4040 370 x 350 GN404015 / GN404020
PL4060 PLU4060 400 x 550
GN406020 / GN406025
GN406030
PL5030 PLU5030 470 x 250
GN503015 / GN503020
GN503025
PL5040 PLU5040 470 x 350
GN504015 / GN504020
GN504025 / GN504030
PL5050 PLU5050 470 x 450
GN505015 / GN505020
GN505025 / GN505030
PL5070 PLU5070 470 x 650 GN507020
PL6040 PLU6040 570 x 350
GN604015 / GN604020
GN604025 / GN604030
PL6050 PLU6050 570 x 450
GN605015 / GN605020
GN605025 / GN605030
PL6060 PLU6060 570 x 550
GN606020 / GN606025
GN606030 / GN606040
PL6080 PLU6080 570 x 750 GN608030
PL7050 PLU7050 670 x 450
GN705015 / GN705020
GN705025
PL8040 PLU8040 770 x 350 GN804020 / GN804025
PL8060 PLU8060 770 x 550
GN806020 / GN806025
GN806030 / GN806040
PL8080 PLU8080 770 x 750
GN808020 / GN808025
GN808030 / GN808040
PL80100 PLU80100 770 x 950
GN8010020 / GN8010030
GN8010040
PL80120 PLU80120 770 x 1.150 GN8012030 / GN8012040
PL10060 PLU10060 970 x 550
GN1006025 / GN1006030
GN1006040
PL10080 PLU10080 970 x 750
GN1008025 / GN1008030
GN1008040
PL100100 PLU100100 970 x 950 GN10010030 / GN10010040
PL100120 PLU100120 970 x 1.150 GN10012030 / GN10012040
PL12060 PLU12060 1.170 x 550
GN1206025 / GN1206030
GN1206040
PL12080 PLU12080 1.170 x 750 GN1208030 / GN1208040
PL12090 PLU12090 1.170 x 850 GN1209030
PL120100 PLU120100 1.170 x 950 GN12010030 / GN12010040
PL120120 PLU120120 1.170 x 1.150
GN12012025 /
GN12012030GN12012040
48228
4 height adjusters + 4 anti rotation nuts bag
(to be orderned apart)
Accessories
MADE OF:
Galvanized steel

137
ENCLOSURES
This series is made up of a series of cabinets manufactured in
hot pressed polyester reinforced with fibre glass, halogen free, which
gives the series a really high performance level.
There are ip 66 cabinets, and are available in 7 different sizes, in
RAL9002 grey colour. They are symmetric and reversible in many
cases, thus obtaining a high degree of versatility for carrying
all types of electric, pneumatic, hydraulic and communications
installations, etc. The base is manufactured in just one piece thus
guaranteeing optimum inner space and increasing its resistance to
impact.
There are also cabinets which have an ip 55 degree of protection
(1000 (H) x 750 (W)), made in RAL7035 grey colour.
its double insulation characteristics guarantee maximum safety both
for the installations and for persons.
TECHNICAL DATA IP66
test of resistance to glow wire 960ºC
thermic class 150ºC
materials Hot moulded fibreglass
reinforced polyester (GRP)
colour RAL 9002
According to 2006/95/EC directive and UNE-EN 62208 and
UNE-EN 60439-1-3 norms, on affected parts.
TECHNICAL DATA IP55
test of resistance to glow wire 960ºC
thermic class 150ºC
materials Hot moulded fibreglass
reinforced polyester (GRP)
colour RAL 7035
According to 2006/95/EC directive and UNE-EN 62208 and
UNE-EN 60439-1-3 norms, on affected parts.
Polyester
Polyester Encolsures IP66 - IP55

138
ENCLOSURES
Features Polyester
Polyester 66
Built - In / Surrounding Protection EDGE
- Guarantee the possibility to open the door 180º in built-in installations.
- Avoid entrance of water while opening the door.
- Guarantee that the cabinet is straight in comparison with the surface.
Easy Fitting
- Quick fixture guides in the back.
- Permits fitting without drilling.
Internal Zamak Hinge
- 180º door opening warranted.
Corrosion free.
STANDARD LOCK
2x double bit D i N 3,0 mm, Supplied without the necessary accessories for direct wall mounting
Opaque Door Cabinets
Commercial ref.
POL302514 300x250x140
POL403020 400x300x200
POL404020 400x400x200
POL504020 500x400x200
POL604023 600x400x230
POL605023 600x500x230
POL806030 800x600x300
Commercial ref.
POL302514PT 300x250x140
POL403020PT 400x300x200
POL404020PT 400x400x200
POL504020PT 500x400x200
POL604023PT 600x400x230
POL605023PT 600x500x230
POL806030PT 800x600x300
Transparent Door Cabinets

139
ENCLOSURES
Polyester IP66 Accessories
Commercial ref. Cabinet Ref.
PPL3025 4 mm thickness 300x250x140
Polyester Base Plate
Commercial ref.
29221 4 wall fixing set with head-insulated screws
29222 4 set of adjustable brackets
Commercial ref.
29223 For 200 mm depth cabinets
Set of four profiles for the adjustment of the base plate, to different depths
Surface Mounting
Adjistable Base Plate
Com. ref. Water evacuation Torque dimensions operating/ storage
temperature
rAL Level of protection
48337 - - 70x50x21 7035 IP45
48338 1.200 l/h (70 mbar) 5 Nm (10 Nm max) Ø 60x37 -45°C +70°C 7035 IP66/IP67
48339 200 ml/h* 6 Nm max Ø 60x49,5 -45°C +70°C 7022 IP66/IP67
* i n a 5 mm water column
Devices
Dimensions
External Measures Internal Measures
A b C d e f G H i j K L M
POL302514 300 250 140 297 248 215 330 - - 115 220 75 35,5
POL403020 400 300 200 344 338 262 420 158 138 121 281 89,5 53
POL404020 400 400 200 444 338 362 420 158 138 221 281 89,5 53
POL504020 500 400 200 444 438 362 520 158 138 221 381 89,5 53
POL604023 600 400 230 444 538 362 620 187 1678 221 481 89,5 53
POL605023 600 500 230 544 538 462 620 187 167 321 481 89,5 53
POL806030 800 600 300 640 734 558 816 257 237 421 681 89,5 53

05 enclosures

More Related Content

What's hot (17)

Viewers also liked (20)

Similar to 05 enclosures (20)

More from psize web (6)

Recently uploaded (20)

05 enclosures
